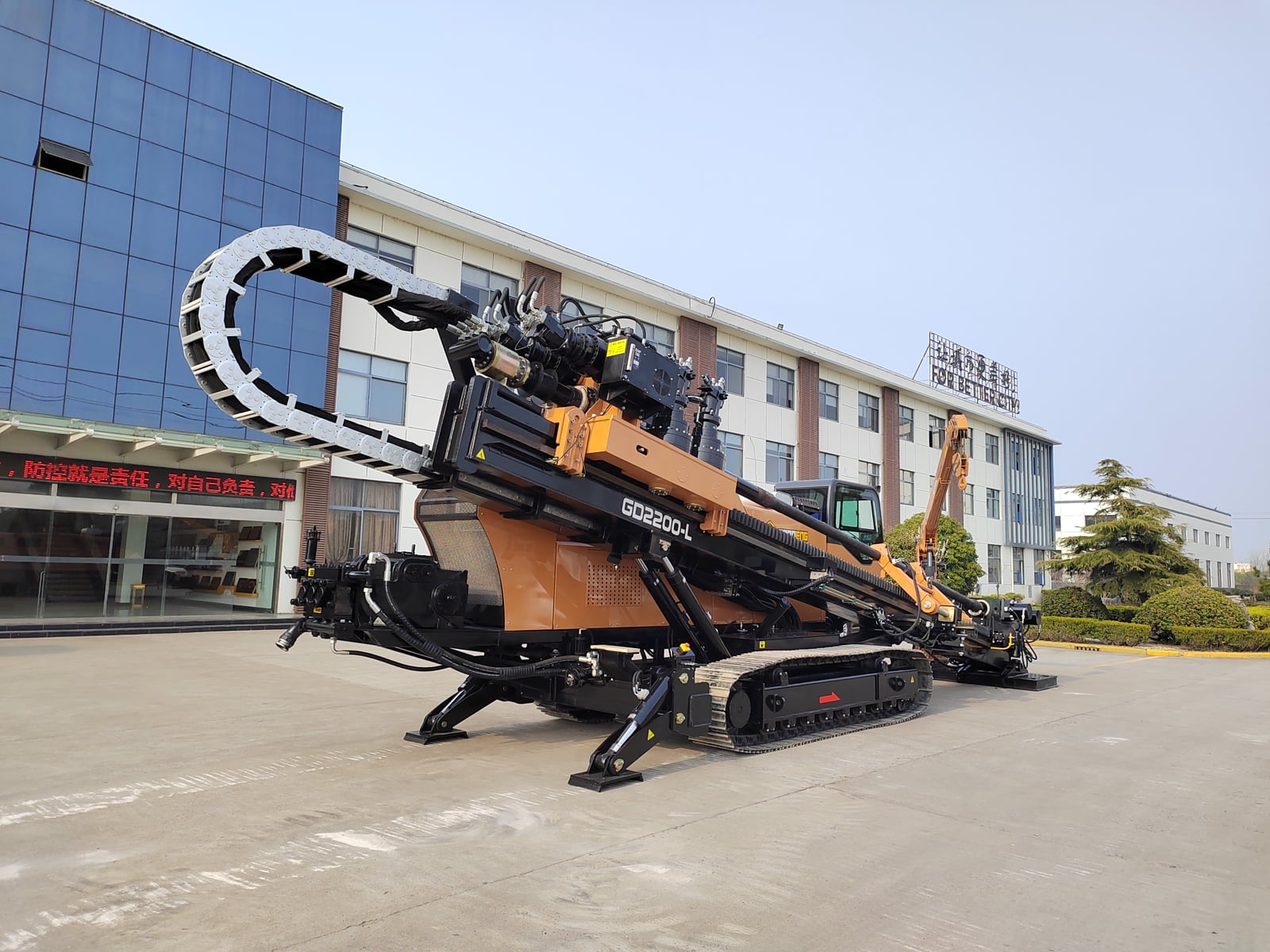

In large-scale pipeline infrastructure and energy trunk line crossings, the 220-ton (2200kN) horizontal directional drilling (HDD) rig serves as a critical asset. While multiple options exist in the global market, a detailed technical comparison between the Goodeng GS2200-LS and a certain mainstream brand's 220-ton model highlights significant engineering advantages for the GS2200-LS in terms of system redundancy, hydraulic efficiency, structural safety, and drill pipe protection.

           1. True Dual-Engine Redundancy and Independent Systems

           The power configuration forms the heart of any maxi-rig, but architectural design determines reliability on site:

• Goodeng GS2200-LS: Features a genuine dual-engine, dual-independent system setup. If one engine experiences an unexpected fault or requires maintenance mid-bore, the remaining engine and its dedicated hydraulic system can continue working independently to finish the pullback, preventing catastrophic borehole collapse.

• Certain Mainstream Brand: Utilizes a standard dual-engine configuration but lacks completely independent systems. The engines cannot be operated in full isolation, meaning a failure in one can compromise the entire operation.

  2. Advanced Closed-Loop Hydraulic System vs. Load-Sensing Open-Loop

  While both machines utilize premium Rexroth motors, their hydraulic pump architectures differ fundamentally. The GS2200-LS incorporates a Linde closed-loop pump for thrust and pullback operations, whereas the alternative brand utilizes a Load-Sensing (LS) open-loop pump system (Sauer Danfoss). The closed-loop design delivers several distinct engineering benefits:

• Higher Transmission Efficiency & Fuel Savings: Closed-loop circuits eliminate the massive overflow and throttling losses typical of open-loop systems. LS open pumps frequently dump excess flow to relieve pressure, generating wasted heat and fuel consumption.
• Exceptional Low-Speed Micro-Control: The closed system builds pressure even at zero rotation speed, eliminating low-speed crawling or juddering, which provides superior micro-adjustment and smoother steering compared to the lagged response of LS systems.
• Simplified, High-Reliability Structure: Reversing direction is achieved directly via changing the swash plate angle of the pump, completely removing the need for large-diameter directional control valves. This significantly reduces valve leakage points and pipe joints, lowering the overall failure rate.
• Robust Torque & Shock Resistance: The hydraulic rigidity of the closed loop enables the rig to sustain sudden shock loads or stalling resistance without experiencing severe speed drops or pressure spikes.
• Lower Thermal Load: Because it avoids excessive overflow shedding, the closed system operates 5-10°C cooler than open-loop alternatives, vastly extending the operational life of hydraulic oil and seals.
• Faster Response & Compact Layout: Speed adjustments are immediate without valve-induced lag. Furthermore, the omission of heavy multi-way valves and massive return piping leaves a cleaner, simplified chassis layout.

           3. Automation and Patented Mechanical Arm Technology

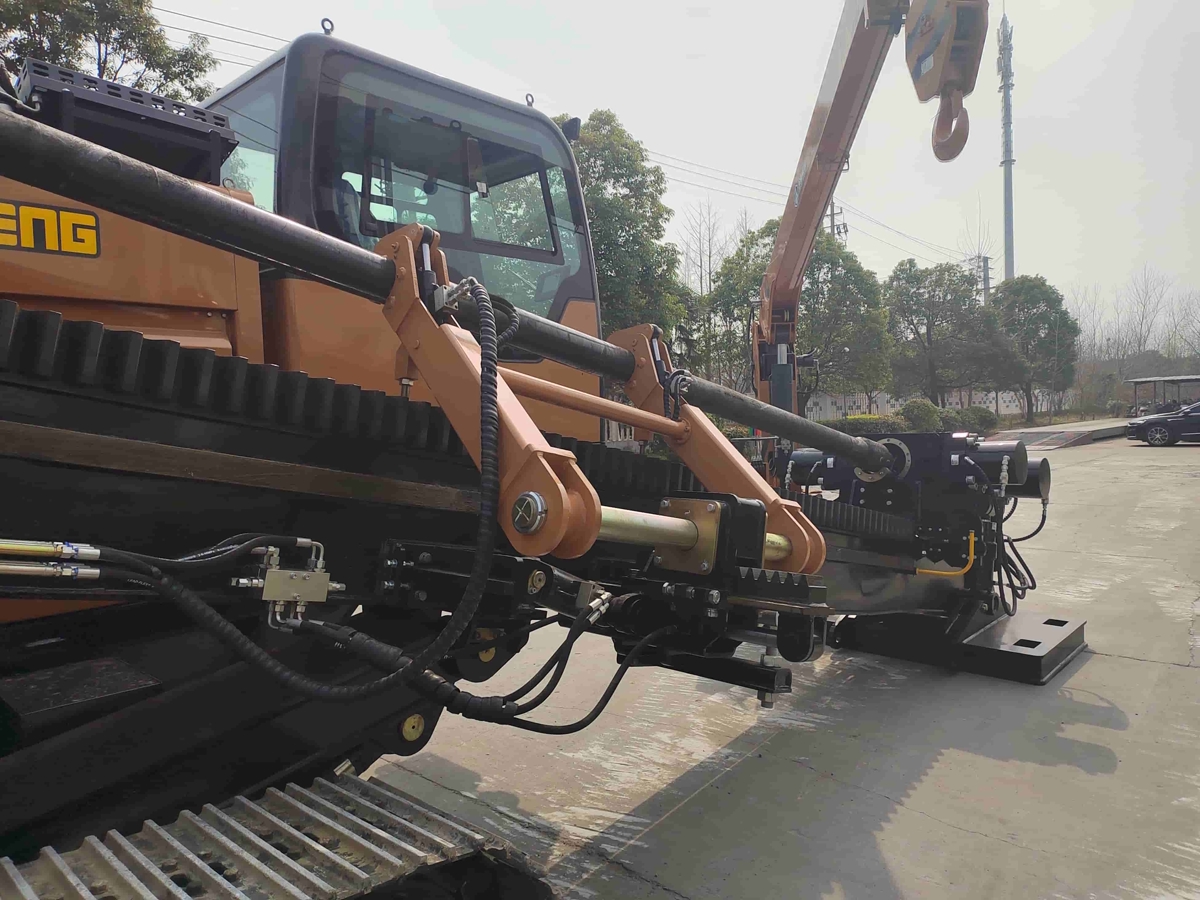

           To optimize on-site labor allocation and cycle efficiency, the GS2200-LS is equipped with Goodeng's patented rotating mechanical arm. The system automates drill pipe handling, significantly reducing manual labor intensity and ensuring rapid, high-frequency pipe cycling during continuous operations.

      4. Low-Center Gripper and Enhanced Proximity Entry

      The structural positioning of the gripper influences structural stress on the drill string:

• The GS2200-LS features a low-center-point gripper design, allowing the entry point to be positioned closer to the ground.

• This optimization shortens the unsupported span of the drill pipe, maximizing stability, minimizing bending stress, and protecting the pipe shaft from premature fatigue failure.

• Additionally, this compact lower arrangement drastically improves the machine's adaptability when executing bores in highly restricted or narrow municipal job sites.

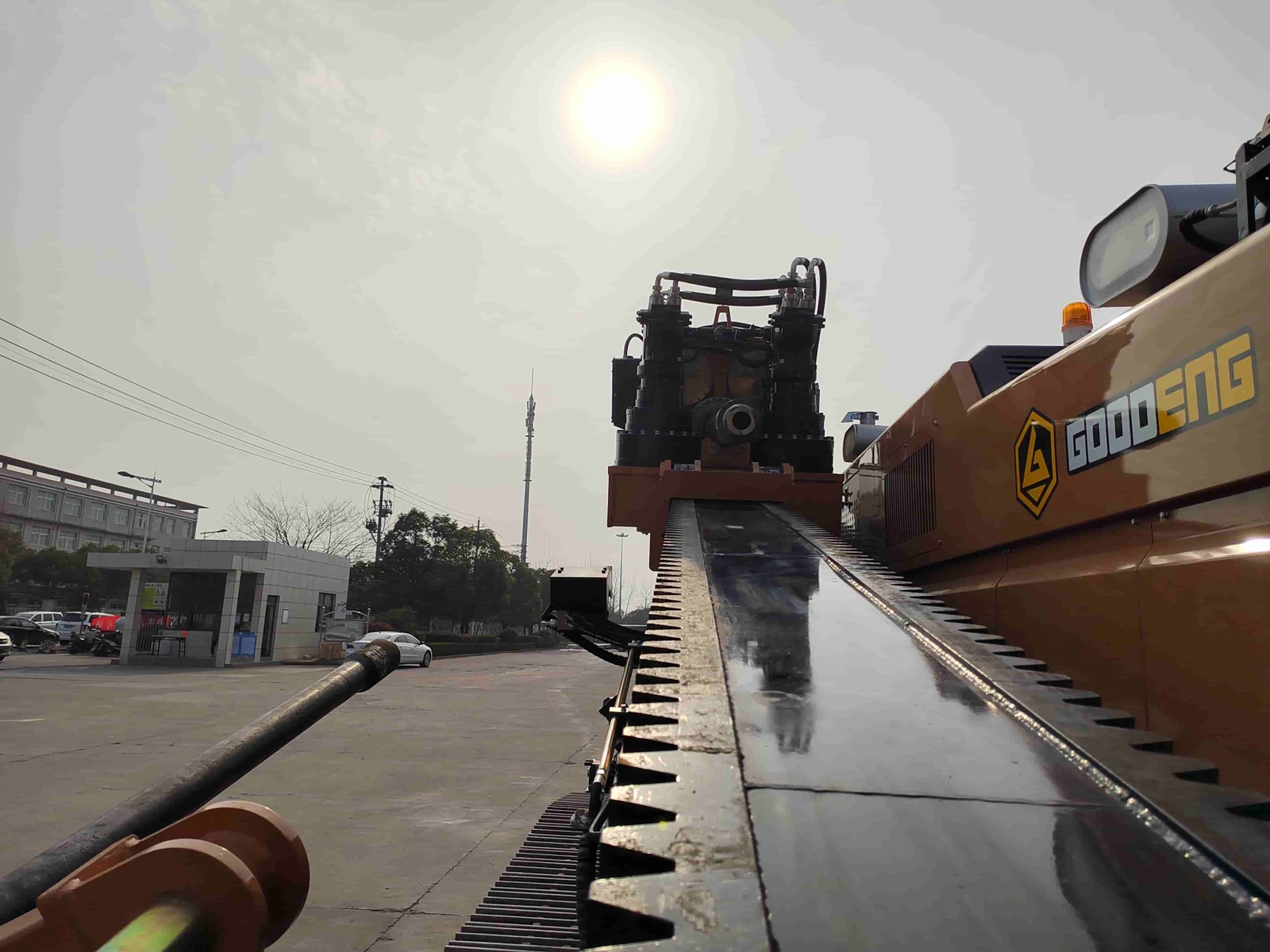

      5. Main shaft Floating Technology vs. Power Head Floating

      For heavy-duty HDD operations using large-diameter drill pipes, thread damage represents a major financial and operational liability. The two brands approach thread protection with different philosophies:

• Goodeng GS2200-LS (Main shaft Floating): The main shaft itself moves flexibly to achieve soft makeup and breakout of threads. This effectively dampens the massive inertia of the power head, preventing thread galling, burning, or over-torque stripping during makeup. Furthermore, when down hole drilling resistance fluctuates violently, the main shaft rapidly expands and contracts to absorb axial impacts, protecting the drill pipe threads from instantaneous tensile or compressive stress spikes.

• Certain Mainstream Brand (Power Head Floating): Relies on the floating movement of the entire power head assembly. Due to the high mass and inertia of the complete power head unit, it delivers a much harsher "hard impact" to the thread faces, increasing the risk of early thread fatigue and failure on large-diameter drill rods.

      By delivering true system redundancy, highly efficient closed-loop hydraulics, advanced mechanical pipe automation, and superior thread protection engineering under the same baseline power, the Goodeng GS2200-LS sets a new benchmark for risk management, operational longevity, and cost efficiency within the 220-ton horizontal directional drilling machinery segment.
