What Type of Pipe Is Used for Horizontal Directional Drilling (HDD)?

Horizontal Directional Drilling (HDD) has become one of the most efficient trenchless technologies for installing underground utilities such as water pipelines, gas lines, telecommunications conduits, and power cables. One of the most common questions from contractors and project owners is:

What type of pipe is used for horizontal directional drilling?

The answer depends on whether you are referring to the product pipe that remains underground after installation or the drill string pipe used during the drilling process.

HDPE: The Most Common HDD Product Pipe

High-Density Polyethylene (HDPE) is the most widely used pipe material for HDD projects around the world.

Why HDPE Is Preferred

• Excellent flexibility – HDPE can bend to follow the curved bore path created by an HDD machine.
• Leak-free fused joints – Sections are joined by heat fusion, creating a continuous pipe with no mechanical joints that could leak underground.
• Corrosion resistance – HDPE is not affected by soil chemicals, moisture, or electrolysis.
• Long service life – Properly installed HDPE pipelines can operate for several decades with minimal maintenance.
• Smooth internal surface – Reduces friction losses and improves flow efficiency.

Typical Applications

• Municipal water supply
• Natural gas distribution
• Sewer force mains
• Telecommunications ducts
• Fiber optic conduit systems

For most utility installations, HDPE is considered the standard product pipe for HDD operations because it combines flexibility, durability, and ease of installation.

Other Approved HDD Pipe Materials

While HDPE is the dominant choice, several other pipe materials are commonly approved for HDD installations depending on project requirements.

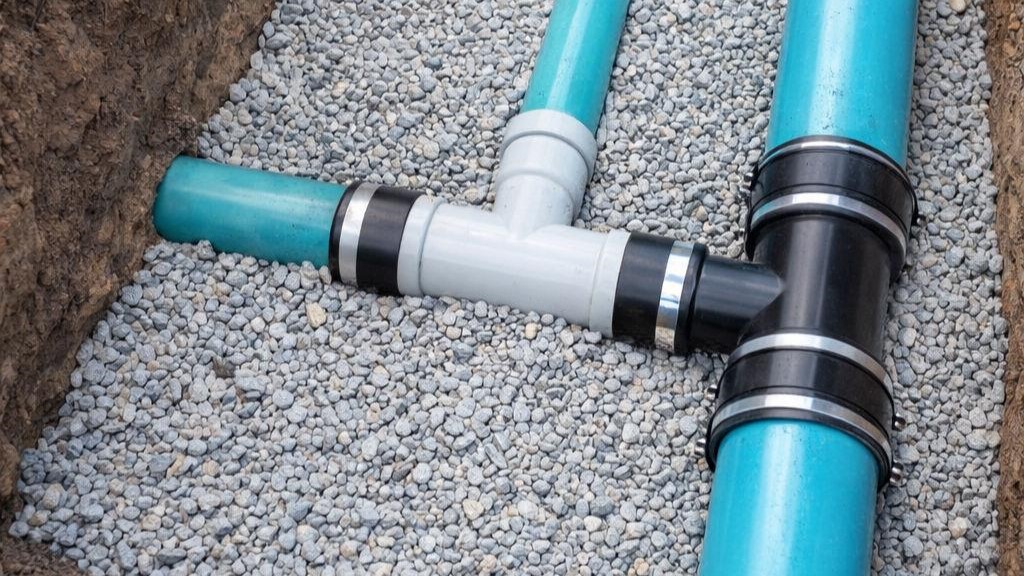

Fusible PVC Pipe

Fusible PVC offers the hydraulic advantages of conventional PVC while adding joints designed to withstand HDD pullback forces.

Advantages

• Higher stiffness than HDPE
• Excellent flow characteristics
• Corrosion resistant
• Suitable for potable water systems

Fusible PVC is often selected when engineers require the rigidity of PVC but still need a continuous restrained pipe system capable of being pulled through a borehole.

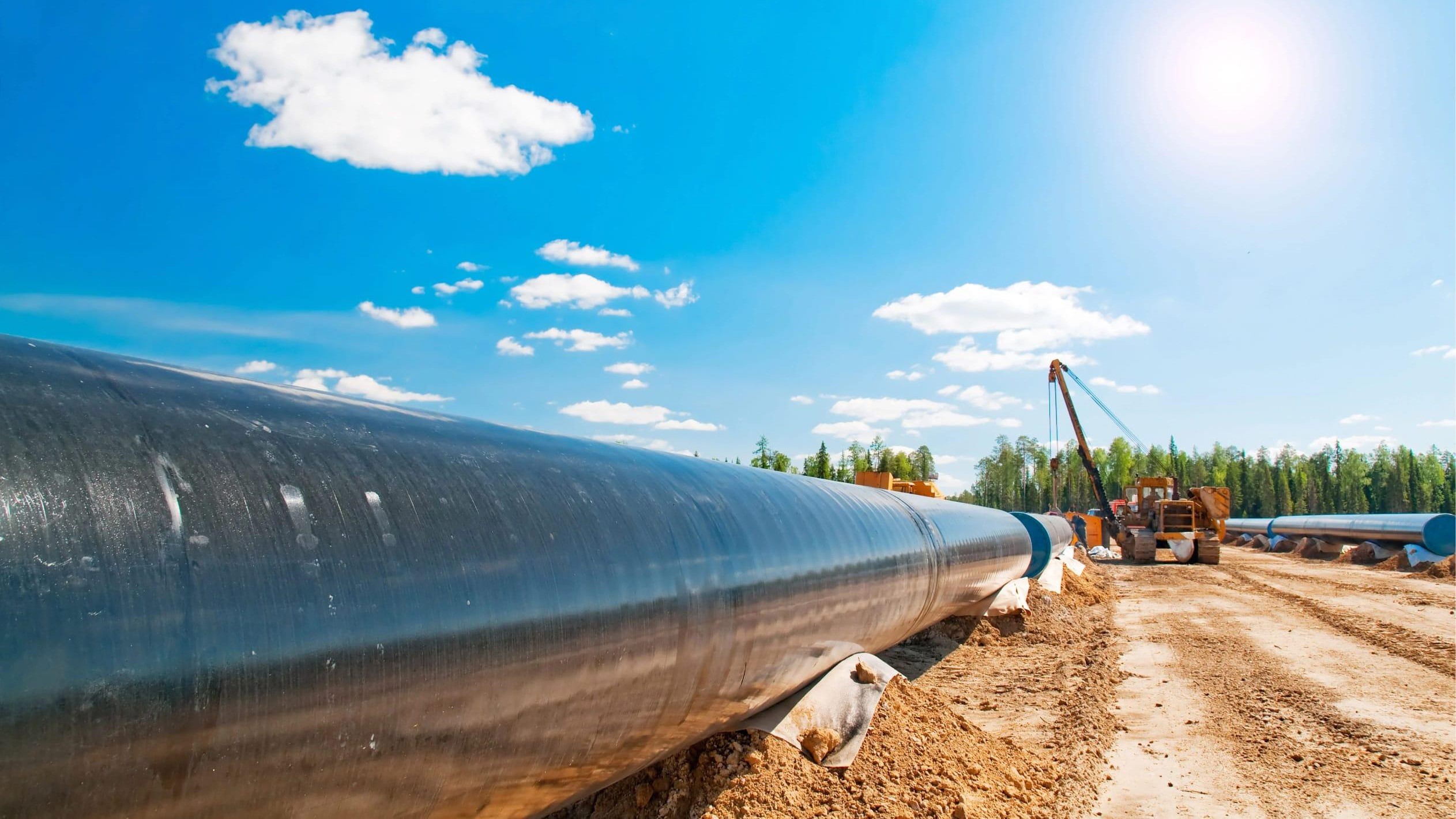

Steel Pipe

Welded steel pipe is commonly used for demanding HDD crossings where high strength is required.

Typical Uses

• High-pressure oil and gas pipelines
• Long river crossings
• Major highway or railway crossings
• Structural casing installations
• Industrial process pipelines

Steel pipe can withstand extreme pulling loads, internal pressure, and external ground forces, making it ideal for large-diameter and heavy-duty HDD projects.

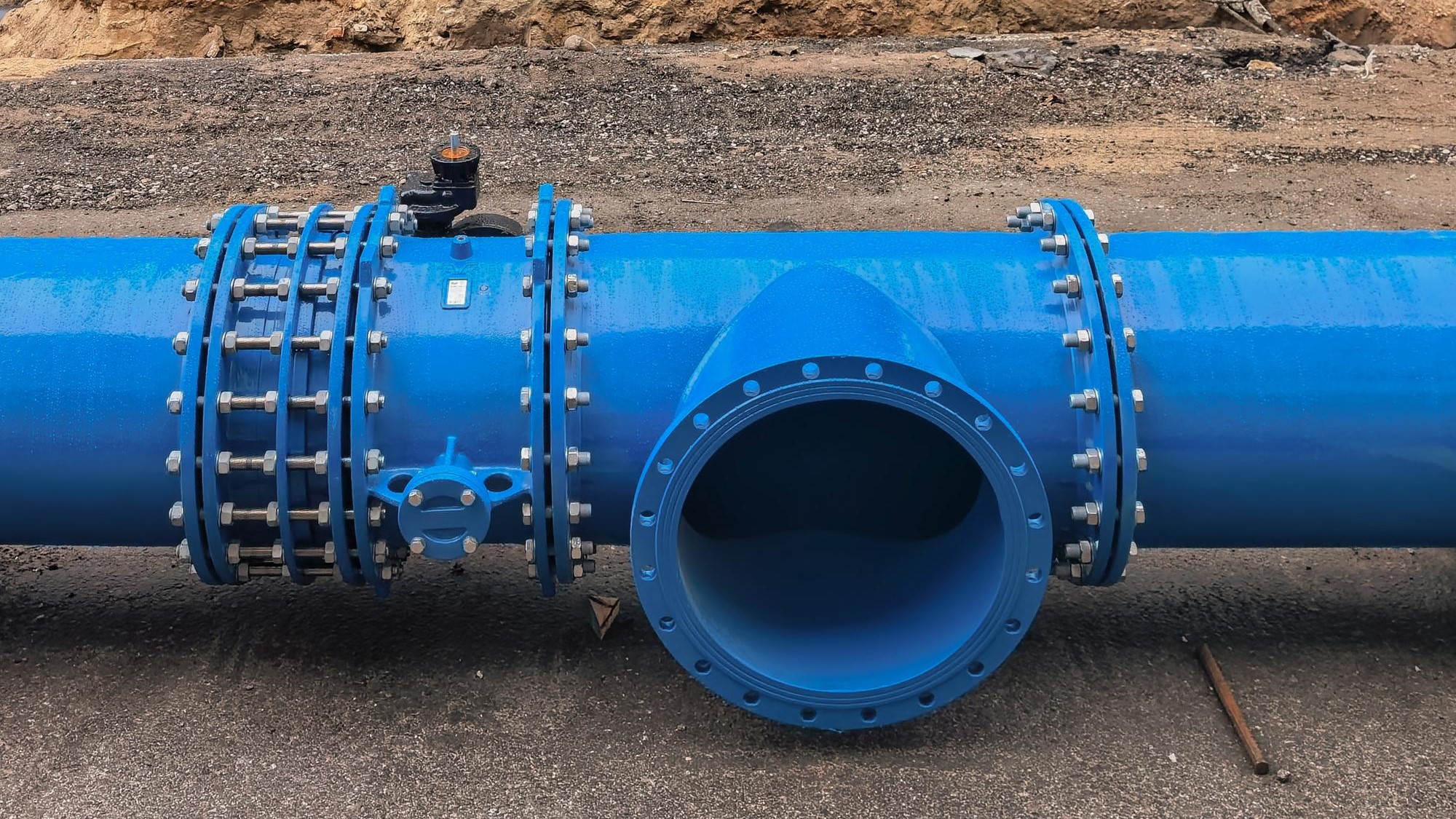

Restrained-Joint Ductile Iron Pipe

Ductile iron pipe used for HDD is different from standard push-on joint pipe. It uses special restrained joints that lock together securely so the pipeline can tolerate the tensile forces generated during pullback.

Benefits

• High structural strength
• Excellent impact resistance
• Suitable for municipal water and wastewater systems
• Performs well in difficult ground conditions

This option is typically chosen when project specifications require ductile iron infrastructure but trenchless installation is necessary.

What Pipe Is Used During the Drilling Process?

The pipe that stays underground is only part of the HDD system. The drilling operation itself uses a completely different type of pipe called the drill string.

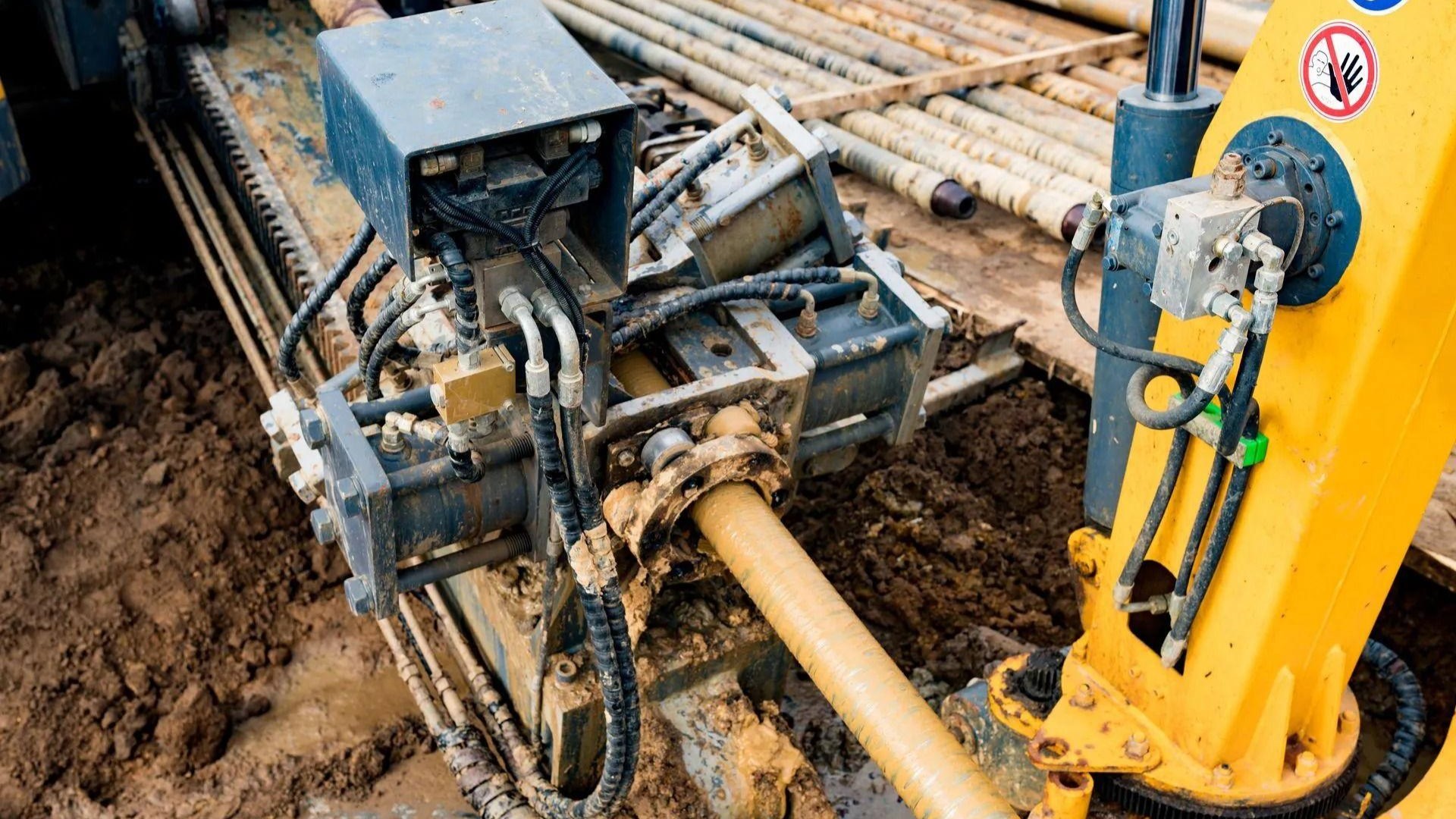

Forged Steel Drill Rods

HDD drill strings consist of high-strength hollow steel rods connected behind the drill head.

Their Functions

• Push the drill head forward
• Transmit rotational torque from the drilling rig
• Carry drilling fluid to the cutting face
• Transmit steering and locating information
• Pull the reamer and product pipe back through the bore

Because drill rods experience high rotational torque, bending stress, and tensile loading, they are manufactured from specially forged alloy steel rather than ordinary pipe materials.

Quick Comparison of HDD Pipe Types

How to Choose the Right HDD Pipe

Selecting the proper pipe material depends on several engineering factors:

Consider HDPE when:

• The bore includes curves or tight bend radii
• Leak-free joints are critical
• Corrosion resistance is important
• Installation speed is a priority

Consider Steel when:

• Internal pressure is very high
• The crossing is extremely long
• External loads are severe
• Structural strength is the primary concern

Consider Fusible PVC or Ductile Iron when:

• Municipal standards specify these materials
• Higher pipe stiffness is required
• Existing utility systems use the same pipe material

Conclusion

For horizontal directional drilling, the most commonly used product pipe is High-Density Polyethylene (HDPE) because its flexibility and heat-fused leak-free joints make it exceptionally well suited for trenchless installation.

Other approved HDD pipe materials include:

• Fusible PVC for rigid water pipeline applications
• Welded steel pipe for high-pressure and heavy-duty crossings
• Restrained-joint ductile iron pipe for municipal infrastructure projects

During the actual drilling operation, HDD rigs use high-strength forged steel drill rods, which are specifically engineered to withstand the torque, bending, and pulling forces generated during pilot drilling, reaming, and pullback.

Understanding the difference between product pipe materials and drill string components is essential for selecting the safest, most economical, and most reliable solution for any HDD project.
