What Is Horizontal Directional Drilling?

Horizontal Directional Drilling, commonly known as HDD, is a trenchless installation method used to install underground pipelines and cables without continuously excavating the ground surface.

An HDD project generally consists of three major stages:

Step 1: Pilot Drilling

The HDD machine drills a relatively small pilot bore along the designed underground alignment.

A locating system is normally used to monitor the position and direction of the drill head.

Step 2: Hole Enlargement

After the pilot bore is completed, the borehole can be enlarged using reamers to achieve the required diameter.

Step 3: Product Pipe Pullback

The product pipeline is connected to the drilling string and pulled back through the prepared borehole.

This process allows the pipeline to pass beneath:

• Roads
• Railways
• Rivers
• Buildings
• Environmentally sensitive areas
• Other surface obstacles

without requiring a continuous open trench.

What Is Pipe Jacking?

Pipe jacking is another trenchless construction method.

Unlike HDD, pipe jacking generally uses a launching shaft and receiving shaft. A pipe-jacking machine or microtunneling machine excavates the underground material while hydraulic jacks installed in the launch shaft push the pipeline forward.

Depending on the machine and ground conditions, different excavation and slurry/soil-handling systems can be used.

Herrenknecht is one of the world's well-known manufacturers of mechanized tunnelling and microtunnelling equipment.

Its equipment portfolio includes technologies used for applications such as:

• Microtunnelling
• Pipe jacking
• Utility installation
• Water and sewer pipelines
• Urban underground infrastructure

A typical pipe-jacking operation involves:

Launch Shaft → Excavation/Separation → Pipe Jacking → Intermediate Stations if Required → Receiving Shaft

The pipe is installed progressively as excavation advances.

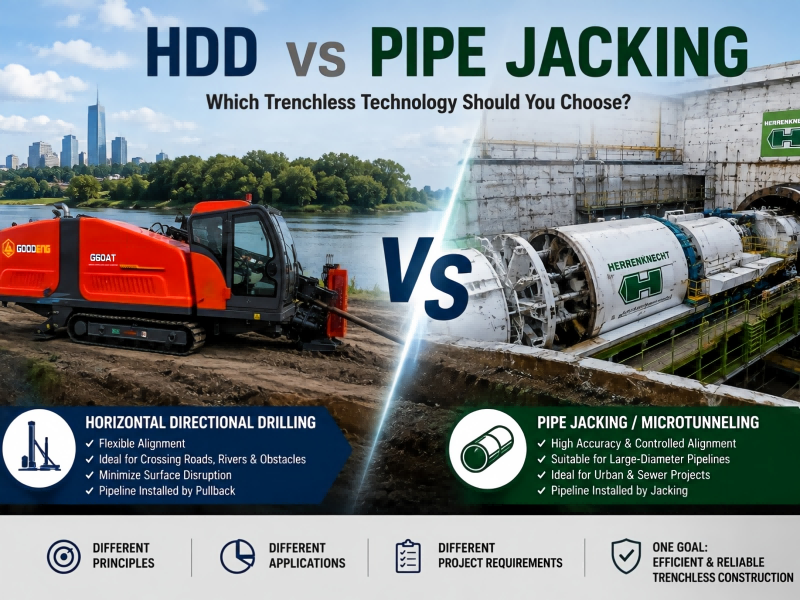

HDD vs Pipe Jacking: Key Differences

The fundamental difference is the way the underground pipeline is installed.

Important: Neither technology is universally better. The correct choice depends on the engineering requirements of the project.

HDD vs Pipe Jacking: Which One Is More Flexible?

For many utility-crossing projects, HDD offers greater flexibility in terms of alignment and access.

HDD is often advantageous when:

• A road needs to be crossed
• A river needs to be crossed
• Surface excavation must be minimized
• The installation requires a curved alignment
• There is limited space for large shafts
• A pipeline can be installed by pullback

Pipe jacking may be advantageous when:

• Large-diameter pipelines are required
• A controlled tunnel alignment is required
• Launch and receiving shafts are available
• The project involves urban sewer infrastructure
• Mechanized excavation is preferred
• The pipeline is installed progressively by jacking

HDD vs Pipe Jacking: Project Selection Guide

The following simplified guide can help contractors make an initial assessment.

This table is a preliminary technology-selection guide rather than a substitute for project engineering.

HDD vs Pipe Jacking: How Ground Conditions Affect the Choice

Geology is one of the most important factors in trenchless construction.

Before choosing equipment, contractors should investigate:

• Soil type
• Rock formations
• Groundwater
• Mixed ground
• Existing underground utilities
• Ground stability
• Borehole stability
• Required depth

For HDD projects, drilling fluid and tooling selection are especially important.

For pipe jacking and microtunneling, cutterhead configuration, slurry/soil handling and machine selection must be matched to the geological conditions.

Therefore, the same machine may not be suitable for every project.

HDD or Pipe Jacking: Which Technology Should You Choose?

There is no universal answer.

A practical decision can start with five questions:

1. What is the pipeline diameter?

Small and medium utility pipelines may often be well suited to HDD.

Large-diameter pipelines may make pipe jacking or other mechanized tunnelling methods more attractive, depending on project conditions.

2. How long is the crossing?

Long crossings can be suitable for HDD, but the actual feasibility depends on geology, pipe diameter, pullback requirements and project design.

3. What is the ground condition?

Soil and rock conditions directly affect machine configuration, tooling and drilling/excavation methods.

4. How much working space is available?

HDD generally works from entry and exit areas, while pipe jacking normally requires launch and receiving shafts.

5. What type of infrastructure is being installed?

Fiber optic cables, power cables, gas pipelines and road/river crossings are common HDD applications.

Large sewer and utility pipeline projects are common applications for pipe jacking and microtunneling.

HDD vs Pipe Jacking: The Final Comparison

The key difference can be summarized as follows:

HDD focuses on directional drilling and product-pipe pullback.

Pipe jacking focuses on controlled underground excavation and progressive pipe installation.

Neither technology should be considered universally superior.

Instead, the best solution depends on:

Diameter + Length + Geology + Alignment + Access + Pipeline Type + Project Cost

For contractors, engineers and project owners, selecting the right trenchless technology at the planning stage can have a significant impact on construction efficiency, project cost and overall risk.

Conclusion

HDD and Pipe Jacking are complementary trenchless technologies rather than direct substitutes.

For directional crossings, flexible alignment and many utility installations, HDD can be an efficient solution.

For large underground utility pipelines, controlled excavation and applications requiring launch and receiving shafts, pipe jacking and microtunneling can be highly effective.

With the right machine, tooling, engineering design and construction method, trenchless technology can reduce surface disruption while providing an efficient solution for modern underground infrastructure.
