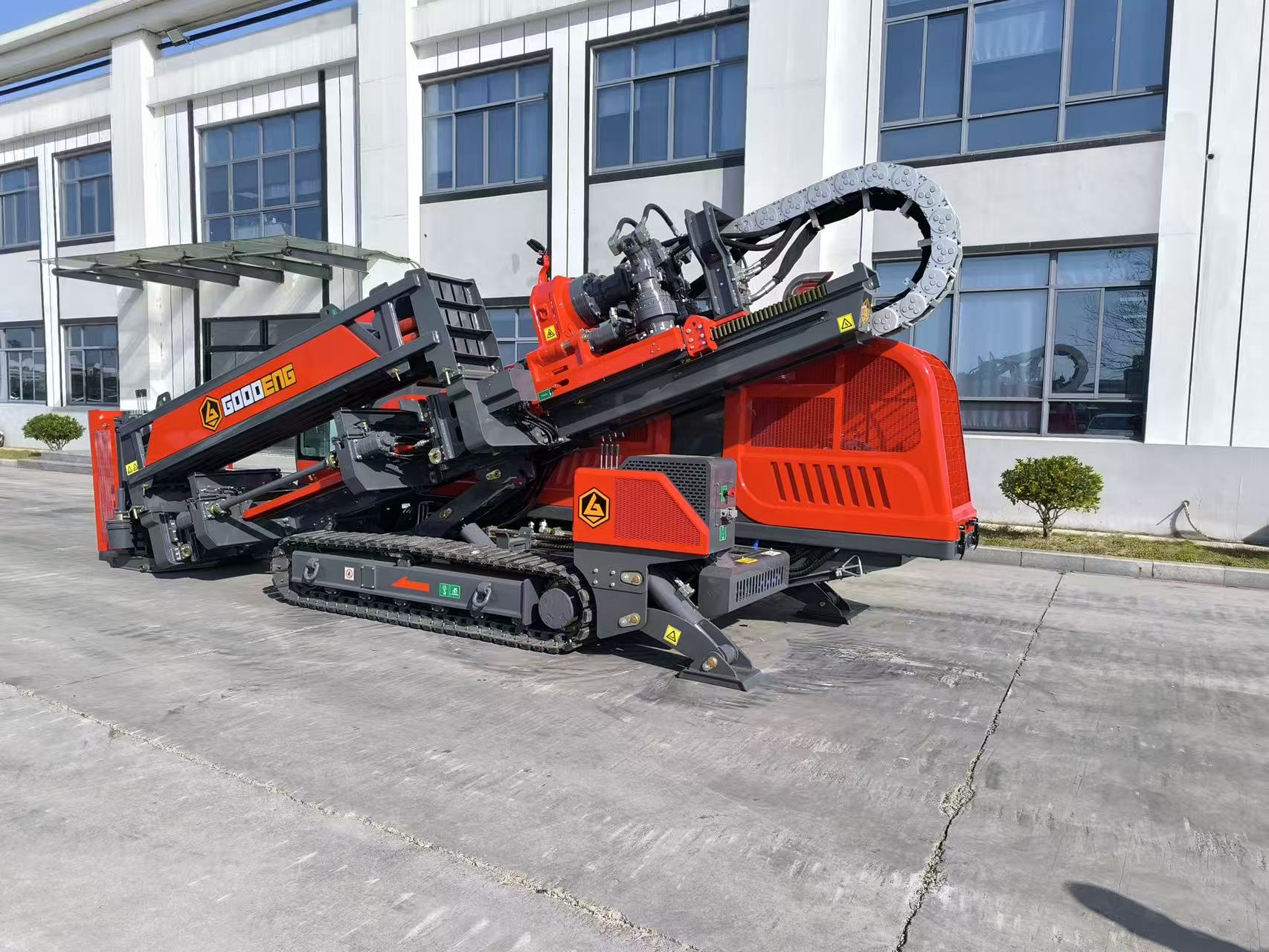

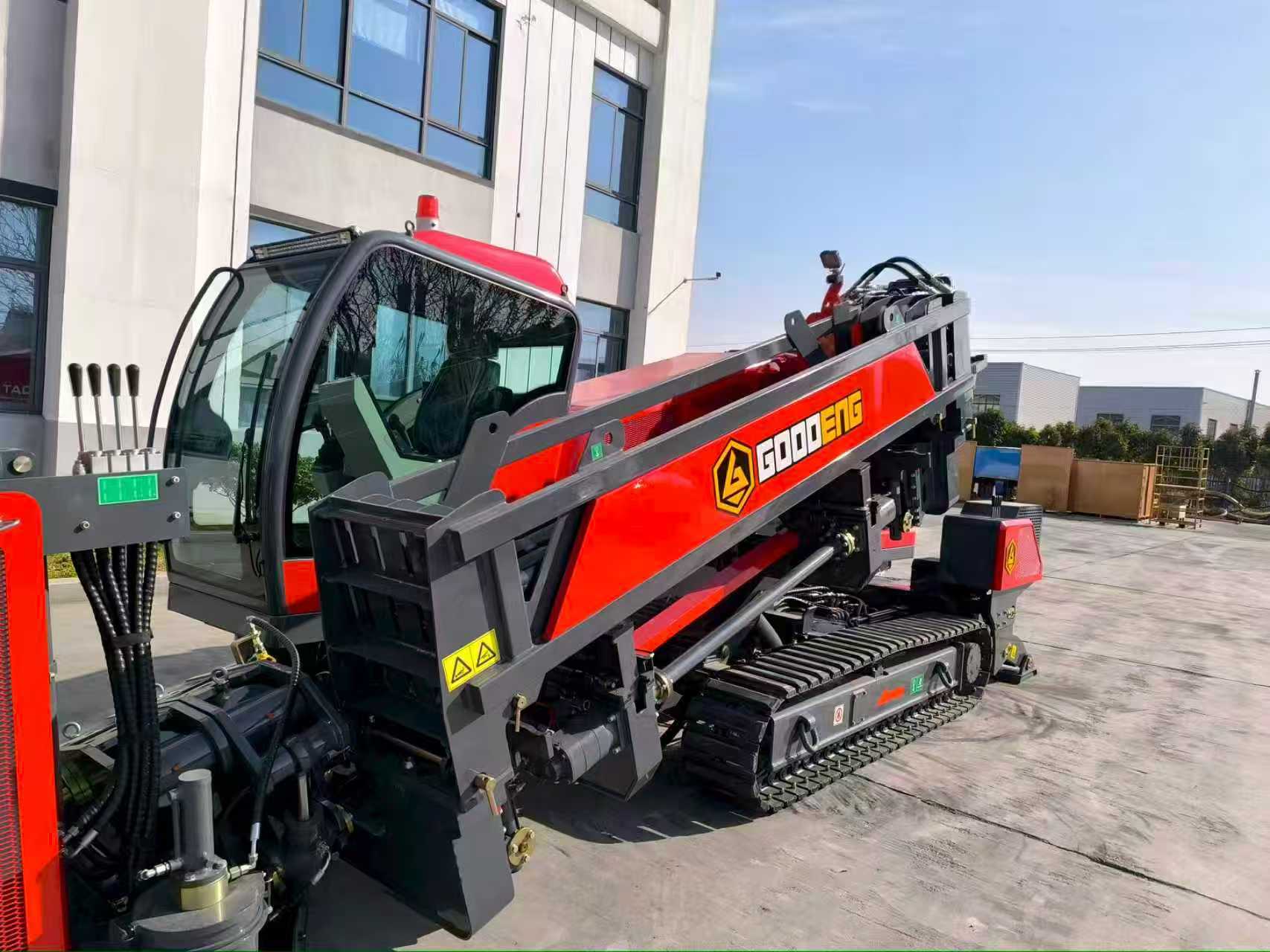

Conquer Complex Strata with Goodeng’s G60AT All-Terrain HDD Machine
Why the G60AT is the Ultimate Choice for Hard Rock and Complex Terrains
The G60AT perfectly balances heavy-duty capability with operational agility. With a rig weight of 12,000 kg (26,455 lb)
-
Advanced Dual-Rod System for Maximum Efficiency: * Exterior Rod: Built for powerful reaming and outer hole protection, the exterior rod (size Ф92 × 3,000 mm / 3.62 × 118.1 in)
delivers a massive maximum torque of 13,000 N-m (9,588 lbf-ft) and a rotation speed of 238 r/min . -
Interior Rod: Dedicated to rock breaking, the interior rod (size Ф50 × 2,990 mm / Ф1.97 × 117.7 in)
outputs a maximum torque of 2,760 N-m (2,036 lbf-ft) at a maximum rotation speed of 242 r/min . -
Capacity: The integrated drill rod box holds up to 20 pieces (4 × 5), ensuring continuous operations
. -
High-Performance Power & Thrust: Equipped with a robust 157 kW (210 HP) engine
, the G60AT provides an impressive maximum thrust and pullback force of 279 kN (62,722 lbf) at a maximum speed up to 65 m/min (213.3 ft/min) , significantly optimizing project timelines. -
Outstanding Mobility and Field Adaptability: Featuring a durable chassis, the machine achieves a walking speed of 0-3 km/h (0-1.9 mile/h)
and handles climbing gradients up to 17.5° . With a maximum entry angle of 21° , it easily adapts to confined spaces and steep angles. -
High-Volume Mud Management: A maximum mud flow of 560 L/min (147.9 GPM)
effectively cools the drill bit and flushes out rock cuttings, ensuring excellent borehole stability.
Technical Specifications at a Glance
| Key Parameter | Specification (Metric / Imperial) PDF |
| Rig Weight |
12,000 kg / 26,455 lb |
| Dimensions (L × W × H) |
7,186 × 2,365 × 2,380 mm / 283.0 × 93.1 × 93.7 in |
| Engine Power |
157 kW / 210 HP |
| Max. Thrust & Pullback Force |
279 kN / 62,722 lbf |
| Exterior Rod Max. Torque |
13,000 N-m / 9,588 lbf-ft |
| Interior Rod Max. Torque |
2,760 N-m / 2,036 lbf-ft |
| Max. Mud Flow |
560 L/min / 147.9 GPM |
| Suggest Reaming Diameter |
≤ Ф1500 mm / ≤ Ф59.1 in |
| Suggest Crossing Length |
≤ 600 m / < 1,969 ft |
Empowering Global Trenchless Projects
Whether navigating urban utility installations or completing complex river and mountain crossings, the Goodeng G60AT provides global operators with a safe, highly efficient, and versatile trenchless solution. Since 2002, the "GOODENG" brand has been trusted worldwide
