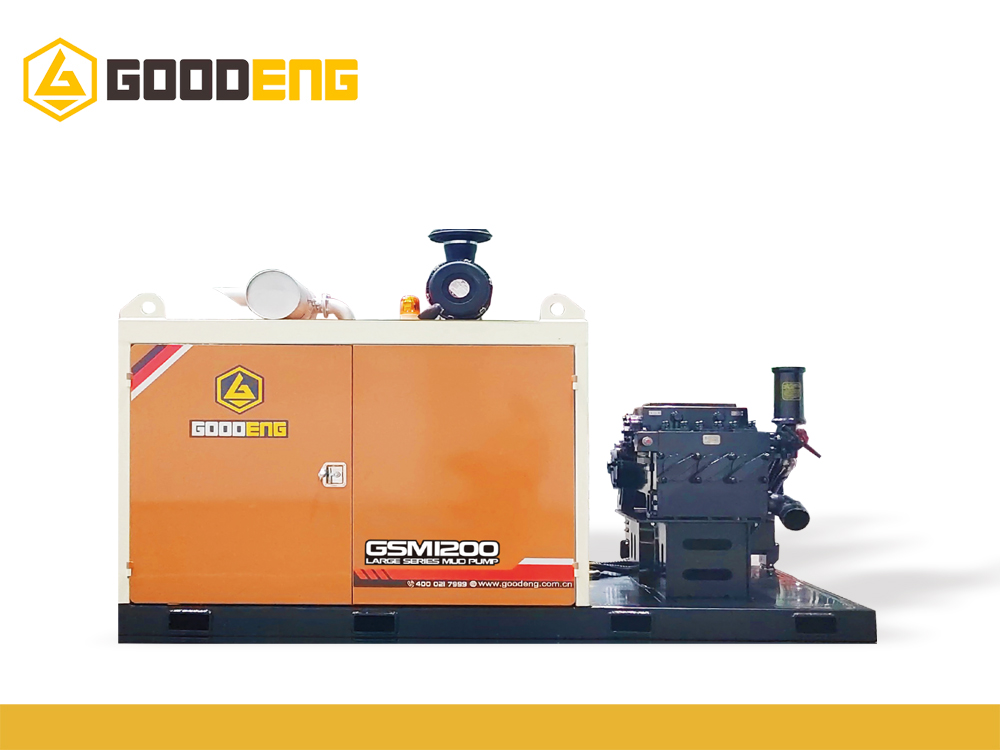

Goodeng GSM1200 Mud Pump for Trenchless HDD Horizontal Directional Drilling/Boring/Tunnelling Machine/Rig

1.Driller can operate the mud pump station directly in the main machine operating room. Start,

close the engine and adjust the mud flow remotely, which is more intuitive and convenient.

2.The power system adopted Cummins engine, which has stable performance, low fuel

consumption.

3.It has full hydraulic drive, stable and reliable performance. Compared with the traditional

mechanical fluid coupling transmission, the transmission efficiency is higher and more economical.

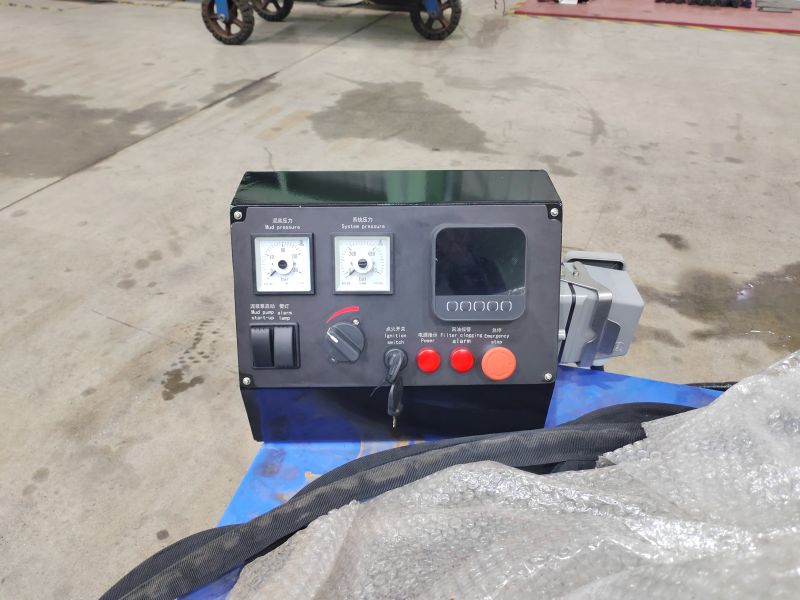

4.Equipped with mud pressure gauge, system pressure gauge, engine tachometer, engine water

temperature gauge, oil pressure gauge, battery voltmeter, easy to read the relevant data.

5.Skid-mounted transportation mode, shape size suitable for domestic and foreign transportation

needs.

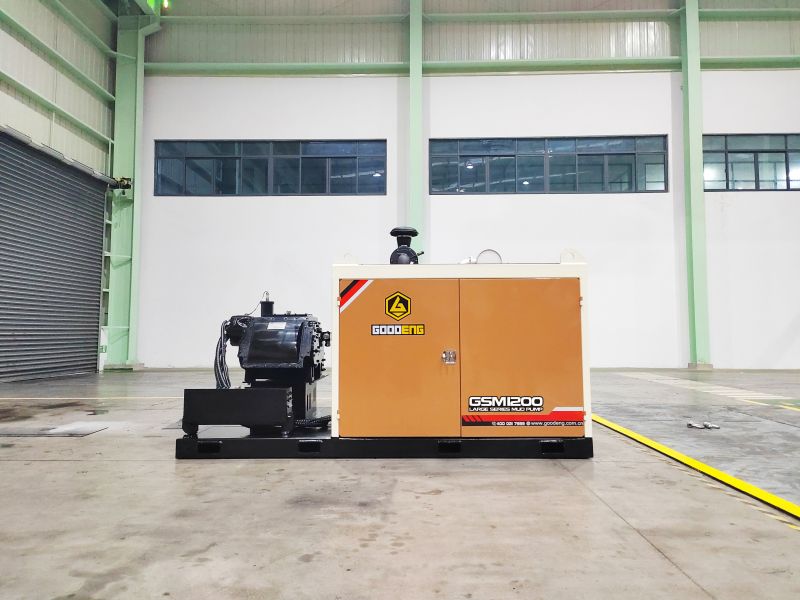

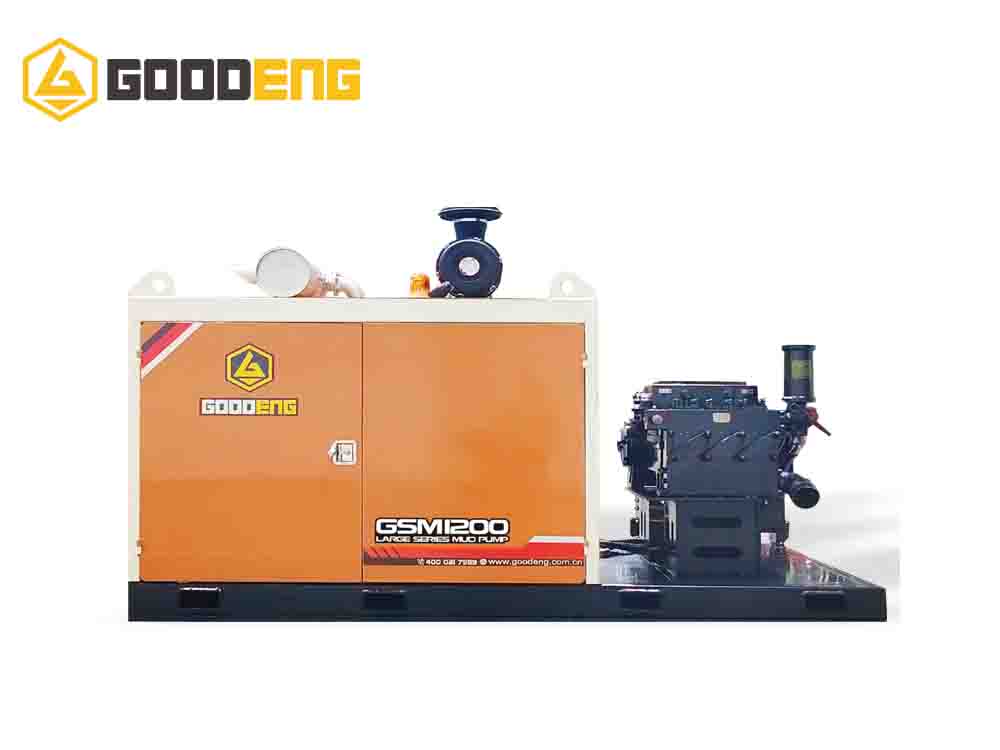

Goodeng GSM1200 Mud Pump for Trenchless HDD Horizontal Directional Drilling

Technical Parameter

	Metric Unit	Imperial Unit
5000 kg	Weight	11023lb
Dimension(L×W×H)	3500×2100×2050 mm	138×85×81 in
Max. Working Pressure	25 MPa	250 bar
Mud Pump Stroke	140 mm	5.5 in
Max. Mud Pressure	10 Mpa	100 bar
Engine Power	93 kW	125 hp
Mud Pump Cylinder Dia.	Φ135 mm	Φ5.3in
Max Stroke Frequency	210/min	210/min
Max. Mud Flow	1200 L/min	264 GPM

Product Introduction

The GSM1200 mud pump is a robust and efficient solution that can meet all your drilling requirements. This best-selling 1200L/min mud pump is designed to provide excellent performance and reliability, making it an ideal choice for various drilling applications.

It has full hydraulic drive, stable and reliable performance. Compared with the traditional mechanical fluid coupling transmission, the transmission efficiency is higher and more economical.
Equipped with mud pressure gauge, system pressure gauge, engine tachometer, engine water temperature gauge, oil pressure gauge, battery voltmeter, easy to read the relevant data.
