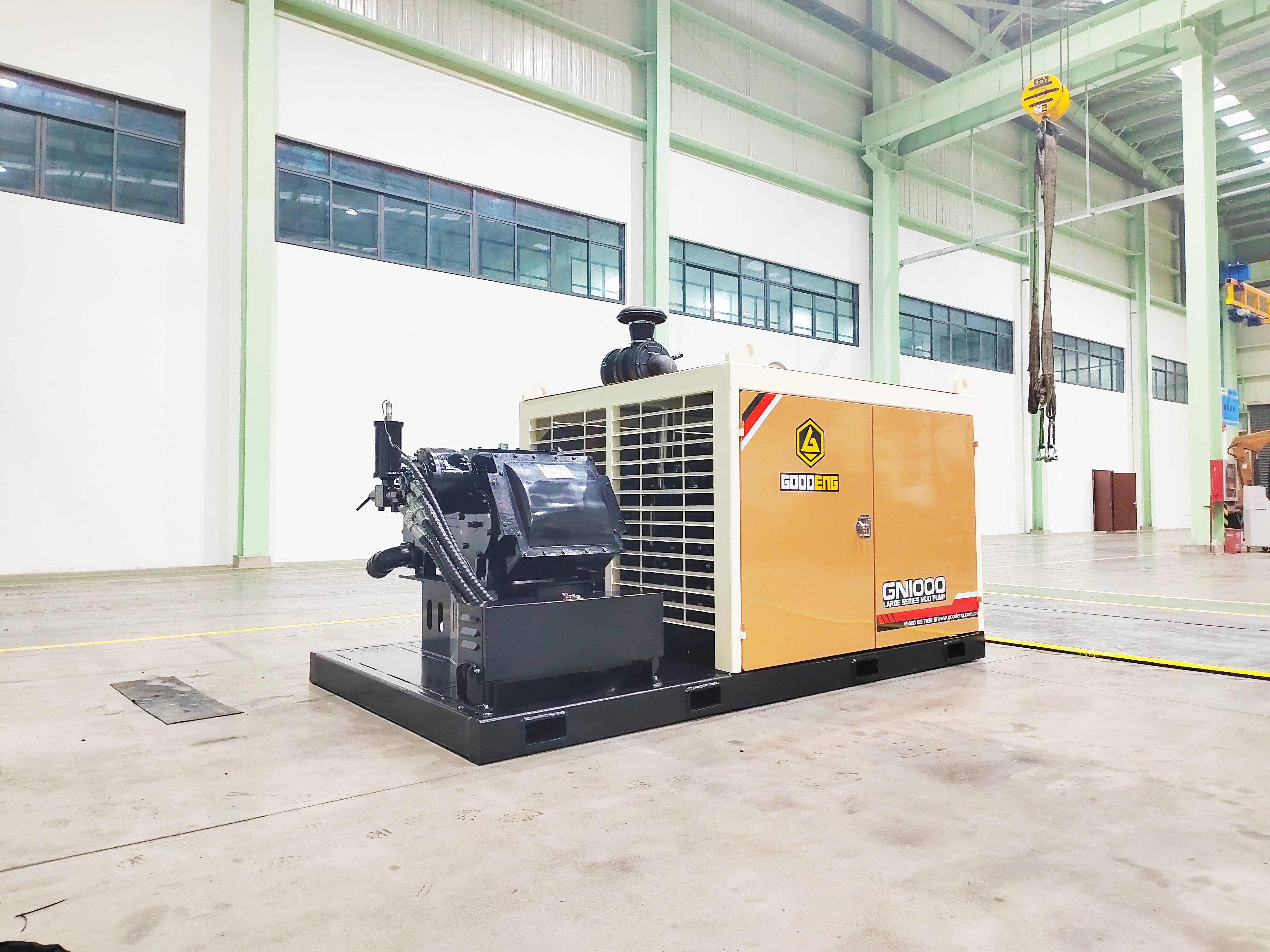

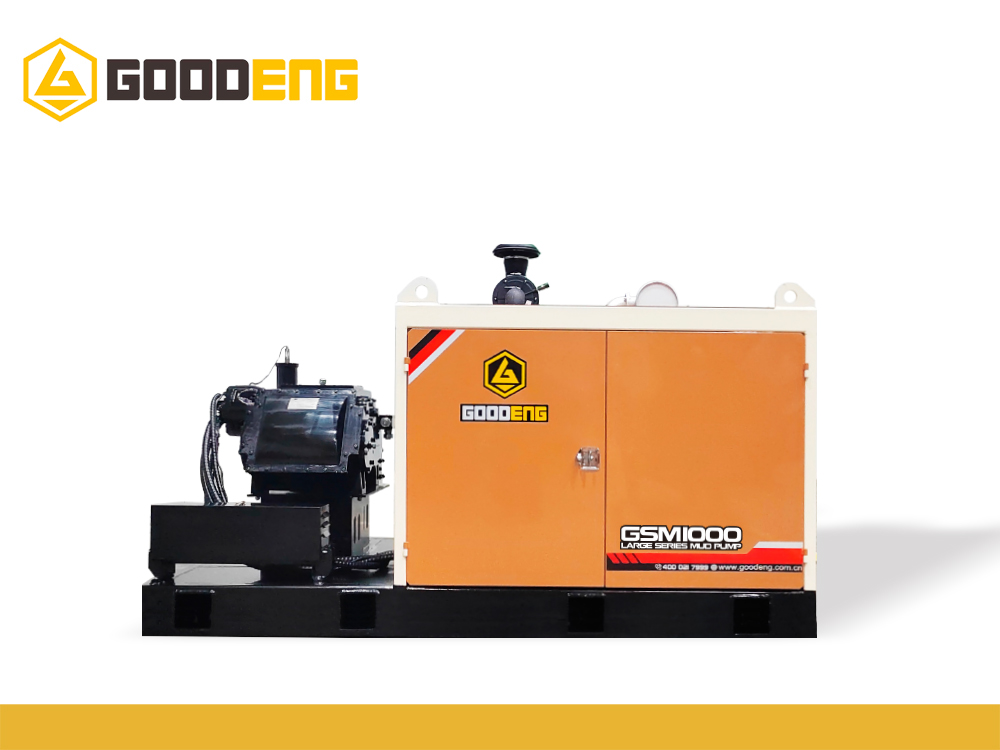

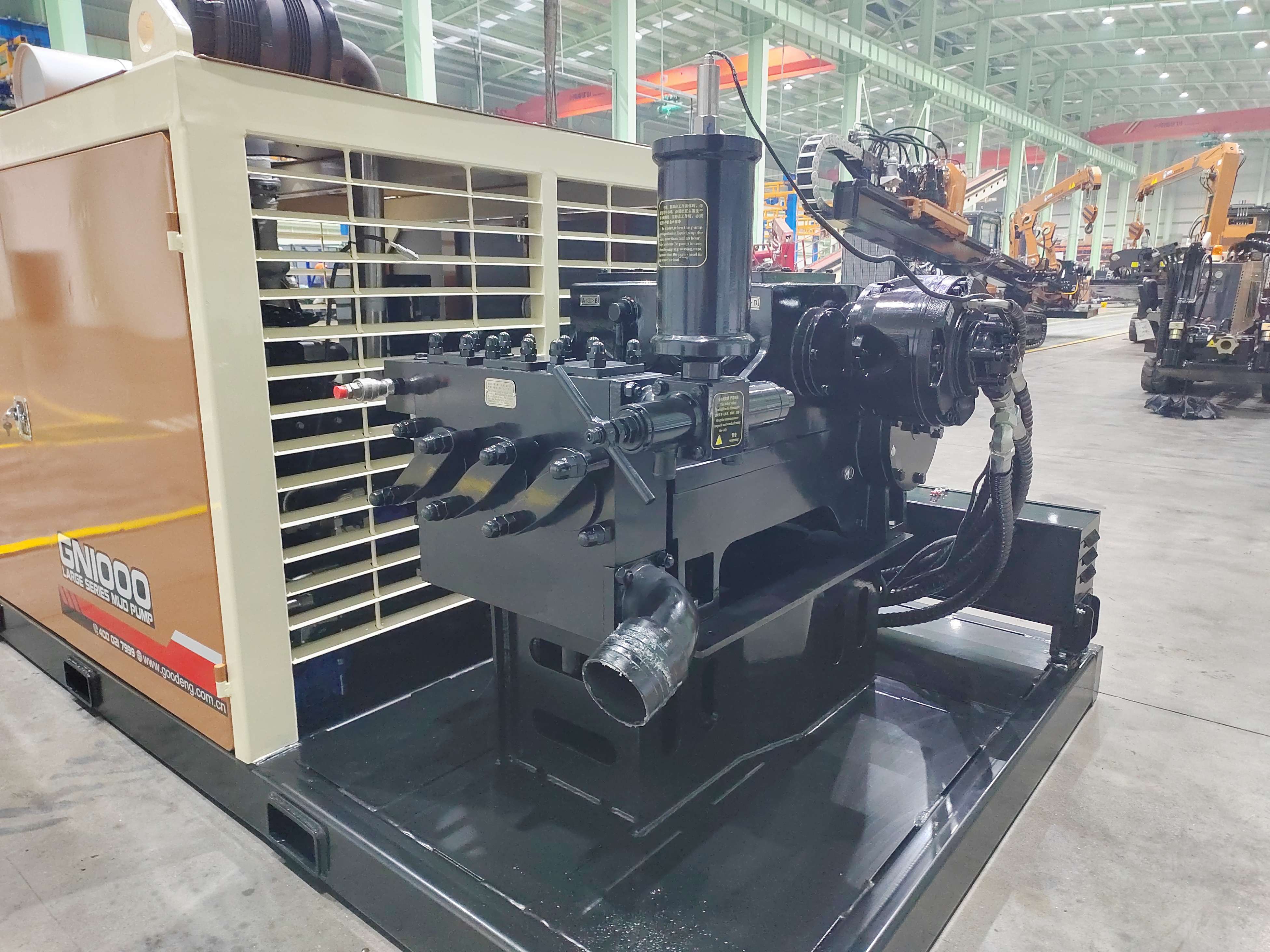

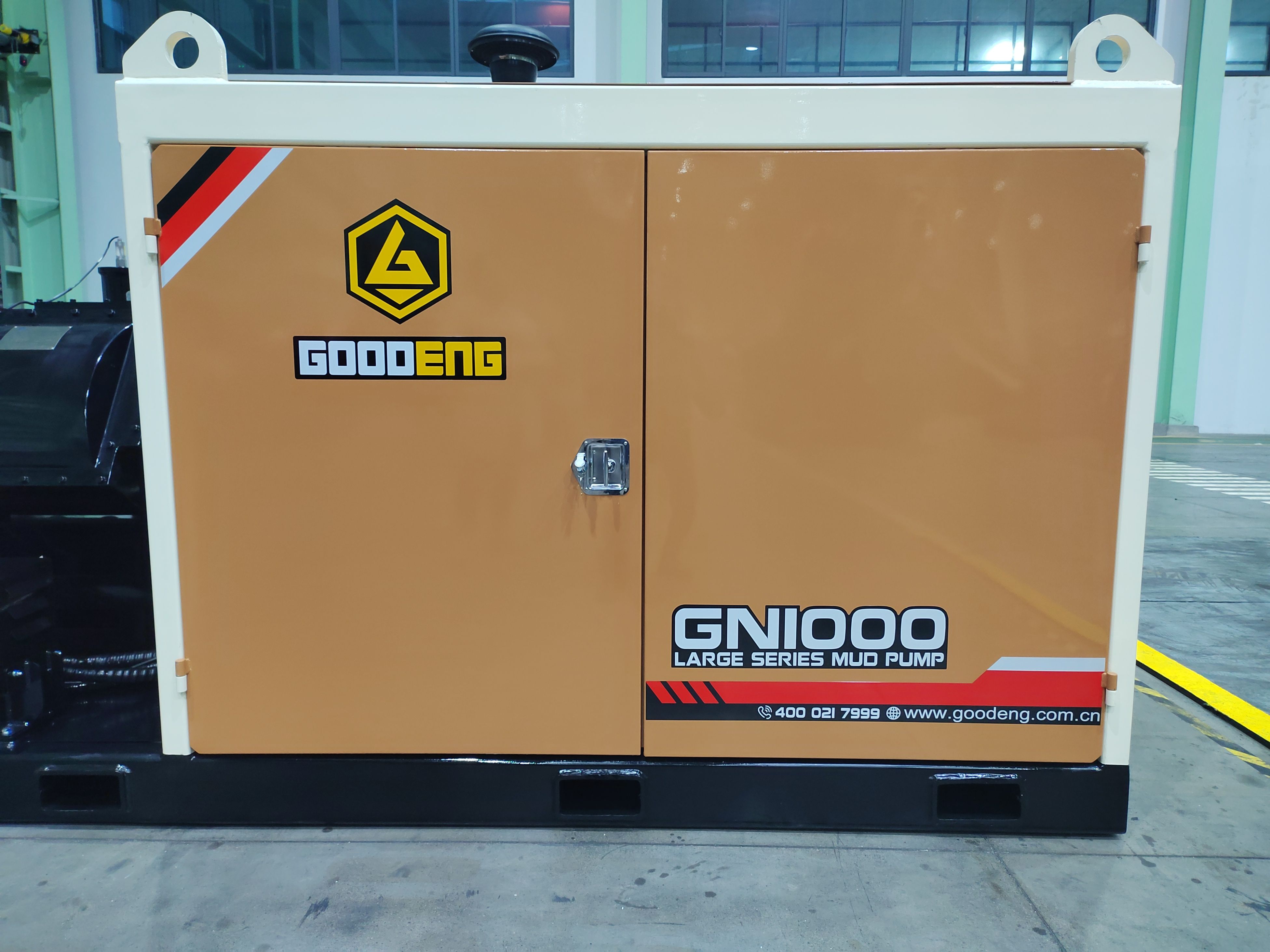

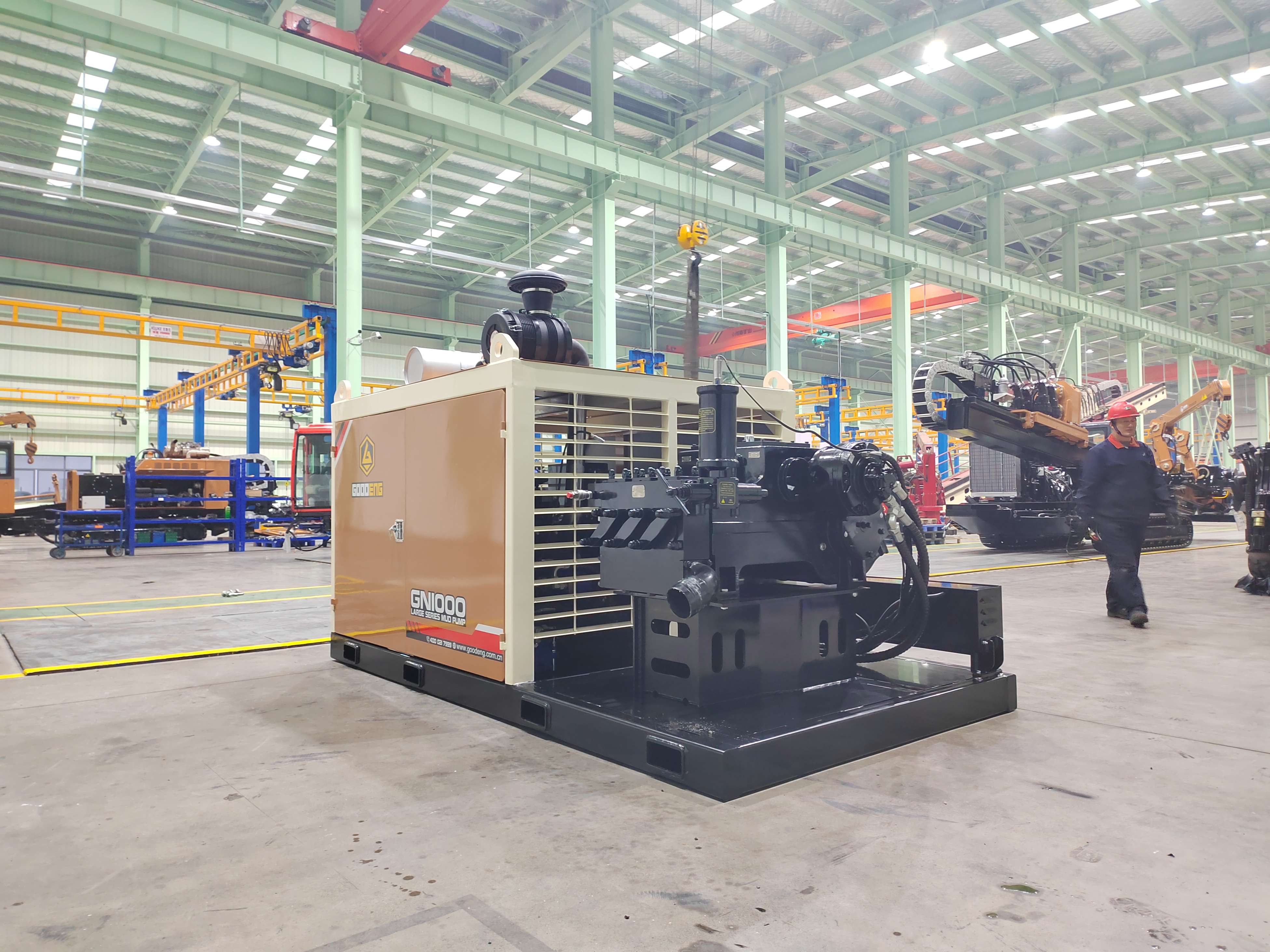

Goodeng GSM1000 Mud Pump for Trenchless HDD Horizontal Directional Drilling/mud vacuum pump suction mud hog pump
Technical Parameter
| Metric Unit | Imperial Unit |
|
| Weight | 4750 kg | 10471lb |
| Dimension(L×W×H) | 3400×1900×2000 mm | 133×75×79 in |
| Max. Working Pressure | 25 MPa | 250 bar |
| Mud Pump Stroke | 140 mm | 5.5 in |
| Max. Mud Pressure | 10 Mpa | 100 bar |
| Engine Power | 93 kW | 125 hp |
| Mud Pump Cylinder Dia. | Φ115 mm | Φ4.53 in |
| Max Stroke Frequency | 230/min | 230/min |
| Max. Mud Flow | 1000 L/min | 220 GPM |

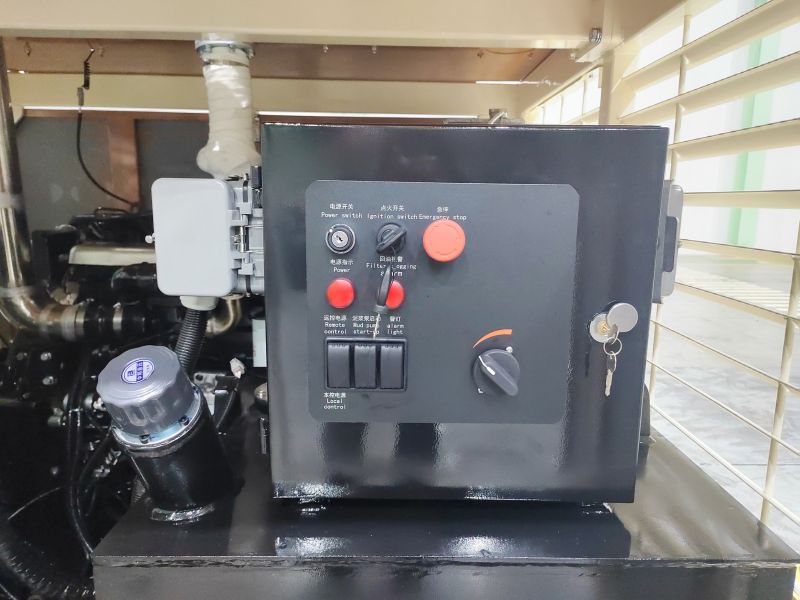

- Driller can operate the mud pump station directly in the main machine operating room. Start, close the engine and adjust the mud flow remotely, which is more intuitive and convenient.

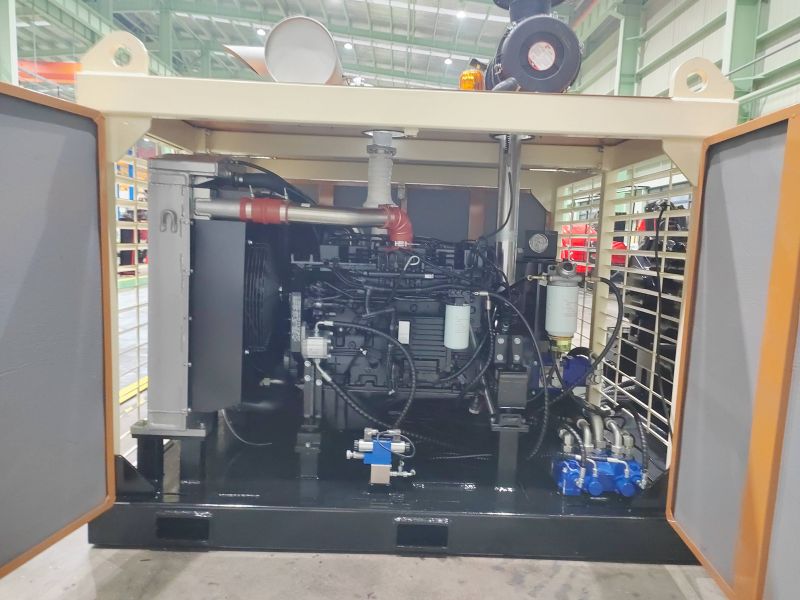

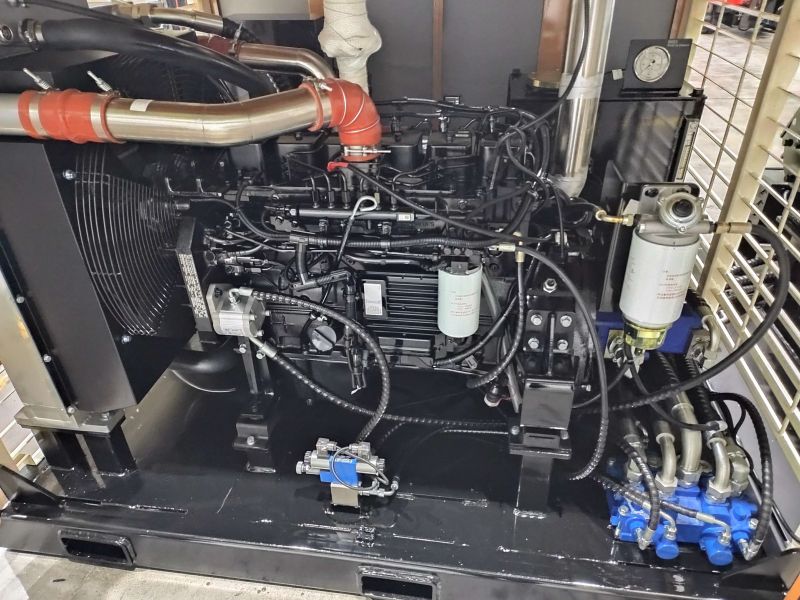

- The power system adopted Cummins engine, which has stable performance, low fuel consumption.
BLANKING
RIVET-WELDING
MACHINING
ASSEMBLING
DEBUGGING
TESTING
-
1
What is the GOODENG GSM1000 Mud Pump used for?
The GSM1000 is an independent mud pump station designed for HDD, trenchless construction, and drilling applications, providing a stable supply of drilling fluid during operation.
-
2
What is the maximum mud flow of the GSM1000?
The GSM1000 provides a maximum mud flow of 1,000 L/min, making it suitable for demanding HDD and drilling projects.
-
3
What is the maximum mud pressure of the GSM1000?
The maximum mud pressure is 10 MPa, while the hydraulic system pressure can reach 25 MPa.
-
4
What engine does the GSM1000 use?
The GSM1000 is equipped with a 93 kW / 125 HP Cummins engine, providing stable power and reliable performance for continuous drilling operations.
-
5
Can the GSM1000 be operated remotely?
Yes. The mud pump station can be operated remotely from the HDD machine's main control room. The operator can start or stop the engine and adjust the mud flow conveniently.
-
6
What are the main advantages of the GSM1000?
The GSM1000 features a full hydraulic drive system, providing efficient and reliable power transmission. It also uses a skid-mounted design for easier transportation and is equipped with gauges for monitoring key operating parameters.
-
7
What are the dimensions and weight of the GSM1000?
The GSM1000 weighs approximately 4,750 kg and has transport dimensions of 3,400 × 1,900 × 2,000 mm, making it suitable for domestic and international transportation.
-
8
How can I choose the right mud pump for my HDD project?
The suitable mud pump should be selected according to the HDD machine, crossing length, drilling diameter, geological conditions, required mud flow, and mud pressure. You can provide your project information, and GOODENG can recommend a suitable mud pump configuration.
