Analysis of Construction Process and Advantages of Static Pressure Pile Driver

I. Construction Process of Static Pressure Pile

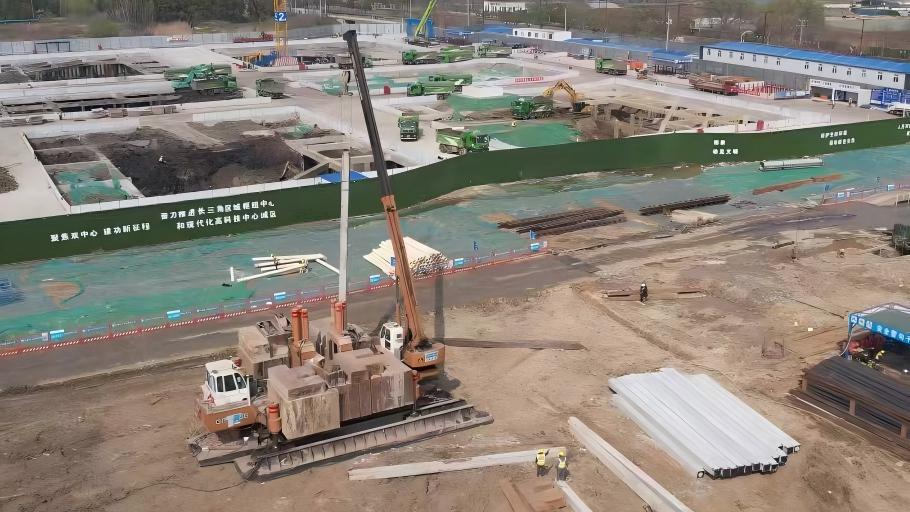

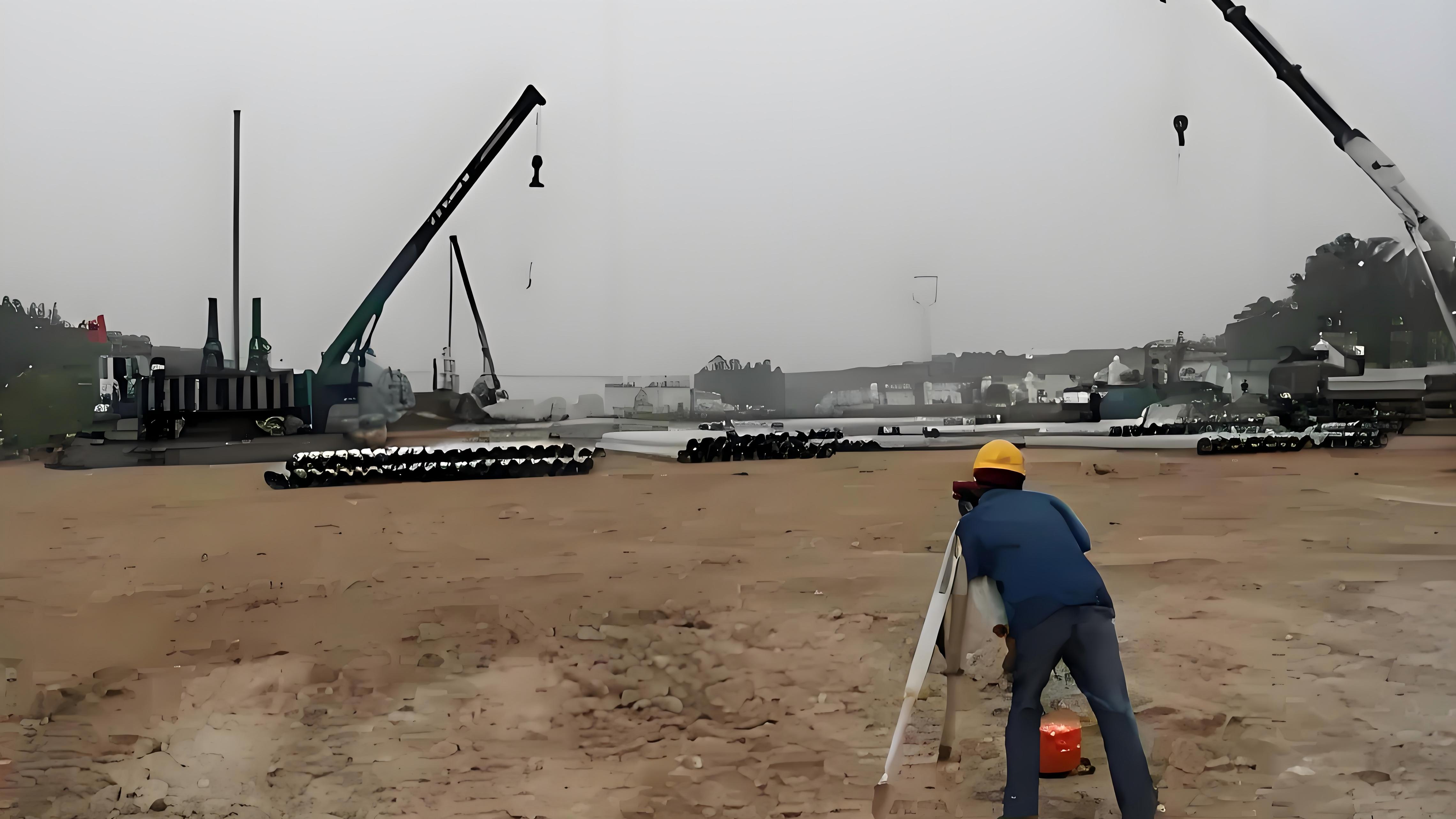

1. Construction Preparation: Clear obstacles on the site, level and compact the site to ensure a solid working surface for the pile driver; measure and set out to determine the pile position, mark the center point of the pile position; inspect the quality of precast piles to ensure that the pile body strength and dimensions meet the design requirements.

2. Pile Driver Positioning: Move the static pressure pile driver to the pile position, adjust the levelness and verticality of the pile driver, align the pile pressing center with the center point of the pile position, and ensure the pile body is vertical during the pile pressing process.

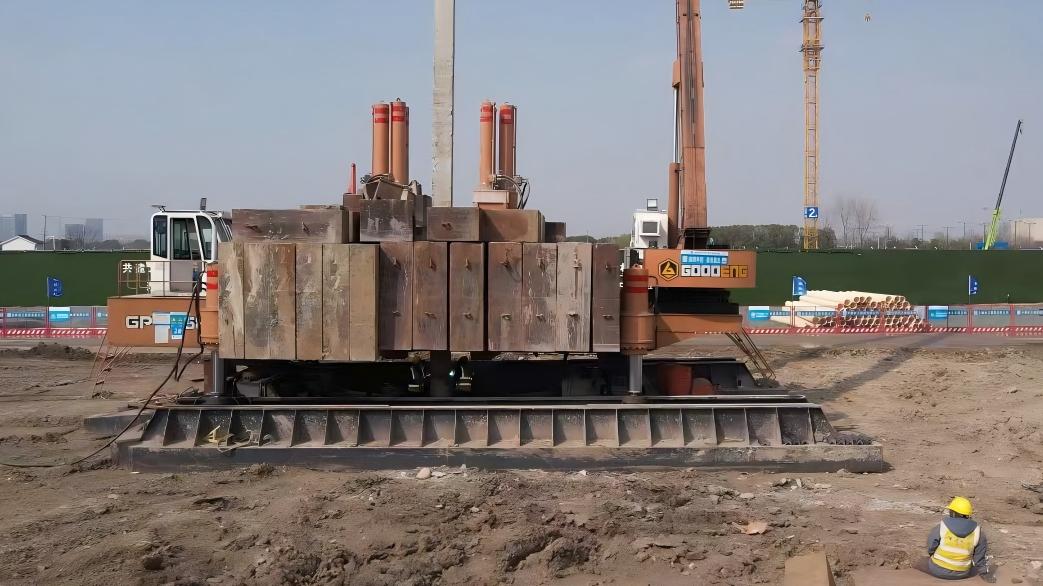

3. Pile Pressing Operation: Start the pile driver and slowly press the precast pile into the soil through the pile pressing oil cylinder. During the pile pressing process, real-time monitor the verticality of the pile body, the pressing depth and the pile pressing force, adjust the pile pressing speed according to the geological conditions, and avoid pile body deviation or damage.

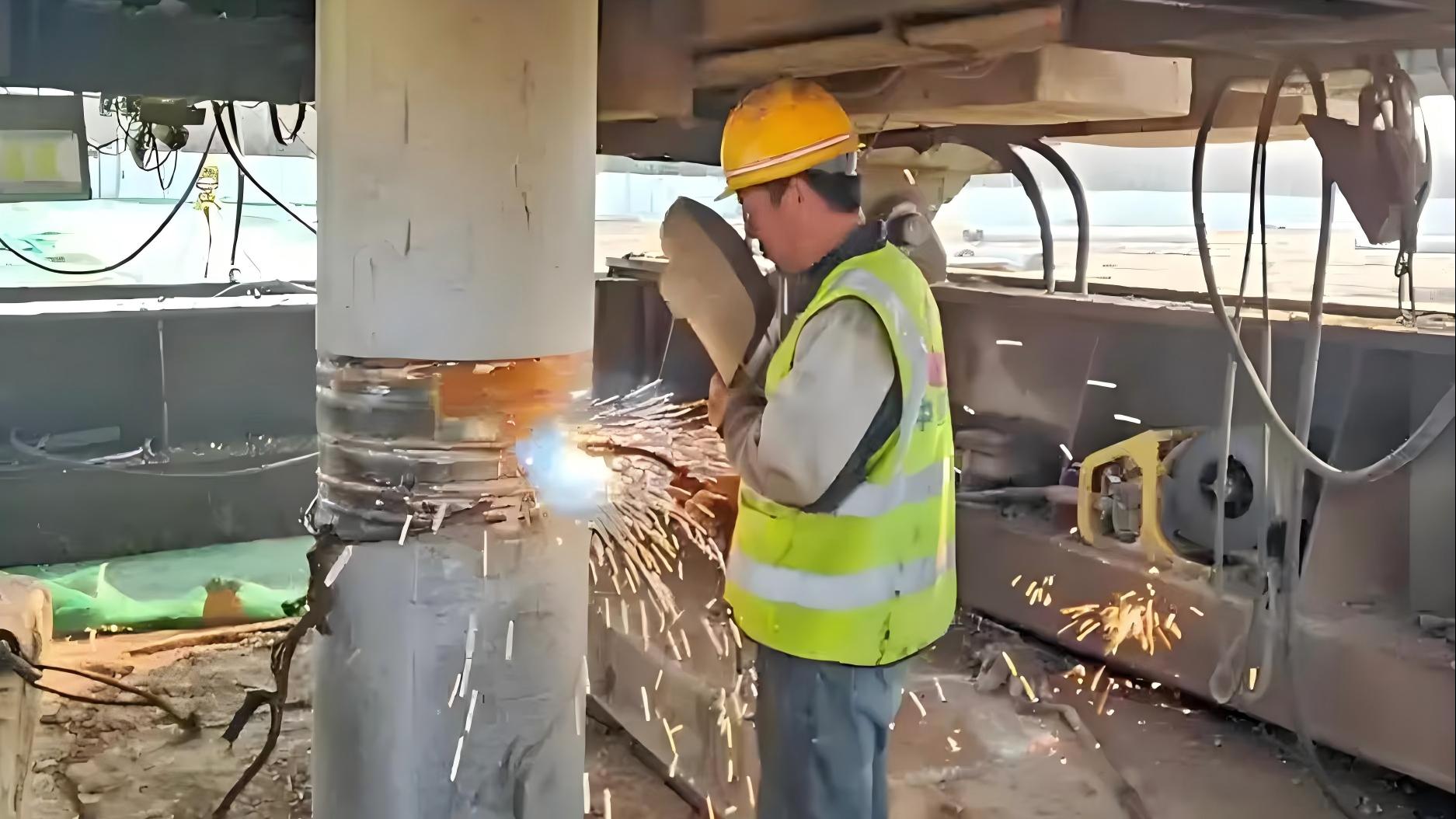

4. Pile Splicing Treatment: When the length of a single pile is insufficient, adopt welding or mechanical connection for pile splicing. Clean impurities on the pile head before splicing to ensure the connection surface is flat; ensure the weld is full during welding, and the lock is firm during mechanical connection; continue pressing the pile to the design elevation after splicing.

5. Termination of Pile Pressing: Stop pile pressing when the pile end reaches the designed bearing stratum, and the pile pressing force or pressing depth meets the design requirements, then remove the pile driver to complete the construction of a single pile.

II. Core Advantages of Static Pressure Pile Driver

- No Damage to Pile Body: The pile is pressed slowly by static pressure, avoiding damage to the pile body caused by impact loads such as hammering, which is especially suitable for precast piles with low concrete strength or brittle materials, ensuring the structural integrity of the pile body.

- Friendly Construction Environment: There is no noise, vibration or impact force throughout the process, which will not interfere with surrounding buildings, underground pipelines and residents' lives, making it particularly suitable for construction in sensitive areas such as urban areas, hospitals and schools.

- No Pollution: No materials that are easy to cause pollution such as explosives and diesel oil are used in the construction process, and there is no dust or exhaust emissions, which meets environmental protection requirements and reduces the impact on the surrounding ecological environment.

- High Construction Precision: The pile pressing force and pile body verticality can be monitored in real time during the pile pressing process, which is convenient for precise control of the pile position and pressing depth, meeting the construction requirements under complex geological conditions and improving the quality of pile foundation engineering.

- Strong Adaptability: It has good adaptability to various soil layers such as soft soil and cohesive soil, and the construction process is less affected by weather, which can work stably in harsh weather such as rainy seasons, ensuring the construction progress.

With the above advantages, the static pressure pile driver has become the preferred solution for pile foundation construction in scenarios with high requirements for construction environment and pile body quality such as urban construction and municipal engineering.
