    High-Performance GPY468 Static Pile Driver for Reliable Ground Support
    Hydraulic Static Pile Driver

    High-Performance GPY468 Static Pile Driver for Reliable Ground Support

    GPY series hydraulic static pile driver is a new type of environmental protection construction equipment with a number of national patents. It has the characteristics of no pollution, no noise, fast pile driver speed and high pile quality, which represents
    the future development direction of piling machinery. GPY series hydraulic static pile driver has more than 10 varieties, the pressure capacity from 60 tons to 1268 tons. Using high quality materials and components, adopting the unique hydraulic piping design and processing methods ensures the clean and highly reliability of hydraulic system and ensure the high quality of products at the source. Adhering to "all for the customer service concept" to provide personalized design, and to provide customers with the best solutions.

    Max. pile pressing force (tf) 468
    Piling speed (m/min) High 8.2
    Low 1.1
    Piling stroke (m) 1.8
    Pace (m) Longitudinal 3.6
    Horizontal 0.6
    Angle range (°) 11
    Rise stroke (m) 1.0
    Pile clamping box 6028
    Square pile (mm) Min. 200
    Max. 500
    Round Pile (mm) Min. 300
    Max. 600
    Side piling space (m) 1.35
    Corner piling space (m) 2
    Lifting weight (T) 16
    Hoisting pile length (m) 15
    Loading pressure (Kpa) Long bridge 131.8
    Short bridge 167
    Dimension (m) Working length 7.32
    Working width 3.16
      Contact us

      Technical Parameter

      Weight 9700 kg 21385 lb
      Max. Thrust & Pullback Force 350/700 KN 78683/157366 lb
      Max. Torque 12600 N·m 9293 ft·lb
      Engine power 153 kW 205 hp
      Walking speed 3.5-6 km/h 2.2-3.7 mph
      Entry Angle 12°-22° 12°-22°
      Drill Rod Size Φ73x3000 mm Φ2.8×118 in
      Suggest Reaming Dia. ≤900 mm ≤35.4 in
      Dimension (LxWxH) 7300x2150x2250mm 287×85×89 in
      Max.Thrust & Pullback speed 40 m/min 131 fpm
      Max. Rotation Speed 140 r/min 140 rpm
      Max. Mud flow 320 L/min 70gpm
      Max. Mud Pump Pressure 8 MPa 8 MPa
      Max. Climb Gradient 18° 18°
      Drill Rod Box Capacity 36pcs(4x9) 36pcs(4x9)
      Suggest Crossing Length ≤400m ≤15748 in

      Product Introduction

      The Gooden GS320-LS horizontal directional drill is a robust and efficient solution catering to all your drilling requirements. This top-selling 32-ton machine is engineered to offer outstanding performance and dependability, thereby making it an ideal selection for diverse drilling applications.

      • The GS320-LS is equipped with cutting-edge technology and features that distinguish it from its rivals. With its considerable torque and pullback force, this machine can manage the most arduous drilling tasks effortlessly. Its sturdy construction and durable components guarantee long-term performance, rendering it a valuable investment for any drilling operation.
      • One of the primary highlights of the GS320-LS is its flexibility. Whether you are engaged in pipe installation, utility construction, or any other drilling project, this machine provides consistent and precise outcomes. Its user-friendly interface and intuitive controls render it effortless to operate, enabling you to optimize productivity and efficiency on the job site.
      Goodeng Hot Sale 32 Ton Gs320-Ls Horizontal Directional Drilling Machine(1)758

      solution MAIN DETAILS

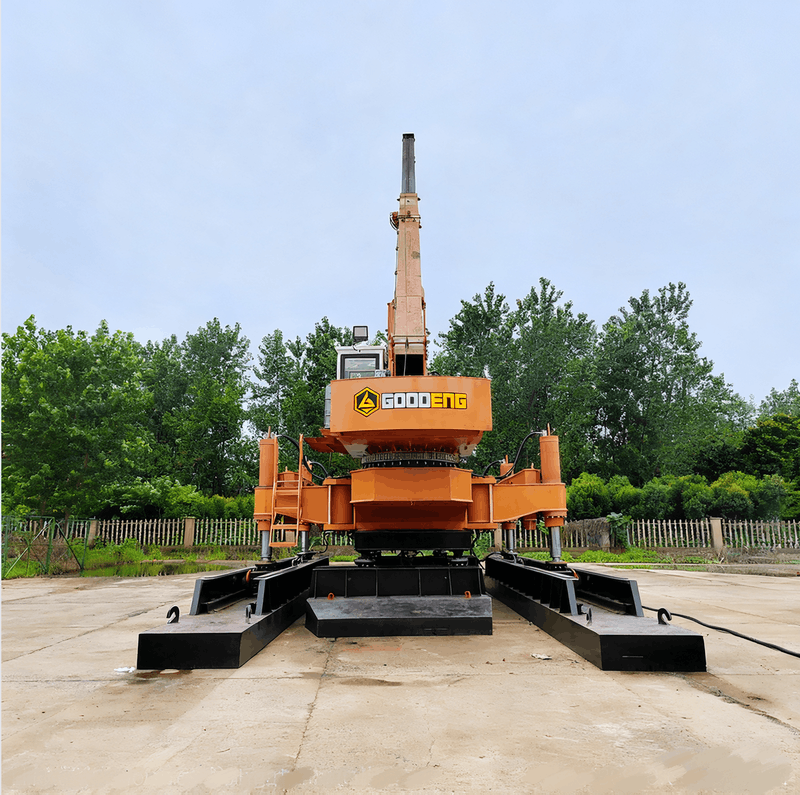

      GPY468

      GPY468 (6)

      GPY468 (5)

      GPY468 (4)

      GPY468 (3)

      GPY468 (2)


      Production Process

      1
      BLANKING 1

      BLANKING

      2
      RIVET-WELDING 2

      RIVET-WELDING

      3
      MACHINING 3

      MACHINING

      4
      ASSEMBLING 4

      ASSEMBLING

      5
      DEBUGGING 5

      DEBUGGING

      6
      TESTING 6

      TESTING

      65420be751dad22160
      Jiangsu Goodeng Heavy Machinery
      FAQ (2)

      FAQ

      • 1

        What are the main advantages of static pile pressing?

        Key advantages include:
        No vibration: Static pressure eliminates ground-borne vibration, safe for nearby structures
        Low noise: Quiet operation suitable for noise-sensitive environments
        No impact damage: Piles are pressed smoothly, reducing risk of cracks or pile head damage
        Direct bearing capacity reading: Pressure gauge shows real-time pile resistance
        Environmentally friendly: Minimal disturbance to surrounding area
        Precise control: Accurate pile alignment and depth control
