    Goodeng GSME1200 electric Mud Pump for Trenchless HDD Horizontal Directional Drilling/Boring/rig mud pump drilling equipment suppliers
    Drilling Tools

    Goodeng GSME1200 electric Mud Pump for Trenchless HDD Horizontal Directional Drilling/Boring/rig mud pump drilling equipment suppliers

    1. Adopting pure electric drive significantly reduces the construction cost for users.

    2. The whole machine is driven by electricity, with low noise and zero pollution during operation, and is energy-saving and environmentally friendly.

    3. Automatic fault detection makes maintenance more convenient.

    4. A large-scale electric drive mud pump system specially designed for the characteristics of non excavation construction, using PLC control to achieve remote start stop of mud pumps and remote stepless adjustment of mud flow to meet the requirements of non excavation construction under different working conditions. Avoiding the hassle of adjusting flow rate through frequent gear shifts in conventional mud pumps, saving time and effort.

      Contact us
      Goodeng GSME1200 electric Mud Pump for Trenchless HDD Horizontal Directional Drilling
      Goodeng GSME1200 electric Mud Pump for Trenchless HDD Horizontal Directional Drilling
      Goodeng GSME1200 electric Mud Pump for Trenchless HDD Horizontal Directional Drilling
      Goodeng GSME1200 electric Mud Pump for Trenchless HDD Horizontal Directional Drilling
      Goodeng GSME1200 electric Mud Pump for Trenchless HDD Horizontal Directional Drilling

      Technical Parameter

      Metric Unit Imperial Unit
      Weight 3500 kg 11023lb
      Dimension(L×W×H) 2083×1819×1438 mm 82×71×57 in
      Mud Pump Cylinder Dia. Φ130 mm Φ5.12 in
      Mud Pump Stroke 150 mm 6 in
      Max. Mud Pressure 10 Mpa 100 bar
      Total power of mud pump station 110KW 147hp
      Max Stroke Frequency 217/min 217/min
      Max. Mud Flow 1230L/min 325 GPM

      Product Introduction

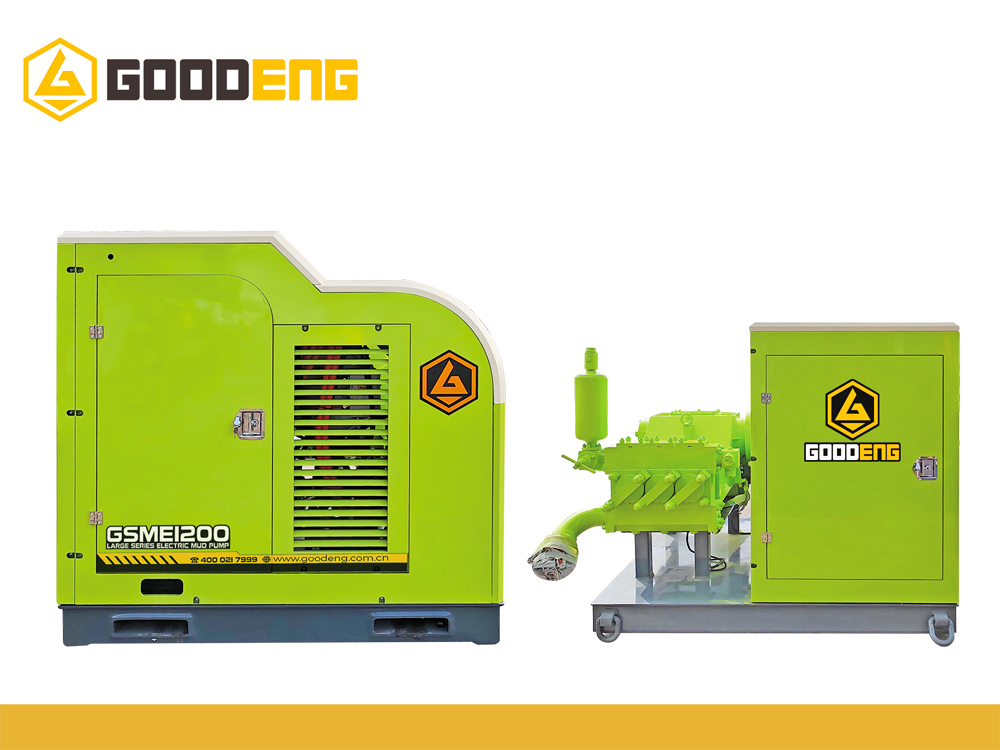

      GSME1200 is a large-scale electric drive mud pump system designed specifically for non excavation construction characteristics. It adopts PLC control to achieve remote start stop of mud pumps and remote stepless adjustment of mud flow to meet the requirements of non excavation construction under different working conditions.

      •  GSME1200 is Equipped with a 110kW high-power permanent magnet synchronous motor and a high-power parallel axis reducer, it has strong power, longer service life under high load conditions, and more stable performance.
      •  Equipped with a movable LCD display, it can display real-time mud flow rate, pressure, controller and motor operating parameters, and fault diagnosis, making operation and maintenance more convenient. Skid loading transportation method, with dimensions suitable for domestic and international transportation needs.

      f88ad679hm

      Main detalas

      IMG_20230321_152443

      IMG_20230321_152447

      IMG_20230321_152519

      IMG_20240416_153744

      IMG_20240416_153541

      IMG_20240416_153806
