Horizontal Directional Drill

Goodeng Trenchless HDD Horizontal Directional Drilling/Rig GS6000T-LS/electric horizontal boring machine for pipeline road crossing rig

1. Using advanced electric drive systems results in lower maintenance costs compared to traditional horizontal directional drilling rigs.
2. The motor relies on electromagnetic fields to operate at high speeds and convert electrical energy into mechanical energy, with an energy conversion rate of over 50% higher than traditional hydraulic systems.
3. Driven by a motor, the operation process is zero pollution, energy-saving and environmentally friendly.
The noise and vibration levels during operation are much lower than those of traditional drilling rigs, and the power output is quiet and stable.

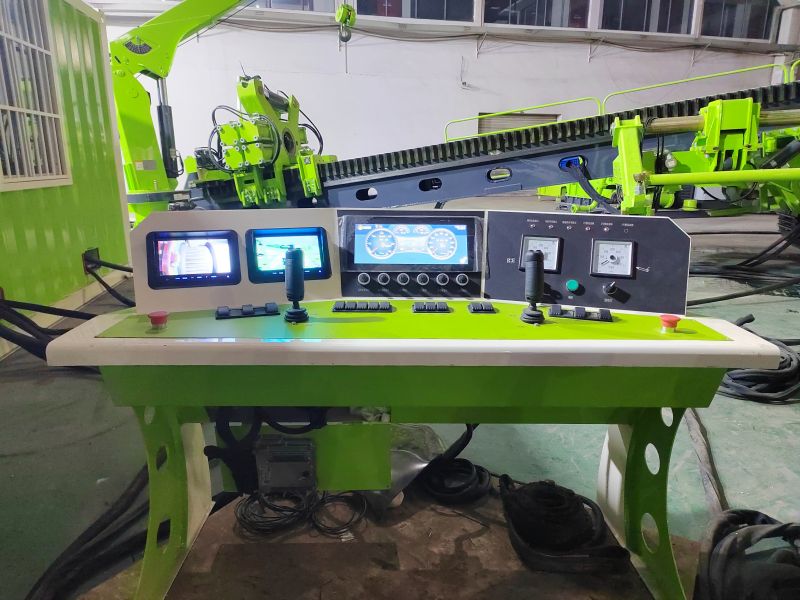

5. The motor output control is precise, the data acquisition is more intelligent, and the construction is more convenient.
6. Self propelled system for convenient transfer and transportation.

Goodeng Trenchless HDD Horizontal Directional Drilling/Rig GS6000T-LS/electric horizontal boring machine

Technical Parameter

	Metric Unit	Imperial Unit
Weight	63000 kg	138891 lb
Max. Thrust & Pullback Force	6000 KN	1349254 lb
Max. Torque	180000 N·m	132278 ft·lb
Rated power	700 kW	938 hp
Control room weight	5200Kg	11464 lb
Operating room weight	3000 kg	6613 lb
Drill Rod Size	Φ168-194x9600 mm	Φ6.6-7.6×378 in
Suggest Reaming Dia.	≤2500 mm	≤98 in

Dimension (LxWxH)	19700x3100x3250 mm	775×122×128 in
Max.Thrust & Pullback speed	32 m/min	105 in/min
Max. Rotation Speed	91 r/min	91 rpm
Max. Entry Angle	16°	16°

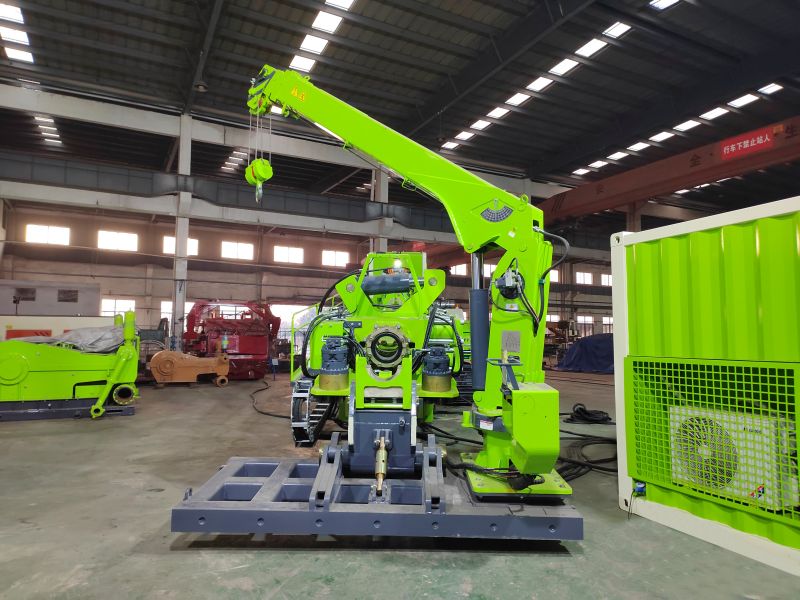

Crane capacity	5 T	11023 lb
Suggest Crossing Length	≤2500m	≤8202 in

Product Introduction

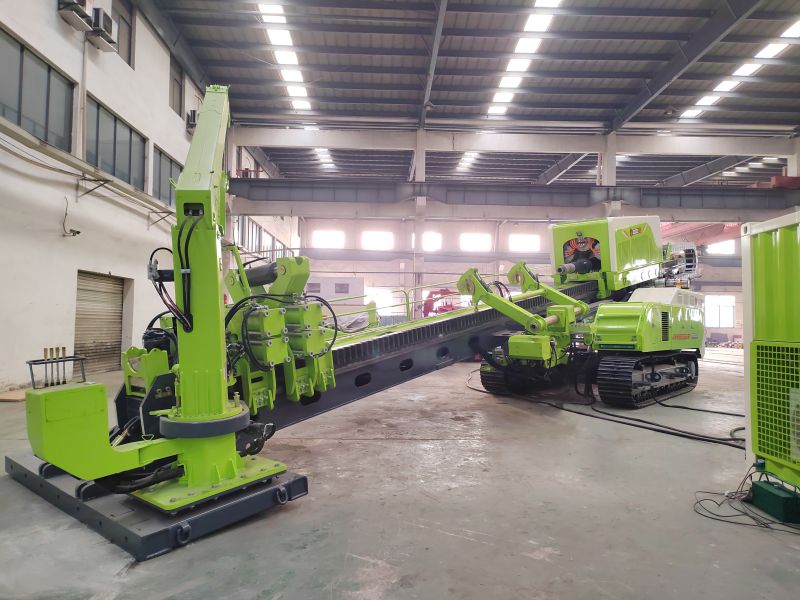

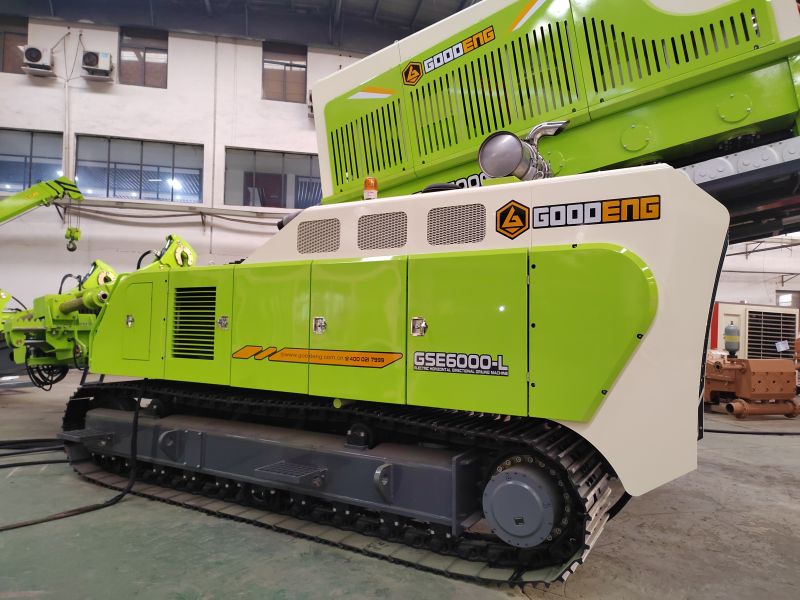

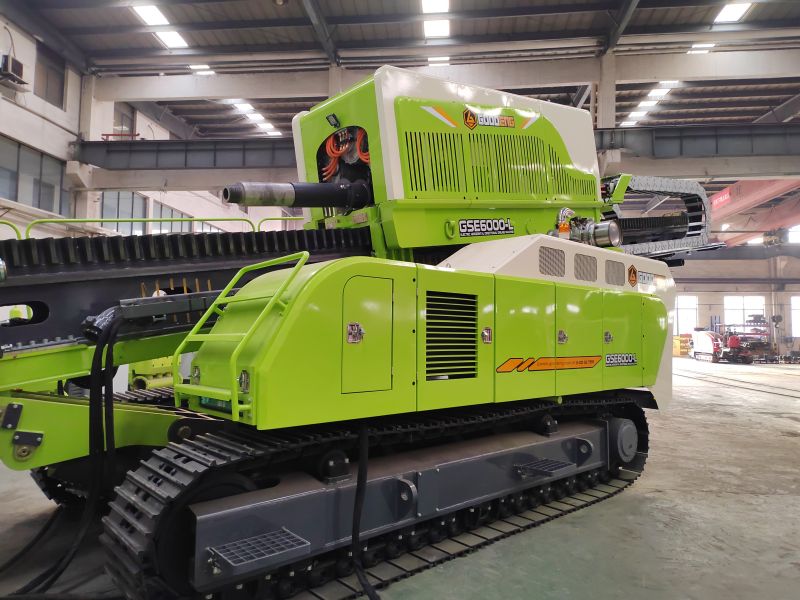

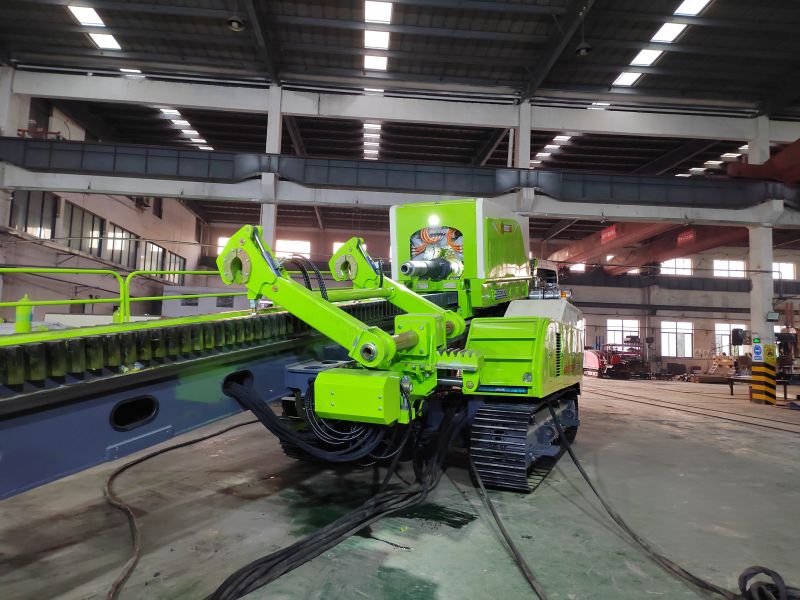

Goodeng GS6000-LS horizontal directional drill is a solution for long-distance, large-diameter pipeline horizontal directional drilling crossings to meet all your drilling needs. It is carefully designed to provide outstanding performance and reliability.

Using advanced electric drive systems results in lower maintenance costs compared to traditional horizontal directional drilling rigs.
The motor relies on electromagnetic fields to operate at high speeds and convert electrical energy into mechanical energy, with an energy conversion rate of over 50% higher than traditional hydraulic systems.
Driven by a motor, the operation process is zero pollution, energy-saving and environmentally friendly. The noise and vibration levels during operation are much lower than those of traditional drilling rigs, and the power output is quiet and stable. The motor output control is precise, the data acquisition is more intelligent, and the construction is more convenient. Self propelled system for convenient transfer and transportation.
