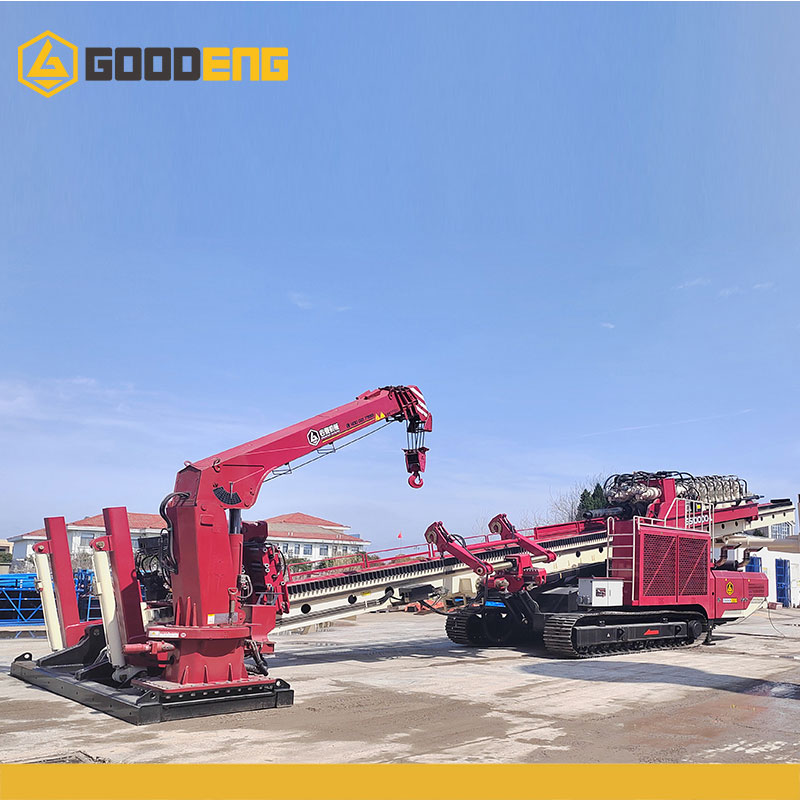

Goodeng GS10000-LS Trenchless HDD Horizontal Directional Drilling Rig / Equipment
Technical Parameter
| Metric Unit | Imperial Unit | |
| Weight | 89000kg | 196211 lb |
| Max. Thrust & Pullback Force | 10000 KN | 2248089 lb |
| Max. Torque | 260000 N·m | 191755 ft·lb |
| Rated power | 1000 kW | 1341 hp |
| Control room weight | 5200Kg | 11464 mph |
| Operating room weight | 3000 kg | 6613 lb |
| Drill Rod Size | Φ168-254x9600 mm | Φ7.2-10×378 in |
| Suggest Reaming Dia. | ≤2500 mm | ≤98 in |
| Dimension (LxWxH) | 21700x3500x3800 mm | 854×137×150 in |
| Max.Thrust & Pullback speed | 36 m/min | 118 in/min |
| Max. Rotation Speed | 91 r/min | 91 rpm |
| Max. Entry Angle | 16° | 16° |
| Crane capacity | 8 T | 17637 lb |
| Suggest Crossing Length | ≤3000m | ≤9842 in |

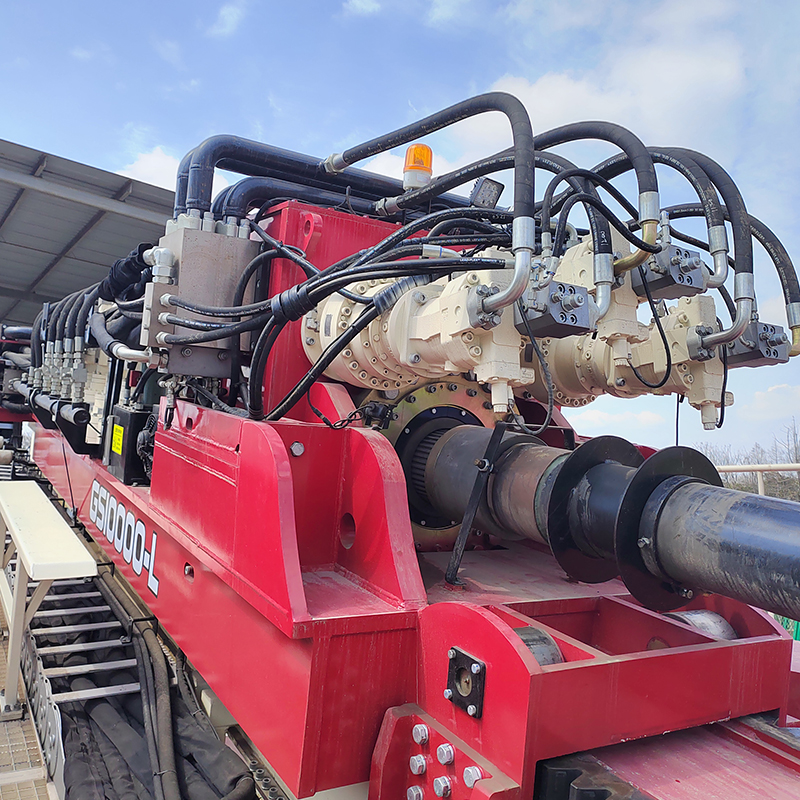

- ① The motor relies on electromagnetic fields to operate at high speeds, converting electrical energy into mechanical energy without mechanical wear and without generating high temperatures.
②he energy conversion rate exceeds that of traditional hydraulic systems by more than 50% . Driven by a motor, the operation process is zero pollution, energy-saving and environmentally friendly. - ③.The noise and vibration levels during operation are much lower than those of traditional drilling rigs, and the power output is quiet and stable.④.The human-machine interaction has been fully upgraded, adopting an integrated operating system and deeply exploring functions such as automated construction and intelligent protection.
⑤.The motor output control is precise, the data acquisition is more intelligent, and the construction is more convenient.
