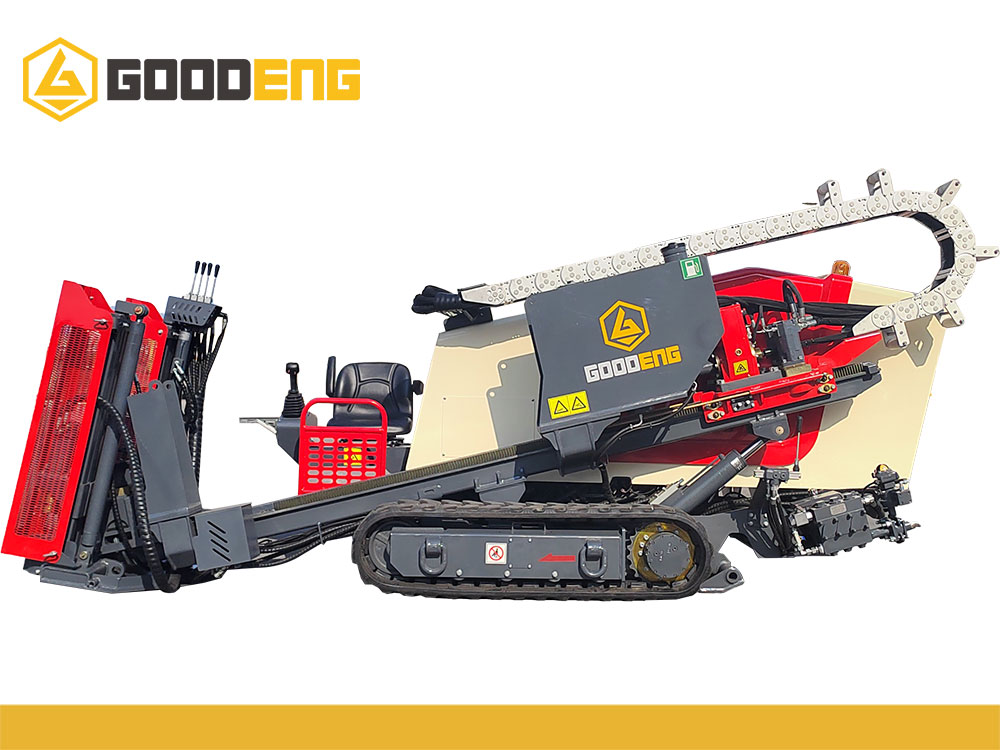

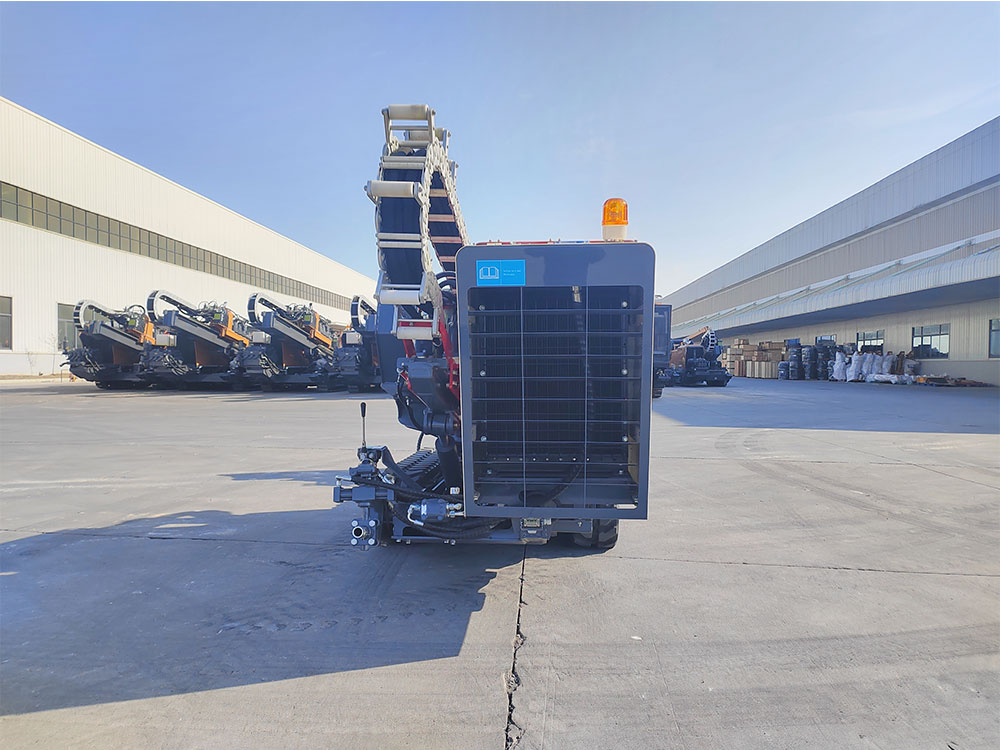

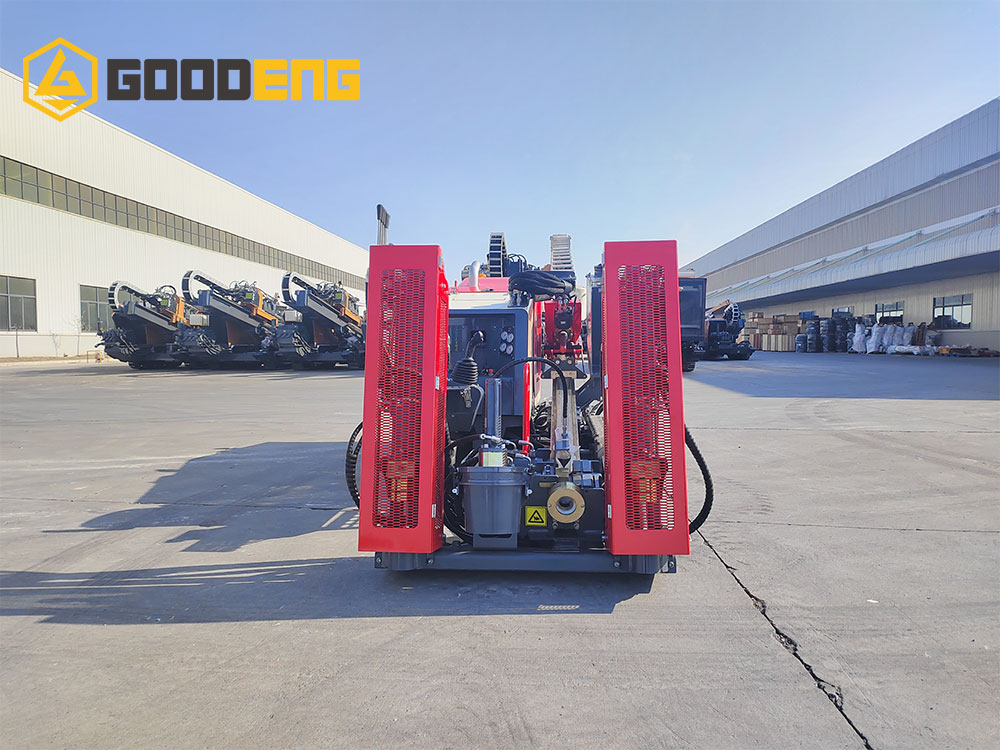

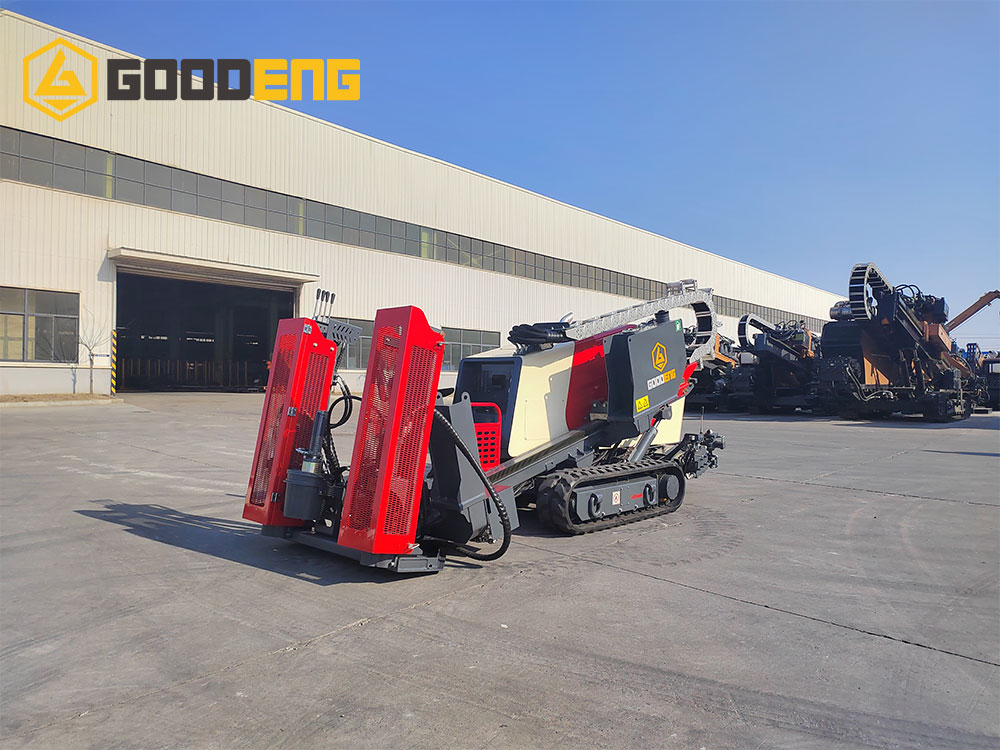

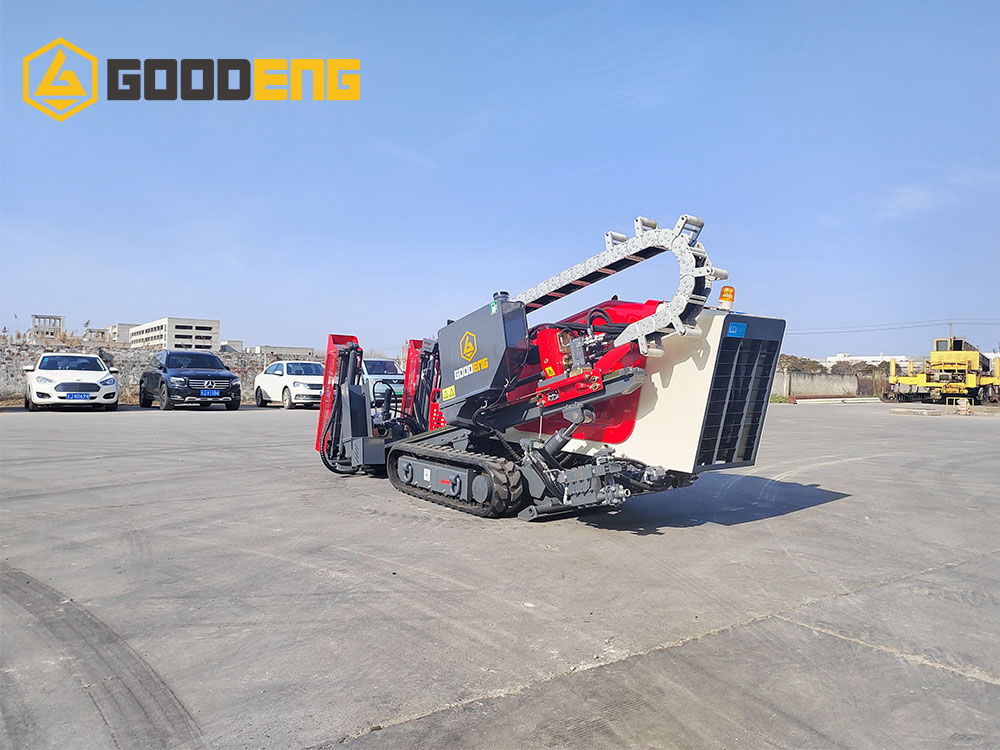

GS50-LS Trenchless Machinery No-dig HDD Horizontal Directional Drilling Rig
Technical Parameter
| Metric Unit | Imperial Unit | |
| Weight | 4100 kg | 9039 lbs |
| Dimension (LxWxH) | 4420×1460×1590 mm | 174×57×63 in |
| Max.Thrust&Pullback Force | 51 KN | 11460 lbf |
| Max.Thrust&Pullback Speed | 61 m/min | 200 fpm |
| Max.Torque | 2250 N·m | 1660 ft·lb |
| Max.Rotation Speed | 215 r/min | 215 rpm |
| Engine Power | 43 kW | 58 hp |
| Max.Flow of Mud Pump | 75 L/min | 20gal/min |
| Walking Speed | 2.5 km/h | 1.6 mph |
| Max.Mud Pump Pressure | 6 MPa | 870 psi |
| Entry Angle | 14°-17° | 14°-17° |
| Max.Climbing Gradient | 17° | 17° |
| Drill Rod Size | Φ42×1800 mm | Φ1.65×71 in |
| Drill Pipe Box Capacity | 44pcs(4x11) | 44pcs(4x11) |
| Suggest Reaming Diameter | ≤400 mm | ≤16 in |
| Suggest Crossing Length | ≤100 m | ≤328 ft |

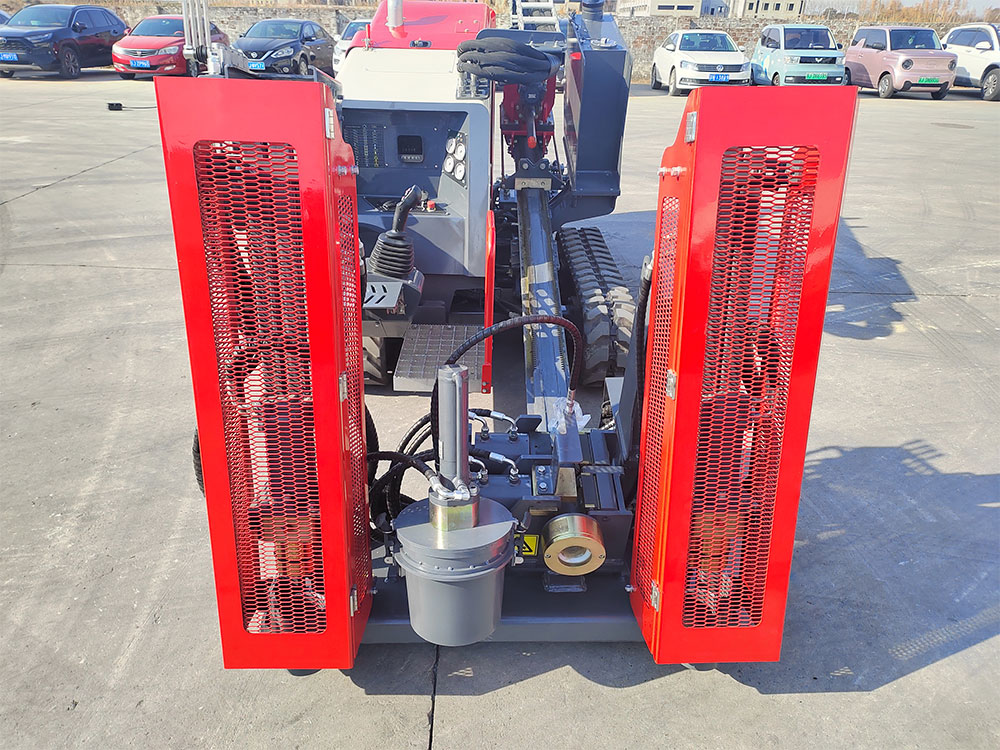

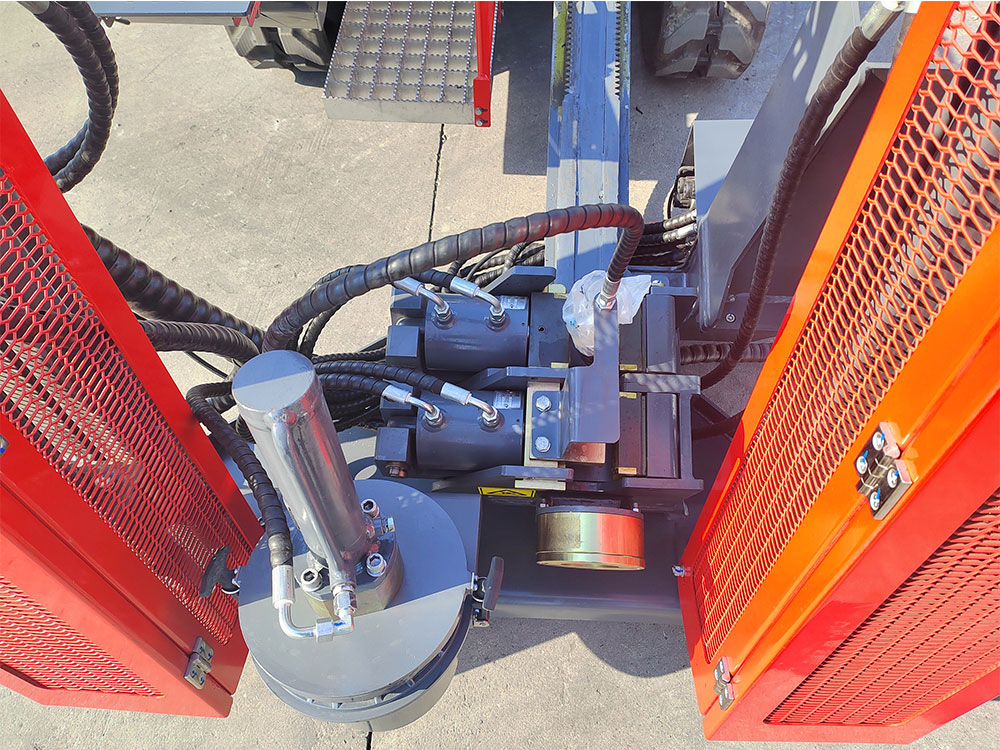

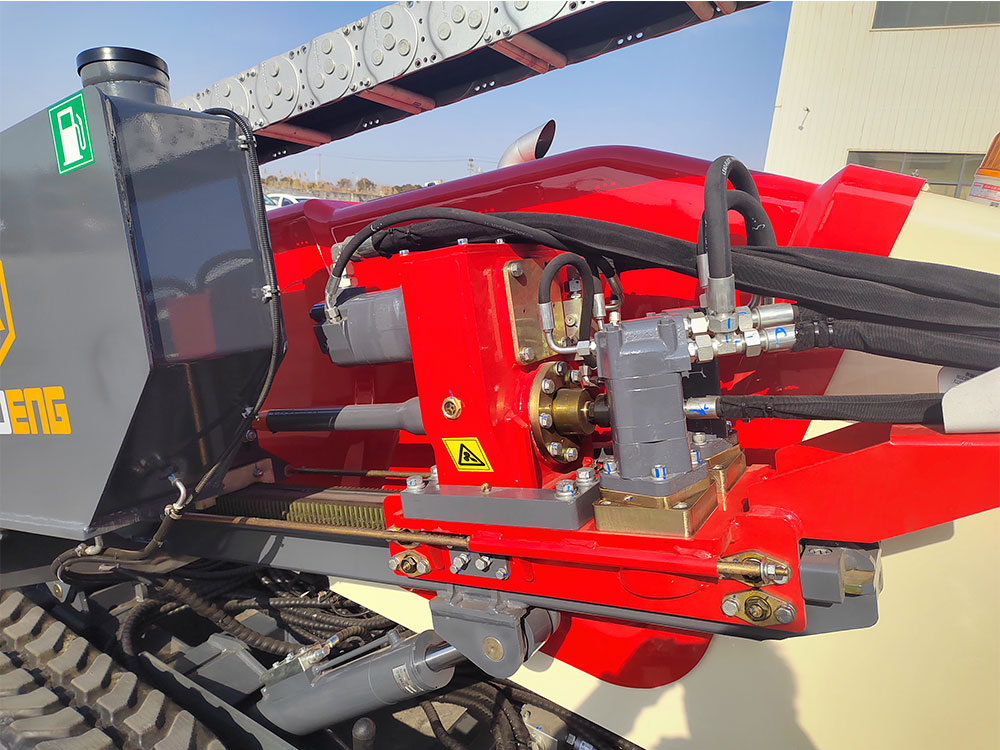

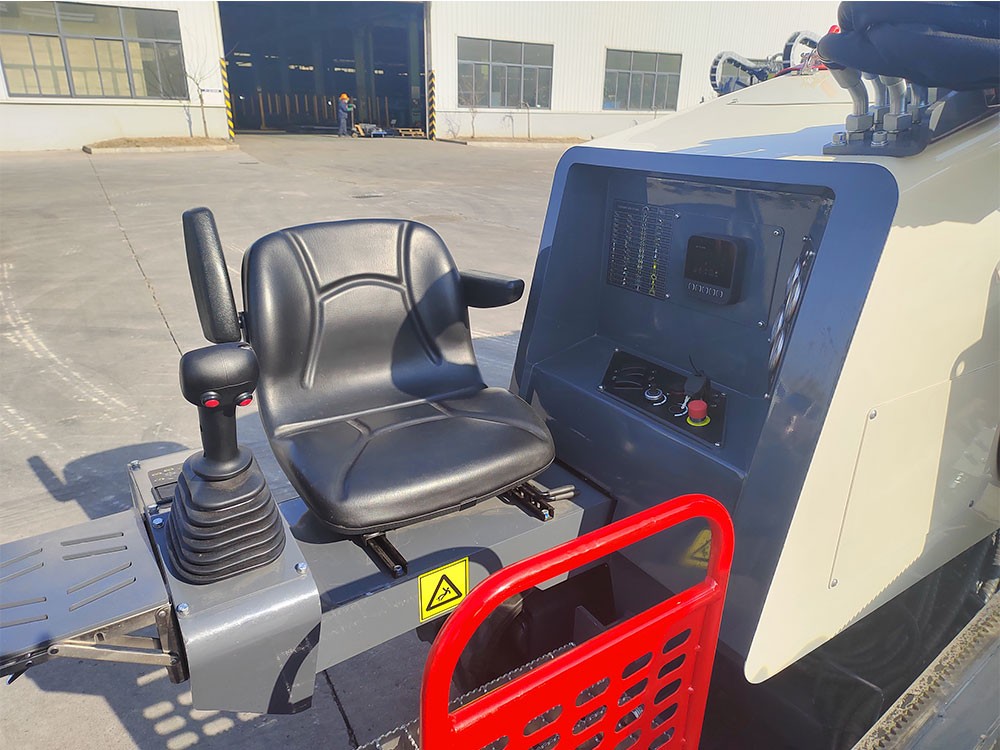

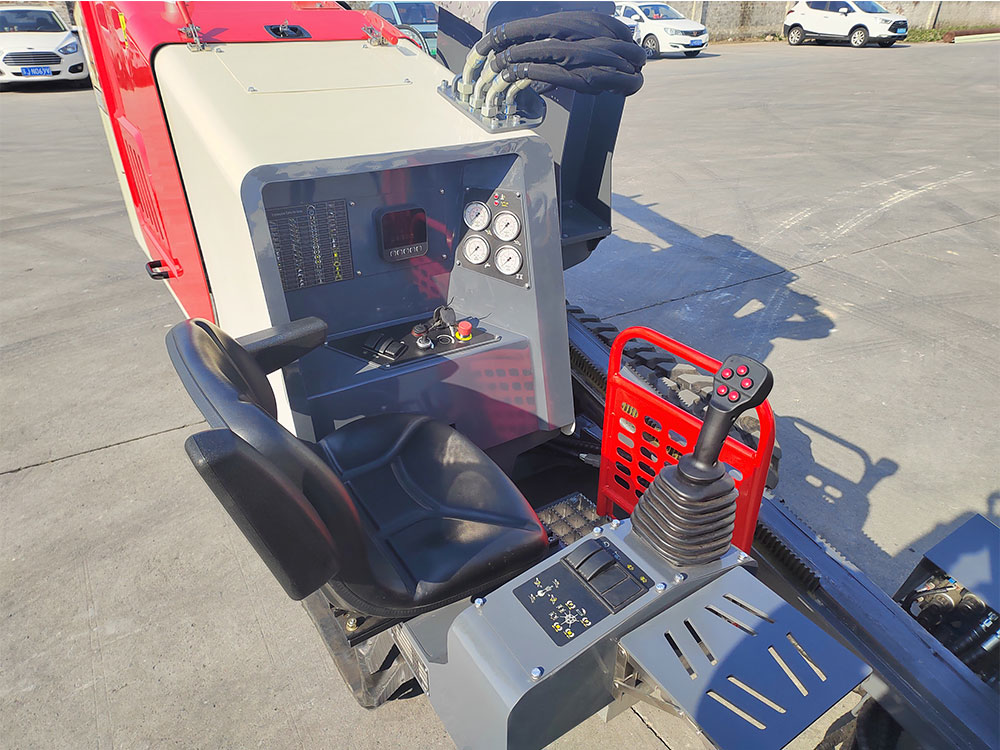

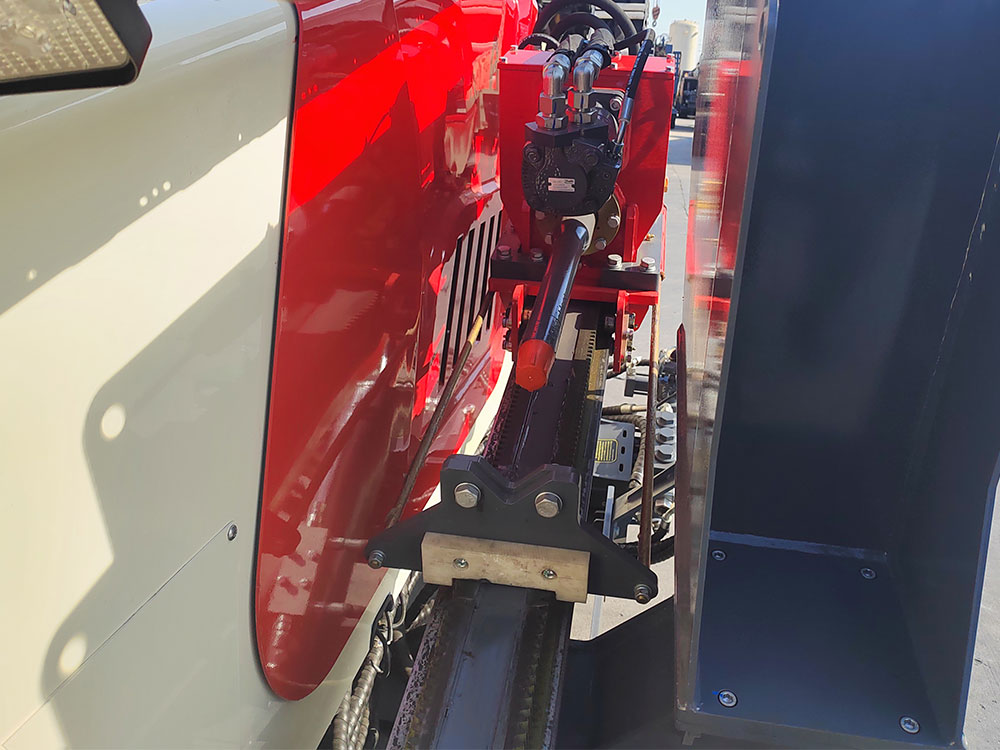

- The power head rotation is driven by the American high-torque Eaton motor, which is stable in performance and achieves stepless variable speed. The thrust&pullback motor also adopts the American Eaton motor to achieve stepless variable speed, and the machine’s work speed is far ahead in trenchless industry.
- The Ф42×1800mm drill rod allows the machine to be adapted to smaller construction space. The drill rod box capacity is 44pcs.
- The machine structure is simple in design, with low failure rate and easy maintenance.

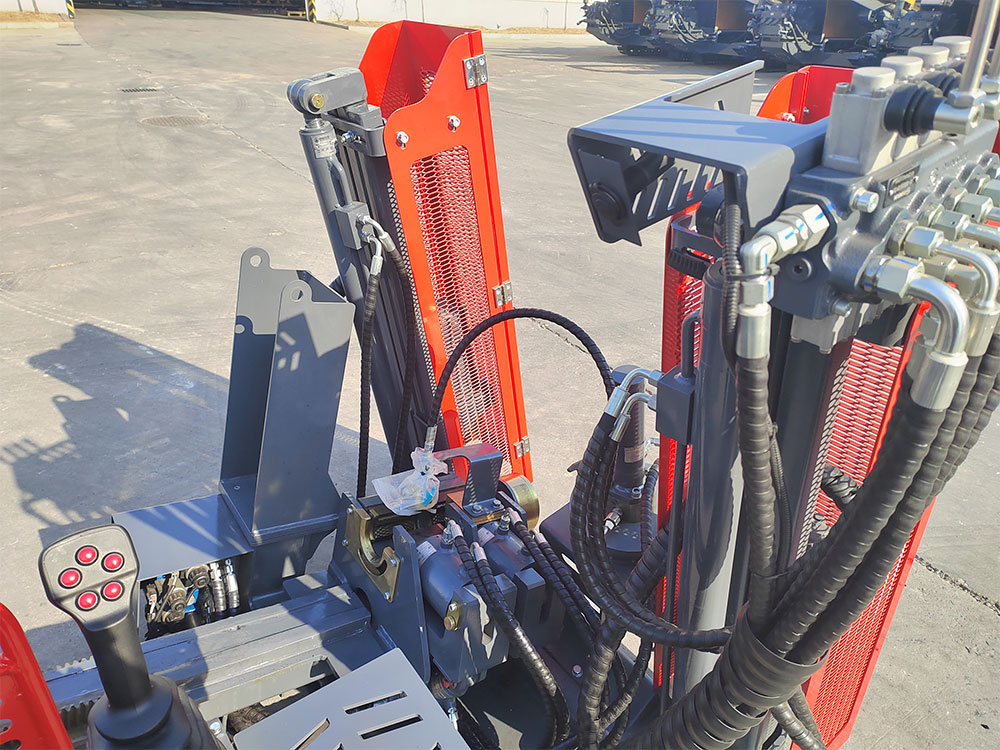

- The load-sensitive control system and internationally advanced hydraulic components are adopted for the rotation and thrust&pullback motors. The independent cooling system ensures high-efficiency construction and more reliable performance.
application
BLANKING
RIVET-WELDING
MACHINING
ASSEMBLING
DEBUGGING
TESTING
-
1
What does the suffix LS stand for? What upgrades does it have compared with the standard GS50 model?
LS represents the long-stroke reinforced version with an extended push-pull cylinder stroke, larger single feed rate and 18% higher continuous drilling efficiency. Its hydraulic system is reinforced for non-stop continuous field operation for multiple days.
-
2
Which municipal pipeline laying projects is the GS50-LS applicable to?
It is used for municipal communication optical cables, medium and small-diameter water supply & drainage PE pipes and low-pressure gas pipelines, as well as small crossing projects across township highways and rural rivers.
-
3
What are the rated maximum pullback force and torque parameters?
It features a rated pullback force of 5 tons and matched rotary torque for medium and small-diameter reaming operations, enabling one-time pullback and forming of shallow buried pipelines without secondary reaming.
-
4
Can the machine be positioned and constructed in narrow urban alleys and urban villages?
The complete machine adopts a compact layout with small floor space, and can be positioned for construction in alleyways only 3 m wide, showing obvious advantages in old urban pipe network reconstruction.
-
5
Does the hydraulic system have a high failure rate? Is cold start stable in frigid regions?
A low-temperature anti-freeze hydraulic oil kit is available as an option for normal startup at -15°C. The integrated hydraulic valve block and optimized pipeline connections greatly reduce liquid leakage failures.
-
6
Can we provide quotations under EXW, FOB, CIF and other international trade terms?
Quotations under all international trade terms are available. Complete export documents including container reinforcement, fumigation and commodity inspection can be provided together.
