    Goodeng Trenchless HDD Rig GS12000-LS horizontal directional drilling equipment boring machine
    GS-SeriesHorizontal Directional Drills

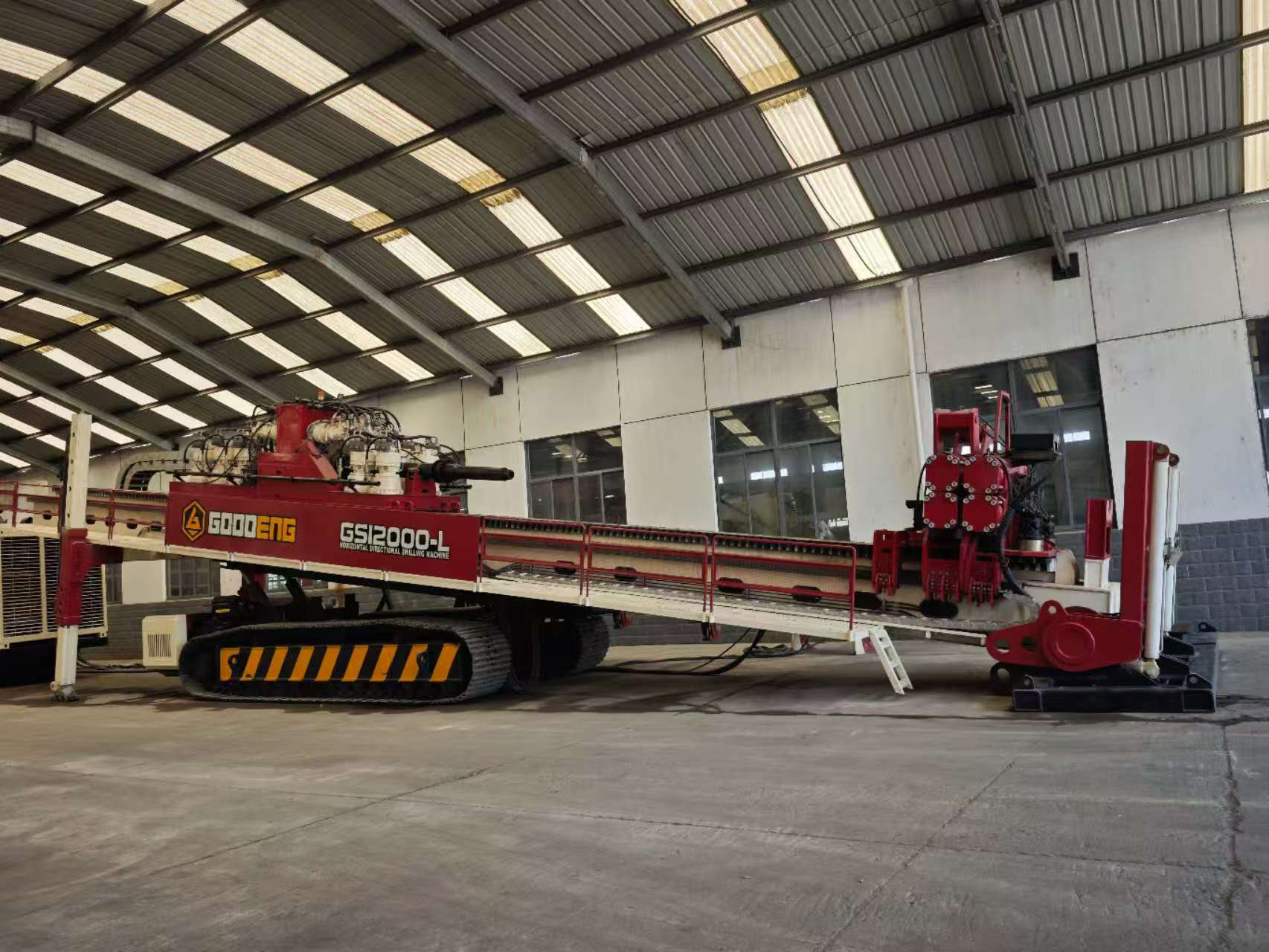

    Goodeng Trenchless HDD Rig GS12000-LS horizontal directional drilling equipment boring machine

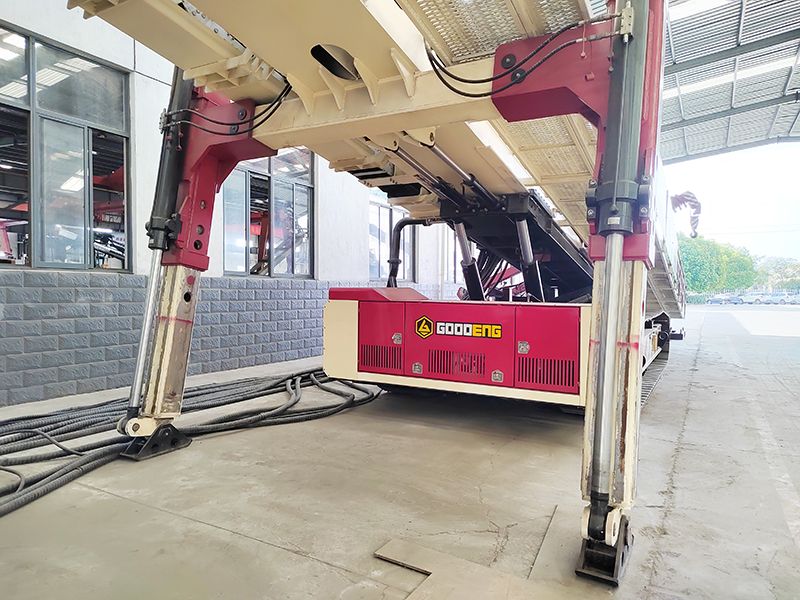

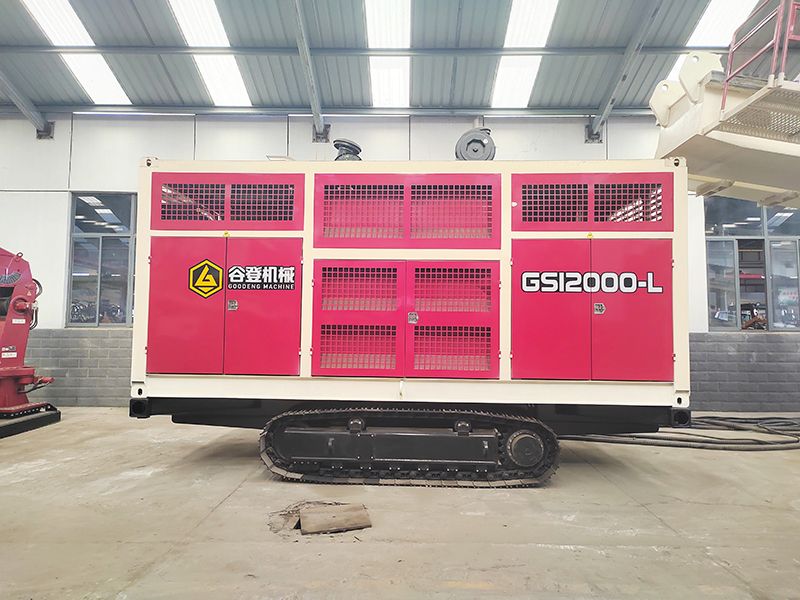

    1. Main machine: Crawler structure (detachable upper/lower parts) for easy transport and on-site positioning; power station & operating room are standard 20ft containers, convenient for transfer.
    2. Power system: 2×565kW + 1×264kW + 1×154kW engines; PLC controls precise power-hydraulic matching, ensuring strong power with energy-saving and environmental protection.

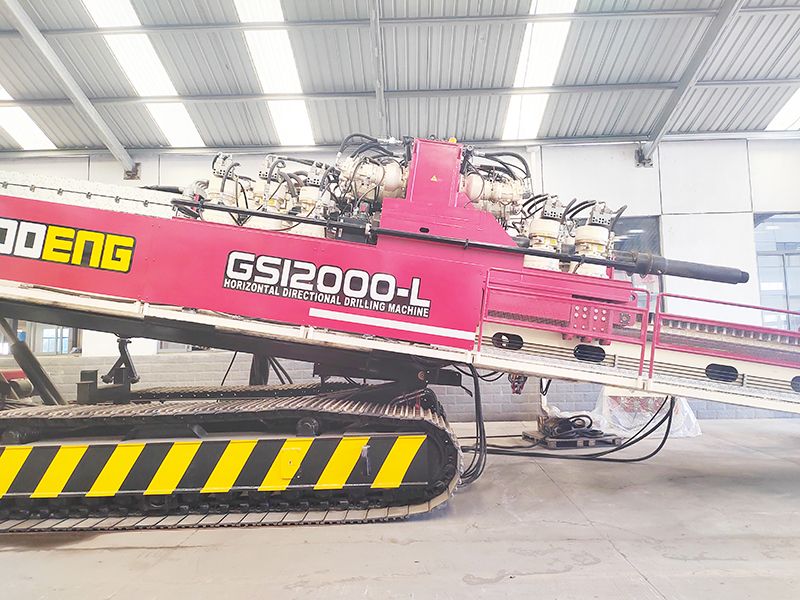

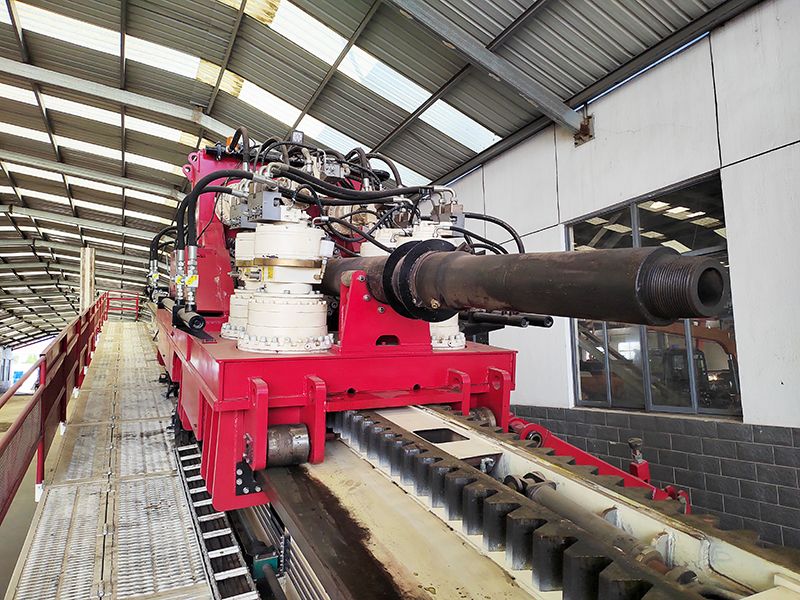

    3. Multi-protection rotary/push-pull motors: Resist working condition impacts, extend motor life, and solve elastic potential energy release in rock conditions & long-distance drill pipe crossing.
    4. Drilling parameters: Torque, speed, push-pull force/speed set via PLC; system auto-adjusts to maintain constant torque drilling, avoiding drill pipe unbuckling from over-torque/over-pull.

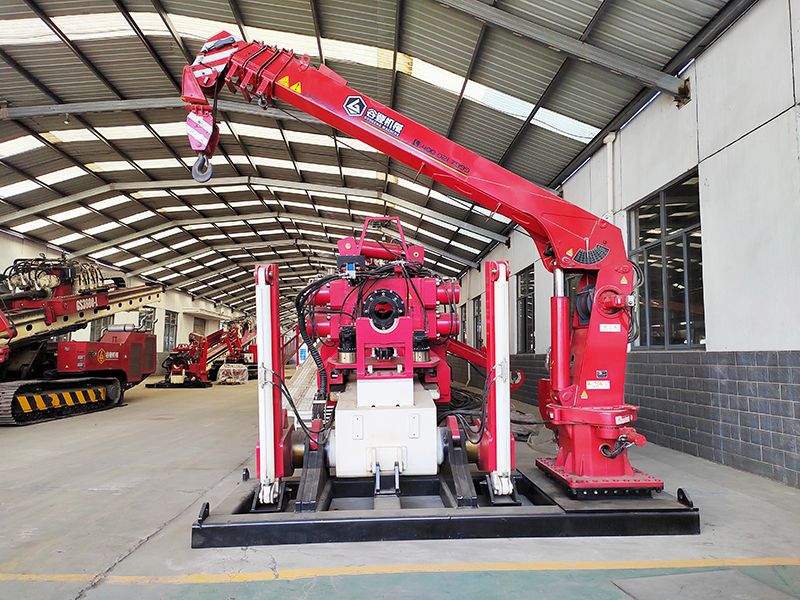

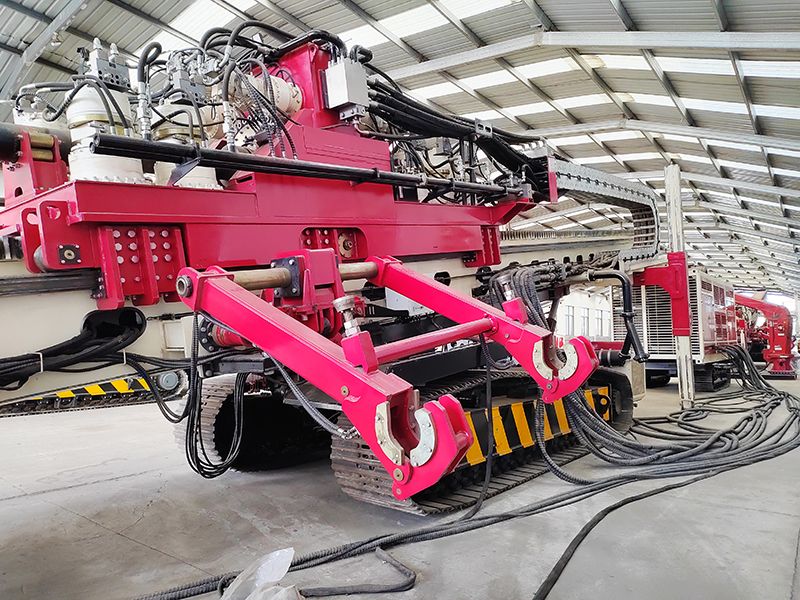

    5. Patented cylinder rack rotary manipulator: Stable performance, applicable to Φ168-254mm drill pipes.

      Contact us

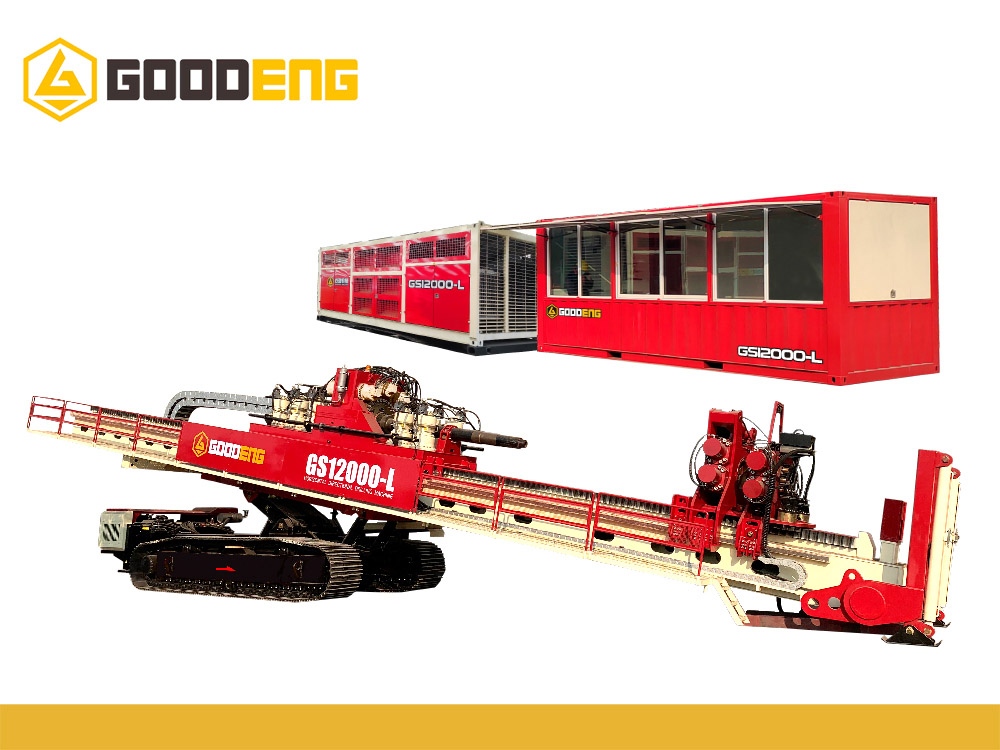

      goodeng 1200ton large hdd machine(1).jpg
      gas pipline construction hdd machine.jpg

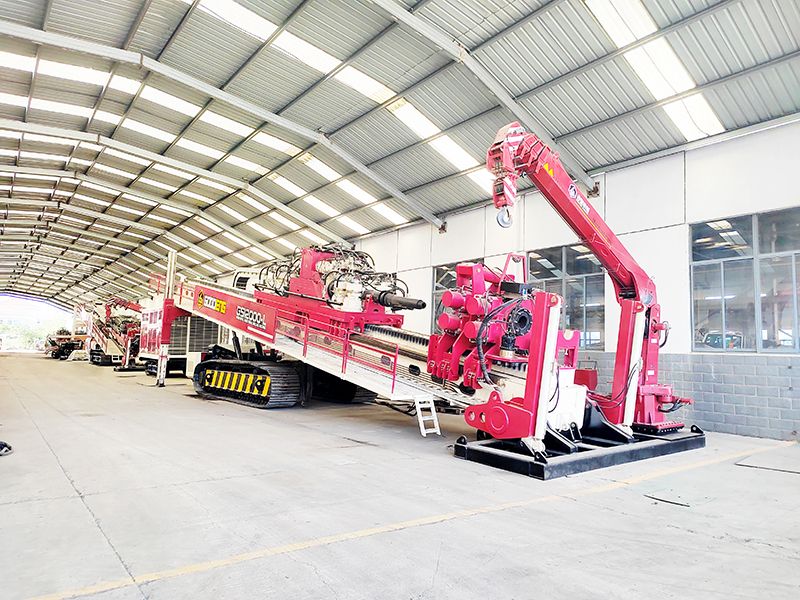

      Goodeng Trenchless HDD Horizontal Directional Drilling/Rig GS12000-LS

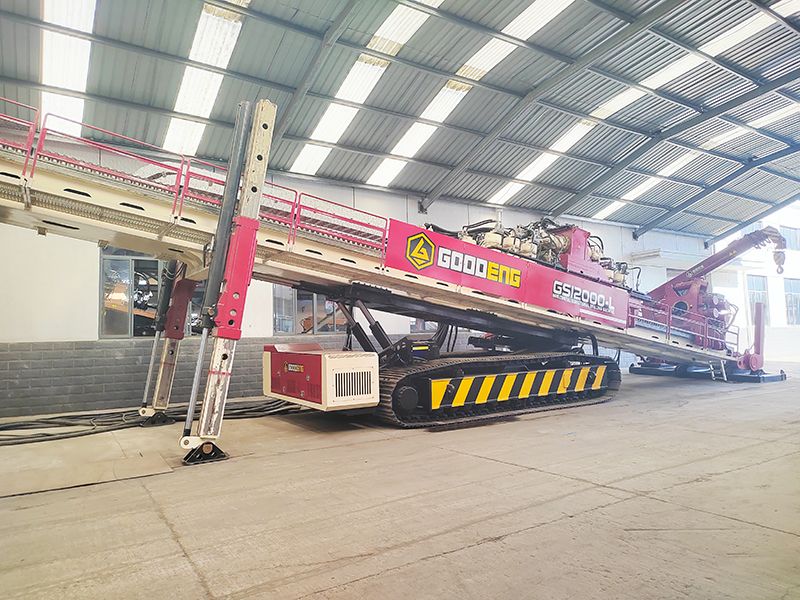

      Goodeng Trenchless HDD Horizontal Directional Drilling/Rig GS12000-LS

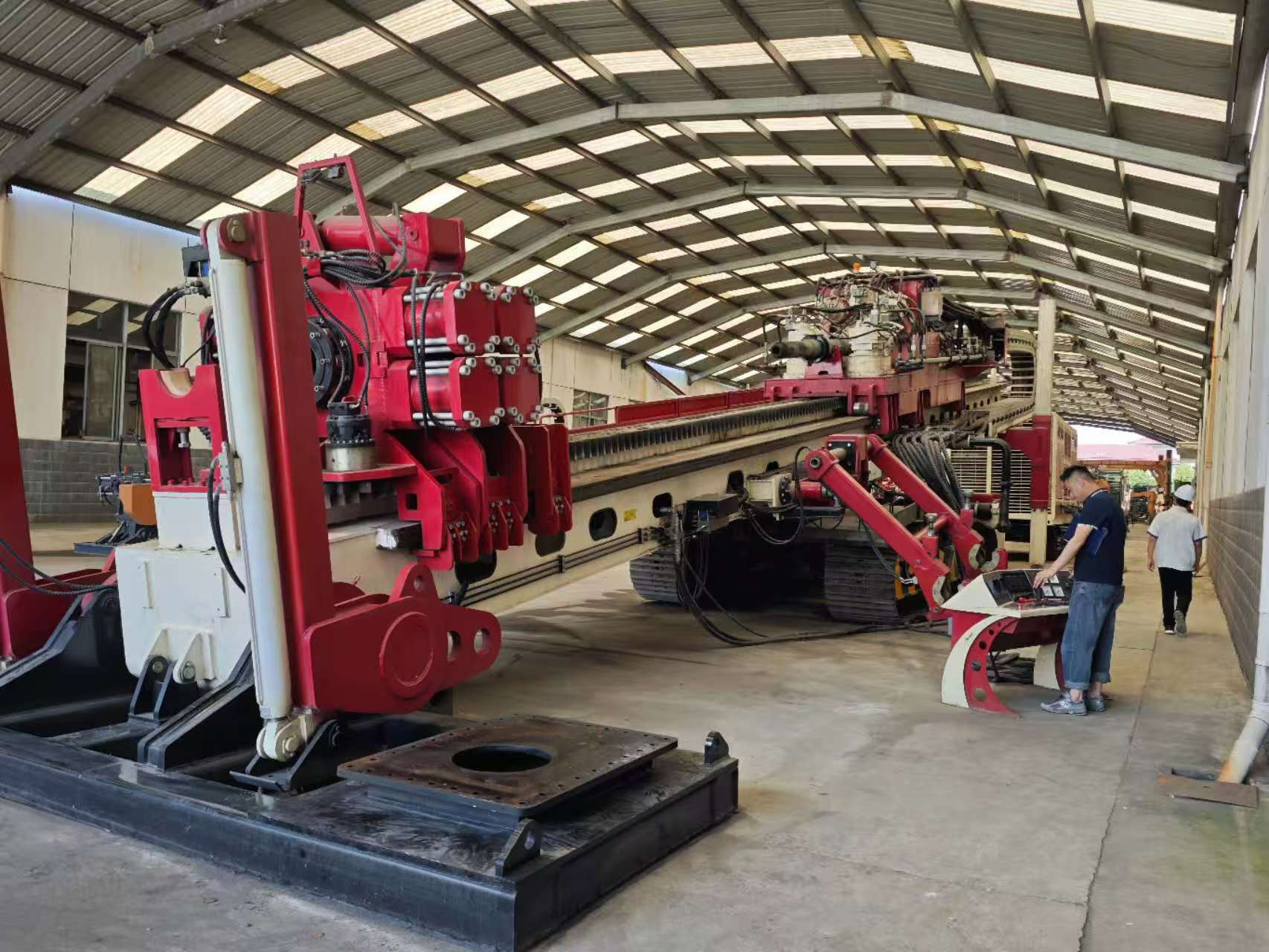

      gs12000 hd.jpg
      Large horizontal directional drill machine.jpg

      Technical Parameter

      Metric units Imperial units
      Weight 145100 kg 319890 lbs
      Max. Thrust & Pullback Force 12000 KN 1820952 lb
      Max. Torque 275000 N·m 202829.55 lb·ft
      Engine power 565 kw*2+264 kw+154 kw 3*550 hp
      Max. working pressure 35 Mpa 350 bar
      Entry Angle 18° 18°
      Drill Rod Size Φ168-254x9600 mm Φ6.61-10x378 in
      Suggest Reaming Dia. ≤3000 mm ≤79 in
      Dimension (LxWxH) 22800x3400x5000 mm 897.64×133.86 in×196.85 in
      Max.Thrust & Pullback speed 40 m/min 138ft/min
      Max. Rotation Speed 90 r/min 90r/min

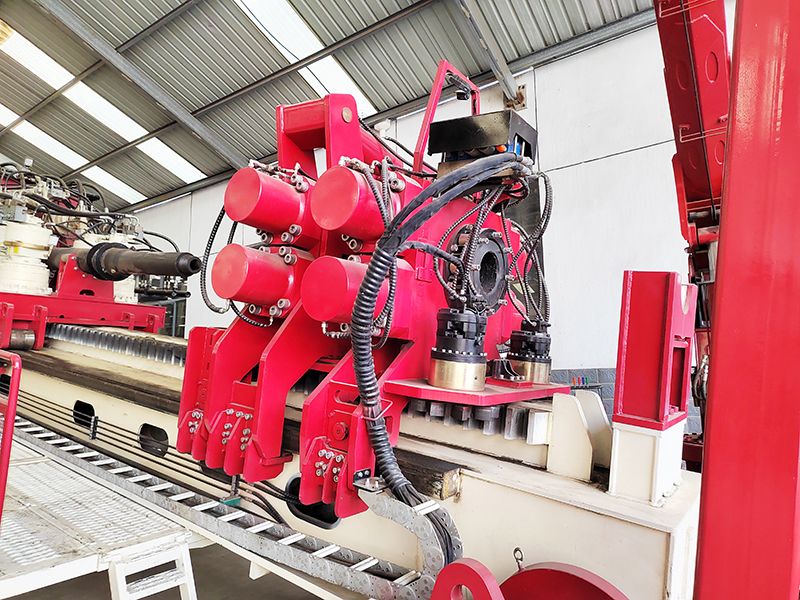

      Max. Clamp force 5300 KN
      		 989160 lb
      Crance Capacity 8T 17637 lb
      Mud pipe channel diameter
      		 4 in
      		 4 in
      Suggest Crossing Length
      		 ≤3000 m ≤9842.52 ft

      Product Introduction

      The power system engine consists of two 565kW, one 264kW and one 154kW engines; the PLC control system realizes the precise matching of power and hydraulic system power under various working conditions, which not only ensures strong power but also saves energy and is environmentally friendly.

      •  The main machine is a crawler structure with detachable upper and lower parts, which can meet the transportation requirements and realize convenient positioning on the construction site. The power station and the operating room are both standard 20-foot containers, which are extremely convenient for transfer and transportation.
      •  The multi-protection rotary and push-pull motors completely resist the impact of various working conditions on the motors, improve the reliability of the system and the service life of the motors, and provide practical and effective solutions for the elastic potential energy release of rock working conditions and long-distance crossing drill pipes.
      •  The torque and rotation speed, push-pull force and push-pull speed can all be set through the PLC control system. The system can automatically adjust the drilling parameters within a limited range according to the drilling conditions, maintain constant torque drilling, and solve the difficulty of drill pipe unbuckling caused by over-torque and over-pull.

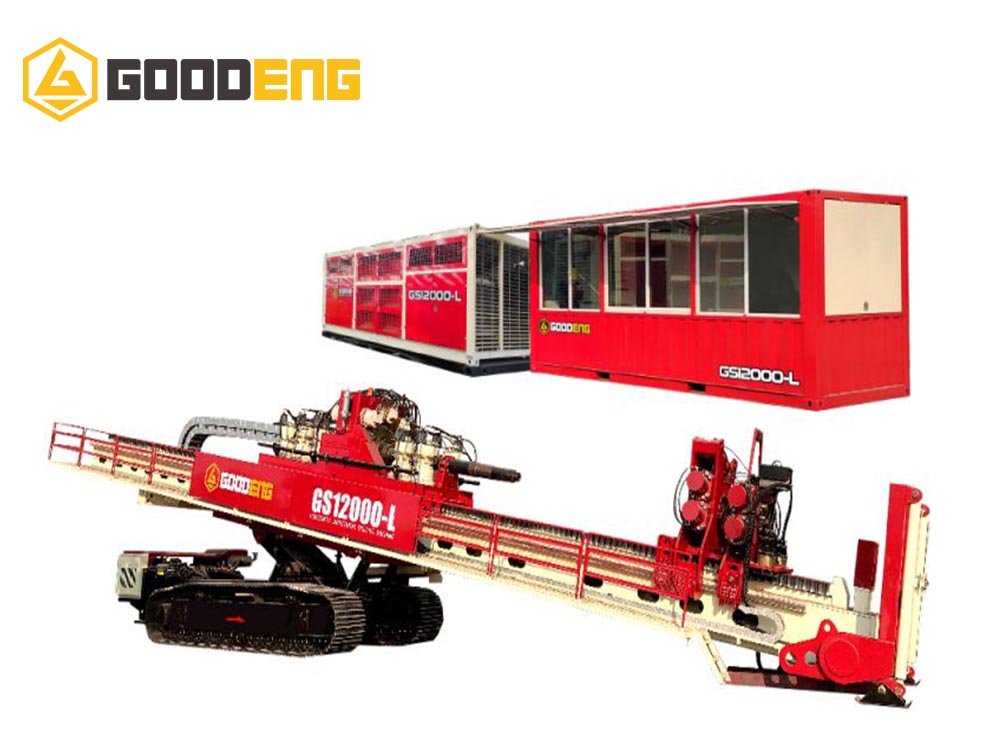

      gs12000hdd

      solution MAIN DETAILS

      5 GS12000-LS

      Oilfield

      1 GS12000-LS

      Oilfield

      6 GS12000-LS

      Oilfield

      4 GS12000-LS

      Oilfield

      2 GS12000-LS

      Oilfield

      3 GS12000-LS

      Oilfield


      application


      APPLICATION AREA

      GS12000-LS HDD Machine (4)
      01
      GS12000-LS HDD Machine
      02
      GS12000-LS HDD Machine (3)
      03
      GS12000-LS HDD Machine (2)
      04

      Production Process

      1
      BLANKING 1

      BLANKING

      2
      RIVET-WELDING 2

      RIVET-WELDING

      3
      MACHINING 3

      MACHINING

      4
      ASSEMBLING 4

      ASSEMBLING

      5
      DEBUGGING 5

      DEBUGGING

      6
      TESTING 6

      TESTING

      65420be751dad22160
      Jiangsu Goodeng Heavy Machinery
      FAQ (2)

      FAQ

      • 1

        What is the maximum pulling force of GOODENG GS12000-LS HDD Rig?

        GOODENG GS12000-LS is a 1200-ton class HDD rig with a maximum pullback force of 12,000 kN. It is designed for large-scale HDD projects, including long-distance and large-diameter pipeline installations.

      • 2

        What kind of projects is GS12000-LS suitable for?

        GS12000-LS is mainly designed for large infrastructure and energy projects, such as: Oil & gas pipeline installation; Long-distance pipeline crossing; River and lake crossing; Sea crossing projects; Large diameter water pipeline installation; Complex underground construction projects.

      • 3

        What is the maximum drilling distance of GS12000-LS?

        The drilling distance depends on the pipe diameter, geological conditions, drilling plan, and construction method. Under suitable conditions, GS12000-LS can support several kilometers of HDD crossing projects.

      • 4

        Can GS12000-LS work in hard rock and complex geological conditions?

        Yes. GS12000-LS provides high torque and strong pulling force, and can be equipped with suitable drilling tools, rock reamers, and mud systems to handle complex conditions, including hard clay, gravel, and rock formations.

      • 5

        What are the main advantages of GS12000-LS compared with other HDD rigs?

        The main advantages include:12,000 kN ultra-high pullback force for heavy-duty projects; High torque output for large-diameter reaming; Stable hydraulic system for reliable operation; Intelligent PLC control system for precise drilling management; Strong adaptability for different geological conditions.

      • 6

        What pipe diameter can GS12000-LS install?

        GS12000-LS is designed for large-diameter pipeline projects. The final pipe diameter depends on project conditions, soil type, crossing length, and the selected drilling tools. Our engineers can recommend the suitable configuration based on your project requirements.

      • 7

        What information is required to select the right configuration for GS12000-LS?

        To provide the most suitable solution, please provide: Pipeline diameter; Crossing length; Ground conditions (soil, clay, sand, rock, etc.); Required drilling depth; Project location; Required construction schedule.

      • 8

        Does GOODENG provide technical support after purchase?

        Yes. GOODENG provides professional technical support, including: Machine commissioning guidance; Operator training;HDD construction solutions; Technical assistance during project operation.

      Contact Us
