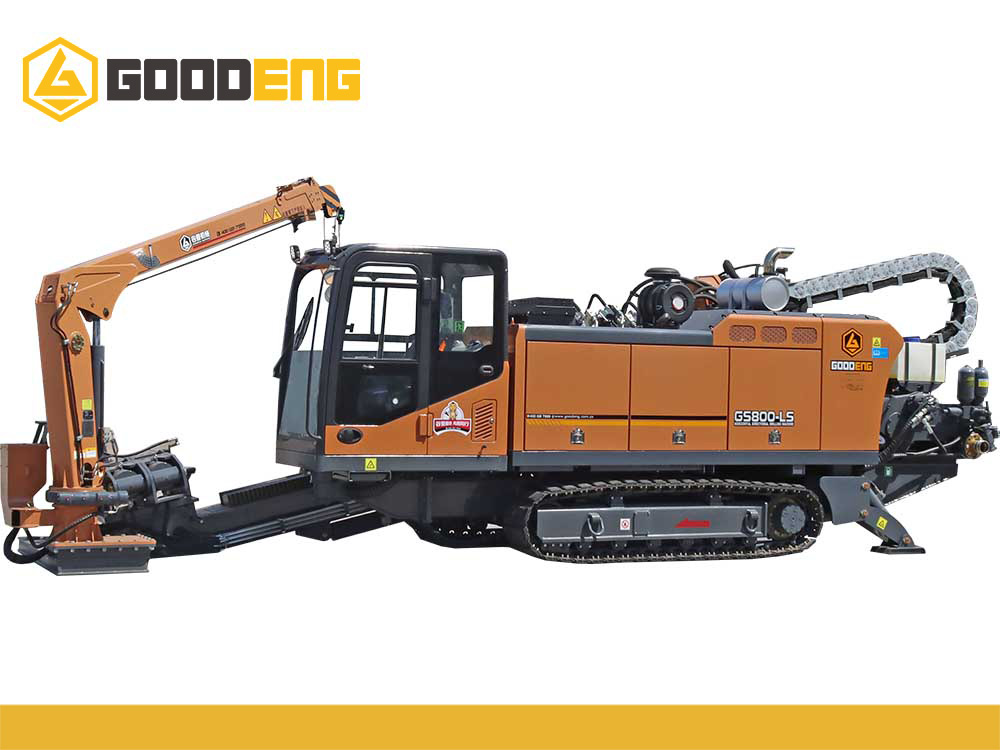

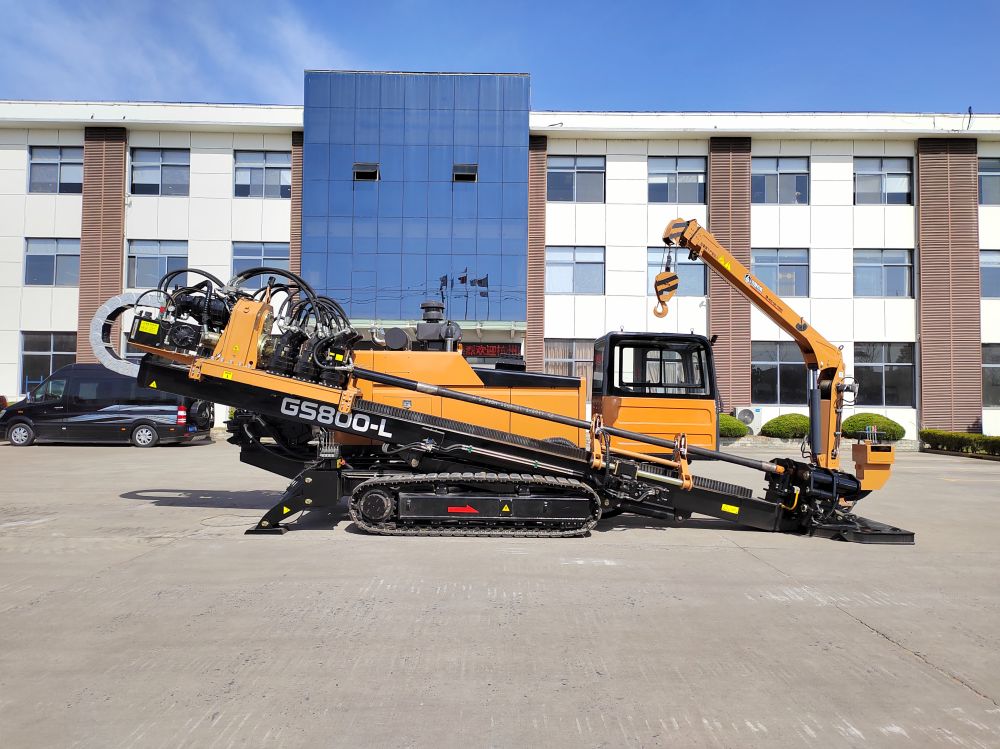

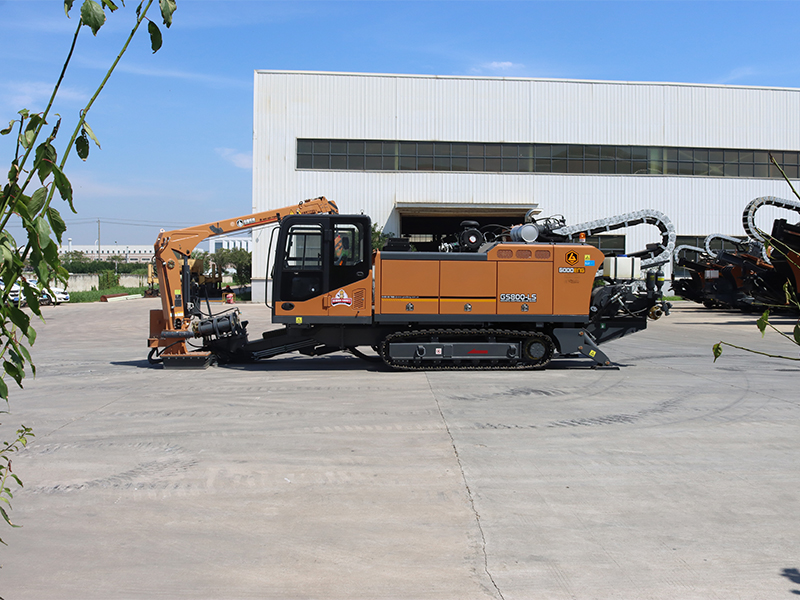

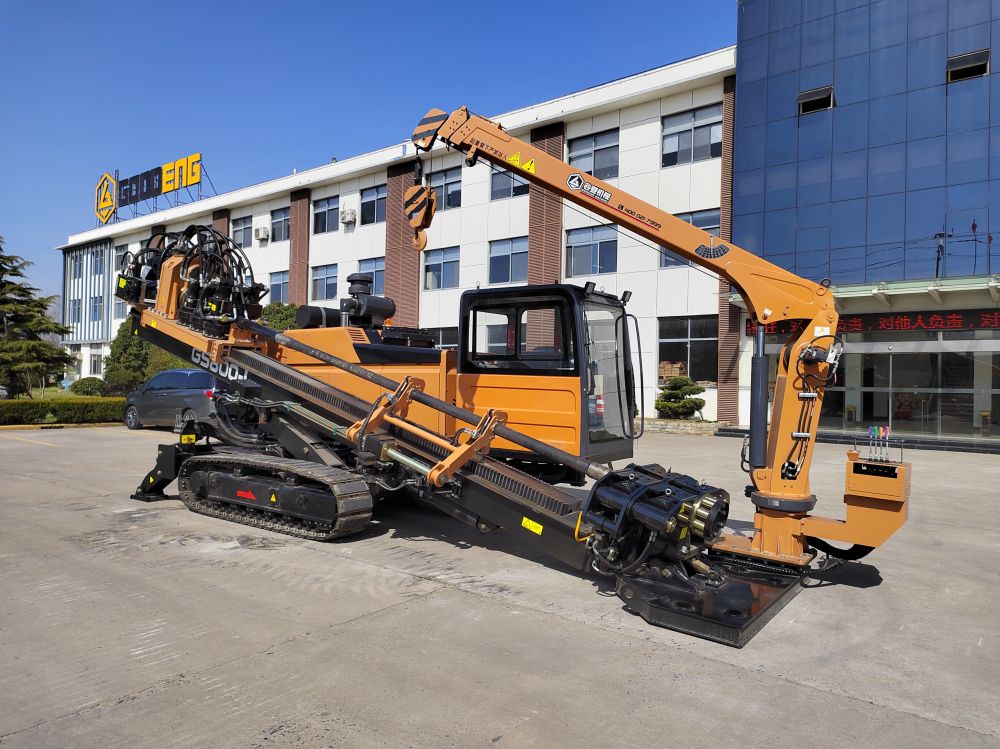

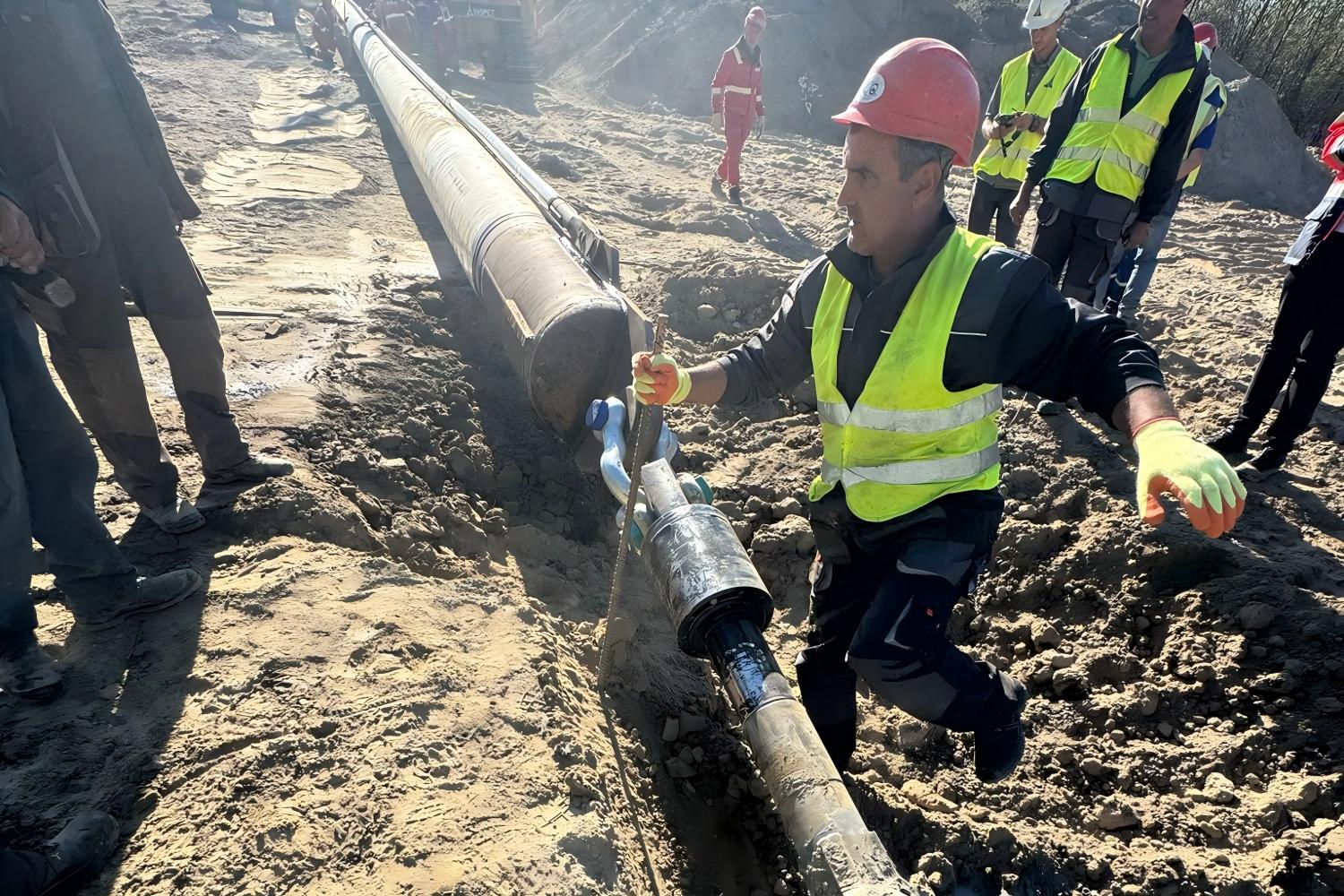

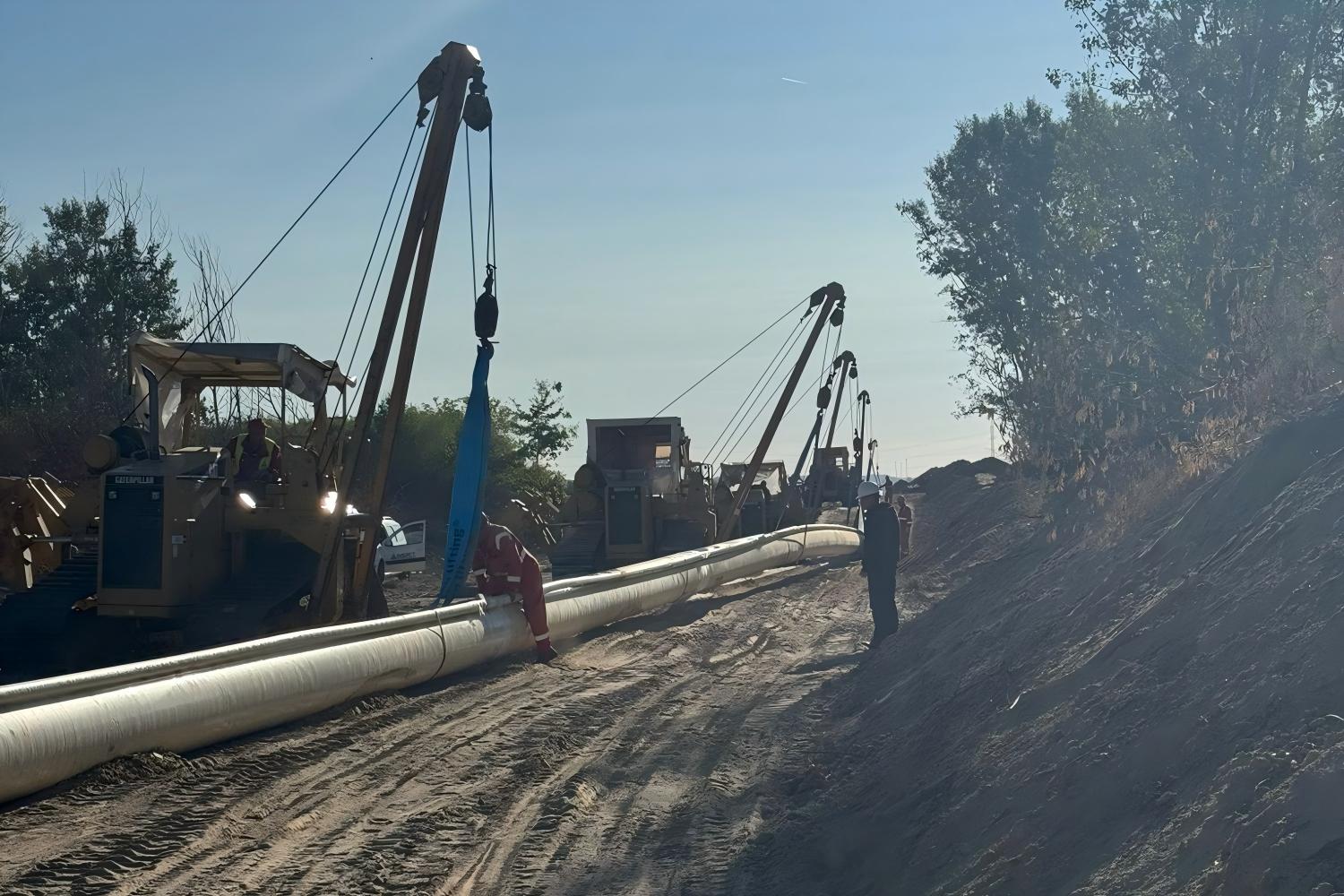

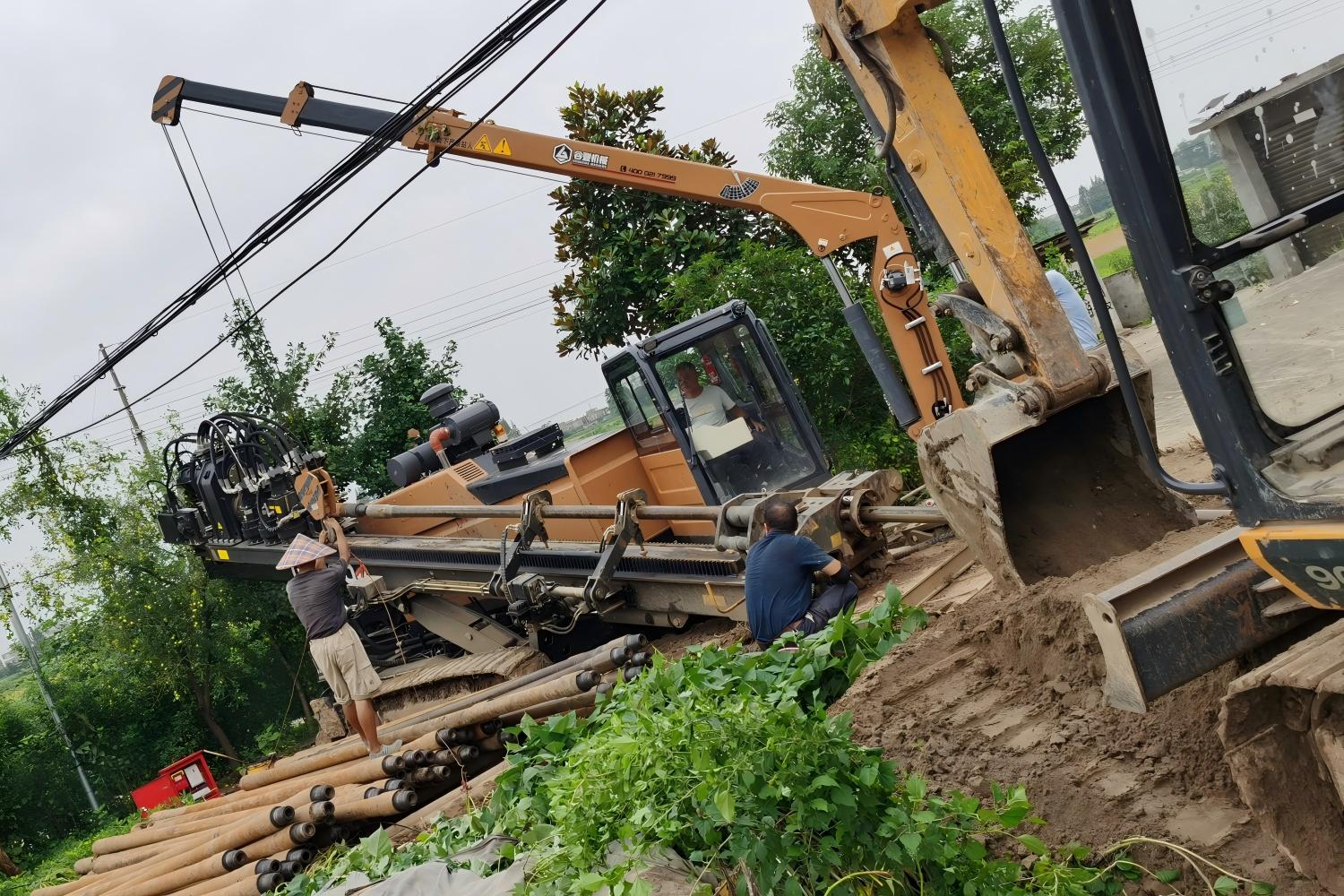

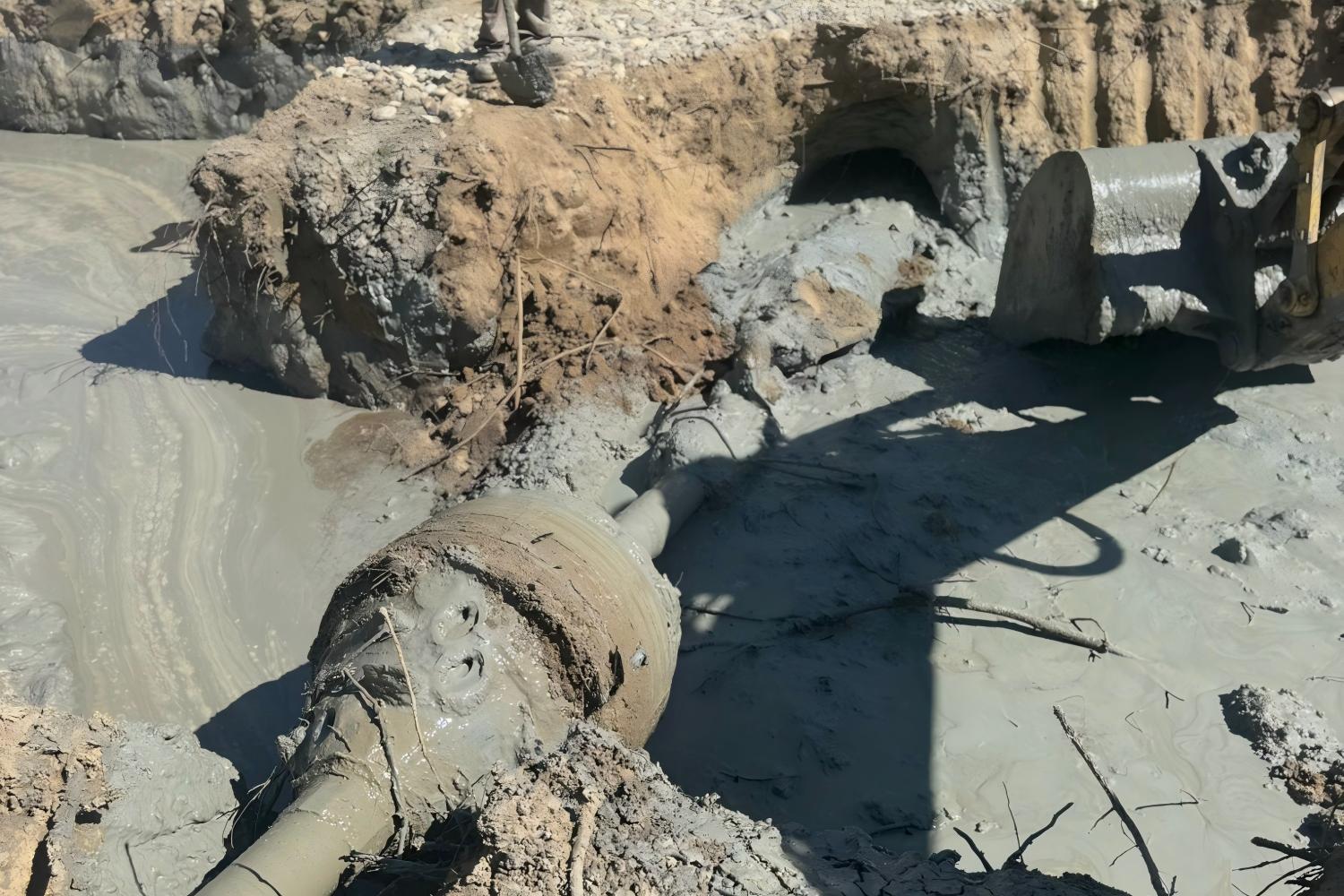

Goodeng GS800-LS Hydraulic HDD Machine

The walking system of our product features a steel crawler with external rubber plates and wire-controlled walking, with the added flexibility of 2-speed adjustable options. The power head rotates with electric proportional stepless speed regulation, and the drilling system offers thrust-pullback speed adjustable in three speeds: high, medium, and low. Our product also includes a panoramic rotating cab with heating and cooling air conditioning for an optimal operating system. The power head provides reinforced power and is equipped with a mud pump, jet nozzle, and automatic refilling pump. We take pride in offering high-quality, versatile products at Shanghai Goodeng International Co., Ltd

Trenchless No-dig HDD Horizontal Directional Drill/Bore Hydraulic Crawler Machine/Equipment Underground Under Road Pipeline Utility Cable Fiber Optic Goodeng(Manufacturer) GS800-LS

Technical Parameter

Weight	16700 kg	36740 lbs
Dimension(LxWxH)	8700×2400×2700mm	342.52×94.49×106.3 in
Max.Thrust & Pullback Force	910/1360 KN	204643/305821 lbf
Max.Thrust&Pullback Speed	55 m/min	180.45 ft/min
Max.Torque	35000 N·m	25814 ft·lb
Max.Rotation Speed	120 r/min	120 rpm
Engine power	221kW	296 hp
Max.Mud flow	600/800 L/min	158.5/211.34 gpm
Walking Speed	3-5 km/h	1.86-3.11 mph
Max.Mud Pressure	10 MPa	1450 psi
Entry Angle	12°-20°	12°-20°
Max.Climbing Gradient	18°	18°
Drill Rod Size	Φ102x4500 mm	φ4.02×177.17 in
Crane Capacity	2t	4409 lb
Suggest Reaming Dia.	≤Φ1400 mm	≤φ55.12 in
Suggest Crossing Length	≤900 m	≤2953 ft

Main Performance Characteristic

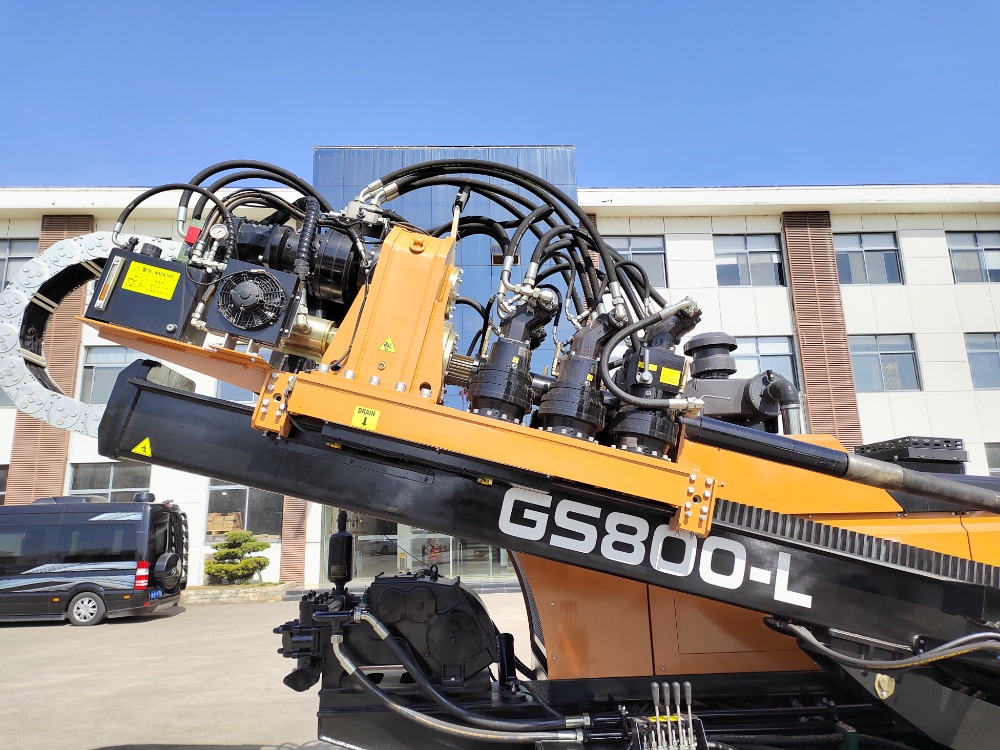

The rotation adopts the German Linde hydraulic closed system pump which is efficient, stable and reliable. The Thrust and pullback adopts the Sunny automatic variable system with load sensitive control. The rotation adopts the Rexroth motor, and the Thrust and pullback adopts the high-pressure plunger motor, which is more than 20% more efficient than the traditional hydraulic system, reduces the system heat, and can save 20% energy.

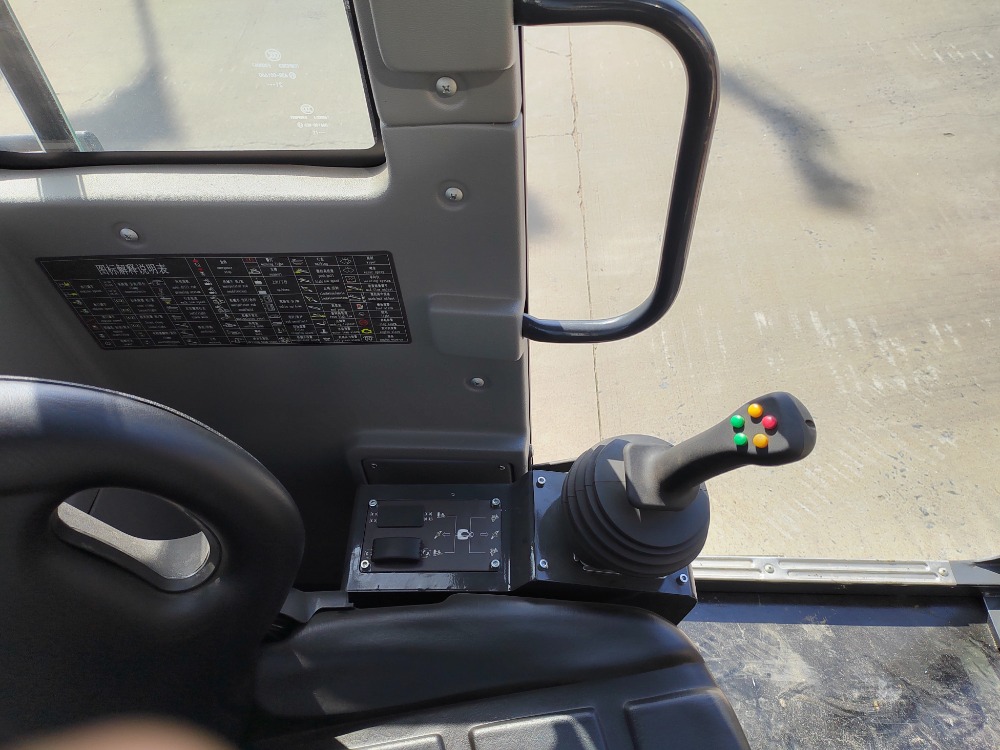

The thrust & pullback and rotating joystick adopts hydraulic control mode, which reduces the operation fault. The system is more stable and responsive.

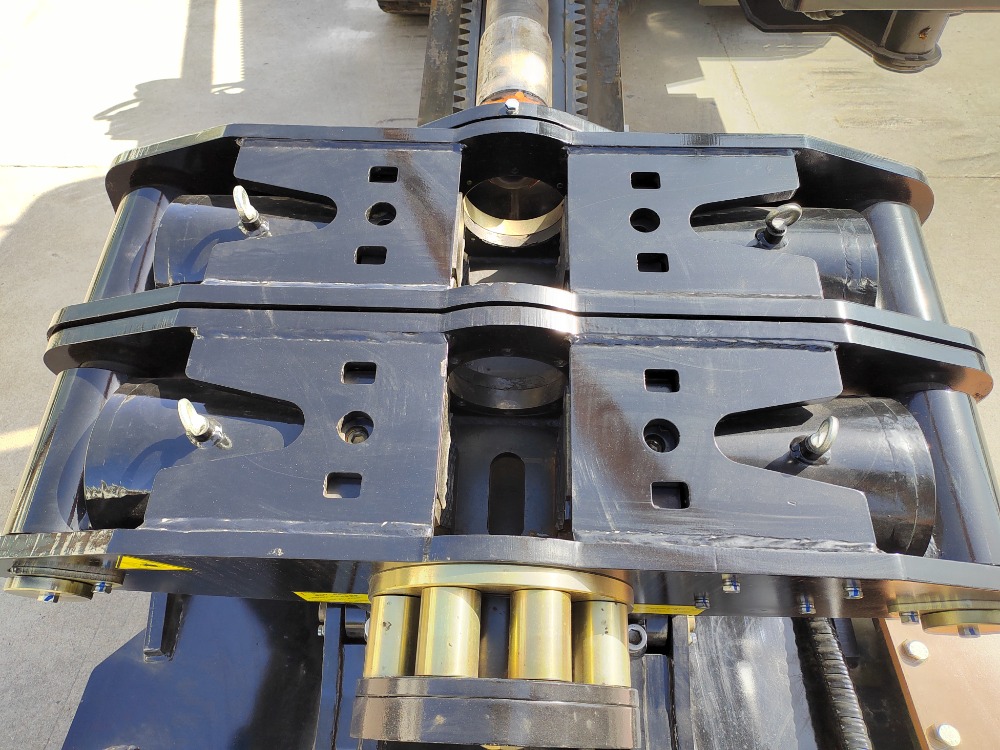

Maximum thrust & pullback force on carriage can be reinforced up to 910 KN, which provides the support for large construction.
The four-bar linkage luffing structure is adopted to greatly improve the range of incident angle, and to ensure that the track of drilling rig does not leave the ground when the angle is large, and to improve the safety performance.

Goodeng Trenchless HDD Horizontal Directional DrillingBoringTunnelling MachineRig GS800-LS (8)quv

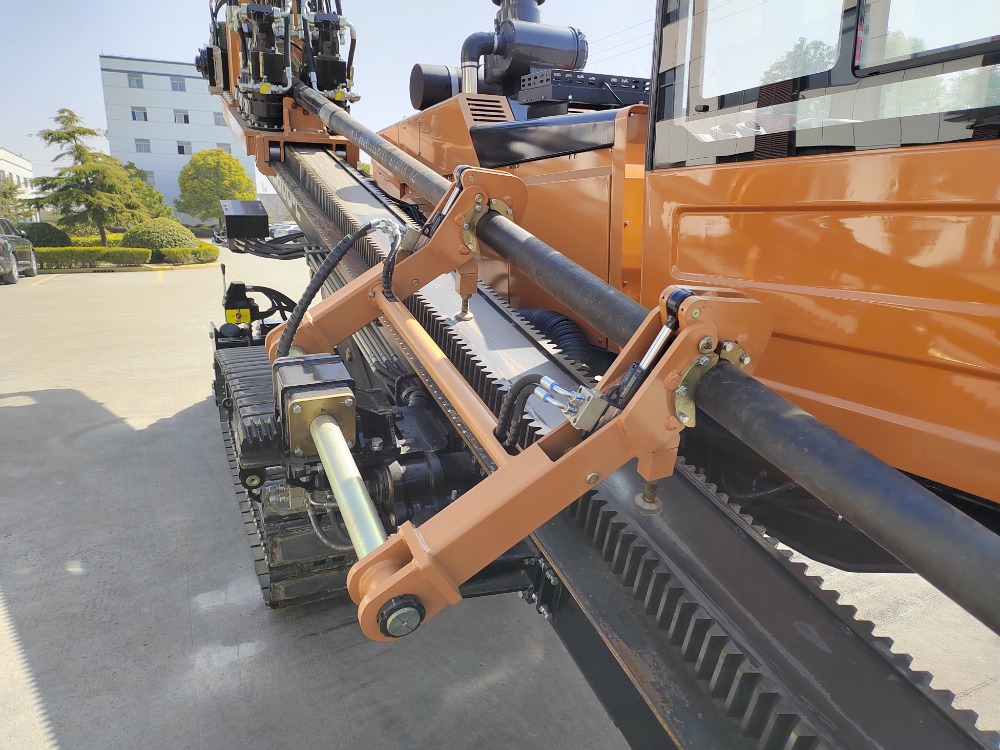

The loading and unloading of drill rods adopts manipulator(a mechanical arm mechanism with adjustable flip angle), which makes loading and unloading of drill rods convenient and quick, greatly reducing the labor intensity of construction workers and improving work efficiency.
Applicable for Ф102×4500 mm drill rod, the machine fits moderate field area and is easy for jobsite transfer.

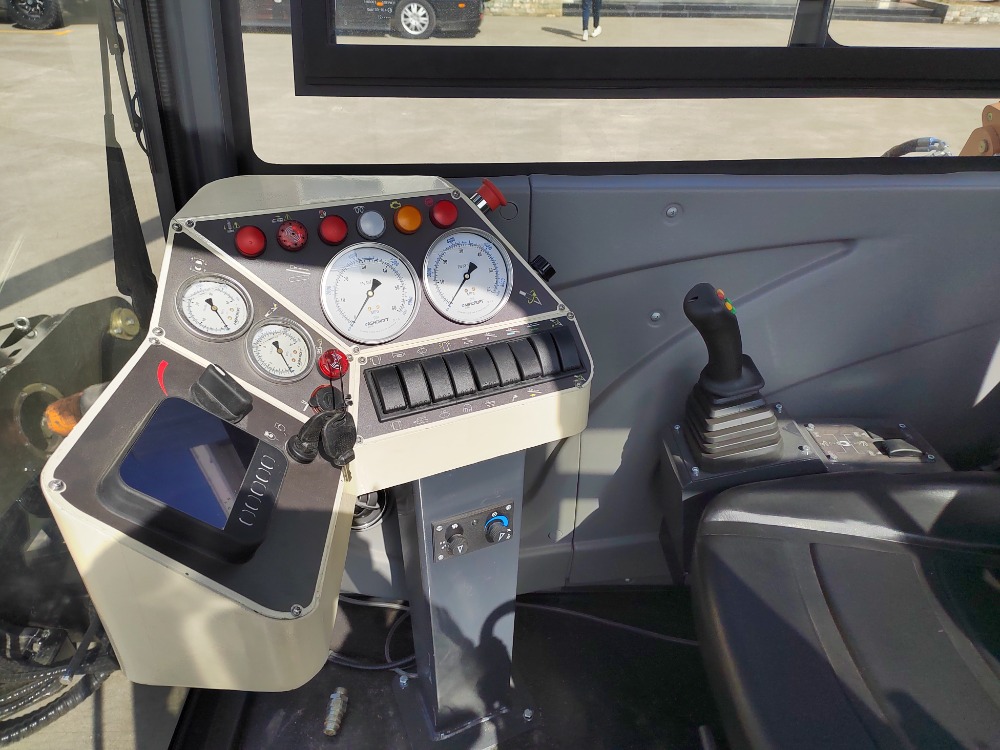

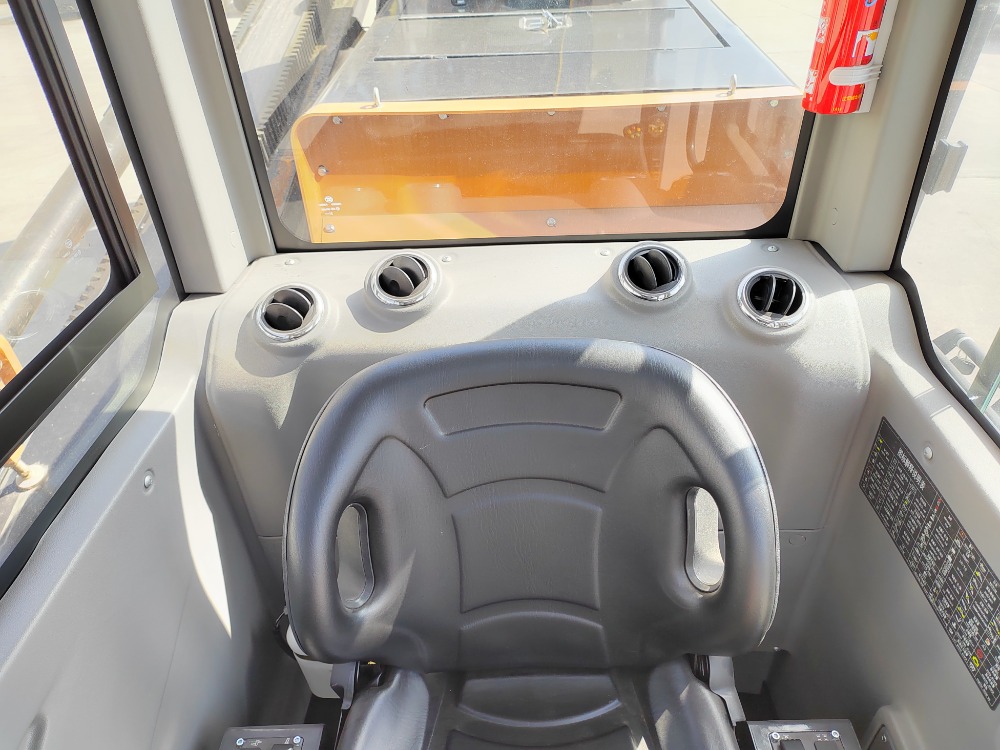

Optional rotating cab with wide field of vision, which greatly improve the construction environment of the operator.
