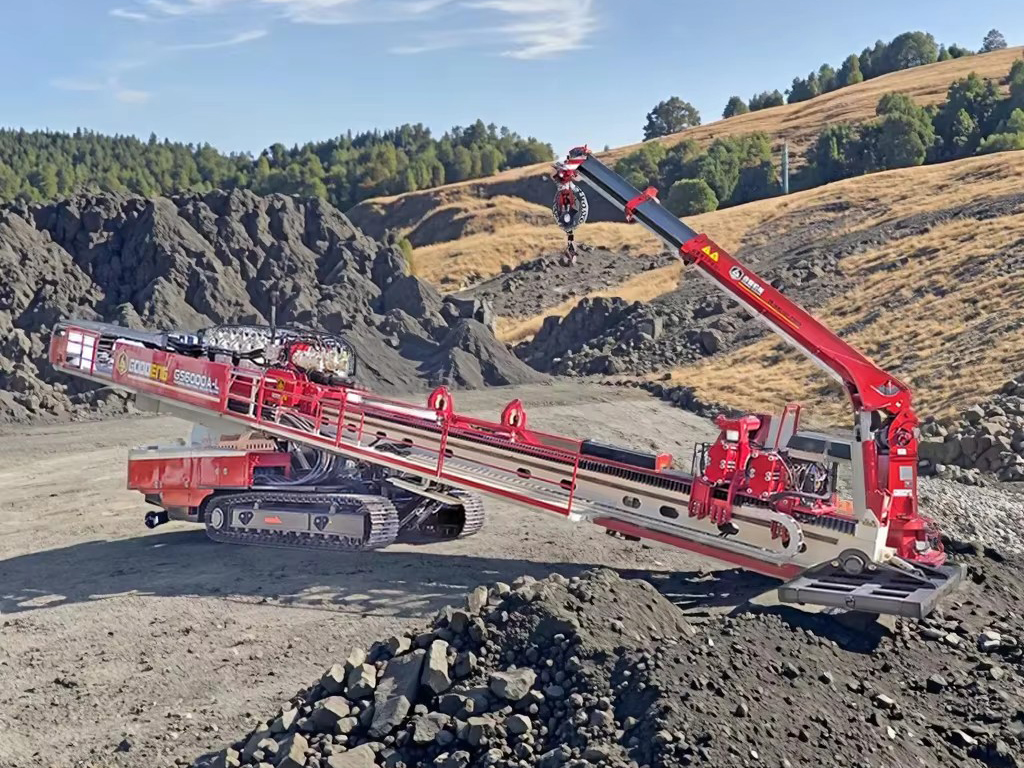

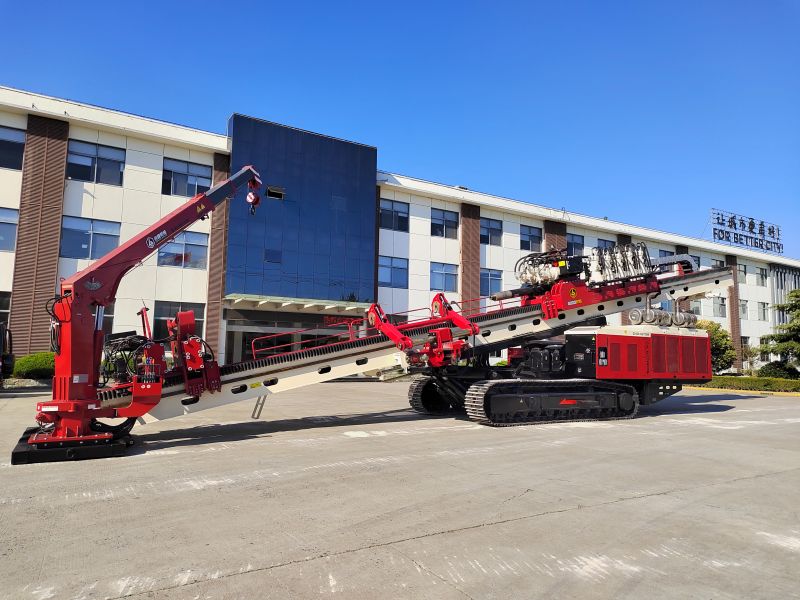

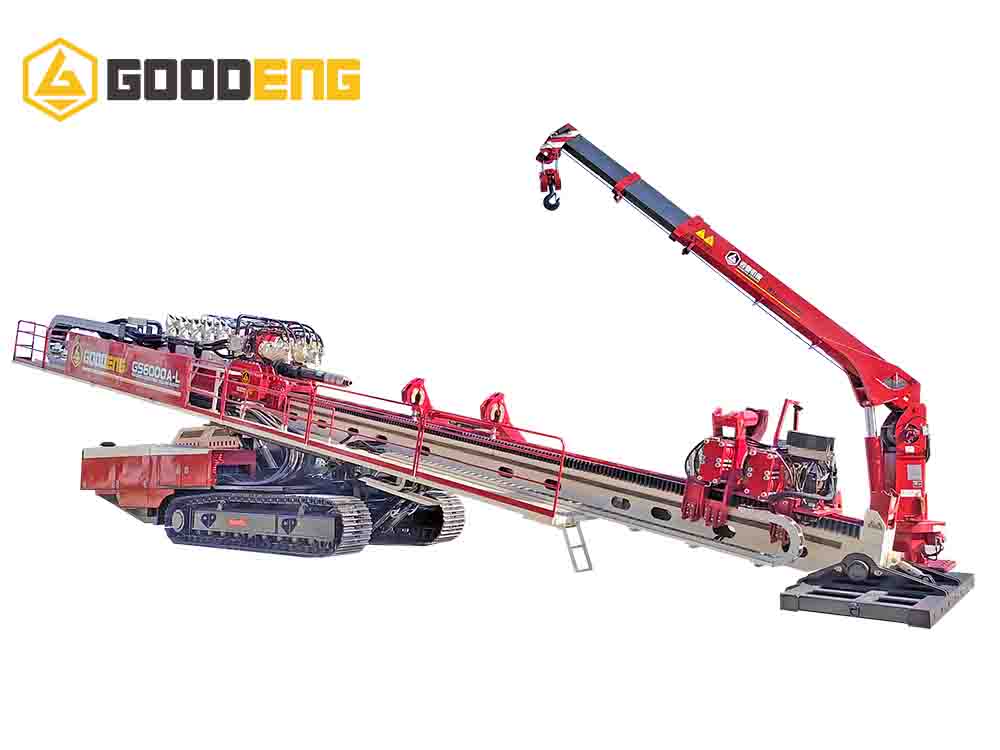

Goodeng Machine GS6000-LS Trenchless HDD Drill/Crawler Machine
Technical Parameter
| Metric Unit | Imperial Unit | |
| Weight | 69500 kg | 153,224 lbs |
| Dimension (LxWxH) | 20800 × 3200 × 3600mm | 818 × 125 × 141 in |
| Operation Room Weight | 3000 kg | 6,614 lbs |
| Operation Room Dimension Size (L×W×H) | 6050 × 2450 × 2600 mm | 238.19 × 96.46 × 102.36 in |
| Max. Thrust&Pullback force | 6700 KN | 1,506,314 lbf |
| Max. Thrust&Pullback Speed | 40 m/min | 131 ft/min |
| Max. Rotation Speed | 90 r/min | 90 rpm |
| Max. Torque | 160000 N·m | 118,015 ft·lb |
| Engine Power | 2 × 383 kW | 2 × 520 hp |
| Main Spindle Floating Distance | 110 mm | 4.33 in |
| Max. Clamp Force | 3800 kN | 854,309 lbf |
| Max. Unscrewing Torque | 48200 N·m | 35,545 ft·lb |
| Walking Speed | 2.5 km/h | 1.55 mph |
| Entry Angle | 8°~16° | 8°~16° |
| Drill Rod Size | Φ140-Φ219 mm | Φ5.51-Φ8.62 in |
| Drill Rod Length | 9600 mm | 377.95 in |
| Suggest Reaming Diameter | ≤ Φ2000 mm | ≤ Φ78.74 in |
| Max. Climbing Gradient | 18° | 18° |
| Crane Capacity | 5 Metric Tons | 5.51 Short Tons |
| Suggest Crossing Length | ≤2000 m | ≤ 6561 ft |
| Max. Working Pressure | 35 MPa | 5,076 psi |
| Mud Pipe Channel Diameter | 4 in | 4 in |

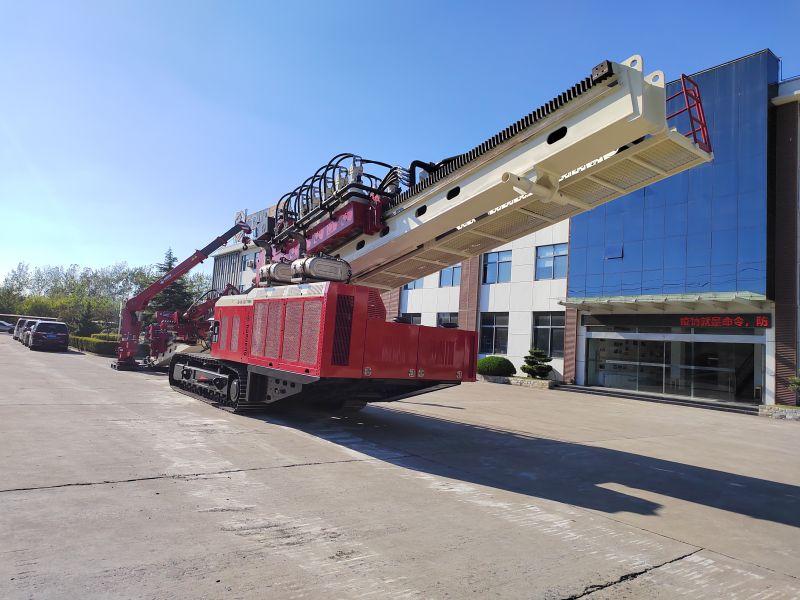

1. Overall machine structure: The main machine and power system adopt an integrated structure with a compact shape (3.5m in width, 3.6m in height). It complies with domestic and foreign transportation regulations for easy transportation.
2.Engine: A three-stage emission electronically controlled engine that meets the national Tier 3 emission requirements for construction machinery. It can flexibly switch between dual-engine and single-engine operation for energy conservation and consumption reduction.

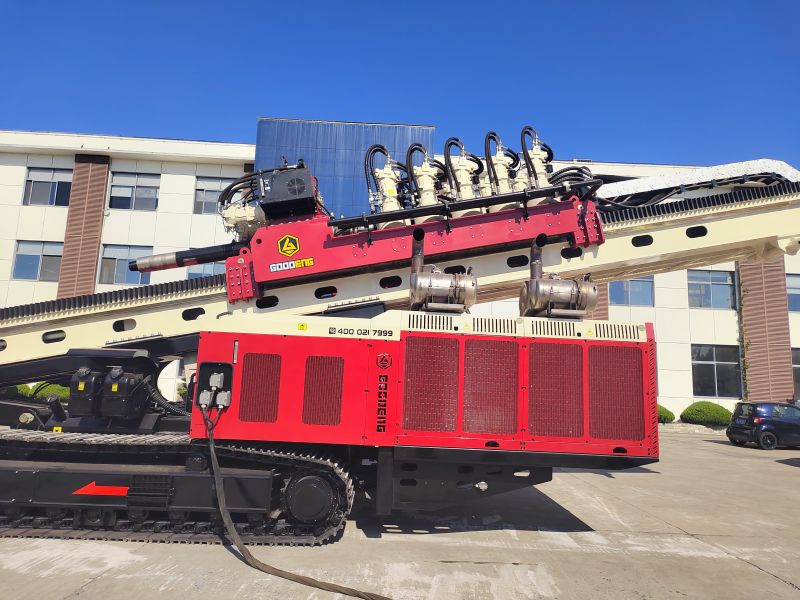

3. Unique design of power head structure:
(1)Front-mounted gearbox: shortens diameter variation, protects drill pipe threads, reduces wear, extends service life.(2) Double-layer gearbox: finite element stiffness/strength dual-standard design, high strength.
(3)Countersunk gearbox: boosts force-bearing under max thrust/pullback.
(4)Floating power head main shaft: fully protects drill pipe threads.

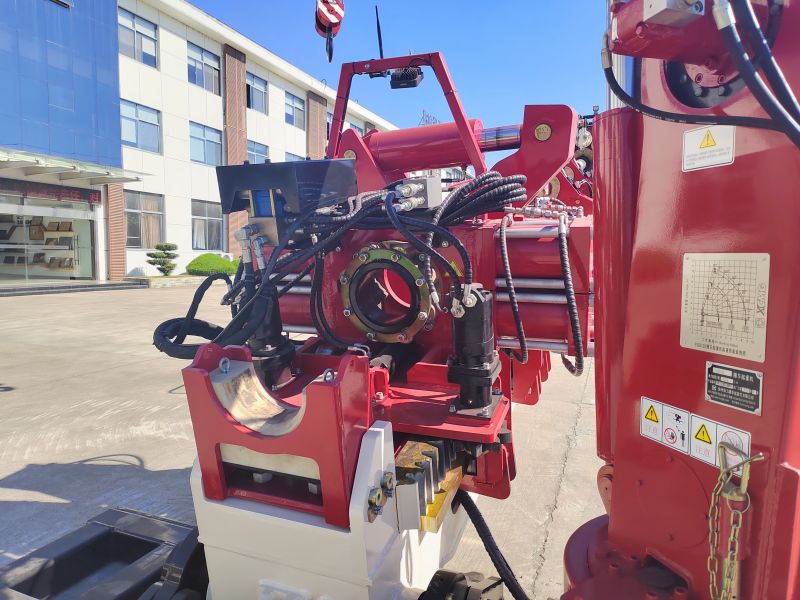

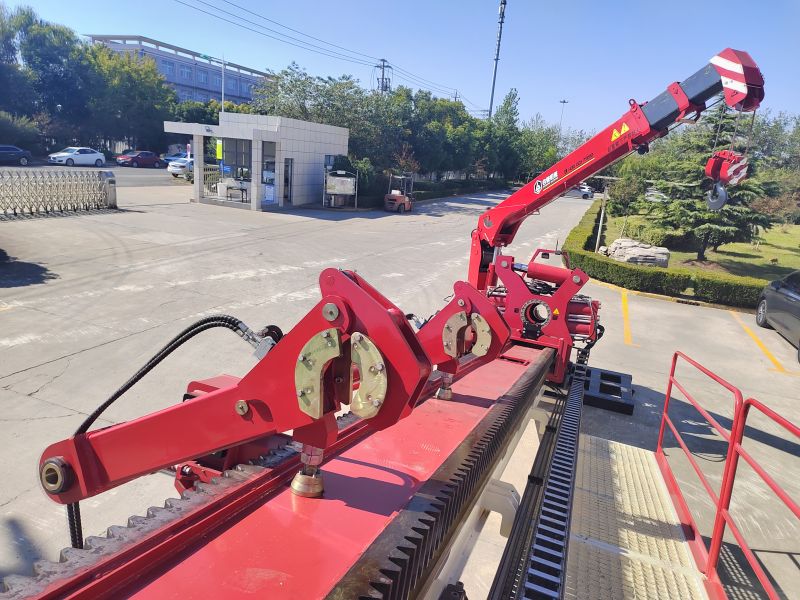

4. Four-point patented clamping: Higher rigidity/strength; more cylinders/contact points, bigger clamping force; easy bar replacement, full-process floating.

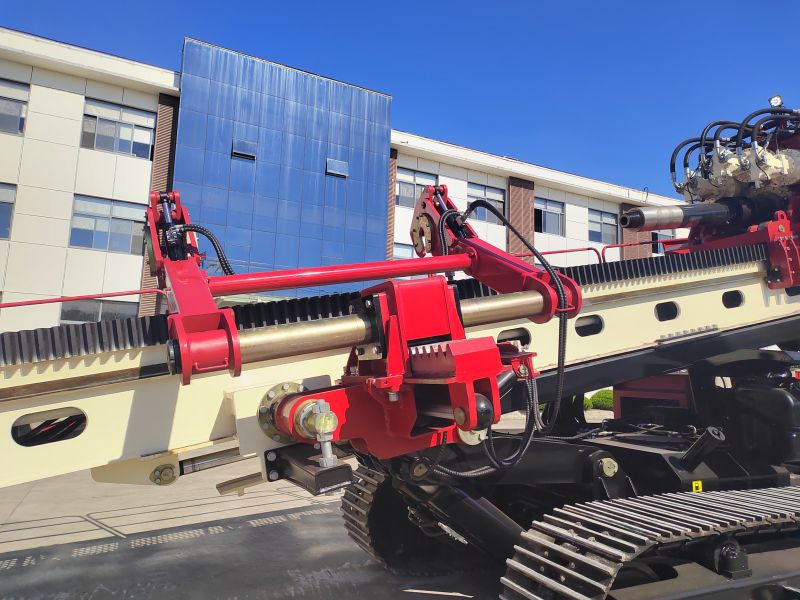

5. Automated rod loading: Goodeng’s patented, reliable, high automation, saves labor.
6. Automatic drilling control: Constant torque drilling; precise parameter control, overload protection; stepless setting of pressure/torque.
7. Electro-hydraulic control & monitoring:
(1)Dual display (digital+electronic): monitors
engine/pressure/torque, ensures reliability.
(2)Diagnostic system: auto-detects hydraulic faults, eases maintenance.
8.Patented clutch: Push-pull/slewing system with clutch, selects motor quantity, boosts efficiency, cuts cost.
9. Anti-impact tech: Multi-protects motors from complex conditions, extends service life.
10. Hydraulic control: Industry-leading electric proportional positive flow, top-brand parts, precise, efficient, energy-saving.
11. Electrical system: Top-brand parts, integrated design, reliable & stable.
