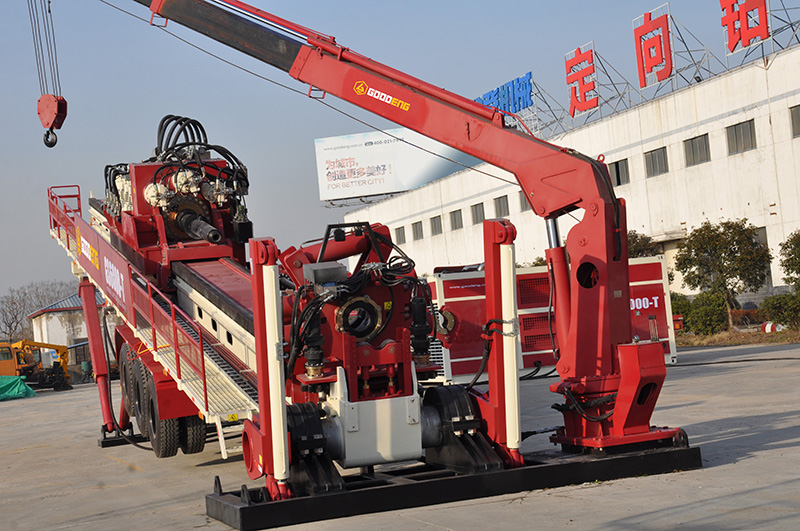

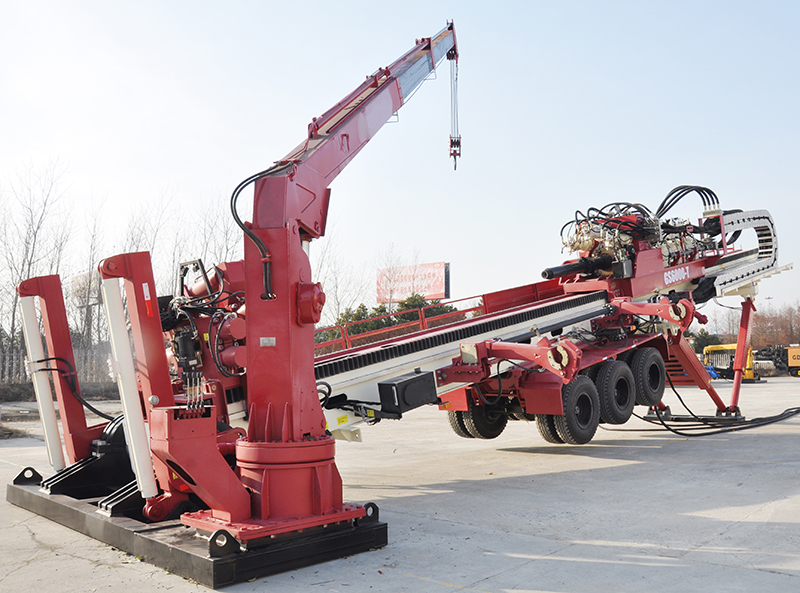

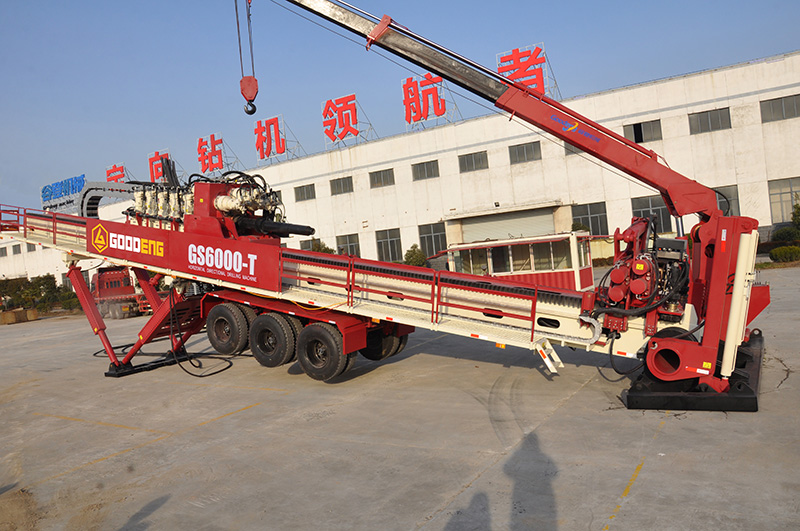

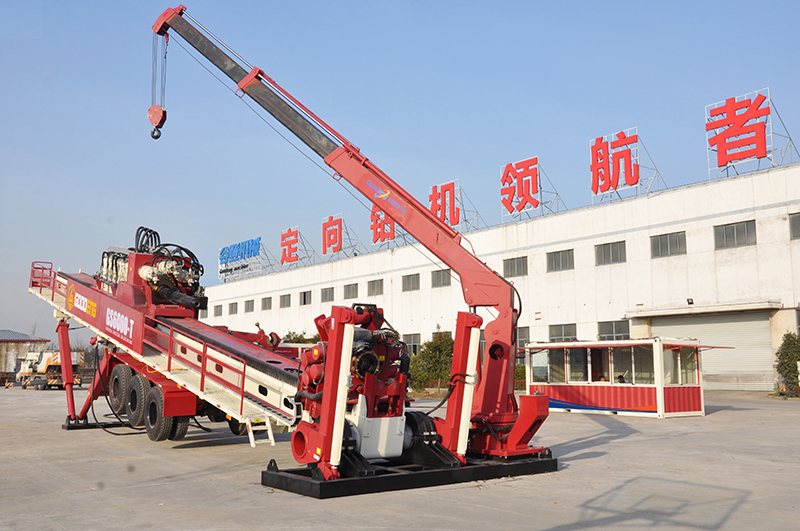

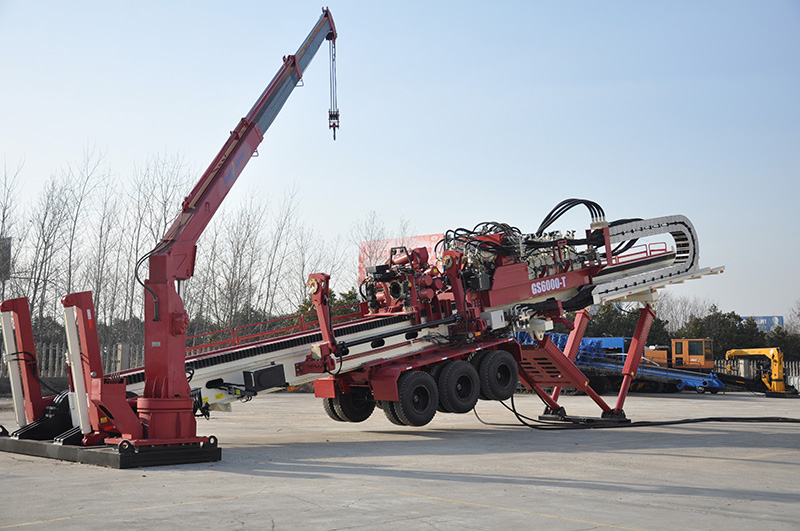

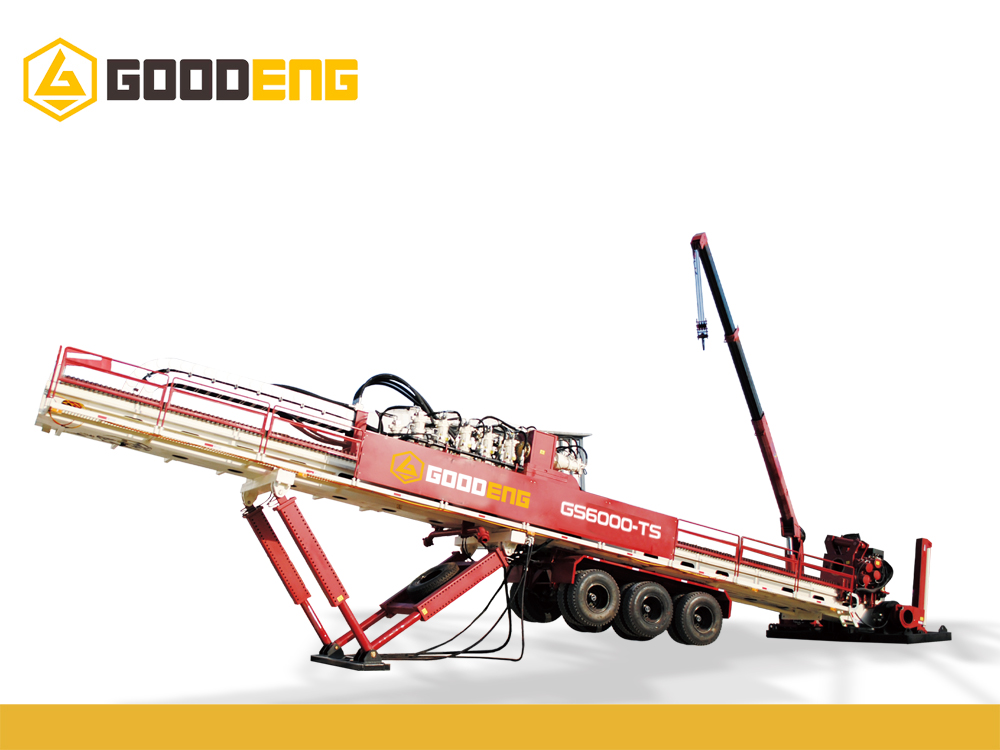

Goodeng Trenchless Horizontal Directional Drilling/Boring/Tunnelling Machine/Rig No-Dig Machine GS6000-TS
Technical Parameter
| Metric Unit | Imperial Unit | |
| Rig Weight | 56000 kg | 123459 lbs |
| Rig Dimension (LxWxH) | 20400 * 2500 * 3740mm | 67 × 8.2 ×12.2 ft |

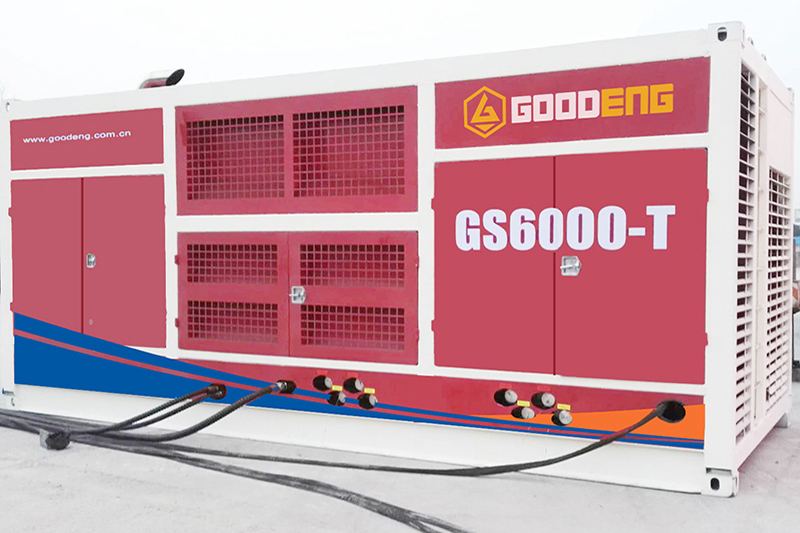

| Power Station Weight | 16500 kg | 36377 lbs |
| Power Station Dimension | 6050*2500*2600 mm | 19.9*8.2*8.5 ft |

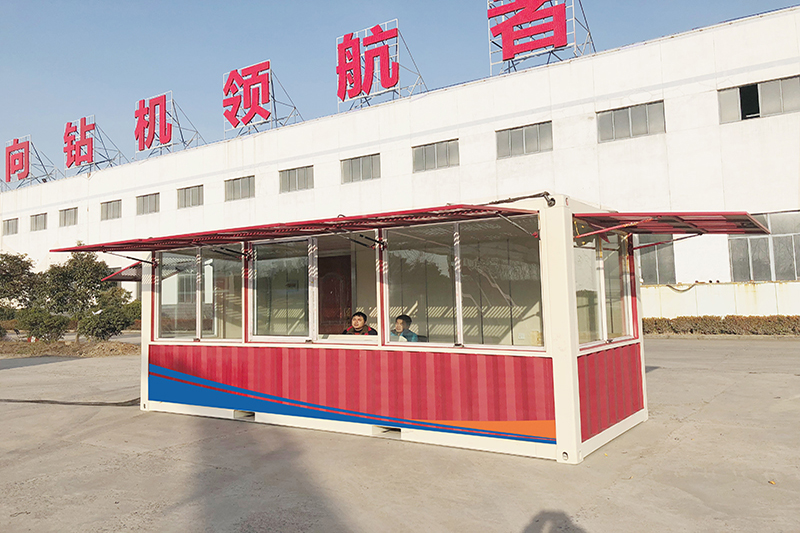

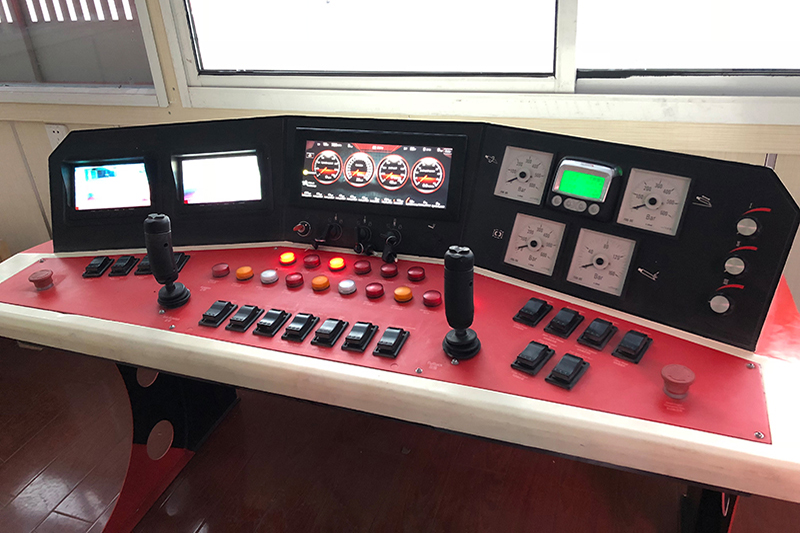

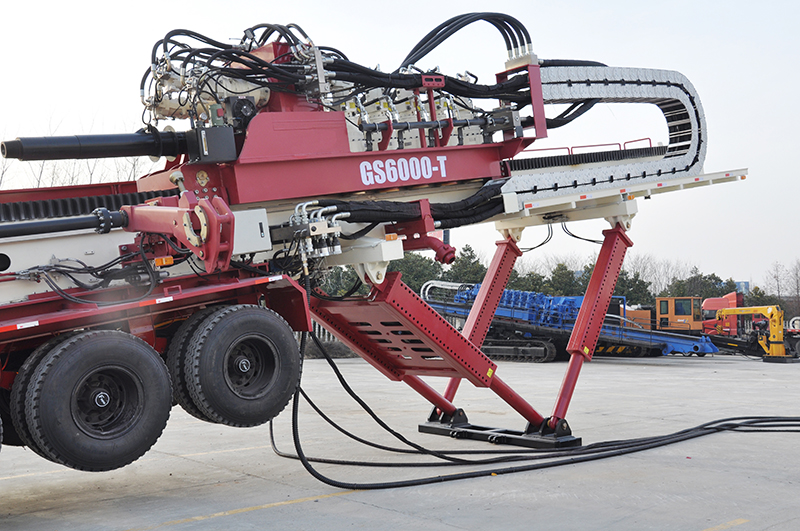

| Operational Room Weight | 3000 kg | 6,614 lbs |
| Operation Room Dimension (L×W×H) | 6050 * 2500 * 2600 mm | 19.9*8.2*8.5 ft |
| Engine Power | 3 * 410 kW | 3*549 HP |
| Max. Working pressure | 35 MPa | 5076 psi |
| Max.Thrust&Pullback force | 6700 KN | 1506281 lbf |
| Max.Thrust&Pullback Speed | 40 m/min | 131 ft/min |
| Max. Torque | 180000 N·m | 132774 ft·lbs |
| Max.Rotation Speed | 90 r/min | 90 rpm |
| Max.Clamp Force | 3800 kN | 854,309 lbf |
| Main Spindle Floating Distance | 110 mm | 4.33 in |
| Entry Angle | 8°-18° | 8°-18° |
| Drill Rod Size | Φ140-Φ219 mm | Φ5.5-Φ8.6 in |
| Drill Rod Length | 9600 mm | 31.5 ft |
| Mud Pipe Channel Diameter | 4 in | 4 in |
| Crane Capacity | 5 Metric Tons | 5.51 Short Tons |
| Suggest Reaming Diameter | ≤ Φ2000 mm | ≤ Φ78.74 in |
| Suggest Crossing Length | ≤2500 m | ≤ 8202.1 ft |
1. The structure of the whole machine: the main machine and the power system are integrated structure, compact shape, width 3.5m, height 3.6m, meets the domestic and foreign transportation laws and regulations, convenient for transportation.
2.Three-stage emission electronically-controlled engine meets the national three-stage emission requirements for construction machinery, and it can flexibly realize dual-engine or single-engine work, which saves energy and reduces consumption.

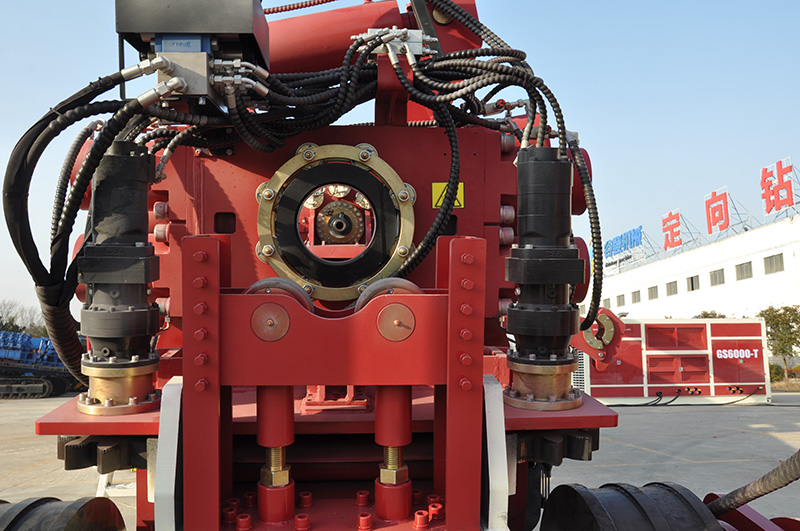

3. Four-point patented clamping technology to improve the rigidity and strength of the structure; compared with the three-point type, there are more cylinders, more contact points and larger area, the clamping force and unloading torque is greatly improved; field maintenance and replacement of the clamping bar is more convenient and quicker; the clamping device can be floated throughout the whole process.

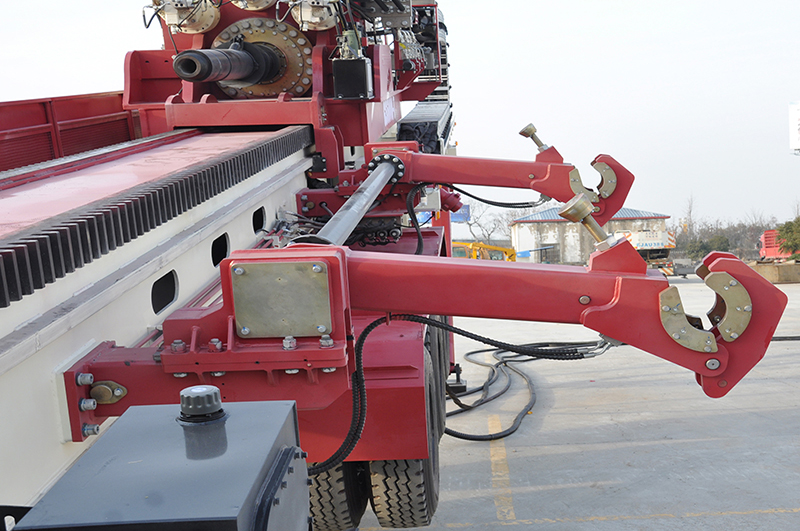

4. Automated rod loading mechanism, Gudeng patented technology, mature and reliable, high degree of automation, freeing up the labor force and reducing labor intensity.
