GS450-LS Trenchless HDD Horizontal Directional Drill

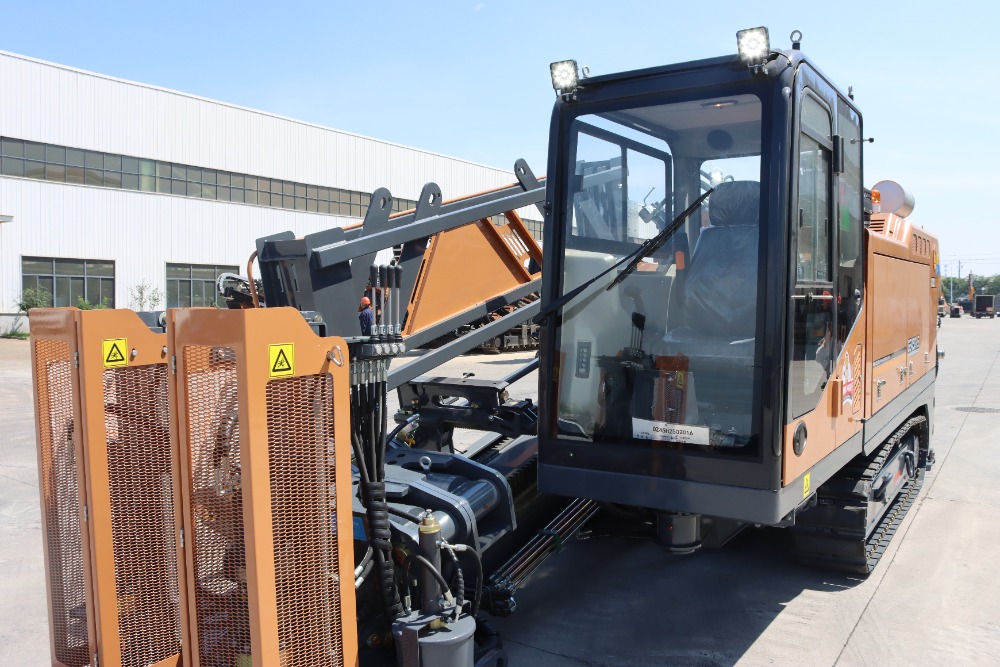

Introducing the latest innovation from Shanghai Goodeng International Co., Ltd., the walking drilling rig. This cutting-edge system is equipped with a steel crawler featuring external rubber plates and wire-controlled walking, with 2-speed adjustable capabilities for optimal control. The loading system includes a rotary manipulator and optional automatic rod-loading box for maximum efficiency. The drilling system offers thrust-pullback speed adjustable in three speeds (high speed, medium speed, low speed) to suit various drilling requirements. The operating system boasts a panoramic rotating cab, complete with heating and cooling air conditioning for operator comfort. Additionally, this rig offers the option of a crane and a power head that provides reinforced power. With these top-of-the-line features, our walking drilling rig sets a new standard in the industry, making it an essential tool for any drilling operation

Trenchless No-dig HDD Horizontal Directional Drill/Bore Hydraulic Crawler Machine/Equipment Underground Under Road Pipeline Utility Goodeng(Maker) GS450-LS

Technical Parameter

Weight	14000 kg	30865 lb
Dimension(LxWxH)	7600×2265×2520mm	299.21×89.17×99.21 in
Max.Thrust & Pullback Force	450/900 KN	101166/202332 lbf
Max.Thrust&Pullback Speed	66 m/min	216.54 ft/min
Max.Torque	20000 N·m	14751 ft·lb
Max.Rotation Speed	180 r/min	180 rpm
Engine power	179 kW	240 hp
Max.Mud flow	600 L/min	158.5 gpm
Walking Speed	3/5 km/h	1.86/3.11 mph
Max.Mud Pressure	10 MPa	1450 psi
Entry Angle	12°-22°	12°-22°
Max.Climbing Gradient	18°	18°
Drill Rod Size	Φ83-Φ89×3000 mm	Φ3.27-Φ3.5×118.11 in
Drill Rad Box Capacity（Optional）	27pcs(3×9)	27pcs(3×9)
Suggest Reaming Dia.	≤Φ1200 mm	≤Φ47.24 in
Suggest Crossing Length	≤750 m	≤2461 ft

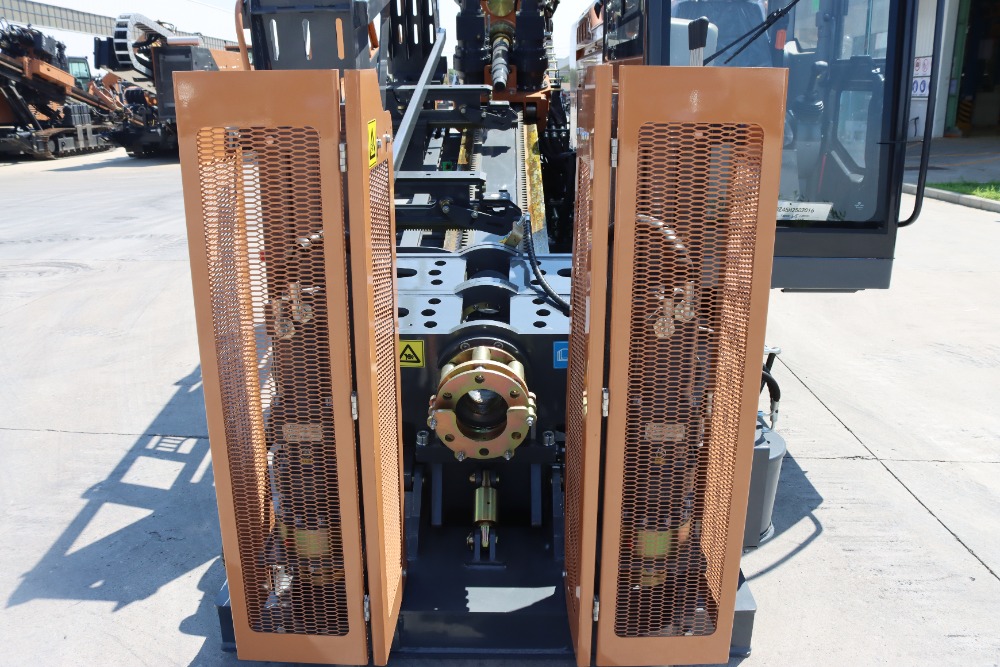

Main Performance Characteristic

Close-circuit system is adopted for rotation system; automatic variable system is adopted for thrust&pullback、clamping and walking, and it is under load-sensitive control. Advanced hydraulic system raises more than 20% productivity, reduces about 50% heat, and saves more than 20% energy compared to traditional one.

The machine is equipped with Cummins engine, with high efficiency, large power, low fuel consumption, low noise, and strong ability in construction.
Four-bar linkage luffing structure is adopted for main girder, which highly increases entry angle range and ensures the large angle and rig tracks are not off ground, having improved the safety performance.
The machine is equipped with Ф83×3000mm, and the machine body occupies a moderate area, meeting the requirement for high efficiency construction in small place.
The steel track with rubber plates is adopted for crawler, which can not only bear high load, but also satisfy walking on different roads.

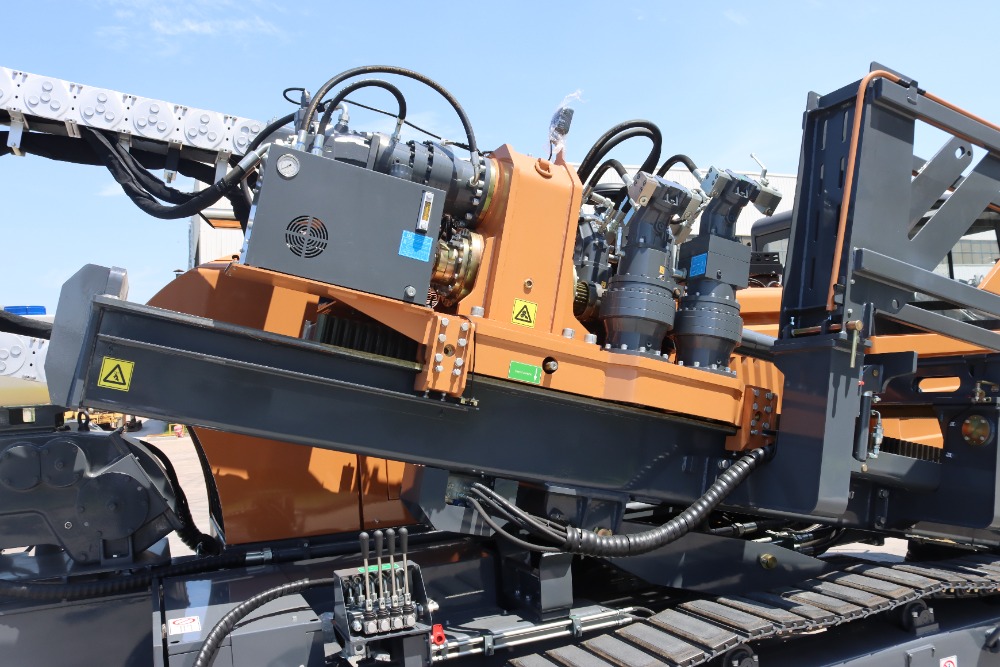

Rack and pinion system is adopted for thrust&pullback, which is good for high efficiency, long life, stable working and convenient maintenance.
