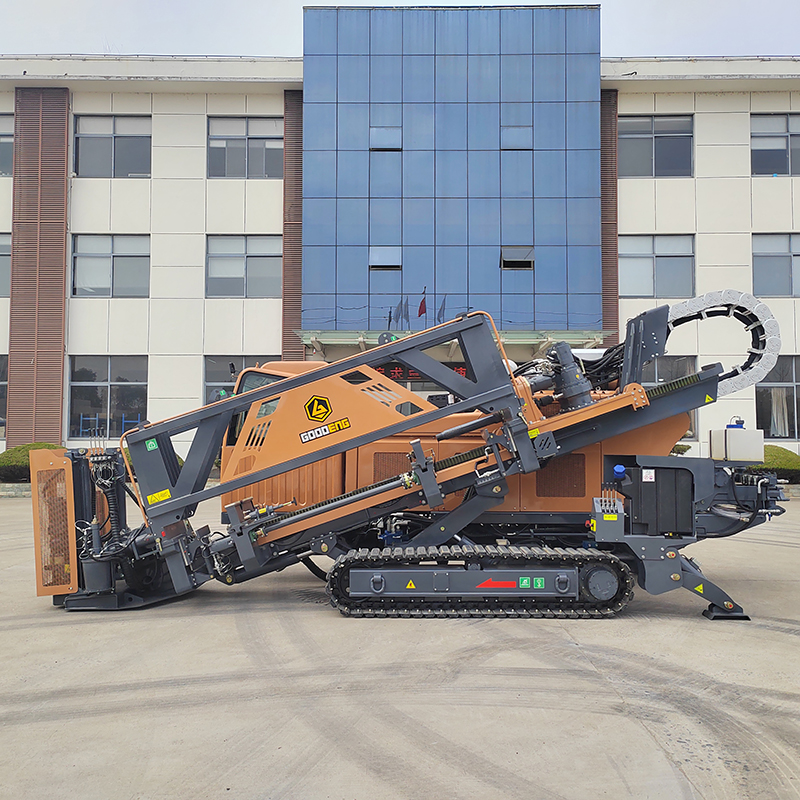

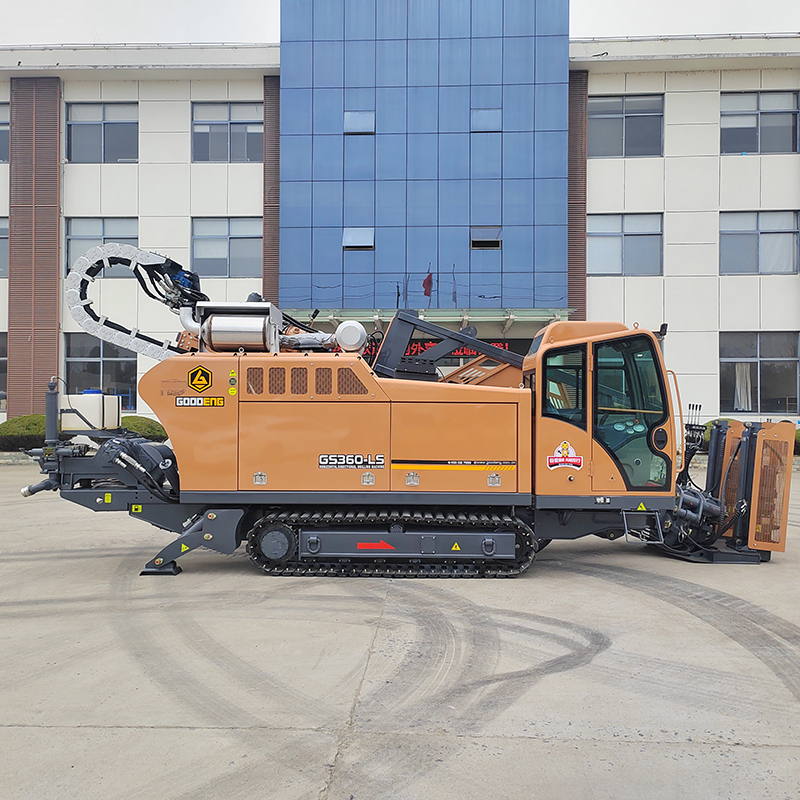

    Goodeng(Manufacturer) EURO 5 Stage GS360-LS Trenchless No-dig HDD Horizontal Directional DrillEquipment Underground Under Road Pipeline Utility

    Goodeng(Manufacturer) EURO 5 Stage GS360-LS Trenchless No-dig HDD Horizontal Directional DrillEquipment Underground Under Road Pipeline Utility

    1.FPT （Euro 5 Stage Emission Standard ）engine, energy-saving and environmentally friendly, with CE certificate, suitable for countries with high emission standards such as Europe and Türkiye

    2. Walking System: Steel crawler with external rubber plates, wire-controlled walking, 2- speed adjustable.

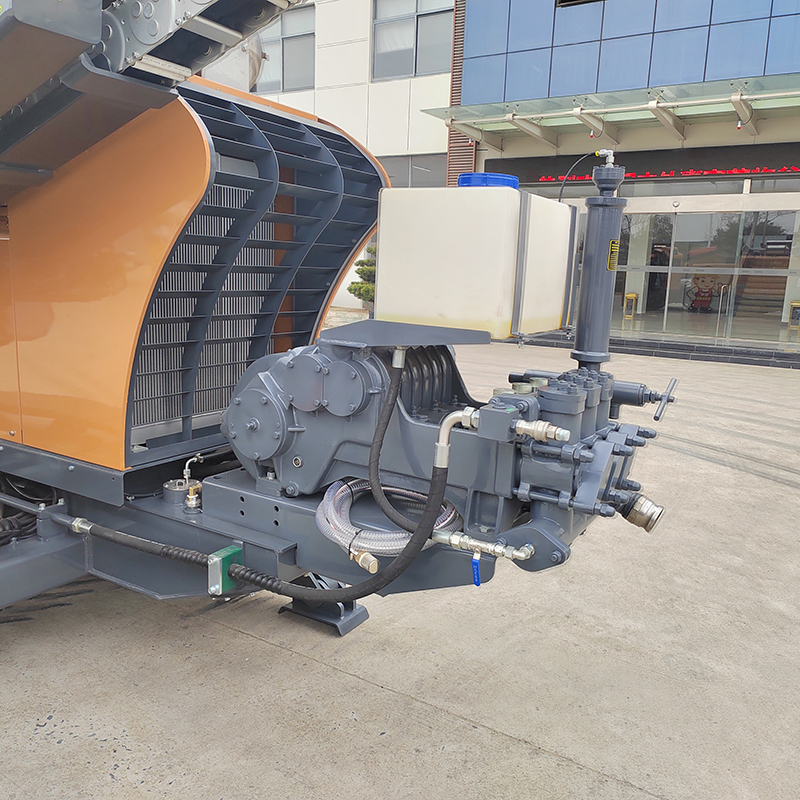

    3. Mud System:  Mud pump flow rate adjustable

    4. Drilling System: Thrust-pullback speed adjustable in three speeds (high speed, medium speed, low speed)

    5. Operating System: Equipped with drill rod box, the capacity of drill rod box is 36 pieces

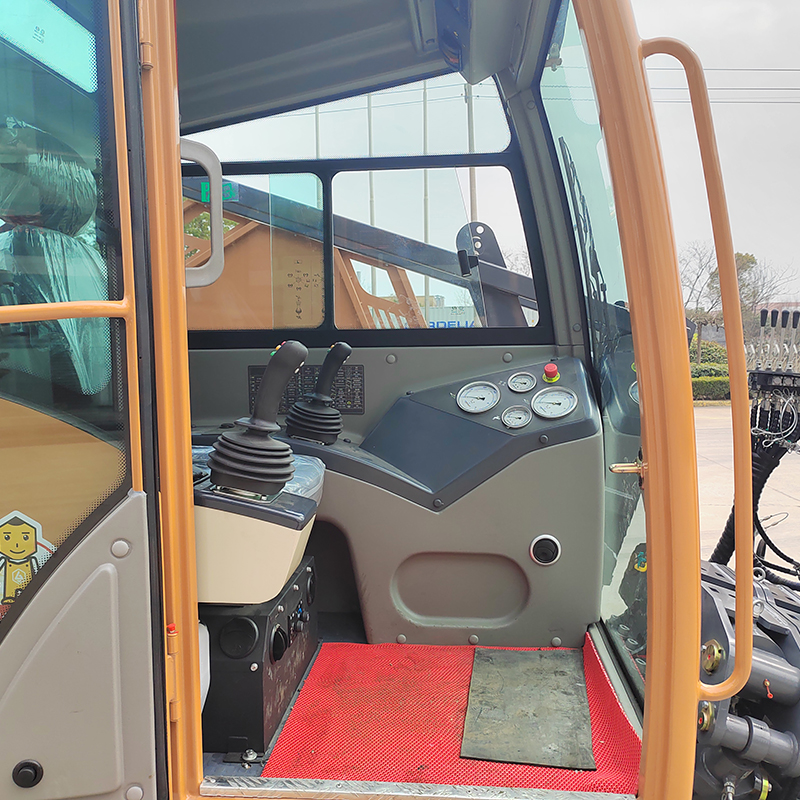

    6 Panoramic rotating cabin with air conditioning

      Contact us

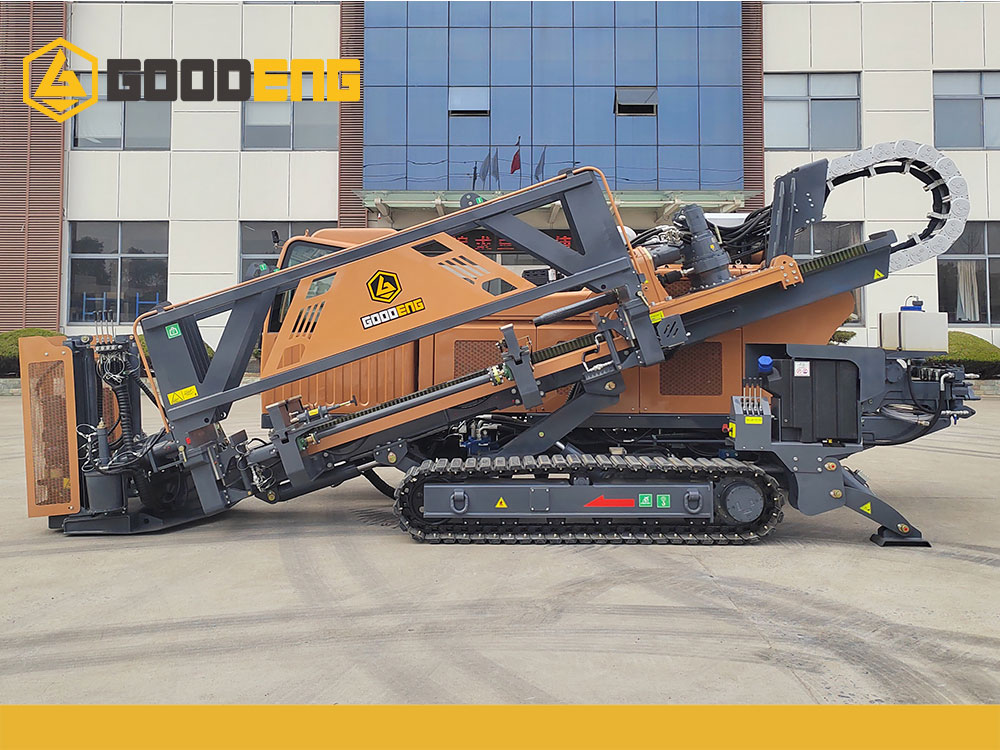

      36T-欧五 主图.jpg

      Technical Parameter

        Metric Unit Imperial Unit
      Weight 9800/11400 kg 21605/25133 lbs
      Dimension (L×W×H) 7340×2210×2530 mm 24×7.3×8.3 in
      Max.Thrust&Pullback Force 367/734 KN 82511/164922 lbf
      Max.Thrust&Pullback Speed 36 m/min 118 ft/min
      Max.Torque 13000 N·m 95886 lb·ft
      Max.Rotation Speed 135 r/min 135 rpm
      Engine Power 151 kW 202.5 hp
      Max.Flow of Mud Pump 400 L/min 106 gal/min
      Walking Speed 2.5/4 km/h 1.6/2.5 mph
      Max.Mud Pump Pressure 8 MPa 1160 psi
      Entry Angle 13-23° 13-23°
      Max.Climbing Gradient 18° 18°
      Drill Rod Size φ73-φ76×3000 mm φ2.87-φ2.99 × 118.11 in
      Drill Pipe Box Capacity 36 pcs(4×9) 36 pcs(4×9)
      Suggest Reaming Diameter ≤φ1000 mm ≤ φ39.37 in
      Suggest Crossing Length ≤500 m ≤ 1640 ft

      Main Performance Characteristic

      The machine is equipped with a FPT engine, which features high efficiency, high power, low fuel consumption, low noise and strong construction capability.

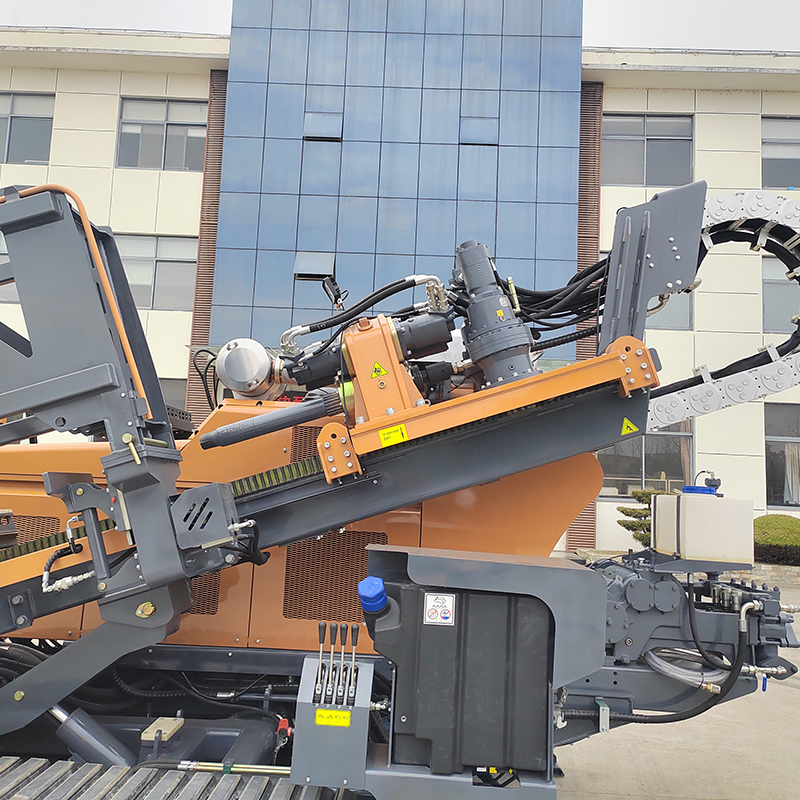

      • The Rotation is driven by American Danfoss large torque motor, with large torque, stable performance, and two gears speed regulation. Thrust&pullback adopts American Danfoss motor and three gears speed regulation. The Construction speed is far ahead of other manufactures in the same industry. Driving head provides reinforced power, which expands the scope of drilling construction.
      • It is equipped with hydraulic gear pump with military technology. Steel track walks by wire-control, which is convenient for load & unload and transfer.
      • Four-bar linkage luffing structure, our patented technology, is used for the main girder to make sure the big entry angle as well as the stable performance of the machine.

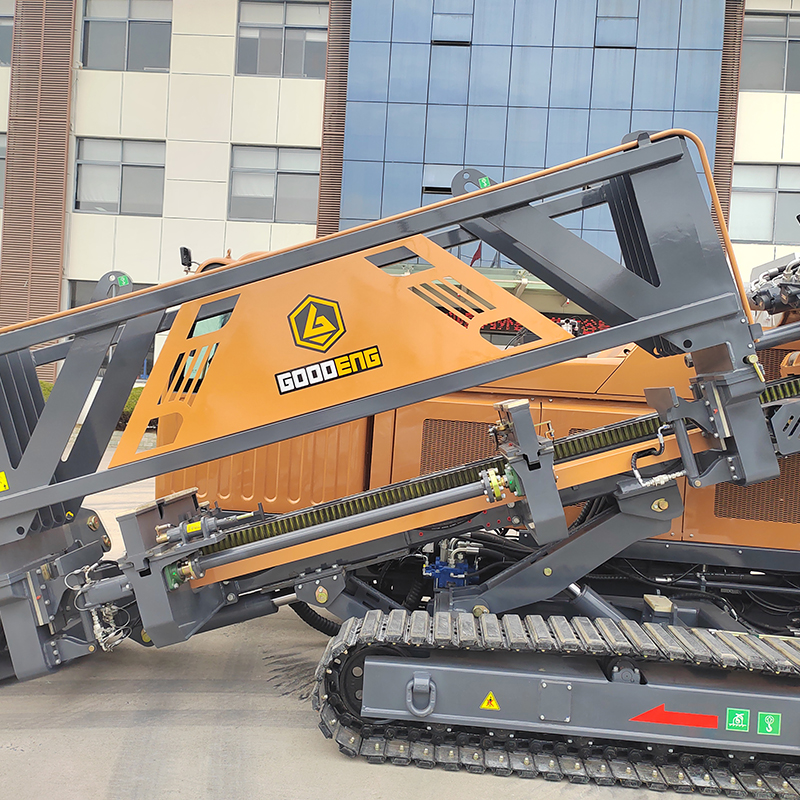

      36T-欧五 主图8j0

      • The GS360-LS is equipped with open-air operating table and excellent working view .
      • Equipped with Ф73×3000mm or Ф76×3000mm or Ф83×3000mm drill rod.
      • Thrust&pullback and rotation adopt multi-functional handle controlled by pilot valve, which is easy and simple to operate.
      • The electrical design is reasonable, the failure rate is low and the maintenance is convenient.
      • Optional device: mud flow control valve, mud flow adjustment valve and Antifreeze water tank.

      Main Details

      7zcy
      8q1i
      9ww7
      10ua8
      11783
      12mrz
