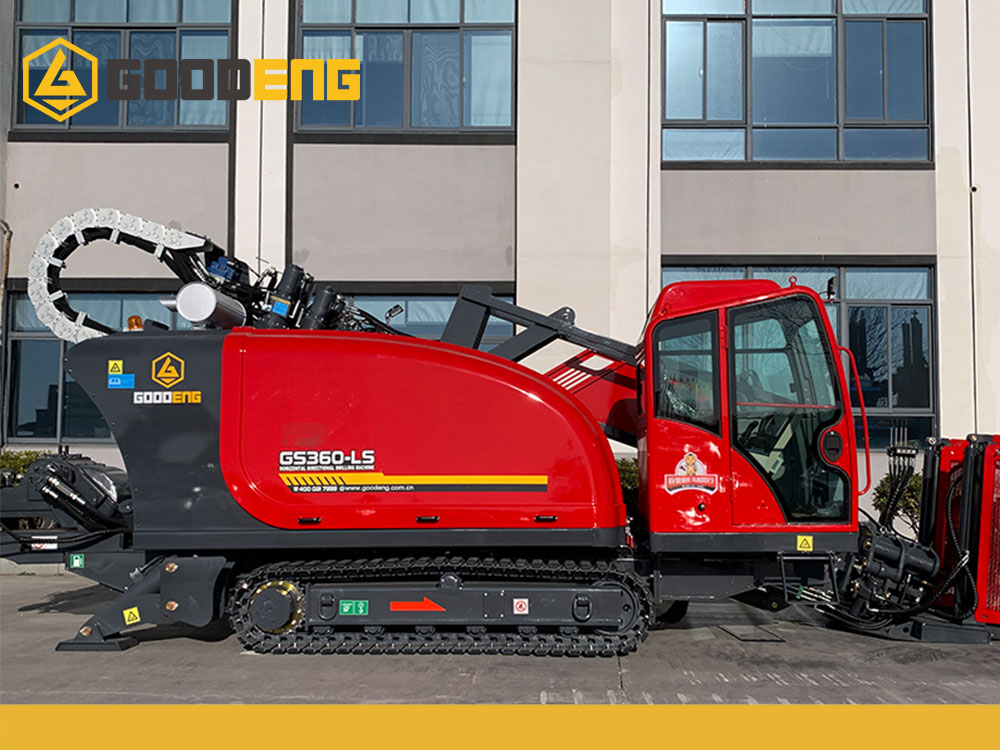

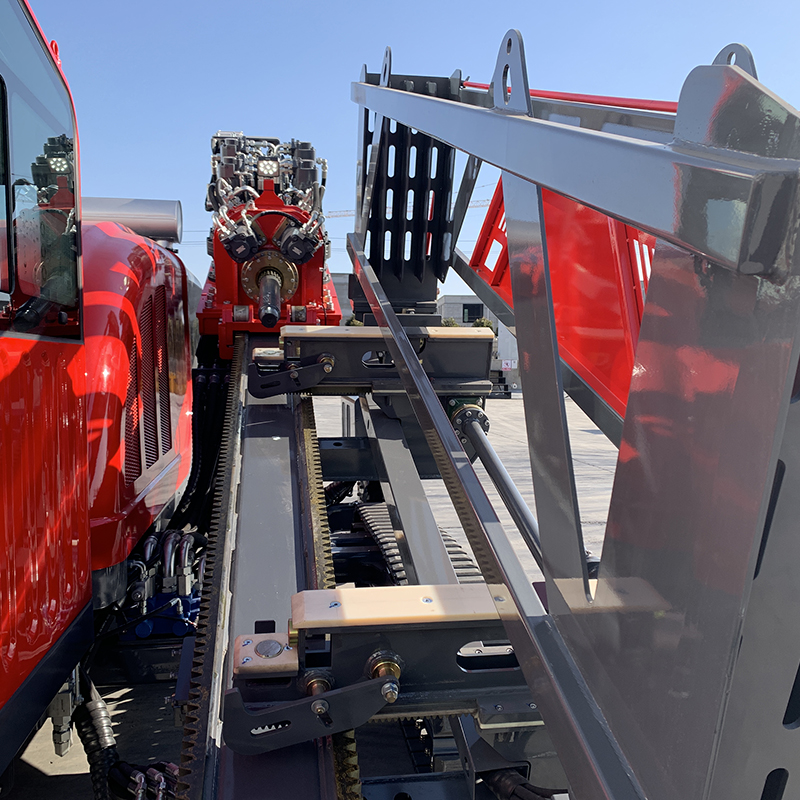

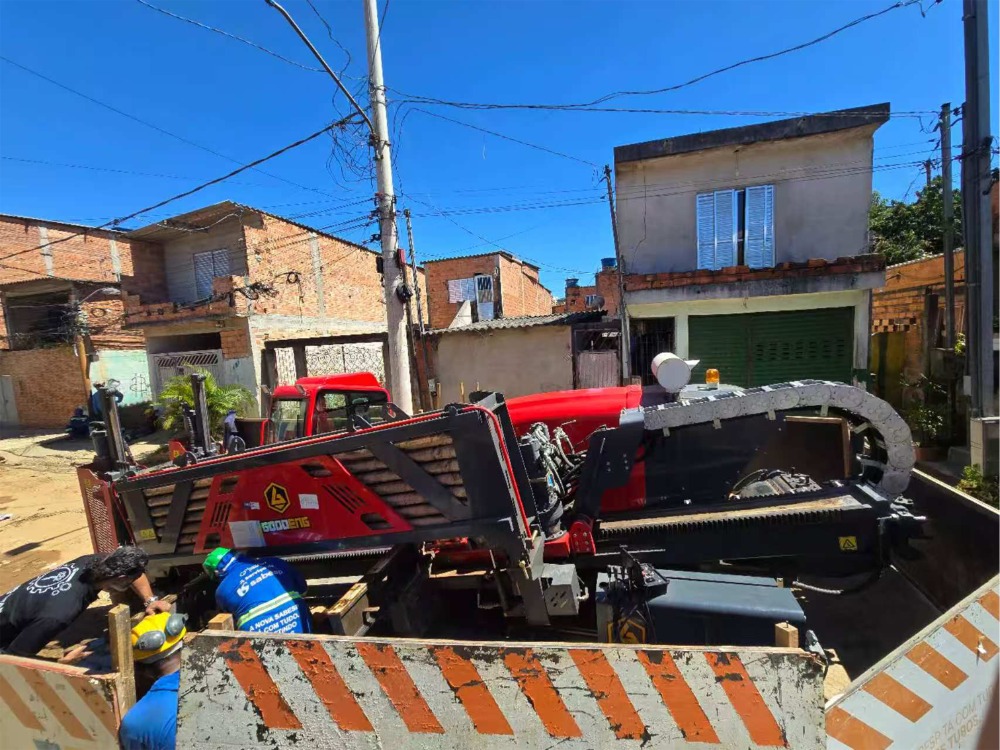

GOODENG GS360-LS(36ton) Energy-Saving Super Power Directional Boring Machine HDD for Fiber Optic Cable Laying

Goodeng G360-LS HORIZONTAL DIRECTIONAL DRILLING MACHINE

The machine is equipped with a CUMMINS engine, which features high efficiency, high power, low fuel consumption, low noise and strong construction capability.

The GS360-LS is equipped with rotatable driving cabin and excellent working view.

Equipped with Ф73×3000mm or Ф76×3000mm or Ф83×3000mm drill rod.

Thrust&pullback and rotation adopt multi-functional handle controlled by pilot valve, which is easy and simple to operate.

The electrical design is reasonable, the failure rate is low and the maintenance is convenient.

Optional device: mud flow control valve, mud flow adjustment valve and Antifreeze water tank.

Technical Parameter

	Metric Unit	Imperial Unit
Weight	20945 lbs
Dimension (L×W×H)	7300×2230×2310 mm	287×88×91 in
Max.Thrust&Pullback Force	380/760 KN	85414/170829 lbf
Max.Thrust&Pullback Speed	36 m/min	118 ft/min
Max.Torque	14000 N·m	10326 ft·lb
Max.Rotation Speed	135 r/min	135 rpm
Engine Power	153 kW	205 hp
Max.Flow of Mud Pump	400 L/min	106 gal/min
Walking Speed	0-2.5/4 km/h	0-1.6/2.5 mph
Max.Mud Pump Pressure	8 MPa	1160 psi
Entry Angle	13°-23°	13°-23°
Max.Climbing Gradient	18°	18°
Drill Rod Size	φ73-φ76×3000 mm	φ2.87-φ2.99 × 118.11 in
Drill Pipe Box Capacity	36 pcs(4×9)	36 pcs(4×9)
Suggest Reaming Diameter	≤φ1000 mm	≤ φ39.37 in
Suggest Crossing Length	≤450 m	≤ 1476 ft

Main Performance Characteristic

The machine is equipped with a Cummins engine, which features high efficiency, high power, low fuel consumption, low noise and strong construction capability.

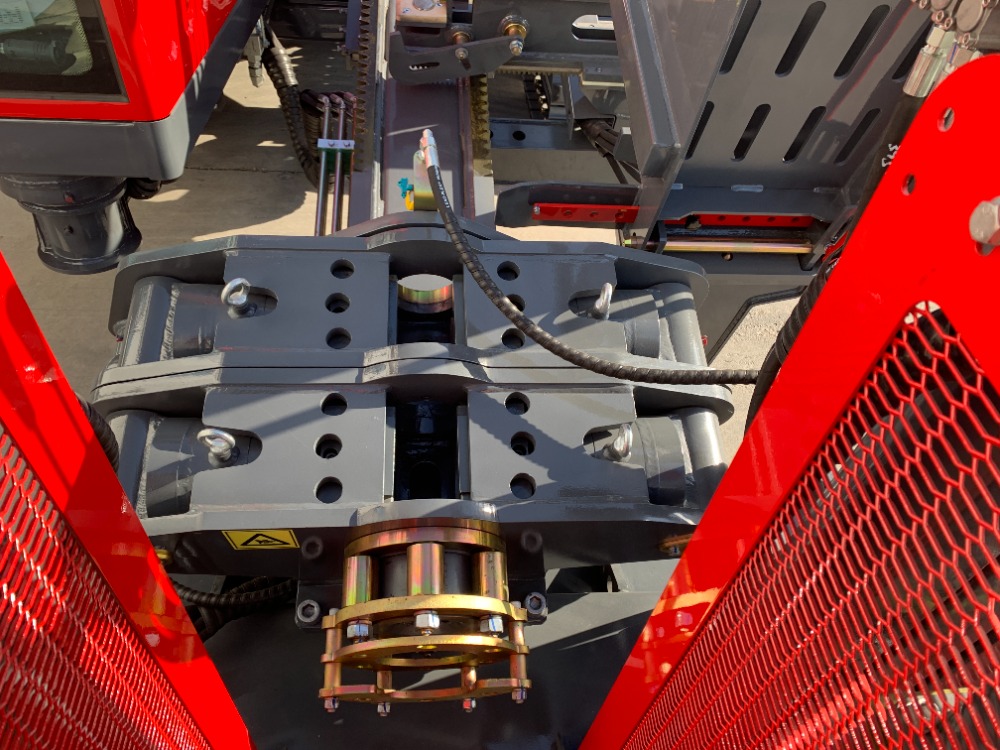

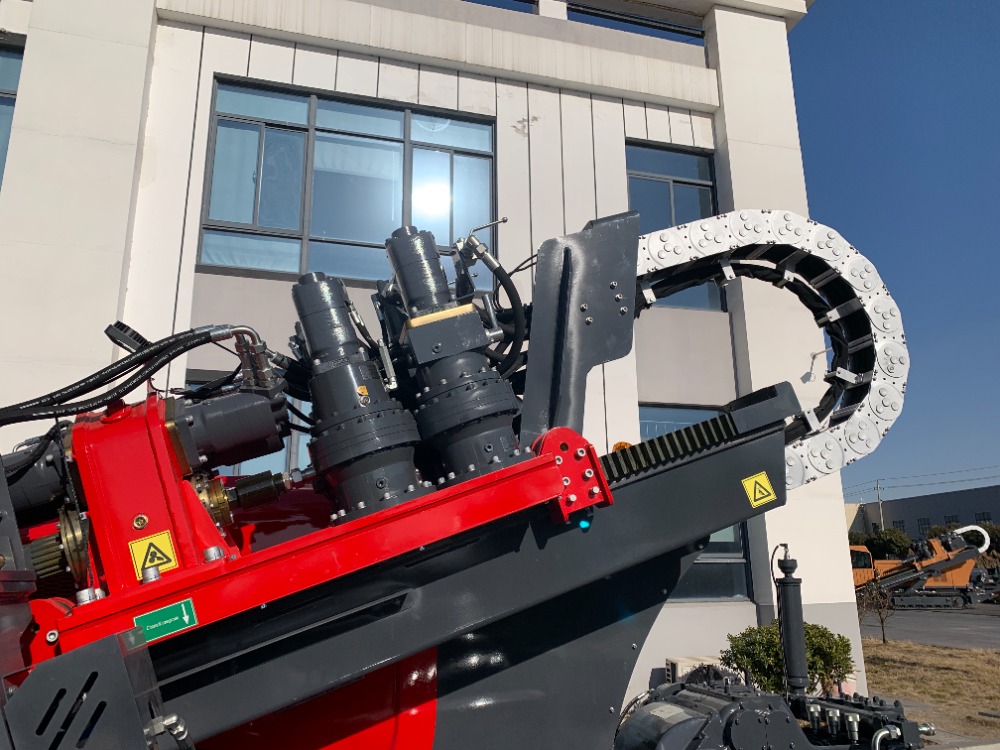

The Rotation is driven by American Eaton large torque motor, with large torque, stable performance, and two gears speed regulation. Thrust&pullback adopts American Eaton motor and three gears speed regulation. The Construction speed is far ahead of other manufactures in the same industry. Driving head provides reinforced power, which expands the scope of drilling construction.

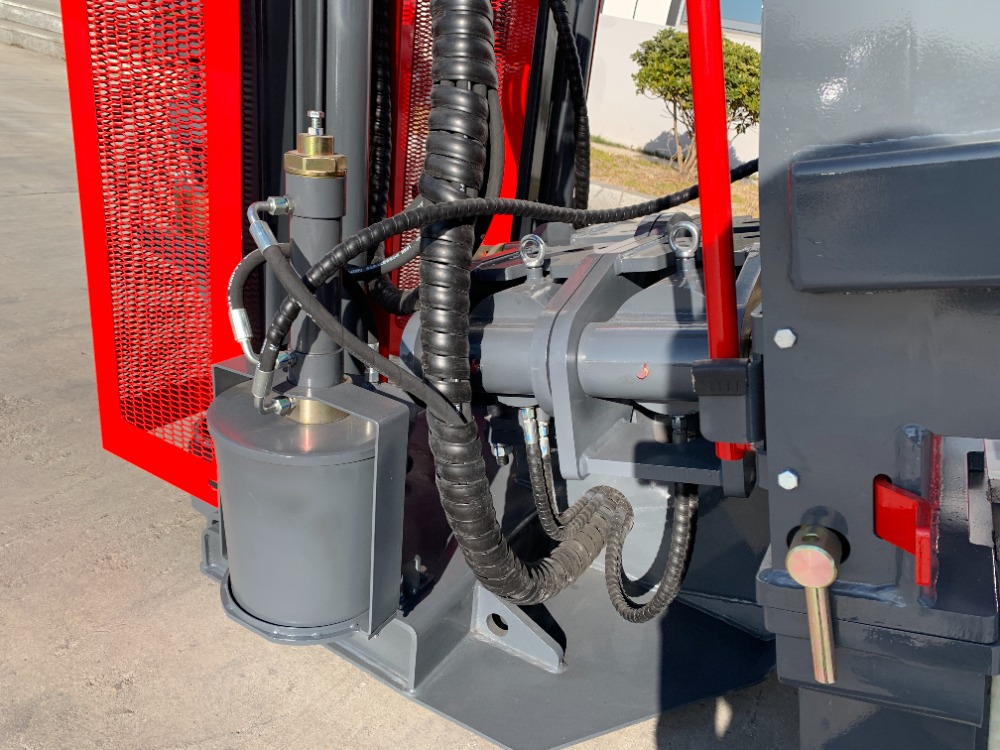

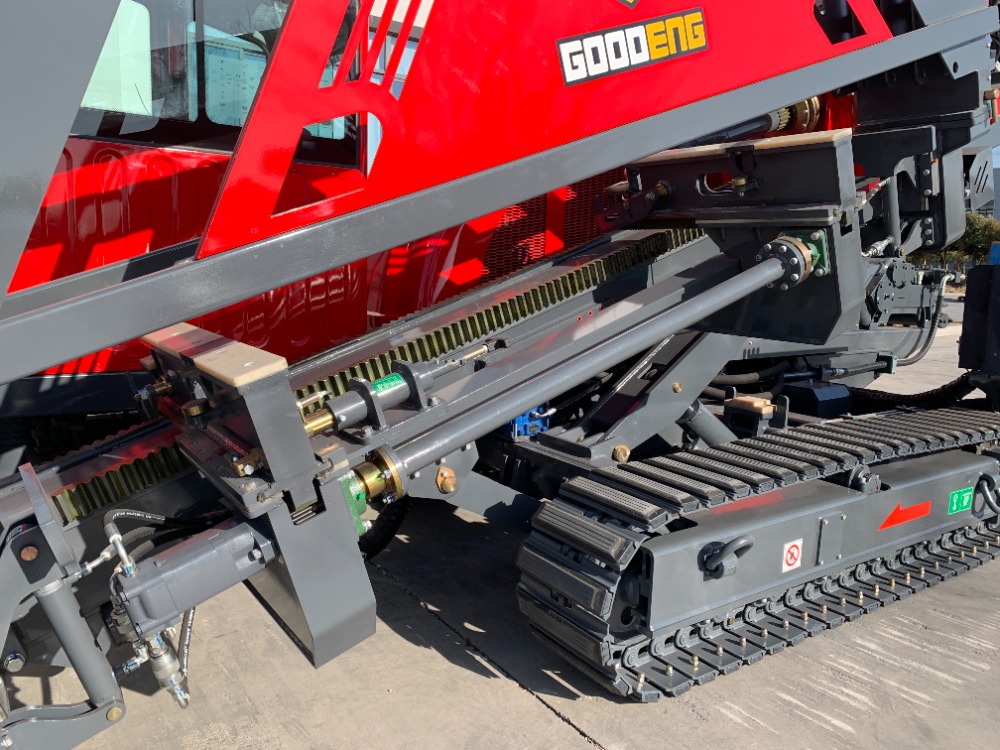

It is equipped with hydraulic gear pump with military technology. Steel track walks by wire-control, which is convenient for load & unload and transfer.

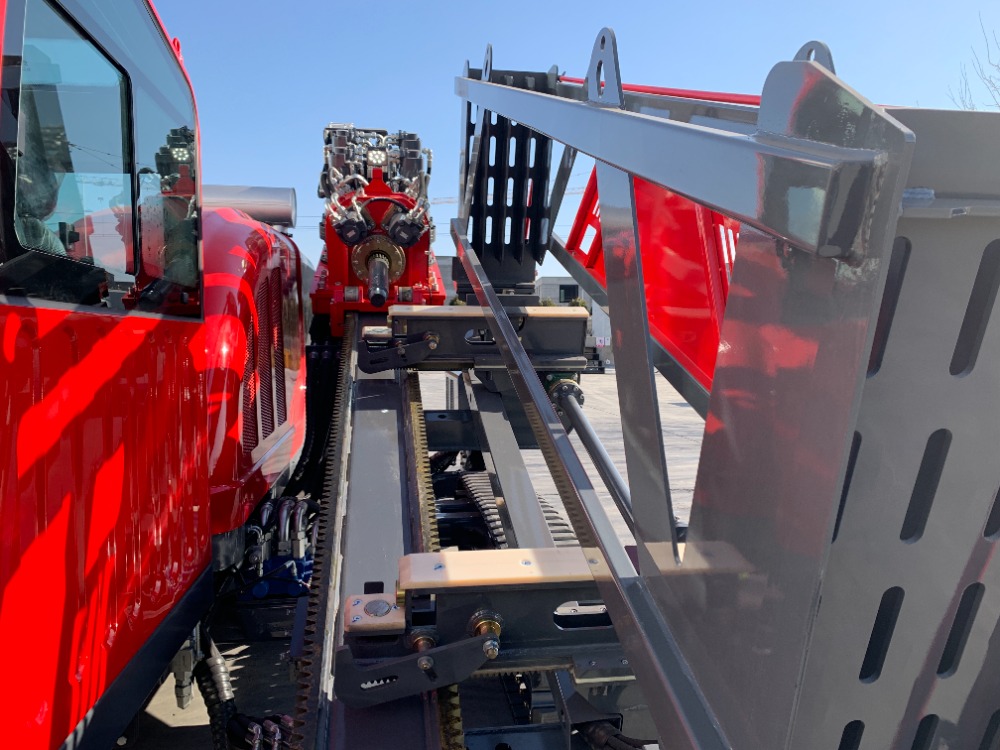

Four-bar linkage luffing structure, our patented technology, is used for the main girder to make sure the big entry angle as well as the stable performance of the machine.

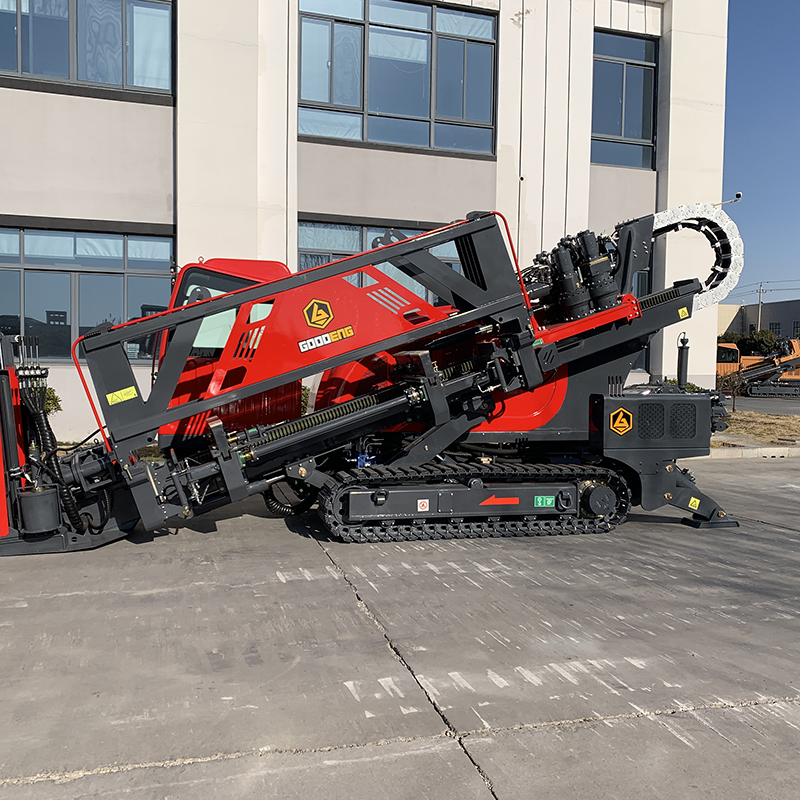

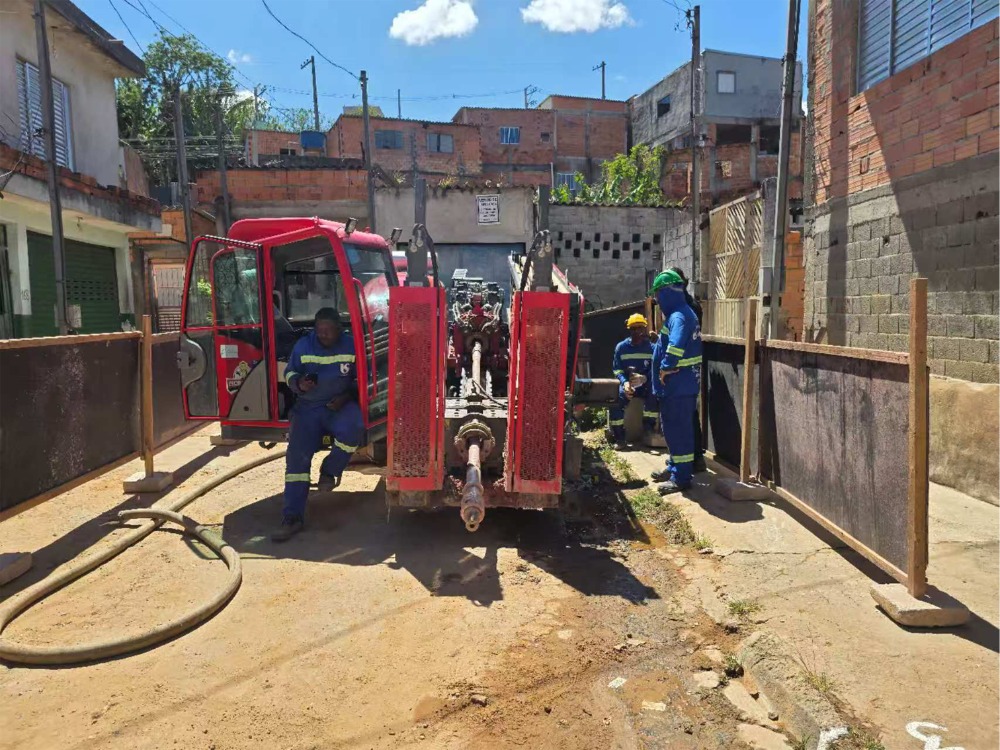

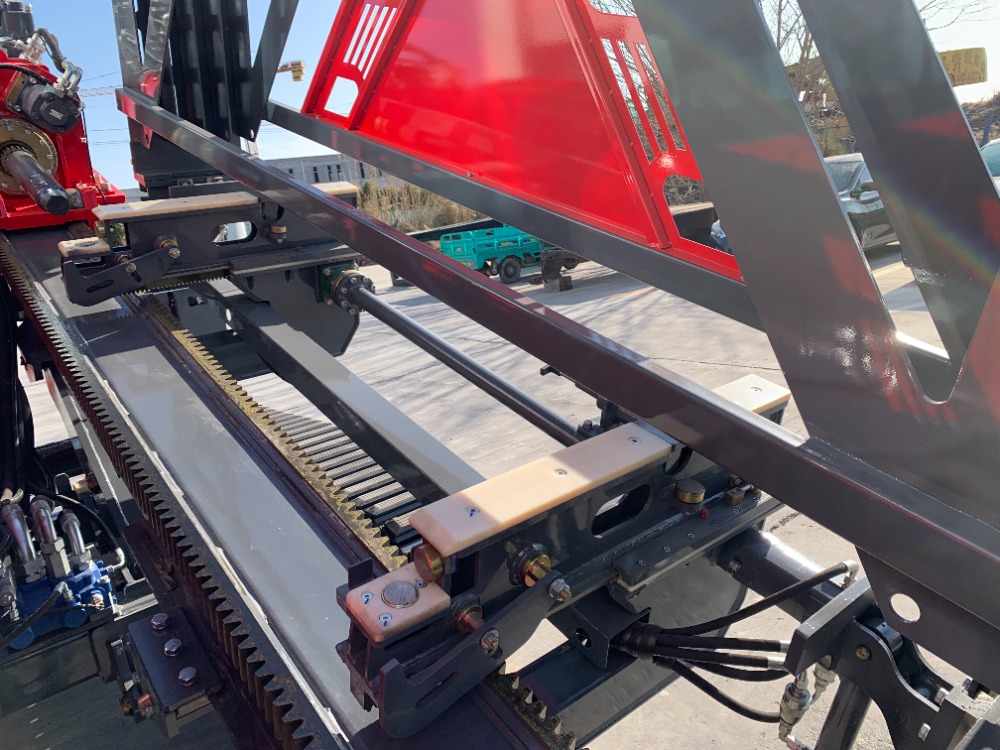

GOODENG 36TON HDD MACHINE) (3)

The GS360-LS is equipped with open-air operating table and excellent working view .
Equipped with Ф73×3000mm or Ф76×3000mm or Ф83×3000mm drill rod.
Thrust&pullback and rotation adopt multi-functional handle controlled by pilot valve, which is easy and simple to operate.
The electrical design is reasonable, the failure rate is low and the maintenance is convenient.
Optional device: mud flow control valve, mud flow adjustment valve and Antifreeze water tank.
