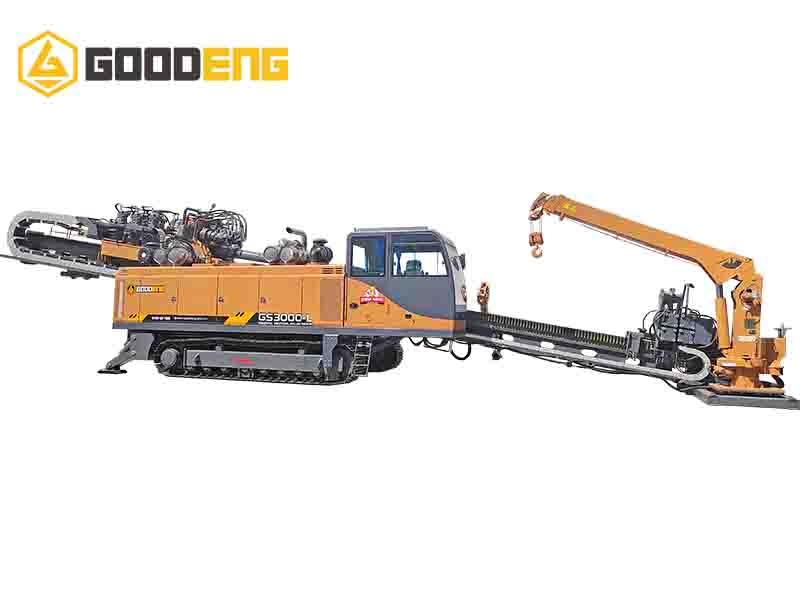

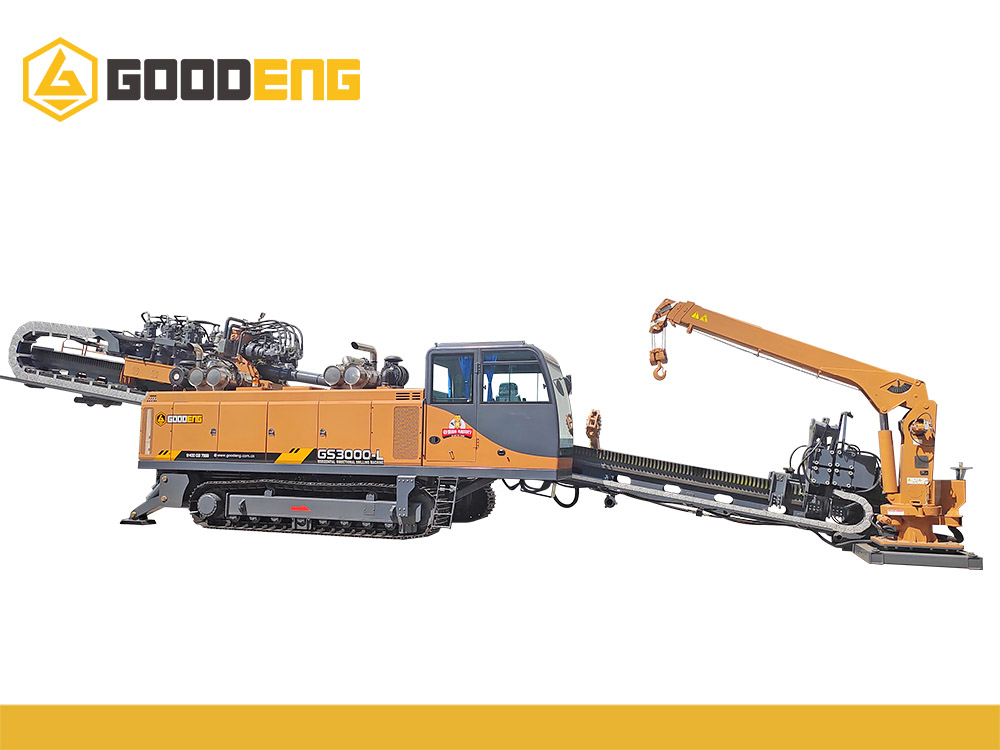

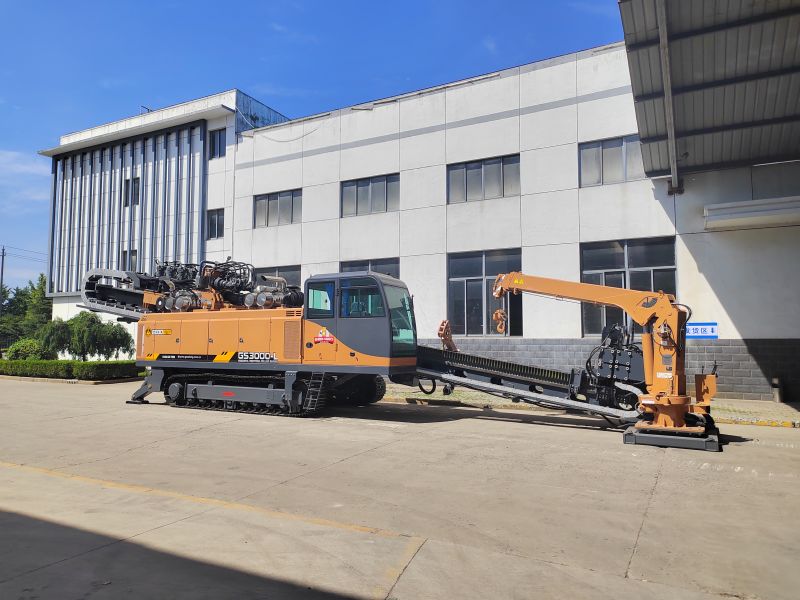

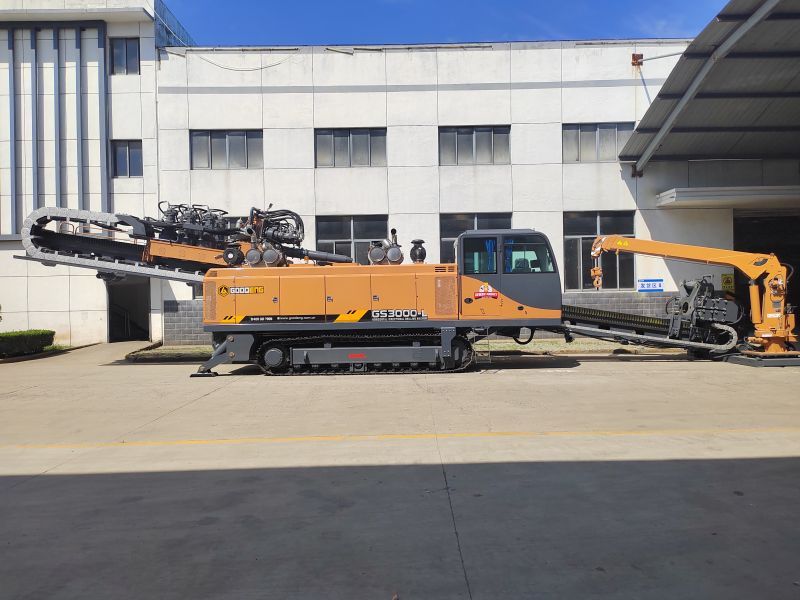

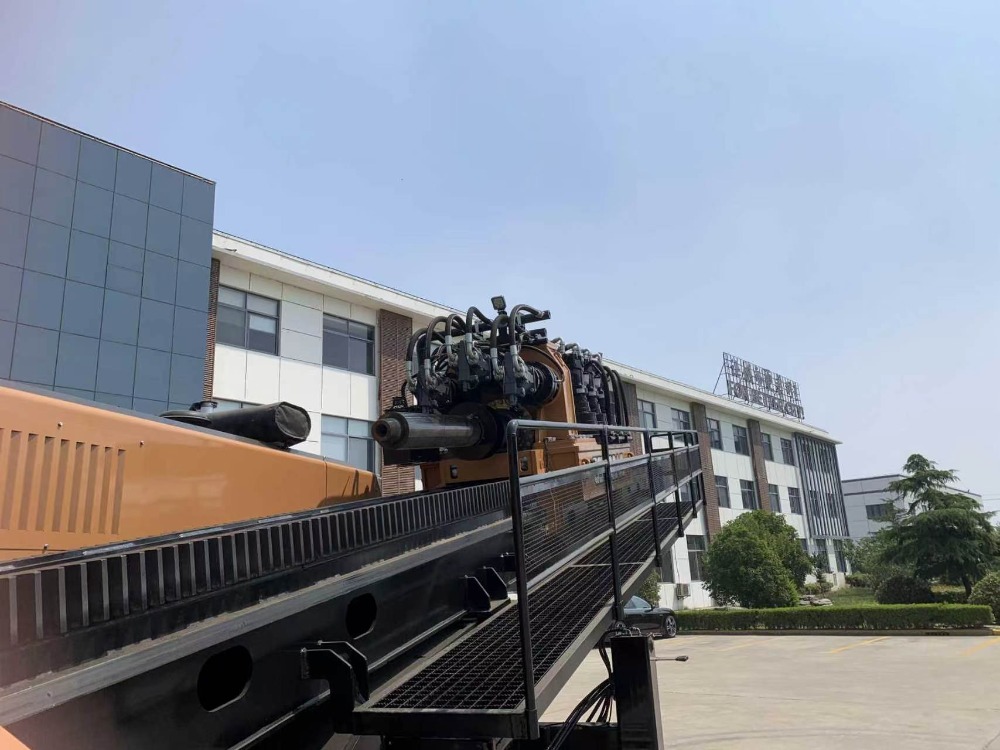

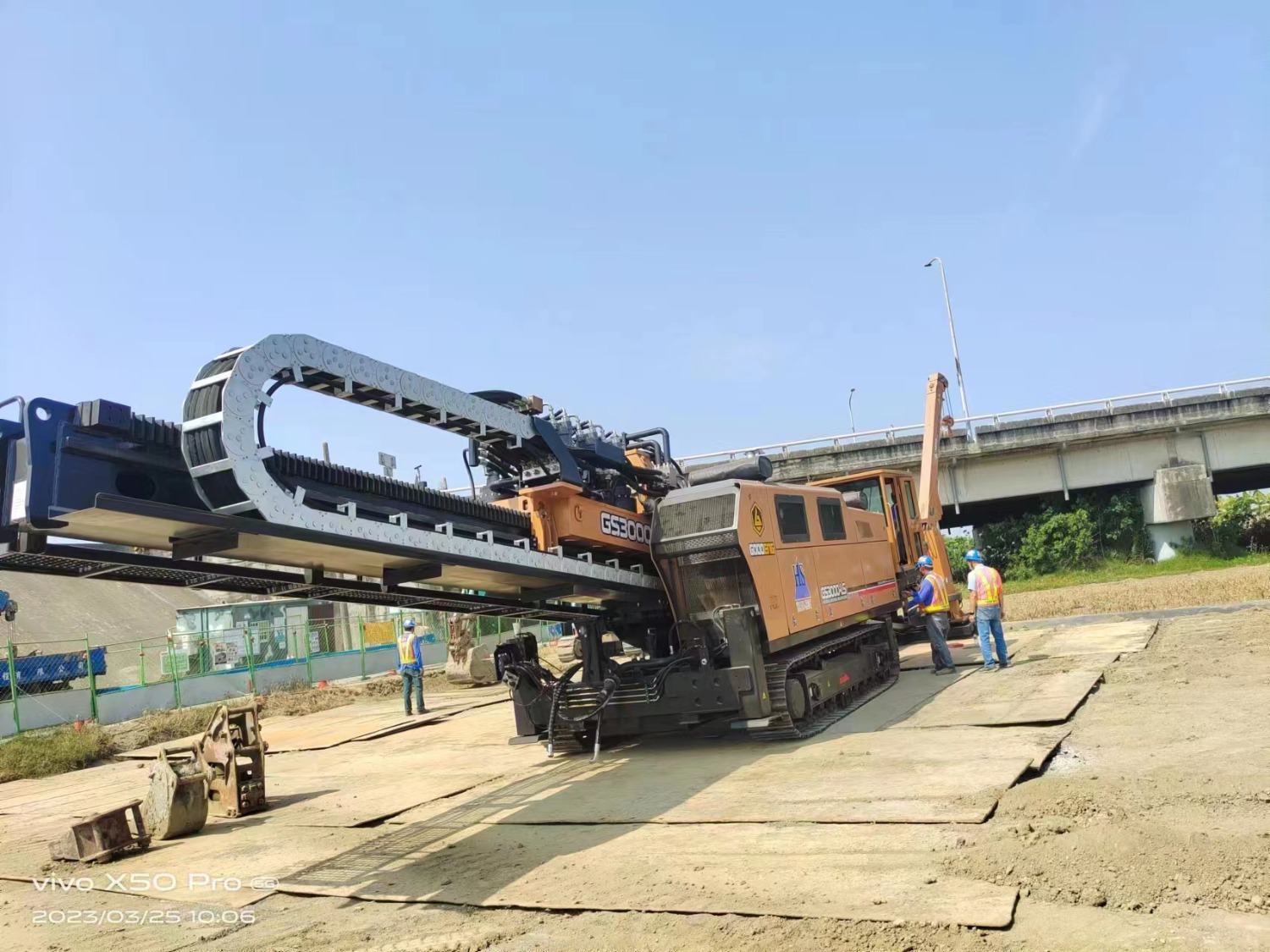

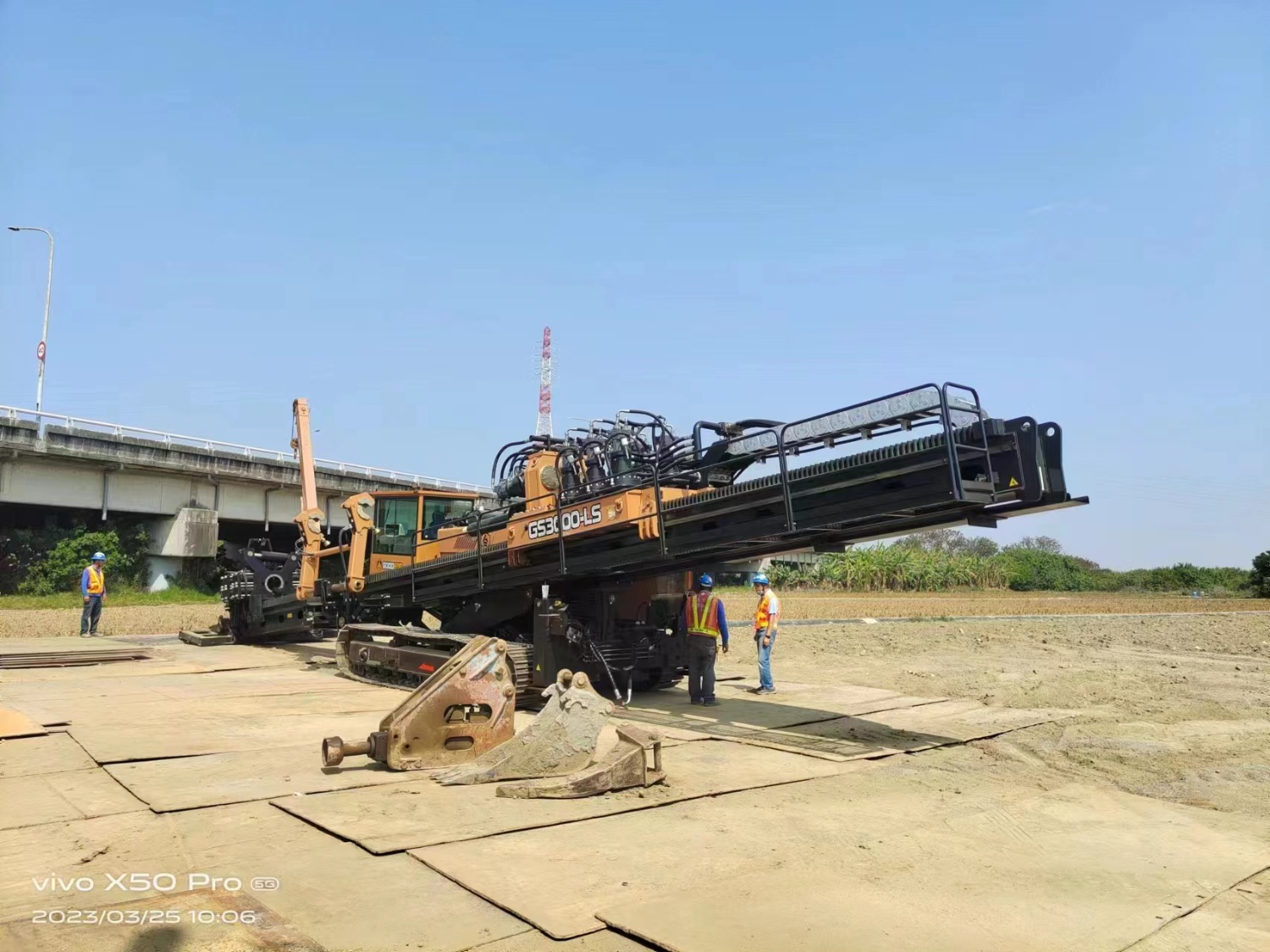

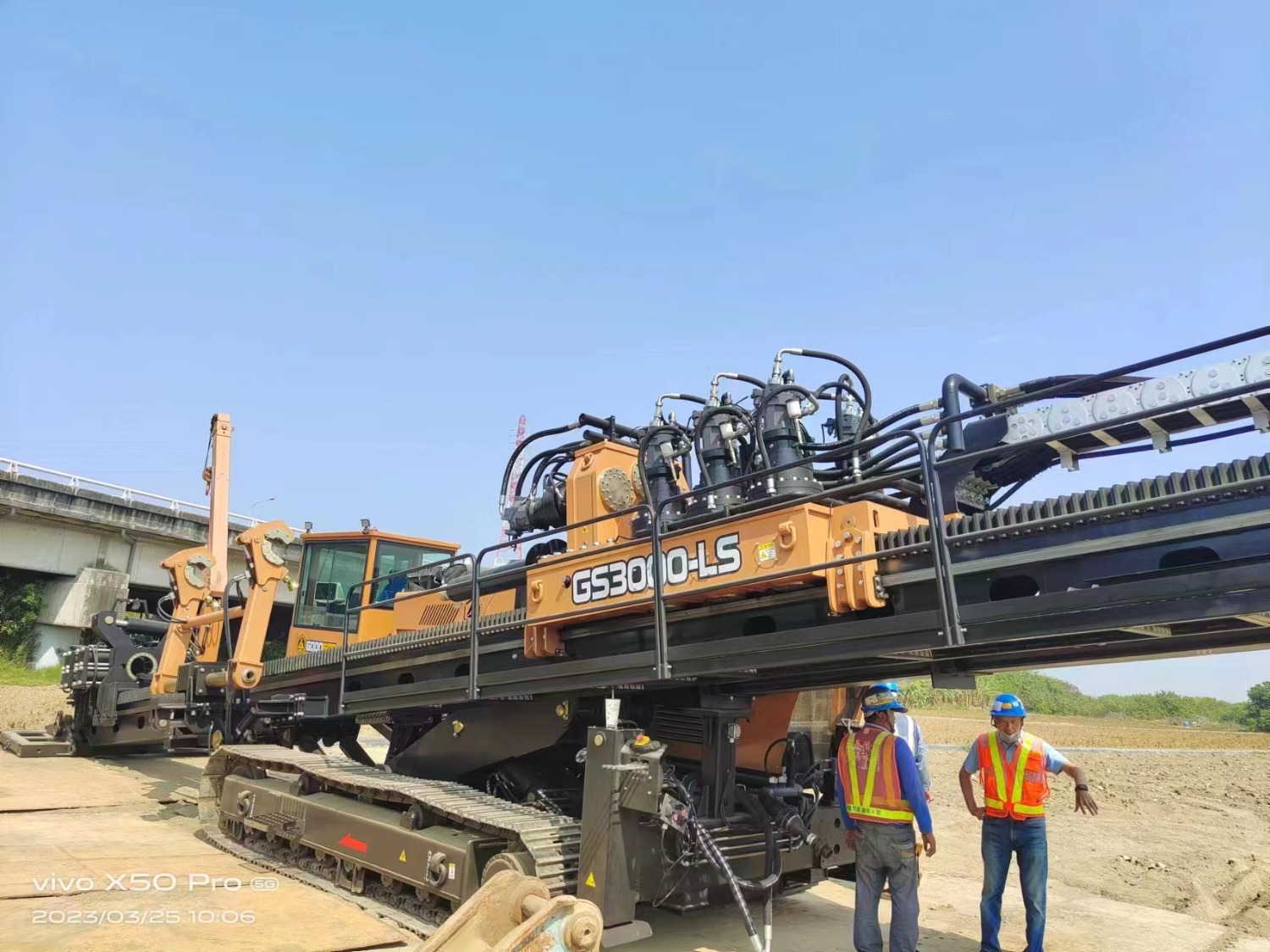

Goodeng Machine GS3000-LS Trenchless HDD Drill - Pipeline Utility Machine

Shanghai Goodeng International Co., Ltd. launches our latest product, featuring a Cummins construction-specialty engine, top-tier international hydraulic system, 5t truck crane, liftable AC-equipped panoramic cab/seat. It has a dual-power system (for rotating/pushing/pulling high-speed ops), PLC intelligent control (wireless/cable), 2-speed crawler travel, and a reserved 2.5-inch slurry inlet—ideal for high-performance, reliable construction use.

Trenchless HDD Drill/Bore Crawler Machine/Equipment Underground Pipeline Utility machine hdd boring hdd thrust drilling underground pipeline machine Goodeng GS3000-LS

Technical Parameter

	Metric Unit	Imperial Unit
Weight	52000 kg	114640 lbs
Dimension (LxWxH)	18260 × 3200 × 3600mm	718 × 126 × 142 in
Max.Thrust&Pullback Force	3000 KN	674442 lbf
Max.Thrust&Pullback Speed	35 m/min	114.83 ft/min
Max.Torque	100000 N·m	73756 ft·lb
Max.Rotation Speed	95 r/min	95 rpm
Engine Power	2 × 264 kW	2 × 354 hp
Max. Climbing Gradient	18°	18°
Walking Speed	3–5km/h	1.86–3.11mph
Crane Capacity	5 Metric Tons	5.51 Short Tons
Entry Angle	9° - 22°	9° - 22°
Suggest Crossing Length	≤2000 m	≤ 6561 ft
Drill Rod Size	Φ140/Φ168×9600 mm	Φ5.51"/Φ6.61" × 377.95 in
Suggest Reaming Diameter	≤ Φ1800mm	≤ Φ70.87 in

Main Characteristics

1. The hydraulic system is comprised of the following components: The push-pull, rotation, and traveling functions are all operated via a closed system with electro-hydraulic proportional control.

2. The double power system offers flexibility for different working conditions (supports double or single engine operation). If the hydraulic system or one engine fails, the other system can keep running to ensure construction safety.

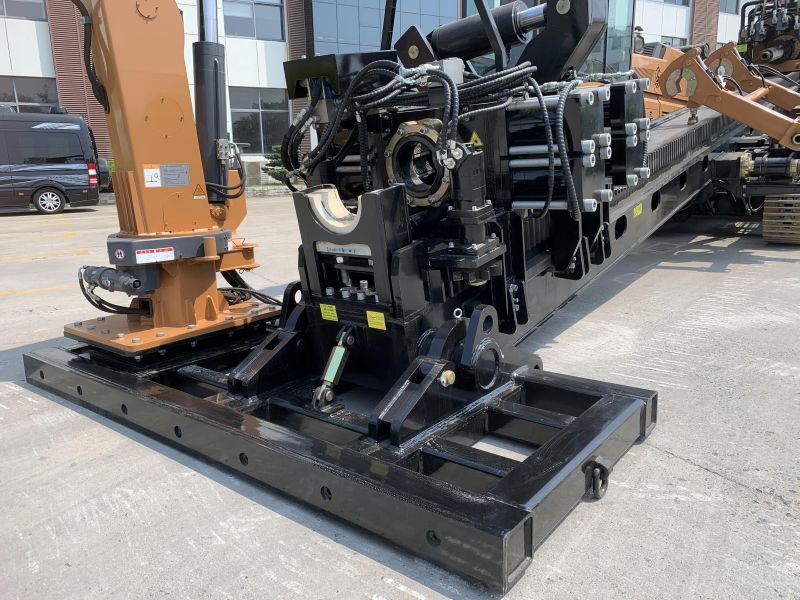

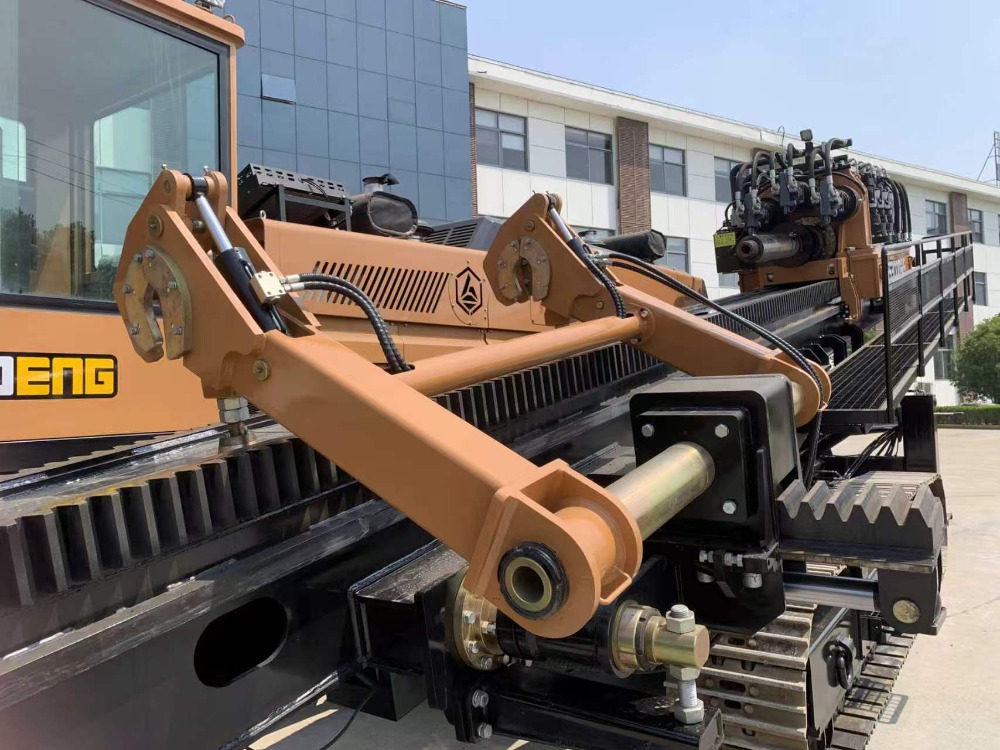

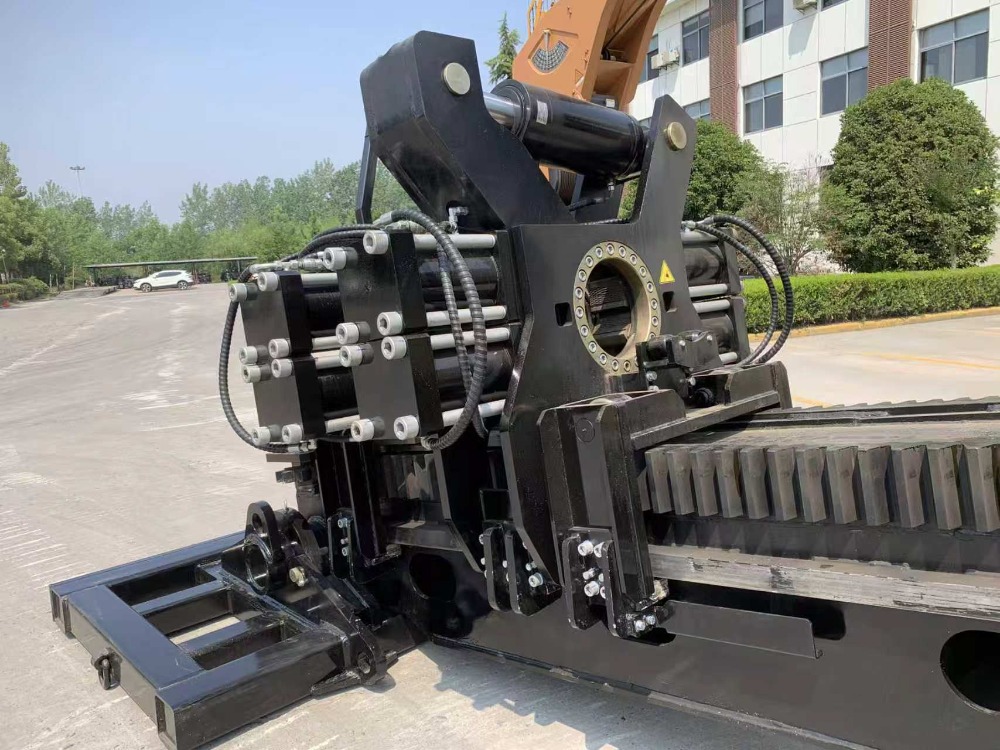

3. The front and rear clamps can be separated, and the gripper floats throughout, providing enhanced flexibility.

4. The floating spindle is beneficial for protecting drilling rod screws.

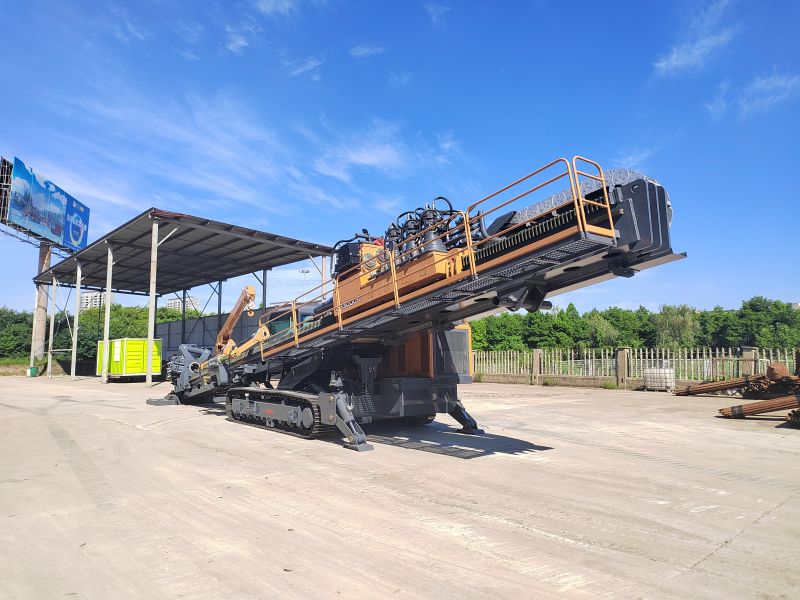

5. The floating beam is conducive to climbing and transportation, and the angle of incidence can be easily adjusted.

6. The proportional line control walking system ensures the safety of the walking, loading, and unloading processes for both the machine and the operator.

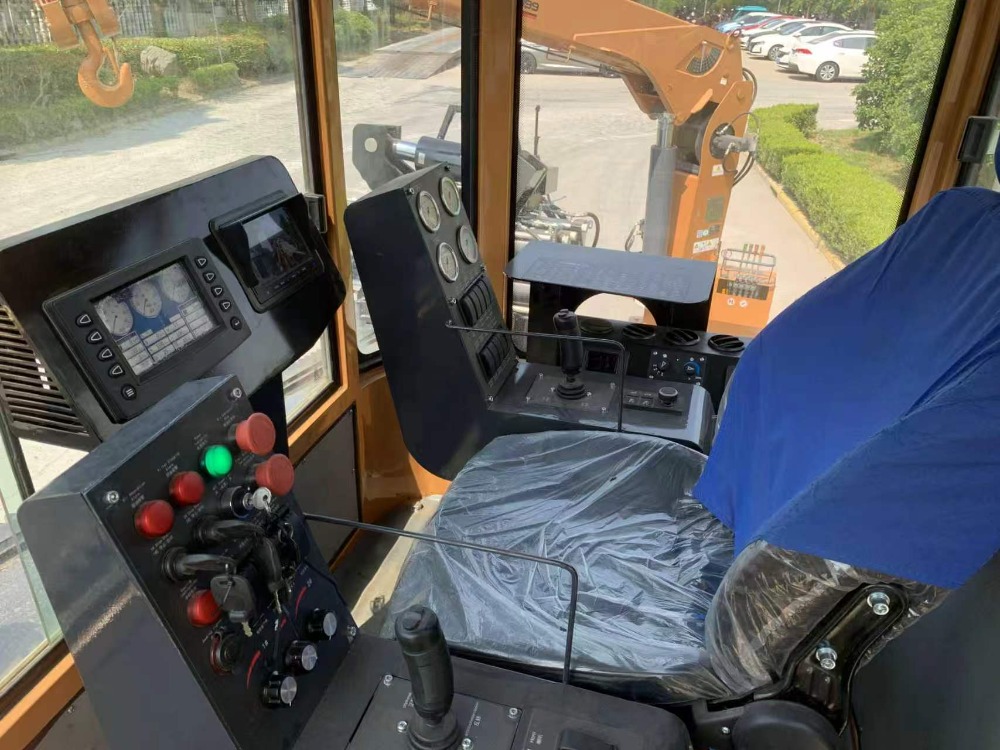

7. The electronic control handle is simple, reliable, and highly sensitive.

8. The vehicle cab space is wide and the adjustable seat provides more comfort for the operator.

9. The hydraulic system uses large-flow, high-pressure design and Goodeng Machinery’s cartridge control valve manifold to boost equipment performance, cutting pressure loss by about 50%.

10. Goodeng Machinery’s electro-hydraulic joint control system enables the host machine’s adaptive control to different working/geological conditions (boosting efficiency by ~30%), with automatic and manual operation modes.
