Goodeng GS12000-LS horizontal directional boring drilling rig core coring cable drilling machine
GS-SeriesHorizontal Directional Drills

Goodeng GS12000-LS horizontal directional boring drilling rig core coring cable drilling machine

Highlights:

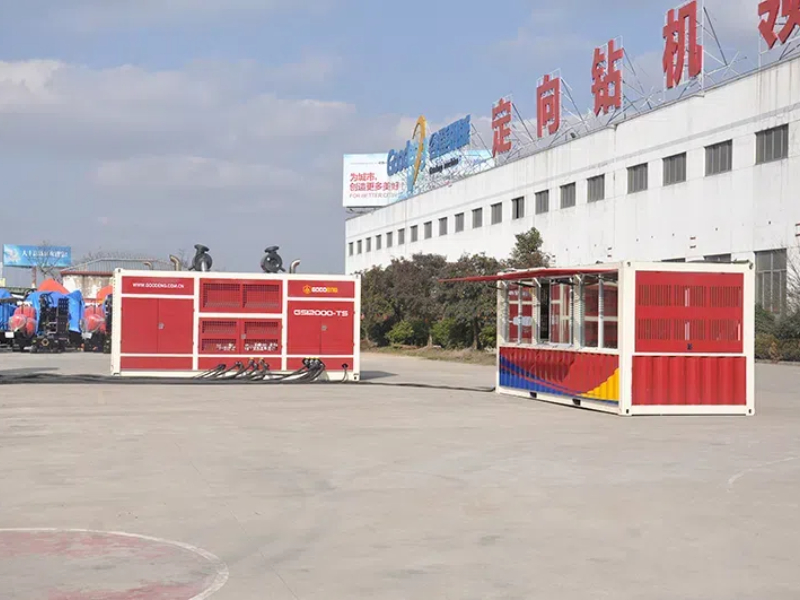

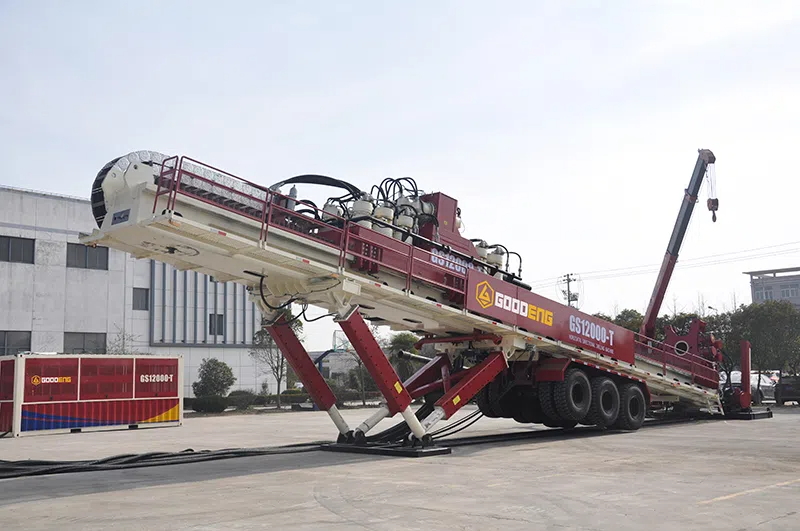

1. Overall split design. The main engine is a tugboat structure, which can be separated for loading and unloading, which can not only meet the transportation requirements, but also realize the convenient location on the construction site. The outer shape of the power station operation room is a 20-foot container, which is convenient for container transfer and transportation.

2. Powerful power system. Two 565-kW, one 264-kW, and one 154-kW engines are composed together. Through the plc control system, it not only guarantees strong power, but also energy saving and environmental protection.

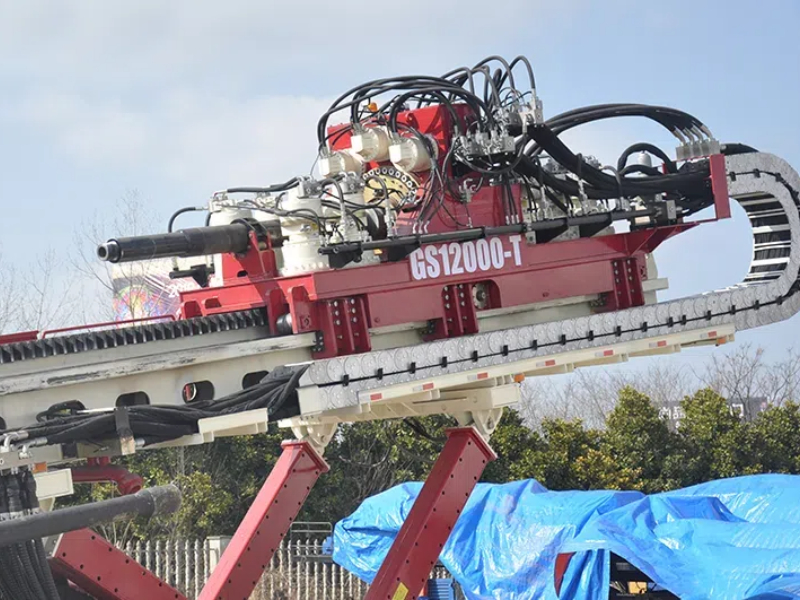

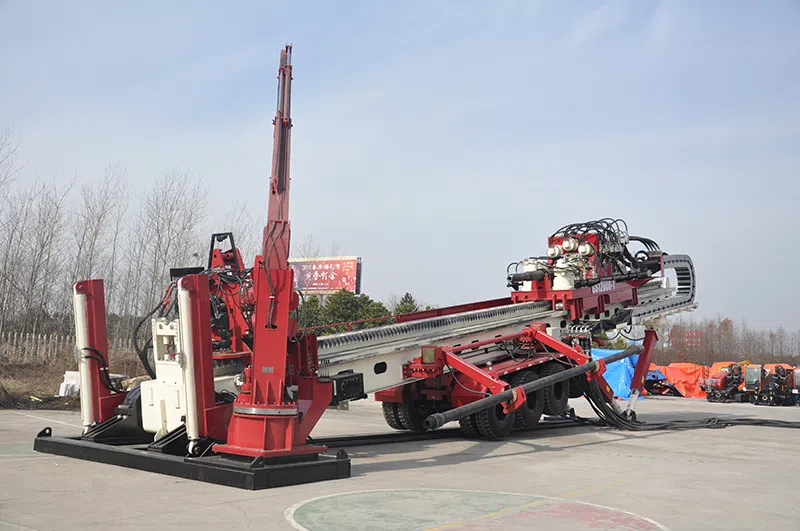

3. Patented power head active protection system, multiple protection rotary push-pull motor, completely resist the impact of various working conditions on the motor, and extend the service life of the motor.

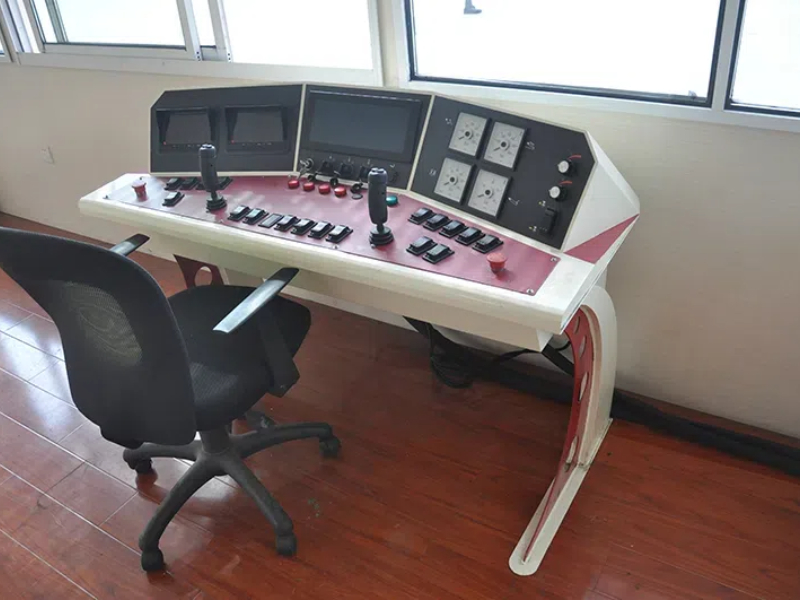

4. Adaptive automatic drilling system. Torque and rotation speed push-pull force and push-pull speed can be set through the plc control system.

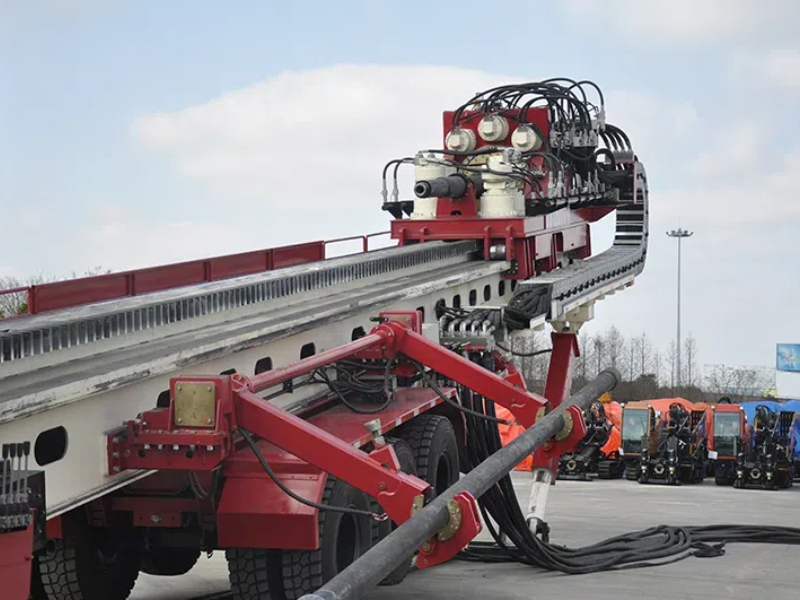

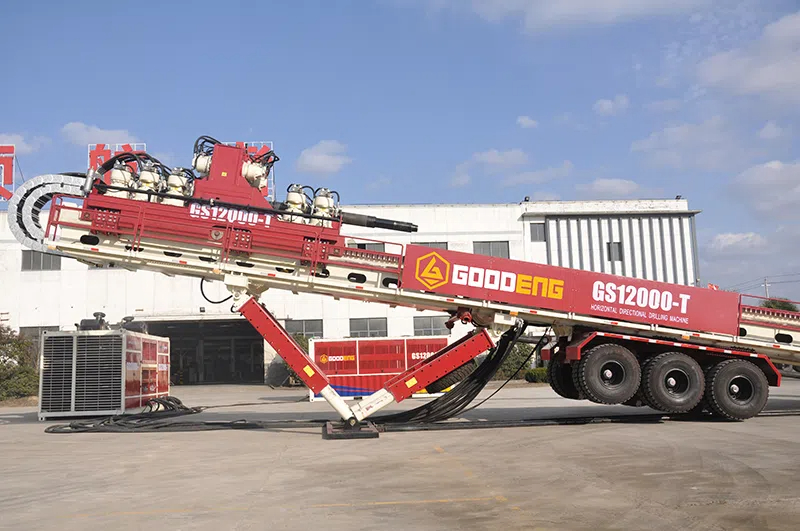

5. Large rotary manipulator. Patented technology, the performance of the cylinder rack rotary manipulator is stable.

    Technical Parameter

      Metric Unit Imperial Unit
    Weight  81000 kg 178574 lbs
    Rig Dimension (LxWxH) 22300 * 2800 * 39500mm 73 * 9 * 130 in
    Power Station Weight 18000 kg 39683 lbs
    Power Dimension (L×W×H) 6050 * 2500 * 2600 mm 19.9 *8 *8.5 ft
    Operation Room Weight 3000 kg 6614 lbs
    Operation Room Dimension 6050 * 2500 * 2600 mm 19.9 *8 *8.5 ft
    Engine Power 2*565 kW+264 kW 2 *757 hp+354 hp
    Max.Working Pressure 35 MPa 5,076 psi
    Max.Thrust&Pullback force 12000 KN 2698000 lbs
    Max.Thrust&Pullback Speed  40 m/min 131 ft/min
    Max.Torque 260000 N·m 191809 lbf·ft
    Max.Rotation Speed  85 r/min 85 rpm
    Max.Clamp Force 5300 kN 1191295 lbs
    Max Unscrewing Torque 720000 N·m 531136 lbf· ft
    Main Spindle Floating Distance 140 mm 5.5 in
    Entry Angle  8°~18° 8°~18°
    Drill Rod Size Φ168-Φ254 mm Φ6.6-Φ10 in
    Drill Rod Length 9600 mm 31.5 ft
    Mud Pipe Channel Diameter 4 in 4 in
    Crane Capacity 8 Metric Tons 8.8 Short Tons
    Suggest Reaming Diameter ≤ Φ2000 mm ≤ Φ78.7 in
    Suggest Crossing Length ≤2000 m ≤ 6561 ft

    Main Characteristics

    • 1. The hydraulic system is comprised of the following components: The push-pull, rotation, and traveling functions are all operated via a closed system with electro-hydraulic proportional control.

      2. The configuration of the double power system allows for the flexibility to meet the demands of different working conditions, with the option of either double or single engine operation.

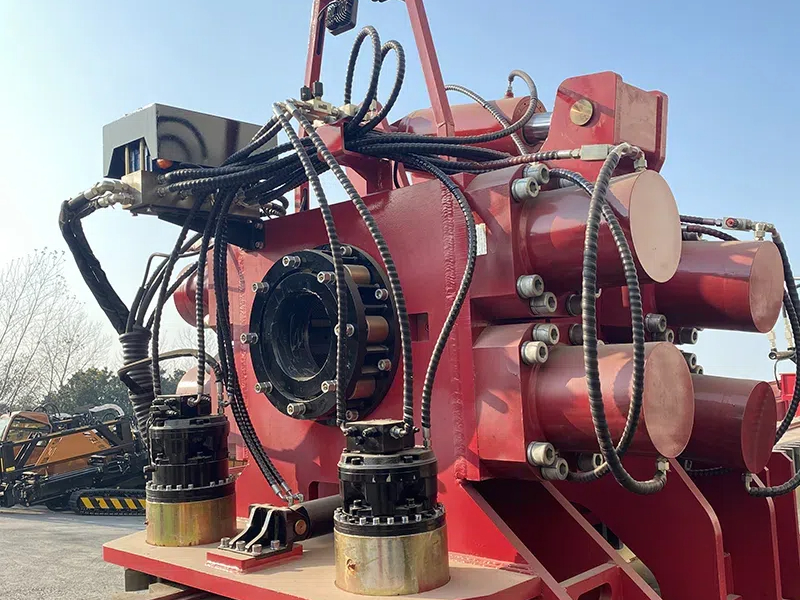

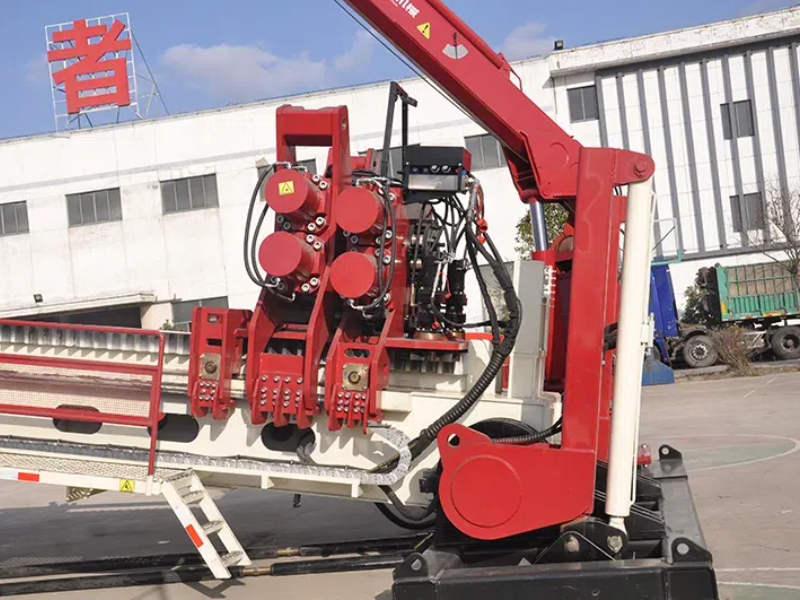

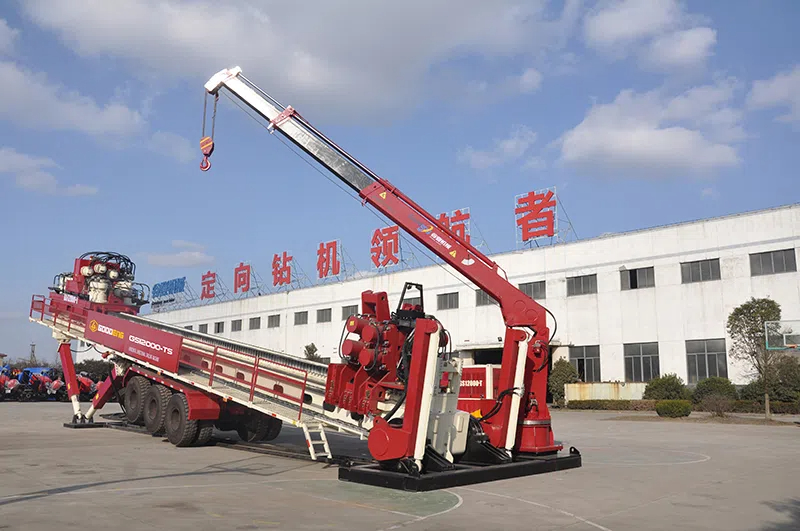

      3. The front and rear clamps can be separated, and the gripper floats throughout, providing enhanced flexibility.

      4. The floating spindle is beneficial for protecting drilling rod screws.

      5. The floating beam is conducive to climbing and transportation, and the angle of incidence can be easily adjusted.

      6. The proportional line control walking system ensures the safety of the walking, loading, and unloading processes for both the machine and the operator.

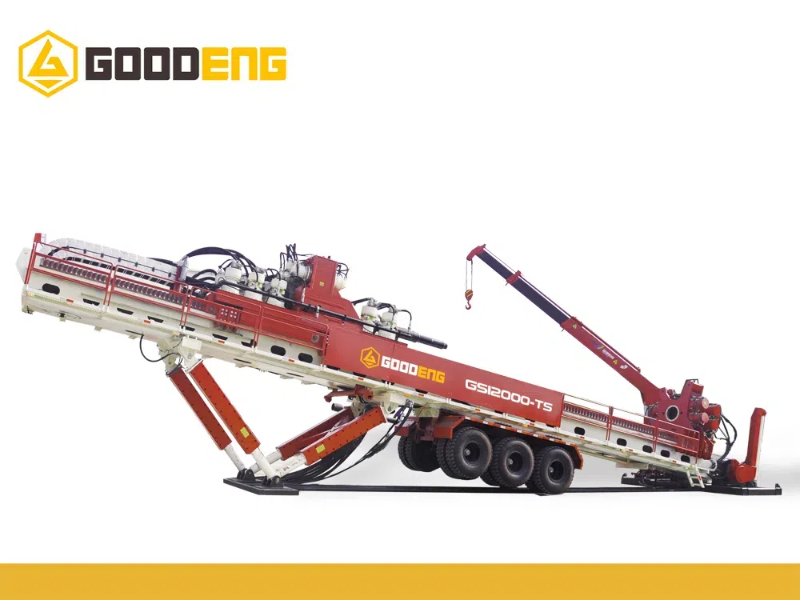

    1200T-T主图woc

    solution MAIN DETAILS

    5 GS12000-LS
    1 GS12000-LS
    6 GS12000-LS
    4 GS12000-LS
    2 GS12000-LS
    3 GS12000-LS

    application


    APPLICATION AREA

    Production Process

    1
    BLANKING 1

    BLANKING

    2
    RIVET-WELDING 2

    RIVET-WELDING

    3
    MACHINING 3

    MACHINING

    4
    ASSEMBLING 4

    ASSEMBLING

    5
    DEBUGGING 5

    DEBUGGING

    6
    TESTING 6

    TESTING

    65420be751dad22160
    Jiangsu Goodeng Heavy Machinery
    FAQ (2)

    FAQ

    • 1

      What is the maximum pulling force of GOODENG GS12000-LS HDD Rig?

      GOODENG GS12000-LS is a 1200-ton class HDD rig with a maximum pullback force of 12,000 kN. It is designed for large-scale HDD projects, including long-distance and large-diameter pipeline installations.

    • 2

      What kind of projects is GS12000-LS suitable for?

      GS12000-LS is mainly designed for large infrastructure and energy projects, such as: Oil & gas pipeline installation; Long-distance pipeline crossing; River and lake crossing; Sea crossing projects; Large diameter water pipeline installation; Complex underground construction projects.

    • 3

      What is the maximum drilling distance of GS12000-LS?

      The drilling distance depends on the pipe diameter, geological conditions, drilling plan, and construction method. Under suitable conditions, GS12000-LS can support several kilometers of HDD crossing projects.

    • 4

      Can GS12000-LS work in hard rock and complex geological conditions?

      Yes. GS12000-LS provides high torque and strong pulling force, and can be equipped with suitable drilling tools, rock reamers, and mud systems to handle complex conditions, including hard clay, gravel, and rock formations.

    • 5

      What are the main advantages of GS12000-LS compared with other HDD rigs?

      The main advantages include:12,000 kN ultra-high pullback force for heavy-duty projects; High torque output for large-diameter reaming; Stable hydraulic system for reliable operation; Intelligent PLC control system for precise drilling management; Strong adaptability for different geological conditions.

    • 6

      What pipe diameter can GS12000-LS install?

      GS12000-LS is designed for large-diameter pipeline projects. The final pipe diameter depends on project conditions, soil type, crossing length, and the selected drilling tools. Our engineers can recommend the suitable configuration based on your project requirements.

    • 7

      What information is required to select the right configuration for GS12000-LS?

      To provide the most suitable solution, please provide: Pipeline diameter; Crossing length; Ground conditions (soil, clay, sand, rock, etc.); Required drilling depth; Project location; Required construction schedule.

    • 8

      Does GOODENG provide technical support after purchase?

      Yes. GOODENG provides professional technical support, including: Machine commissioning guidance; Operator training;HDD construction solutions; Technical assistance during project operation.
