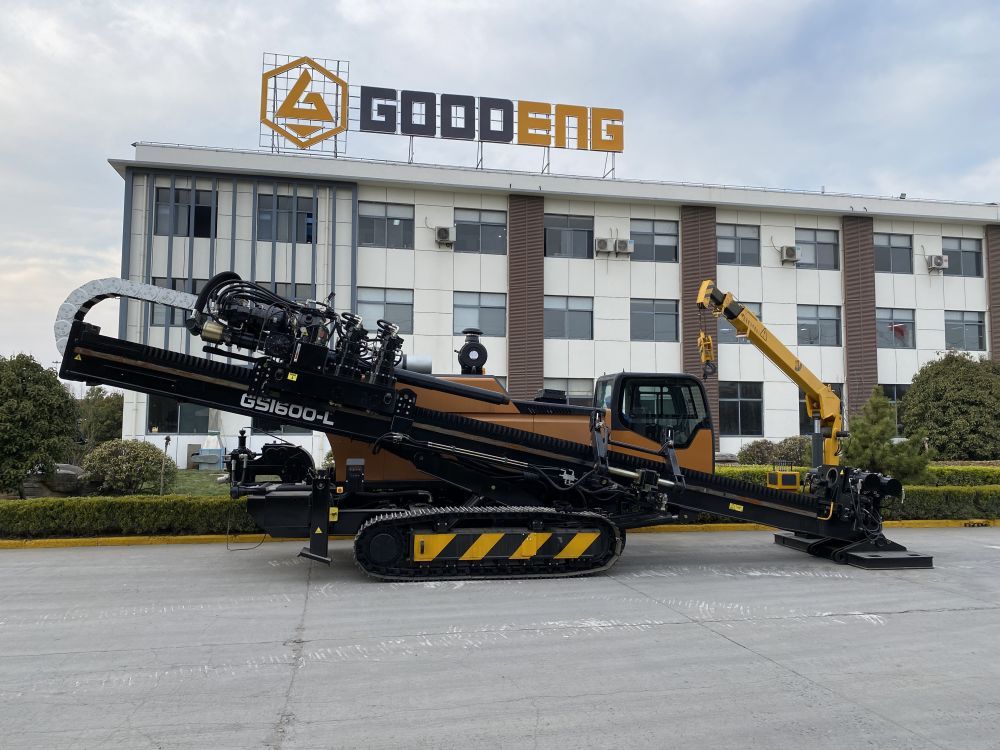

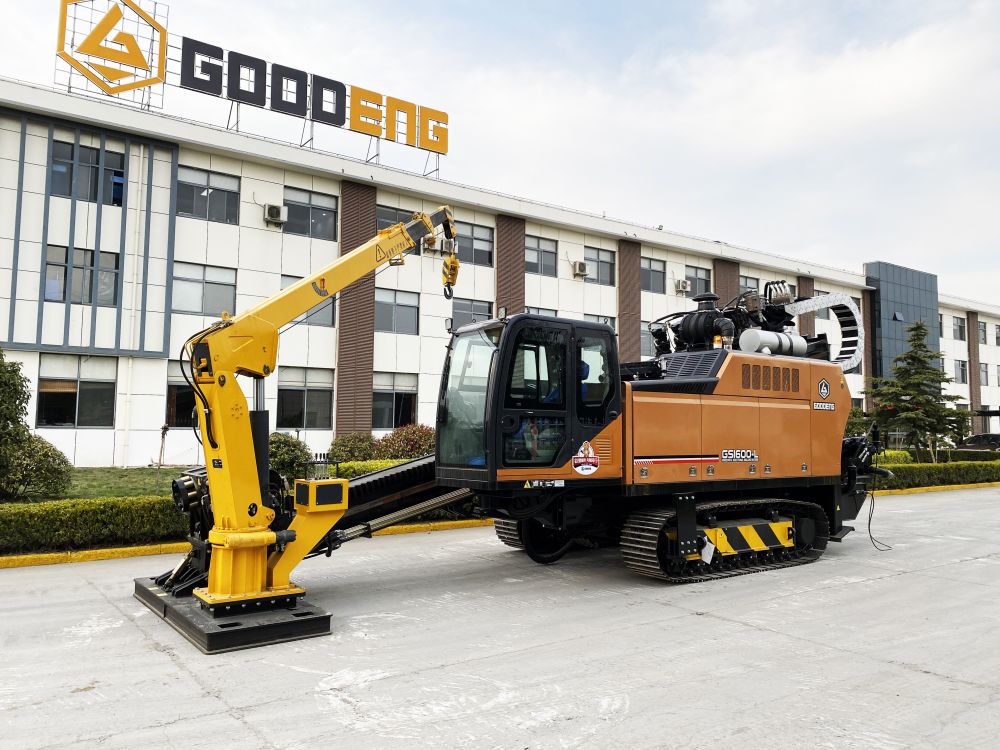

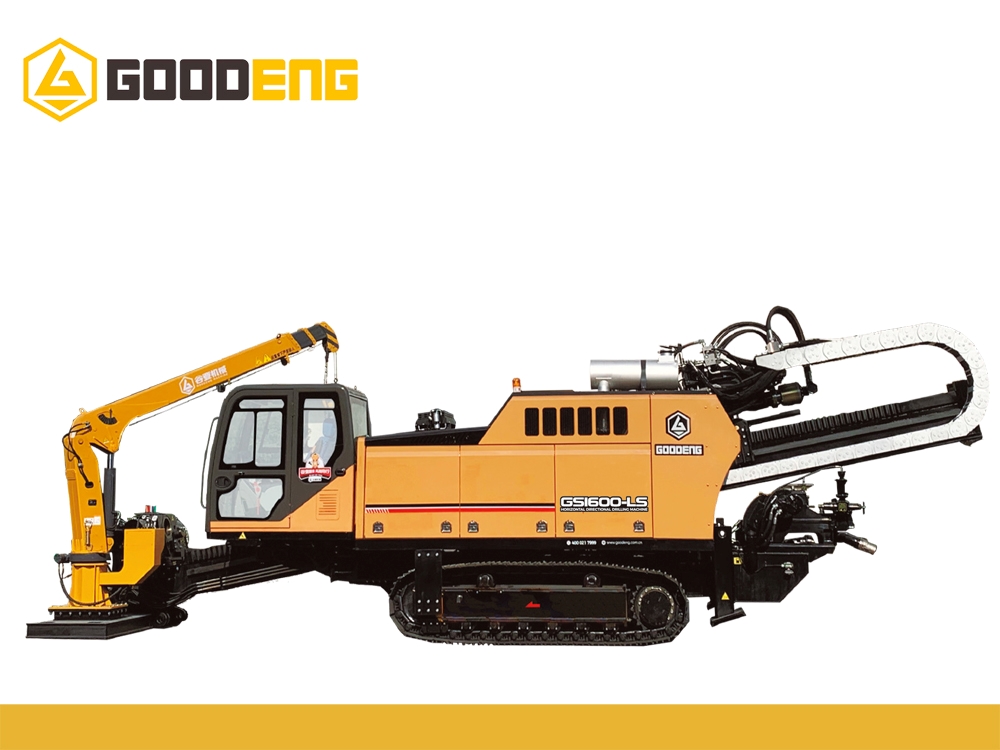

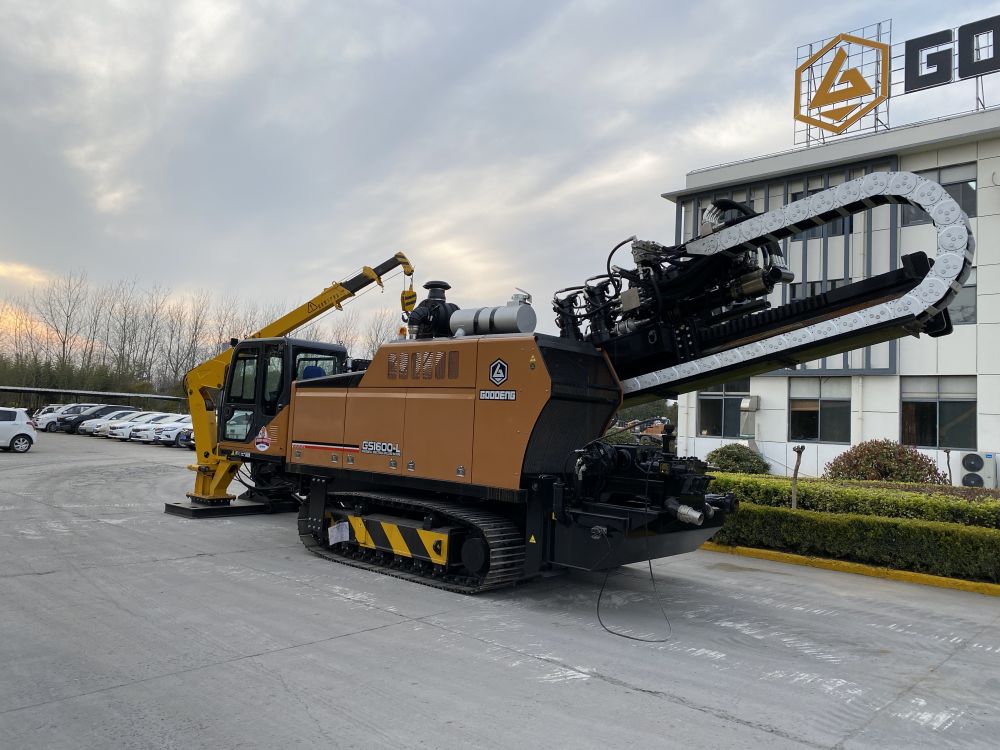

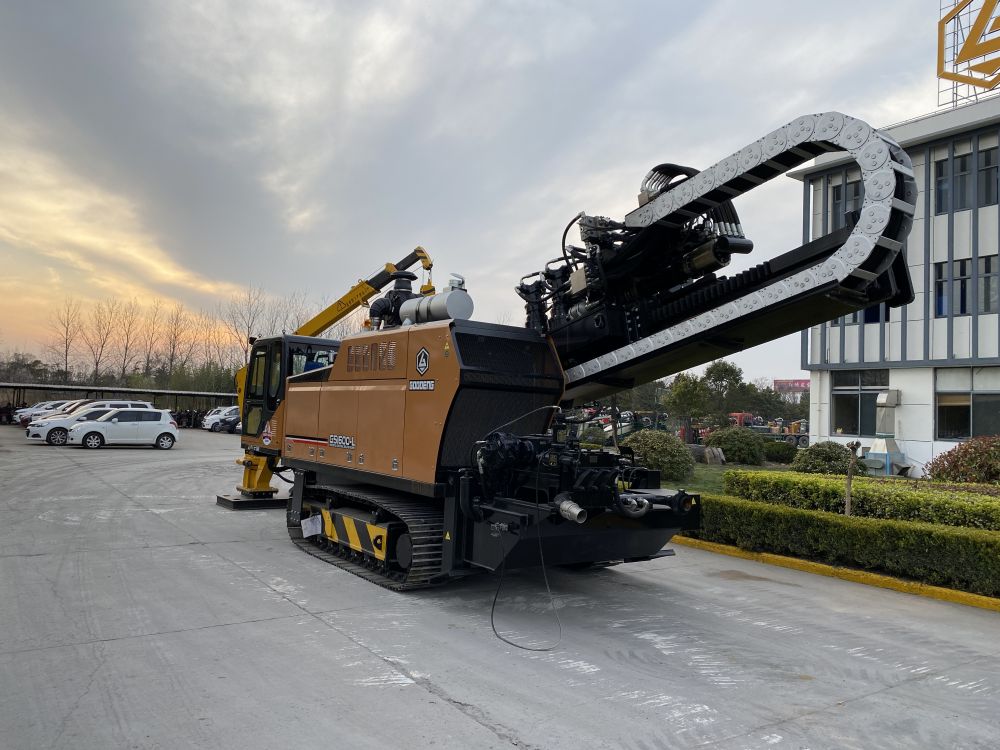

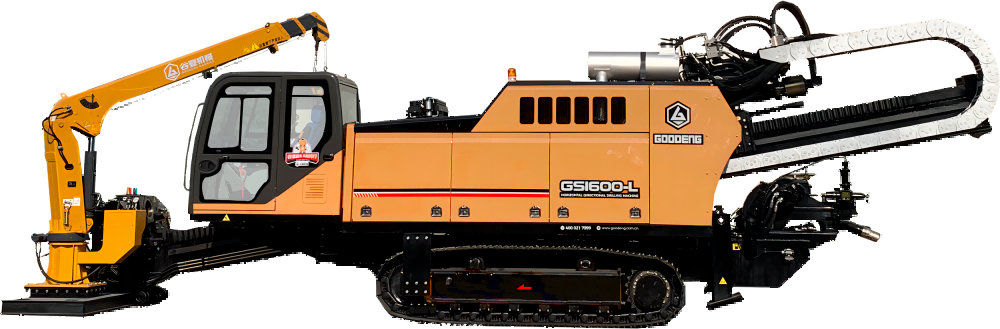

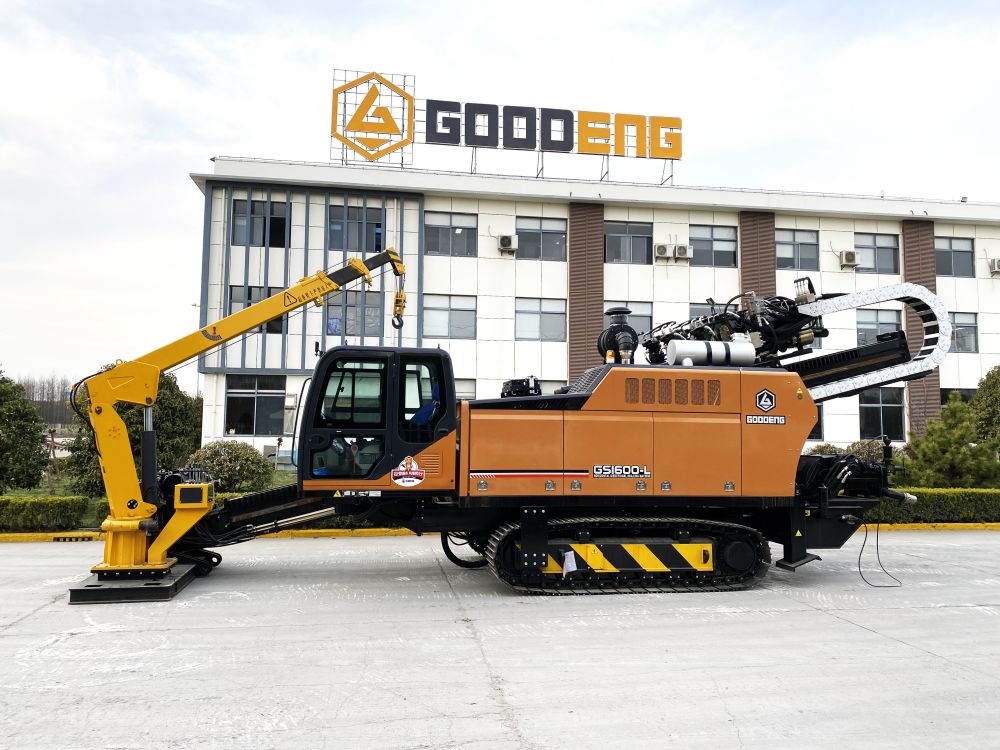

Goodeng GS1600-LS High Quality Compact Horizontal Boring Machine Trenchless Drill Equipment for Telecom Line Installation
Technical Parameter
| Metric Unit | Imperial Unit | |
| Weight | 25000 kg | 55116 lb |
| Dimension (LxWxH) | 11080×2600×3000 mm | 36.35×8.53×9.84 ft |
| Max.Thrust&Pullback Force | 1800 kN | 404686 lbf |
| Max.Thrust&Pullback Speed | 45 m/min | 148 ft/min |
| Max.Torque | 61000 N·m | 44982 lbf・ft |
| Max.Rotation Speed | 115 r/min | 115 rpm |
| Engine Power | 316 kW | 424 hp |
| Max.Flow of Mud Pump | 800 L/min | 211 gal/min |
| Walking Speed | 3-5 km/h | 1.86-3.11 mph |
| Max.Mud Pump Pressure | 10 MPa | 1450 psi |
| Entry Angle | 10° -20° | 10° -20° |
| Max.Climbing Gradient | 18° | 18° |
| Drill Rod Size | Φ114-127×6000 mm | Φ4.49-5.00×19685 in |
| Crane Capacity | 3t | 6614 lb |
| Suggest Reaming Diameter | ≤ Φ1450 mm | ≤ Φ57 in |
| Suggest Crossing Length | ≤1100 m | ≤3609 ft |
- Reliable and stable hydraulic system: Rotation adopts hengli hydraulic system, world-class close-circuit pump; Thrust & pullback adopts load sensitive system, world-class high-pressure plunger pump; Rotary motor adopts German electric proportional variable motor; Thrust & pullback adopts German high-pressure plunger motor, quality assurance;

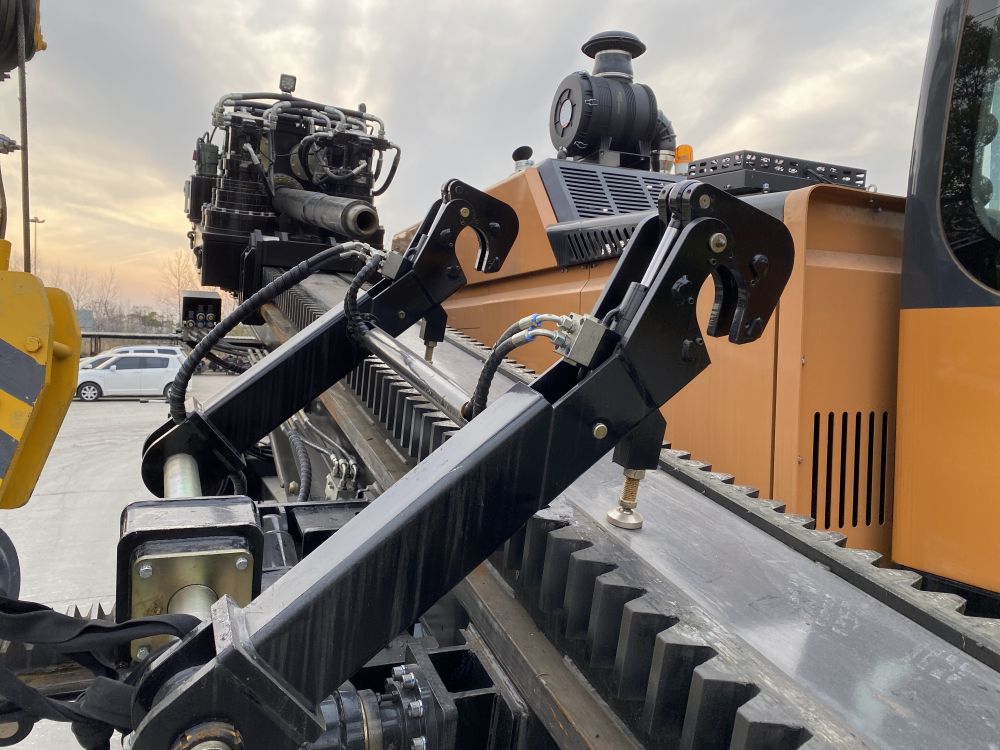

- Rotary manipulator: Goodeng's patented technology is mature, reliable, and highly automated, which liberates labor and reduces labor intensity.

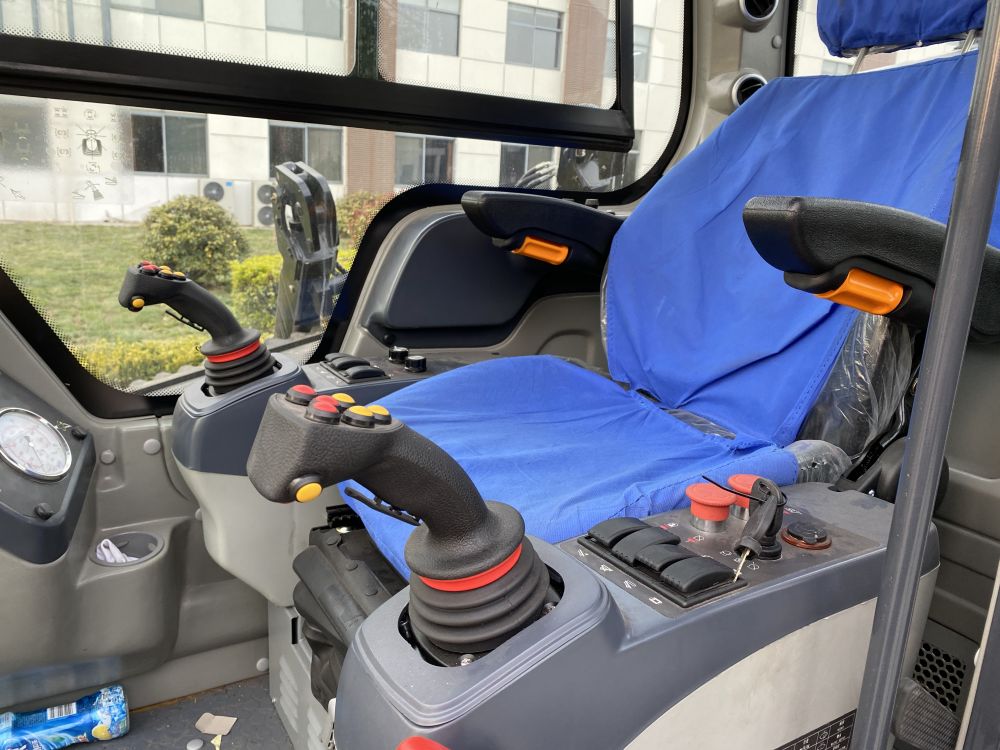

- Rotatable cab: With heating and cooling air-conditioner, humanized design of operating room

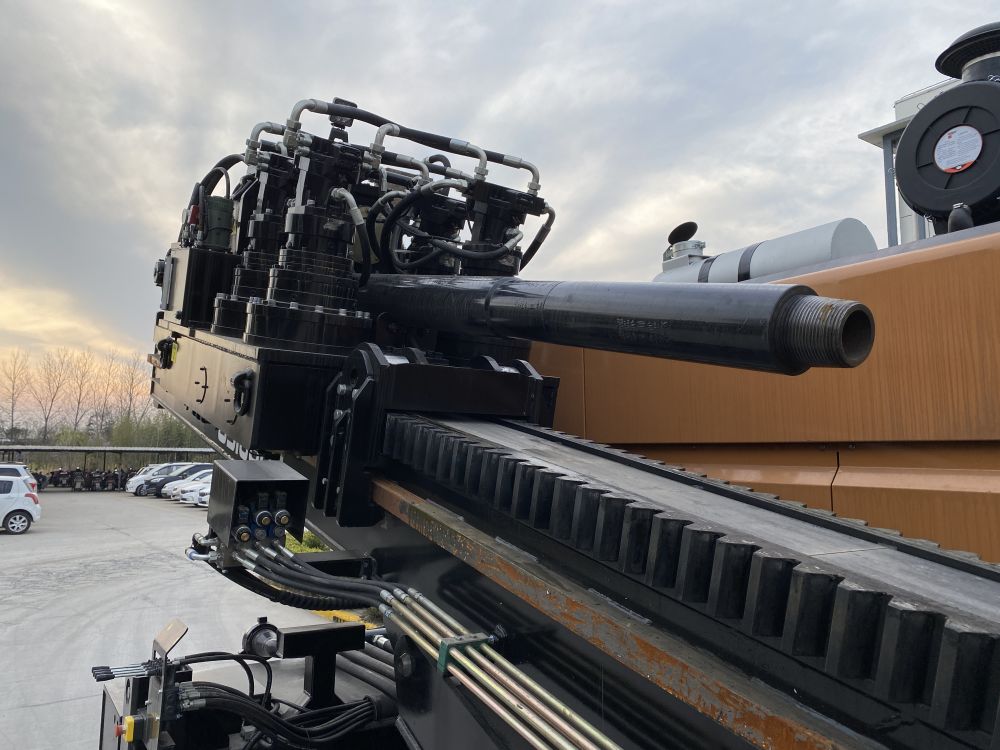

- Unique power head design: The power head reserves reinforcement position, which can provide power upgrades.

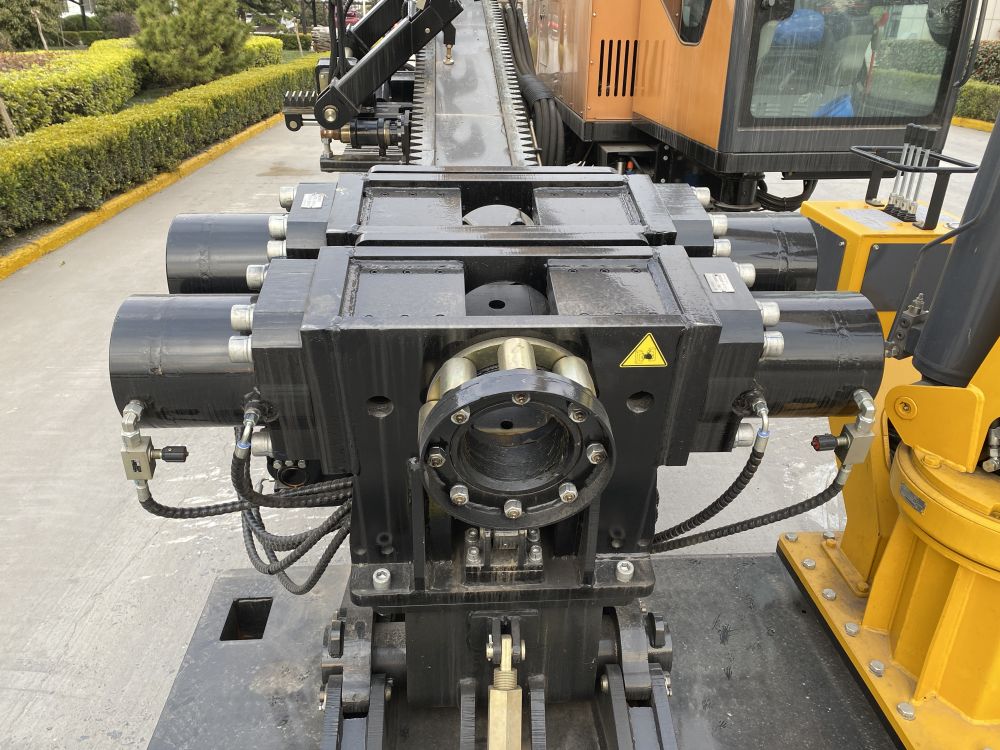

- Patented technology clamp: The low center design of the clamp makes the entry drill point closer which can save construction space and reduce the construction length. The clamp can be separated.
- High efficiency, energy saving and stable engine: Use Weichai diesel engine for construction machinery, strong power.
- Large-scale entry drill angle design: Main girder adopts four-bar linkage luffing structure, and the entry drill angle is greatly improved, while ensuring that the crawler of the drilling rig does not leave the ground at a large angle, which improves the stability and safety of the drilling rig.

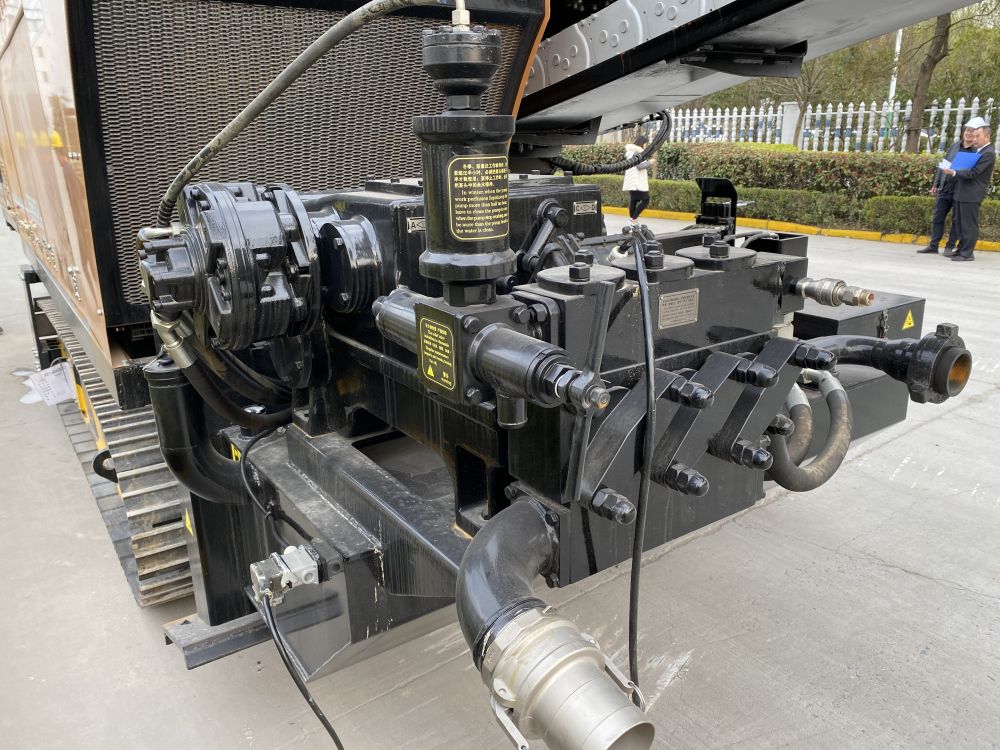

- Large displacement mud pump: High reliability and long-life mud pump. Enhanced long-life mud rotary joint, Goodeng's core process technology guarantee; optional plunger or ceramic cylinder liner piston mud pump, greatly extending the service life of wearing parts.
