Horizontal Directional Drill

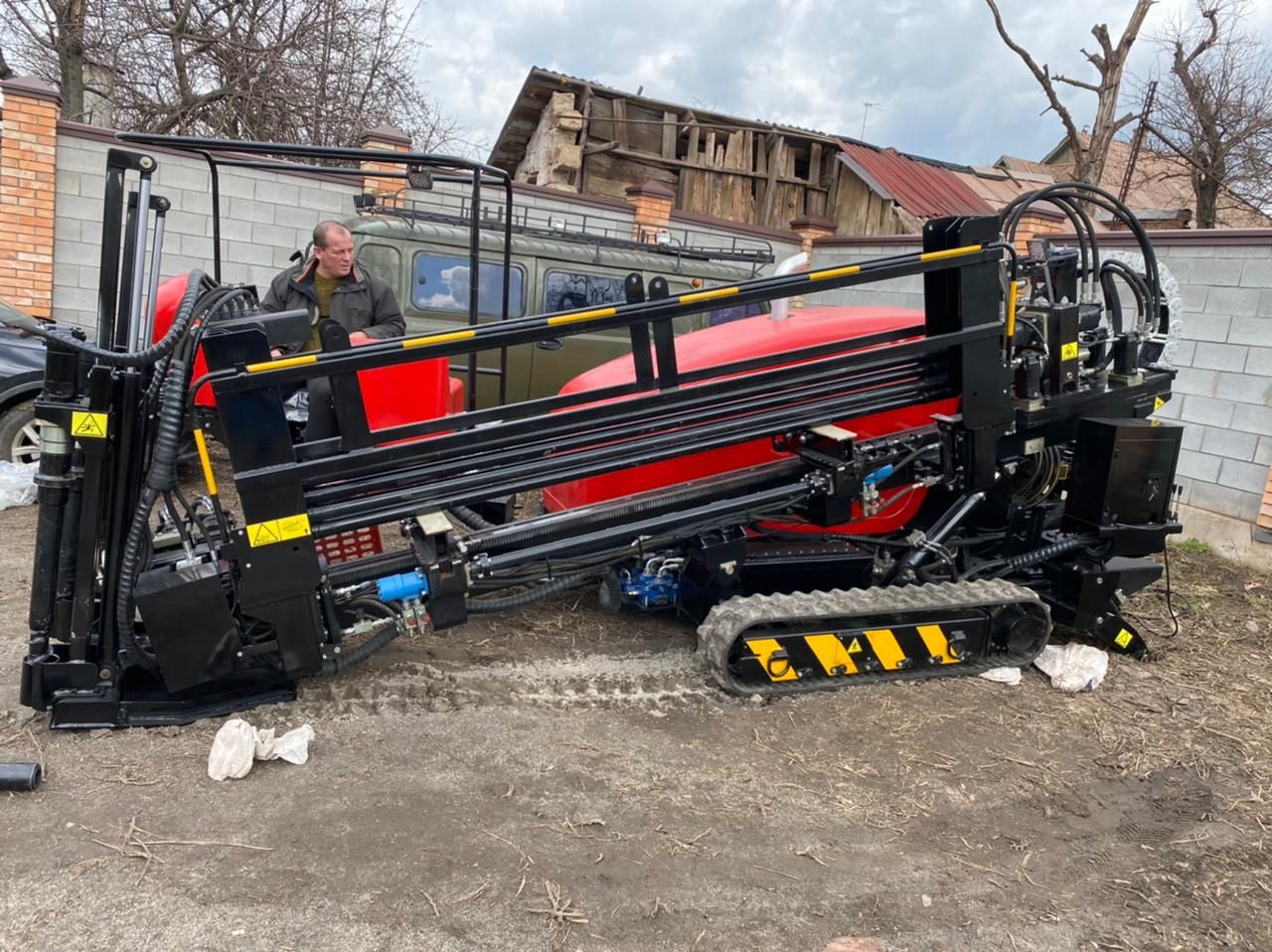

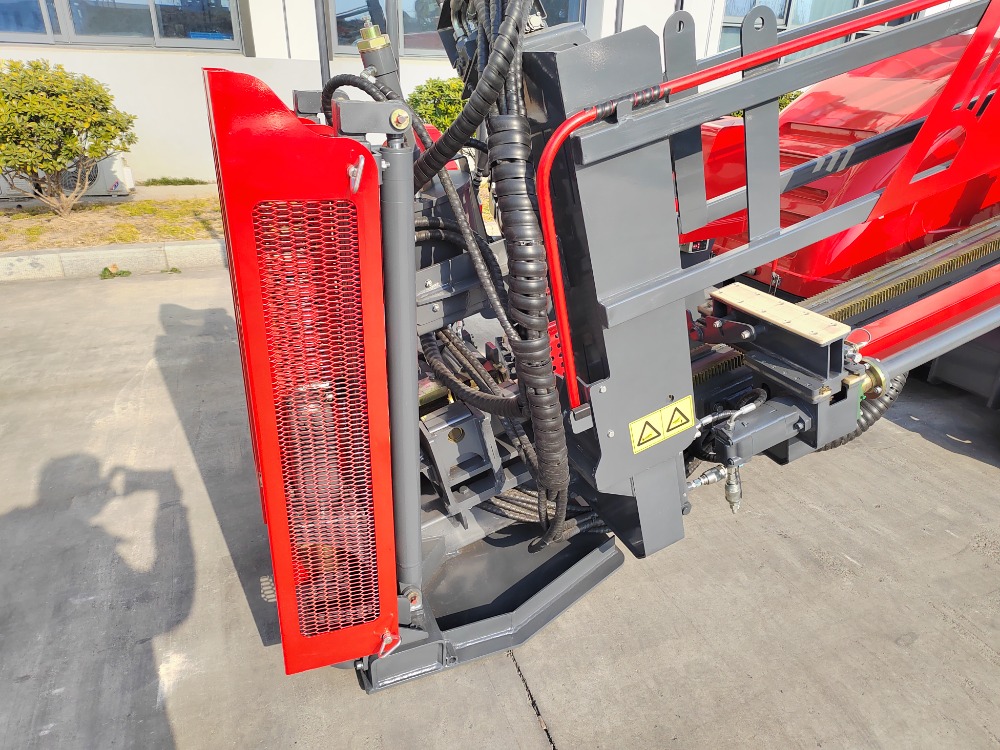

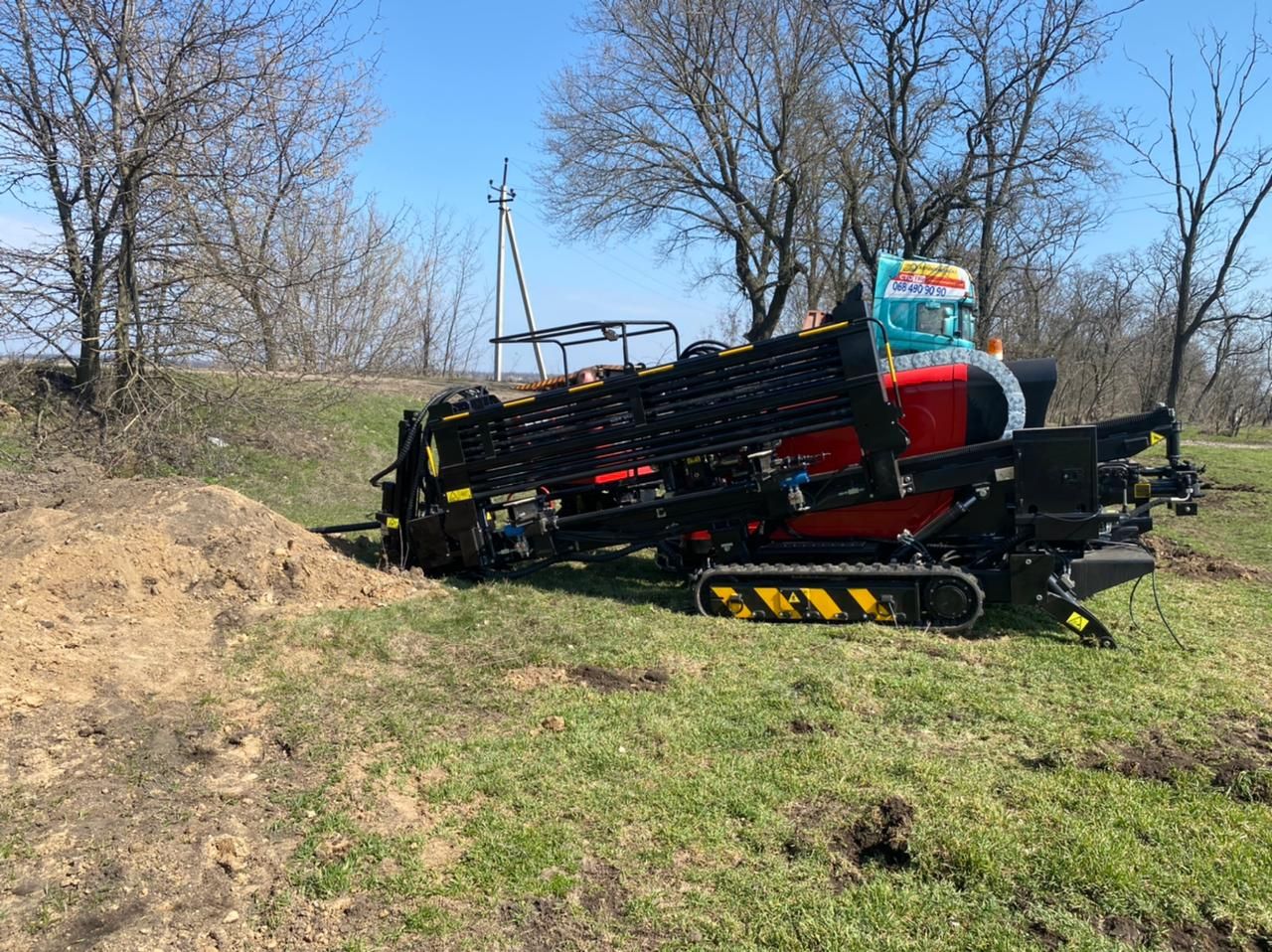

Goodeng(Manufacturer) GS130-LS Cummins Euro 5 Trenchless No-dig HDD Horizontal Directional Equipment Underground Under Road Pipeline Utility Cable Fiber Optic

1. Cummins Euro 5 engine with CE certificate, used for high emission standard countries (Europe,Turkey,etc..)

2. Walking System: Rubber crawler, wire-controlled walking, 2 speed adjustable.

3. Mud System: Built-in mud pump and jet nozzle

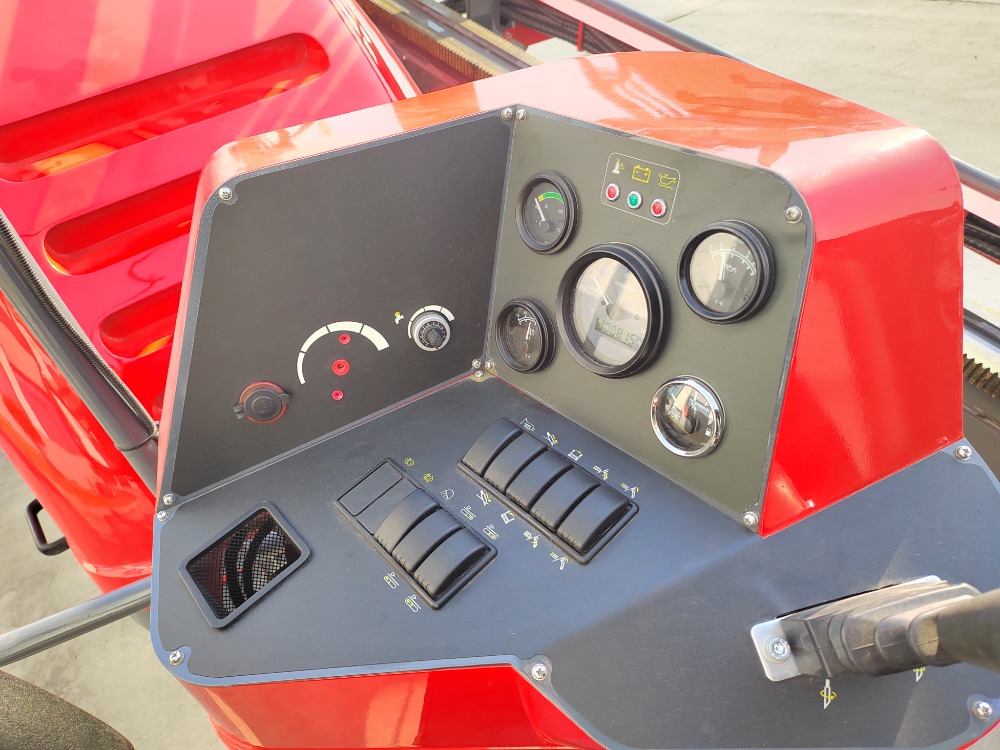

4. Operating System: Rotating driving cabin with A/C

5. Optional automatic grease injector

6. Optional automatic rod-loading box

	Metric Unit	Imperial Unit
Weight	/	/
Dimension (LxWxH)	5470×1670×2040 mm	215×66×80 in
Max.Thrust&Pullback Force	135 KN	30367 lbf
Max.Thrust&Pullback Speed	36 m/min	118 ft/min
Max.Torque	4500 N·m	3320 ft·lb
Max.Rotation Speed	193 r/min	193 rpm
Engine Power	93 kW	125 hp
Max.Flow of Mud Pump	200 L/min	53 gal/min
Walking Speed	2.5-4.5 km/h	1.6-2.8mph
Max.Mud Pump Pressure	8 MPa	1160 psi
Entry Angle	12°-22°	12°-22°
Working height（altitude）	0-3000 m	0-9843 ft
Suggest Reaming Diameter	≤700 mm	≤ 27.6 in
Suggest Crossing Length	≤200 m	≤ 656 ft
Drill Rod Size	φ50/φ60×3000 mm	φ1.97/φ2.36×118 in
Drill Pipe Box Capacity	48 pcs(4*12)	48 pcs(4*12)
Allowable working ambient temperature	﹣30℃-50℃	﹣22℉~~122℉
Allowable working environment humidity	＞90	＞90

The machine is equipped with Cummins engine, with high efficiency, large power, low fuel consumption, low noise, and strong ability in construction.

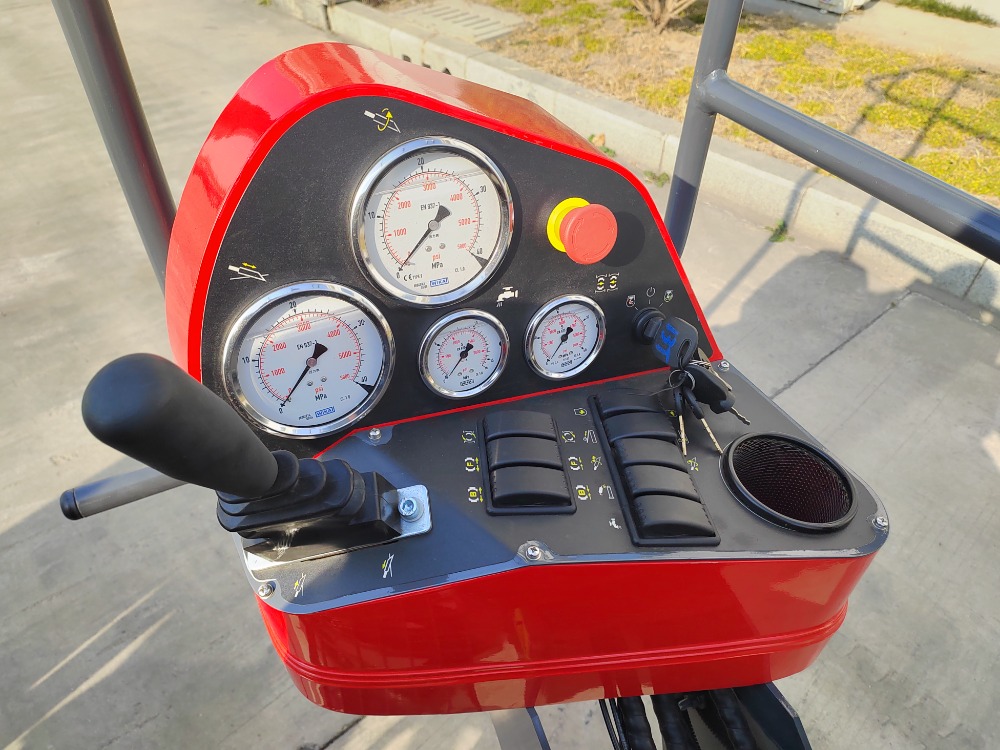

Thrust&pullback and rotation adopt manual handle, which makes control simple and quick.
Humanized-design worktable can rotate within 60°, with a wider view range, and high-quality seat that can be moved forward /backward is comfortable for operator.
Europe-American style surface, streamline shape, and elegant appearance, it can be opened overall for flexible operation and daily maintenance.
Small size and lightness is better for construction in downtown, transferring and working in different kinds of jobsite.

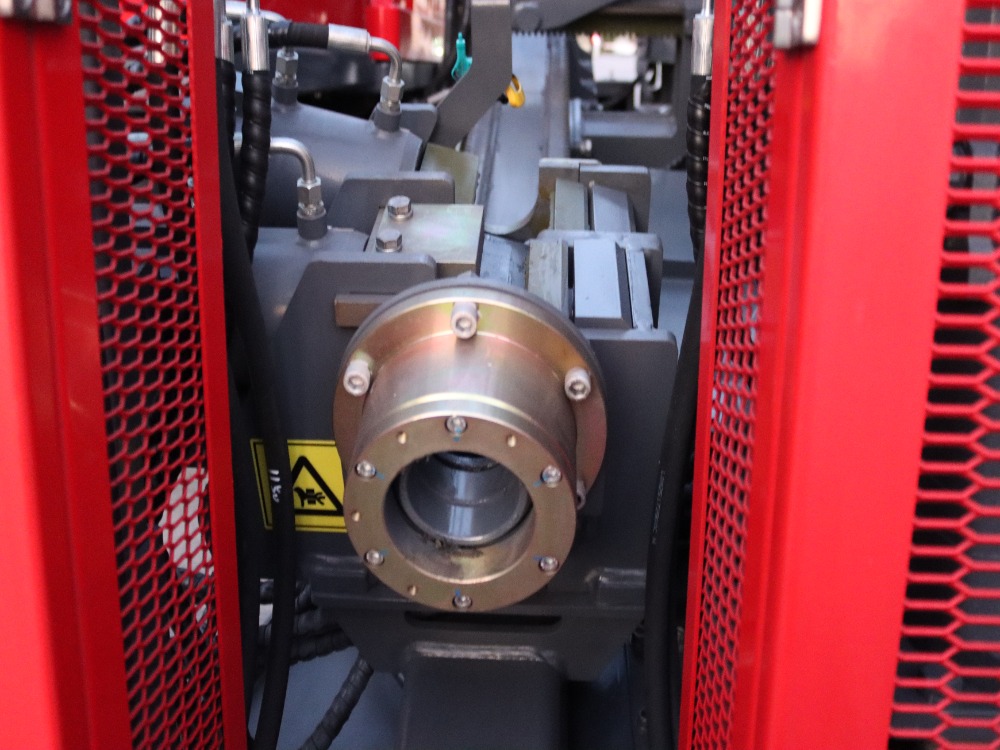

It is equipped with Vermeer type drill rod (Φ50 or Φ60×3000), with high quality, high reliability and superior performance.
Main assembly parts are from international first-class hydraulic components manufacturer, which can greatly improve the performance of products reliability.

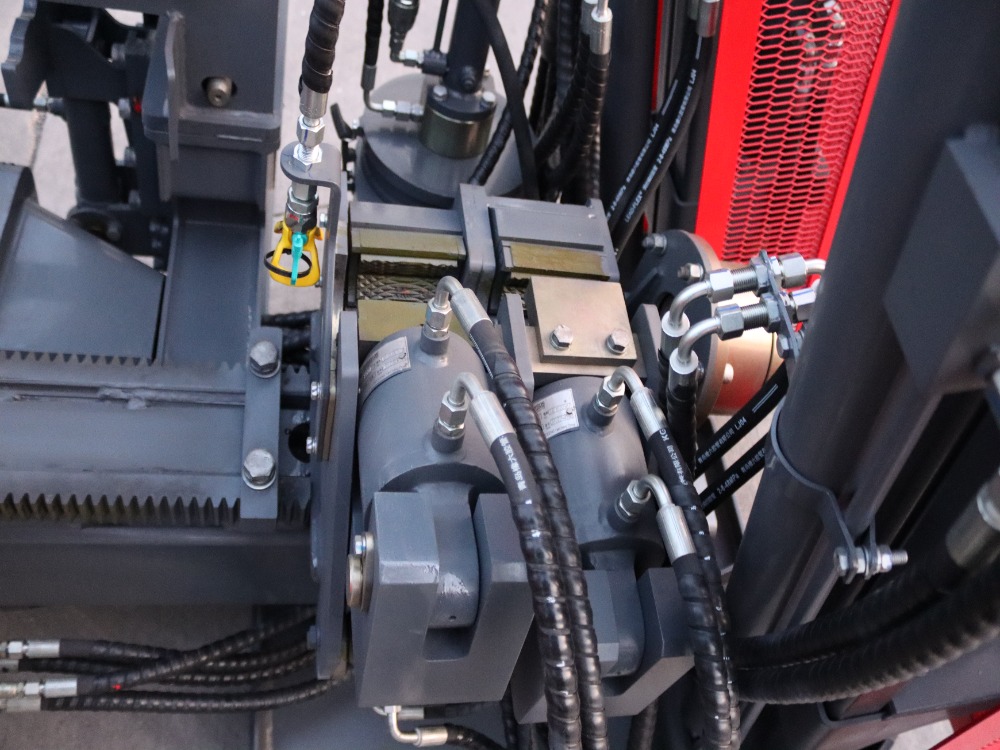

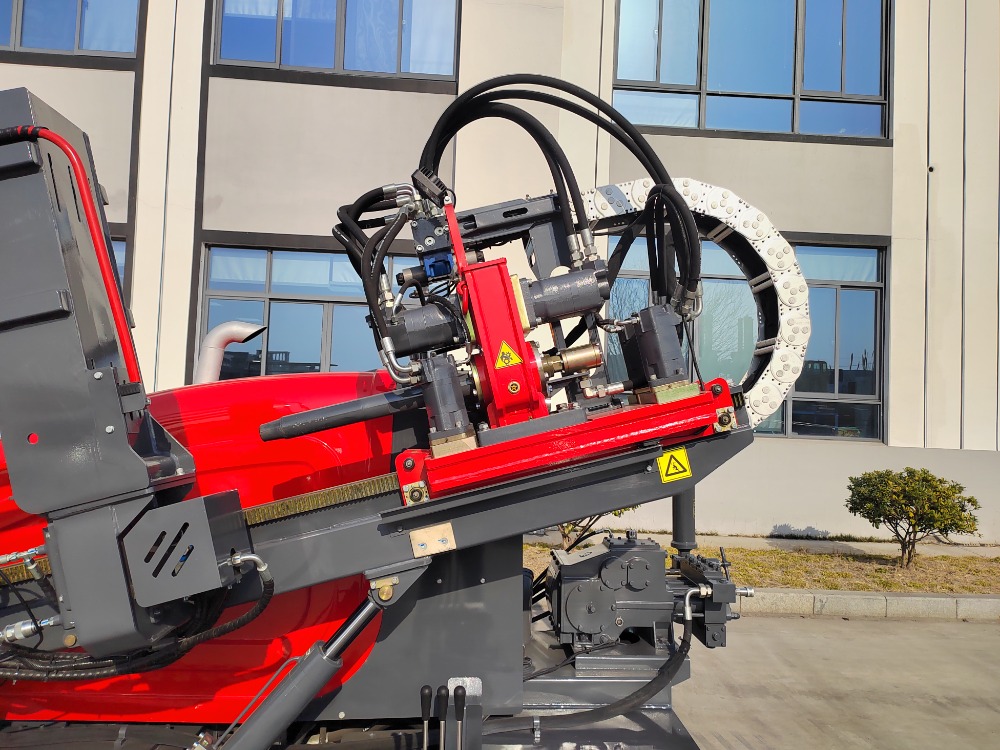

The rack and pinion thrust&pullback system is adopted for the rig, so our machine is with high efficiency, low failure and stable working condition.
Optional automatic rod-loading box, automatic anchor, automatic grease injector etc., which can greatly improve working efficiency and reduce working intensity.
