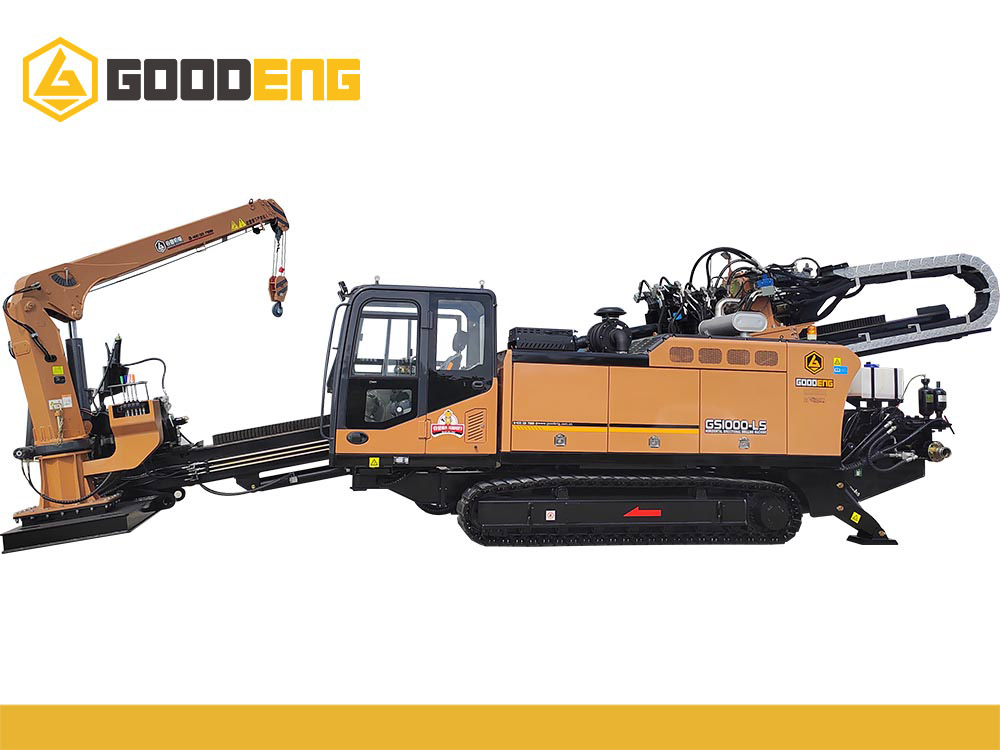

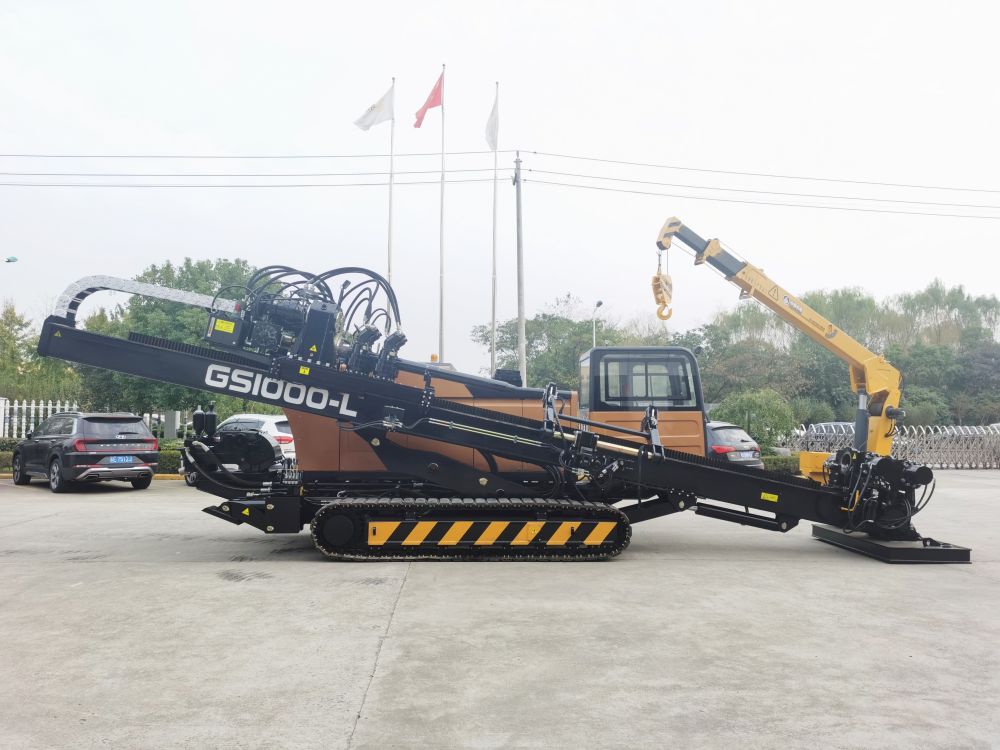

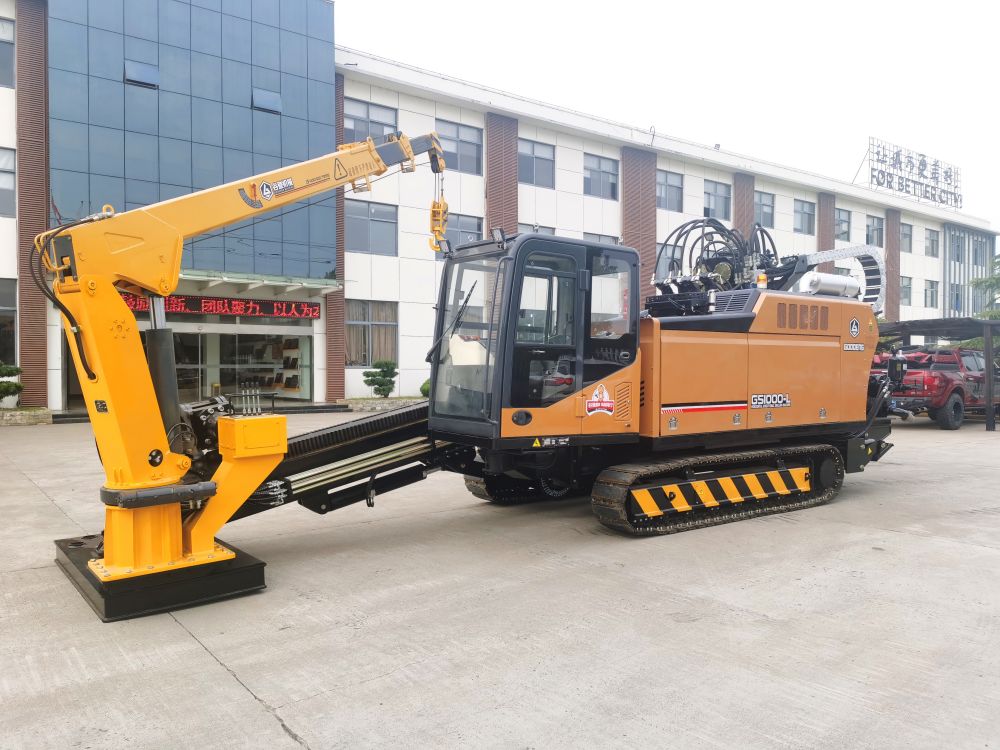

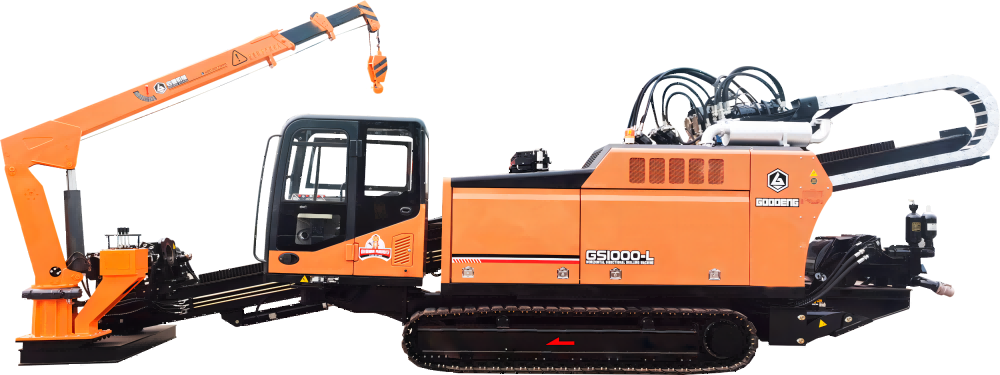

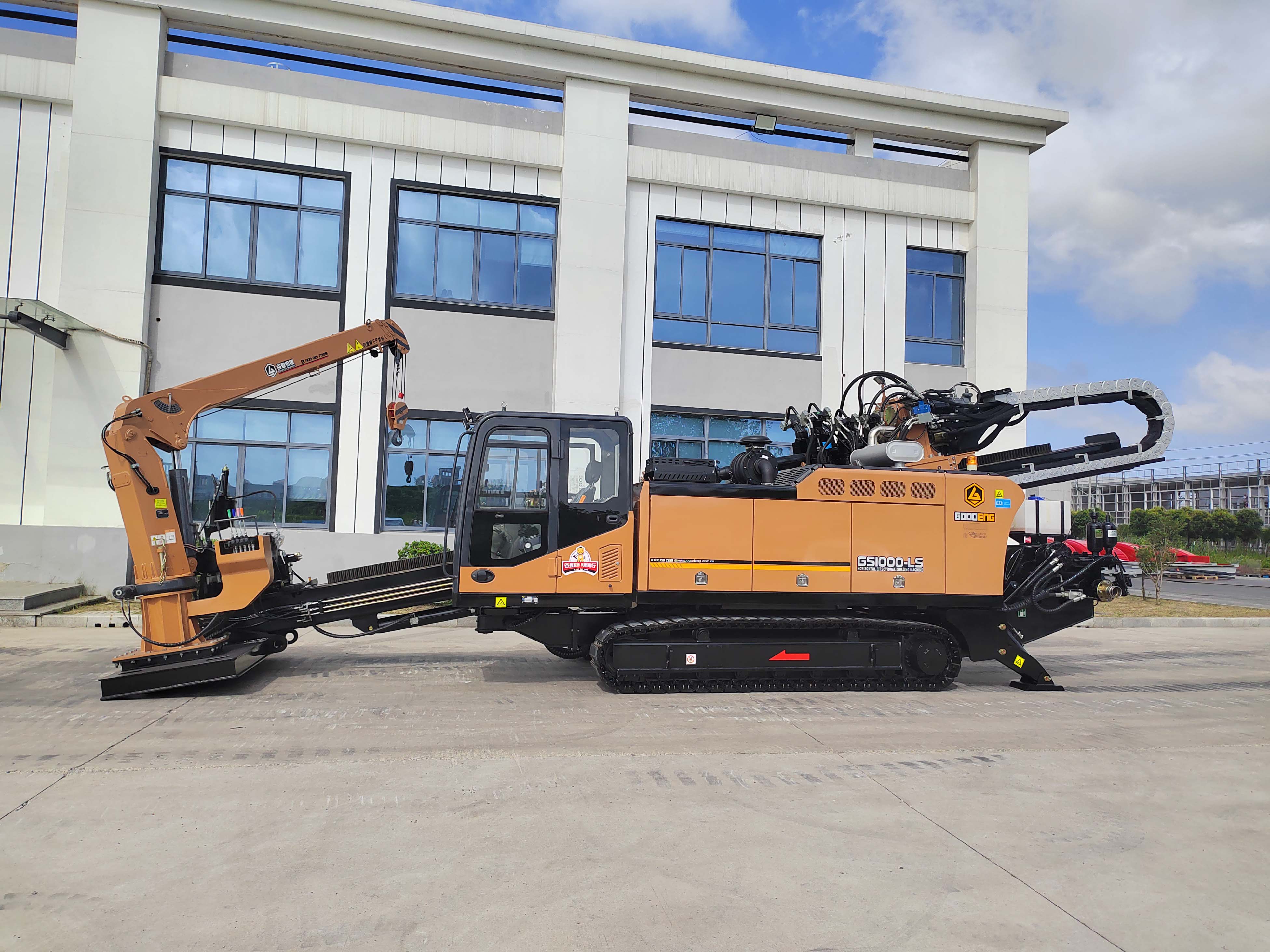

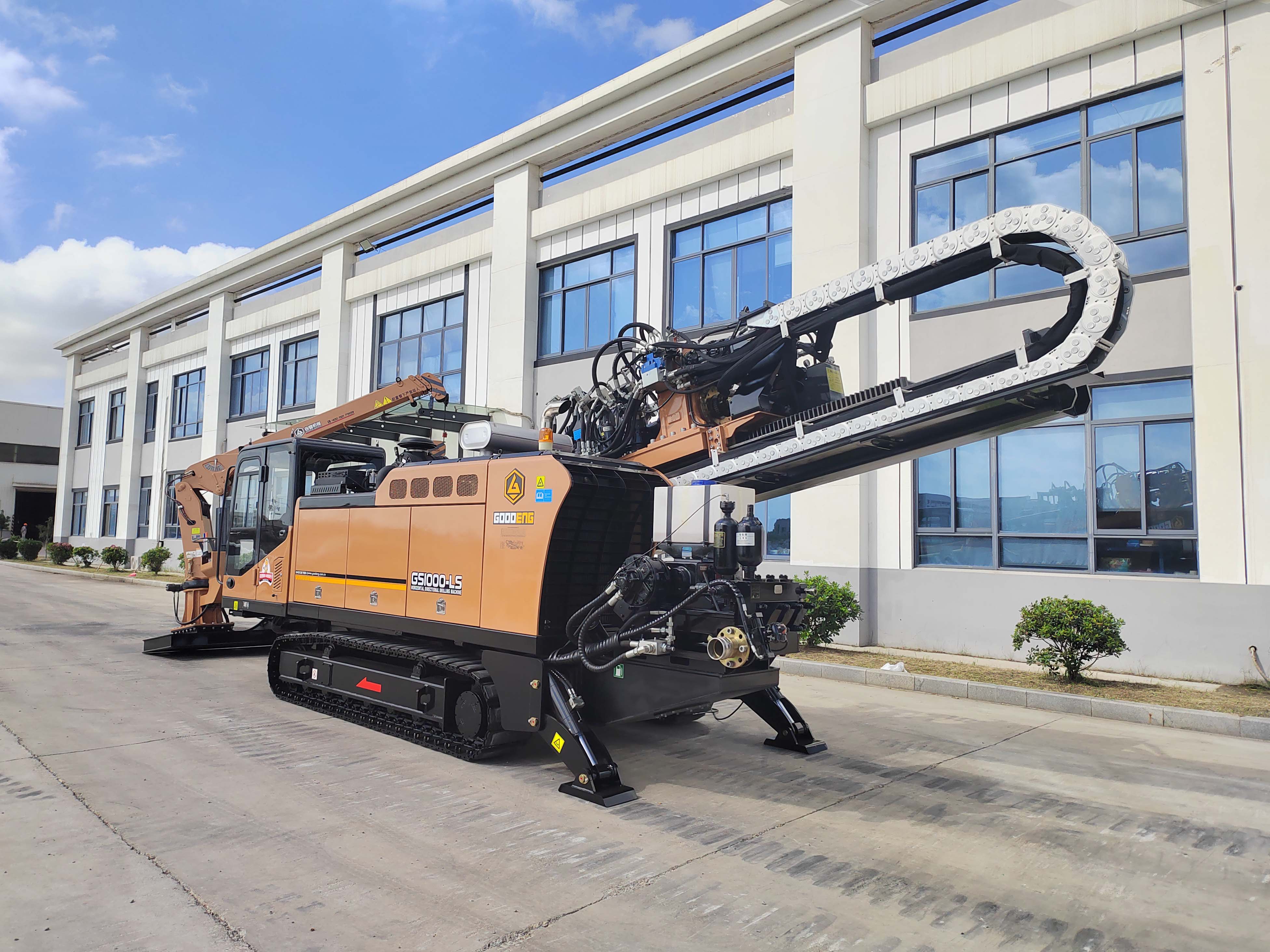

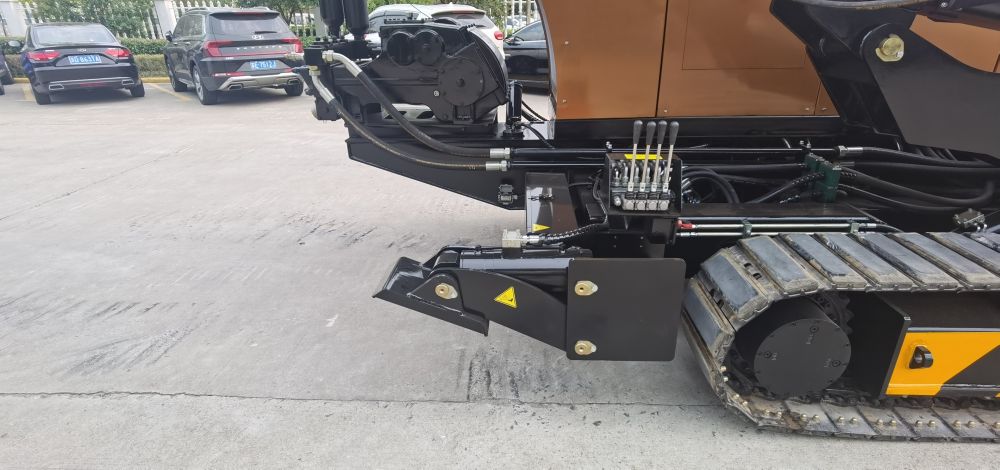

Goodeng Machine GS1000-LS Trenchless HDD Horizontal Directional Drill
Technical Parameter
| Metric Unit | Imperial Unit | |
| Weight | 20000 kg | 44092 lbs |
| Dimension (LxWxH) | 10900×2550×3250 mm | 429×100×108 in |
| Max.Thrust&Pullback Force | 1070 KN | 240603 lbf |
| Max.Thrust&Pullback Speed | 55 m/min | 180.4 ft/min |
| Max.Torque | 45000 N·m | 33190 ft·lb |
| Max.Rotation Speed | 110 r/min | 110 rpm |
| Engine Power | 264 kW | 354 hp |
| Max.Flow of Mud Pump | 800 L/min | 211.3 gpm |
| Walking Speed | 3–5 km/h | 1.86–3.11 mph |
| Max.Mud Pump Pressure | 10 MPa | 1450 psi |
| Entry Angle | 10°–19° | 10°–19° |
| Max.Climbing Gradient | 17° | 17° |
| Drill Rod Size | Φ114/Φ127×6000 mm | Φ4.49/Φ5.0×236.22 in |
| Crane Capacity | 3t | 3.31 Short Tons |
| Suggest Reaming Diameter | ≤ Φ1400 mm | ≤ Φ55.12 in |
| Suggest Crossing Length | ≤1000 m | ≤ 3280.84 ft |

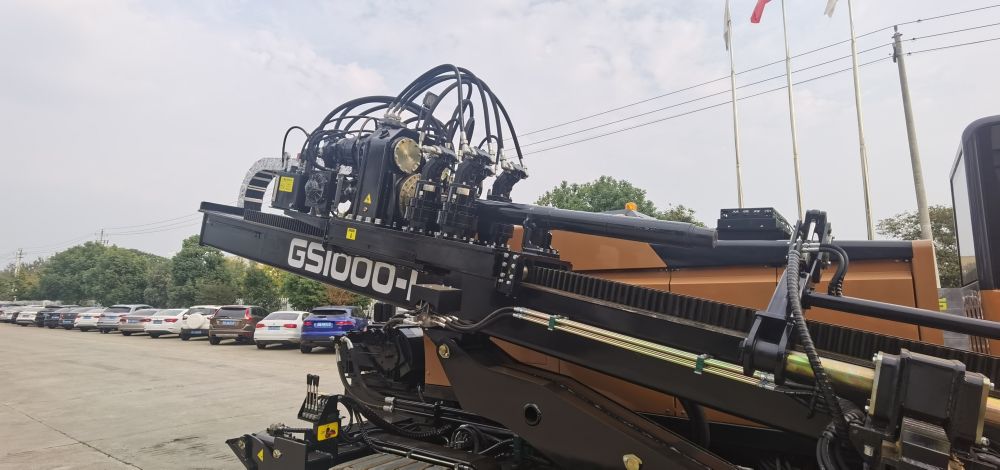

- Thrust & pullback is equipped with German Rexroth /Sunny motor with simple transmission structure, reliable performance. Rotation adopts Rexroth motor. Thrust & pullback has multi-stage variable speed and the thrust & pullback force can be raised up to 1500 KN, The working efficiency and speed is leading in industry;
- Equipped with international well-known motor which can realize the rotation multistage variable speed and greatly enhances the work efficiency.
- Adopts double-speed motor which walks at the speed up to 5 km/h. The short-distance jobsite transfer doesn’t need to be loaded on the truck.

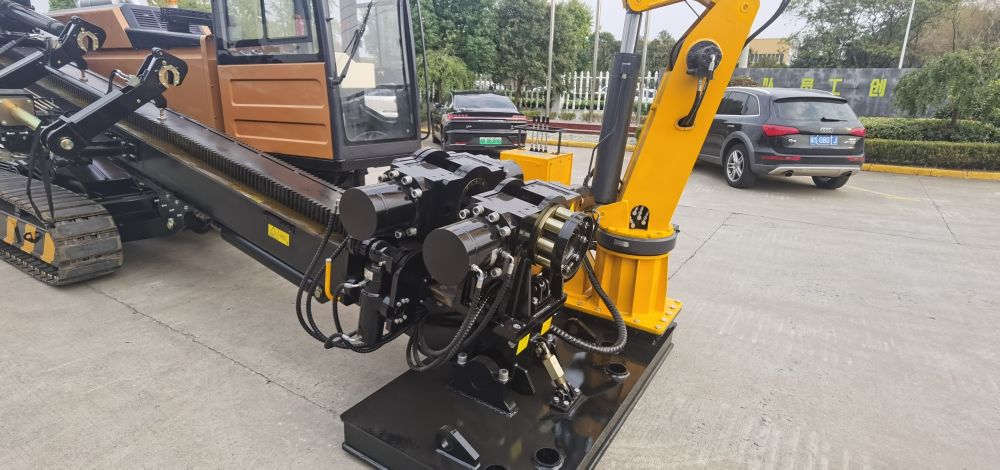

- Low clamping center can protect the drill rod effectively, and takes up small construction space. Front and rear clamp can be separated, the user can change clamp block according to drill rod specification.
- The floating spindle is to protect drill rod’s thread.

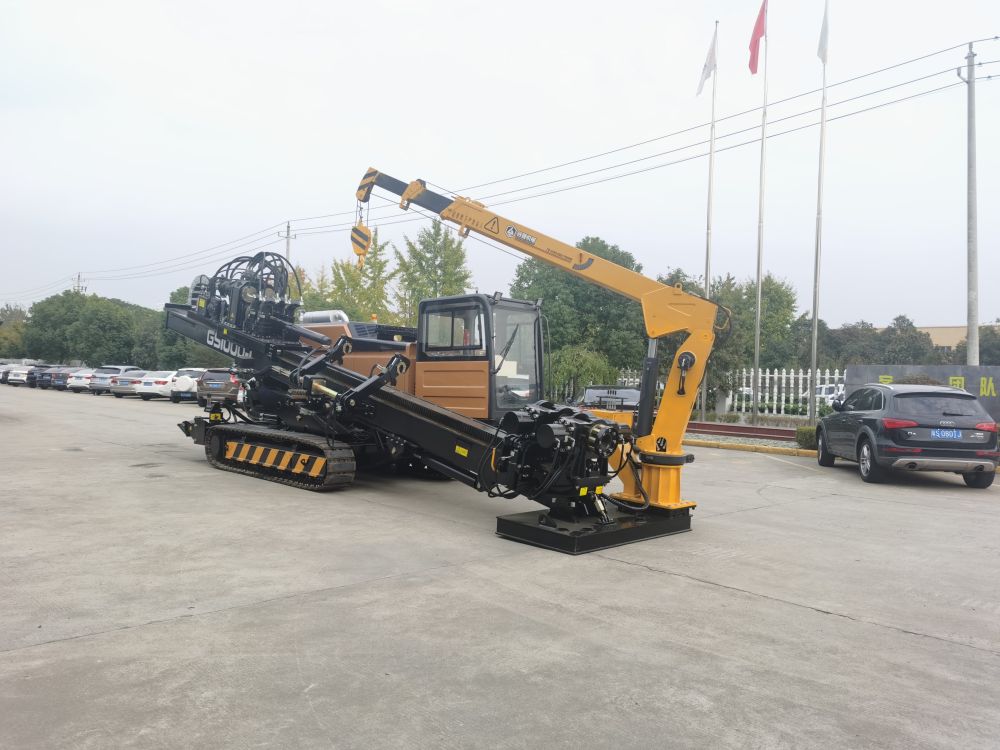

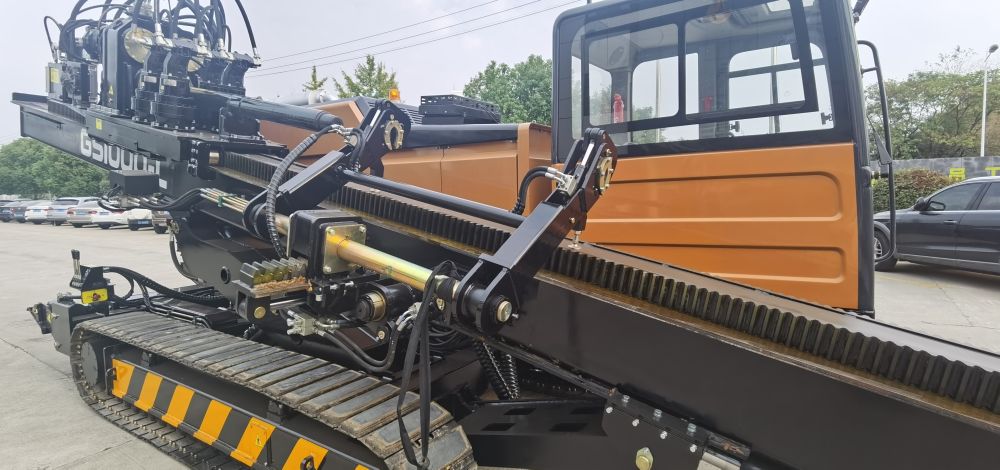

- Four-bar linkage luffing structure is adopted for the machine and the angle range is large that from 10° to 19°.
- Proportional line control walking system that ensures the safety of rig and personnel in process of walking, loading and uploading.
- Rotary Manipulator is Goodeng's patent. The drill rods slip automatically, so there is no need to unload drill road with people which can save labor charge.
- The cab has large space and can be rotated, and it is also equipped with warm and cold A/C.
- LCD man-machine interactive system can monitor and adjust the state of the equipment in real time. The operation is simpler and more comfortable.
