Goodeng GSE2000-LS HDD Machine/Rig for Tunnelling

The Goodeng GSE2000-LS (200-ton) electric-driven horizontal directional drill rig is a highly representative mid-sized electric-driven machine. Its advantages over traditional diesel-driven drill rigs are particularly pronounced, primarily embodying environmentally friendly, economical, precise, and user-friendly design concepts.

The Goodeng GSE2000-LS represents the trenchless industry's transition toward green and intelligent development. If you work within restricted conditions and prioritize long-term economic benefits and environmental protection, it is a superior choice over traditional diesel-driven drill rigs.

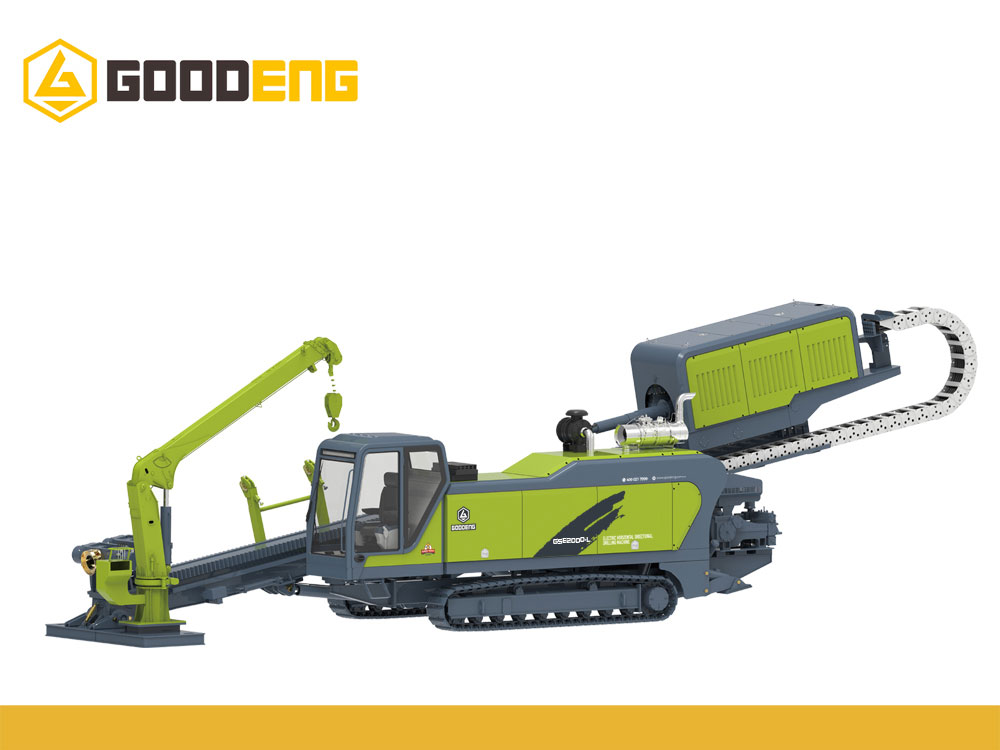

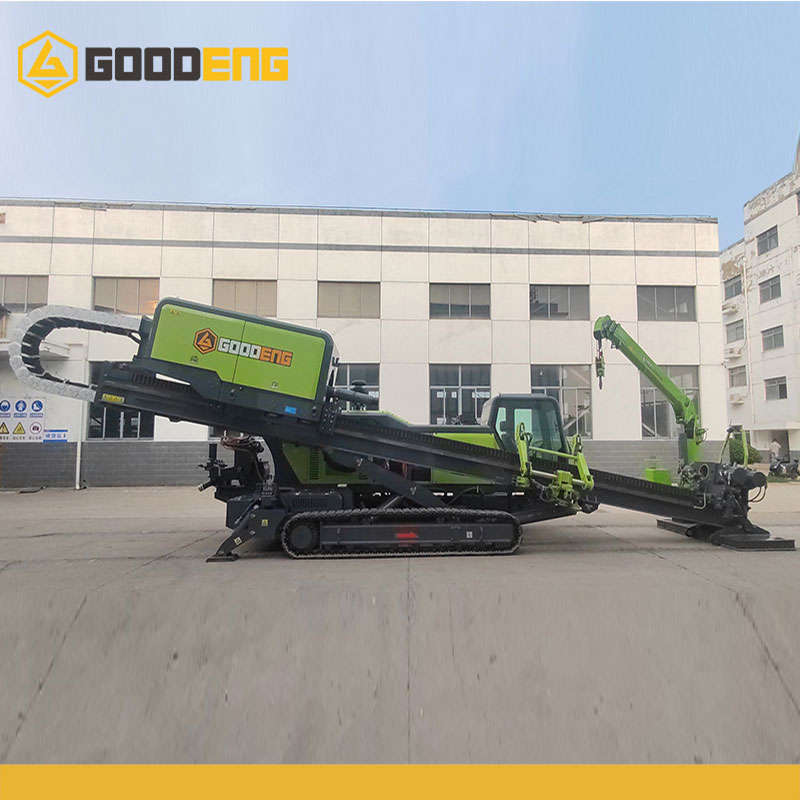

GOODENG GSE2000-LS Horizontal direcitonal drilling rig123.jpg

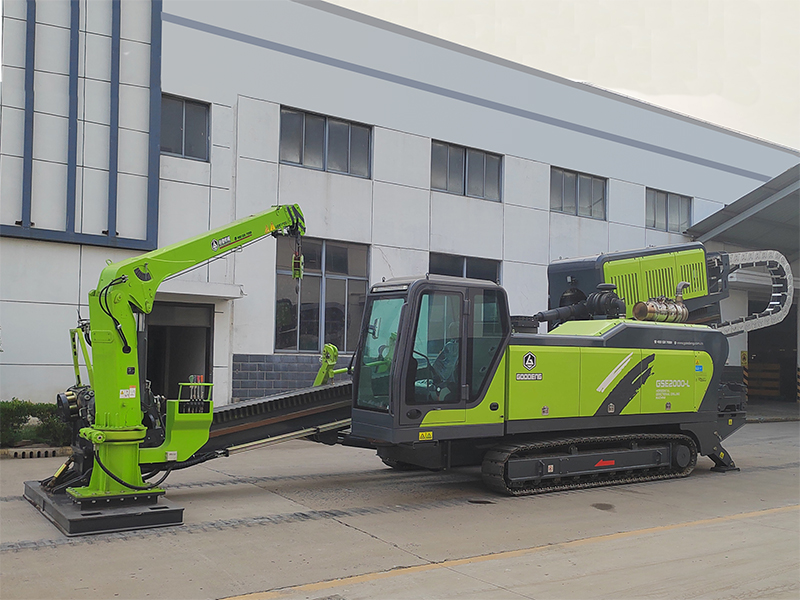

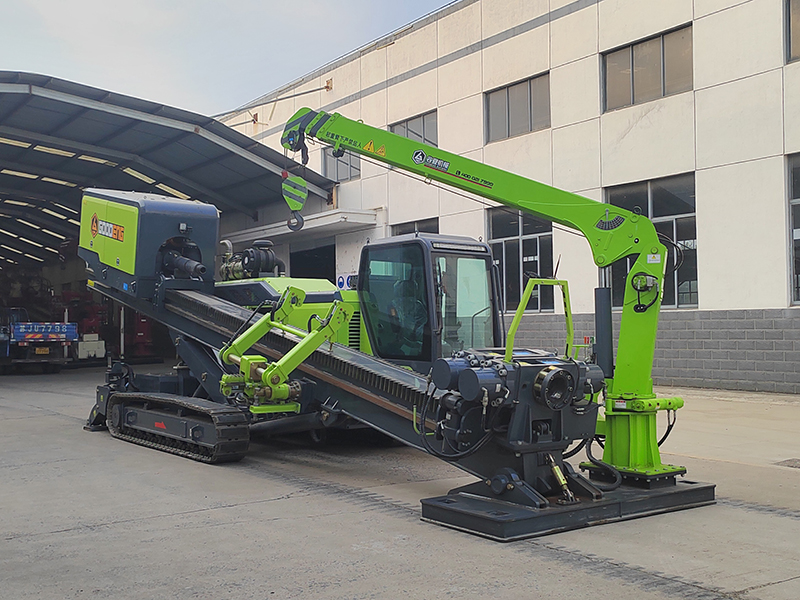

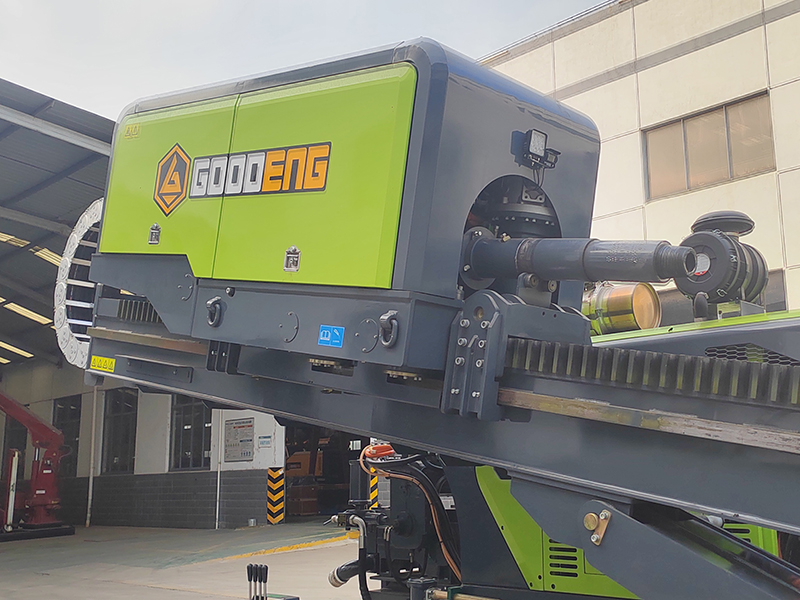

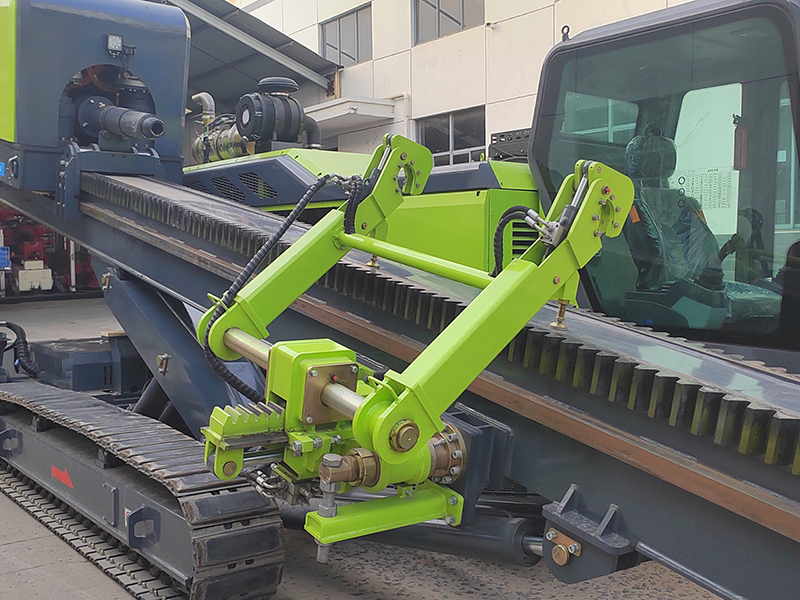

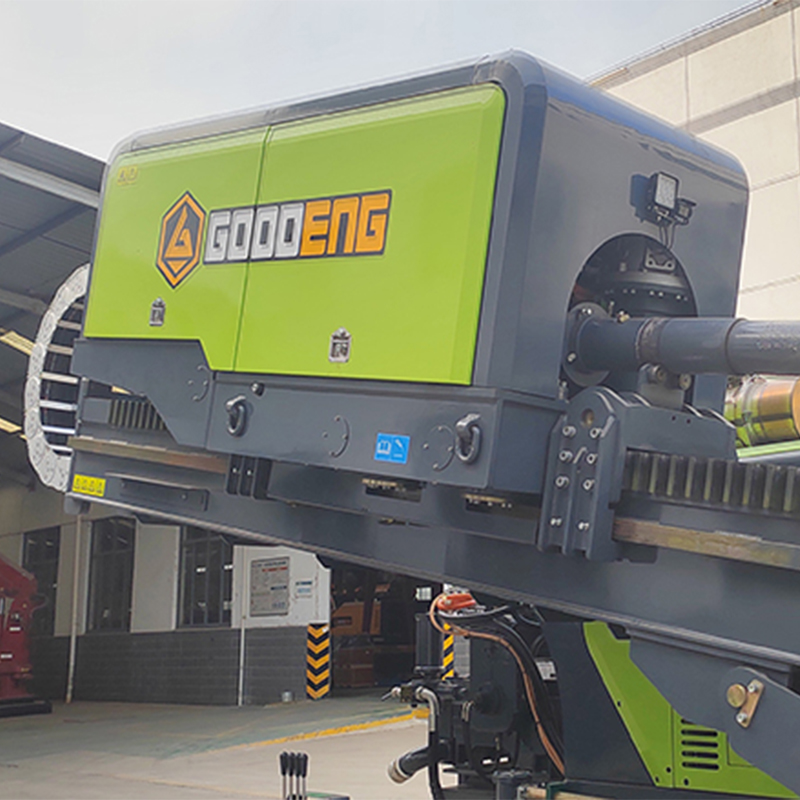

Goodeng GSE2000-LS electrical drilling machine detailed picture (1).jpg

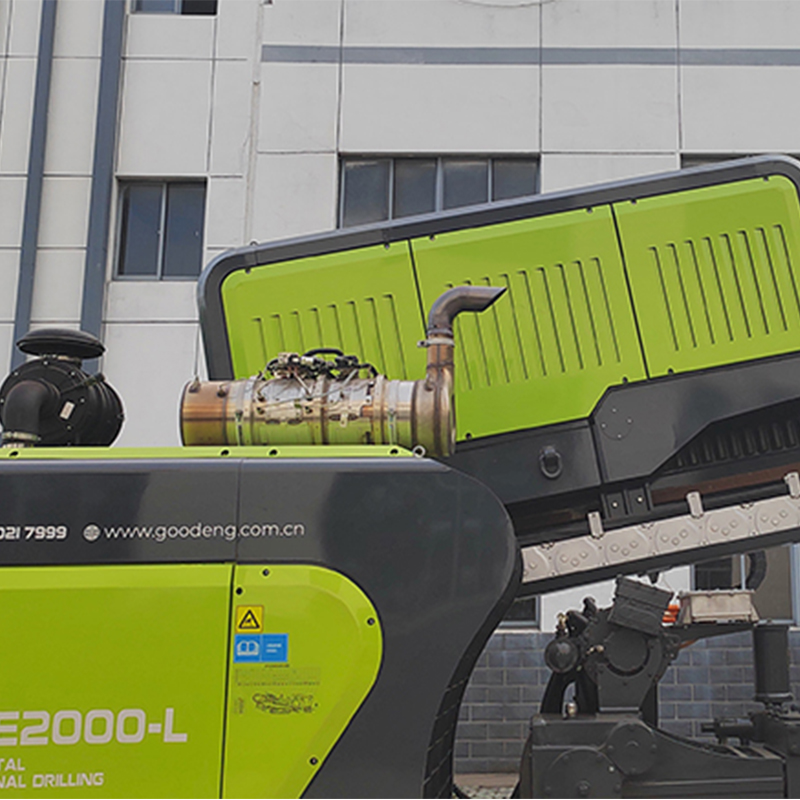

Goodeng GSE2000-LS electrical drilling machine detailed picture (2).jpg

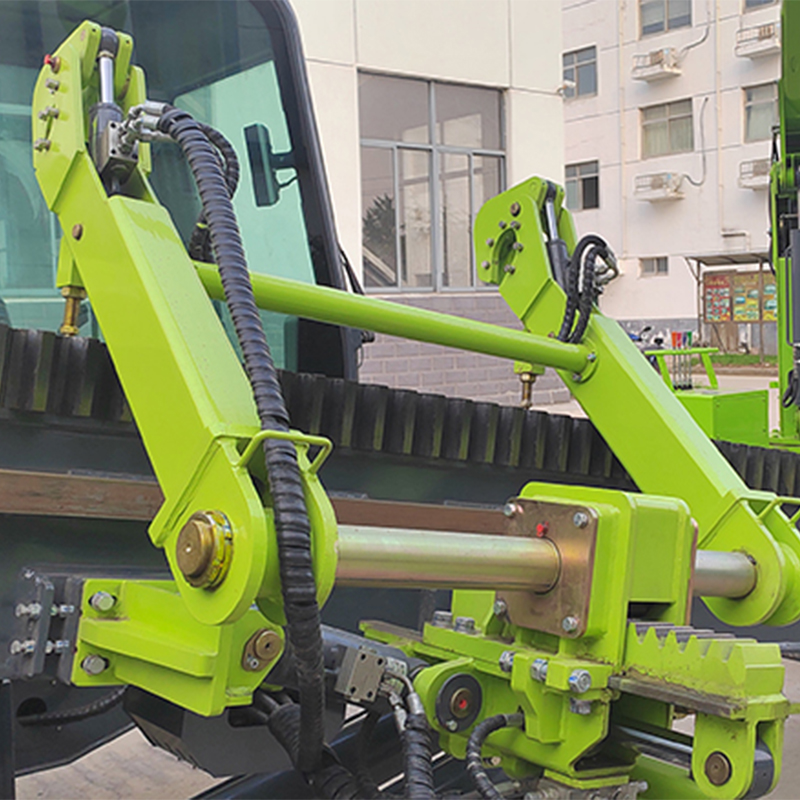

Goodeng GSE2000-LS electrical drilling machine detailed picture (3).jpg

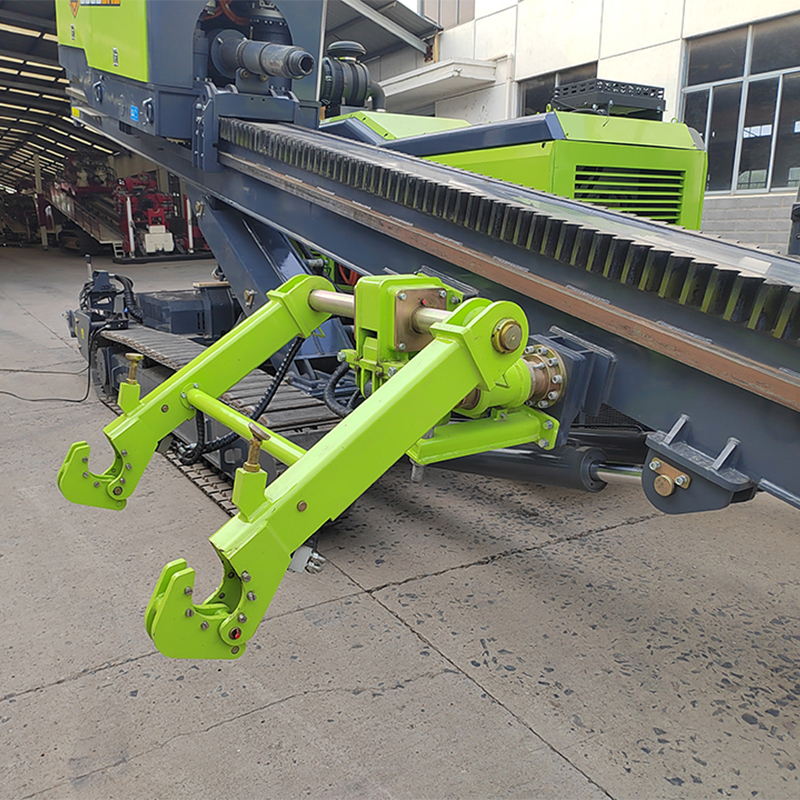

Goodeng GSE2000-LS electrical drilling machine detailed picture (4).jpg

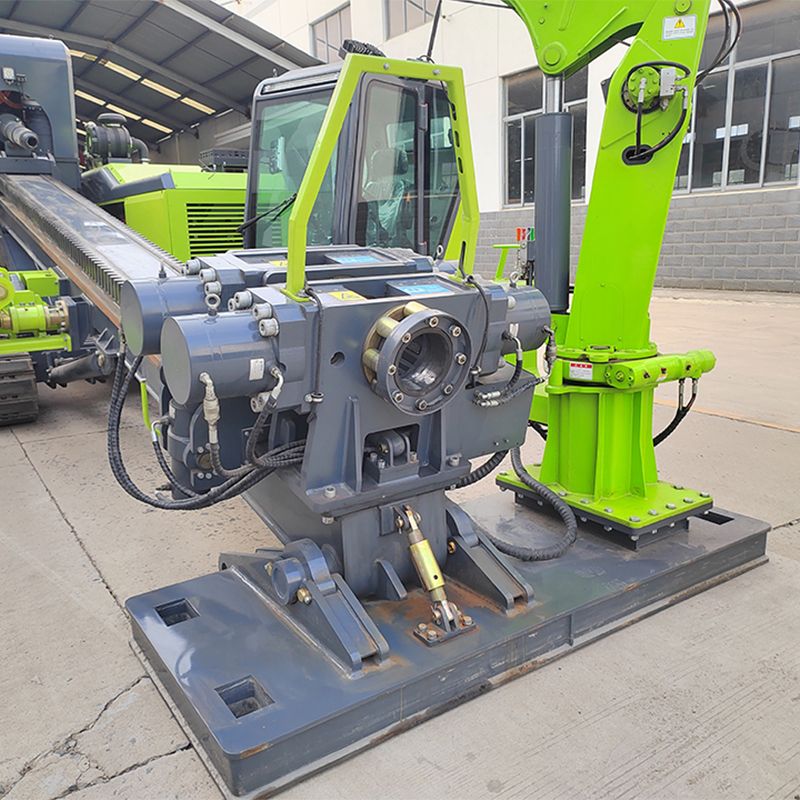

Goodeng GSE2000-LS electrical drilling machine detailed picture (5).jpg

Technical Parameter

	Metric Unit	Imperial Unit
Rig Weight	30000 kg	66139lbs
Dimension (LxWxH)	14500×2800×2700 mm	571×110×106 in
Max.Thrust&Pullback Force	2100 KN	472049 lbf
Max.Thrust&Pullback Speed	38 m/min	124.67 ft/min
Rated Torque	80000 N·m	59050 lbf·ft
Max.Rotation Speed	110 r/min	110 rpm
Rated Power	320 kW	429 hp
Walking Speed	3–5 km/h	1.86–3.11 mph
Max. Entry Angle	20°	20°
Max.Climbing Gradient	18°	18°
Drill Rod Size	Φ127-Φ140×6000 mm	Φ5/Φ5.5×236.22 in
Crane Capacity	3 Metric Tons	3.31 Short Tons
Recommended Reaming Diameter	≤ Φ1500 mm	≤ Φ59.06 in
Suggest Crossing Length	≤ 1200m	≤ 3937ft
