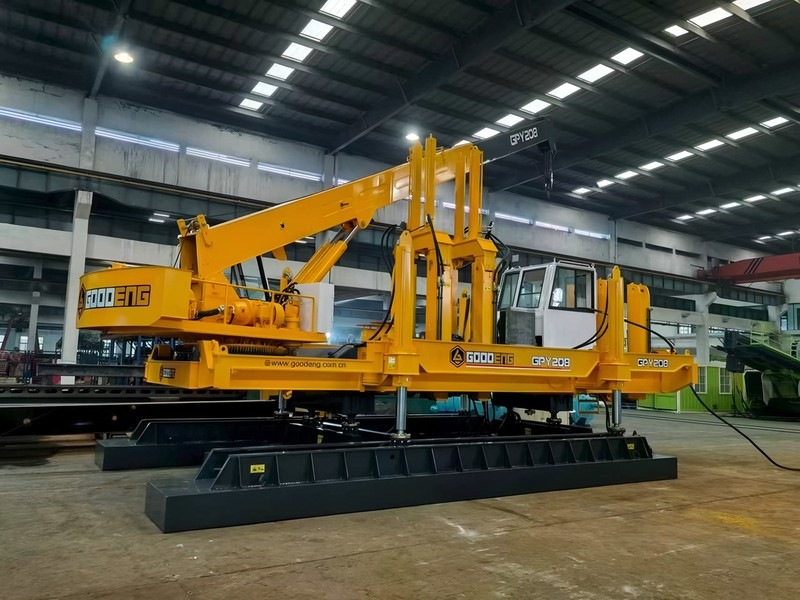

    Goodeng Machine Hydraulic Static Pile Driver/GPY208/ hydraulic static pile driver
    Hydraulic Static Pile Driver

    Goodeng Machine Hydraulic Static Pile Driver/GPY208/ hydraulic static pile driver

    1) High-efficiency and energy-saving constant power hydraulic system.

    2) The pile cylinder and motor pump unit are accurately matched and combined.

    3) The pile cylinder returns quickly, reducing the time for lifting the pile clamping box, making the construction faster and improving the efficiency of pile pressing.

    4) Scientific hydraulic pipeline layout can greatly reduce pipeline losses, hydraulic system losses, and save energy.

    5) A static pile driver can be used directly to conduct static load tests on piles.

    6) The whole machine is easy to disassemble and assemble, and its modular design makes it easy to transport.

    7) The hydraulic cylinder walking has automatic reset and rotation compensation functions. The whole machine has a small grounding specific pressure and is suitable for more sites.

    8) Add counterweights (optional) on both sides to lower the center of gravity of the entire machine and make construction safer.

      Contact us

      Technical Parameter

      Weight 9700 kg 21385 lb
      Max. Thrust & Pullback Force 350/700 KN 78683/157366 lb
      Max. Torque 12600 N·m 9293 ft·lb
      Engine power 153 kW 205 hp
      Walking speed 3.5-6 km/h 2.2-3.7 mph
      Entry Angle 12°-22° 12°-22°
      Drill Rod Size Φ73x3000 mm Φ2.8×118 in
      Suggest Reaming Dia. ≤900 mm ≤35.4 in
      Dimension (LxWxH) 7300x2150x2250mm 287×85×89 in
      Max.Thrust & Pullback speed 40 m/min 131 fpm
      Max. Rotation Speed 140 r/min 140 rpm
      Max. Mud flow 320 L/min 70gpm
      Max. Mud Pump Pressure 8 MPa 8 MPa
      Max. Climb Gradient 18° 18°
      Drill Rod Box Capacity 36pcs(4x9) 36pcs(4x9)
      Suggest Crossing Length ≤400m ≤15748 in

      Product Introduction

      The Gooden GS320-LS horizontal directional drill is a robust and efficient solution catering to all your drilling requirements. This top-selling 32-ton machine is engineered to offer outstanding performance and dependability, thereby making it an ideal selection for diverse drilling applications.

      • The GS320-LS is equipped with cutting-edge technology and features that distinguish it from its rivals. With its considerable torque and pullback force, this machine can manage the most arduous drilling tasks effortlessly. Its sturdy construction and durable components guarantee long-term performance, rendering it a valuable investment for any drilling operation.
      • One of the primary highlights of the GS320-LS is its flexibility. Whether you are engaged in pipe installation, utility construction, or any other drilling project, this machine provides consistent and precise outcomes. Its user-friendly interface and intuitive controls render it effortless to operate, enabling you to optimize productivity and efficiency on the job site.
      Goodeng Hot Sale 32 Ton Gs320-Ls Horizontal Directional Drilling Machine(1)758

      solution MAIN DETAILS

      GPY208

      GPY208 (6)

      GPY208 (5)

      GPY208 (4)

      GPY208 (3)

      GPY208 (2)


      Production Process

      1
      BLANKING 1

      BLANKING

      2
      RIVET-WELDING 2

      RIVET-WELDING

      3
      MACHINING 3

      MACHINING

      4
      ASSEMBLING 4

      ASSEMBLING

      5
      DEBUGGING 5

      DEBUGGING

      6
      TESTING 6

      TESTING

      65420be751dad22160
      Jiangsu Goodeng Heavy Machinery
      FAQ (2)

      FAQ

      • 1

        What is the maximum pile pressing force of GPY208? Which markets is it primarily targeting?

        Maximum force: 208 tons. Key model for Southeast Asian & overseas markets, designed for growing regional demand. Used in Malaysia; suitable for row houses and factory infrastructure. Recognized for strong performance and fast piling speed.

      • 2

        What unique energy-saving technologies does GPY208 feature? How is its energy consumption performance?

        Equipped with constant power hydraulic system, full constant power control, large-displacement pumps & high-power motors for fast speed with low energy. Pump-controlled pressure minimizes loss; integrated valve block allows cab adjustments. Scientific pipeline layout reduces losses.

      • 3

        What is the function of GPY208‘s adaptive clamping force technology?

        Patented adaptive technology automatically adjusts clamping force based on conditions, saving energy while ensuring reliable clamping. Unique clamping pressure-keeping system auto-refills oil if cylinder leaks, reducing interruption risk and ensuring pile quality.

      • 4

        What innovative designs does GPY208 have for improving construction efficiency?

        Precise matching of pile cylinder & pump unit for max efficiency. Patented auxiliary pressure lifting follow-up technology shortens auxiliary time. Quick return design reduces clamping box lift time. Hydraulic walking system with auto reset & rotation compensation enables small ground contact pressure, adapting to complex sites.

      • 5

        What user-friendly designs does GPY208 offer in terms of cab and operating environment?

        Standard AC in cab for comfort in hot climates. Integrated pressure valve block allows all adjustments without leaving cab. Enhances experience, reduces weather exposure, improves safety.

      • 6

        What advantages does GPY208 offer in side pile and corner pile construction?

        Side/corner piling force reaches 60‑70% of main force, far outperforming traditional systems. Integrated side pile structure + suspended side pile device mountable in three directions, flexible use with small spaces, effective for dense pile conditions.
