G-Series Horizontal Directional Drills

Goodeng Machine G130 Big Angle Up 45 ° Euro V Engine HDD Drilling Rig for Pipelines Projects

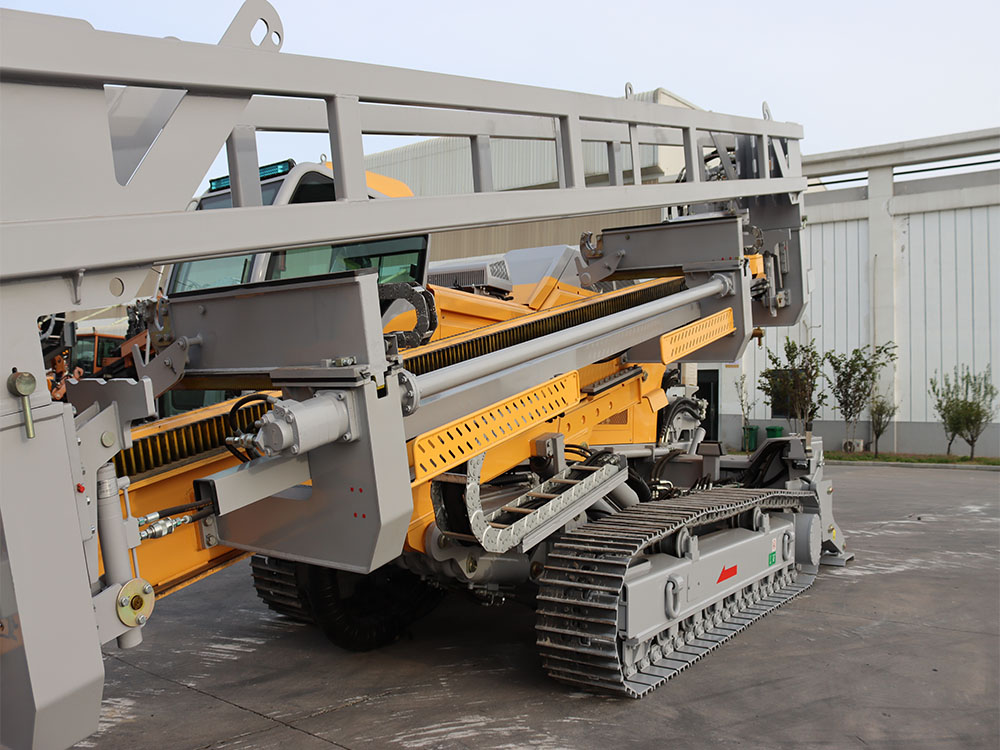

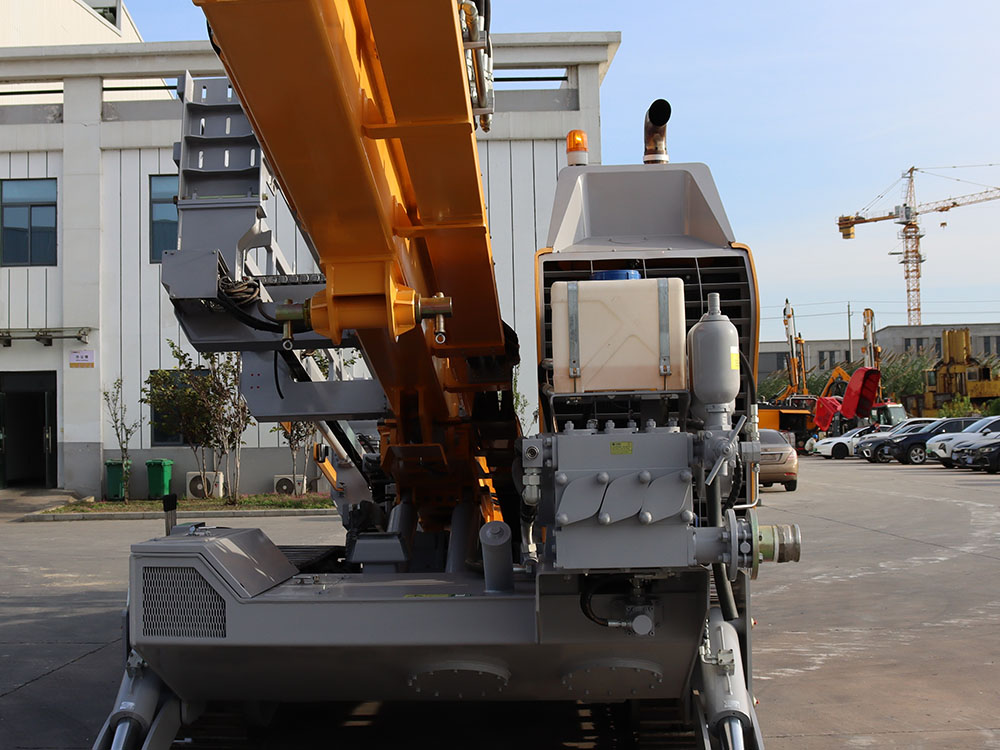

Goodeng Machine Trenchless Hdd Drilling Rig G130 — Big Angle 45 ° Horizontal Directional Drilling Rig engineered for high efficiency and precision in demanding operations. Featuring with crawler walking system and adjustable speed control, it delivers exceptional maneuverability across diverse terrains. The integrated mud pump ensure reliable mud system performance, while the rotating operator seat enhances comfort and convenience.

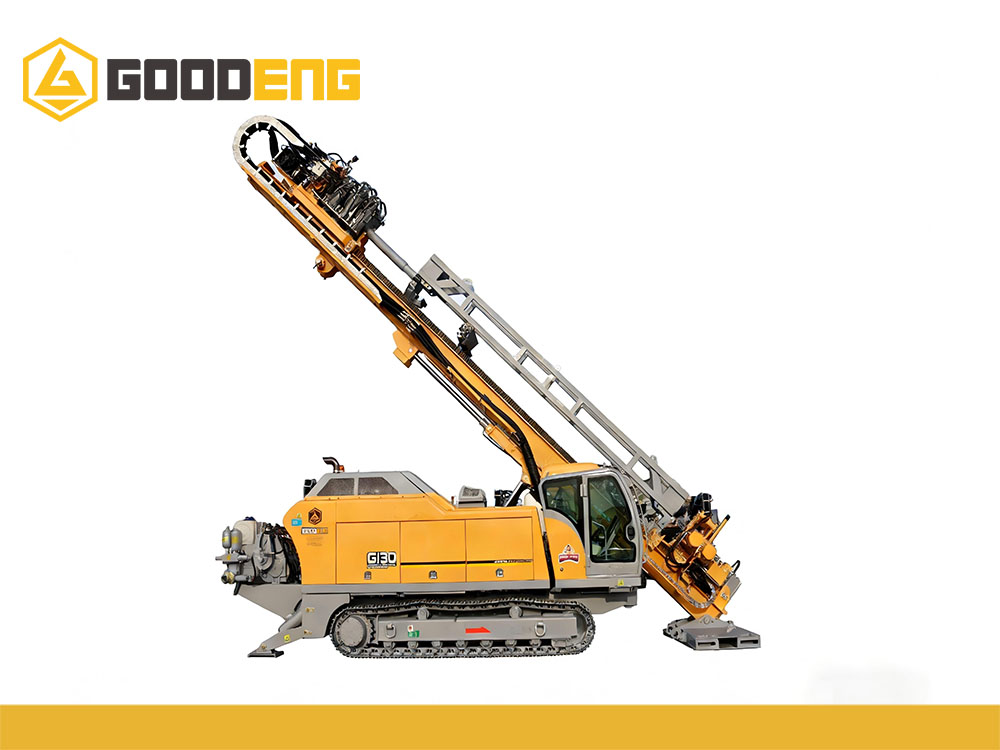

G130 Horizontal Directional Drilling rig-2.jpg

Technical Parameter

	Metric Unit	Imperial Unit
Weight	23000 kg	50700 lbs
Dimension (LxWxH)	12000×3000×2850 mm	472×118×112 in
Max.Thrust&Pullback Force	600/900 KN	13.5/20.2 lbf
Max.Thrust&Pullback Speed	63 m/min	21979 ft/min
Max.Torque	29800 N·m	26035 ft·lb
Max.Rotation Speed	136 r/min	136 rpm
Engine Power	209 kW	280 hp
Max.Flow of Mud Pump	800 L/min	175 gal/min
Walking Speed	3 km/h	1.86 mph
Max.Mud Pump Pressure	8 MPa	1160 psi

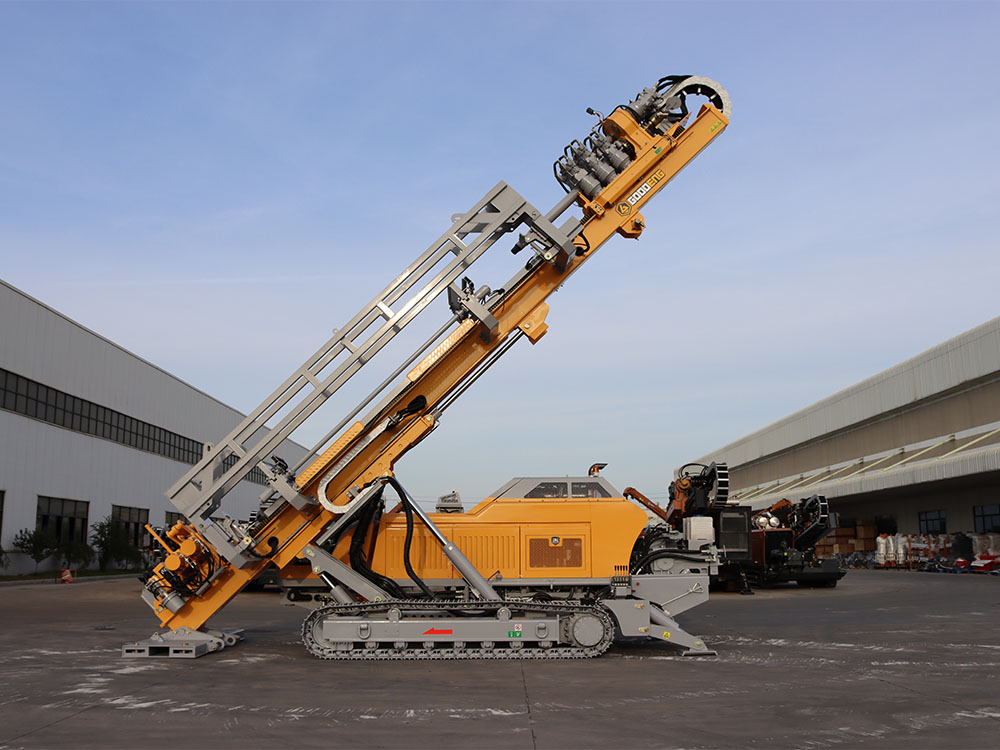

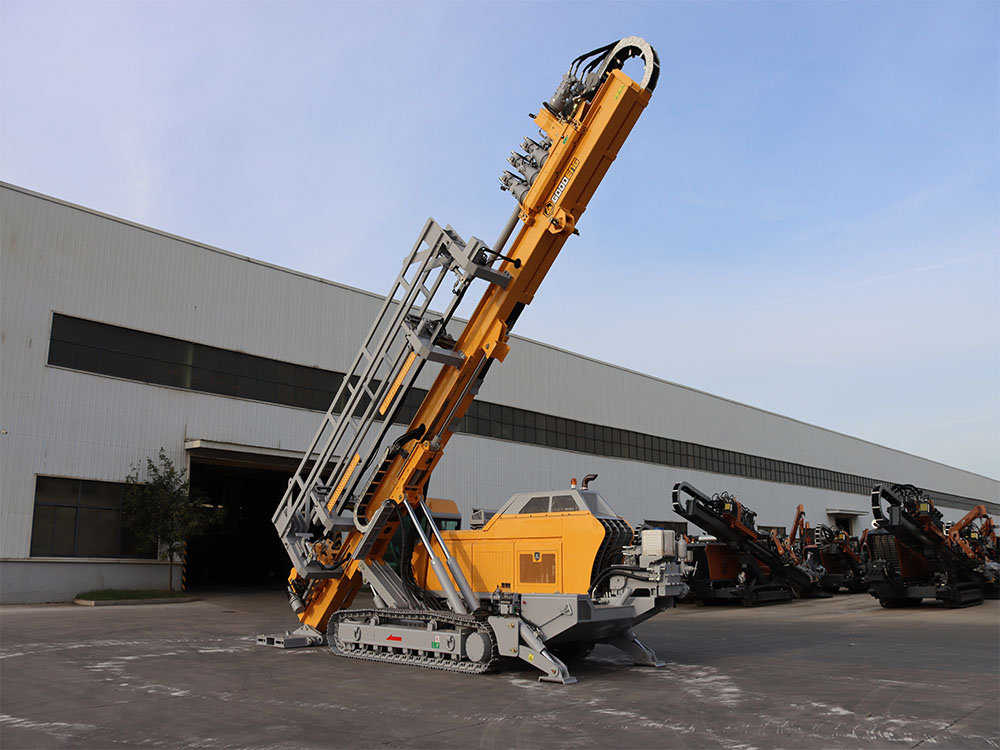

Entry Angle	45°	45°
Max.Climbing Gradient	19°	19°
Drill Rod Size	φ102×6000 mm	φ4×236 in
Crane	Optional	Optional
Suggest Reaming Diameter	≤1400 mm	≤ 55 in
Suggest Crossing Length	≤900 m	≤ 2952 ft

Main Performance Characteristic

The machine is equipped with Cummins engine, with high efficiency, large power, low fuel consumption, low noise, and strong ability in construction.

Thrust&pullback and rotation adopt manual handle, which makes control simple and quick.
Europe-American style surface, streamline shape, and elegant appearance, it can be opened overall for flexible operation and daily maintenance.
Small size and lightness is better for construction in downtown, transferring and working in different kinds of jobsite.

It is equipped with Vermeer type drill rod Φ102×6000mm, with high quality, high reliability and superior performance.
Main assembly parts are from international first-class hydraulic components manufacturer, which can greatly improve the performance of products reliability.
Optional accessories—including an automatic grease injector, rod-loading box—expand the rig's versatility and functionality.
