Goodeng Machine G100A Middle Series Euro V Engine HDD Drilling Rig for Pipelines Projects

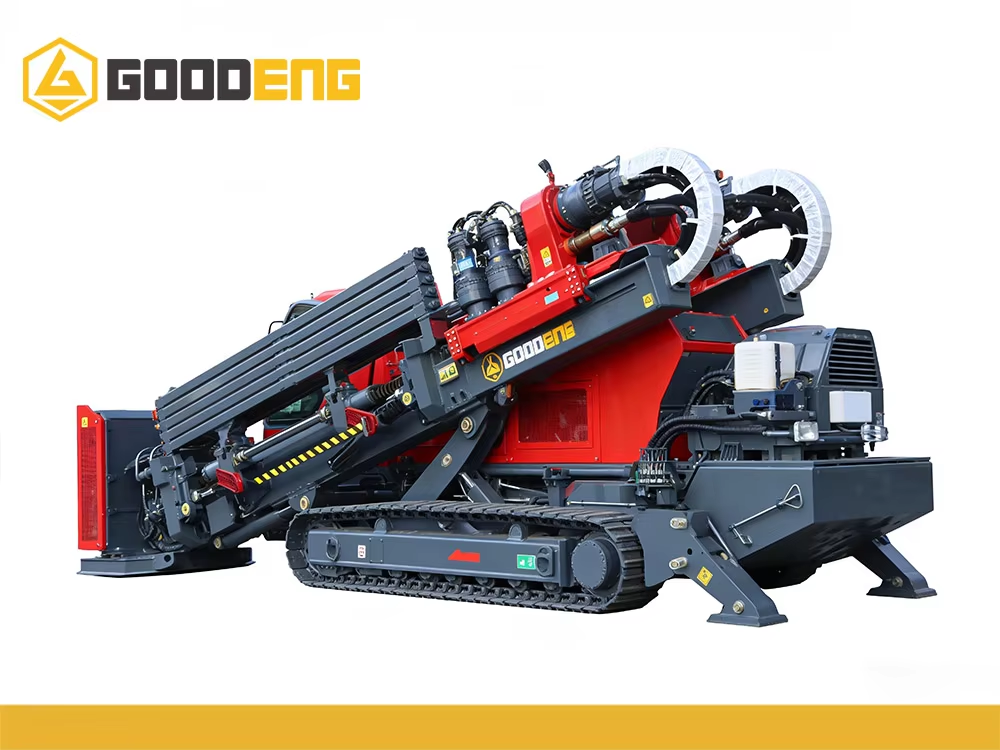

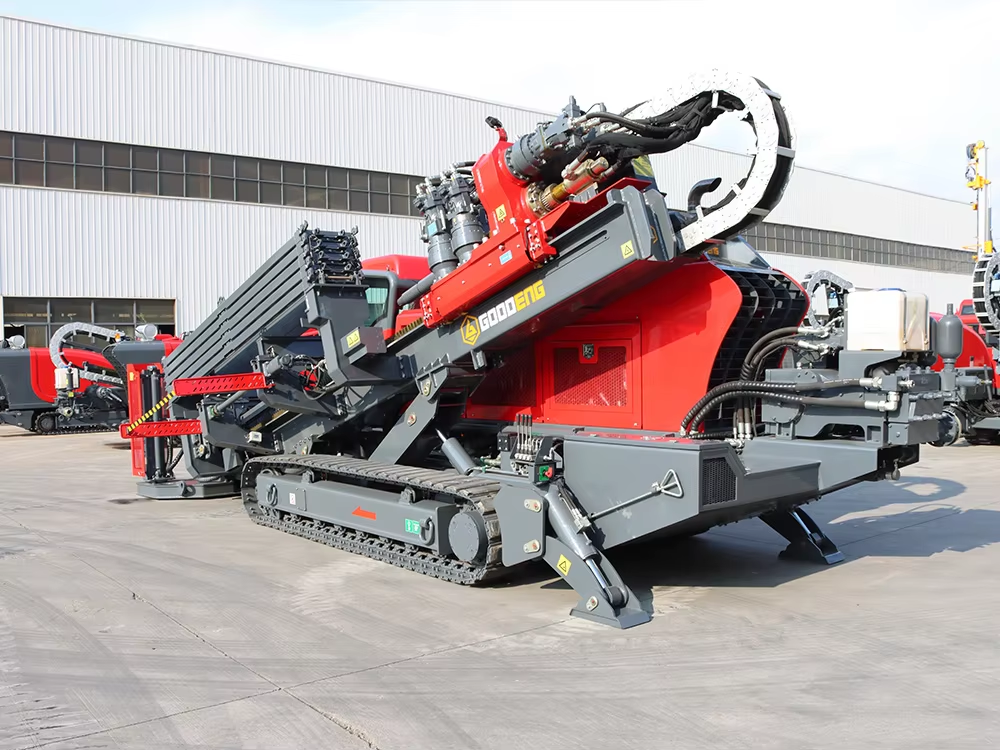

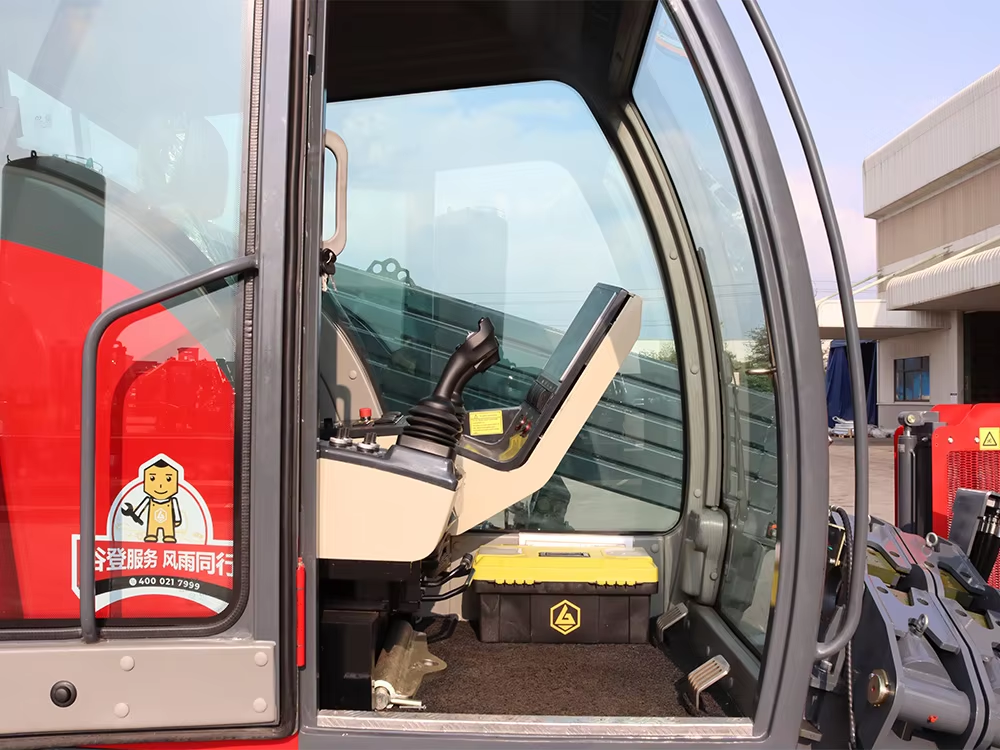

Goodeng Machine Trenchless Hdd Drilling Rig G100A Horizontal Directional Drilling Rig engineered for high efficiency and precision in demanding operations. Featuring with crawler walking system and adjustable speed control, it delivers exceptional maneuverability across diverse terrains. The integrated mud pump ensure reliable mud system performance, while the rotating operator seat enhances comfort and convenience.

Technical Parameter

	Metric Unit	Imperial Unit
Weight	21000kg	46297 lbs
Dimension (LxWxH)	9000×2520×2630 mm	29.53×8.27×8.63 ft
Max.Thrust&Pullback Force	453 KN	101850 lbf
Max.Thrust&Pullback Speed	65 m/min	213.26 ft/min
Max.Torque	19000 N·m	14008 lbf·ft
Max.Rotation Speed	192 r/min	192 rpm
Engine Power	194 kW	260 hp
Max.Flow of Mud Pump	800 L/min	211 gal/min
Walking Speed	0-5 km/h	10-3.11 mph
Max.Mud Pump Pressure	8 MPa	1160 psi
Entry Angle	21°	21°
Max.Climbing Gradient	18°	18°
Drill Rod Size	φ89×3000 mm	φ3.5×9.84 in
Crane	Optional	Optional
Suggest Reaming Diameter	≤1200 mm	≤47.24 in
Suggest Crossing Length	≤800 m	≤2624.67 ft

Main Performance Characteristic

The machine is equipped with Cummins engine, with high efficiency, large power, low fuel consumption, low noise, and strong ability in construction.

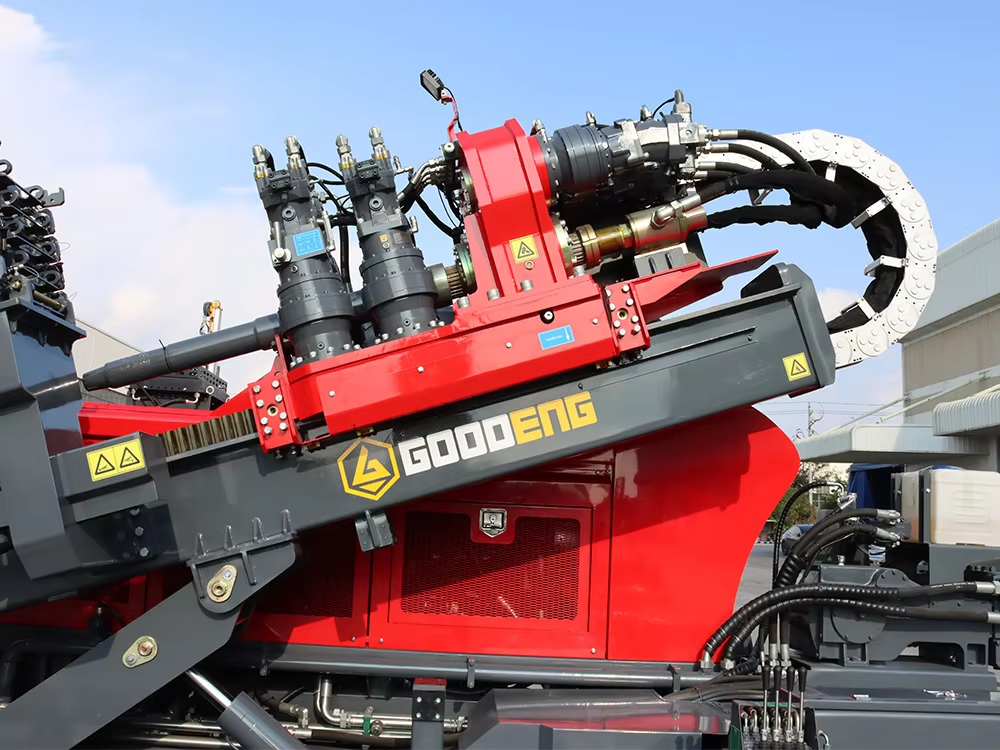

Thrust&pullback and rotation adopt manual handle, which makes control simple and quick.
Europe-American style surface, streamline shape, and elegant appearance, it can be opened overall for flexible operation and daily maintenance.
Small size and lightness is better for construction in downtown, transferring and working in different kinds of jobsite.

It is equipped with Vermeer type drill rod Φ89×3000/4500mm, with high quality, high reliability and superior performance.
Main assembly parts are from international first-class hydraulic components manufacturer, which can greatly improve the performance of products reliability.
Optional accessories—including an automatic grease injector, rod-loading box—expand the rig's versatility and functionality.
