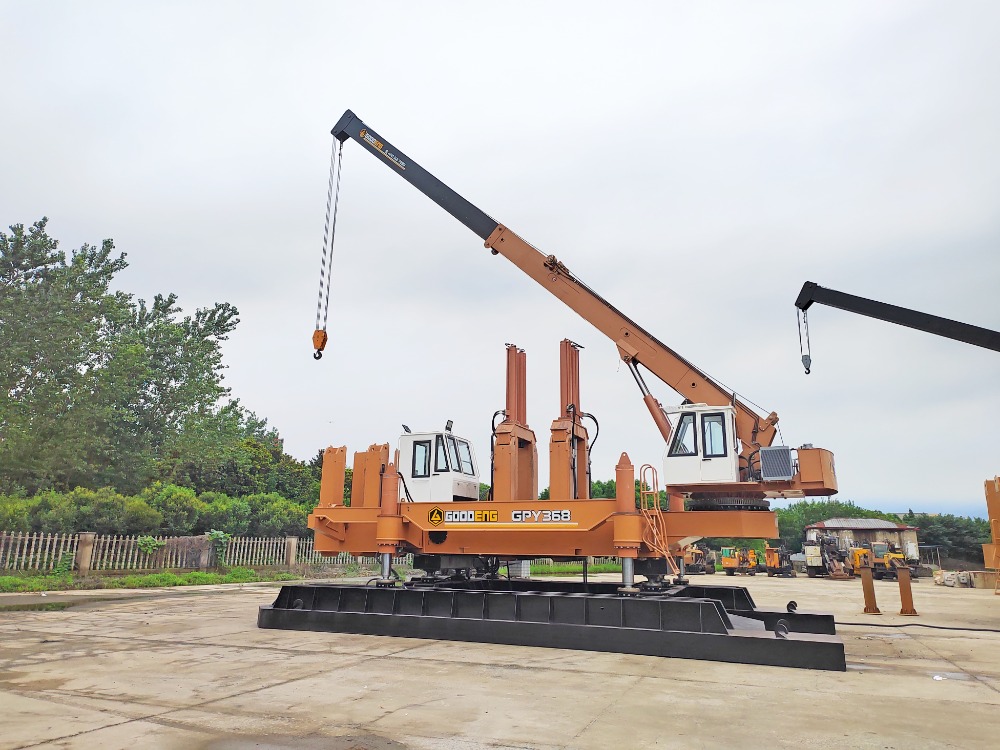

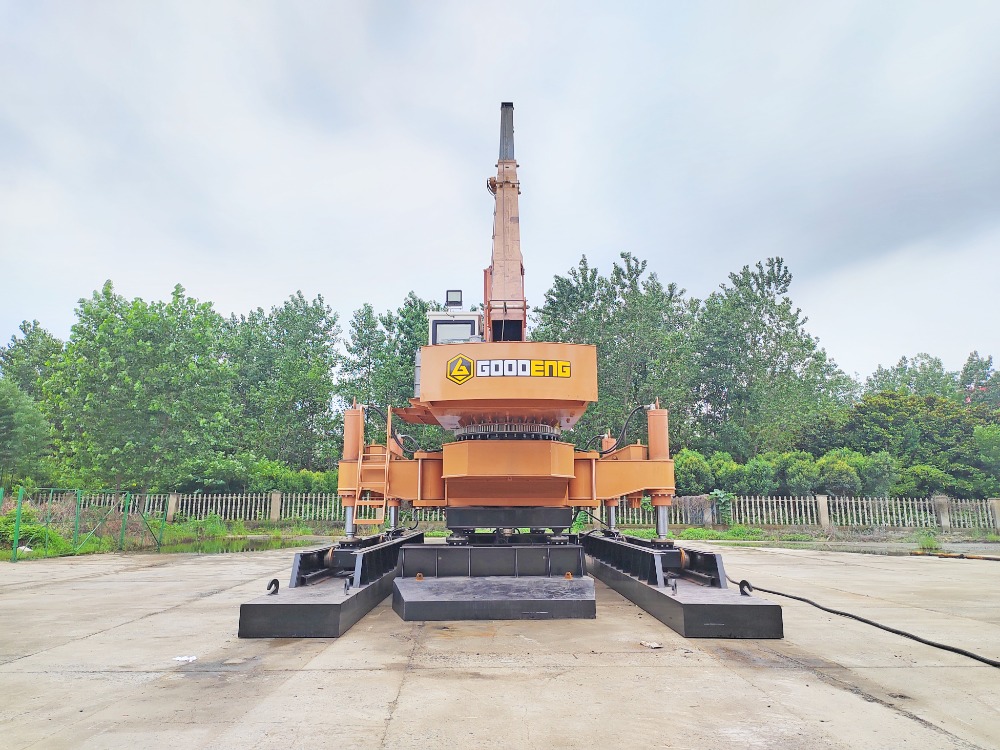

Goodeng Hydraulic Static Pile Driver/GPY368/ hydraulic static pile driver/drive in
Technical Parameter
| Metric Unit | Imperial Unit | ||
| Max.pile pressing force | 368(tf) | 368(tf) | |
| Piling speed | High | 8.1(m/min) | 16.60（ft/min) |
| Low | 1.3(m/min) | 3.9（ft/min) | |
| Piling stroke | 1.6(m) | 5.25(ft) | |
| Pace | Longitudinal | 3.0(m) | 9.84(ft) |
| Horizontal | 0.6(m) | 2(ft) | |
| Angle range | 11(°) | 11 (°) | |
| Rise stroke | 1.0(m) | 3.28(ft) | |
| Pile clamping box | 6025 | 6025 | |
| Square pile | Min. | □200(mm) | □7.87(in) |
| Max. | □500(mm) | □19.68(in) | |
| Round Pile | Min. | φ300(mm) | φ11.81(in) |
| Max. | φ600(mm) | φ23.6(in) | |
| Side piling space | 1.2(m) | 46.7(in) | |
| Corner piling space | 1.8(m) | 70.5(in) | |
| Lifting weight | 16(T) | 35273(lb) | |
| Hoisting pile length | 15(m) | 590(in) | |
| Loading pressure | Long bridge | 128.8(Kpa) | 1.29(bar) |
| Short bridge | 147.8（kpa） | 1.48(bar) | |
| Dimension | Working length | 14.05(m) | 553(in) |
| Working width | 6.6(m) | 259(in) | |
| Transportation height | 3.1(m) | 122(in) | |

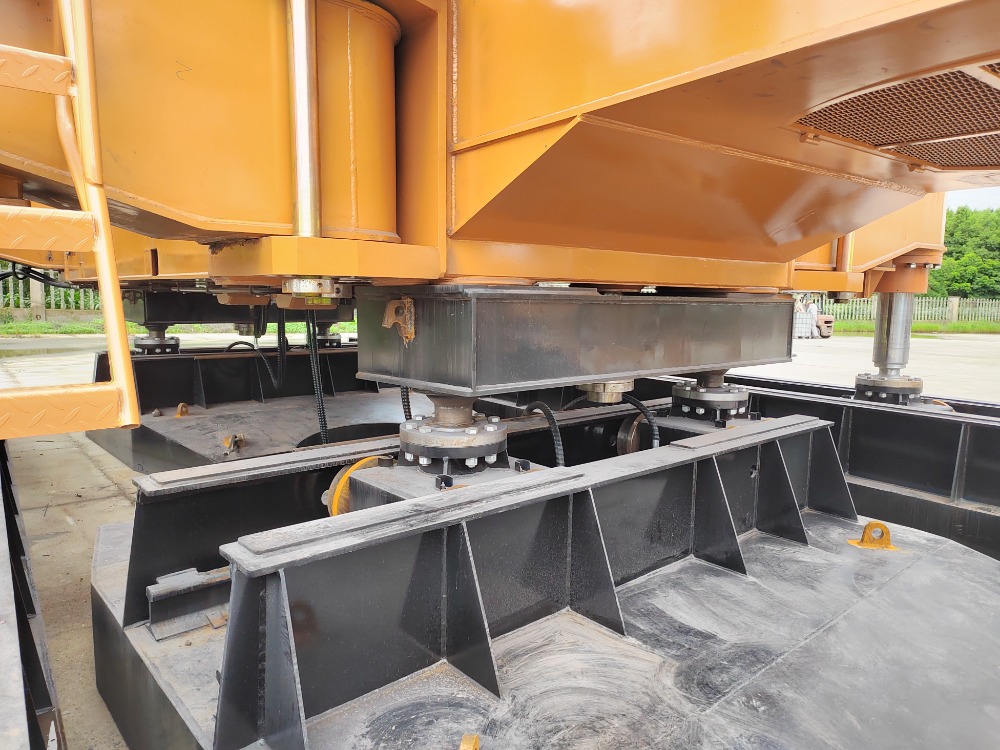

- GPY368has an integrated side pile structure and adopts a suspended side pile device. When the user needs to drive side piles, the side pile devices can be mounted in three directions on the fuselage. It is flexible to use and the distance between the side piles and corner piles is small.
- The whole machine is externally connected to AC380V, 50HZ three-phase standard electricity, and the oil pump motor unit provides the power source. The oil pump motor adopts the star-delta step-down starting method to reduce the current impact on the entire power grid; this electrical system is equipped with shortcircuit protection, overload protection, and phase failure. Protection measures such as leakage protection and grounding protection.
BLANKING
RIVET-WELDING
MACHINING
ASSEMBLING
DEBUGGING
TESTING
-
1

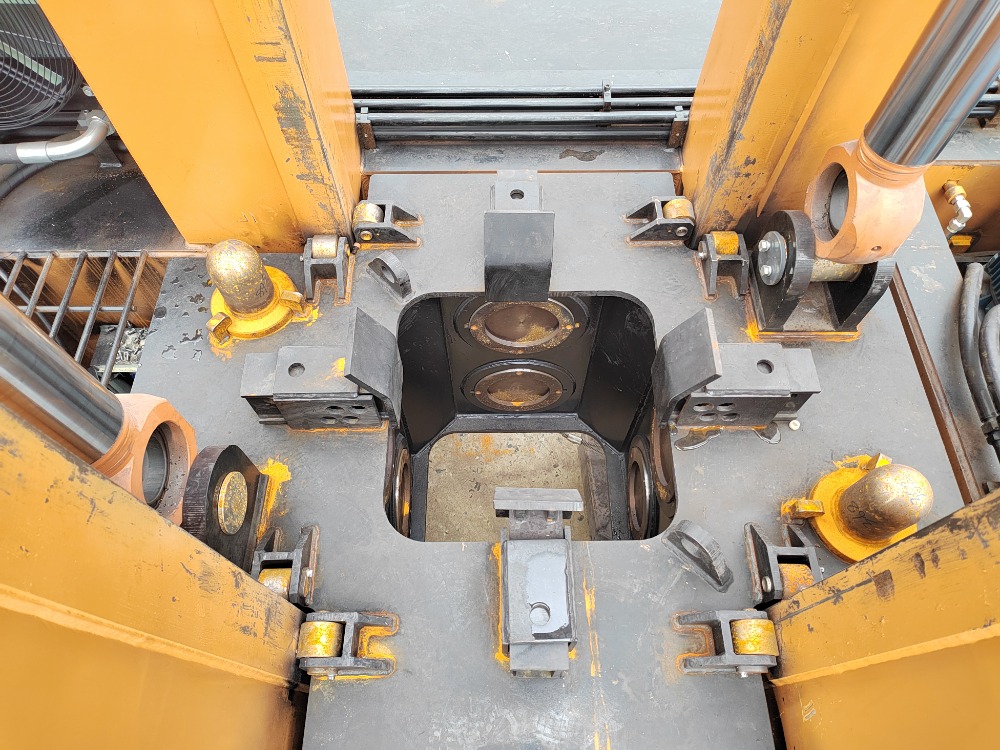

What is the maximum pile diameter that GPY368 can accommodate? Can it meet large-diameter pipe pile construction requirements?
Square piles: 200‑500 mm; cylindrical piles: Φ300‑Φ600 mm. Optimized clamping box (model 6028) and hydraulic system for stable handling of large-diameter precast piles. Customization available. Ideal for large-diameter prestressed pipe piles.
-
2
What improvements does GPY368 have in side pile and corner pile construction?
Side space 1.35 m, corner space 2.0 m, angle range 11°. Reinforced side/corner mechanism: side/corner force reaches 60‑70% of main force. Optional side counterweights lower center of gravity, improving stability, accuracy, and safety for remote pile positions.
-
3
How does GPY368’s final pressure stabilization system prevent the machine from floating during large-tonnage piling?
Unique system automatically adjusts hydraulic pressure when approaching final pressure, ensuring smooth transition and preventing floating. For 368‑ton pile drivers, floating affects verticality and safety. This solution greatly improves safety and piling accuracy.
-
4
What is the lifting capacity of GPY368? Can it meet the hoisting needs of long piles and heavy piles?
Rated lifting weight: 16 tons; max hoisting length: 15 m. Sufficient for most common precast piles (square/cylindrical up to 15 m). Optimized crane structure for smooth lifting, minimal swing, stable with long piles. Upgrade solutions available for heavier/longer piles.
-
5

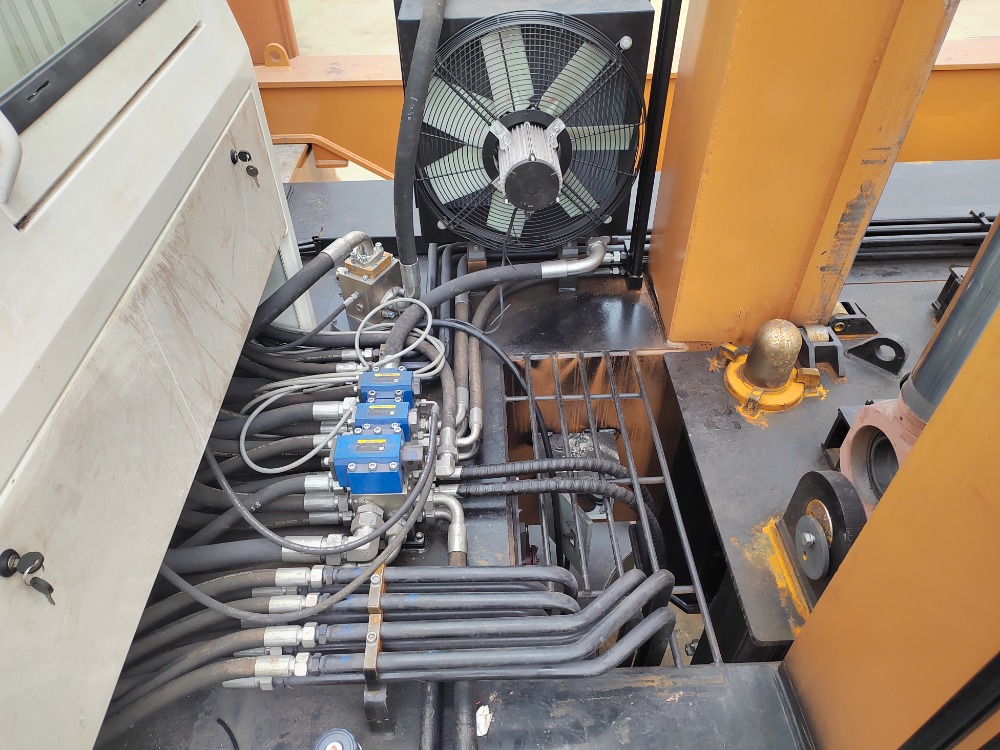

What reliability designs does GPY368 have in terms of hydraulic system and electrical control?

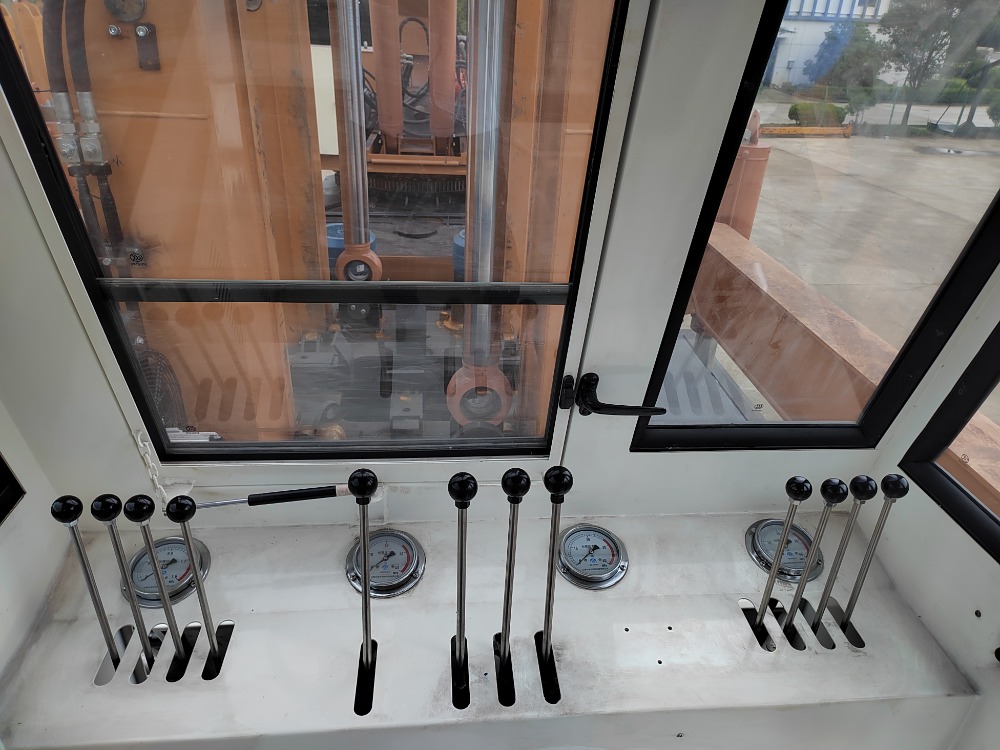

High‑reliability large‑displacement hydraulic system with safety valve to prevent overload. Electrical: low voltage control, short circuit, thermal overload, phase failure, leakage protection, independent unit control. Fully hydraulic + PLC control for convenient operation and reduced workload. Ensures stable operation under long‑duration, high‑intensity conditions.
-
6
Is GPY368‘s transportation size convenient for road transport? What are the requirements for transport vehicles?
Transport height 3.16 m (fits most road limits). Working L13.21 m × W7.32 m. Modular design allows quick disassembly/reassembly; standard low‑bed trailers suffice. Reduces logistics costs and time for frequent relocation projects.
Jiangsu Goodeng Heavy Machinery Technology Co., Ltd.
