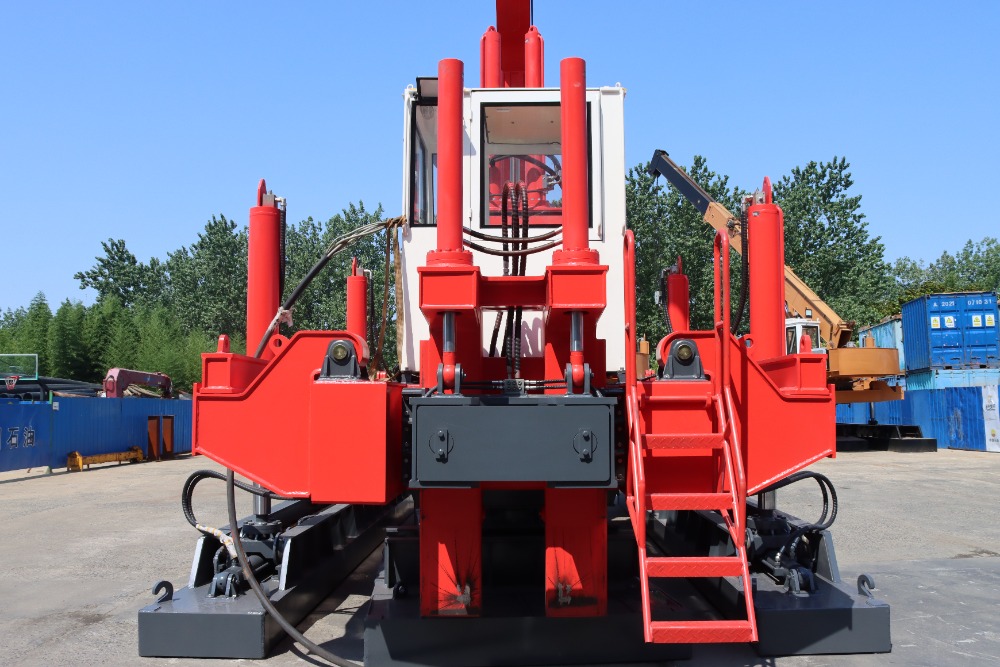

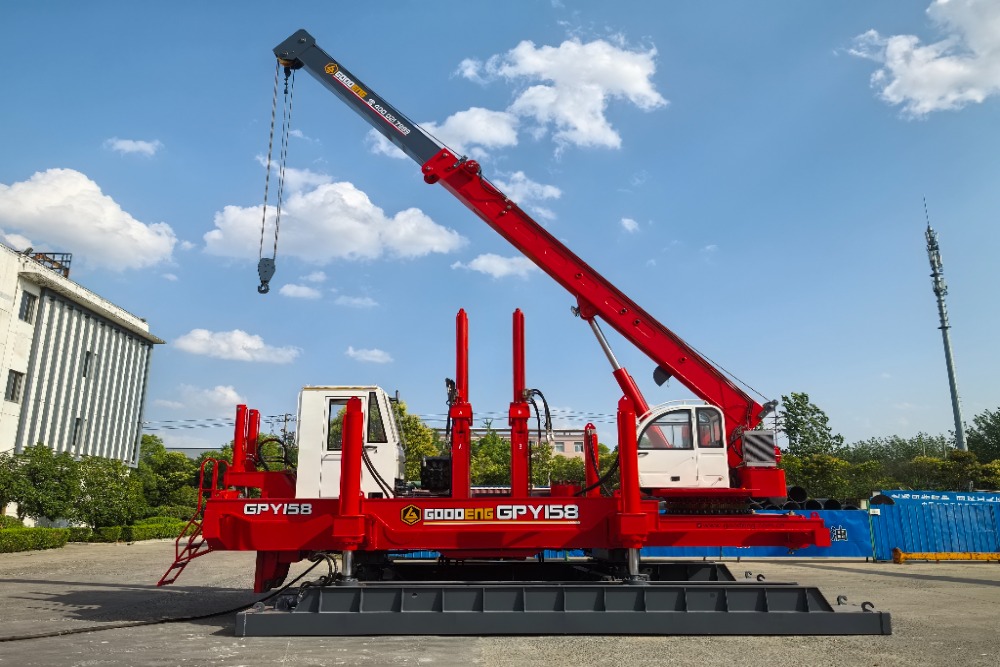

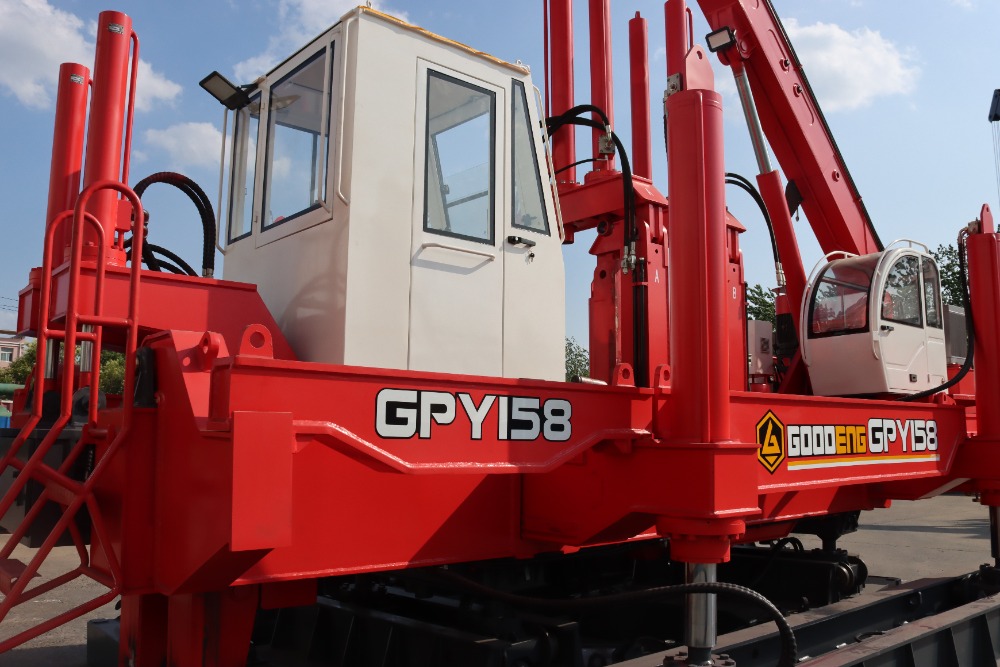

Goodeng Machine Hydraulic Static Pile Driver/GPY158/ hydraulic static pile driver
Technical Parameter
I. Main Technical Parameter
Machine Weight
60T±3
Transportation Dimensions
(L×W×H)
8.64×3.92×3.75m
Total weight of equipment
150T
Working dimensions
(L×H)
8.64×4.7m
Total weight of counterweight iron
90T
Long bridge dimensions
(L×H)
8.0×0.8m
Max. piling force
150 tf
Short bridge dimensions
(L×H)
2.6×2.0
Max. piling speed
13.6m/min
Piling stroke per time
1.5m
Max. longitudinal stroke per time
1.8m
Max. horizontal stroke per time
0.4 m
Max. rotary angle per time
15°
Hydraulic system rated pressure
28(18) MPa
Effective hoisting pile length
12 m
Min. side piling space
300 mm
Max. loading pressure
12.5/14.4 tf/m²
Min.Corner piling space
1000 mm
Piling Size
口150～300 Ф150～400
-
1) High-efficiency and energy-saving constant power hydraulic system.

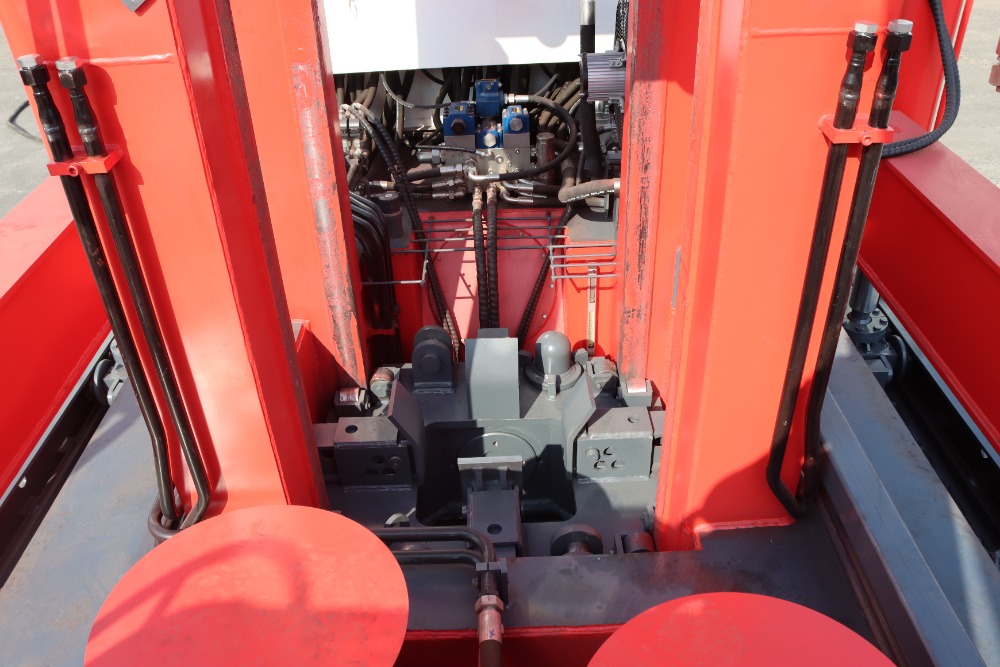

2) The pile cylinder and motor pump unit are accurately matched and combined.
3) The pile cylinder returns quickly, reducing the time for lifting the pile clamping box, making the construction faster and improving the efficiency of pile pressing.
4) Scientific hydraulic pipeline layout can greatly reduce pipeline losses, hydraulic system losses, and
save energy.
5) A static pile driver can be used directly to conduct static load tests on piles.
6) The whole machine is easy to disassemble and assemble, and its modular design makes it easy to transport.

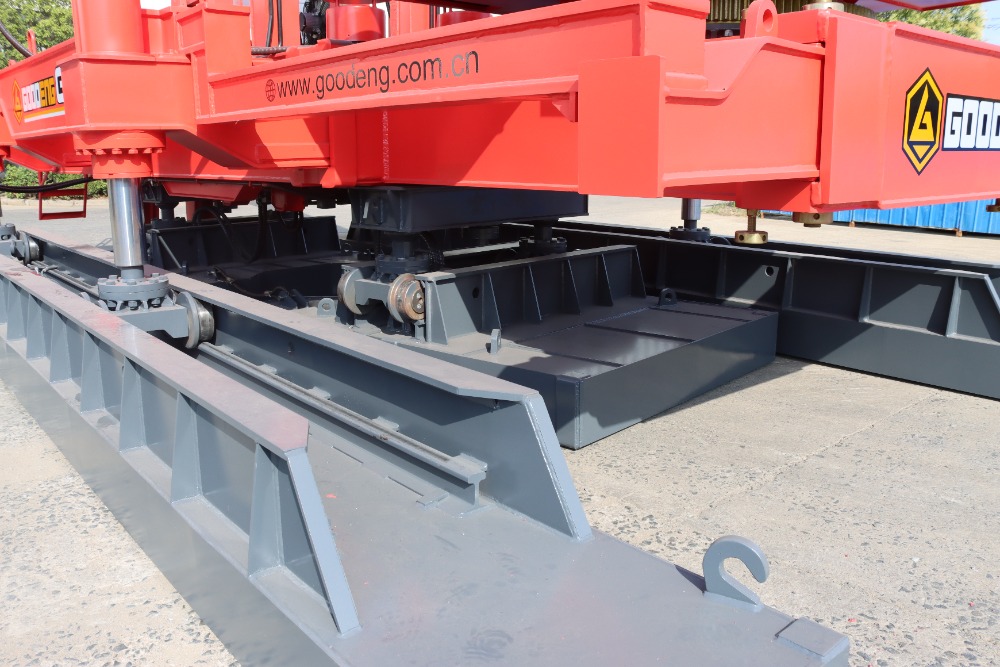

7) The hydraulic cylinder walking has automatic reset and rotation compensation functions. The whole machine has a small grounding specific pressure and is suitable for more sites.
8) Add counterweights (optional) on both sides to lower the center of gravity of the entire machine and make construction safer.
application
BLANKING
RIVET-WELDING
MACHINING
ASSEMBLING
DEBUGGING
TESTING
-
1
How fast is the piling speed of GPY158? What is its construction efficiency?

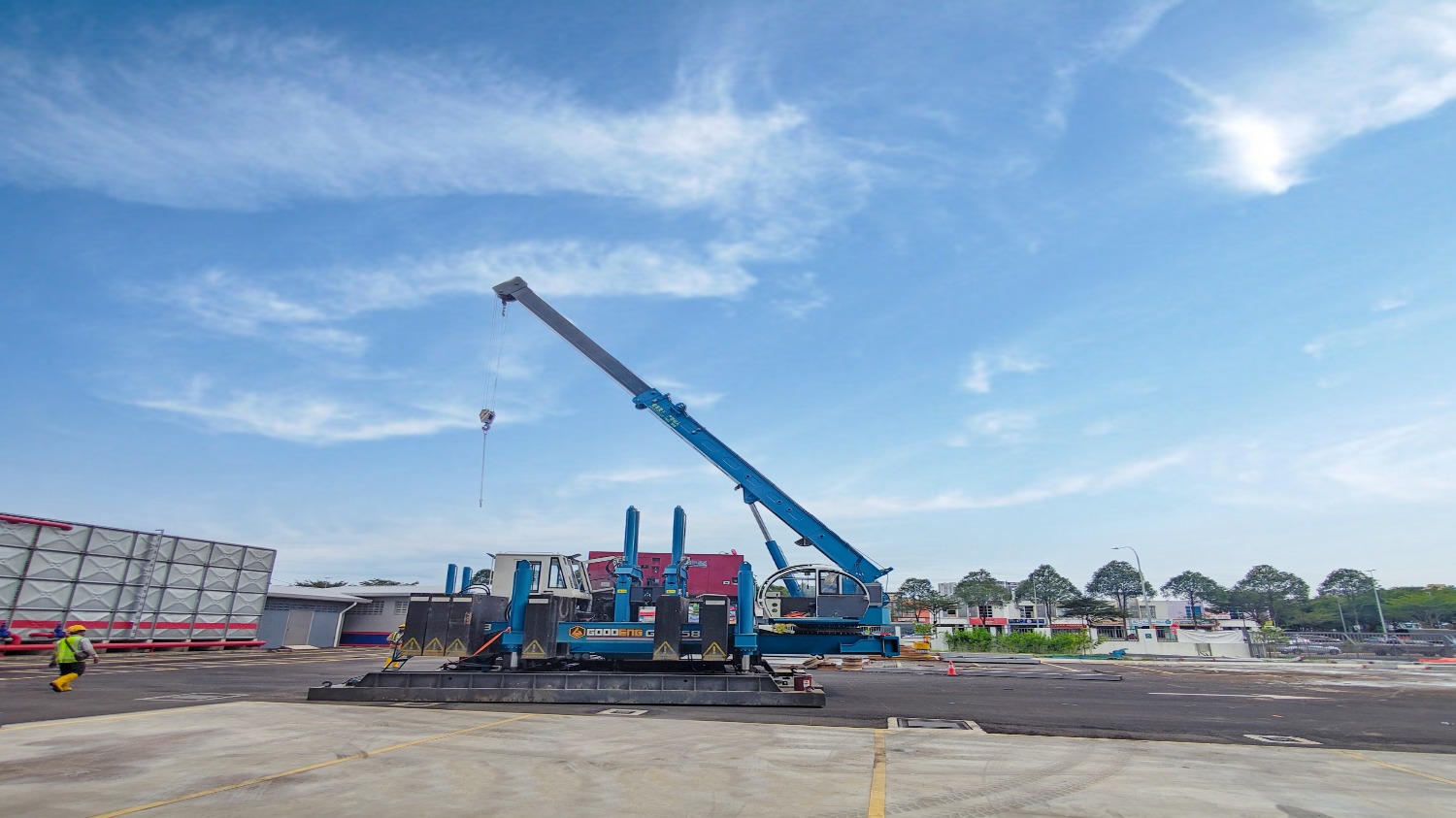

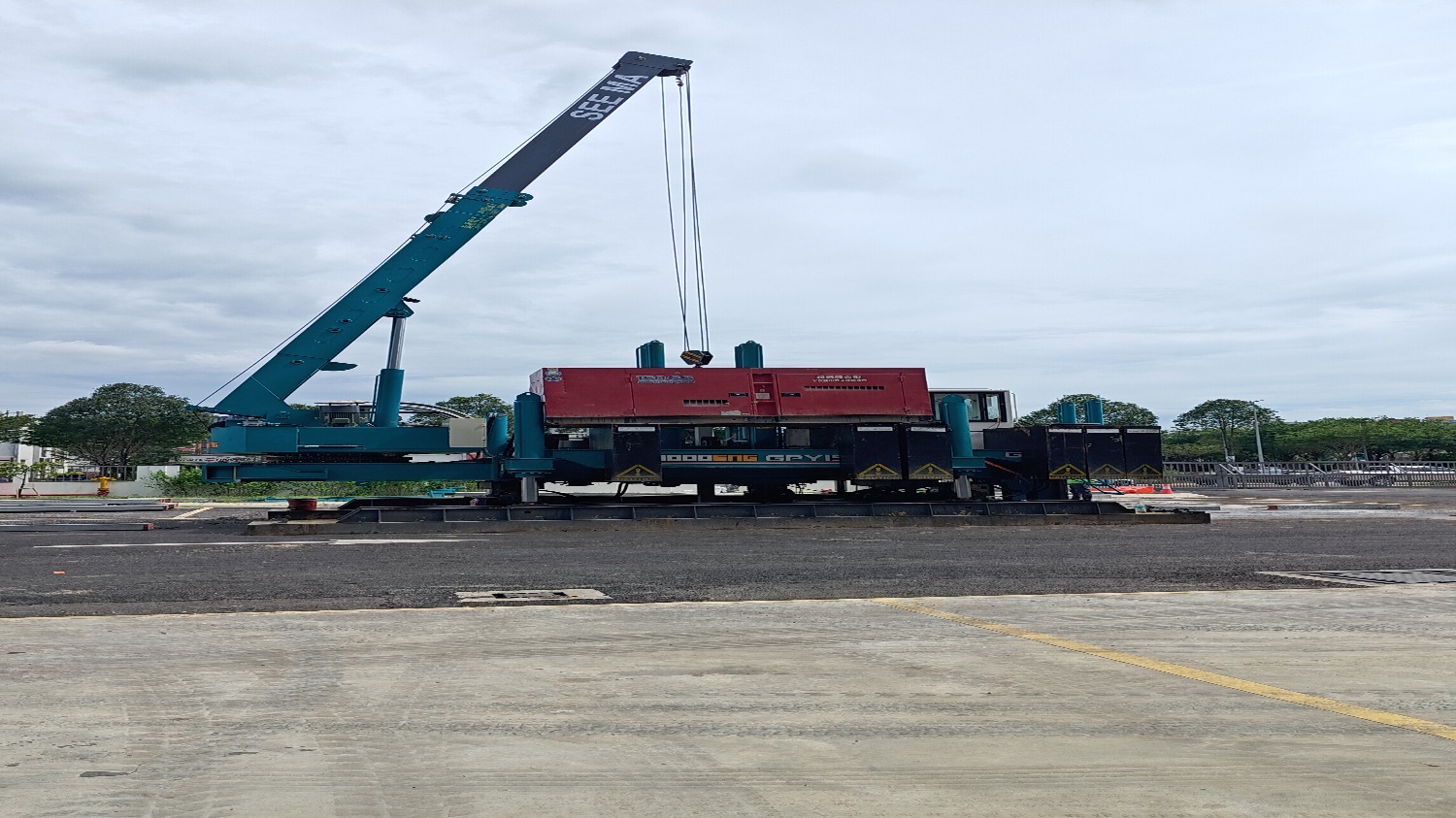

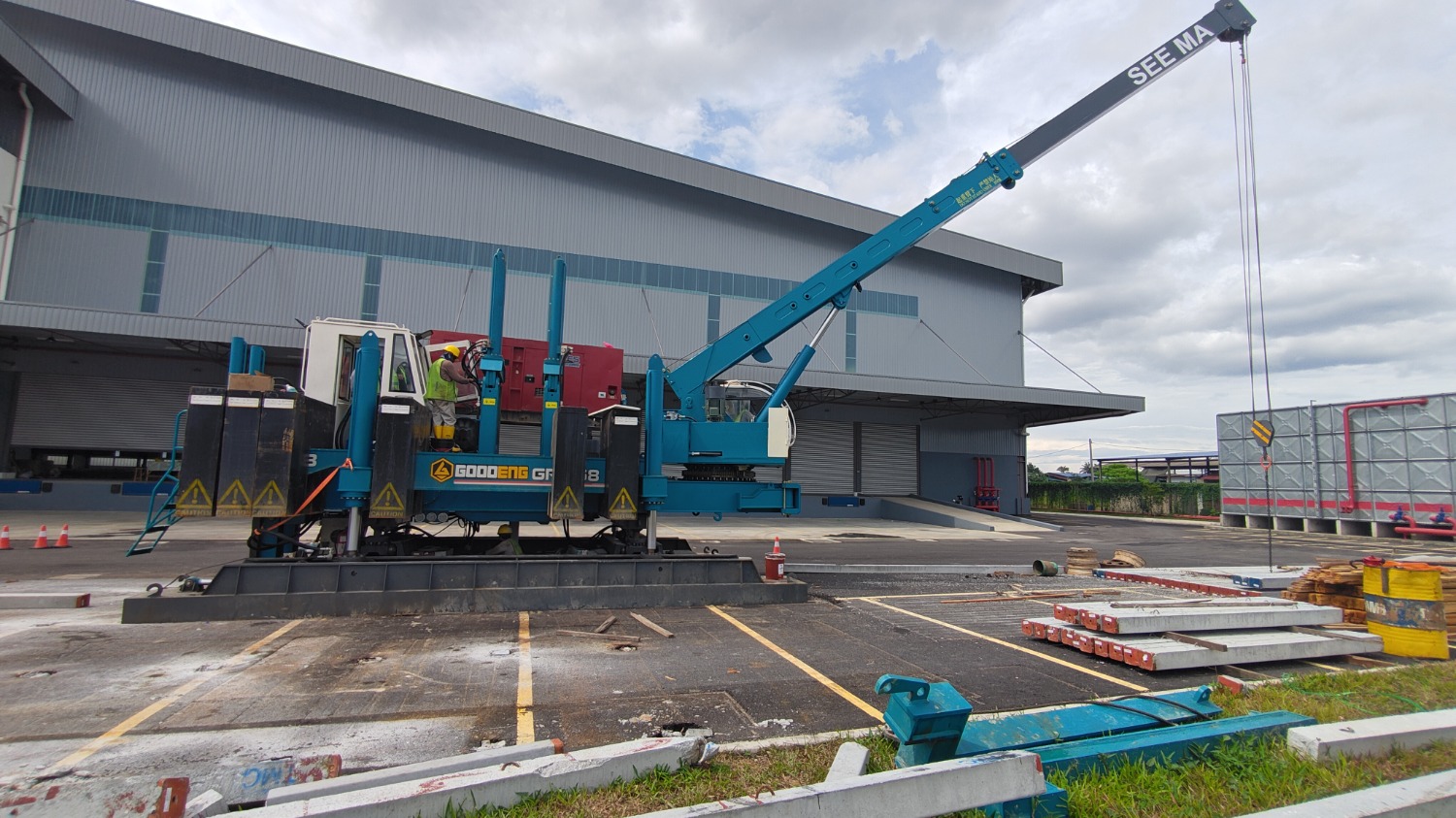

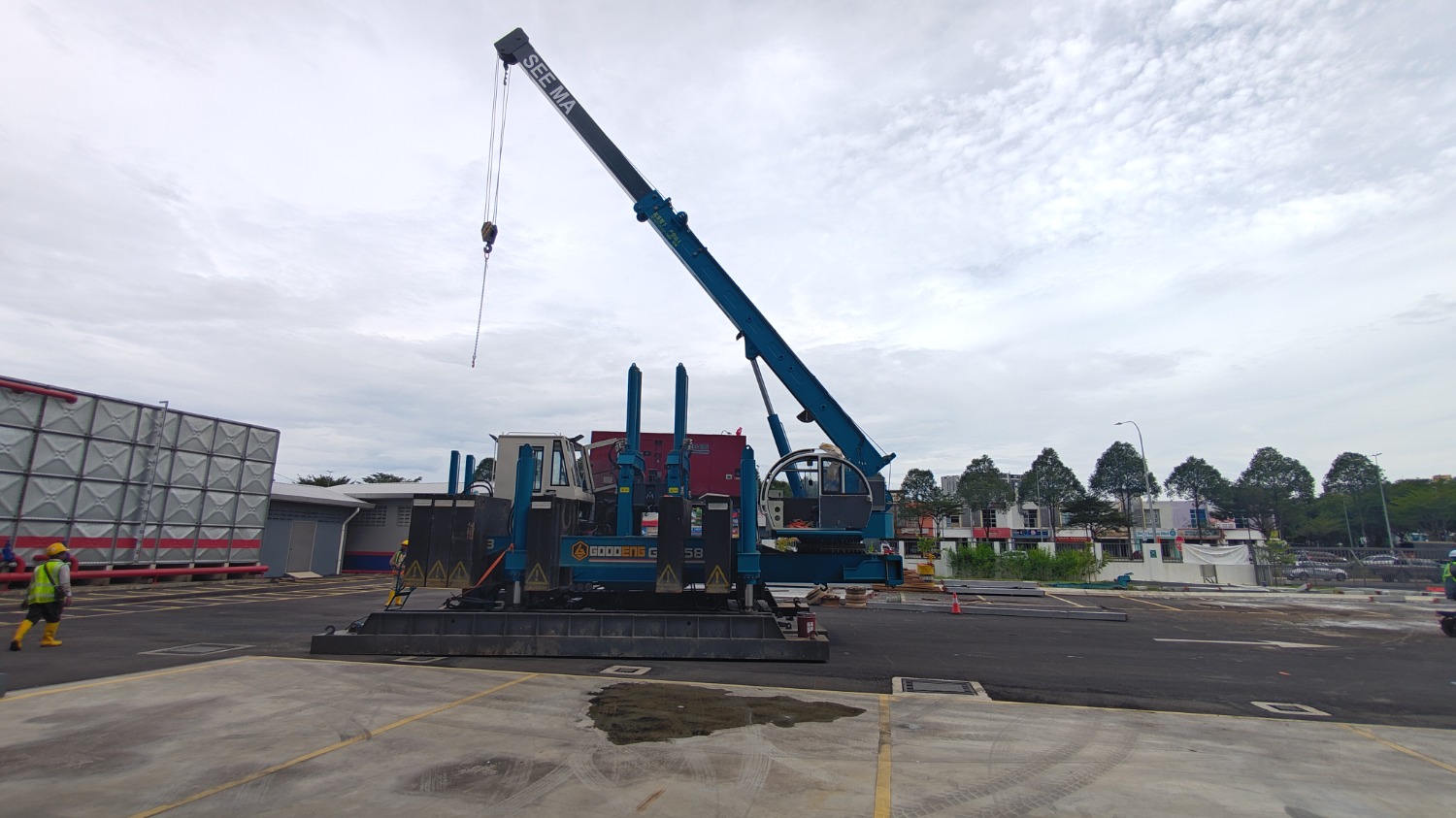

The maximum piling speed is 11.5-13.6 m/min with a 1.5 m stroke. In a Malaysia project, it completed 158 pile points in 7 days, averaging 500 m per day. It can also directly conduct static load tests on piles.
-
2
How environmentally friendly is GPY158? Is it suitable for construction in sensitive areas?
It uses static piling technology with no pollution and low noise, ideal for city centers, near hospitals/schools, etc. In the BRDB villa project in Kuala Lumpur, it achieved zero noise and zero mud. The electrical system has low voltage control and overload protection; the hydraulic system has safety valves.
-
3
What is GPY158's capability in handling side piles and corner piles?
Minimum side space is only 300-400 mm, corner space approx. 1200-1530 mm. Side/corner piling force reaches 60-70% of main piling force, far outperforming traditional hanging systems. Excellent for confined or densely spaced sites.
-
4
What types and sizes of piles is GPY158 compatible with?
It accommodates square piles from 150 mm to 400 mm and cylindrical piles from Φ200 mm to Φ400 mm. Goodeng Machinery offers customized solutions for other pile sizes.
-
5
Is GPY158 easy to transport and assemble?
Modular design allows easy disassembly/assembly, convenient transport, and quick relocation between sites, reducing logistics costs. Ideal for contractors moving frequently between projects.
-
6
What is the warranty policy and service support for GPY158?
1-year warranty, professional after-sales technical support. Each machine is strictly tested before delivery; customers can self-inspect or use third-party inspection. Contact Goodeng for latest information.
-
7
What safety protection designs and operational conveniences does GPY158 offer?
Electrical system: low voltage control, short circuit & thermal overload protection. Hydraulic system: safety valve to prevent overload. Unique final pressure stabilization prevents floating. Supports remote control for precise piling angle/pressure, fundamentally reducing safety risks.
