Static Pile Driver

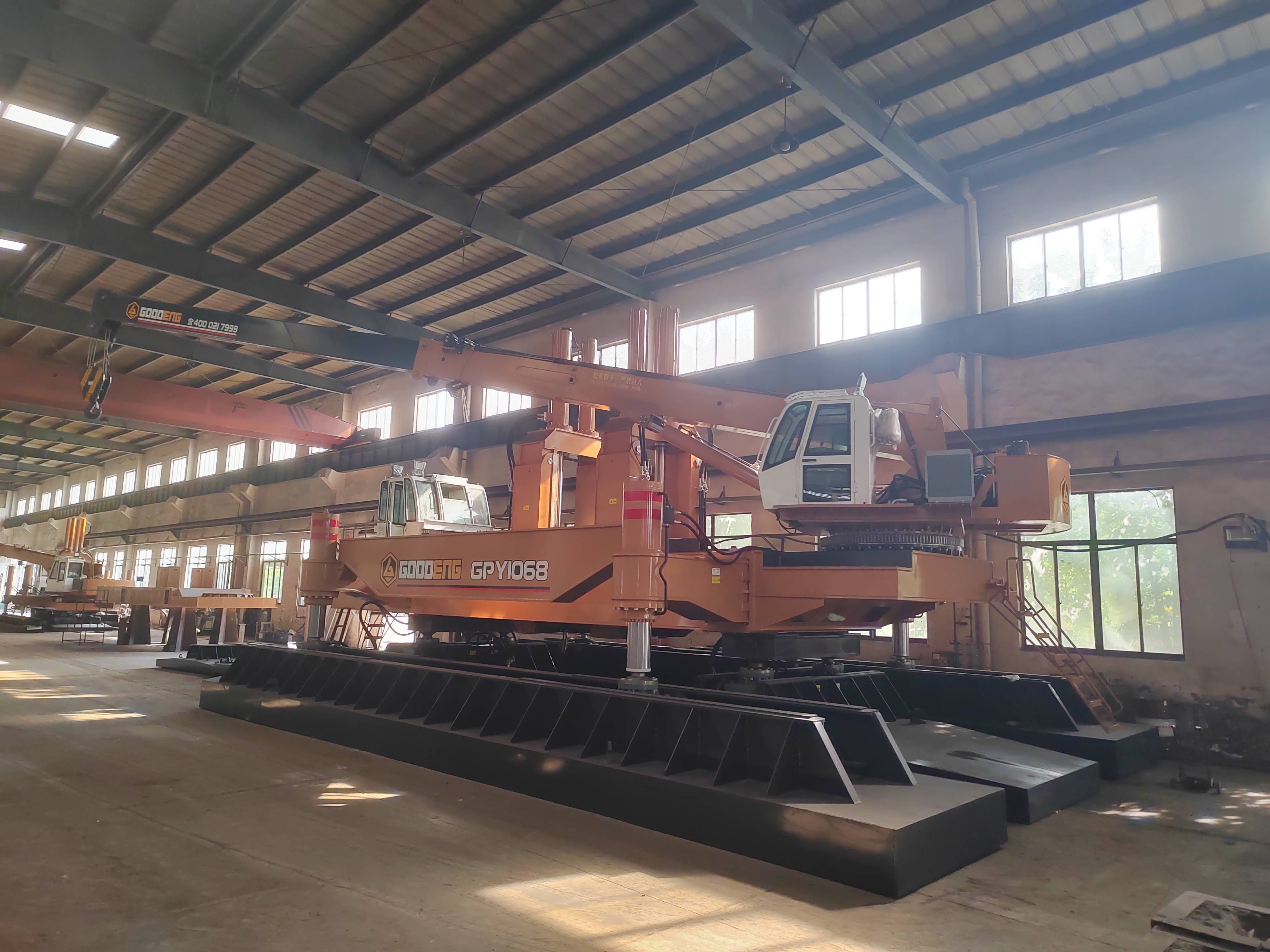

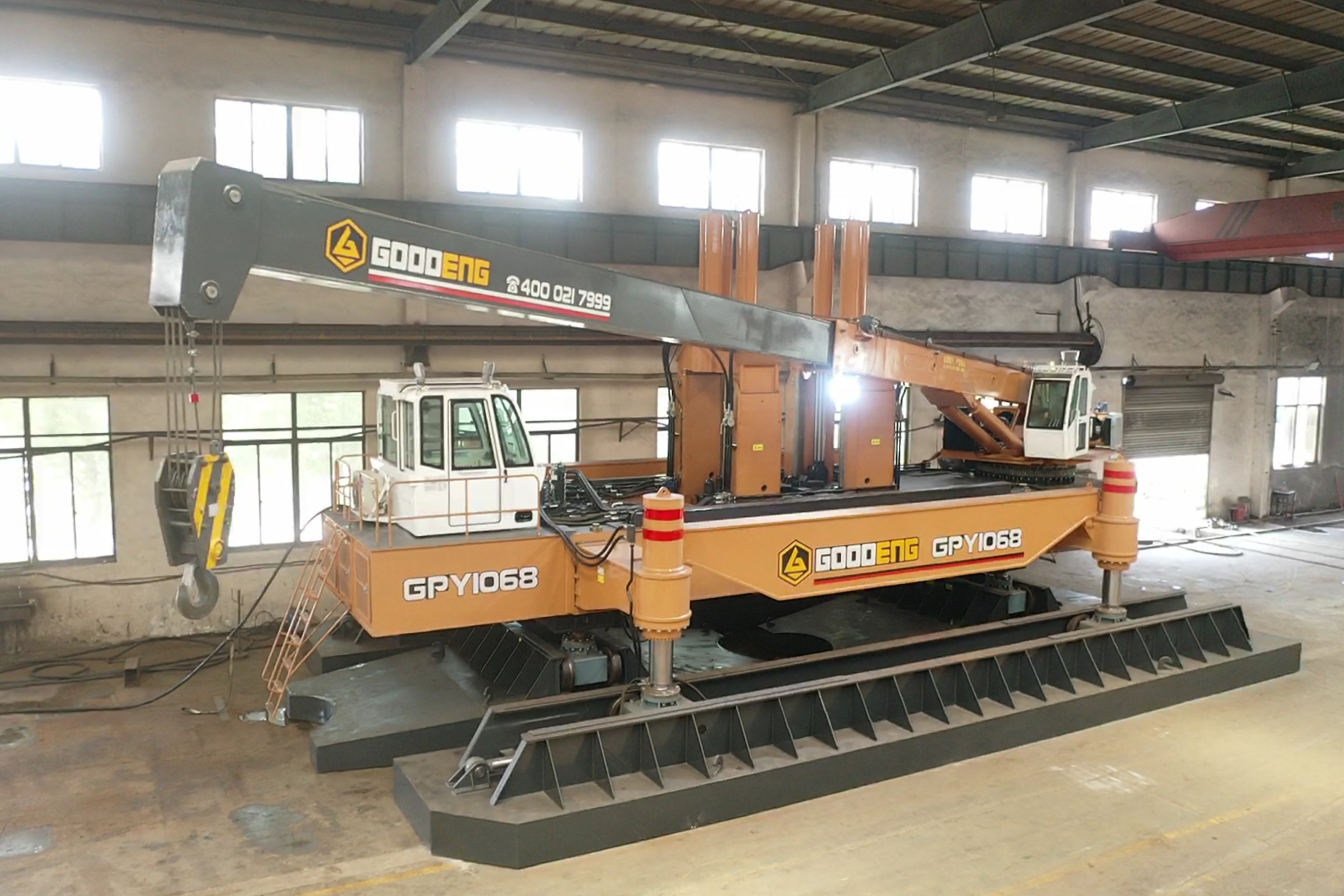

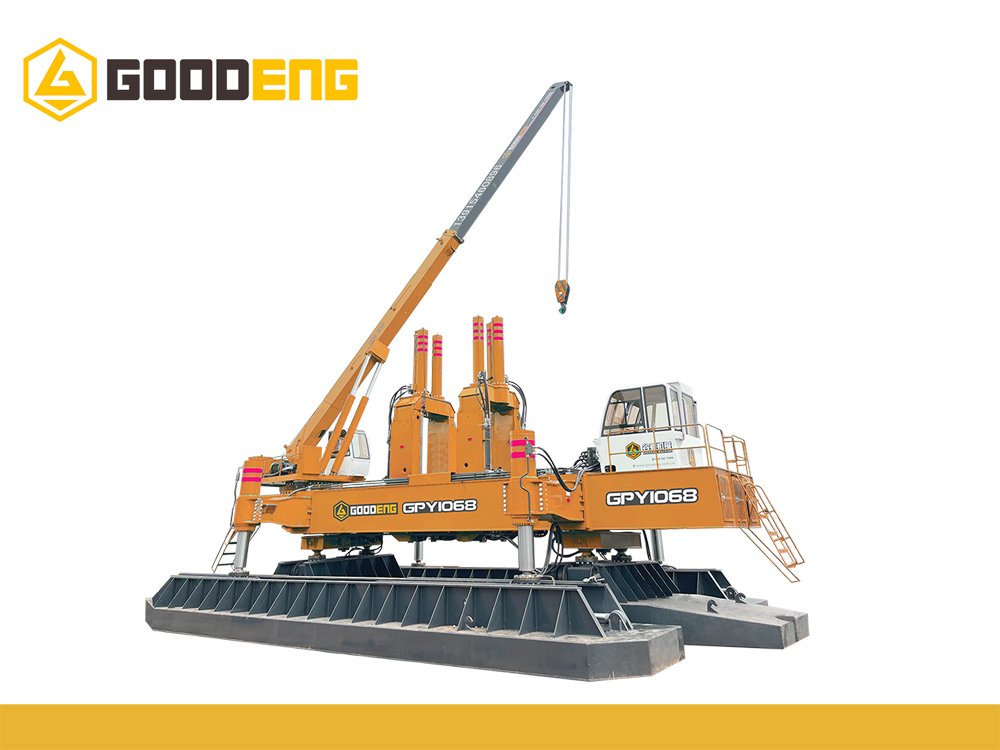

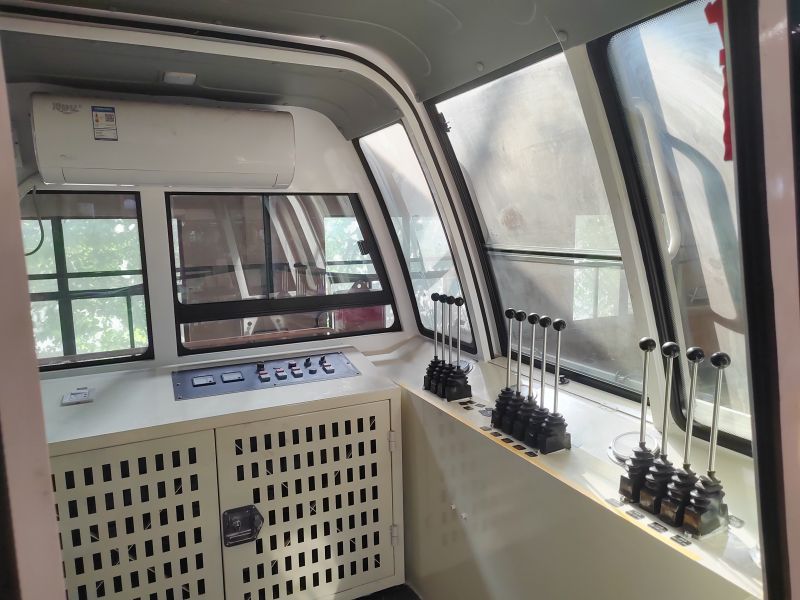

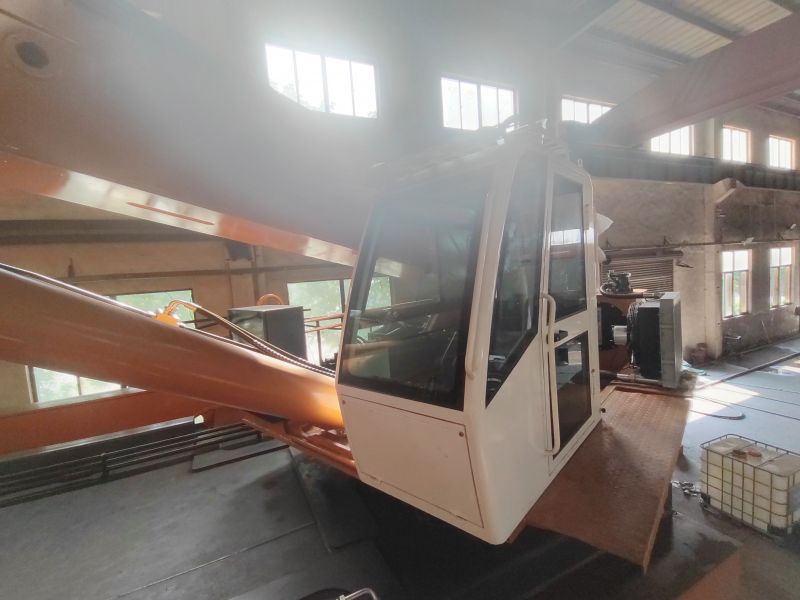

Goodeng Hydraulic Static Pile Driver/GPY1068/hydraulic force pile driver machine

1).High-efficiency and energy-saving constant power hydraulic system.

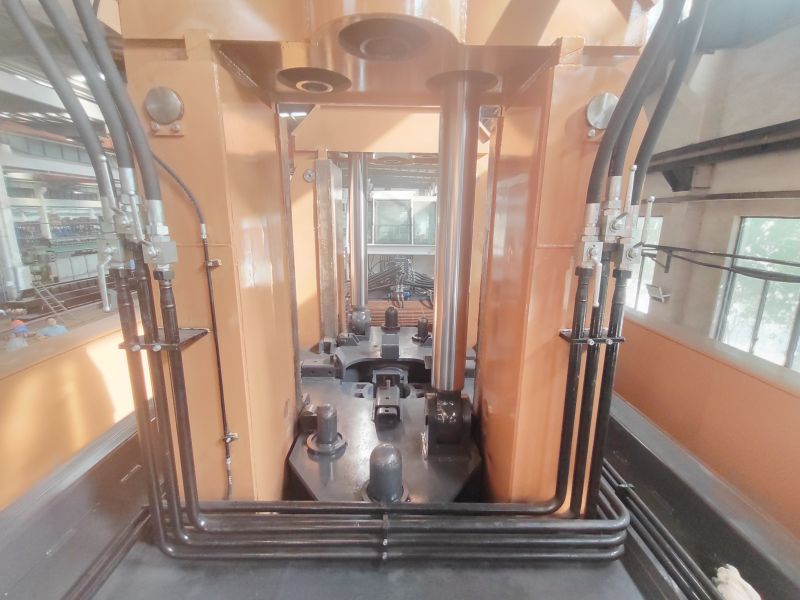

2. Accurate matching combination of pile-pressing cylinder and motor pump group.
3.The pile-pressing cylinder returns quickly, reducing the time of lifting the pile clamp box, fast construction speed, and improved pile-pressing efficiency.

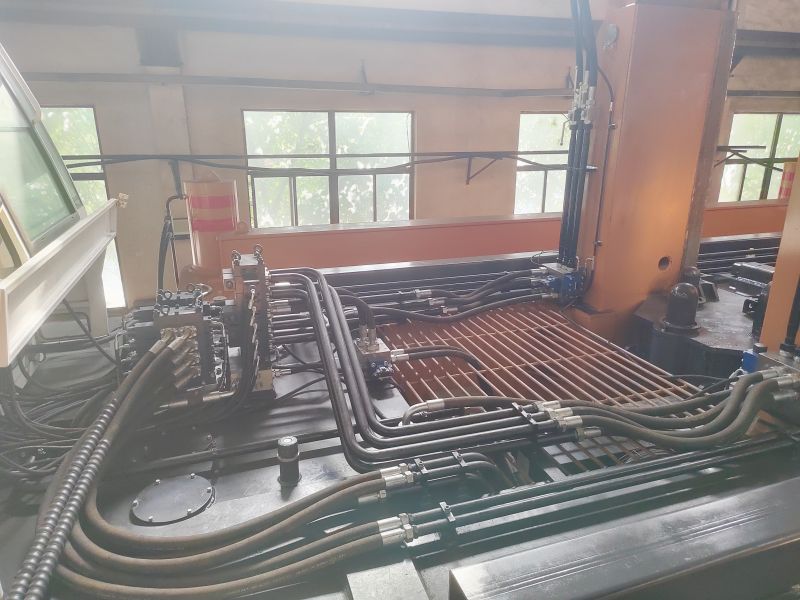

4. Scientific hydraulic pipeline layout greatly reduces pipeline loss, reduces hydraulic system loss, and saves energy.
5. Static pile driver can be used to perform static load test on piles directly.
6.The whole machine is easy to disassemble and assemble, with modular design, easy to transport.

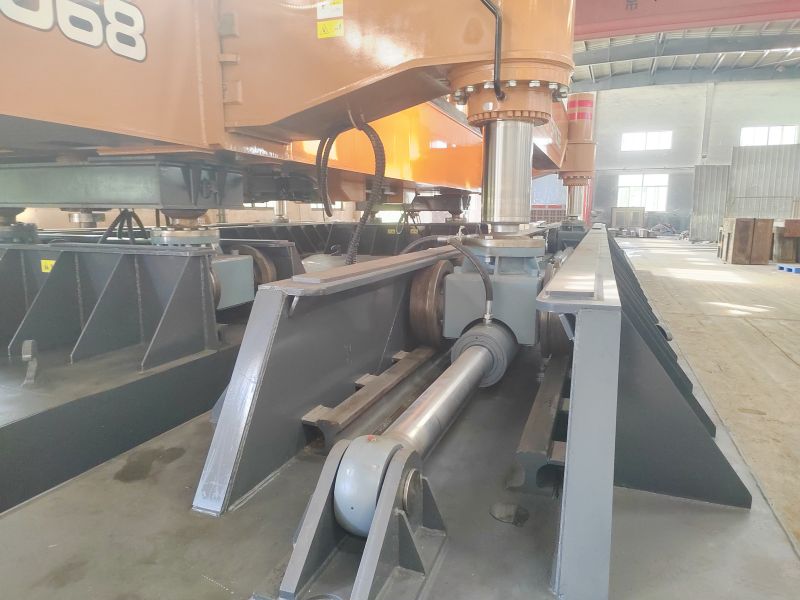

7.The hydraulic cylinder walks in a crawler-like manner, with automatic reset and rotation compensation functions. The ground pressure of the whole machine is small, which can adapt to more sites.
8.Add counterweights on both sides (optional), the center of gravity of the whole machine is lowered, and the construction is safer.

Technical Parameter

		Metric Unit	Imperial Unit
Max.pile pressing force		268(tf)	268(tf)
Piling speed	High	7.5(m/min)	15.37（ft/min)
Piling speed	Low	1.2(m/min)	3.6（ft/min)
Piling stroke		1.6(m)	52.5(ft)
Pace	Longitudinal	3.0( m )	9.84(ft)
Pace	Horizontal	0.6(m)	2(ft)
Angle range		11 (°)	11 (°)
Rise stroke		0.9(m)	2.95(ft)

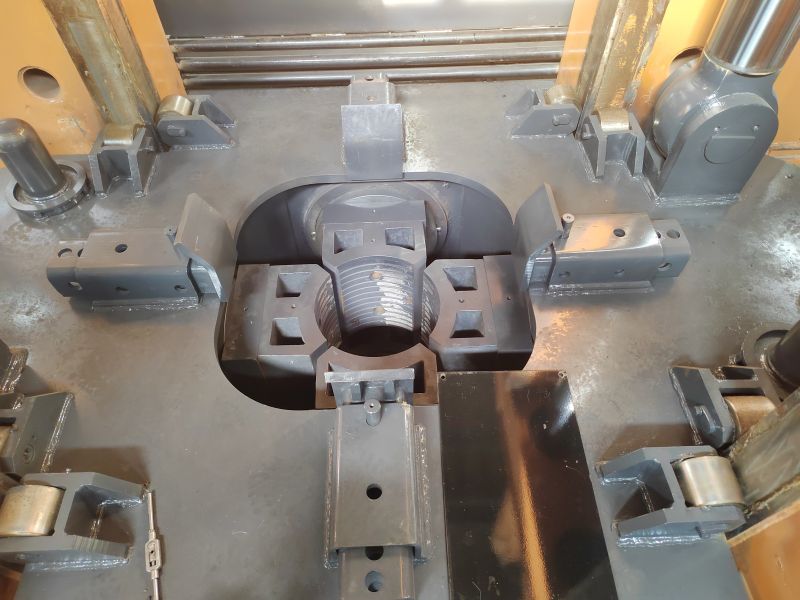

Pile clamping box		5022	5022
Square pile	Min.	□ 300(mm)	□11.8(in)
Square pile	Max.	□500(mm)	□19.7(in)
Round Pile	Min.	φ300(mm)	φ11.8(in)
Round Pile	Max.	φ500(mm)	φ19.7(in)
Side piling space		0.9(m)	35(in)
Corner piling space (m)		1.2(m)	47(in)
Lifting weight		12(T)	26455(lb)
Hoisting pile length (m)		14(m)	551(in)
Loading pressure	Long bridge	106(Kpa)	1.06(bar)
Loading pressure	Short bridge	135(kpa)	1.35(bar)
Dimension	Working length	11(m)	433(in)
	Working width	6.31(m)	248(in)
	Transportation height	3.05(m)	120(in)

Product Introduction

The walking of the pile machine is a walking motion, which is completed by a lifting mechanism, a longitudinal movement mechanism, and a transverse rotation mechanism to perform the lifting, longitudinal movement, transverse movement, and rotation actions of the pile machine; By utilizing the above three sets of mechanisms and four actions, continuous walking of the pile machine can be achieved.

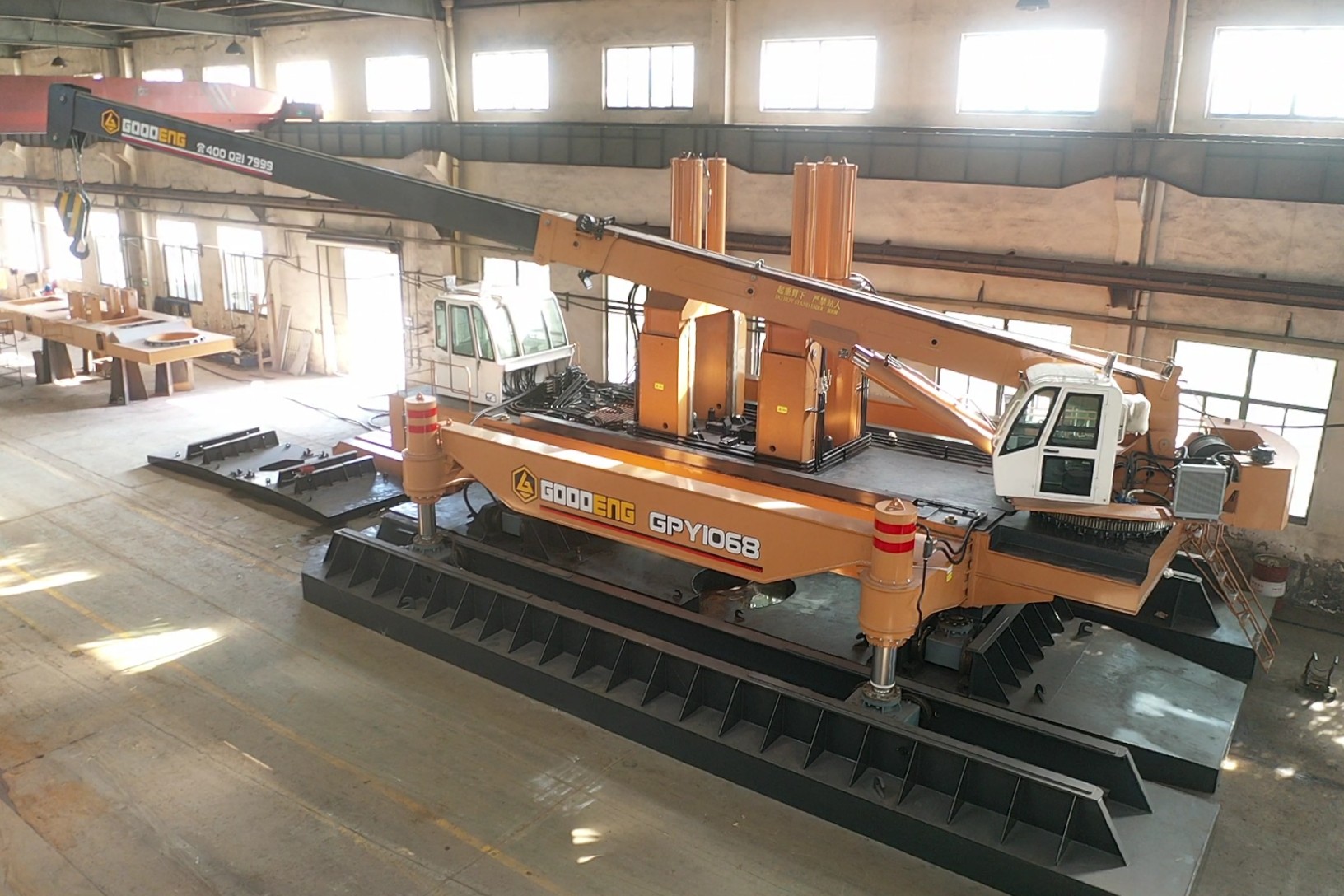

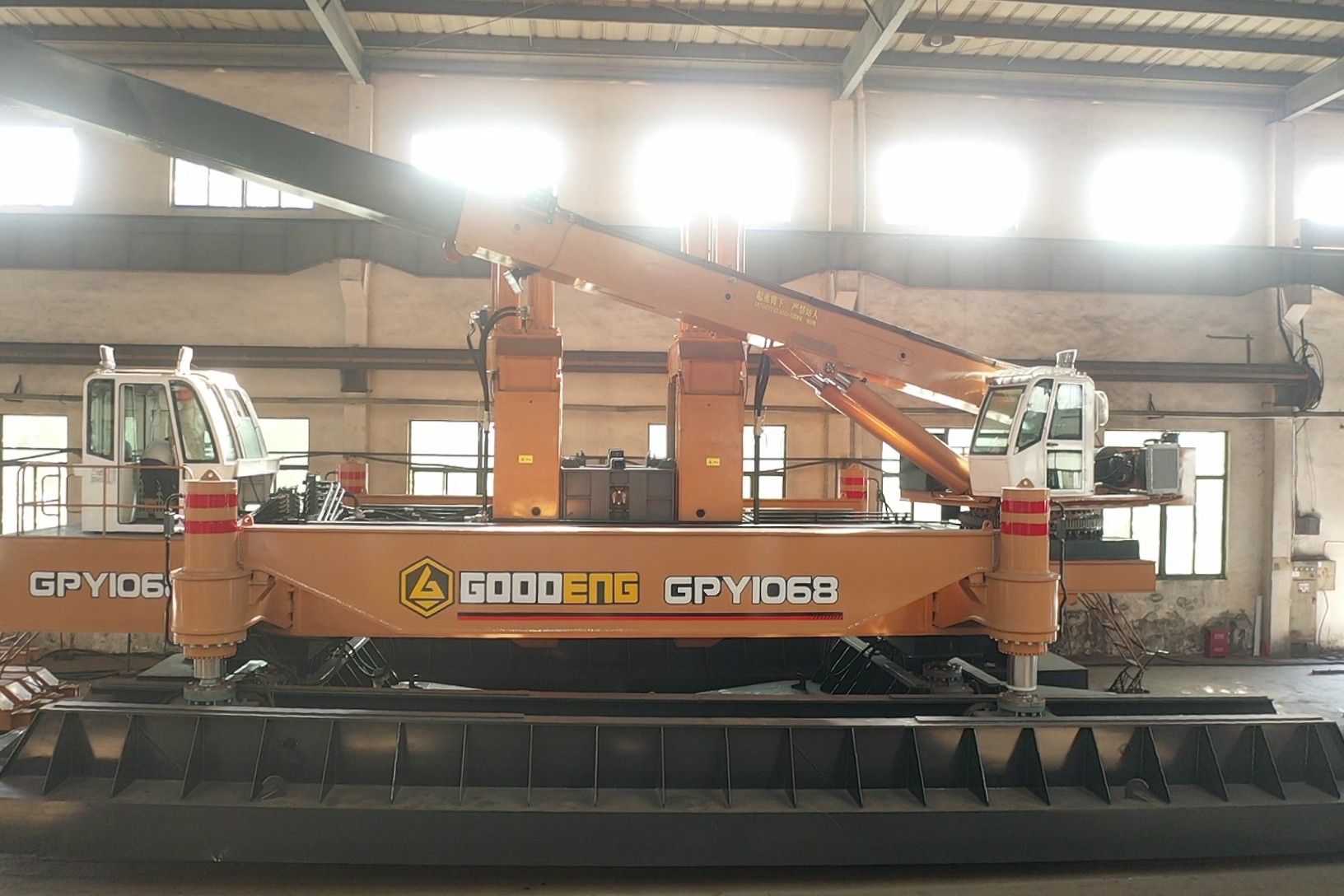

GPY1068 pile driver with integral edge pile structure; It can be transported as a whole machine, and only needs to dismantle the crossbeam pile clamping box of the main pile pressing mechanism.
GPY1068 has an integrated side pile structure and adopts a suspended side pile device. When the user needs to drive side piles, the side pile devices can be mounted in three directions on the fuselage. It is flexible to use and the distance between the side piles and corner piles is small.
