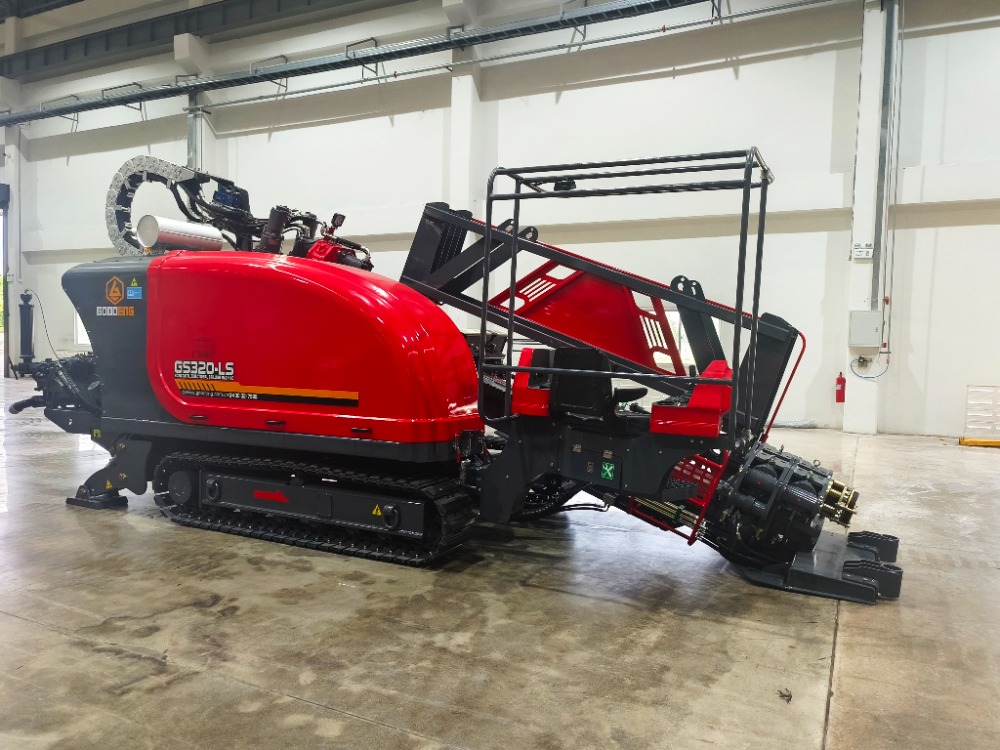

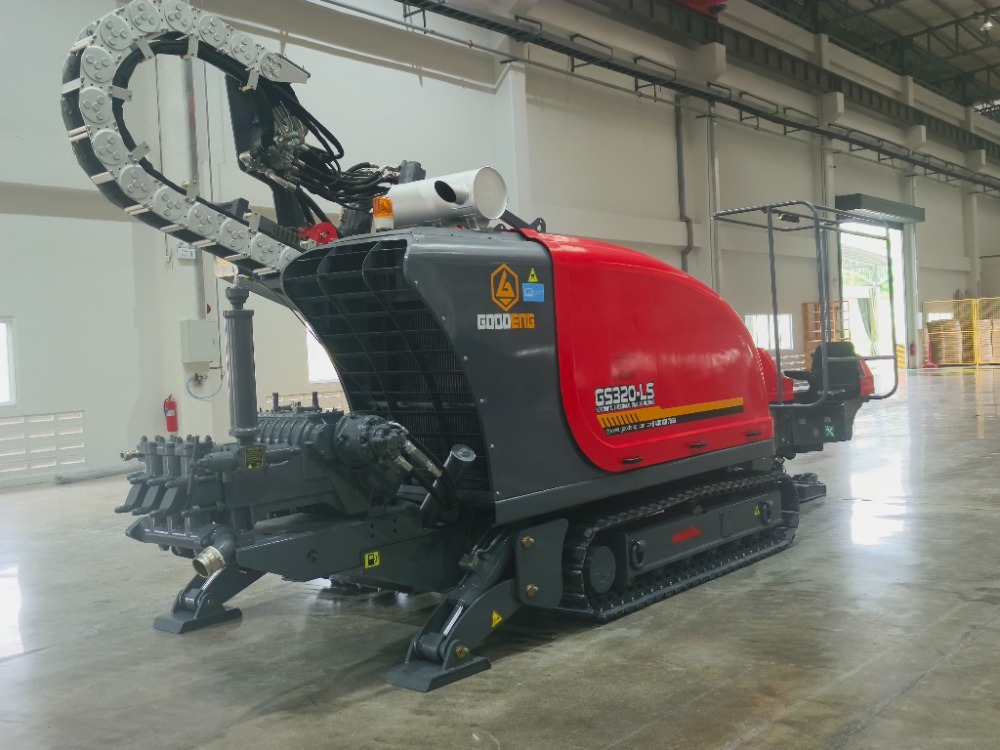

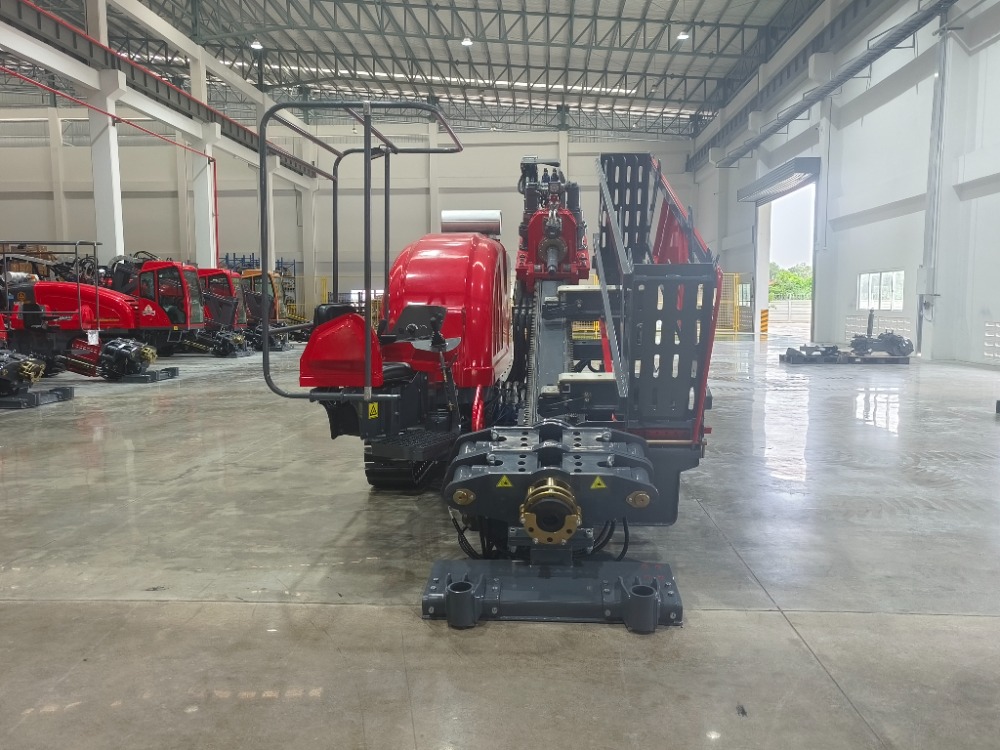

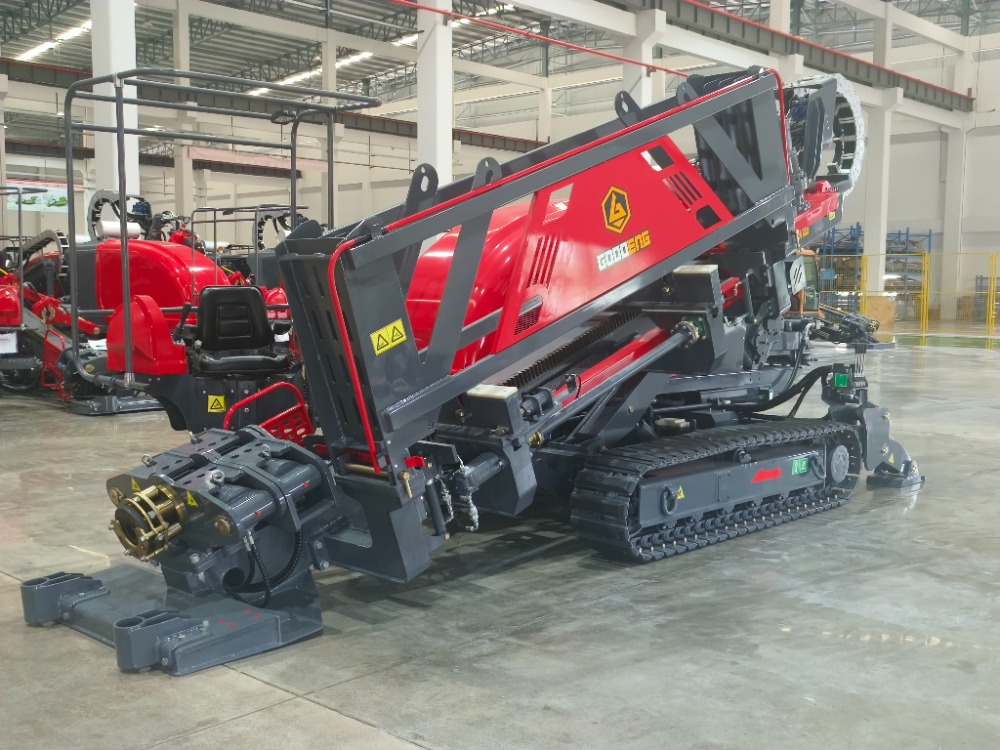

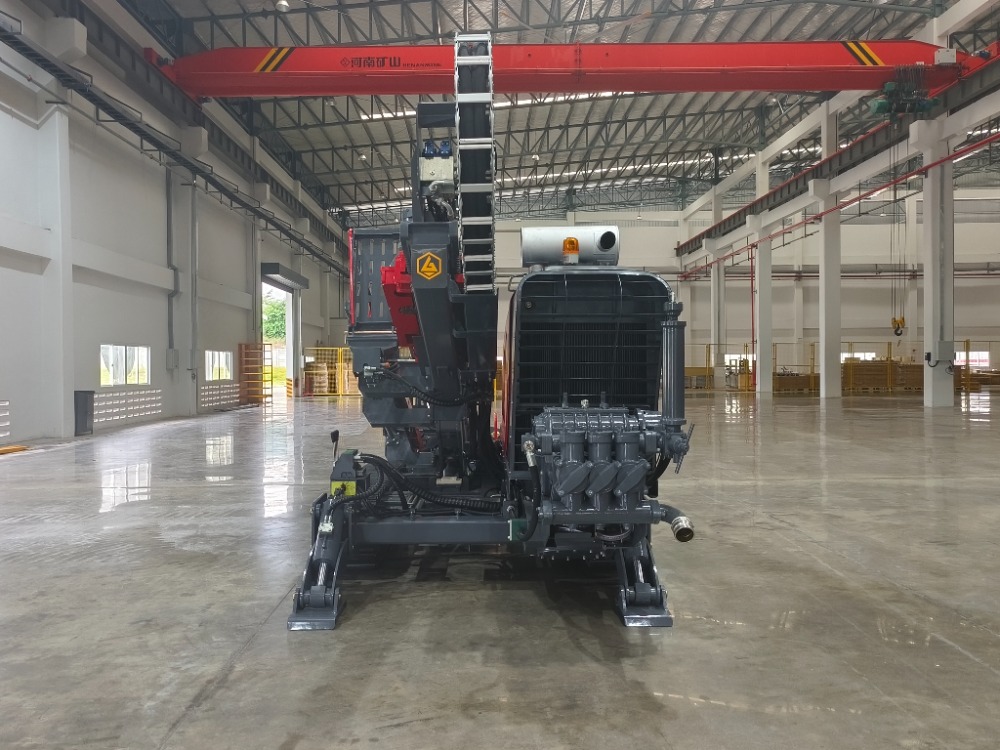

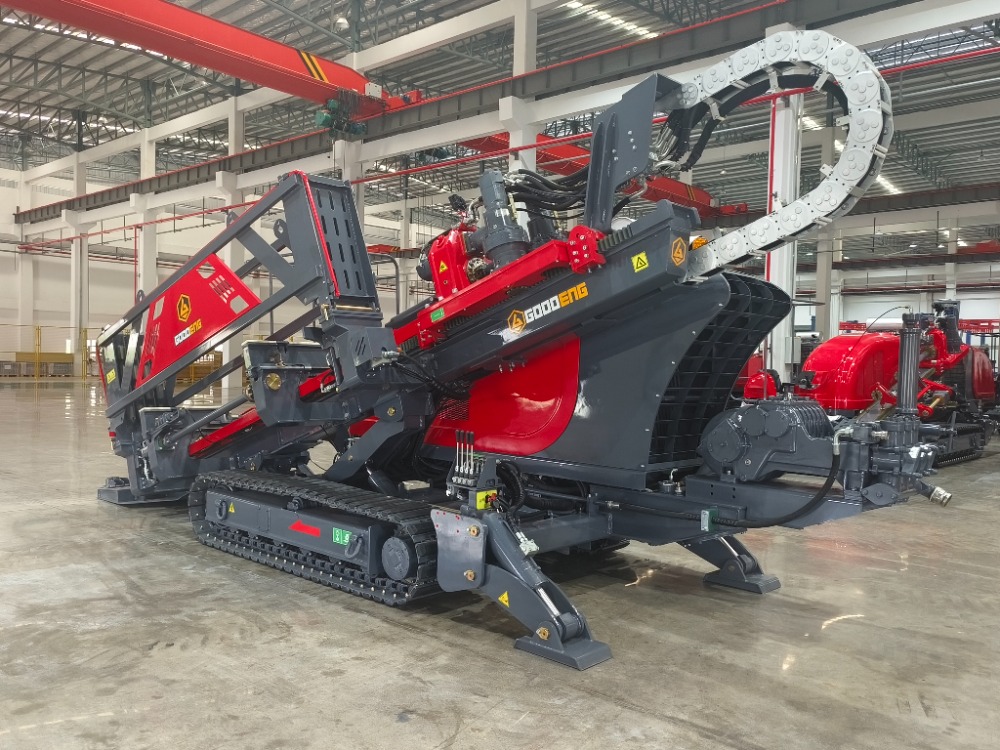

Goodeng 32 Ton GS320-LS Horizonal Directional Pipe Boring Drilling Machine/Rig (High Cost-effective Version)

1. Cumins engine .

2. Rotation adopts Eaton large torque motor.

3. Push & pull adopts American Eaton motor and Push & pull one-piece reducer with three gears speed regulation.

4. Walking hydraulic driving device Steel track walks with double speed by wire-control.

5. Panoramic open-air operating table.

7. Equipped with φ73×3000 mm or φ76×3000mm drill rod.

8. The driving head and rotation hydraulic system of driving head with Parallel control technology and hydraulic components,and independent cooling system

Technical Parameter

Weight	9700 kg	21385 lbs
Dimension(LxWxH)	7300×2150×2250 mm	287×85×89 in
Max.Thrust&Pullback Force	350/700 KN	78740/157480 lbf
Max.Thrust&Pullback Speed	40 m/min	131 fpm
Max.Torque	12600 N·m	9293 ft·lb
Max.Rotation Speed	140 r/min	140 rpm
Engine Power	153 kW	205 hp
Max.Mud flow	320 L/min	84.5 gal/min
Walking Speed	3.5-6 km/h	2.2-3.7 mph
Max.Mud Pump Pressure	8 MPa	1160 psi
Entry Angle	12°-22°	12°-22°
Max.Climbing Gradient	18°	18°
Drill Rod Size	Φ73×3000 mm	2.8×118 in
Drill Rad Box Capacity	36pcs(4x9)	36pcs(4x9)
Suggest Reaming Dia.	≤Φ900 mm	≤35.4 in
Suggest Crossing Length	≤400 m	≤15748 ft

Product Introduction

The Goodeng GS320-LS horizontal directional drill is a robust and efficient solution catering to all your drilling requirements. GS320-LS is engineered to offer outstanding performance and dependability, thereby making it an ideal selection for diverse drilling applications.

The GS320-LS is equipped with cutting-edge technology and features that distinguish it from its rivals. With its considerable torque and pullback force, this machine can manage the most arduous drilling tasks effortlessly. Its sturdy construction and durable components guarantee long-term performance, rendering it a valuable investment for any drilling operation.
One of the primary highlights of the GS320-LS is its flexibility. Whether you are engaged in pipe installation, utility construction, or any other drilling project, this machine provides consistent and precise outcomes. Its user-friendly interface and intuitive controls render it effortless to operate, enabling you to optimize productivity and efficiency on the job site.
