Pipe Pushers

Goodeng GSP5000 Pipe Thruster

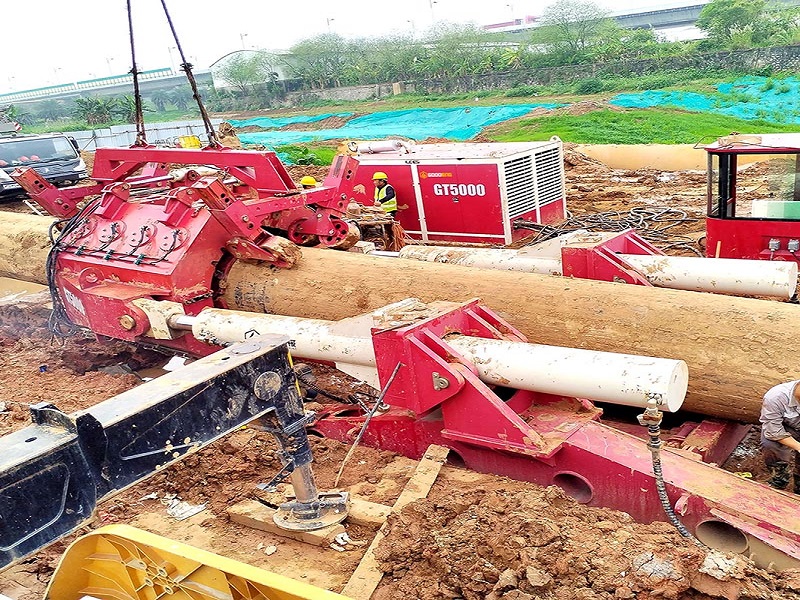

It mainly includes three parts: the main thruster, the power station, and the operating room. The main thruster push-pull device and the detachable design of the clamp head are convenient for transportation and installation.

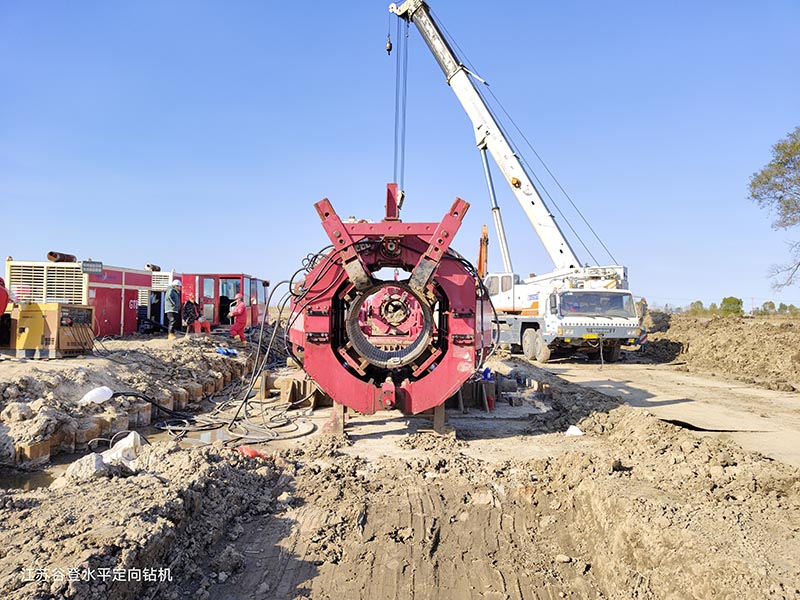

The edge of the large pipe clamp adopts its own patented technology: serrated edge technology, which fundamentally eliminates the damage caused by the extrusion and deformation of the tile gap during the construction process.

Choosing different lining materials for different pipes effectively increases the friction on the pipeline while minimizing damage to the pipeline anti-corrosion layer during the pushing process.

Technical Parameter

Item	Metric Unit	Imperial Unit
Clamp Weight	30500 kg	67240 lbs
Clamp Diameter	212017602800 mm	8370110 inch
Thruster Weight	40000 kg	88185 lbs
Max.Dimension of Working Condition	1257045003590 mm	495177141 lbs
Engine Power	264 kw	354 hp
Pipeline Range	18"-56"	18"-56"
Max. Thrust Force	5200 kN	1168535 lbf
Max. Thrust Speed	2.7 m/min	8.86 ft/min
Max. Pullback Force	3600 kN	809969 lbf
Max. Pullback Speed	3.9 m/min	12.8 ft/min
Stroke of Hydraulic Cylinder	3.5 m	11.5 feet
Working Angle	-14°~5°	-14°~5°

Product Introduction

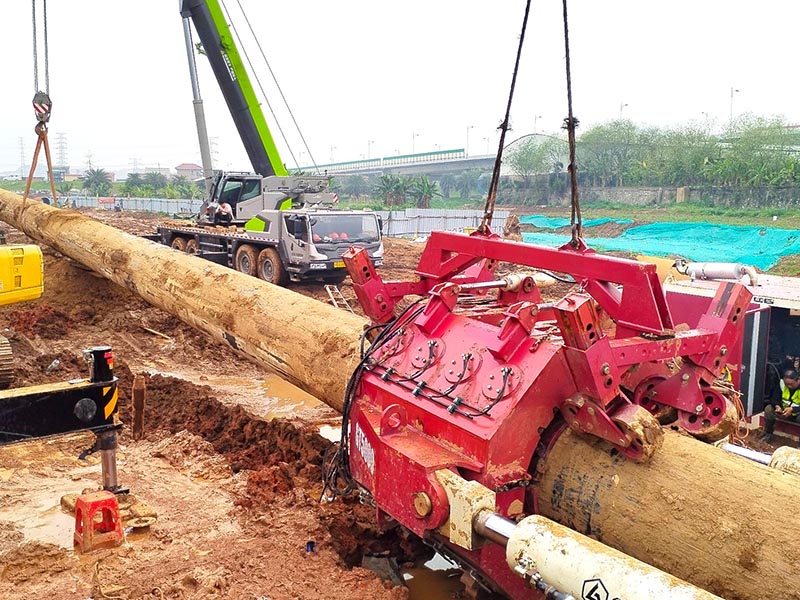

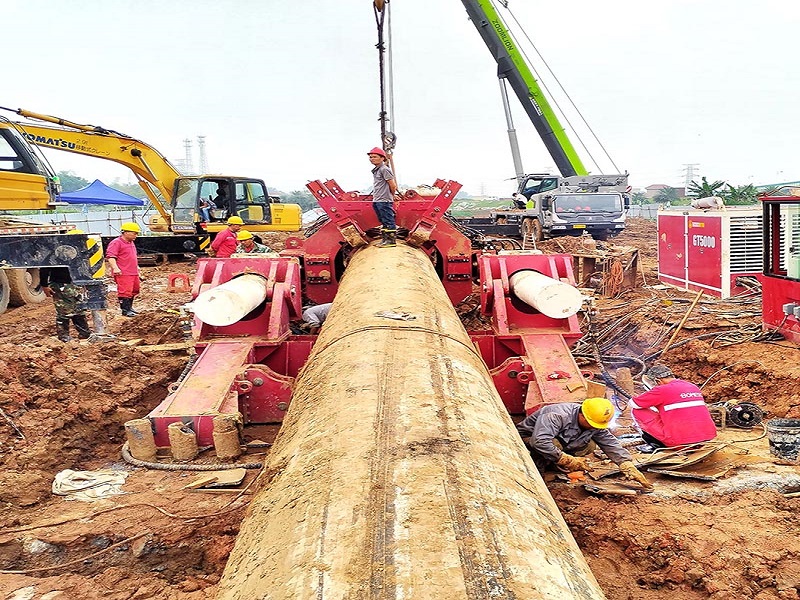

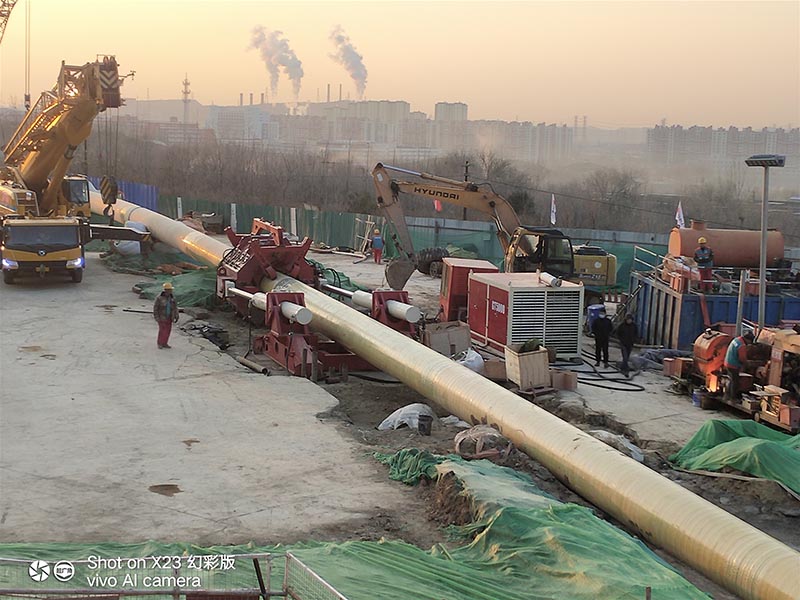

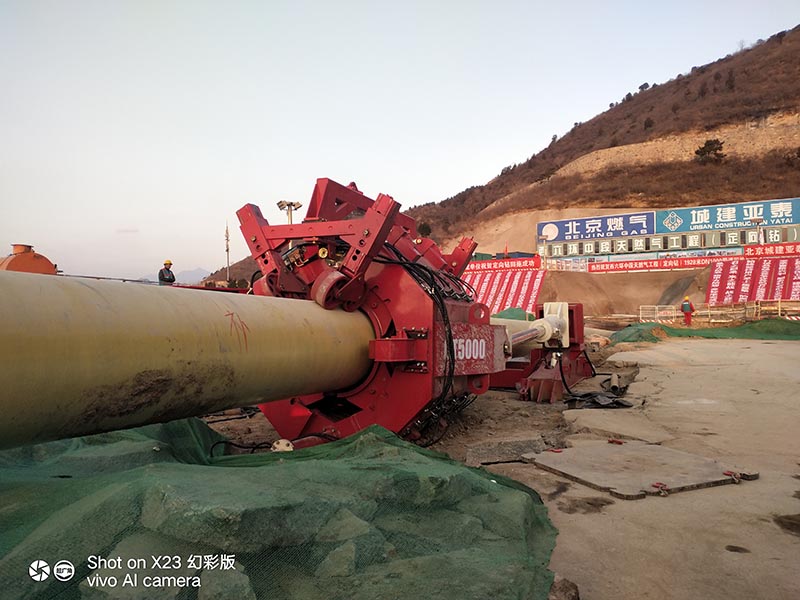

The pipe thruster is mainly used in horizontal directional drilling and pipe laying projects. With its powerful pushing and pulling capabilities, it provides assistance during the pipeline's pullback stage and assists in pipe pushing operations.

Push-pull force, push-pull speed, clamping force, and electric proportional adjustable infinitely. Push-pull high-speed merging technology can quickly improve the speed of pushing and pulling.

The clamping synchronization technology fully ensures the synchronization of the tile during the clamping process, avoiding slippage and damage to the pipe fittings caused by biased clamping.
