Pipe Pushers

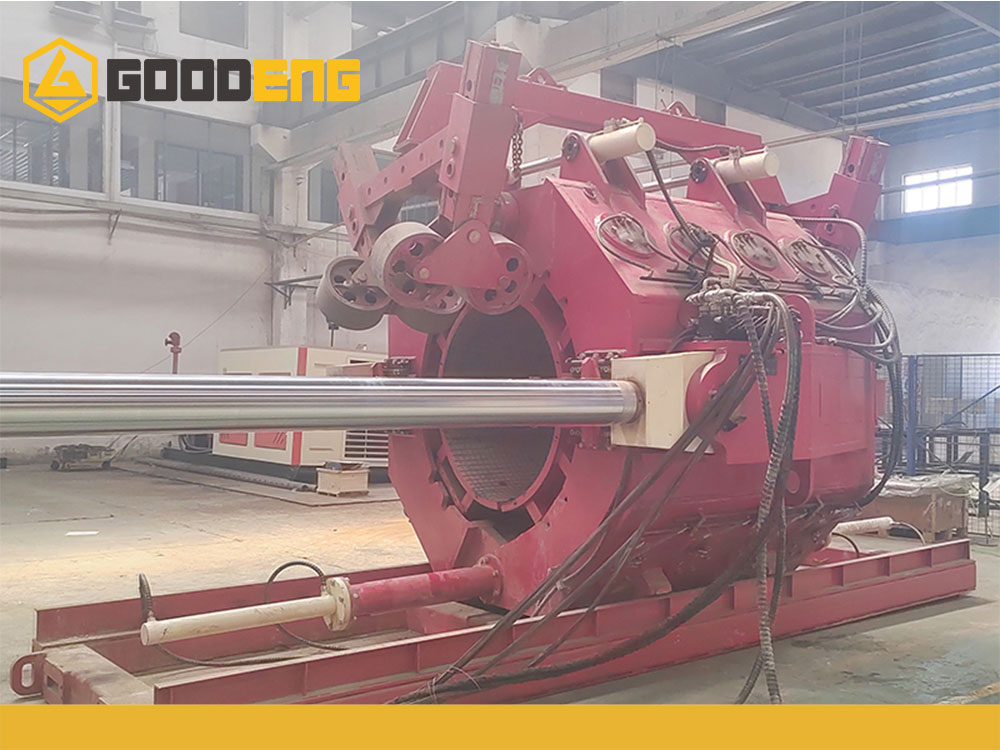

Goodeng GSP5000 Pipe Thruster used in horizontal directional drilling field for pulling pipe

The Goodeng GSP5000 pipe pusher is a highly efficient trenchless pipe laying machine, whose core advantages lie in its superior construction capabilities and intelligent design. Its exceptional thrust and precise guidance system enable it to easily navigate complex strata, ensuring linear accuracy and high efficiency in pipe laying.

Its modular design facilitates transportation and on-site assembly. Furthermore, its integrated intelligent control system enables real-time monitoring of construction parameters, resulting in a high degree of automation, effectively reducing operational complexity and labor costs. Furthermore, its sturdy frame and reliable hydraulic system ensure durability and stability under high-intensity conditions, making it an ideal choice for safe, environmentally friendly, and economical construction in municipal engineering projects.

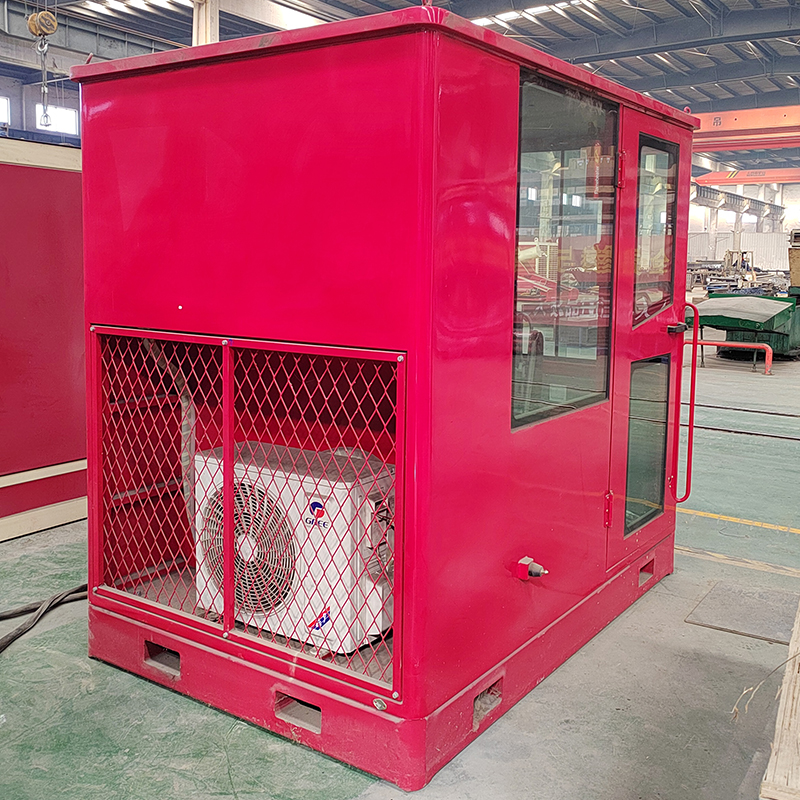

Goodeng GSP5000,(500Ton,pipe thruster) (10).jpg

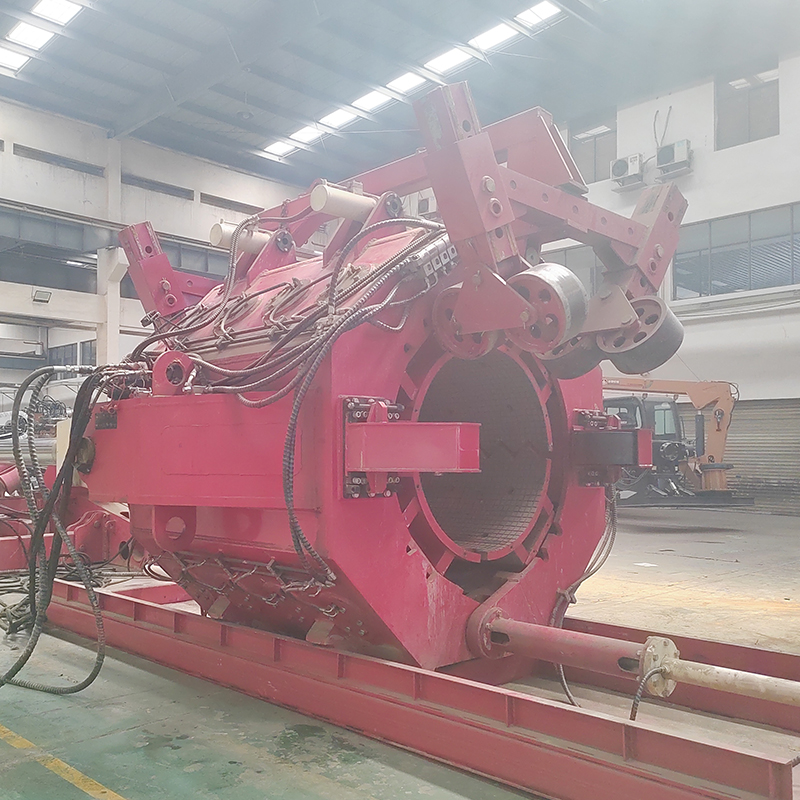

Goodeng GSP5000,(500Ton,pipe thruster) (16).jpg

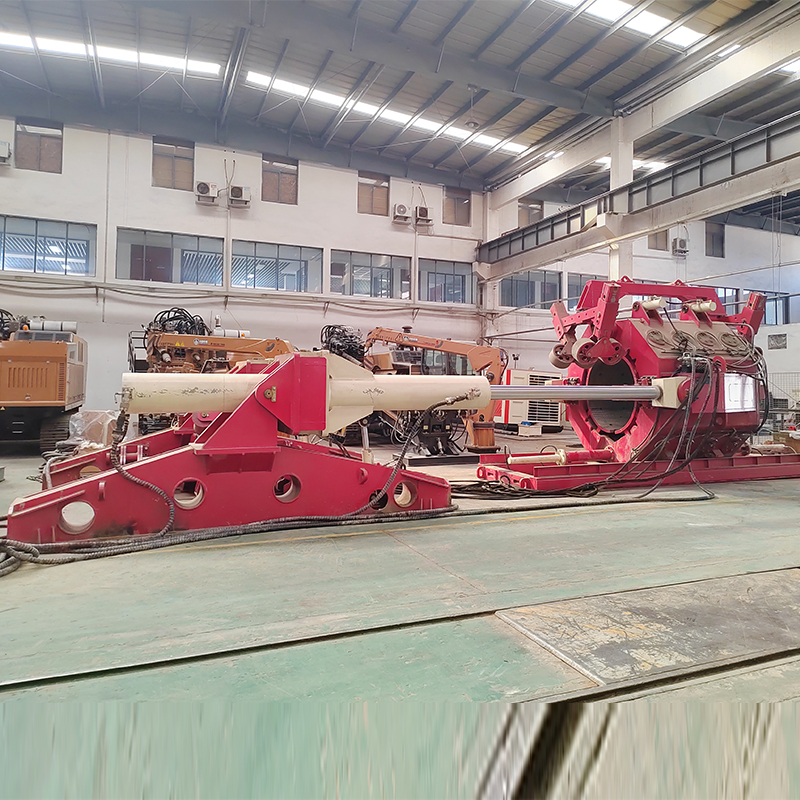

Goodeng GSP5000,(500Ton,pipe thruster) (24).jpg

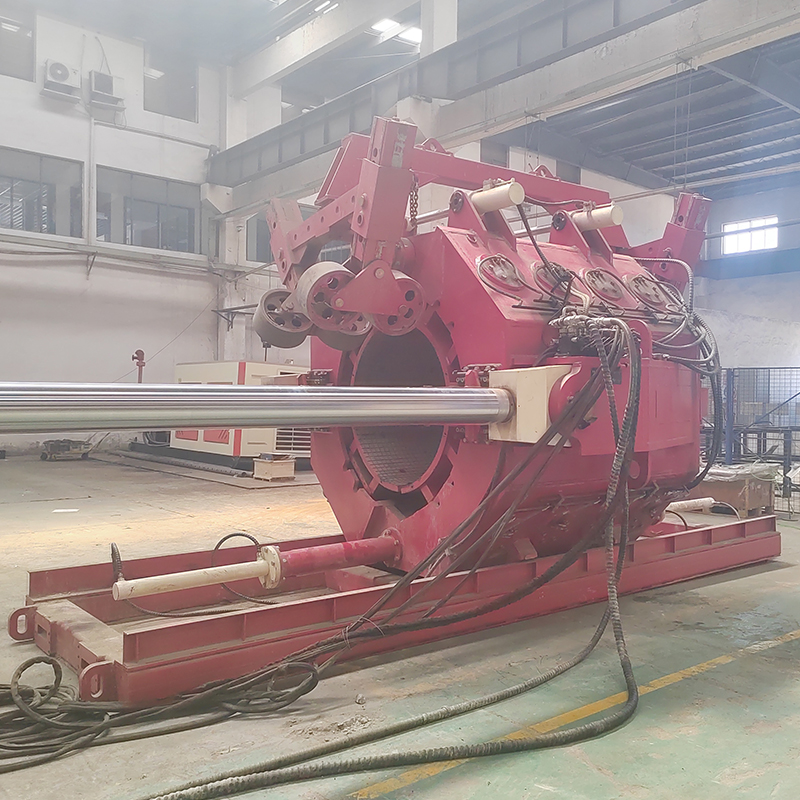

Goodeng GSP5000,(500Ton,pipe thruster) (15).jpg

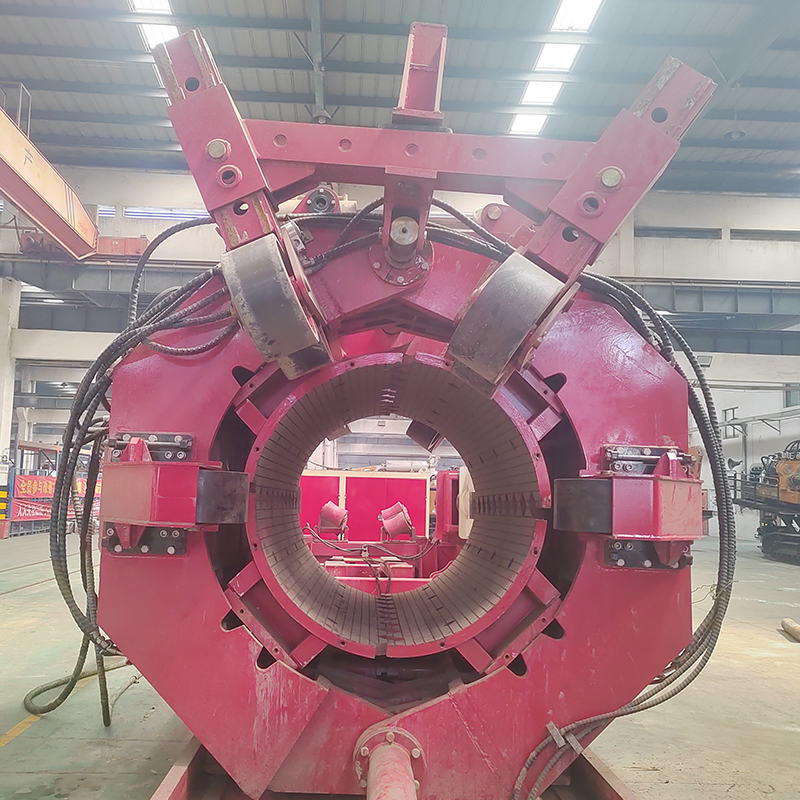

Goodeng GSP5000,(500Ton,pipe thruster) (17).jpg

Technical Parameter

Item	Metric Unit	Imperial Unit
Clamp Weight	30500 kg	67240 lbs
Clamp Diameter	212017602800 mm	8370110 inch
Thruster Weight	40000 kg	88185 lbs
Max.Dimension of Working Condition	1257045003590 mm	495177141 lbs
Engine Power	264 kw	354 hp
Pipeline Range	18"-56"	18"-56"
Max. Thrust Force	5200 kN	1168535 lbf
Max. Thrust Speed	2.7 m/min	8.86 ft/min
Max. Pullback Force	3600 kN	809969 lbf
Max. Pullback Speed	3.9 m/min	12.8 ft/min
Stroke of Hydraulic Cylinder	3.5 m	11.5 feet
Working Angle	-14°~5°	-14°~5°

Product Introduction

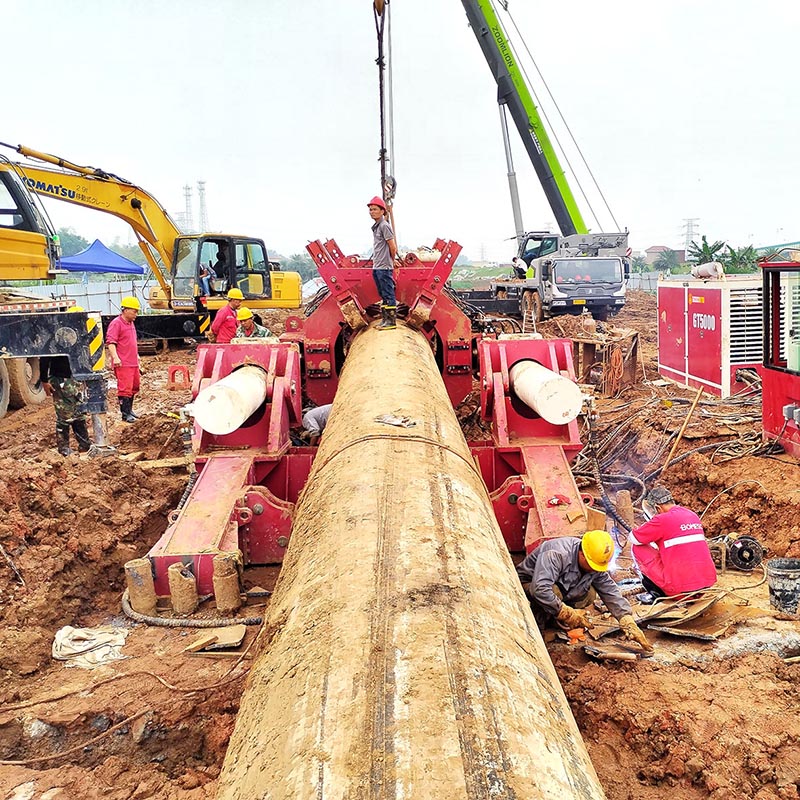

The pipe thruster is mainly used in horizontal directional drilling and pipe laying projects. With its powerful pushing and pulling capabilities, it provides assistance during the pipeline's pullback stage and assists in pipe pushing operations.

1.Powerful Construction Capabilities: Equipped with an ultra-large thrust system, the powerful machine easily handles complex geological conditions, ensuring efficient and stable pipe laying.

2.Precise Guidance Control: A high-precision guidance system enables precise pipe laying, effectively controlling the straightness and elevation of the laying path, ensuring high-quality construction.

3.Intelligent Human-Machine Interaction: Equipped with an advanced intelligent control system, it displays, monitors, and records key construction parameters in real time. Operation is intuitive and simple, reducing reliance on manpower and operational difficulty.

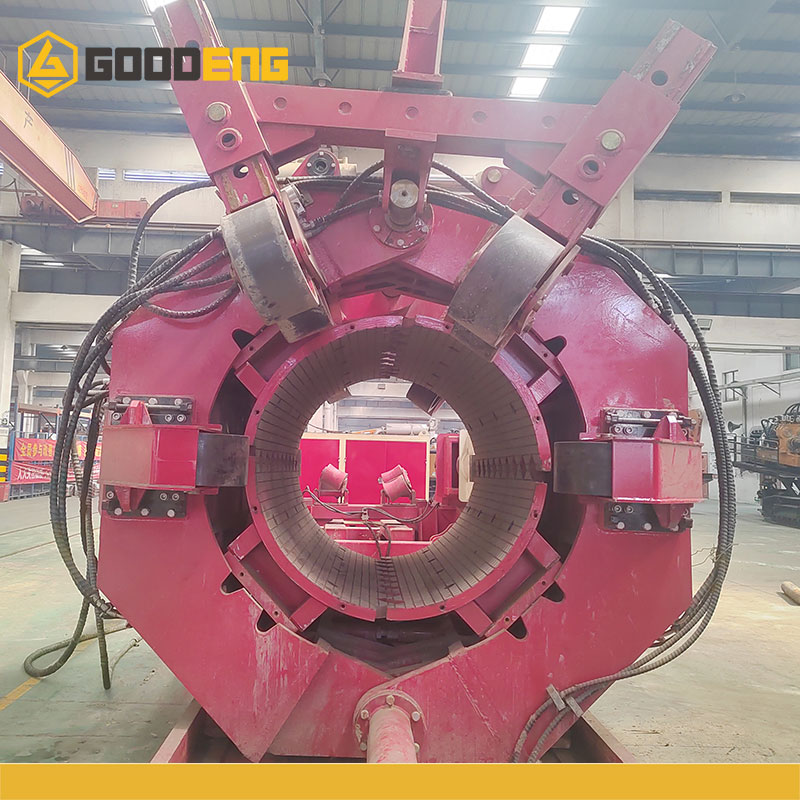

4.The clamping synchronization technology fully ensures the synchronization of the tile during the clamping process, avoiding slippage and damage to the pipe fittings caused by biased clamping.
