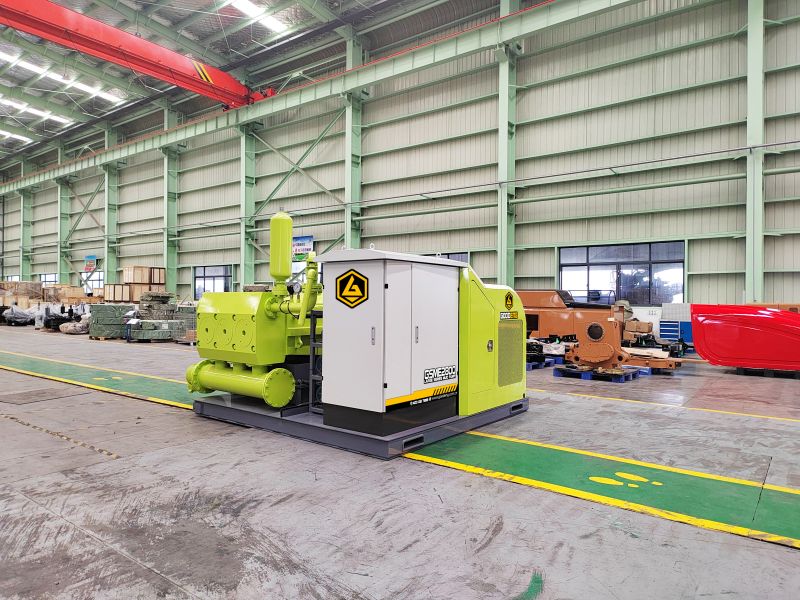

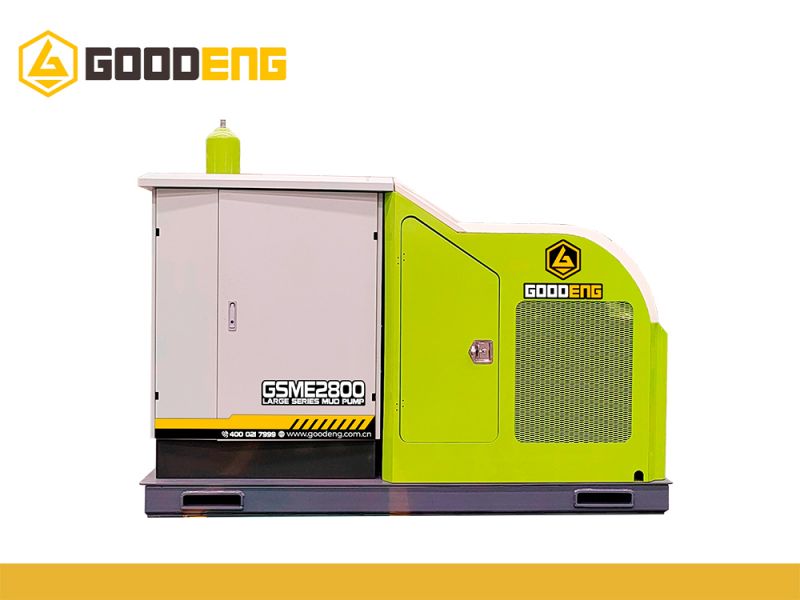

Goodeng GSME2800 Electrical Mud Pump for Trenchless HDD drilling Auxiliary Equipment
Technical Parameter
| Metric Unit | Imperial Unit | |
| Weight | 12000 kg | 26455 lbs |
| Dimension (LxWxH) | 3280×2700×2270 mm | 129×106×89in |
| Mud Pump Stroke | 180 mm | 7.1 in |
| Max.Mud Pressure | 10 Mpa | 1450 psi |
| Engine Power | 310 kw | 416 hp |
| Mud Pump Cylinder Dia. | Φ220 mm | 8.7 in |
| Max.Stroke Frequency | 120/min | 120/min |
| Max. Mud Flow | 2800 L/min | 740 gal/min |
-
1、It adopts pure electric power drive, which greatly reduces the construction cost.
2、The whole machine is driven by electricity, low noise and zero pollution during operation, energy saving and environmental protection.
3、Automatic fault detection, more convenient maintenance.
4, specially designed for the characteristics of non-excavation construction of large-scale electric drive mud pump system, PLC control, remote start and stop mud pump, remote stepless adjustment of mud flow to adapt to the construction needs of different working conditions; to avoid the trouble of conventional mud pumps through frequent shift adjustment of the flow rate, saving time and effort.
5、Human-machine interaction is fully upgraded with integrated operating system, which deeply exploits the functions of automated construction and intelligent protection.
.

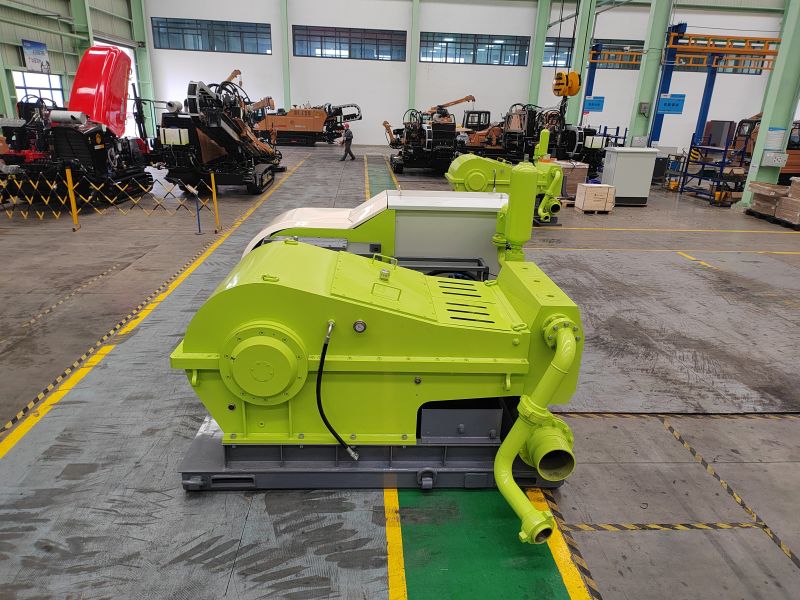

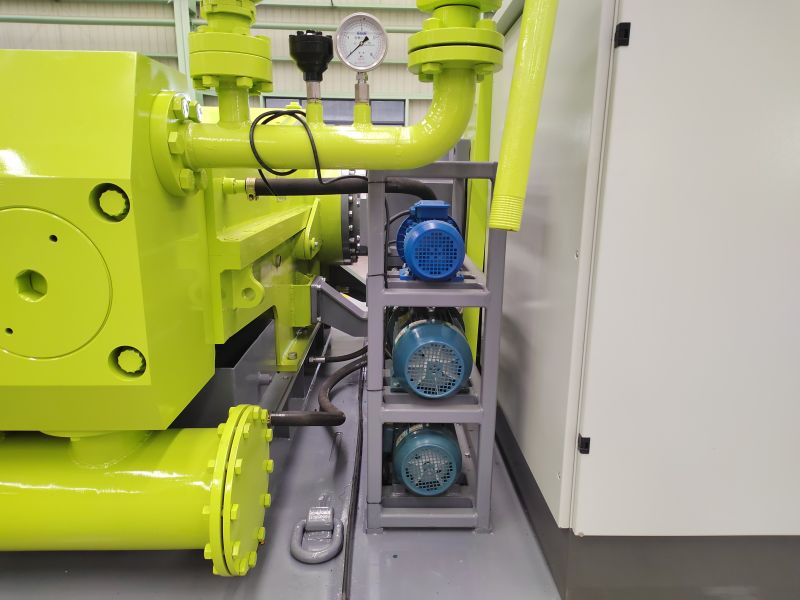

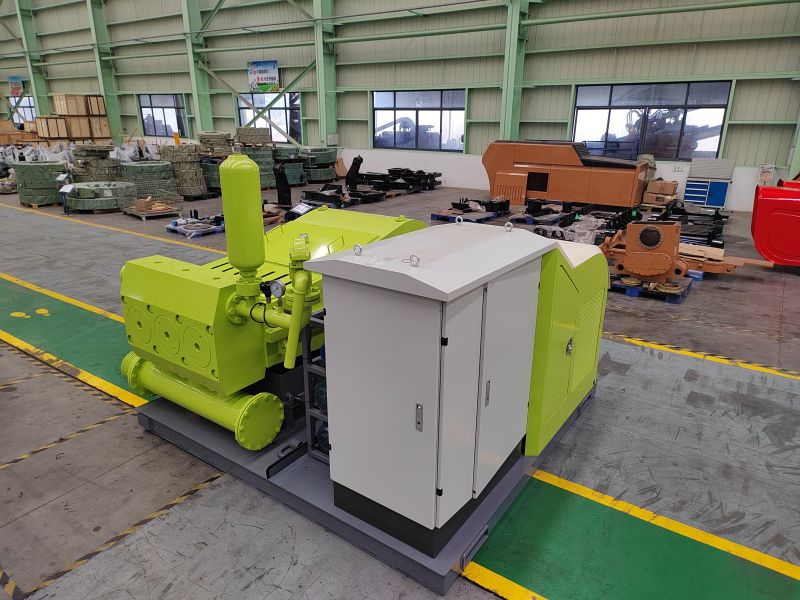

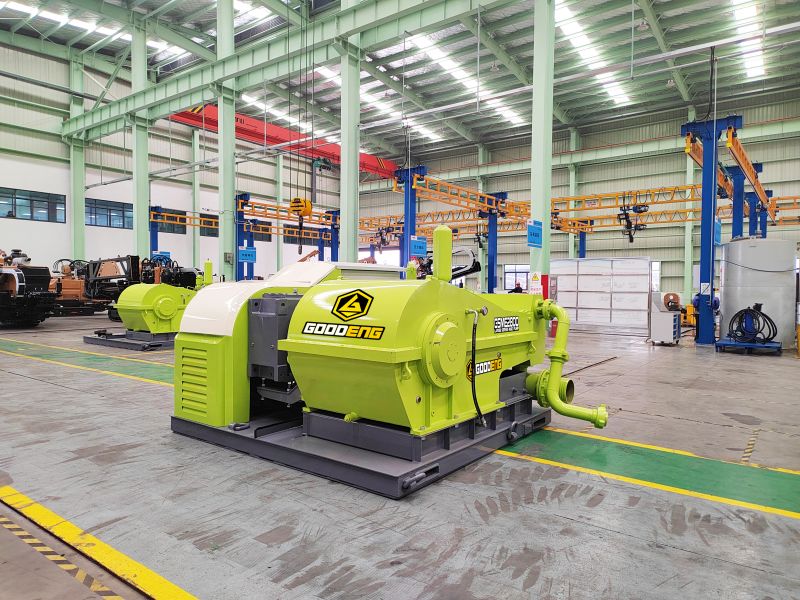

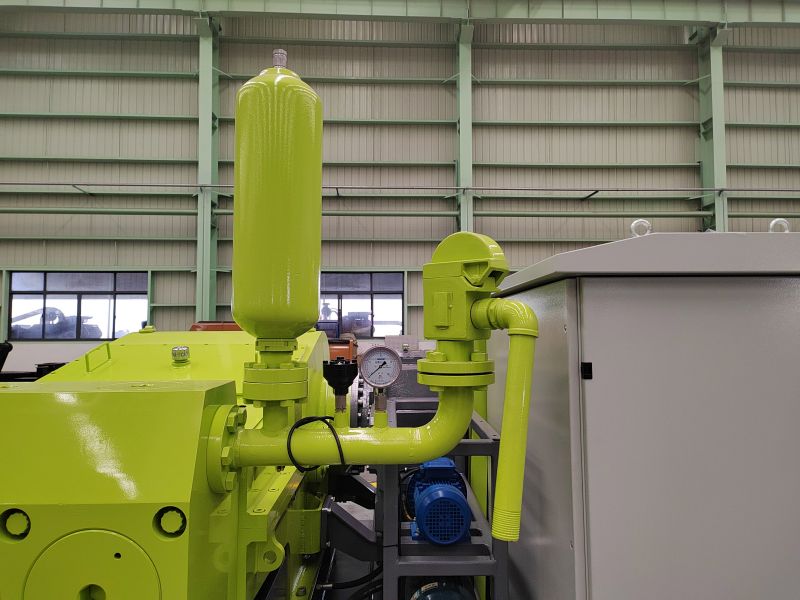

Main Details
