    Get Goodeng GSM2500 Mud Pump for HDD Tooling
    Mud Pumps

    Get Goodeng GSM2500 Mud Pump for HDD Tooling

    Introducing the top-of-the-line construction machinery special engine from Shanghai Goodeng International Co., Ltd. This powerful and reliable product offers robust power and reliable performance, making it the perfect choice for non-excavation construction projects. Equipped with a remote controller, it allows for convenient remote control of the mud pumping station functions, offering enhanced efficiency and energy savings. The all-hydraulic drive ensures optimal performance and a PLC control system enables remote, stepless adjustment of the mud flow. Additionally, the remote controller includes a hydraulic display, providing essential information such as mud flow, pressure, engine parameters, fault codes, and more. Trust in Shanghai Goodeng International Co., Ltd. for advanced construction machinery that meets your needs for efficiency and reliable performance
      Contact us
      Mud Pump Trenchless HDD hdd tooling Goodeng GSM2500
      Mud Pump Trenchless HDD hdd tooling Goodeng GSM2500
      Mud Pump Trenchless HDD hdd tooling Goodeng GSM2500
      Mud Pump Trenchless HDD hdd tooling Goodeng GSM2500
      Mud Pump Trenchless HDD hdd tooling Goodeng GSM2500
      Mud Pump Trenchless HDD hdd tooling Goodeng GSM2500

      Technical Parameter

        Metric Unit Imperial Unit
      Weight 14000 kg 30865.5 lbs
      Dimension (LxWxH) 6200×2500×2560 mm 244.09×98.43×100.79 in
      Max.Working Pressure 35 MPa 5076 psi
      Mud Pump Stroke 180 mm 7.09 in
      Max.Mud Pressure 10 Mpa 1450 psi
      Engine Power 410 kw 549.42 hp
      Mud Pump Cylinder Dia. Φ220 mm 8.66 in
      Max.Stroke Frequency 120/min 120/min
      Max. Mud Flow 2500 L/min 660 gal/min

      Main Characteristics

      • 1. The heavy-duty mud pump system has been specifically designed for HDD construction. Its PLC control and stepless mud flow control characteristics allow it to meet the demands of a wide range of project requirements, eliminating the issues that can arise from the traditional method of changing cylinder liners to adjust the flow.

        2. Operators can start and stop the engine and adjust the slurry flow via remote control in the rig cabin, enhancing operational ease and convenience.

        3. The Cummins Engine provides strong power, stable performance, and low fuel consumption.

        4. The German Rexroth hydraulic system is completely driven and offers stable, reliable performance, high efficiency, and energy savings compared to traditional mechanical hydraulic coupling transmissions.

        5. The LED display indicates mud flow, pressure, engine parameters, and troubleshooting data, among other features.

        6. The skid-mounted transportation meets the standard dimensions for transportation regulations in many countries.

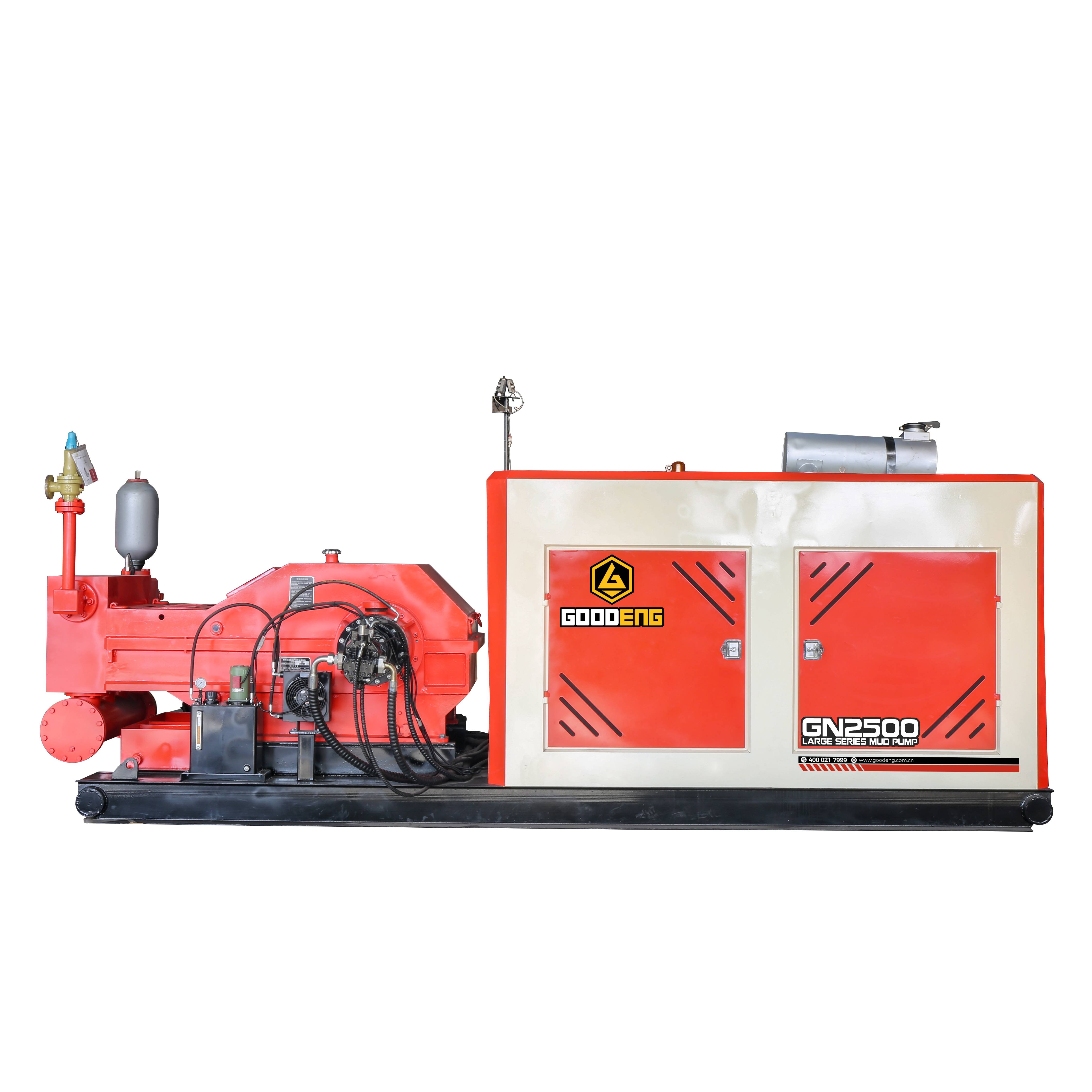

      58624dafz9

      solution MAIN DETAILS

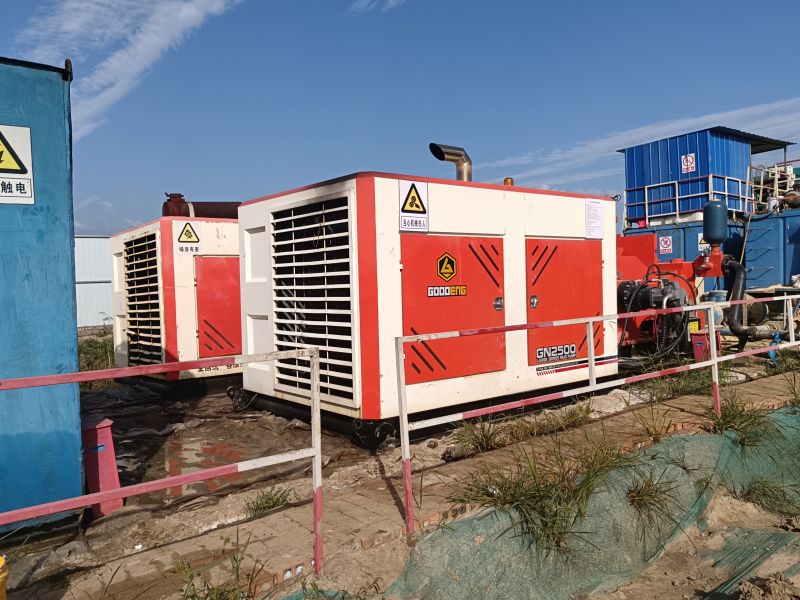

      30bc44618eddad3be3c905db53e1da4-1

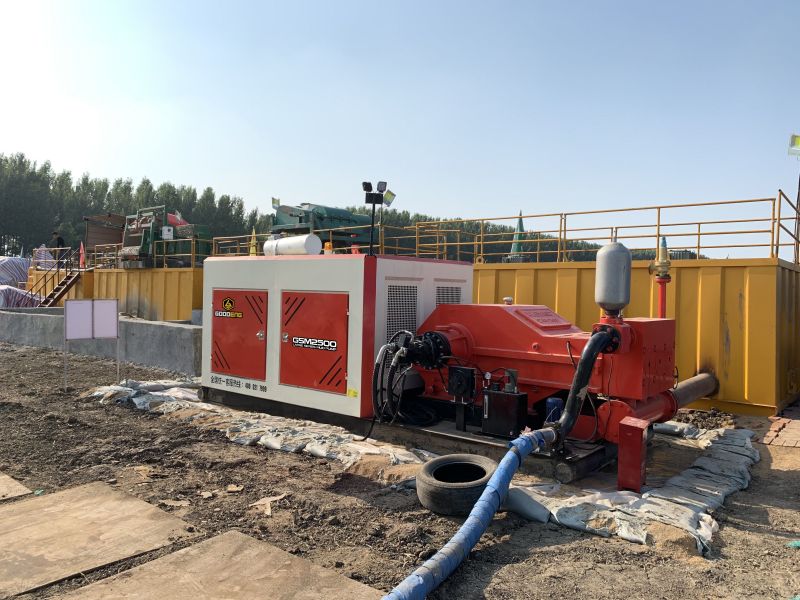

      49d3a0639cb157a456c4b95e57e831b-1

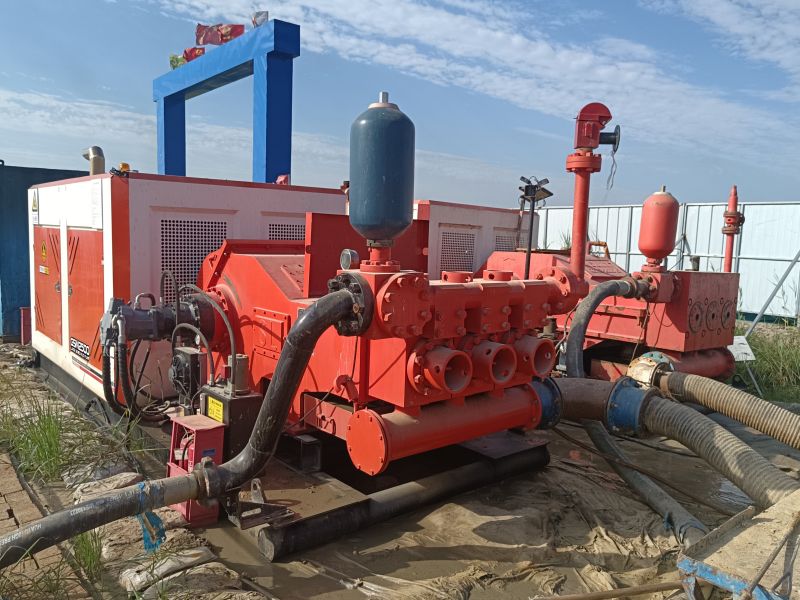

      775952b91bd2042d92e9d2feddd8038-1

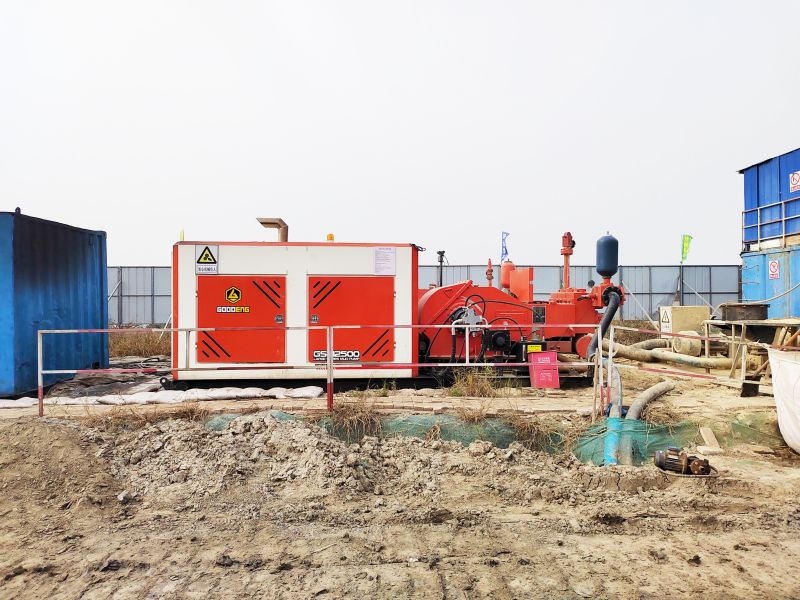

      img_20221106_104947-1

      Production Process

      1
      BLANKING 1

      BLANKING

      2
      RIVET-WELDING 2

      RIVET-WELDING

      3
      MACHINING 3

      MACHINING

      4
      ASSEMBLING 4

      ASSEMBLING

      5
      DEBUGGING 5

      DEBUGGING

      6
      TESTING 6

      TESTING

      65420be751dad22160
      Jiangsu Goodeng Heavy Machinery
      FAQ (2)

      FAQ

      • 1

        What is the GOODENG GSM2500 Mud Pump used for?

        The GSM2500 is a heavy-duty independent mud pump station specially designed for large-scale HDD and trenchless construction projects, providing a stable supply of drilling fluid.

      • 2

        What is the maximum mud flow of the GSM2500?

        The GSM2500 provides a maximum mud flow of 2,500 L/min, making it suitable for large-diameter and demanding HDD applications.

      • 3

        What is the maximum mud pressure of the GSM2500?

        The maximum mud pressure is 10 MPa, while the hydraulic system can reach a maximum pressure of 35 MPa.

      • 4

        Can the GSM2500 mud flow be adjusted remotely?

        Yes. The GSM2500 uses a PLC control system to provide remote and stepless adjustment of mud flow according to different construction requirements.

      • 5

        Can the GSM2500 be operated from the HDD rig cabin?

        Yes. Operators can remotely start and stop the engine and adjust the mud flow from the HDD rig cabin, improving convenience and operational efficiency.

      • 6

        What information can the GSM2500 remote controller display?

        The remote controller with LED display can show important operating information, including mud flow, mud pressure, engine parameters, and fault codes, allowing operators to monitor the system in real time.

      • 7

        What are the main advantages of the GSM2500?

        The GSM2500 features a full hydraulic drive system, PLC-controlled stepless mud flow adjustment, remote operation, and a heavy-duty design, providing stable and efficient performance for demanding HDD projects.
