    Goodeng GSM1800 Mud Pump - HDD Directional Drill
    Mud Pumps

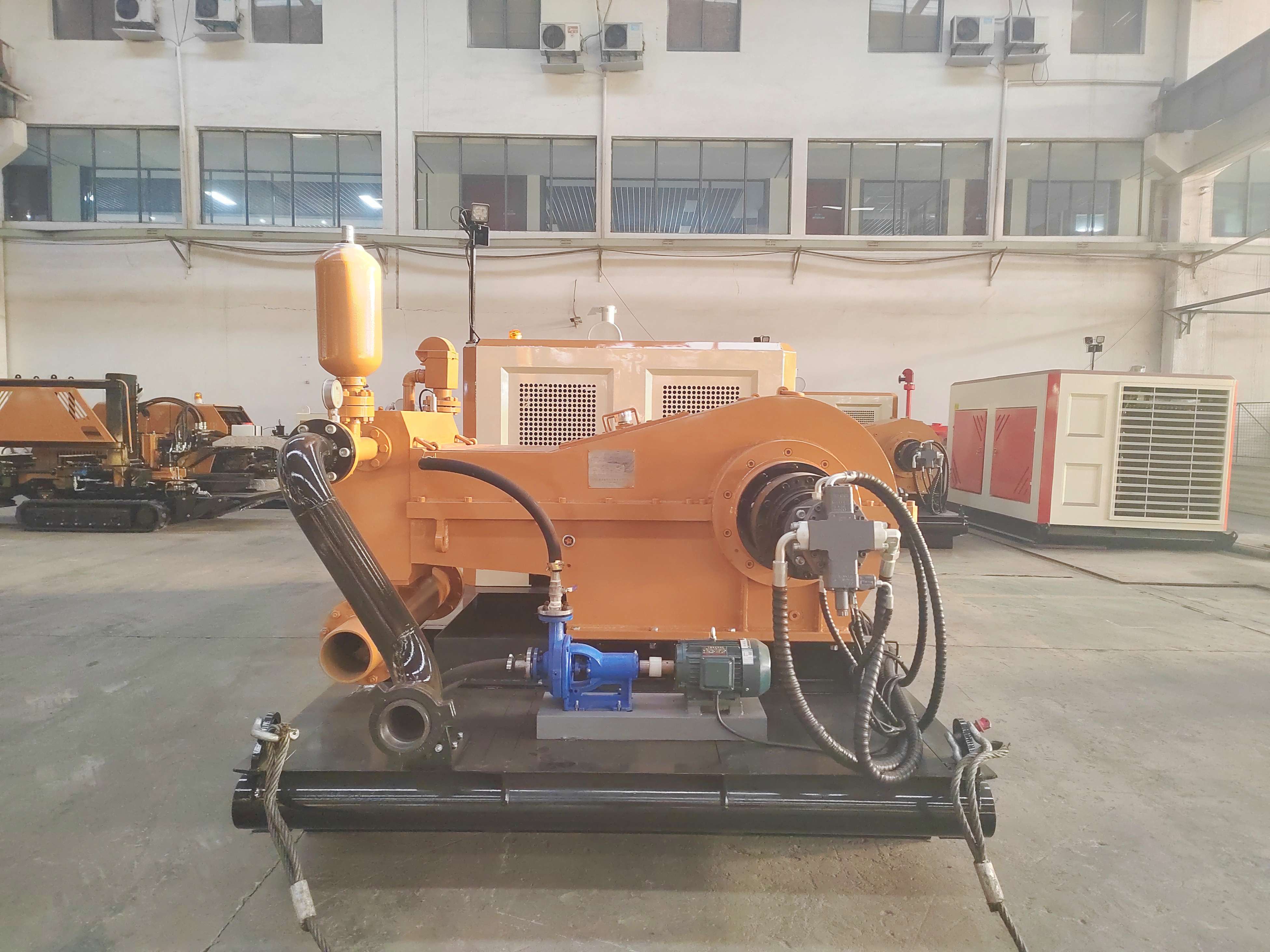

    Goodeng GSM1800 Mud Pump - HDD Directional Drill

    Shanghai Goodeng International Co., Ltd. offers a first-class brand of construction machinery special engine that boasts strong power and stable performance. Equipped with a remote controller, our machinery allows for remote control of the mud pumping station functions, providing more convenient control for operators. Our all-hydraulic drive system is not only more efficient, but also more energy-saving compared to traditional transmission methods.

      Contact us
      Mud Pump Trenchless HDD hdd tooling Goodeng GSM1800

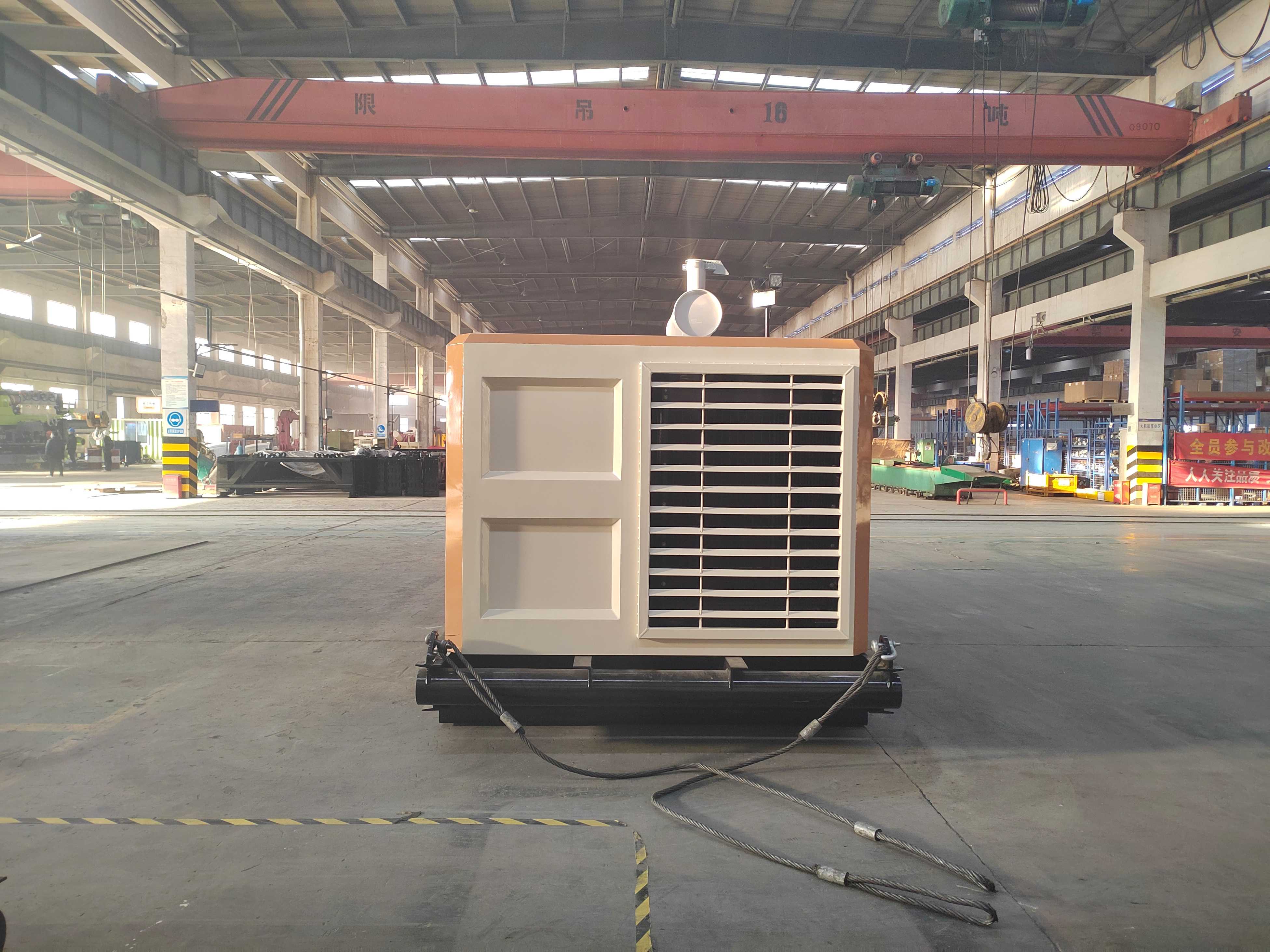

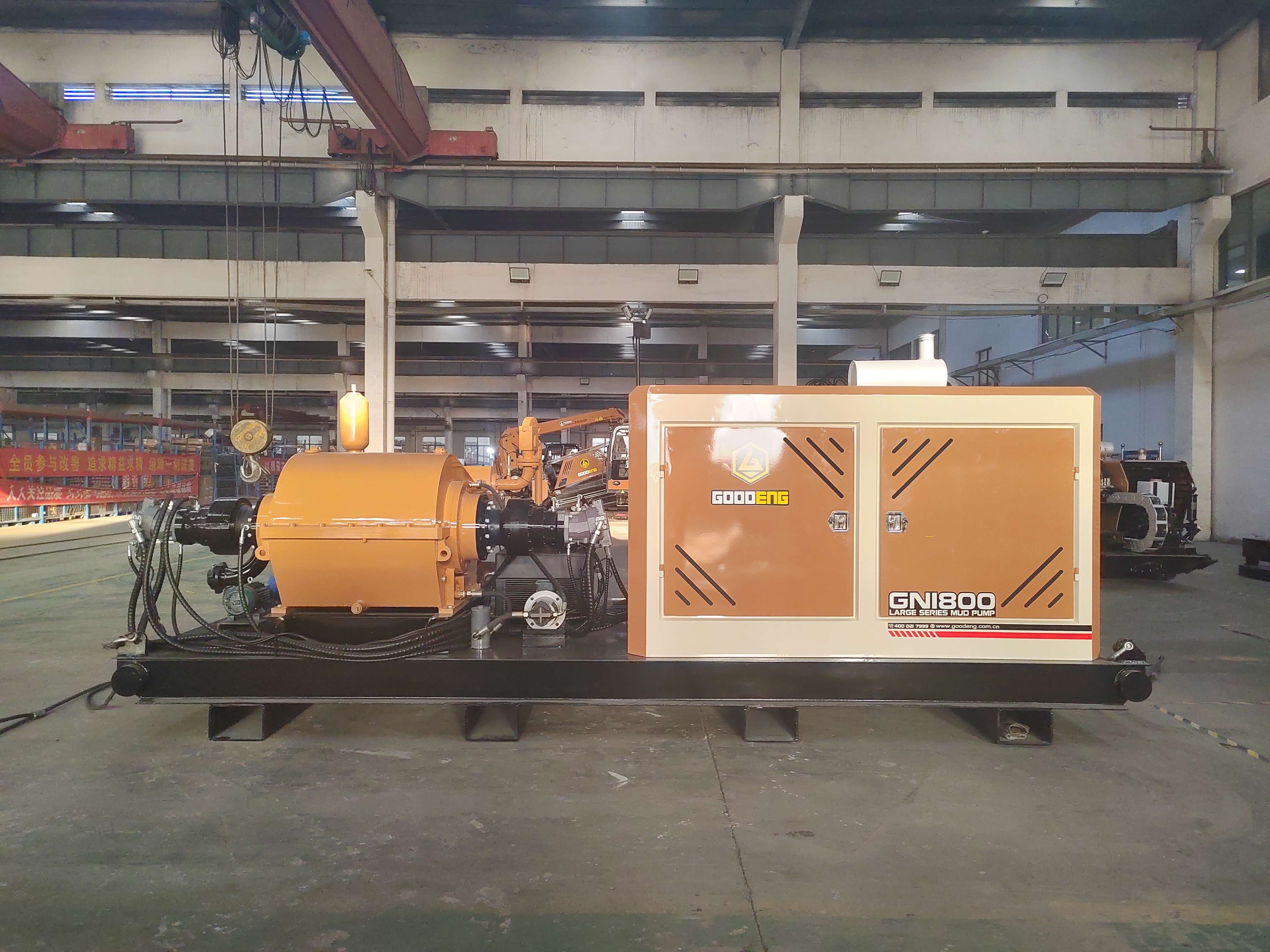

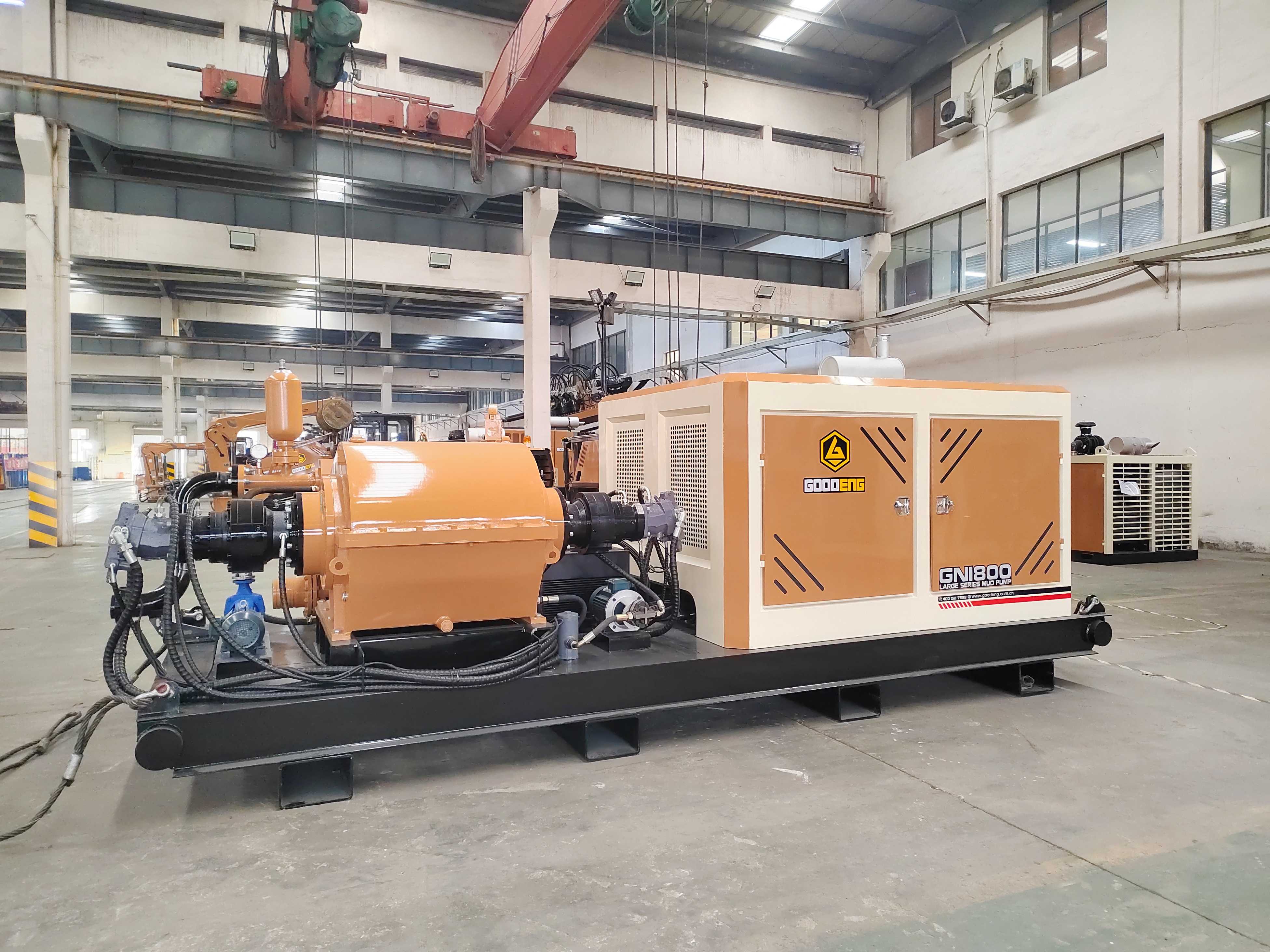

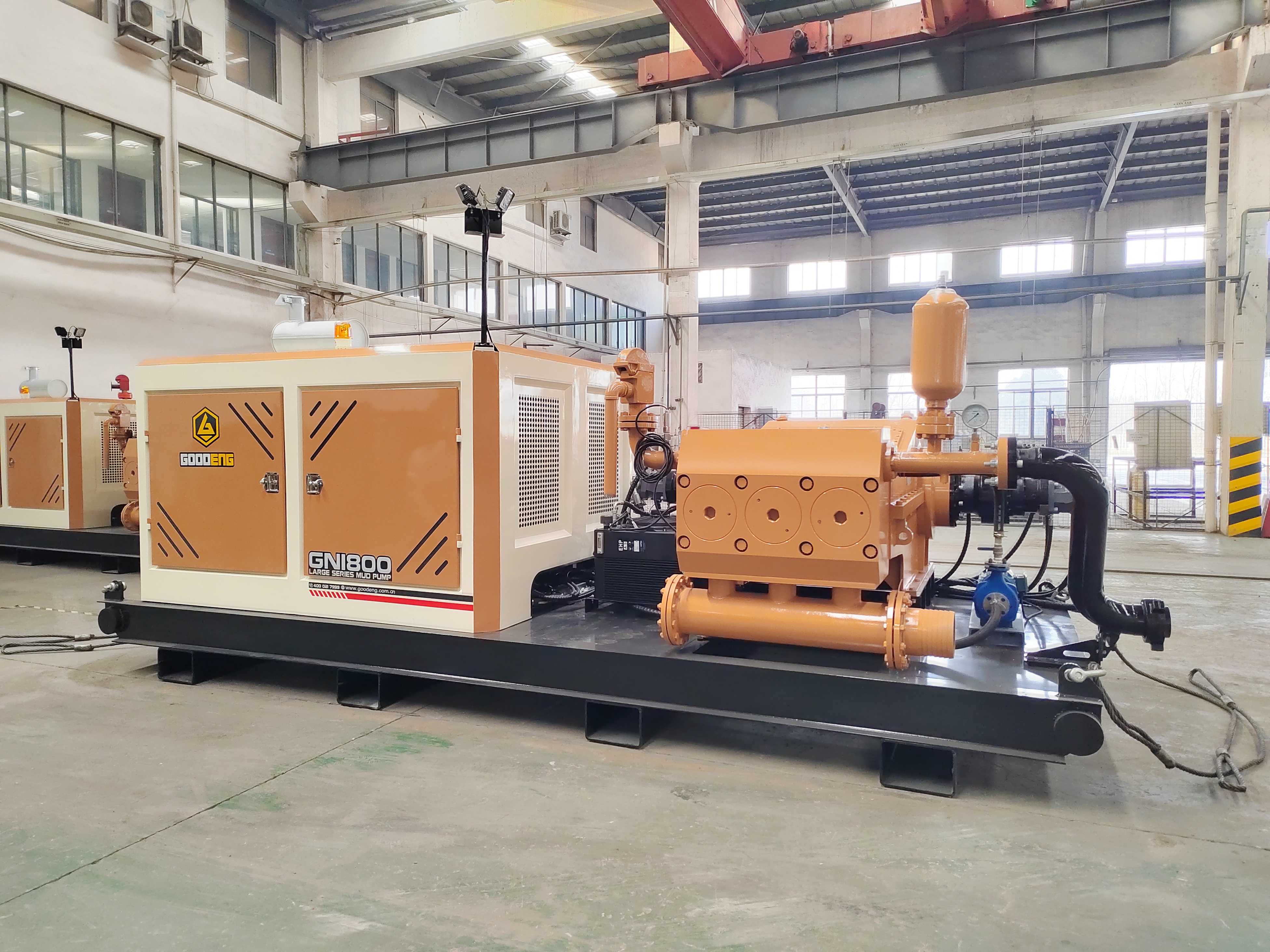

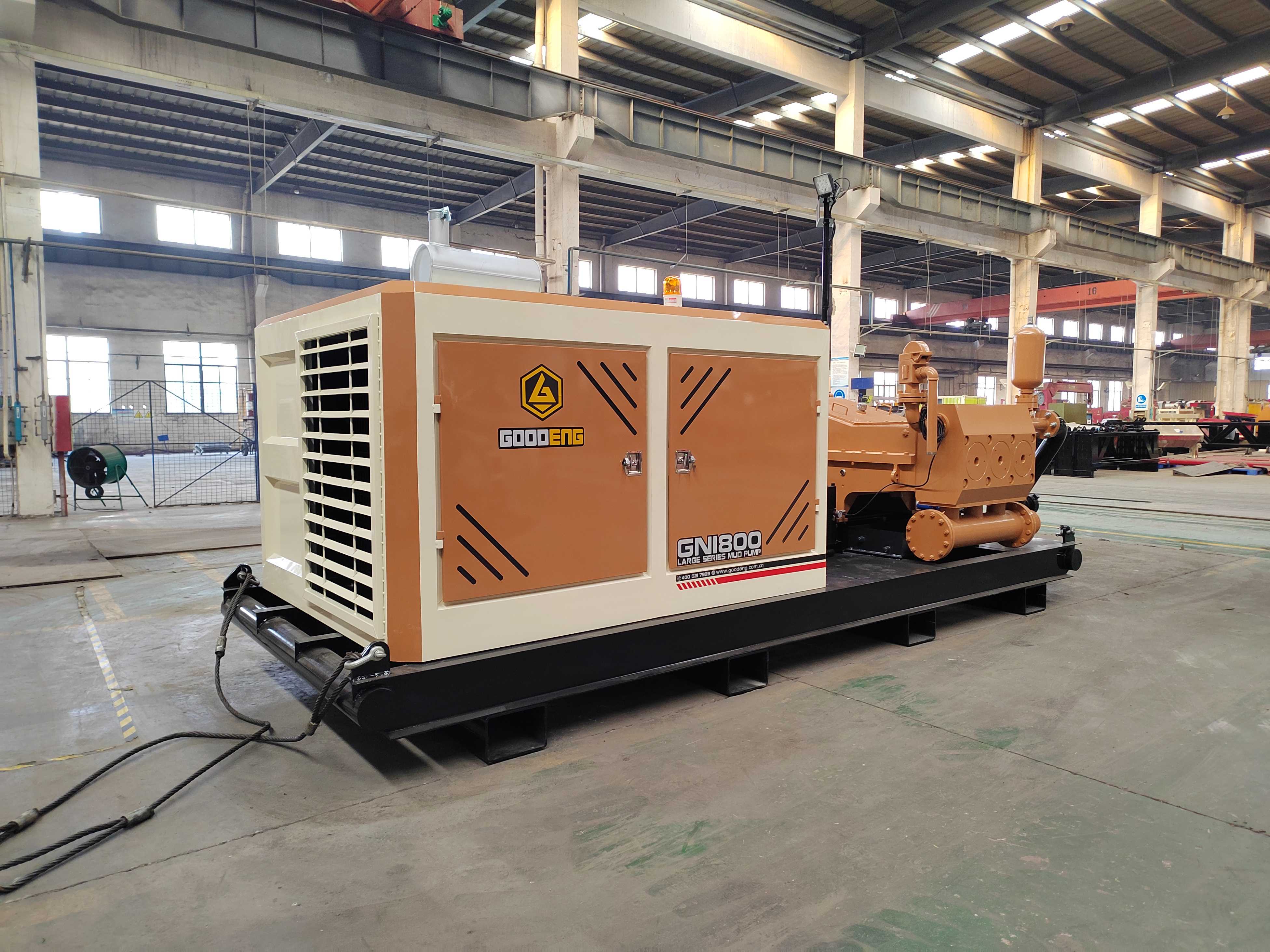

      Goodeng GSM1800 Mud Pump for HDD directional drill tooling
      Goodeng GSM1800 Mud Pump for HDD directional drill tooling
      Goodeng GSM1800 Mud Pump for HDD directional drill tooling
      Goodeng GSM1800 Mud Pump for HDD directional drill tooling
      Goodeng GSM1800 Mud Pump for HDD directional drill tooling

      Technical Parameter

        Metric Unit Imperial Unit
      Weight 10000 kg 22046 lbs
      Dimension (LxWxH) 5940×2250×2300 mm 233.86×88.58×90.55 in
      Max.Working Pressure 35 MPa 5076 psi
      Mud Pump Stroke 150mm 5.91 in
      Max.Mud Pressure 10 Mpa 1450 psi
      Engine Power 194 kw 260 hp
      Mud Pump Cylinder Dia. Φ190 mm 7.48 in
      Max.Stroke Frequency 140/min 140/min
      Max. Mud Flow 1800 L/min 477 gal/min

      Main Characteristics

      1. The heavy-duty mud pump system is specially designed for HDD construction, the

      characteristics of PLC control and stepless mud flow control can meet the demand of

      various project requirements, avoiding the trouble caused by the traditional method of changing cylinder liner to adjust the flow.

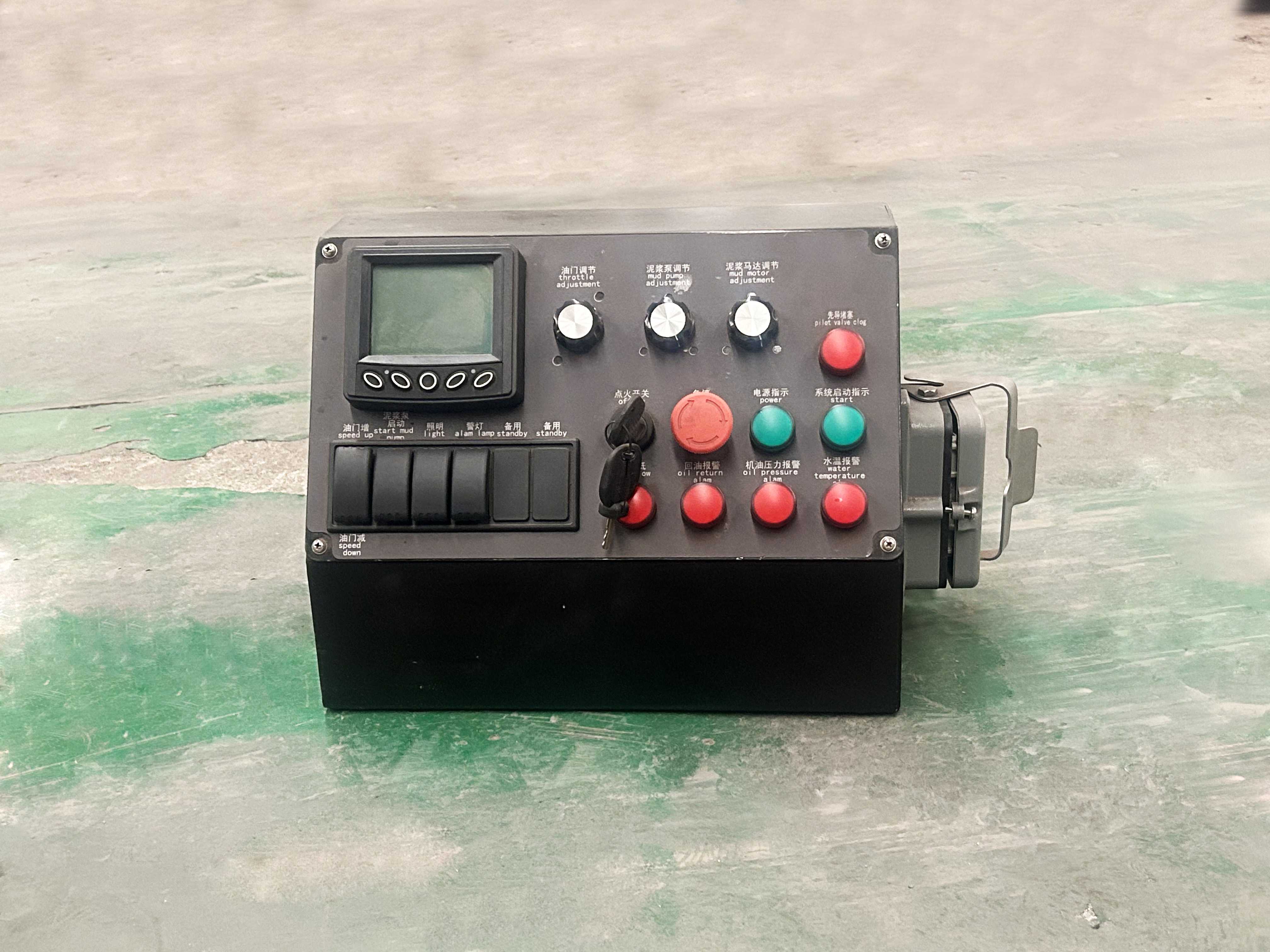

      2. Operators can start/stop the engine, adjust the slurry flow by remote control in the cabin of rig, making operation easier and more convenient.

      3. Equipped with Cummins Engine with strong power, stable performance and low fuel consumption.

      4. Completely driven by Germany Rexroth hydraulic system with stable and reliable

      performance, high efficiency and save more energy than the traditional mechanical

      hydraulic coupling transmission.

      5. Equipped with LED display, indicating mud flow, pressure, engine parameters and trouble shooting data etc.

      6. Skid-mounted transportation, the dimension meets the standard of transportation regulation in many countries.

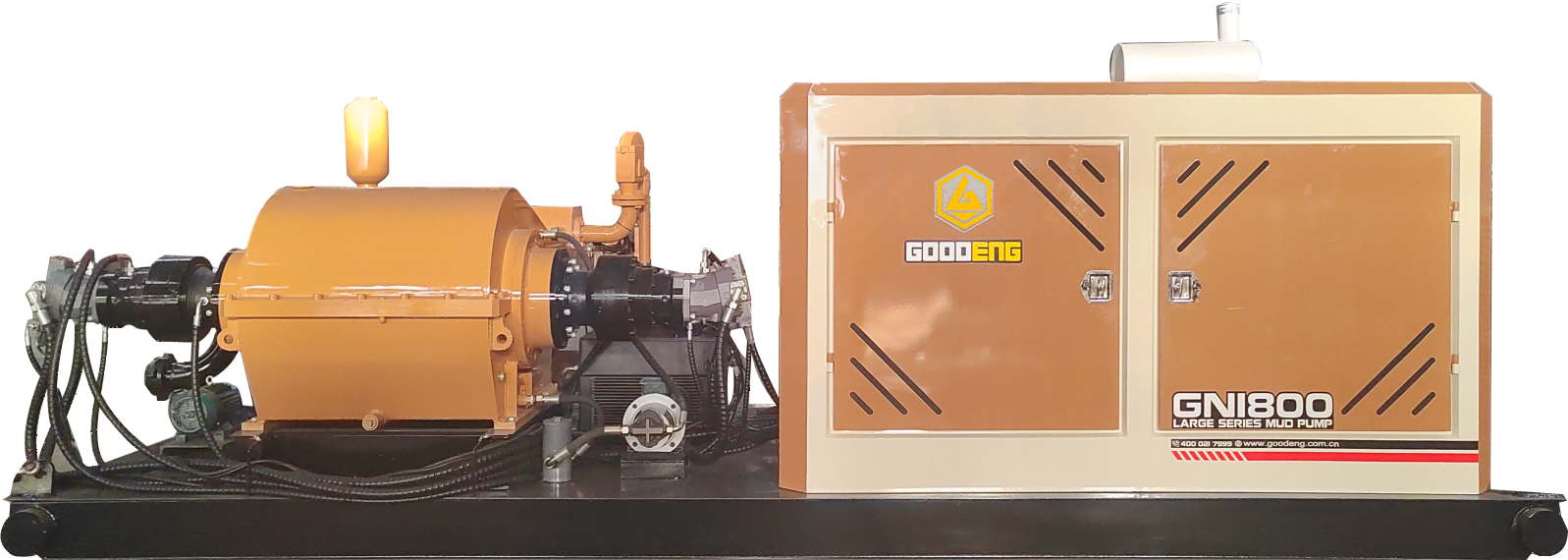

      Goodeng GSM1800 Mud Pump

      solution MAIN DETAILS

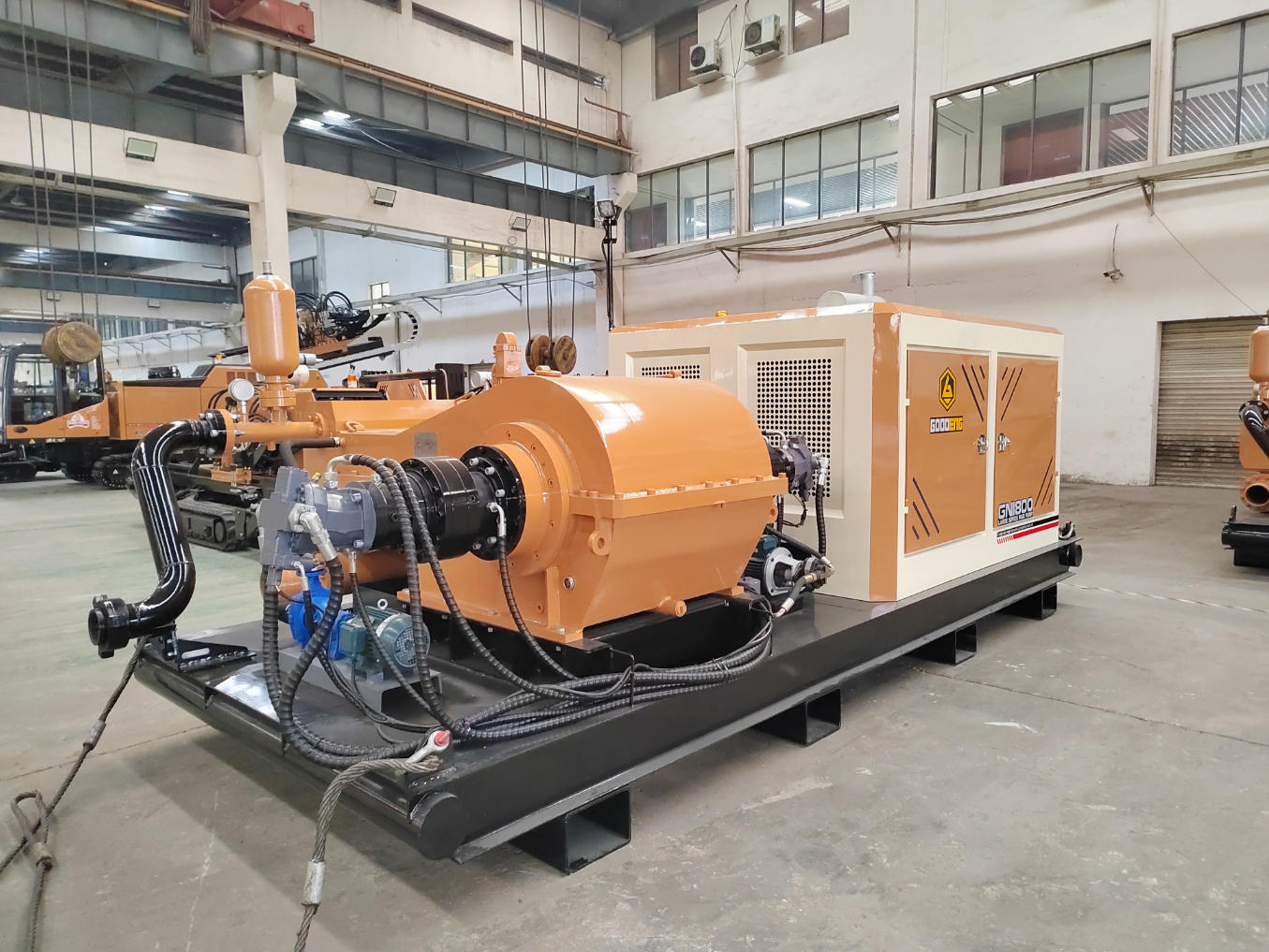

      Hydraulic Mud Pump

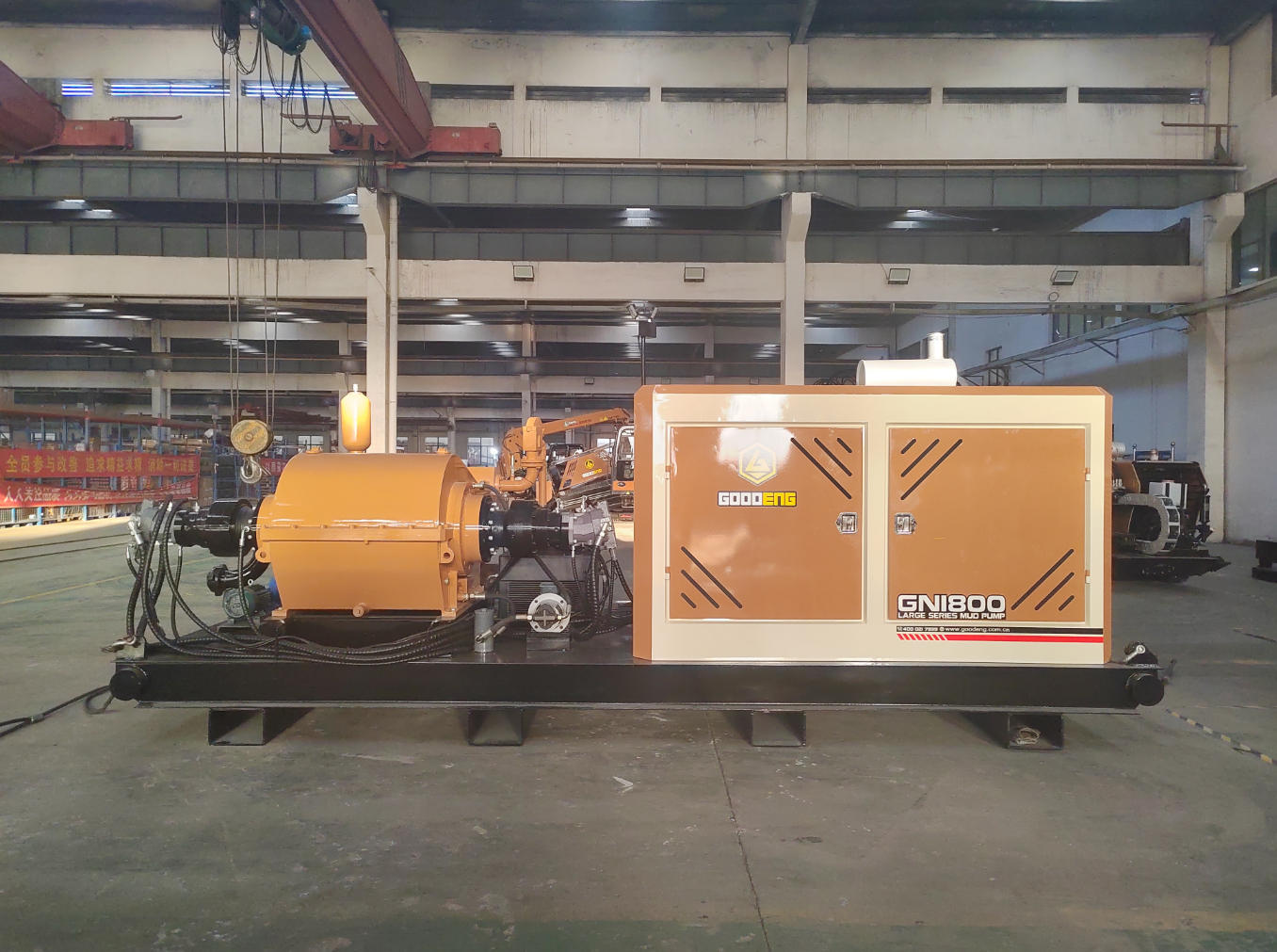

      Mud Pump Drilling Equipment

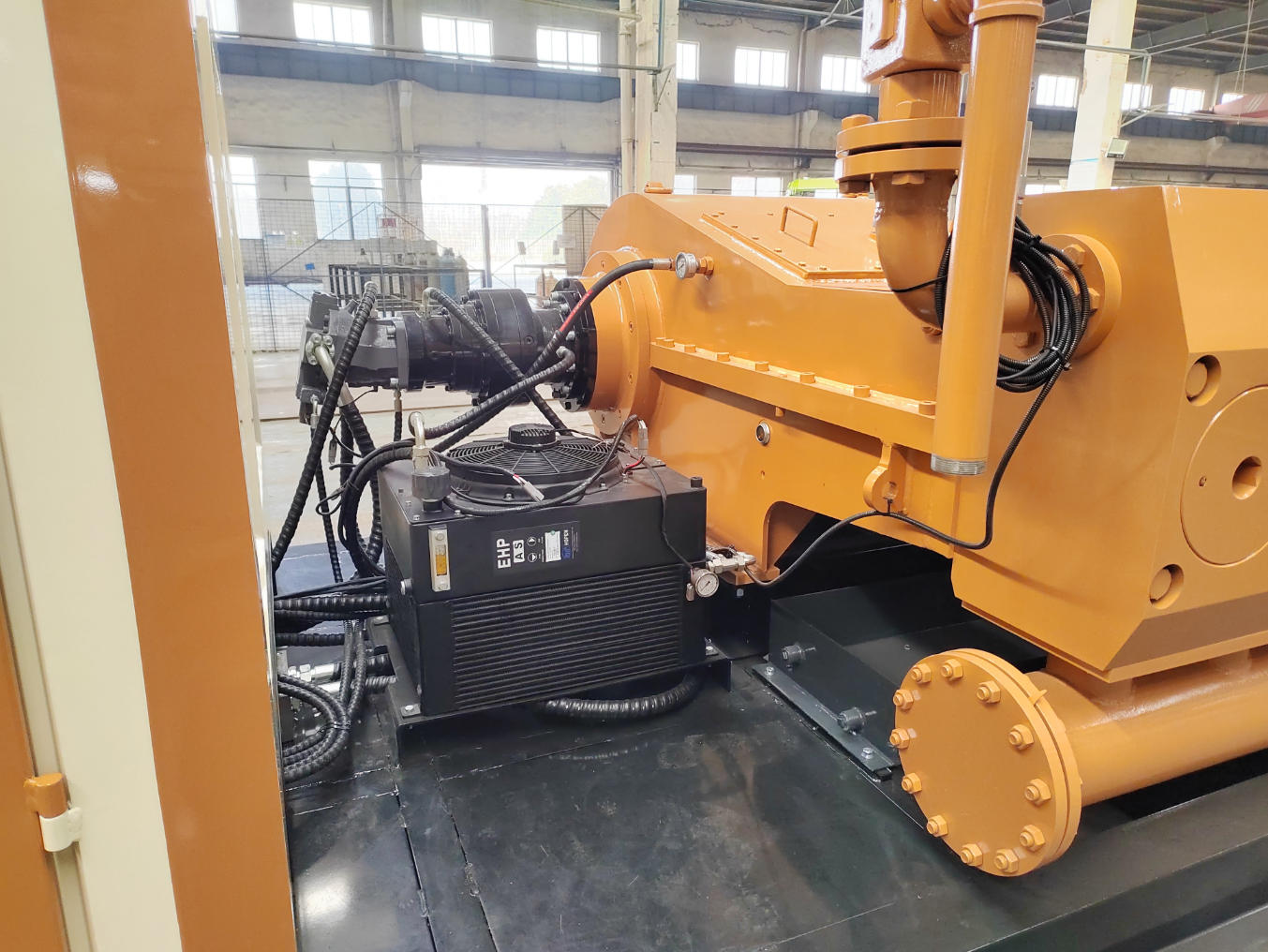

      Mud Pump GSM1800

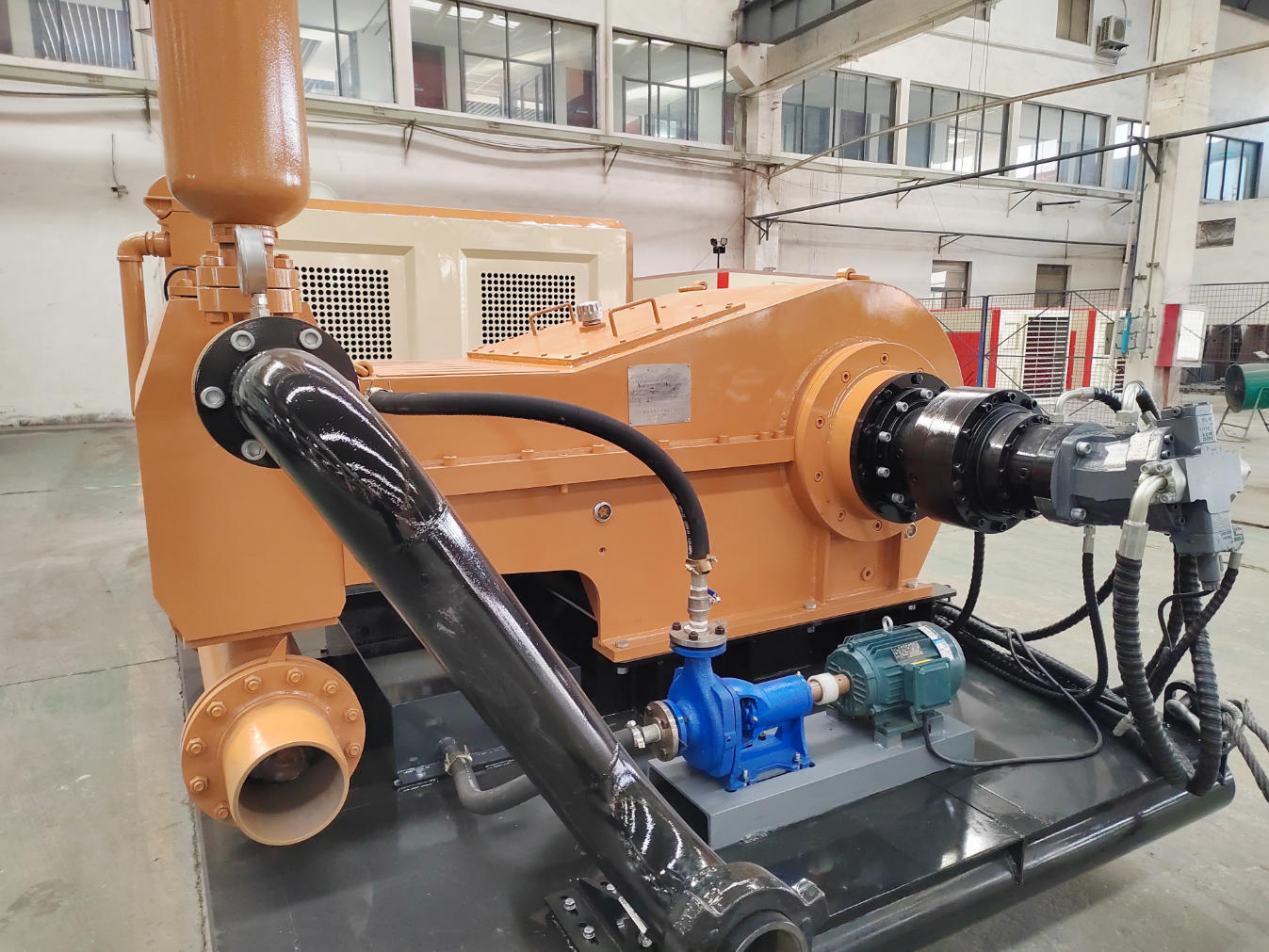

      Mud Pump HDD Directional Drill

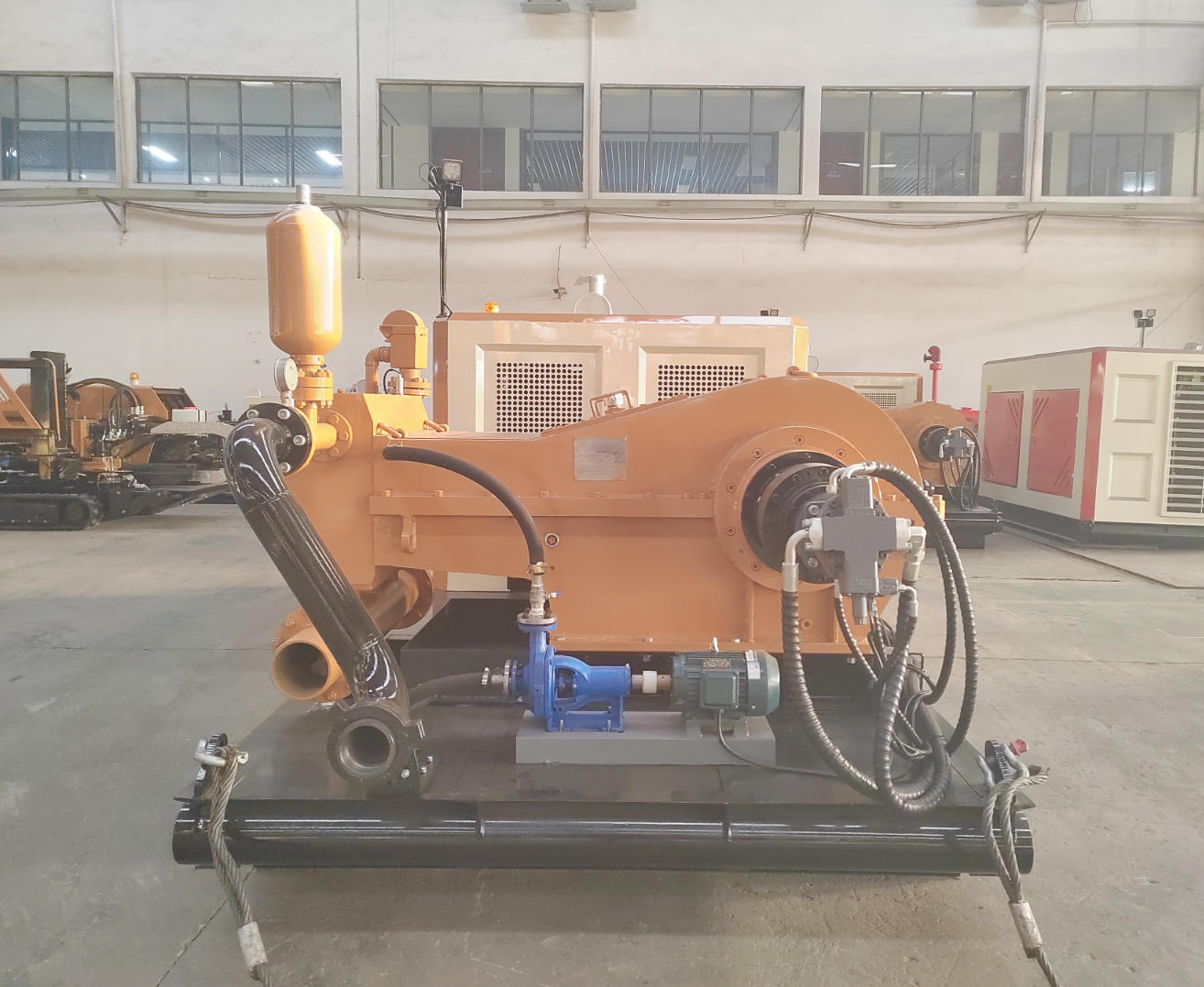

      Mud Pump Rig

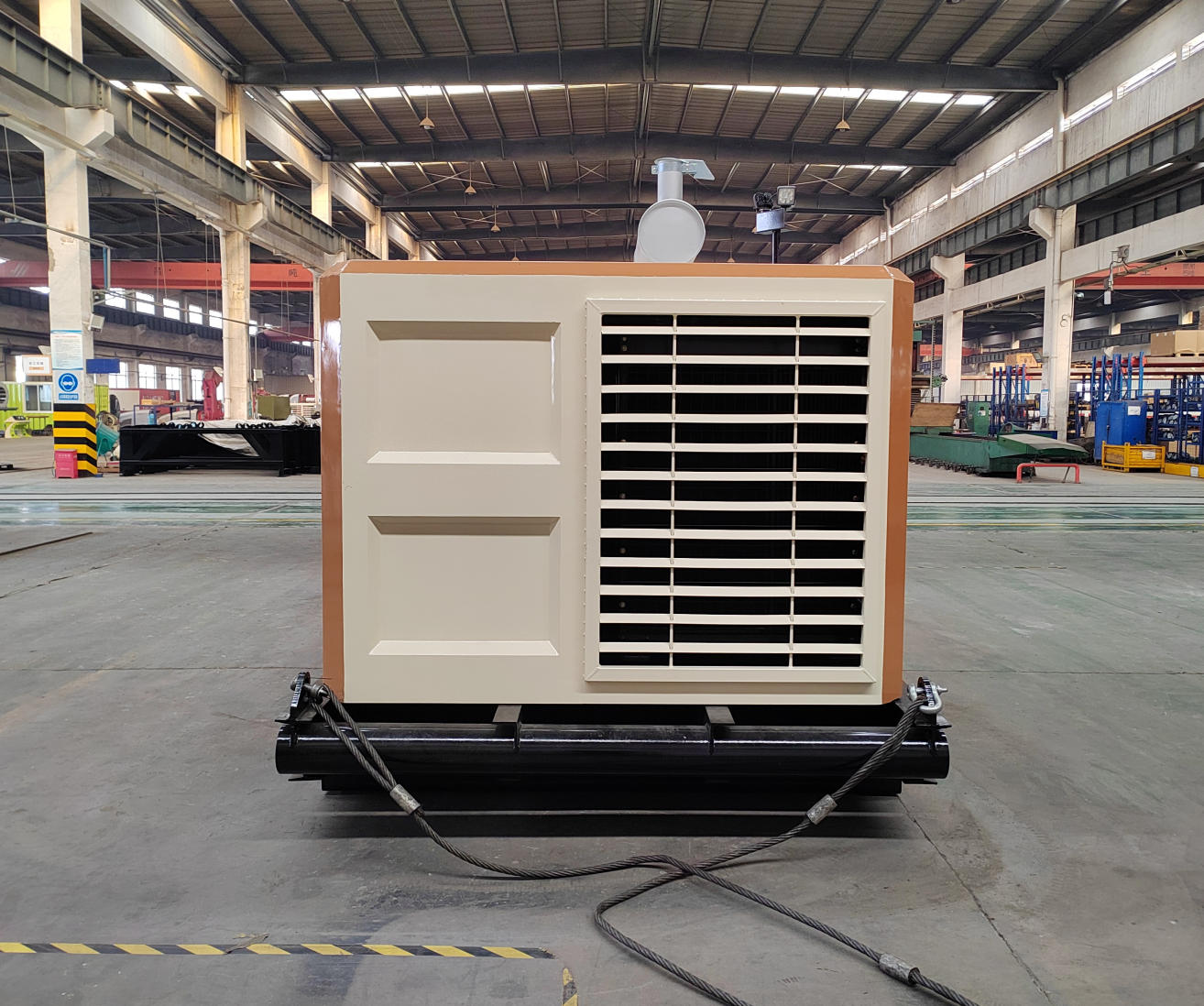

      Mud Pumps For Drilling Rigs

      Production Process

      1
      BLANKING 1

      BLANKING

      2
      RIVET-WELDING 2

      RIVET-WELDING

      3
      MACHINING 3

      MACHINING

      4
      ASSEMBLING 4

      ASSEMBLING

      5
      DEBUGGING 5

      DEBUGGING

      6
      TESTING 6

      TESTING

      65420be751dad22160
      Jiangsu Goodeng Heavy Machinery
      FAQ (2)

      FAQ

      • 1

        What are the main application fields of GSM1800 mud pump?

        The GSM1800 mud pump is specially designed for trenchless horizontal directional drilling (HDD), pipe jacking tunnel engineering, and mine surface drilling. It can provide stable and strong mud support for construction operations in complex strata (such as rocks, long-distance sand layers, etc.).

      • 2

        What is the output flow rate of this mud pump?

        As can be seen from its model number (1800), the maximum output flow of the GSM1800 mud pump can reach 1800 L/min. This large displacement design can effectively meet the in-hole slag discharge and cooling needs of large drilling equipment when carrying out long-distance penetration or ultra-large hole expansion.

      • 3

        Can your GSM1800 mud pump be adapted to different models or other brands of drilling rigs?

        Yes. Our mud pumps have excellent compatibility and are not only perfectly matched with Goodeng's own large-tonnage horizontal directional drilling rigs (such as G series), but can also be used with other mainstream surface drilling rigs on the market. At the same time, we support customizing exclusive connection interfaces and operating parameters according to your specific equipment.

      • 4

        What are the specific advantages of using a large flow (1800 L/min) mud pump for construction?

        In large-scale trenchless crossings, large-displacement mud pumps can provide extremely strong flushing force in the hole, quickly take away a large amount of drill cuttings, and form a dense mud wall. This can effectively maintain the stability of the hole wall, greatly reduce the incidence of high-risk accidents such as sand sinking and stuck hole, hole collapse, and ensure the smooth progress of long-distance projects.

      • 5

        After purchasing the GSM1800 mud pump, will on-site installation and operation technical guidance be provided?

        Absolutely. We equip you with detailed equipment operation manuals and support round-the-clock remote technical guidance. For supporting installation or large orders, we will directly arrange professional engineers to provide on-site services to ensure the correct assembly and safe debugging of the mud pump station.

      • 6

        Is it easy to maintain GSM1800 in harsh construction environment?

        Very convenient. The structural design of GSM1800 fully considers the requirements of field construction. The disassembly, assembly and replacement of wearing parts of the pump body (such as cylinder liners, pistons, valve assemblies and seals) have been optimized and designed so that customers can quickly complete routine maintenance on site, minimizing equipment downtime.
