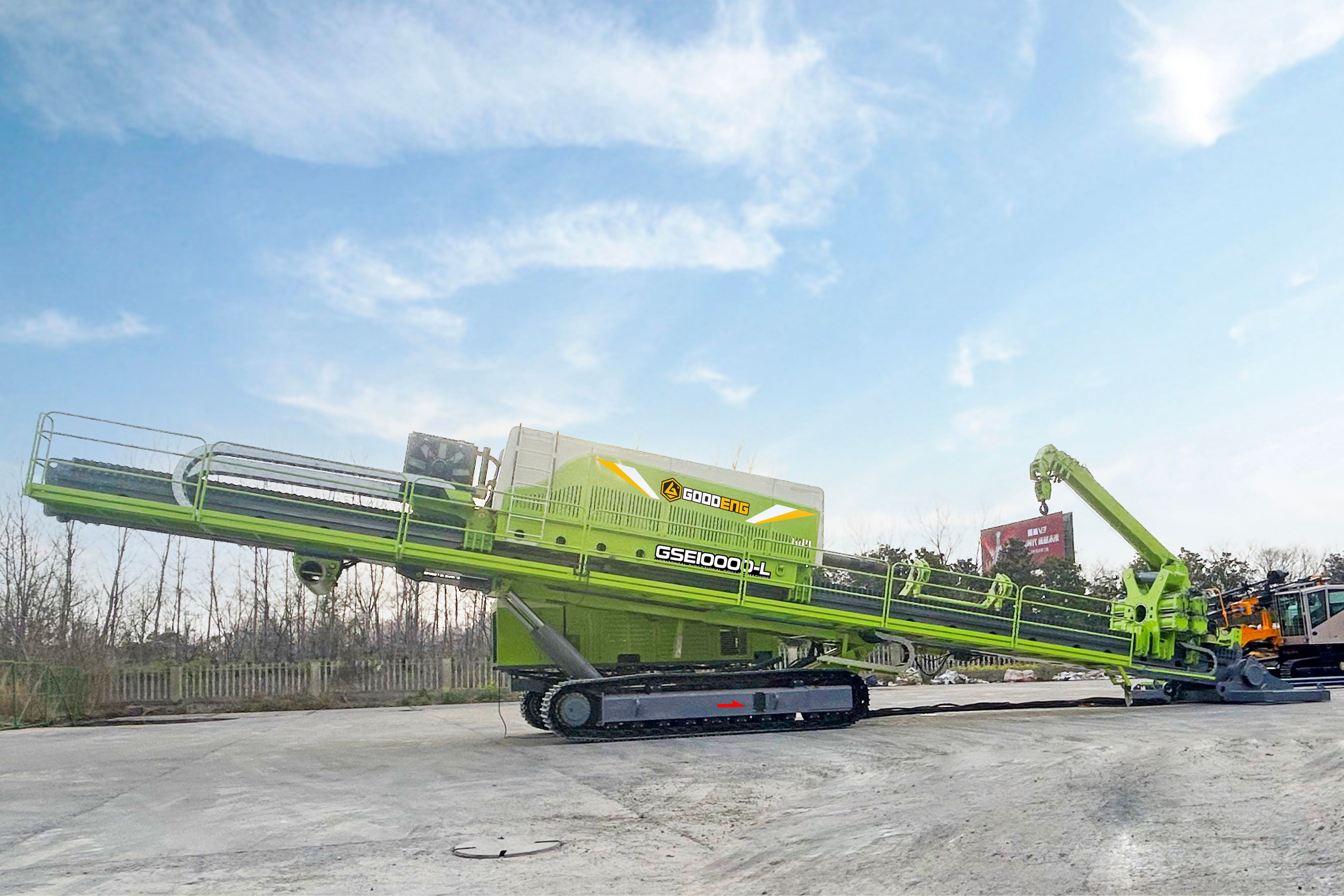

GOODENG GSE10000-LS Electric HDD Machine — Leading the Future of Trenchless Construction
Technical Parameter
| Rig Weight | 89000 kg |

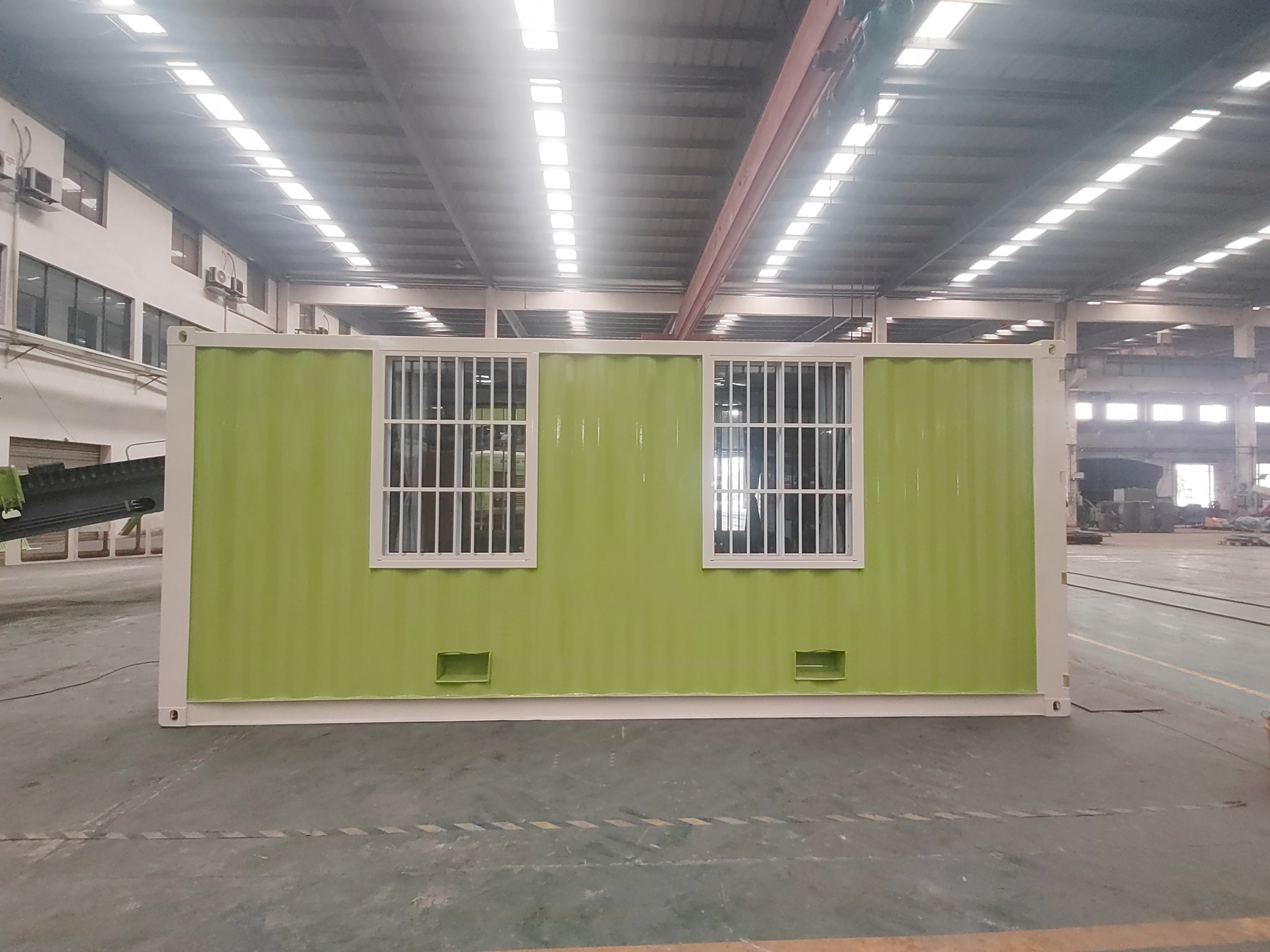

| Power Control Room Weight | 5200 Kg |
| Operation Room Weight | 3000kg |
| Rated Torque | 260000 N.m |
| Rated Power | 1000 kW |
| Entry Angle | 16° |
| Drill Rod Size | Φ168-Φ254 mm |
| Suggest Reaming Dia. | ≤2500 mm |
| Rig Dimension (LxWxH) | 21700*3500*3800 mm |
| Power Control Room Dimension Size （L×W×H） | 6050×2450×2600 mm |
| Operation Room Dimension Size (L×W×H) | 6050×2450×2600 mm |
| Max. Thrust & Pullback Speed | 36 m/min |
| Max. Rotation Speed | 91 r/min |
Travel Distance of Carriage
|
11900 mm
|
| Drill Rod length |
9600 mm |
| Suggest Crossing Length | ≤ 3000 m |
-
Powered by a high-efficiency electric system, the GSE10000-LS delivers strong performance with lower emissions and reduced environmental impact, making it an ideal choice for urban construction, energy pipelines, and large-scale underground projects.
From natural gas pipelines to water supply networks and energy infrastructure, the GSE10000-LS helps contractors achieve safer, cleaner, and more efficient underground construction.
BLANKING
RIVET-WELDING
MACHINING
ASSEMBLING
DEBUGGING
TESTING
-
1
GSE denotes an electric-driven HDD unit. What is its biggest difference from diesel-powered models?
Motor drive produces no exhaust emissions and low noise, allowing construction in urban residential areas and enclosed spaces such as tunnels without access restrictions. Its energy consumption cost is more than 40% lower than that of diesel models.
-
2
Is the long-stroke LS electric version stable for continuous operation? Will it shut down due to overheating?
It adopts an independent water-cooled motor heat dissipation system, supporting non-stop drilling for 24 hours without protective shutdown caused by high temperature, eliminating mid-operation cooling downtime for long-distance crossing construction.
-
3
Can an external generator be used if stable industrial power grid is unavailable on site?
It supports power supply by an external 380 V industrial generator, and can operate at full load normally with a matched generator. Mains power supply is applicable for fixed factory and tunnel pipe network projects.
-
4
Can it enter construction sites in European and American cities with strict environmental control in compliance with regulations?
Zero exhaust emission complies with EU CE and North American EPA environmental construction standards, allowing normal filing and site entry in environmentally restricted core urban areas.
-
5
Is motor maintenance difficult for electric-driven units? Can local electricians overseas perform inspection and repair independently?
The motor adopts a modular independent package, with fault codes displayed directly on the LCD screen to indicate fault locations. Local electricians can troubleshoot and replace accessories for common electrical faults without on-site original manufacturer engineers.
-
6
Is the motor sufficiently waterproof for open-air construction on rainy days?
The complete electrical control cabinet reaches IP55 waterproof and dustproof grade for normal construction in light rain. A simple rain shelter can be erected for heavy rain to extend equipment service life.
