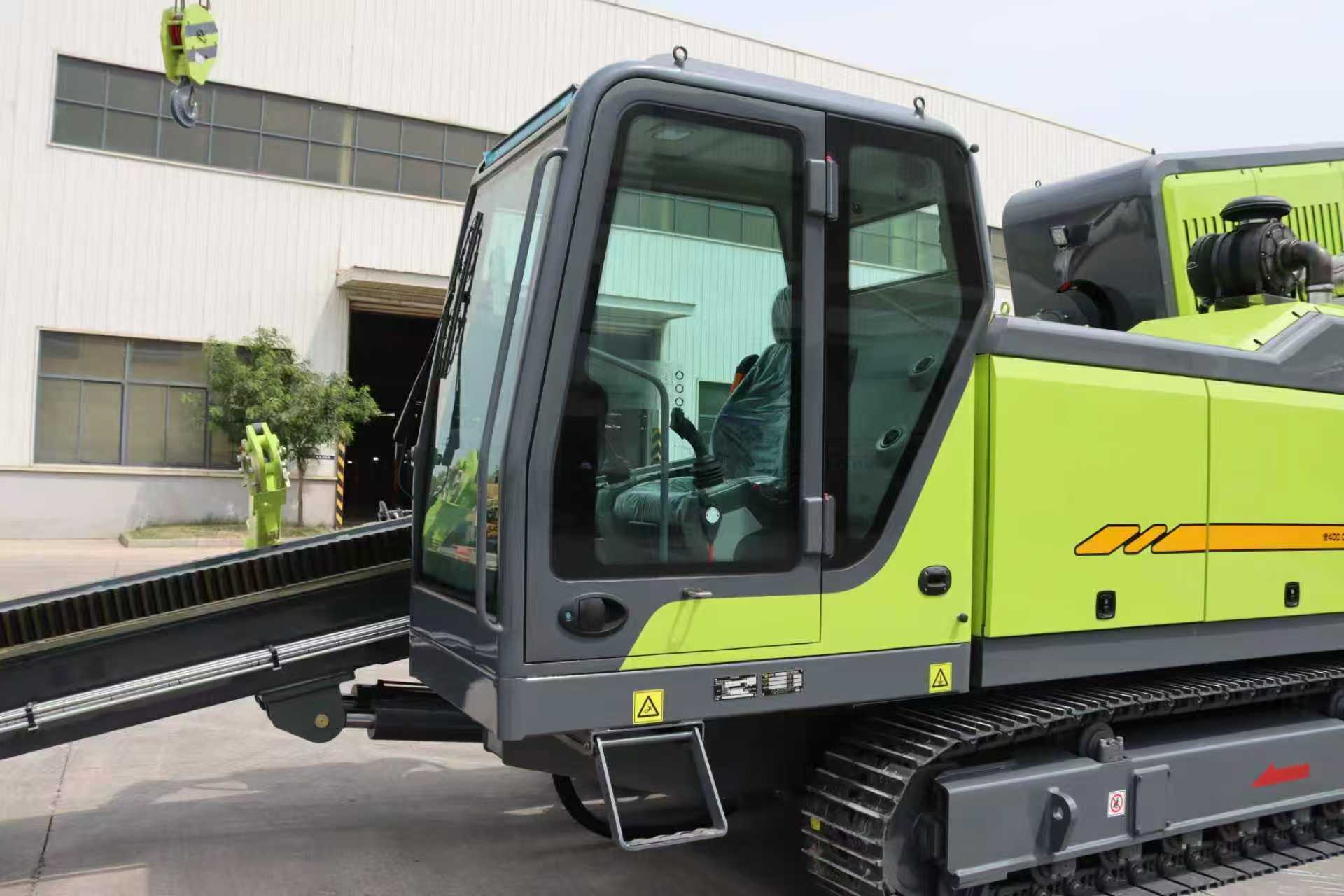

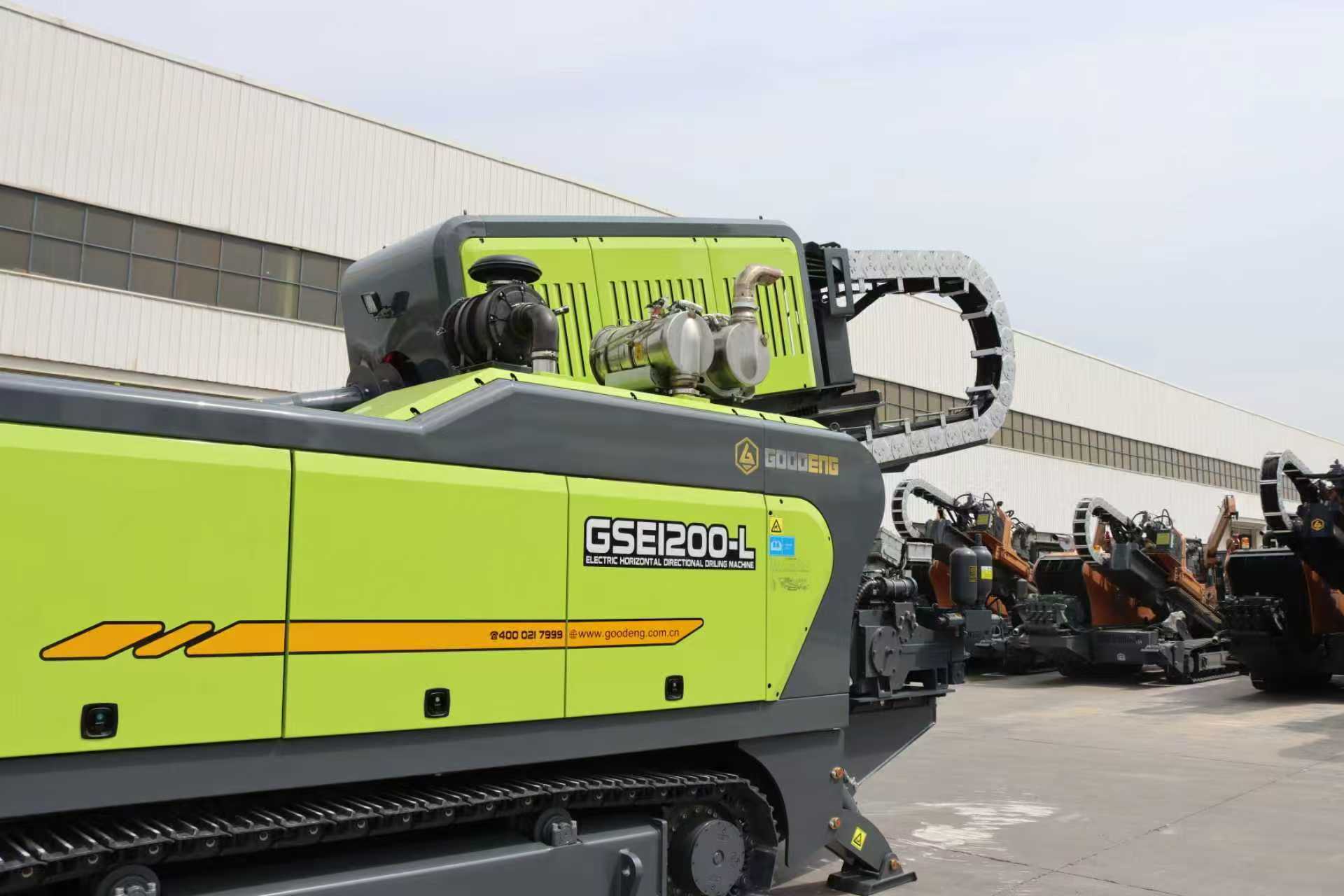

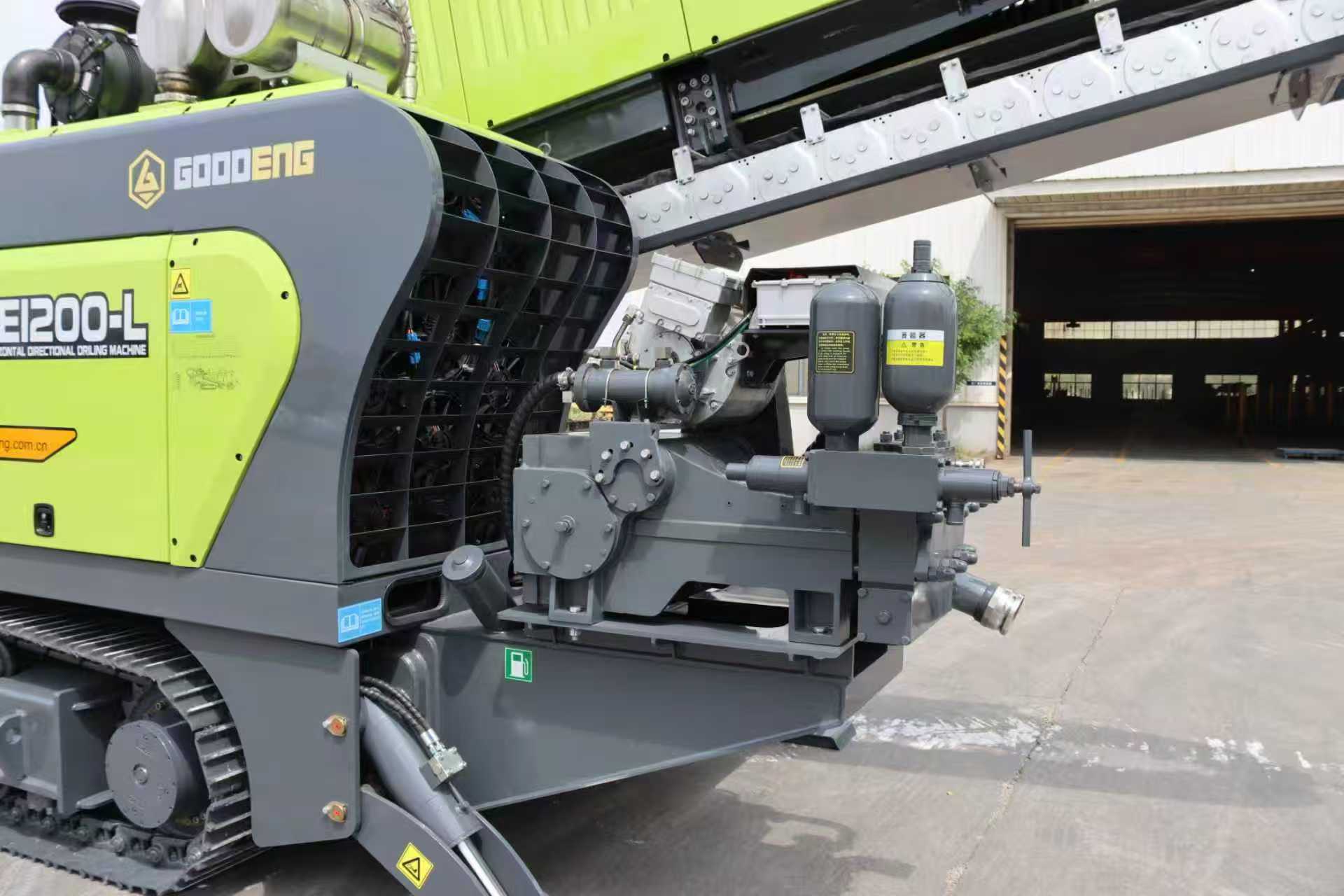

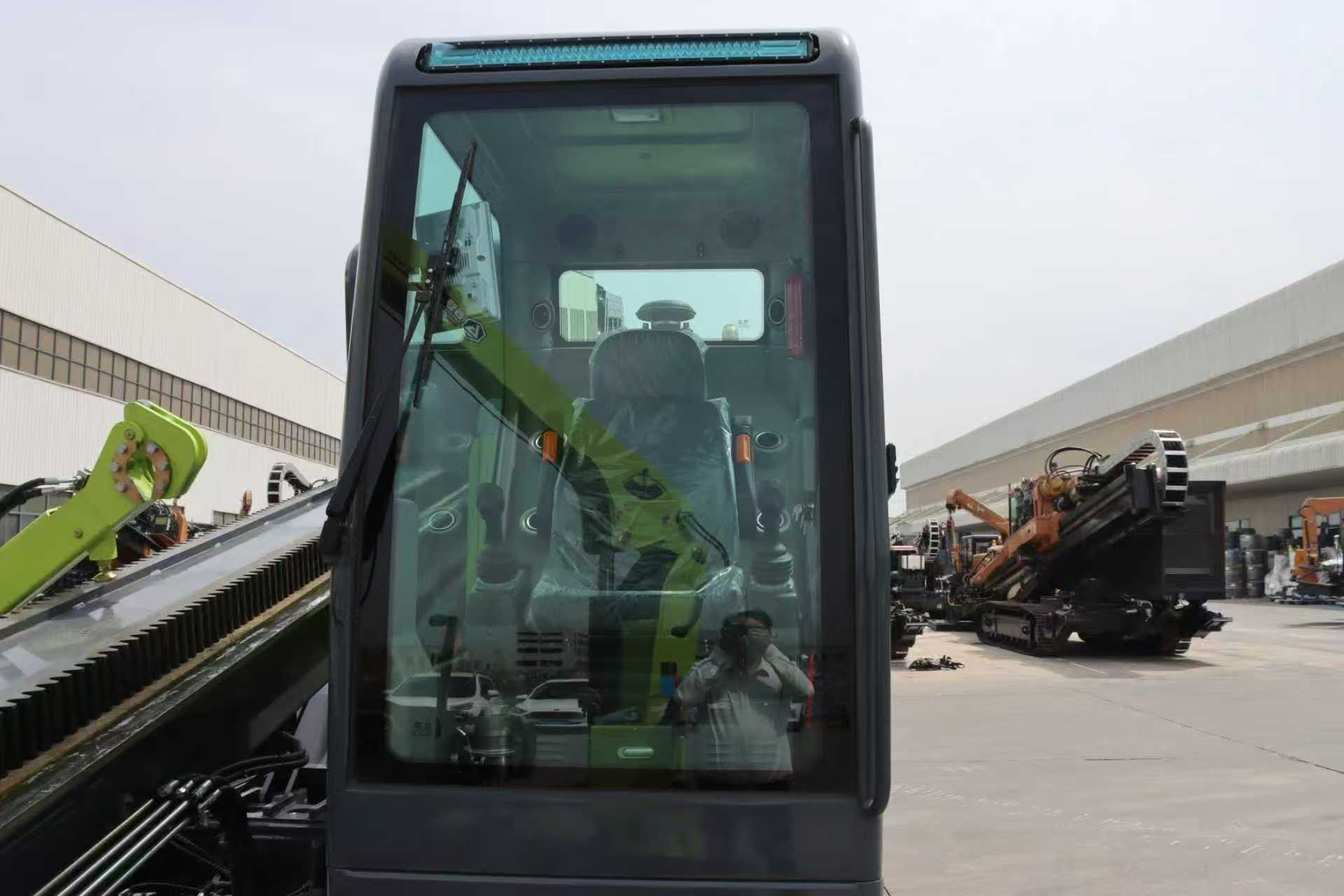

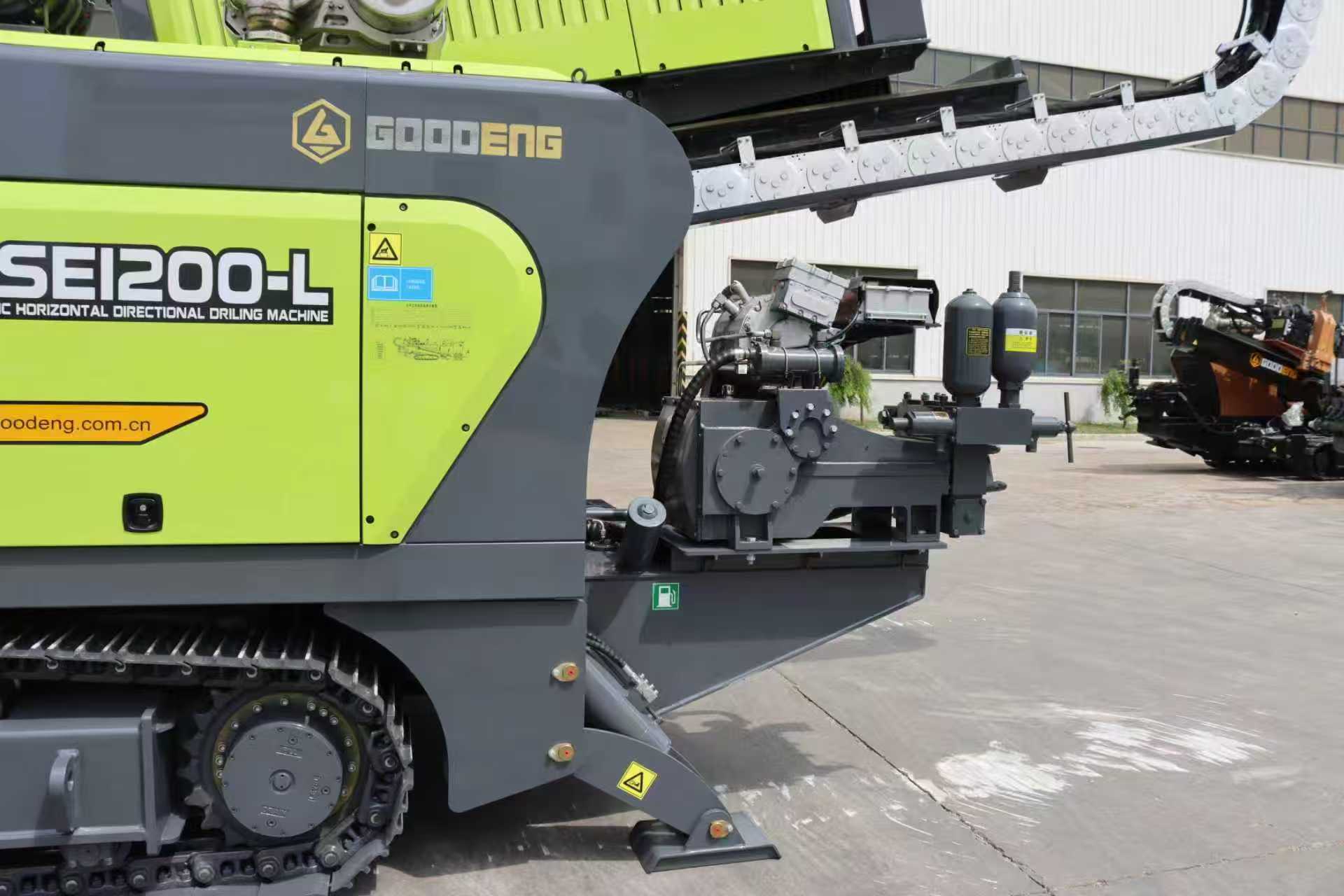

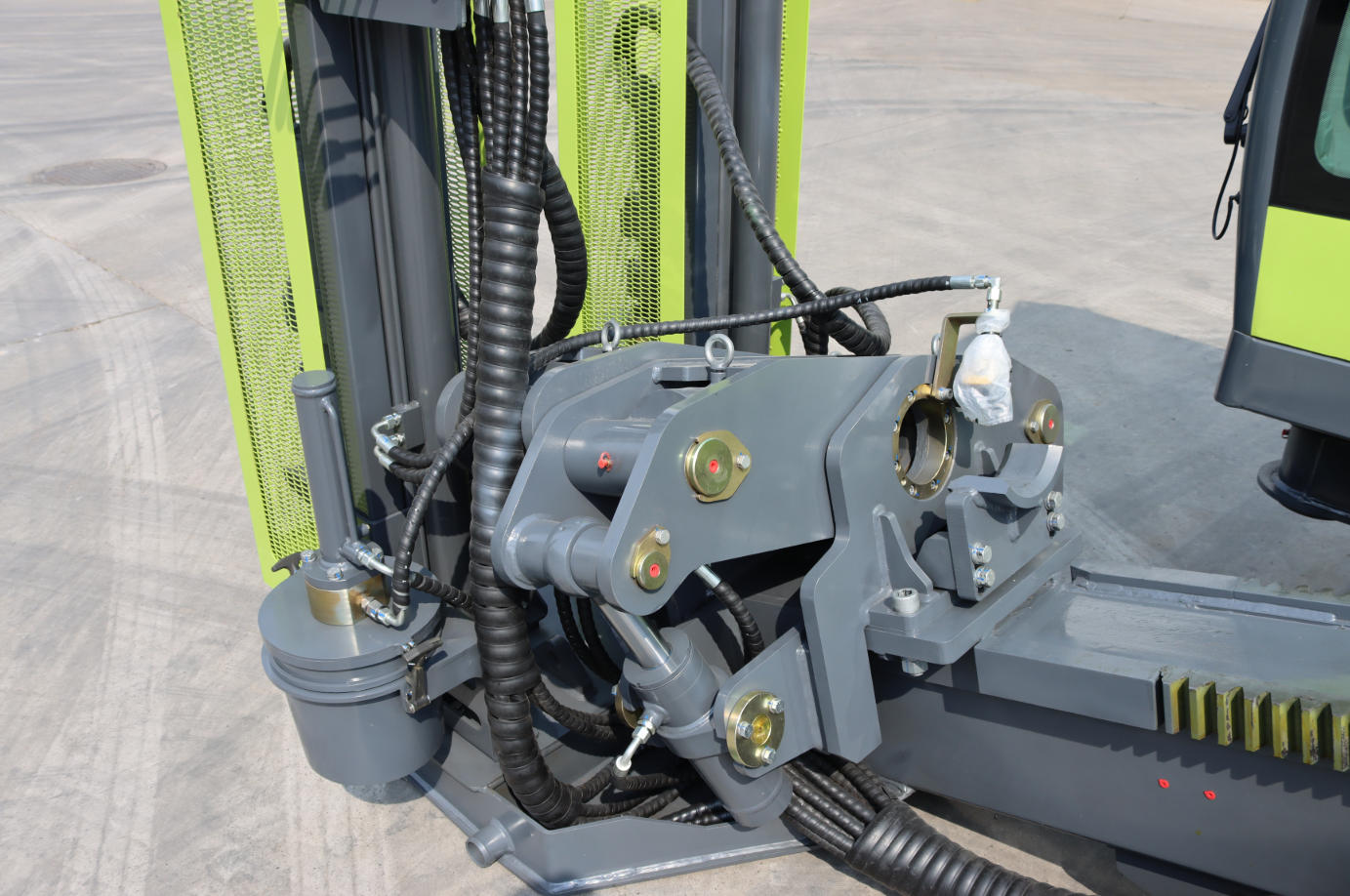

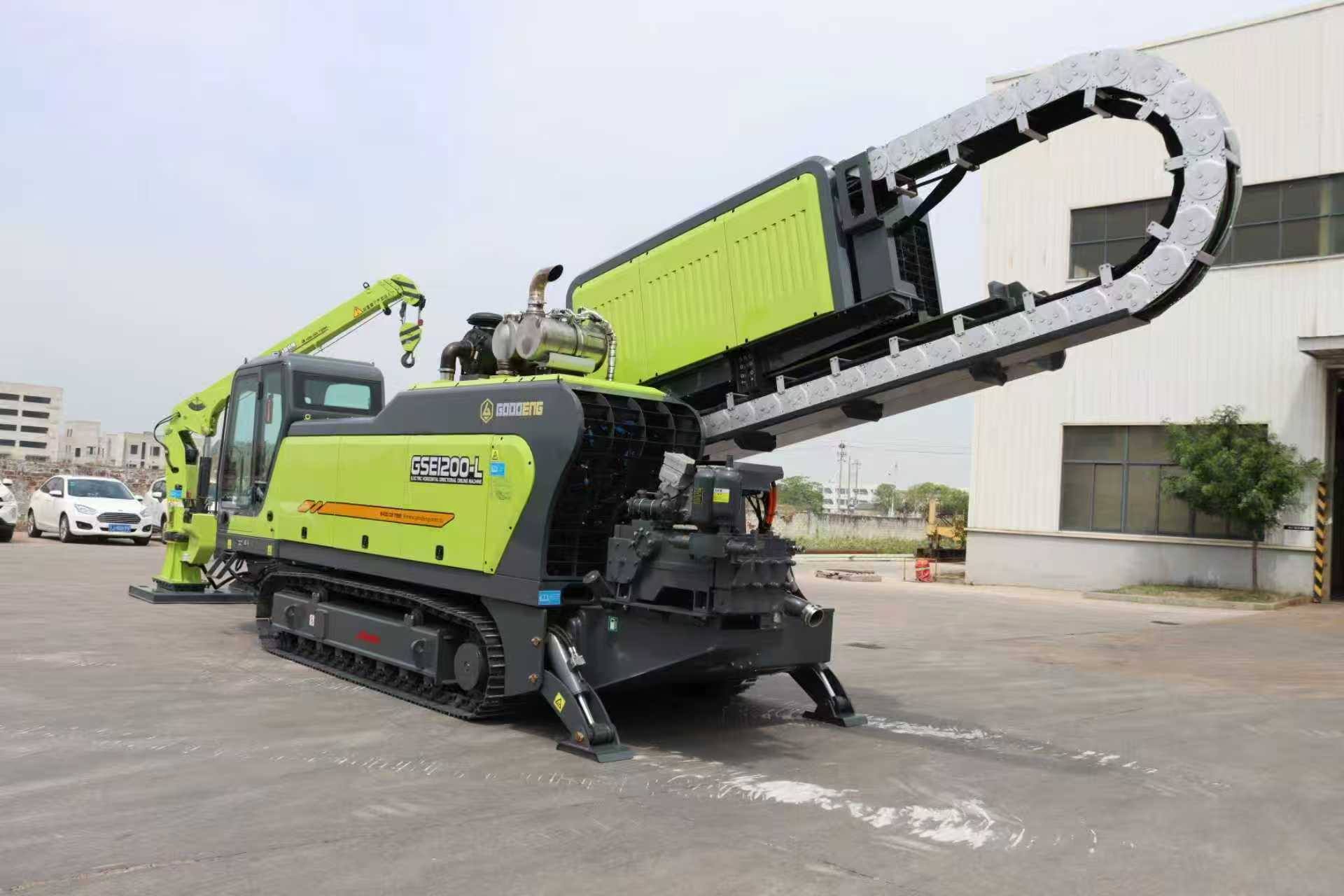

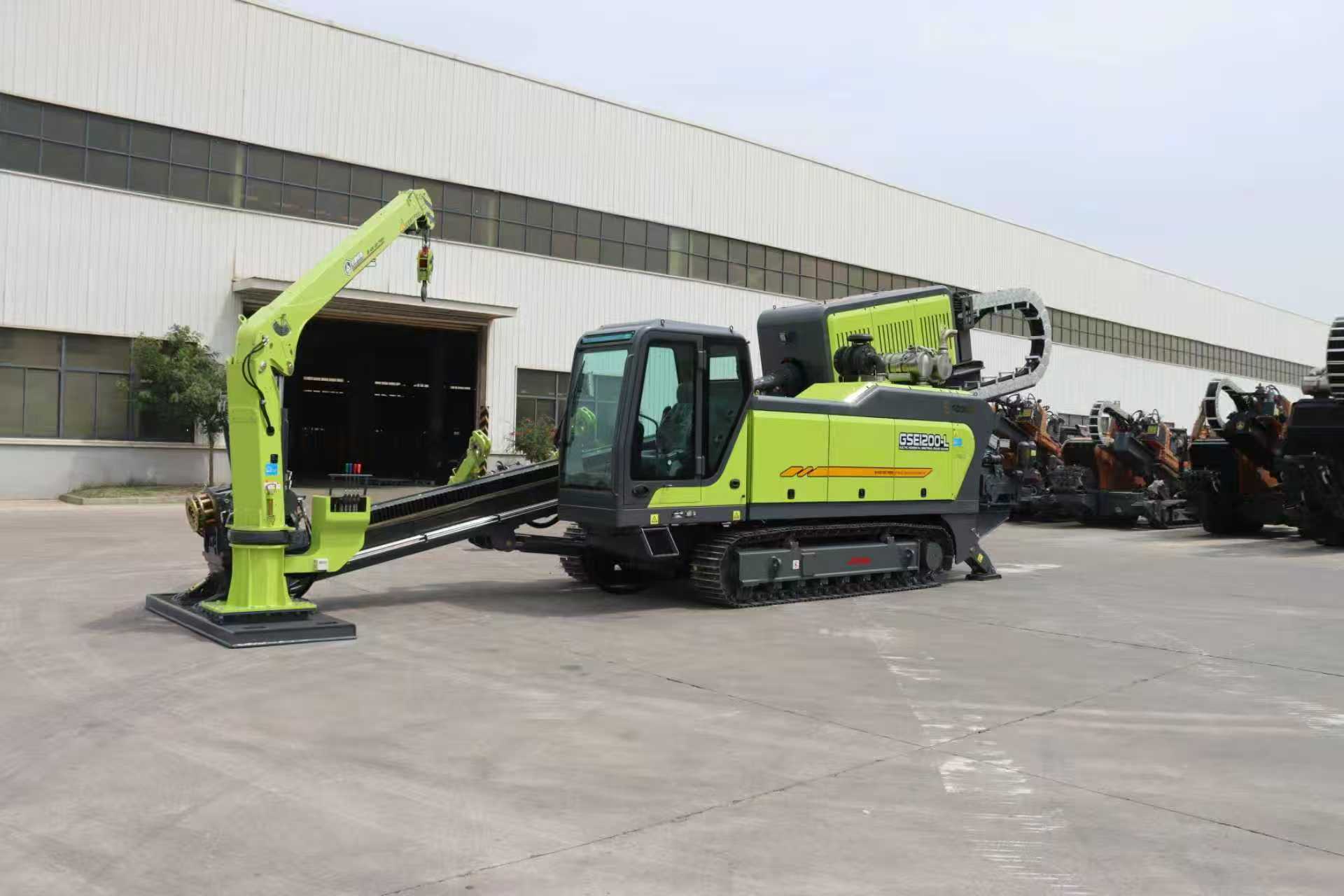

Goodeng GSE1200-LS Range Extended Electric multiple geological formations trenchless construction HDD drilling machine for underground pipelines gas line utility line for sale-1-1
Technical Parameter
| Weight | 20000 kg |
| Max. Thrust & Pullback Force | 1200 KN |
| Max. Torque | 58000 N·m |
| Rated power | 300 kW |
| Walking speed | 3-5 km/h |
| Entry Angle | 21° |
| Drill Rod Size | Φ102-114x3000 mm |
| Suggest Reaming Dia. | Φ1400 mm |
| Dimension (LxWxH) | 11330x2700x3020mm |
| Max.Thrust & Pullback speed | 38 m/min |
| Max. Rotation Speed | 91 r/min |
| Suggest Crossing Length | 1000m |
| Max. Climbing Gradient | 15° |
-
1.Lower noise: Motor running is far lower than the diesel engine noise, greatly reduce the construction noise pollution, on the surrounding residents and environment friendly.
2.The cost is low energy consumption: Power is usually much cheaper than diesel, high energy conversion efficiency and motor, long-term operation of energy costs significantly reduced.
3. The cost is low energy consumption: Power is usually much cheaper than diesel, high energy conversion efficiency and motor, long-term operation of energy costs significantly reduced.
4. Interior/Closed space available: Due to the zero emission and low noise, very suitable for inside the tunnel, the basement, factories, sensitive to the environment of the city, or limited ventilation inside the confined space of safety construction.
BLANKING
RIVET-WELDING
MACHINING
ASSEMBLING
DEBUGGING
TESTING
-
1
GSE denotes an electric-driven HDD unit. What is its biggest difference from diesel-powered models?
Motor drive produces no exhaust emissions and low noise, allowing construction in urban residential areas and enclosed spaces such as tunnels without access restrictions. Its energy consumption cost is more than 40% lower than that of diesel models.
-
2
Is the long-stroke LS electric version stable for continuous operation? Will it shut down due to overheating?
It adopts an independent water-cooled motor heat dissipation system, supporting non-stop drilling for 24 hours without protective shutdown caused by high temperature, eliminating mid-operation cooling downtime for long-distance crossing construction.
-
3
Can an external generator be used if stable industrial power grid is unavailable on site?
It supports power supply by an external 380 V industrial generator, and can operate at full load normally with a matched generator. Mains power supply is applicable for fixed factory and tunnel pipe network projects.
-
4
Can it enter construction sites in European and American cities with strict environmental control in compliance with regulations?
Zero exhaust emission complies with EU CE and North American EPA environmental construction standards, allowing normal filing and site entry in environmentally restricted core urban areas.
-
5
Is motor maintenance difficult for electric-driven units? Can local electricians overseas perform inspection and repair independently?

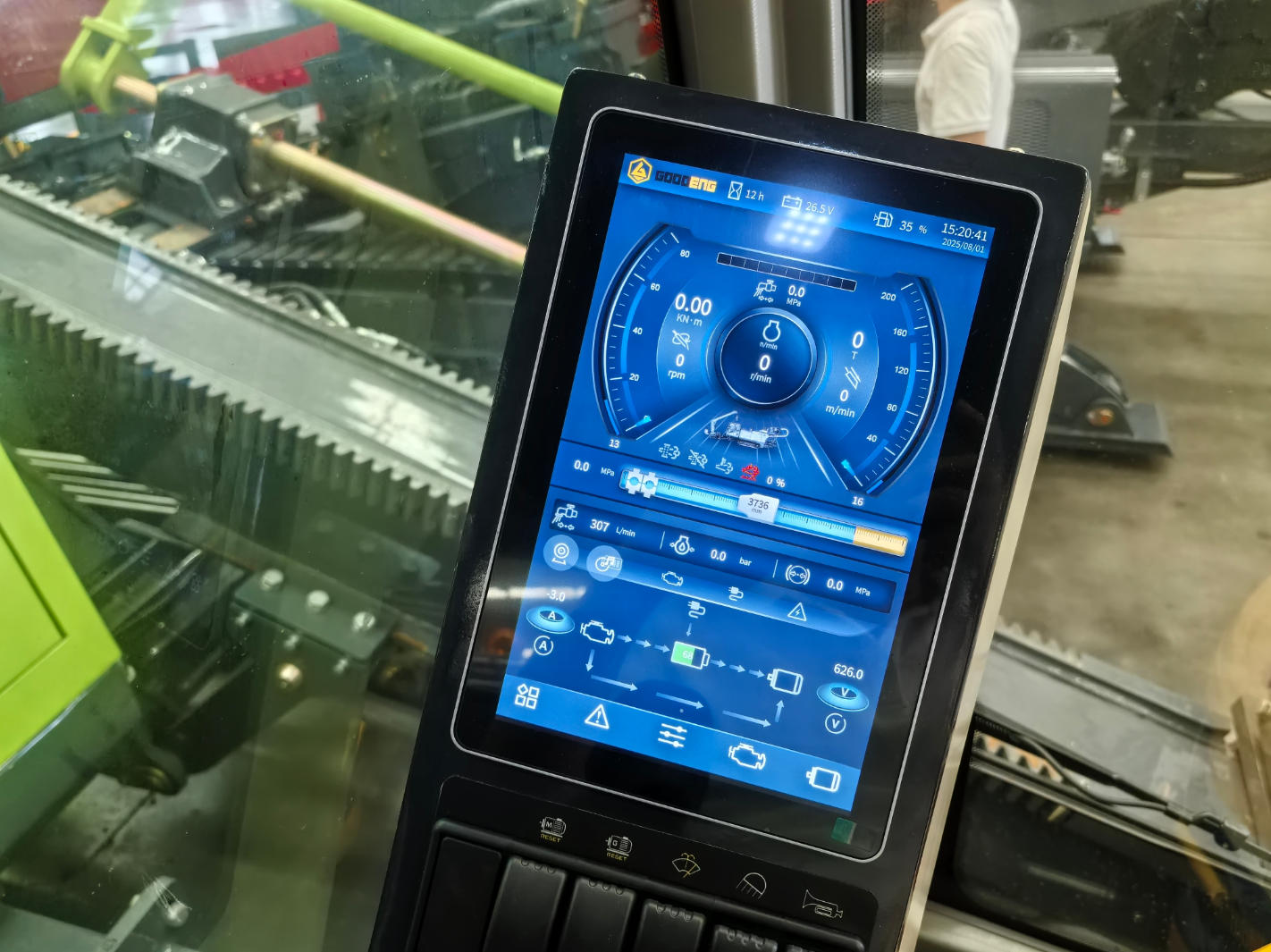

The motor adopts a modular independent package, with fault codes displayed directly on the LCD screen to indicate fault locations. Local electricians can troubleshoot and replace accessories for common electrical faults without on-site original manufacturer engineers.
-
6
Is the motor sufficiently waterproof for open-air construction on rainy days?
The complete electrical control cabinet reaches IP55 waterproof and dustproof grade for normal construction in light rain. A simple rain shelter can be erected for heavy rain to extend equipment service life.
