Electric Horizontal Directional Drills

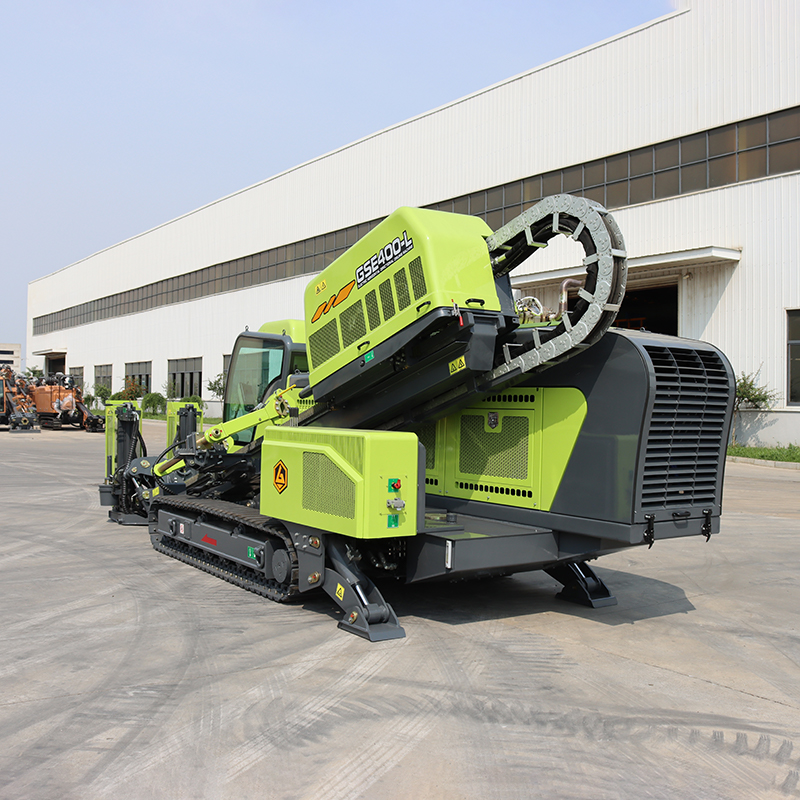

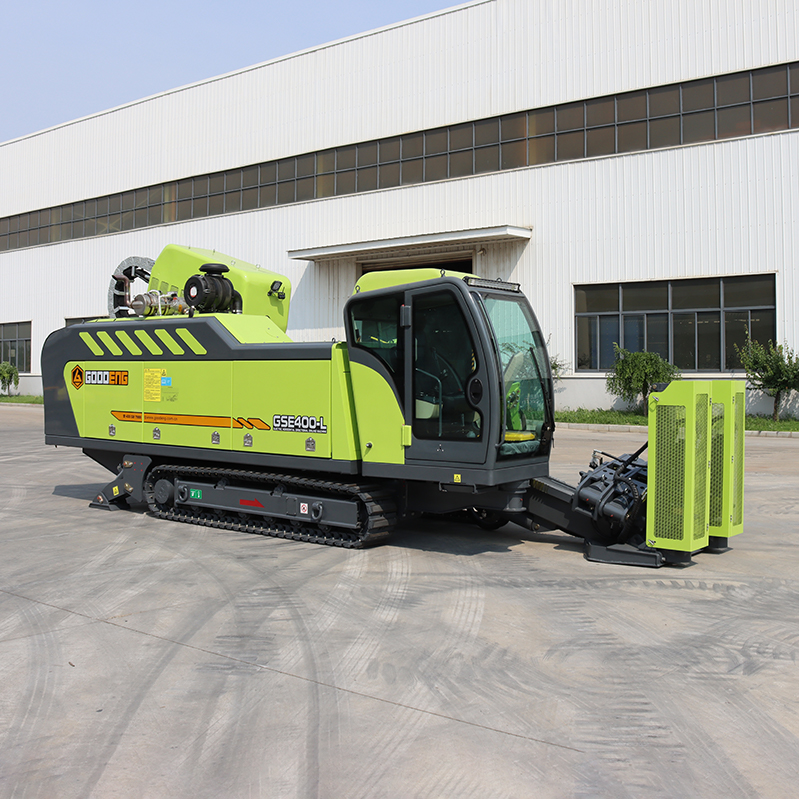

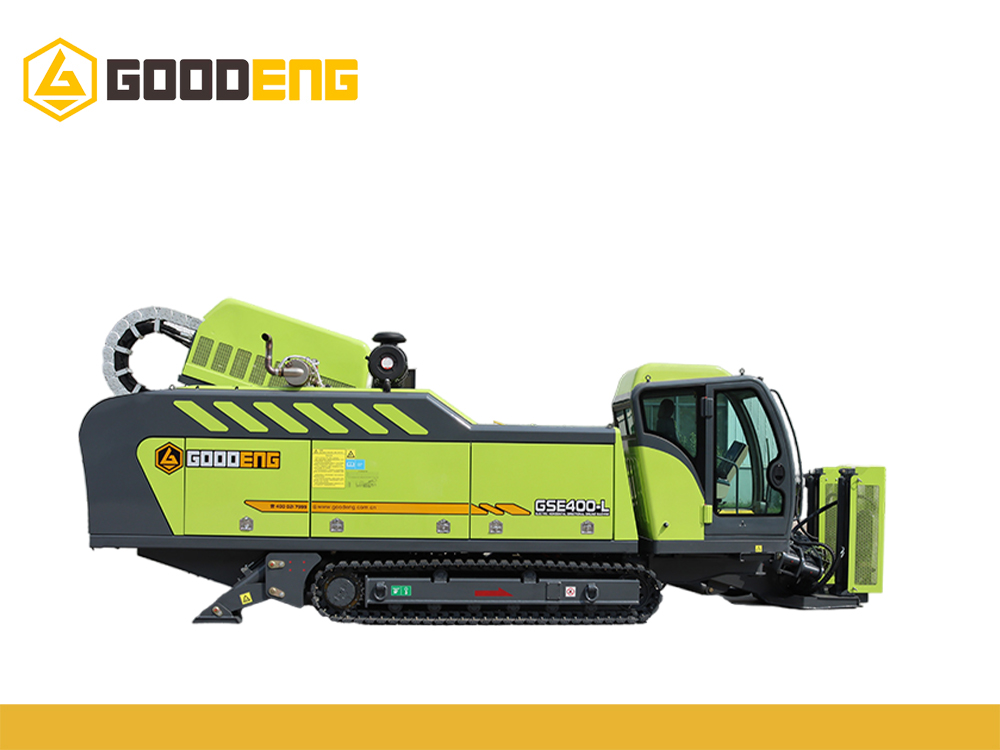

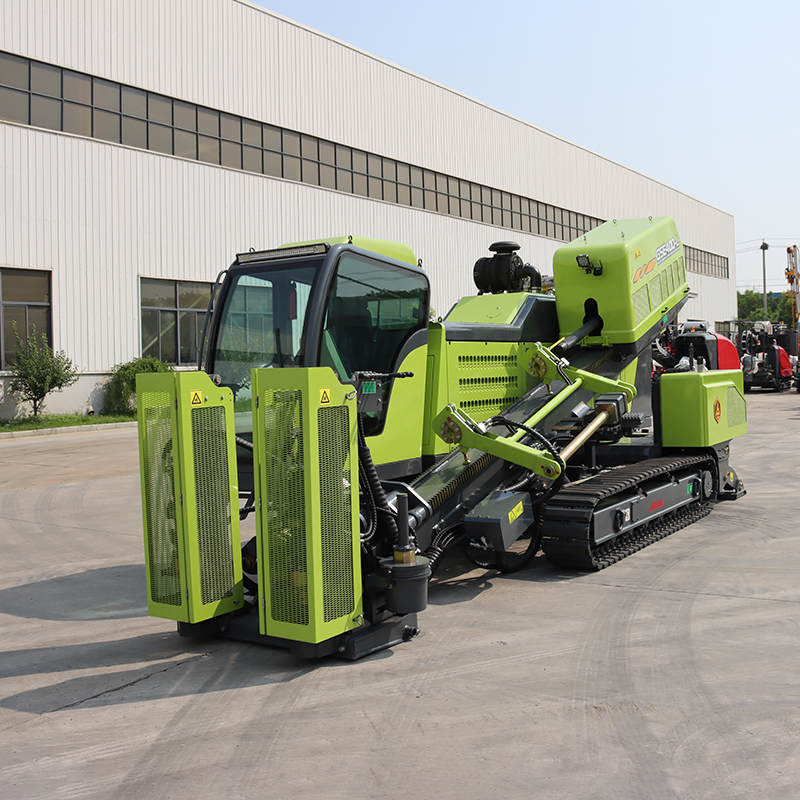

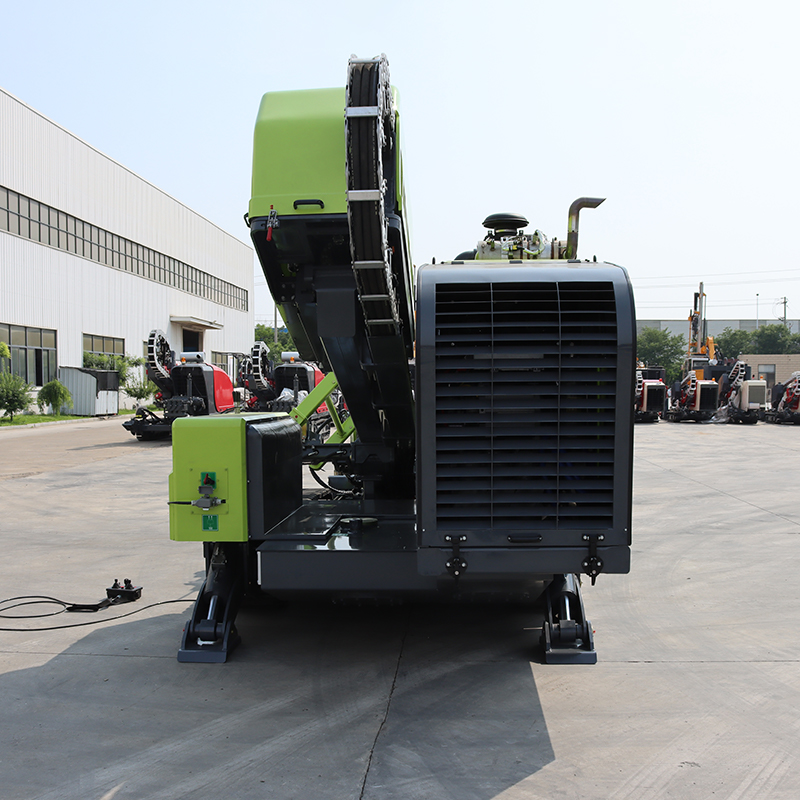

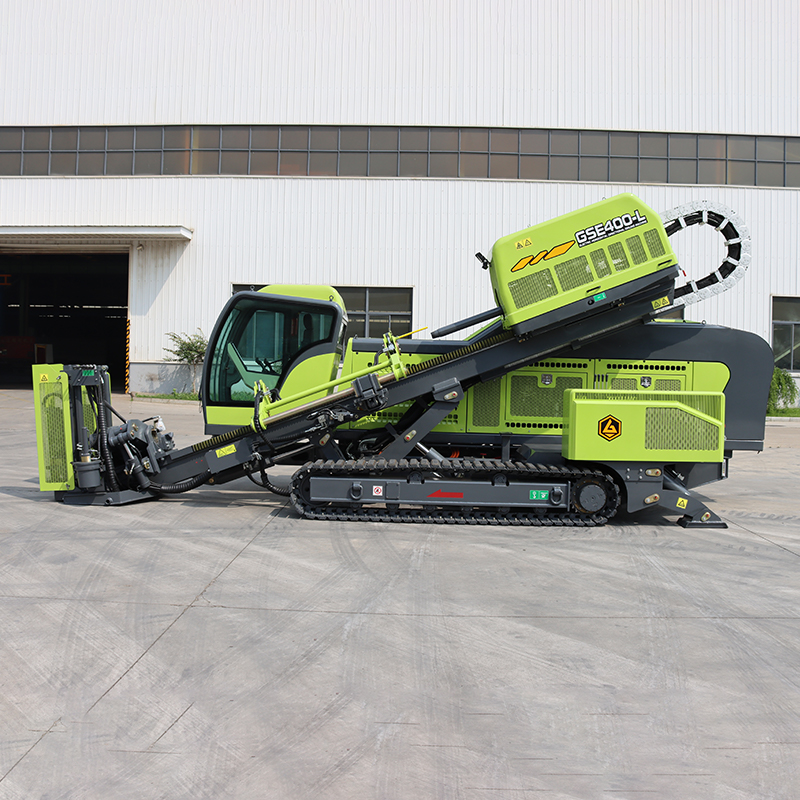

Goodeng GSE400-LS Range Extended Electric multiple geological formations trenchless construction HDD drilling machine for underground pipelines gas line utility line for sale

The Goodeng GSE400-LS Range extended electric horizontal directional drilling technology boasts a core advantage of ultra-quiet operation, significantly reducing construction noise and ensuring that nighttime operations do not disturb the residents. At the same time, it has a remarkable energy-saving effect, with energy consumption being 20% to 30% lower than that of traditional equipment. It is an ideal choice for environmentally friendly construction and efficient operations in urban areas.

Technical Parameter

Weight	10000 kg	22046 lb
Max. Thrust & Pullback Force	410 KN	92171 lbf
Max. Torque	18000 N·m	13276 ft·lb
Rated power	160 kW	214 hp
Walking speed	3-5 km/h	1.9-3.1 mph
Entry Angle	21°	21°
Drill Rod Size	Φ76-83x3000 mm	Φ3-3.27×118 in
Suggest Reaming Dia.	Φ1100 mm	43 in
Dimension (LxWxH)	7600x2280x2600mm	299×90×102 in
Max.Thrust & Pullback speed	30 m/min	98 fpm
Max. Rotation Speed	124 r/min	124 rpm
Suggest Crossing Length	550m	19685 in
Max. Climbing Gradient	15°	15°

Product Introduction

The Goodeng GSE400-LS range extended electric horizontal directional drill is a robust and efficient solution catering to all your drilling requirements. This top-selling 40-ton machine is engineered to offer outstanding performance and dependability.

1.Lower noise: Motor running is far lower than the diesel engine noise, greatly reduce the construction noise pollution, on the surrounding residents and environment friendly.
2.The cost is low energy consumption: Power is usually much cheaper than diesel, high energy conversion efficiency and motor, long-term operation of energy costs significantly reduced.
3. The cost is low energy consumption: Power is usually much cheaper than diesel, high energy conversion efficiency and motor, long-term operation of energy costs significantly reduced.
4. Interior/Closed space available: Due to the zero emission and low noise, very suitable for inside the tunnel, the basement, factories, sensitive to the environment of the city, or limited ventilation inside the confined space of safety construction.
