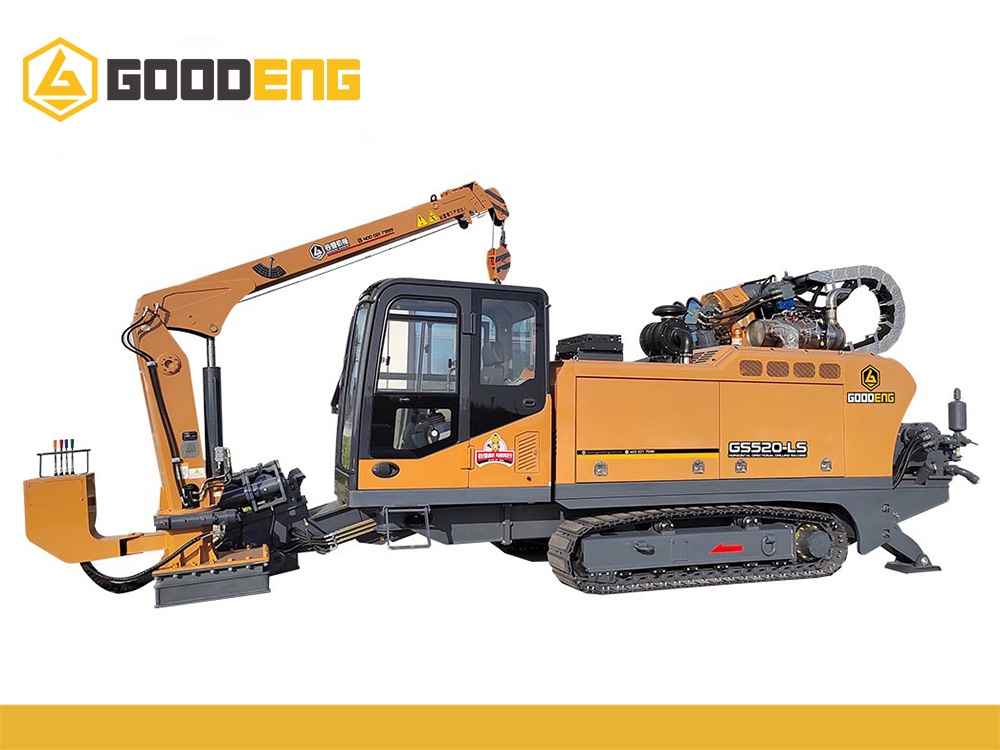

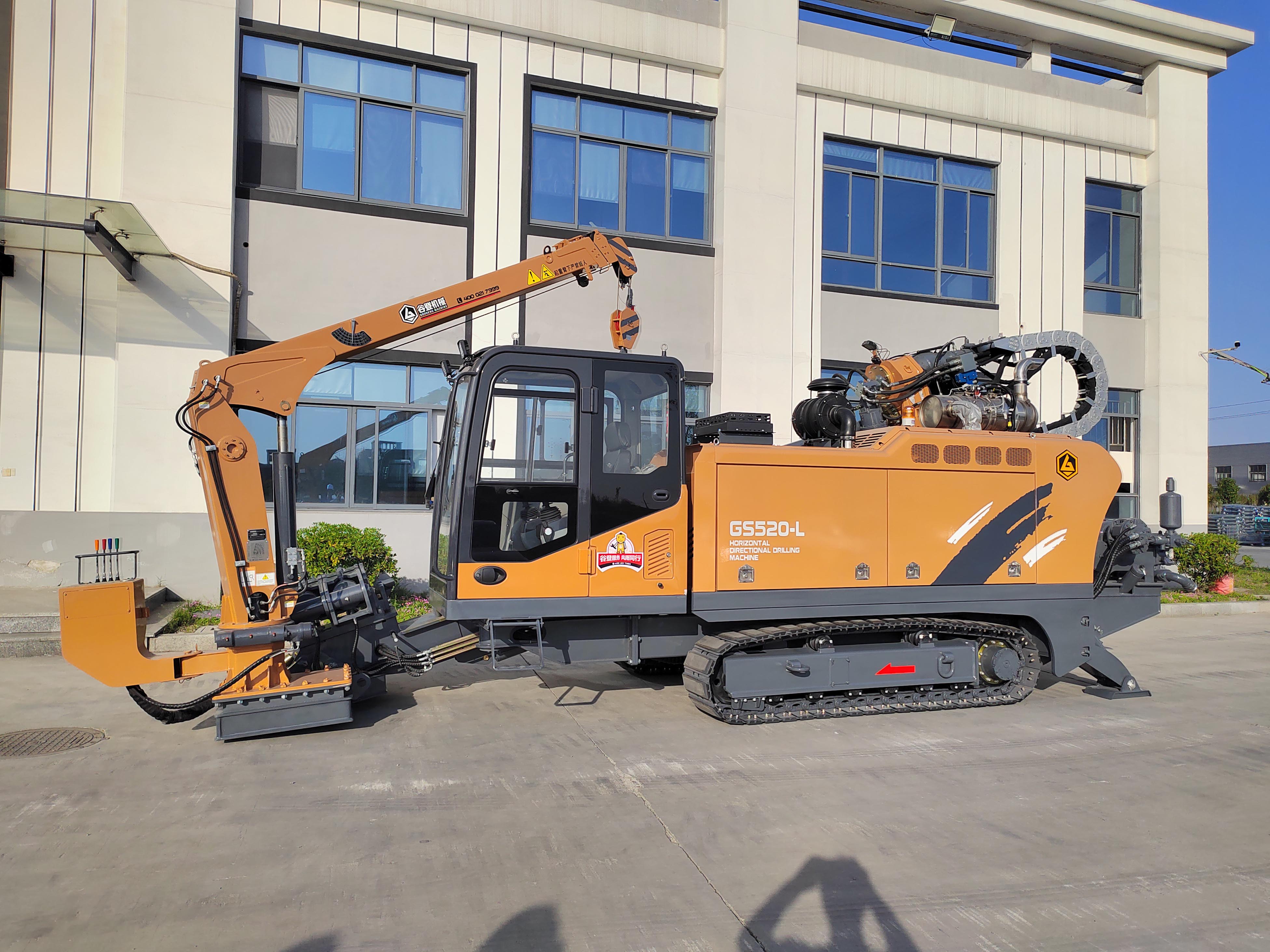

GOODENG MACHINE High-Efficiency GS520-LS Horizontal Directional Drilling Equipment

1.The machine is equipped with Cummins engine with high efficiency, large power, low fuel consumption, low noise and strong ability in construction.

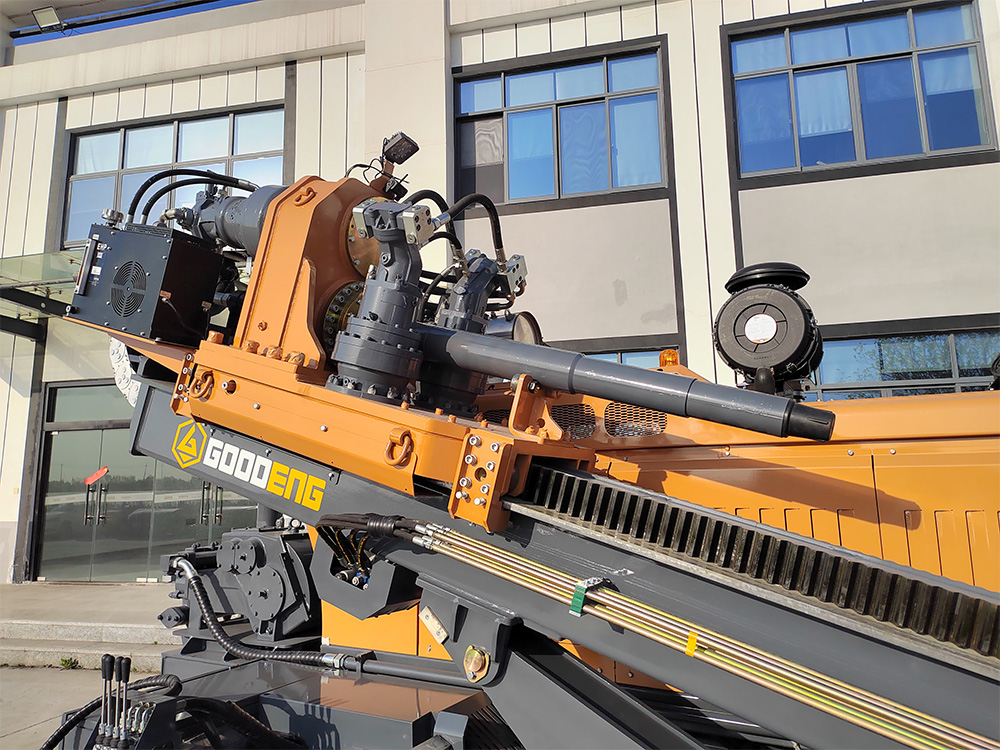

2.Driving head reserves reinforced power (Thrust& Pullback force). Thrust& Pullback force can be increased to 1060KN, which ensures the safety of the construction in the construction of big diameter.

3.Four-bar linkage luffing structure is adopted for main girder, which highly increases entry angle range and ensures the large angle and rig tracks are not off ground, having improved the safety performance.

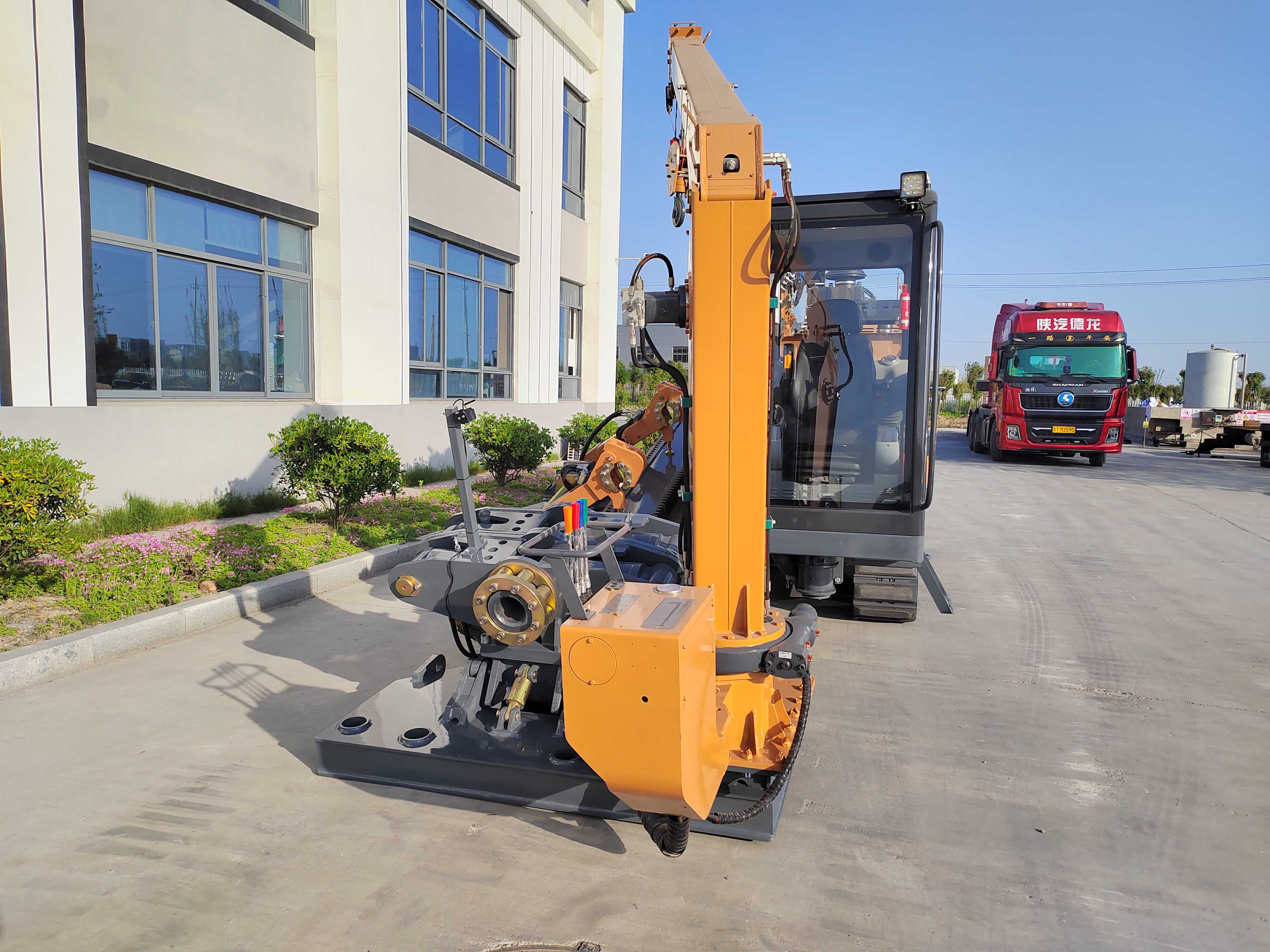

goodeng machine 52ton horizontal drill machine(1).jpg

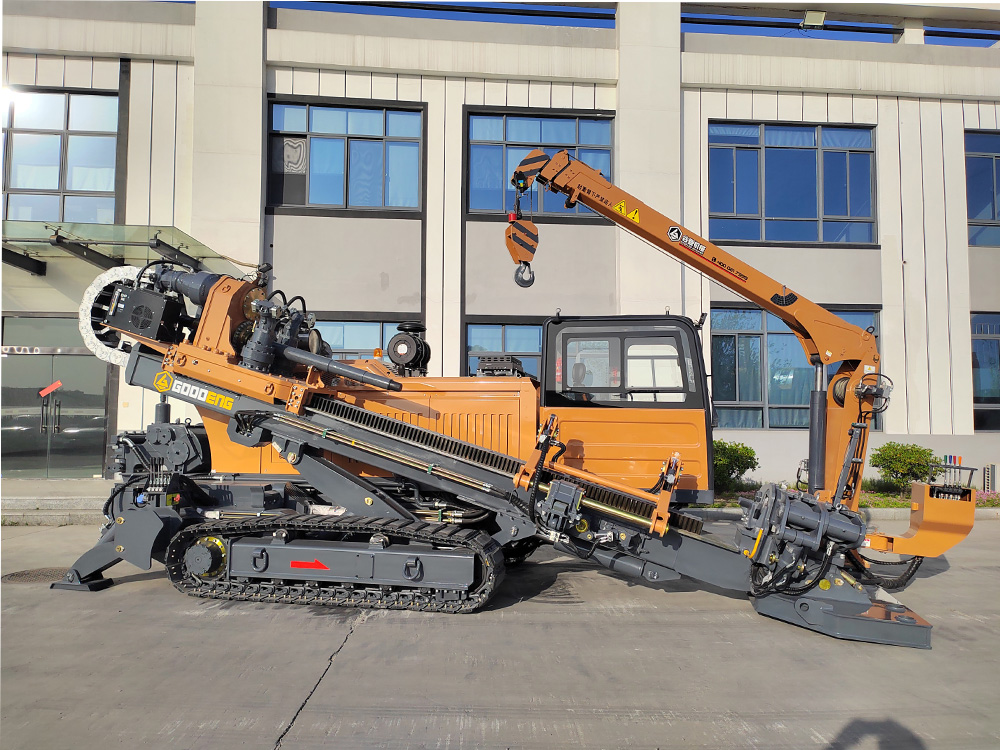

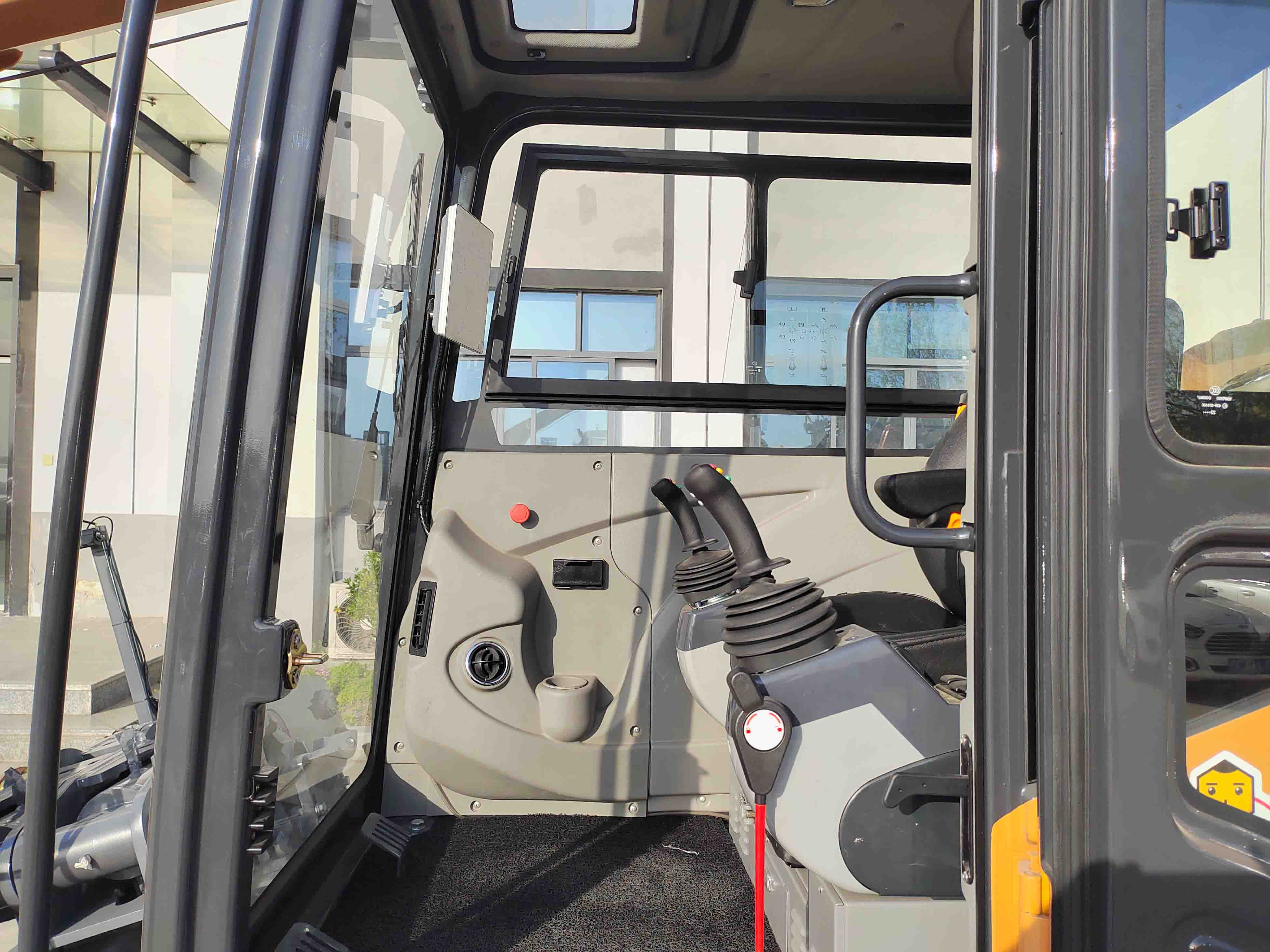

Goodeng 52ton hdd drill rig for pipeline.jpg

Technical Parameter

Weight	15800/16200 KG	34833/35715 lbs
Dimension(LxWxH)	7600/8500×2265×2520mm	299.21/334.65×89.17×99.21 in
Max.Thrust & Pullback Force	530/1060 KN	119149/238298 lbf
Max.Thrust&Pullback Speed	61 m/min	199.13 ft/min
Max.Torque	29000 N·m	21389 ft·lb
Max.Rotation Speed	142 r/min	142 rpm
Engine power	194kW	260.23 hp
Max.Mud flow	600/800 L/min	158.5 gpm
Walking Speed	3-5 km/h	1.86-3.11 mph
Max.Mud Pressure	10 MPa	1450 psi
Entry Angle	12°-20°	12°-20°
Max.Climbing Gradient	18°	18°
Drill Rod Size	Φ89-102×3000/4500 mm	Φ3.5-4×118/177 in
Crane Capacity	2T	4409 lb
Suggest Reaming Dia.	≤Φ1300 mm	≤Φ51.18 in
Suggest Crossing Length	≤800 m	≤2625 ft

Main Configuration

Product Introduction

German Rexroth automatic variable system is adopted for rotation, push & pull, clamping and walk, with load sensitivity control. Advanced hydraulic system increases more than 15%-20% productivity, and saves more than15%- 20% energy compared with traditional one.

1.The machine is equipped with Cummins engine with high efficiency, large power, low fuel consumption, low noise and strong ability in construction.

2.Driving head reserves reinforced power (Thrust& Pullback force). Thrust& Pullback force can be increased to 1000KN, which ensures the safety of the construction in the construction of big diameter.

Four-bar linkage luffing structure is adopted for main girder, which highly increases entry angle range and ensures the large angle and rig tracks are not off ground, having improved the safety performance.
