GS-SeriesHorizontal Directional Drills

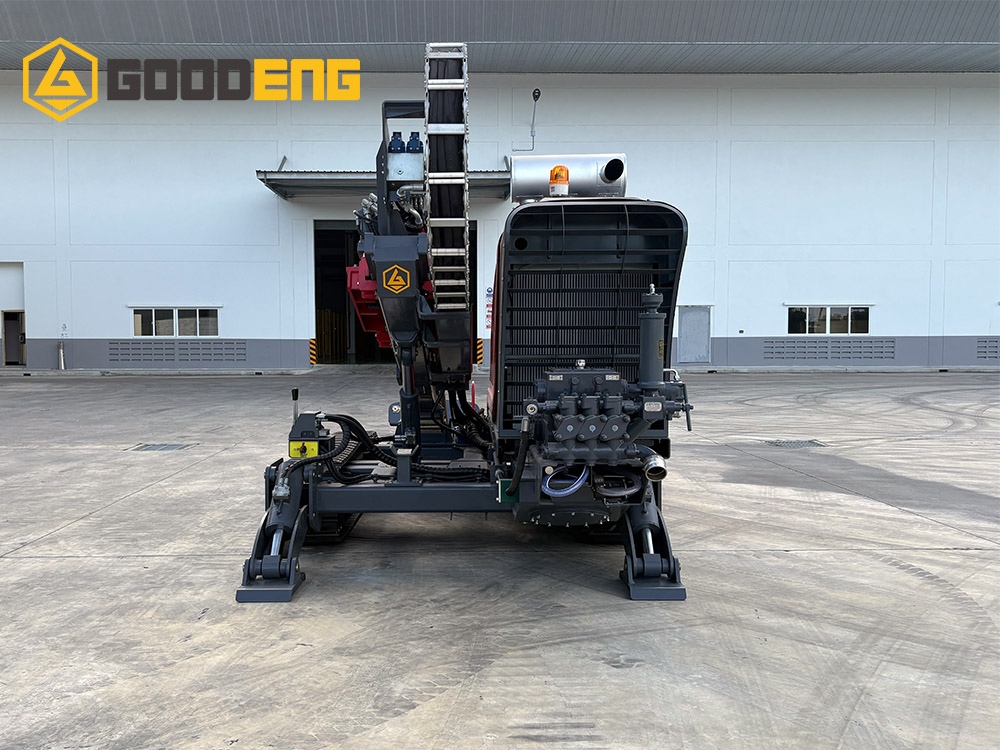

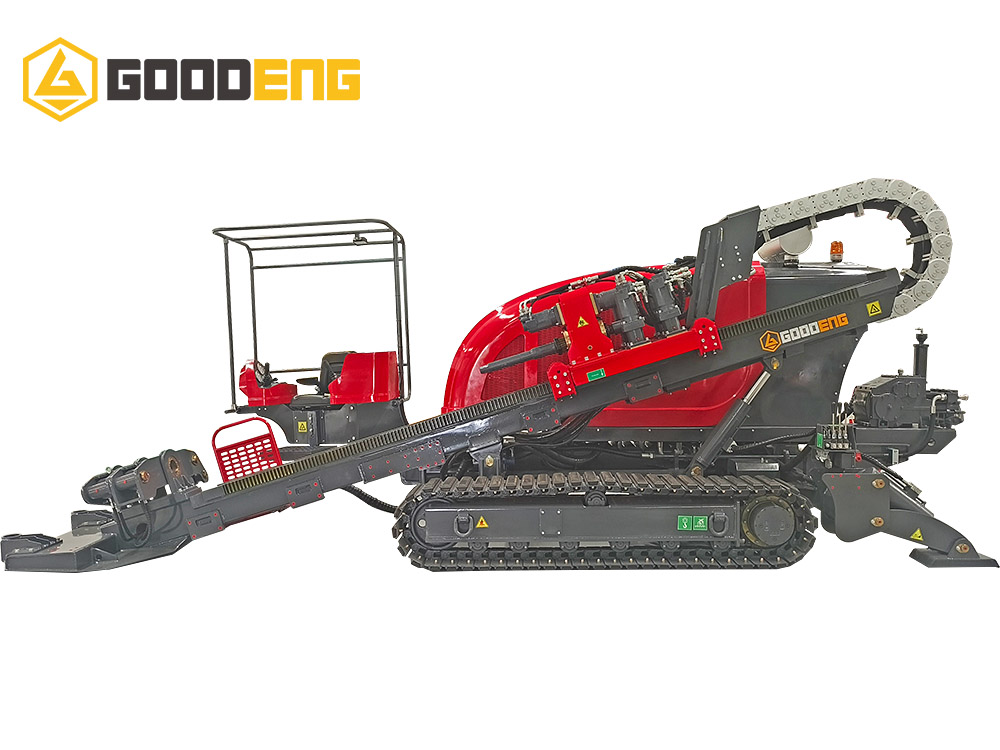

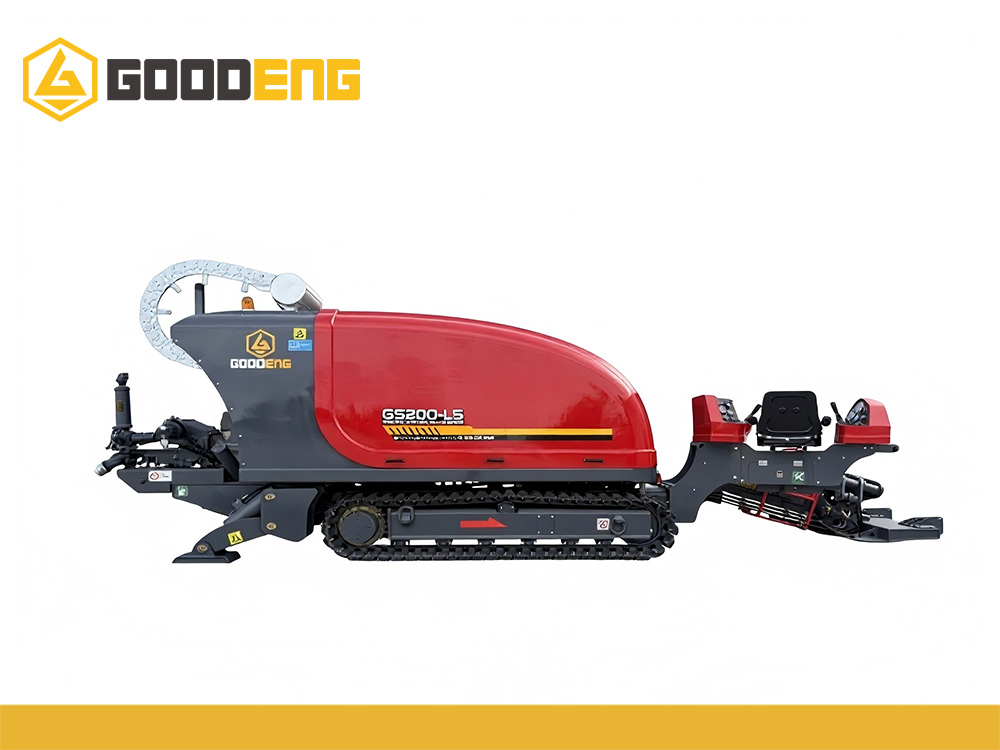

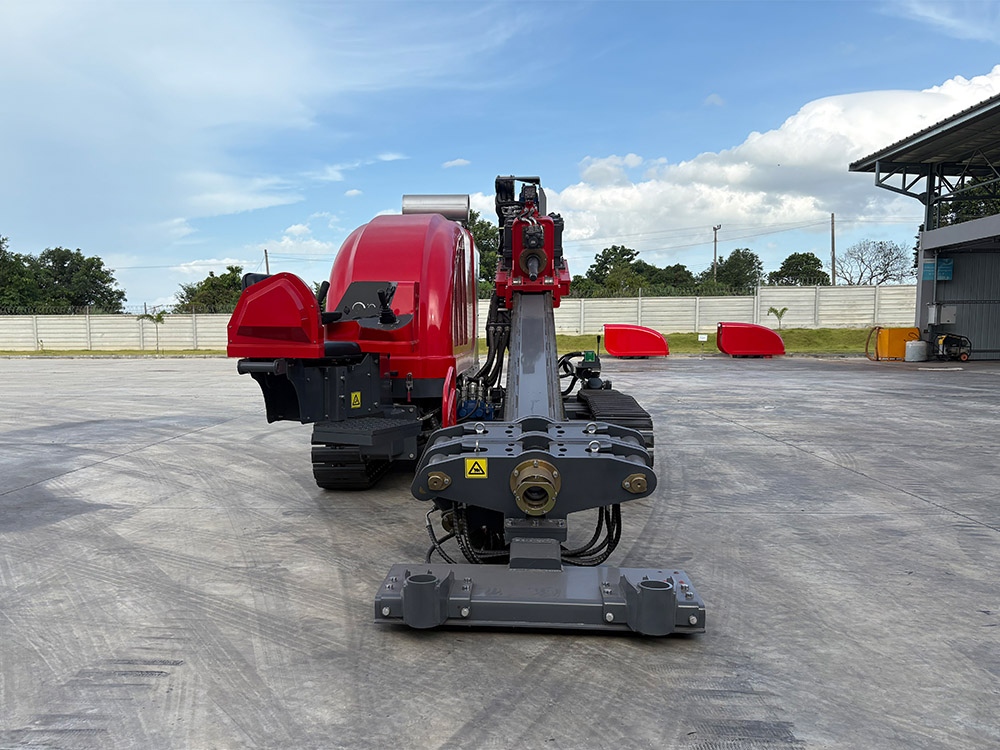

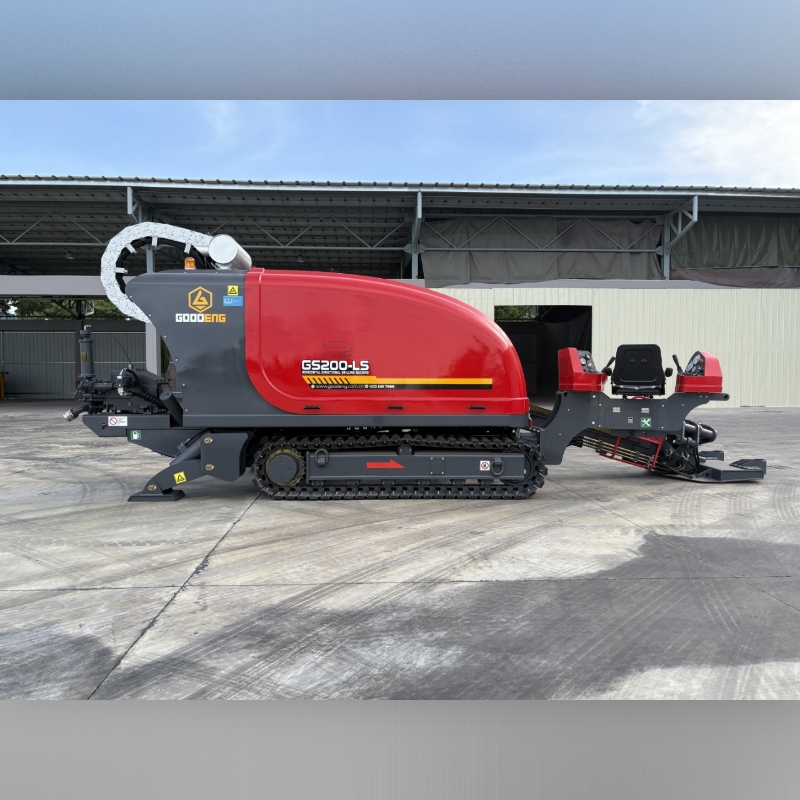

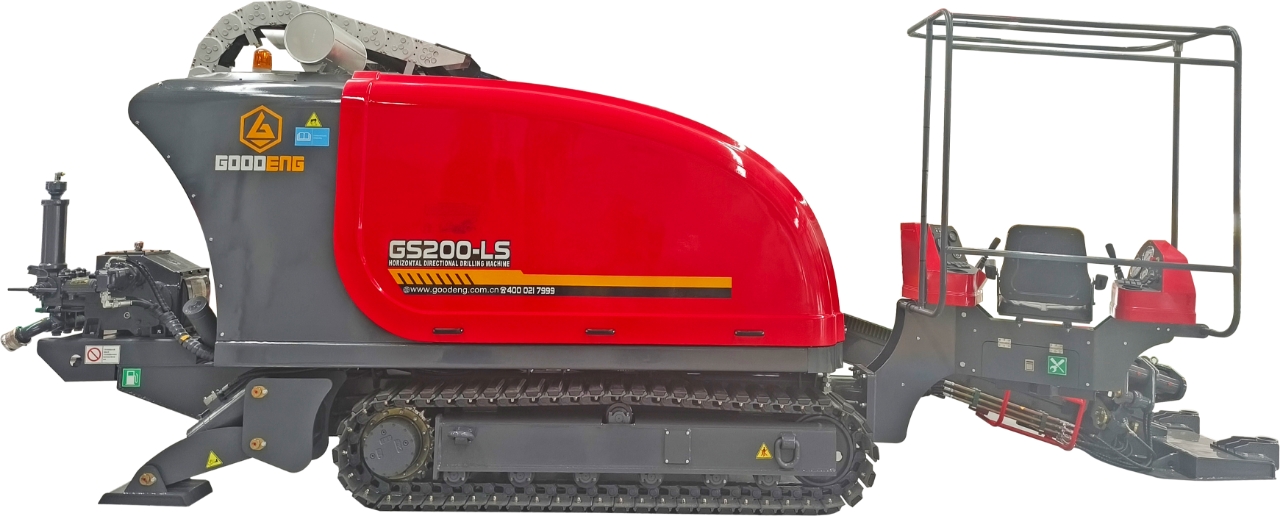

Goodeng GS200-LS Small Trenchless Horizontal Directional Drilling Boring Machine for sale No-dig drilling equipment for underground pipelines
Technical Parameter
| Weight | 8800 kg | 19400 lb |
| Max. Thrust & Pullback Force | 205KN | 46100 lbf |
| Max. Torque | 6500 N·m | 4790 ft·lb |
| Engine power | 110 kW | 152 hp |
| Walking speed | 2.5-4 km/h | 1.6-2.5 mph |
| Entry Angle | 22° | 22° |
| Drill Rod Size | Φ60x3000 mm | Φ2.36×118 in |
| Suggest Reaming Dia. | ≤800 mm | ≤31.5 in |
| Dimension (LxWxH) | 6750x2050x2400mm | 266×81×95 in |
| Max.Thrust & Pullback speed | 60 m/min | 197 fpm |
| Max. Rotation Speed | 230 r/min | 230 rpm |
| Max. Mud flow | 250 L/min | 66gpm |
| Max. Mud Pump Pressure | 8 MPa | 8 MPa |
| Max. Climb Gradient | 17° | 17° |
| Drill Rod Box Capacity | 48pcs(4x12) | 48pcs(4x12) |
| Suggest Crossing Length | ≤300m | ≤984.25 ft |
- The rotation is driven by a high-torque motor, offering high torque, stable performance, and two-speed adjustment. The thrust and pullback are also driven by a high-torque motor, offering three speeds, significantly outperforming other manufacturers in the industry. Power head provides reinforced power, which expands the scope of drilling construction.
- It is equipped with a military-grade hydraulic gear pump. The steel crawler tracks are controlled by wire, making loading, unloading, and transporting easy.
1
BLANKING
2
RIVET-WELDING
3
MACHINING
4
ASSEMBLING
5
DEBUGGING
6
TESTING
-
1
1.Do you offer training for new operators?
Yes. Every rig purchase includes 3-5 days of on-site training.
-
2
What spare parts should I keep in stock on site?
Sub saver
Switches
Grips
