    Goodeng G60-AT All-Terrain Horizontal Directional Drilling Unit Crawler-Mounted HDD Rig for Rough Field Operations
    G-Series Horizontal Directional Drills

    Goodeng G60-AT All-Terrain Horizontal Directional Drilling Unit Crawler-Mounted HDD Rig for Rough Field Operations

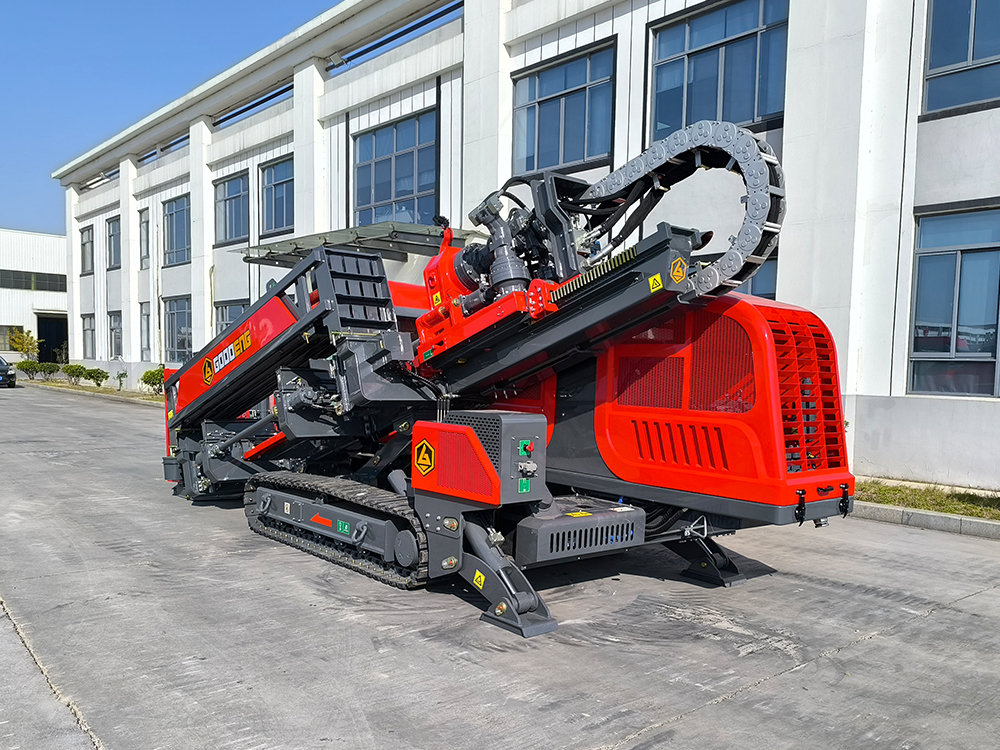

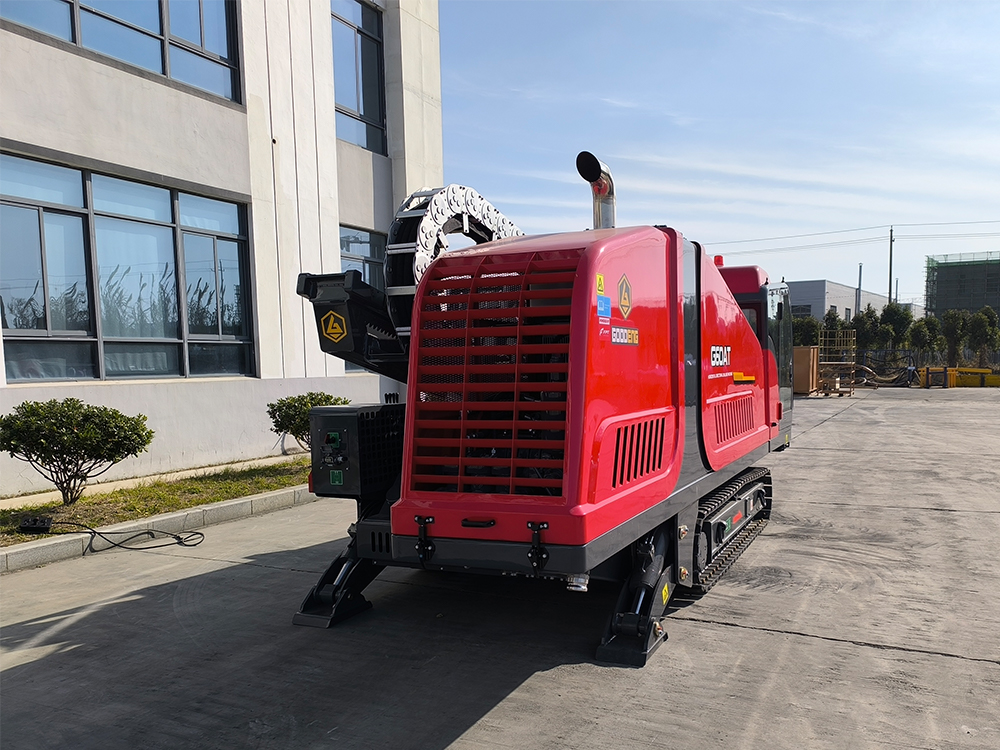

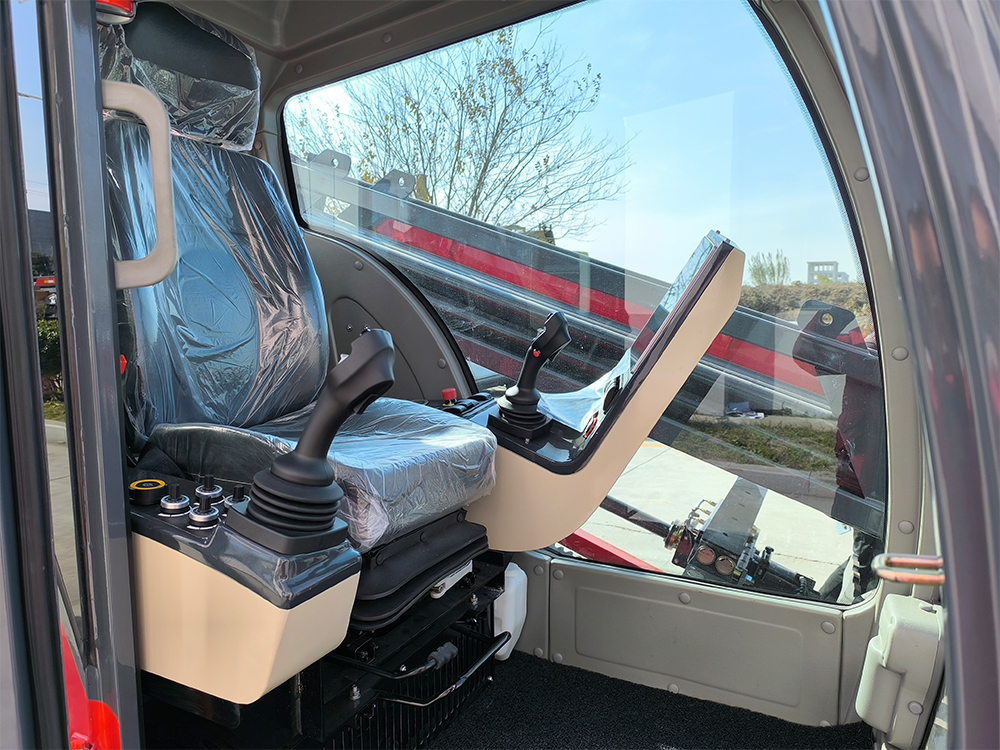

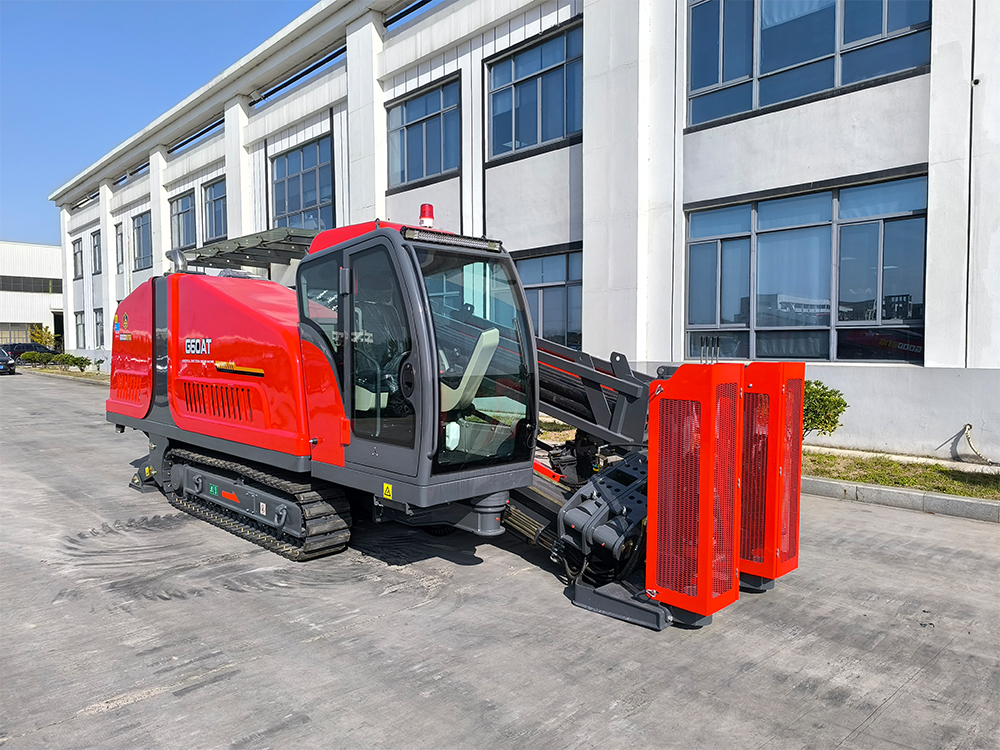

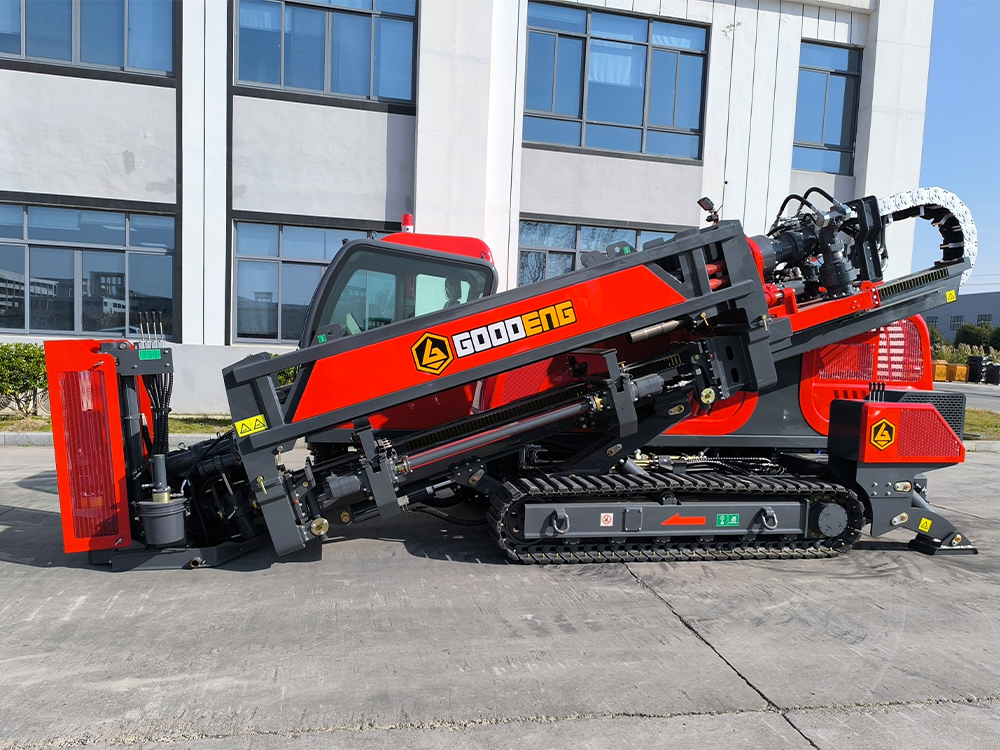

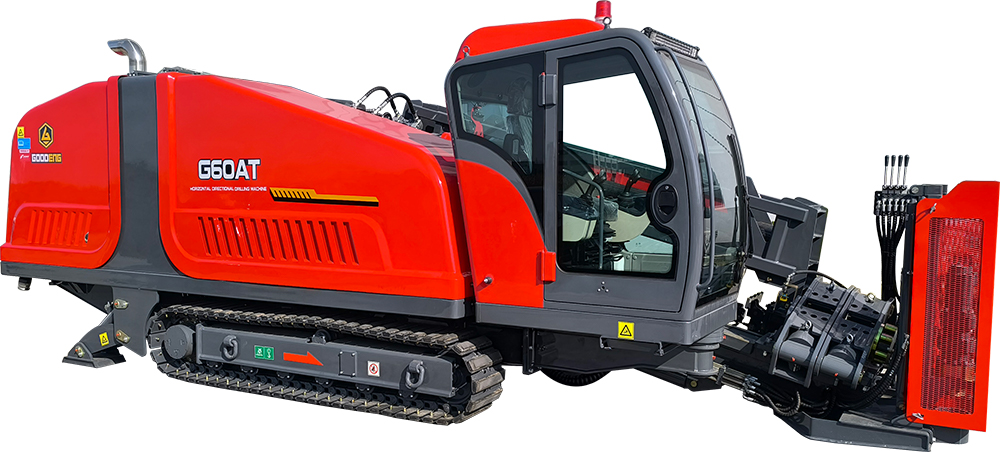

    Goodeng Trenchless HDD G60-AT Machine, a high-performance horizontal directional drilling rig, engineered for precision and efficiency in demanding environments. Featuring a rubber crawler walking system and adjustable speed control, it delivers exceptional mobility and stability across diverse terrains. The integrated mud pump and jet nozzle ensure reliable mud system operation, while the rotating operator seat offers unmatched convenience and visibility.

    Optional accessories—including an automatic grease injector, rod-loading box, and hydraulic anchor—expand the rig's versatility and functionality.

      Contact us

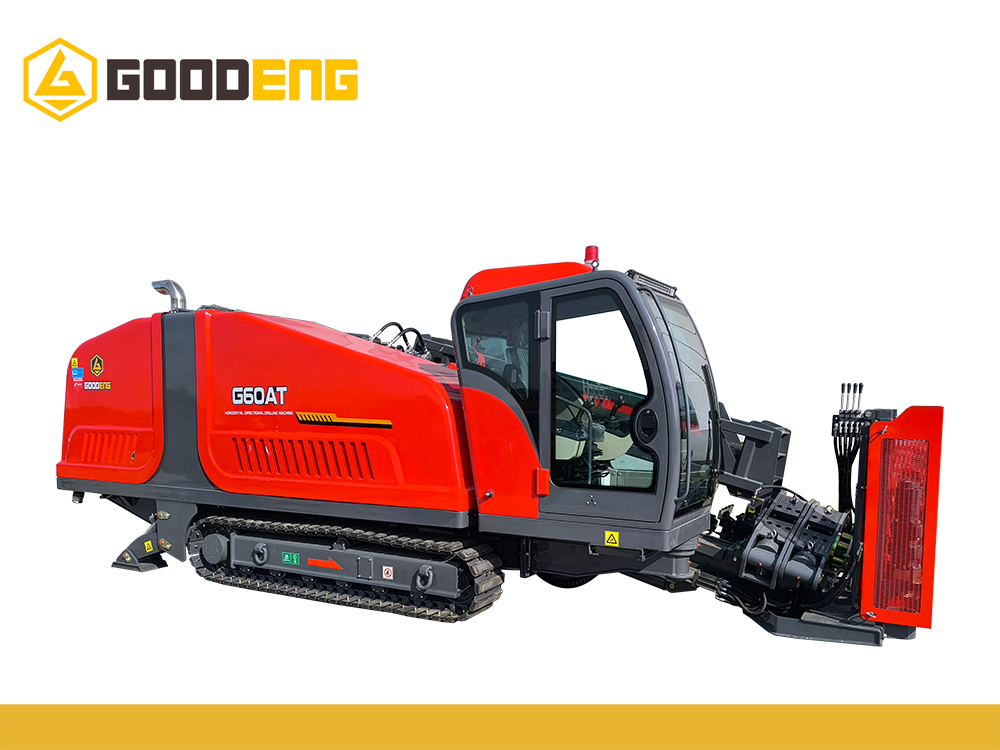

      Goodeng G60-AT All-Terrain Horizontal Directional Drilling Unit Crawler-Mounted HDD Rig for Rough Field Operations.jpg
      Goodeng G60-AT All-Terrain Horizontal Directional Drilling Unit Crawler-Mounted HDD Rig for Rough Field Operations (1).jpg
      Goodeng G60-AT All-Terrain Horizontal Directional Drilling Unit Crawler-Mounted HDD Rig for Rough Field Operations (2).jpg

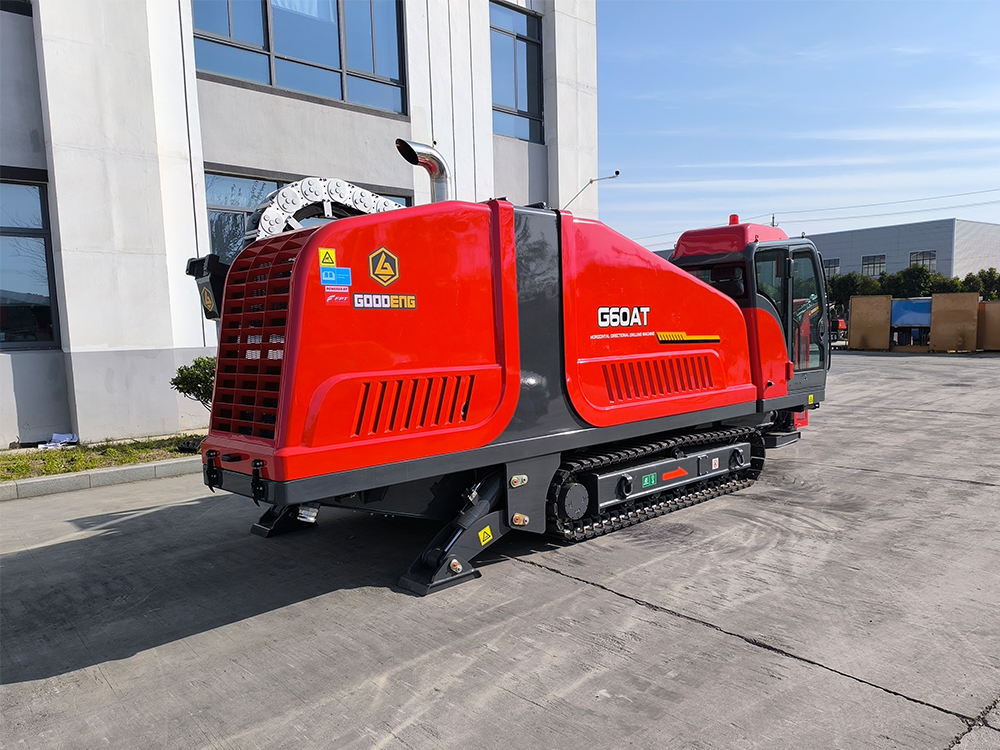

      Goodeng G60-AT All-Terrain Horizontal Directional Drilling Unit Crawler-Mounted HDD Rig for Rough Field Operations (3).jpg
      Goodeng G60-AT All-Terrain Horizontal Directional Drilling Unit Crawler-Mounted HDD Rig for Rough Field Operations (4).jpg
      Goodeng G60-AT All-Terrain Horizontal Directional Drilling Unit Crawler-Mounted HDD Rig for Rough Field Operations (5).jpg

      Technical Parameter

        Metric Unit Imperial Unit
      Weight 21000 kg 46297 lbs
      Dimension (LxWxH) 9000×2520×2630 mm  354×99×103 in
      Max.Thrust&Pullback Force 453 KN 102838 lbf
      Max.Thrust&Pullback Speed 65 m/min 213 ft/min
      Max.Torque  19000 N·m 14013 ft·lb
      Max.Rotation Speed 192 r/min 192 rpm
      Engine Power 194 kW 260 hp
      Max.Flow of Mud Pump 800 L/min 175 gal/min
      Walking Speed 5 km/h 3.1 mph
      Max.Mud Pump Pressure 8 MPa 1160 psi
      Entry Angle 21° 21°
      Max.Climbing Gradient 18° 18°
      Drill Rod Size φ89×4600 mm 3.5×181 in
      Crane 4.5 t 4.5 t
      Suggest Reaming Diameter ≤φ1200 mm ≤ φ47.24 in
      Suggest Crossing Length ≤800 m ≤ 2624 ft

      Main Performance Characteristic

      The machine is equipped with Cummins engine, with high efficiency, large power, low fuel consumption, low noise, and strong ability in construction.

      • Thrust&pullback and rotation adopt manual handle, which makes control simple and quick.
      • Europe-American style surface, streamline shape, and elegant appearance, it can be opened overall for flexible operation and daily maintenance.
      • Small size and lightness is better for construction in downtown, transferring and working in different kinds of jobsite.
      G60-at
      • It is equipped with Vermeer type drill rod Φ89×4600mm, with high quality, high reliability and superior performance.
      • Main assembly parts are from international first-class hydraulic components manufacturer, which can greatly improve the performance of products reliability.

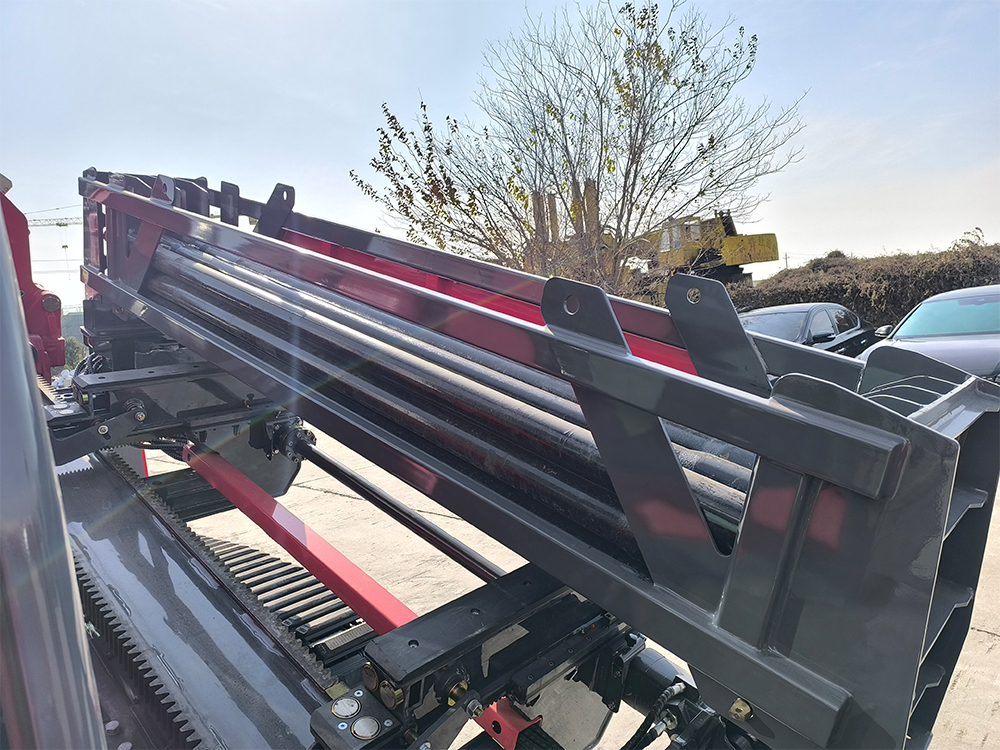

      • Optional accessories—including an automatic grease injector, rod-loading box, and hydraulic anchor—expand the rig's versatility and functionality.

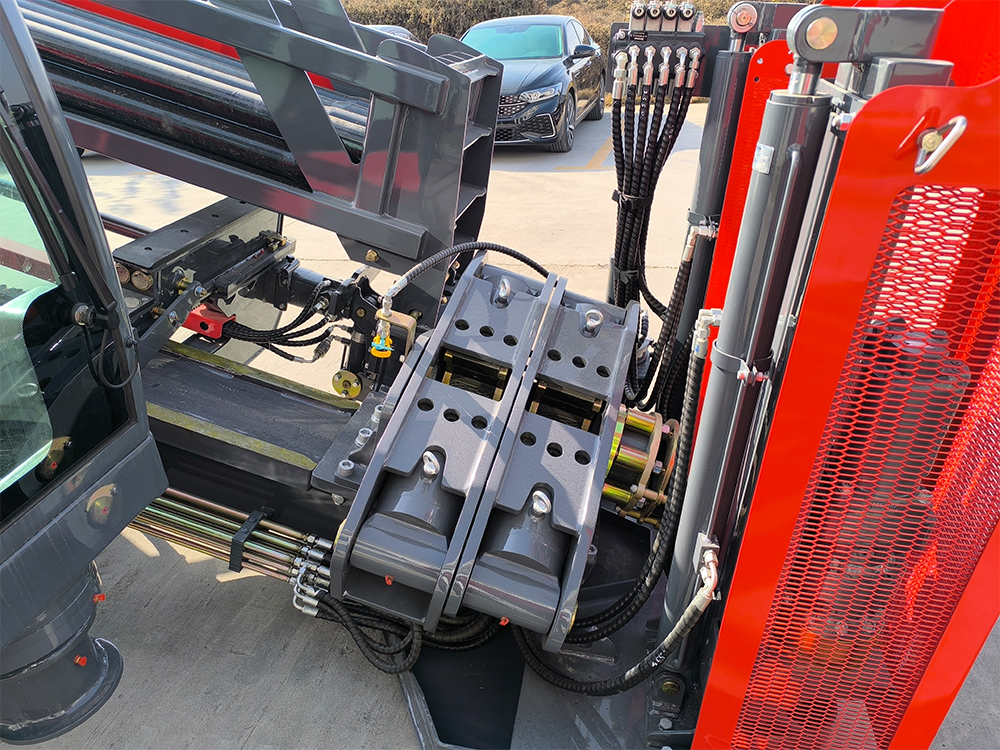

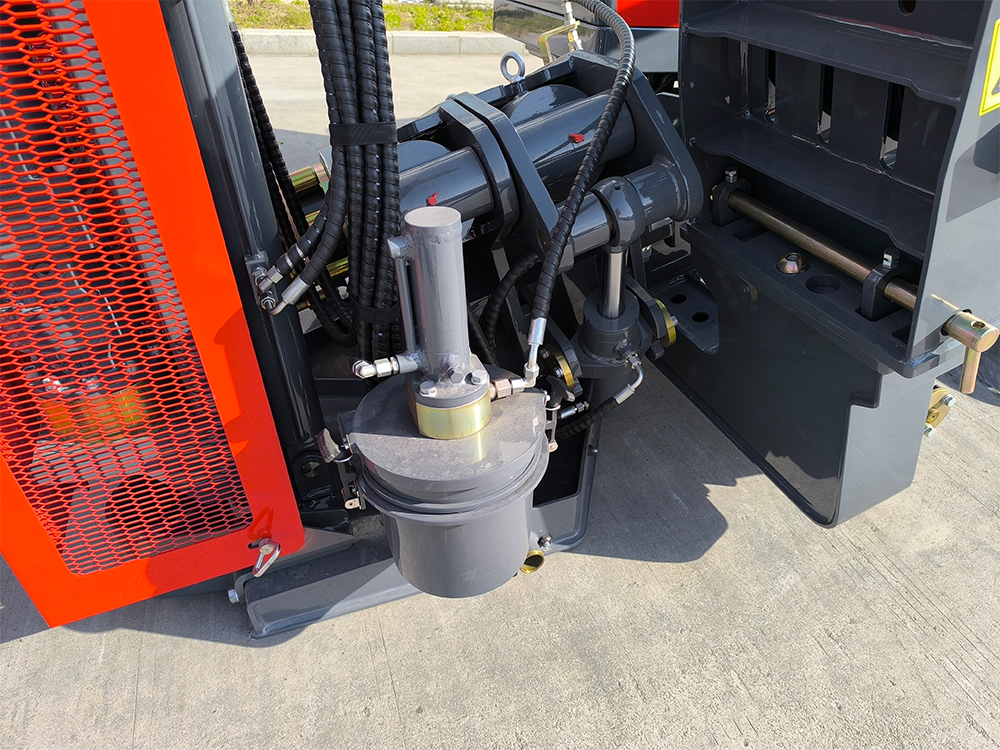

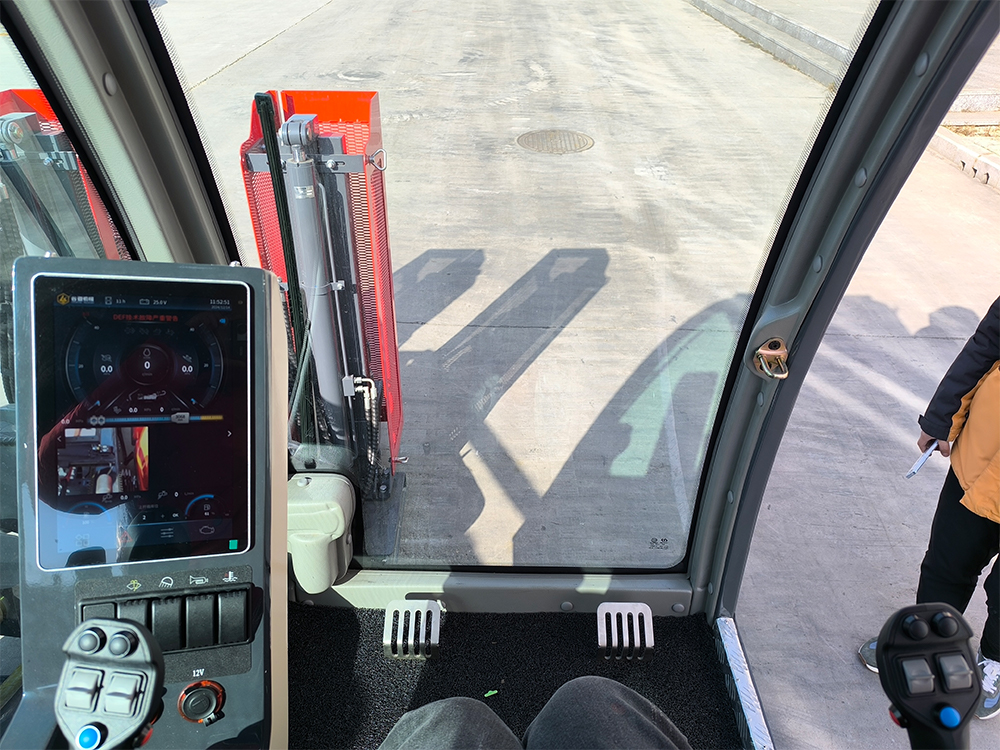

      solution MAIN DETAILS

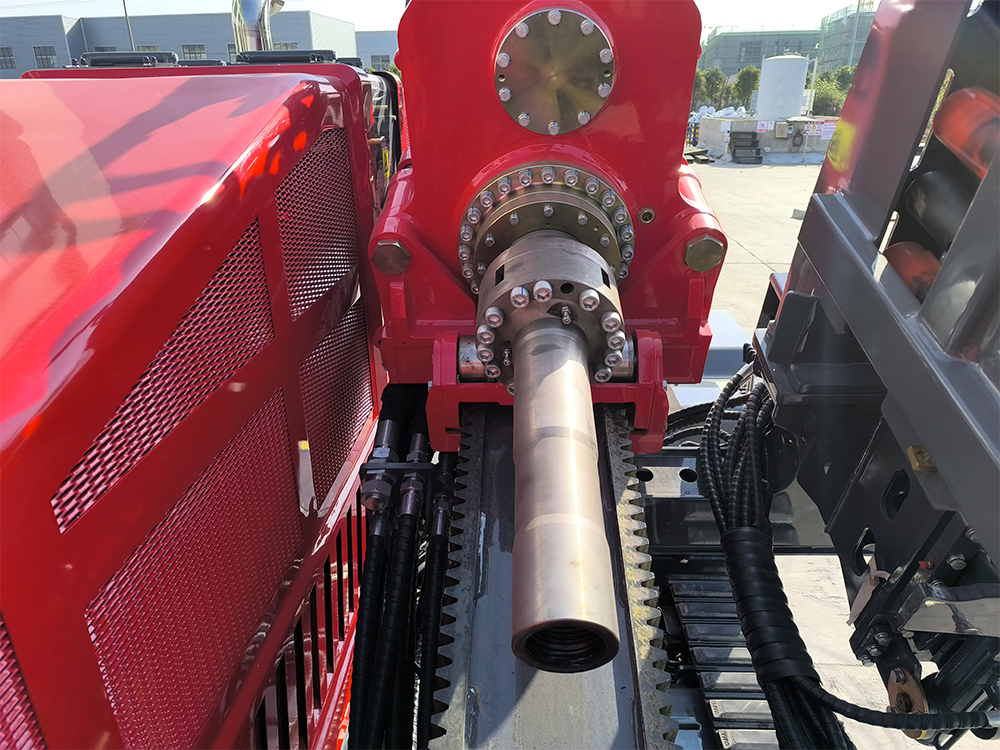

      IMG_20241214_114956

      IMG_20241214_115006

      IMG_20241214_115017

      IMG_20241214_115023

      IMG_20241214_115056

      IMG_20241214_115149


      application


      APPLICATION AREA

      Goodeng G60AT horizontal
      01
      Goodeng G60AT horizontal
      02
      Goodeng G60AT horizontal
      03

      Production Process

      1
      BLANKING 1

      BLANKING

      2
      RIVET-WELDING 2

      RIVET-WELDING

      3
      MACHINING 3

      MACHINING

      4
      ASSEMBLING 4

      ASSEMBLING

      5
      DEBUGGING 5

      DEBUGGING

      6
      TESTING 6

      TESTING

      65420be751dad22160
      Jiangsu Goodeng Heavy Machinery
      FAQ (2)

      FAQ

      • 1

        In which scenarios is the G60AT all-terrain horizontal directional drilling rig mainly used?

        The G60AT is an all-terrain horizontal directional drilling rig, ideally suited for construction operations in complex or hard formations (such as rock formations). It is widely used in trenchless pipe laying projects such as municipal engineering, oil and gas pipelines, communication cables, and water supply and drainage pipelines, and is adaptable to various soil types and geological conditions.

      • 2

        What are the maximum push-pull force and push-pull speed of the G60AT?

        The maximum push-pull force of the G60AT is 279 kN (or 62722 lbf). Simultaneously, its maximum push-pull speed can reach 65 m/min (213.3 ft/min).

      • 3

        What are the torque and speed parameters of the inner and outer drill rods of this all-terrain drilling rig?

        The G60AT is equipped with a high-efficiency dual drill rod system: Outer drill rod: Maximum torque is 13000 N-m, maximum speed is 238 r/min. Internal drill pipe: Maximum torque 2760 N-m, maximum speed 242 r/min.

      • 4

        What drill pipe specifications are recommended for the G60AT? How many drill pipes can the drill pipe box hold?

        The recommended external drill pipe specifications for this equipment are Ф92×3000 mm, and the recommended internal drill pipe specifications are Ф50×2990 mm. Its built-in drill pipe box has a capacity of 20 pipes (arranged in a 4×5 layout).

      • 5

        What are the engine power and mud pump capacity of this equipment?

        The G60AT is equipped with a powerful 157 kW (210 HP) engine. In addition, the equipment's mud pump has a maximum flow rate of 560 L/min (147.9 GPM), providing ample mud support for drilling in complex formations.

      • 6

        What are the recommended drilling distance and maximum reaming diameter for the G60AT?

        Under normal geological conditions, the recommended drilling distance for the G60AT is up to 600 meters (1969 ft), and the recommended maximum reaming diameter is no more than 1500 mm (59.1 inches).

      • 7

        Can a complete set of drilling tools be provided for the G60AT?

        Yes. We can provide you with a complete set of drilling tools, including drill bits and drill pipes, perfectly matched to its internal and external drill pipe systems. All accessories and the main unit are manufactured to the same standards to ensure stable overall operation of the equipment.
