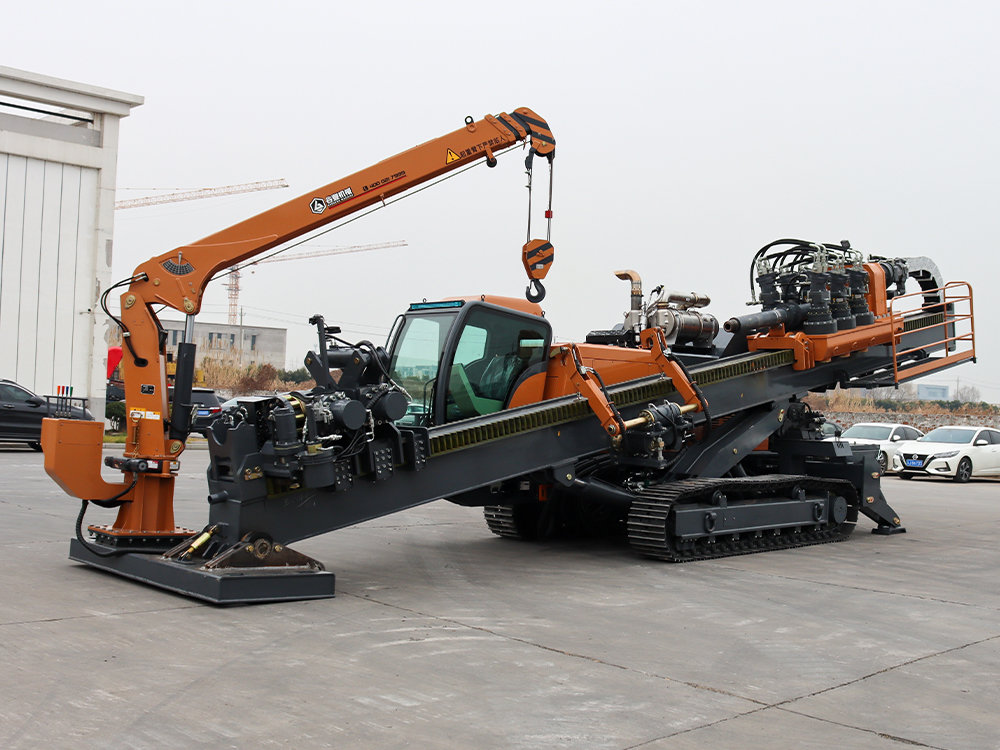

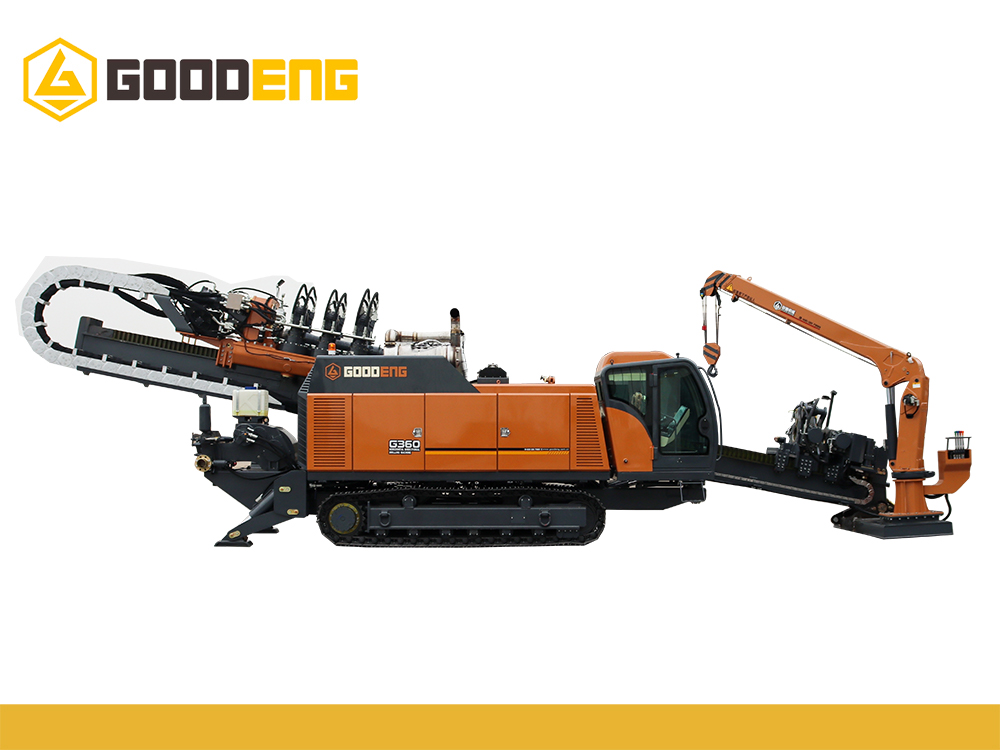

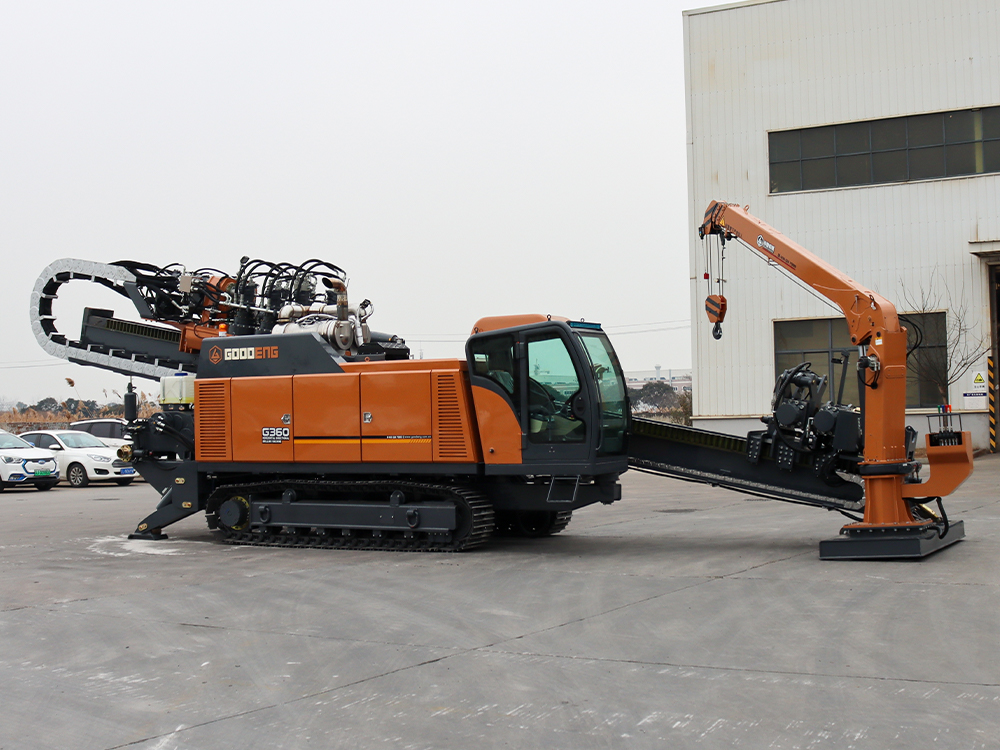

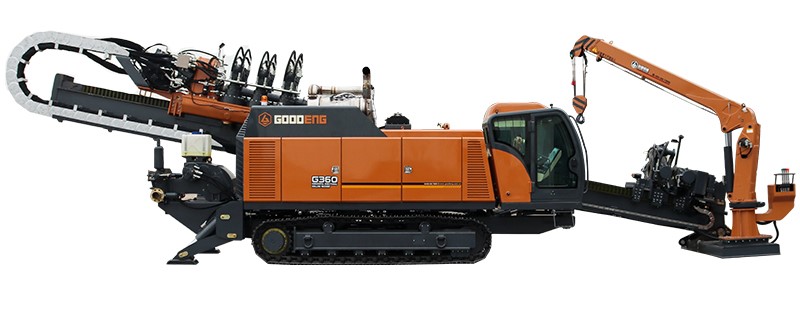

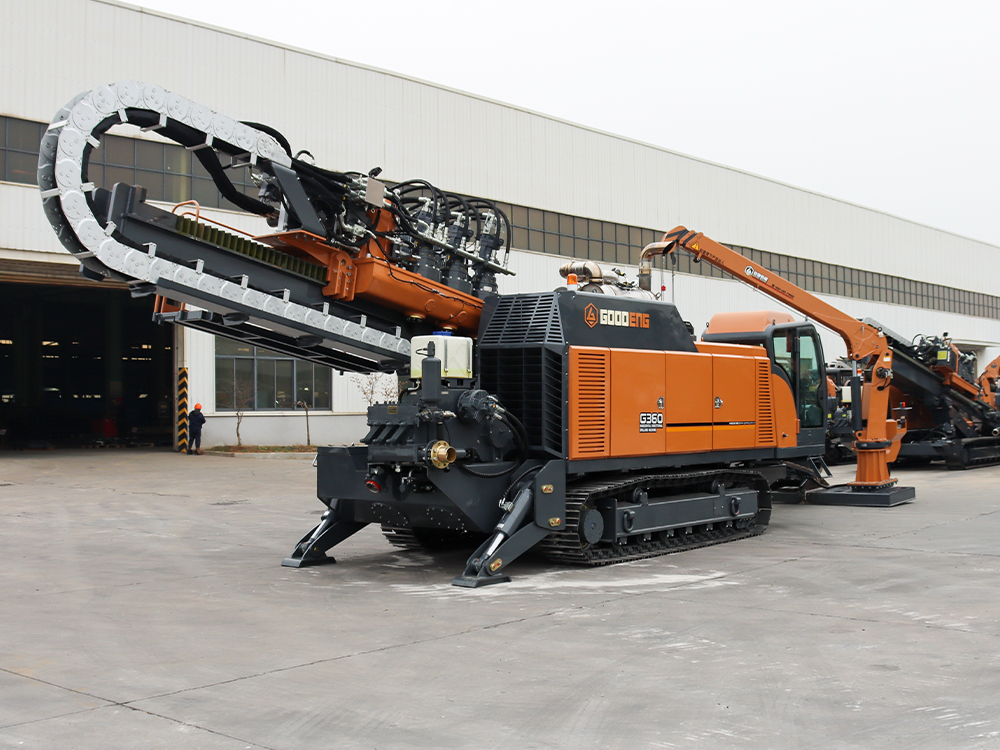

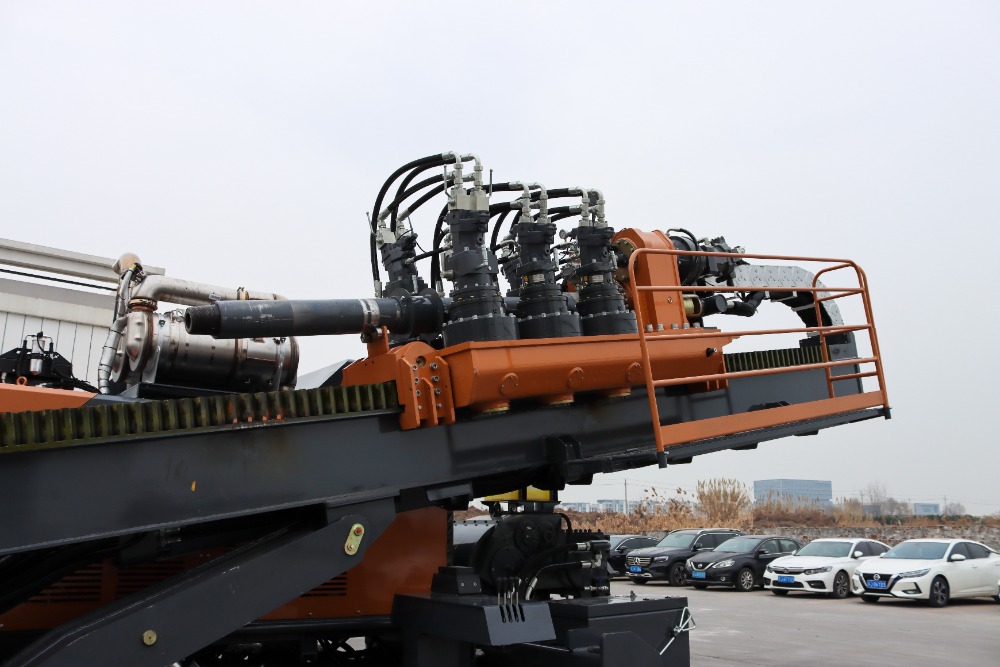

Goodeng G360 CE Certified European Standard HDD Drilling Machines Hydraulic Directional Drill Rig for Gas Distribution

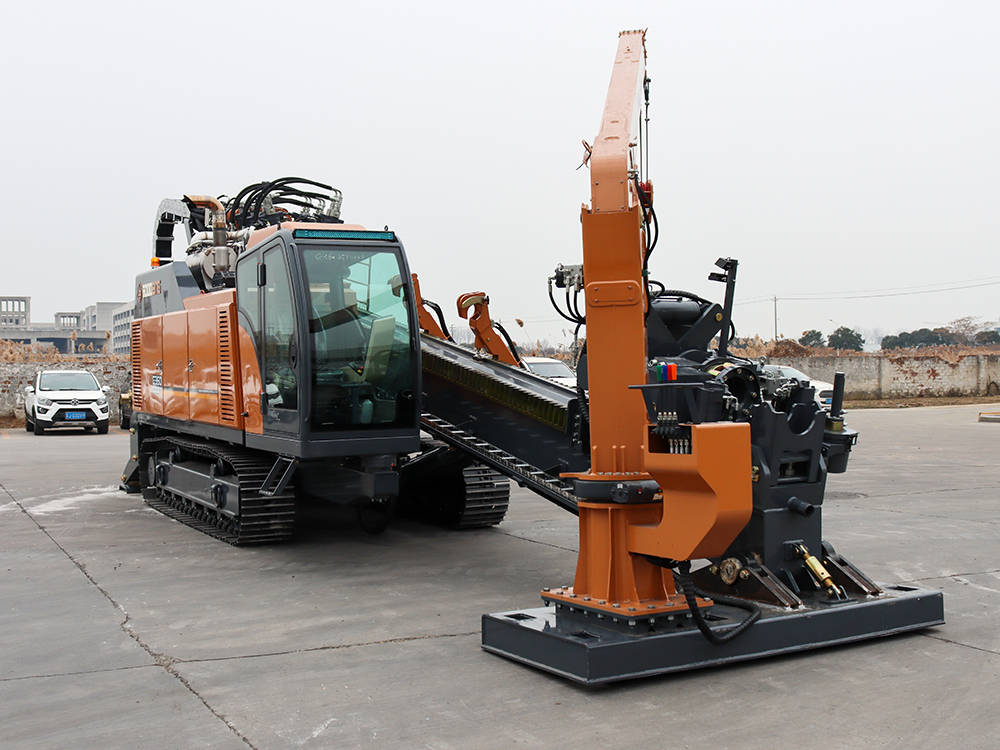

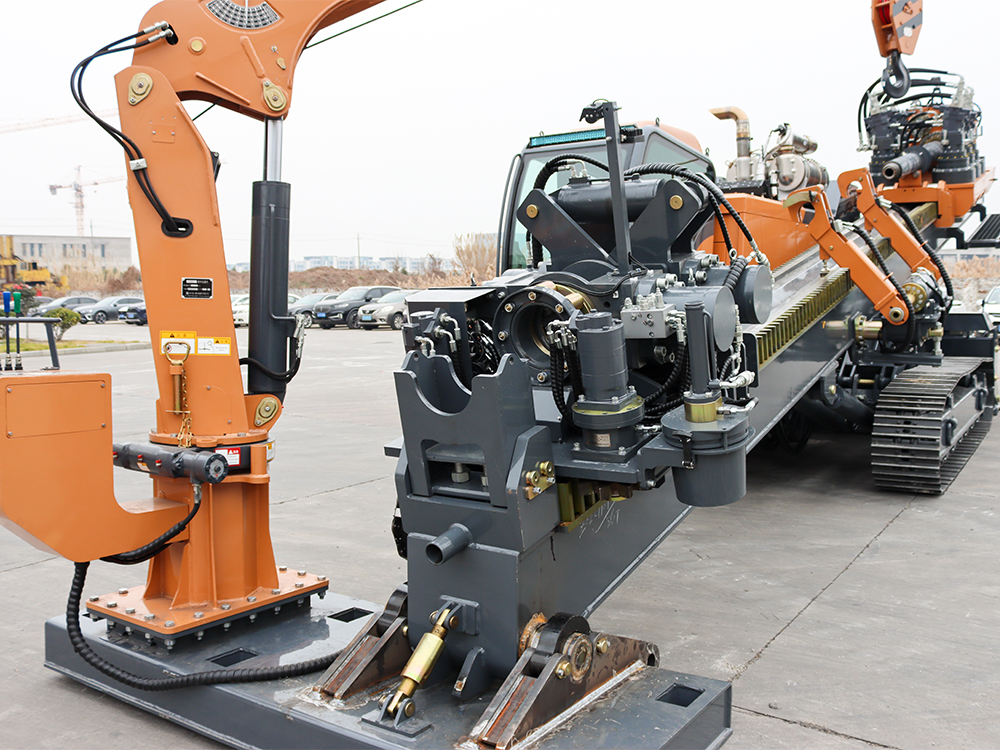

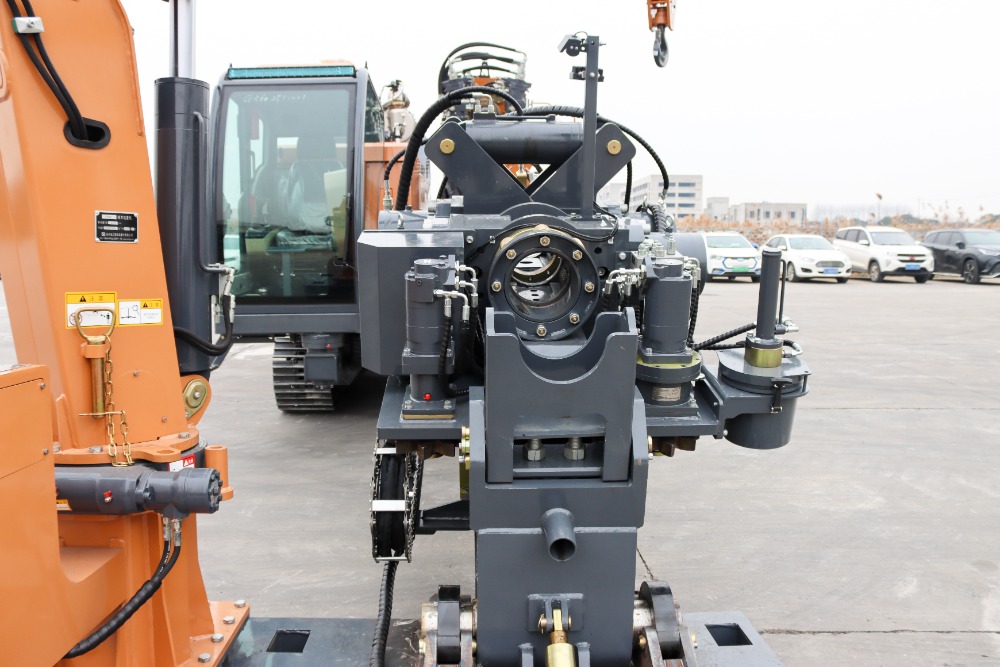

Patented technology clamp: The low center design of the clamp makes the entry drill point closer which can save construction space and reduce the construction length. The clamp can be separated.
High efficiency, energy saving and stable engine: Use Cummins engine for construction machinery, strong power.

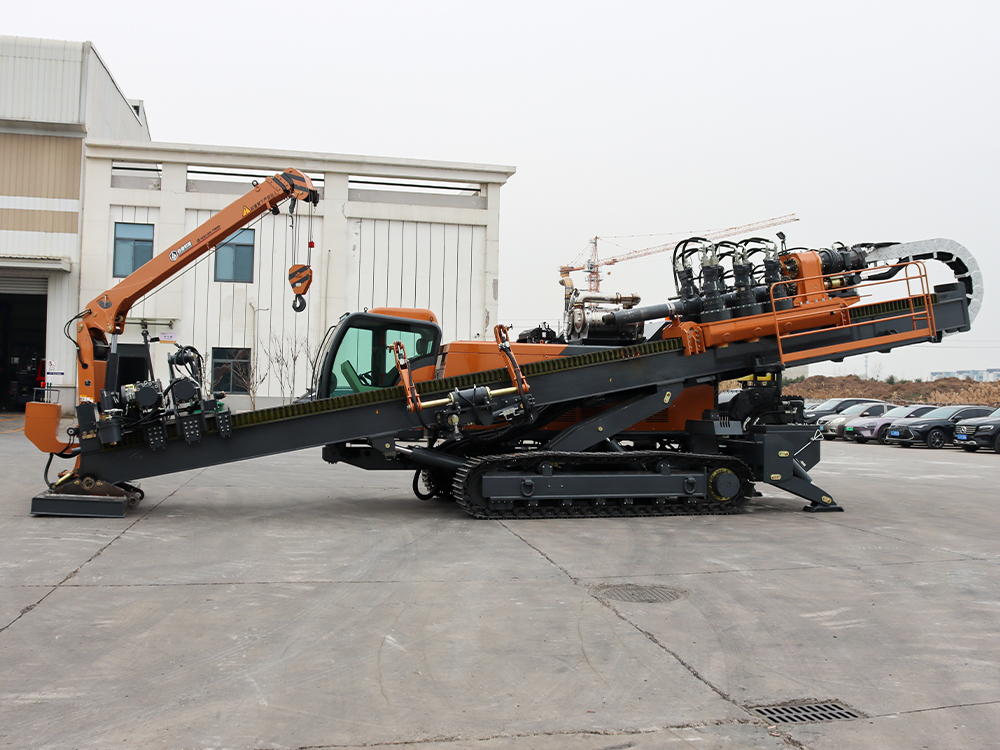

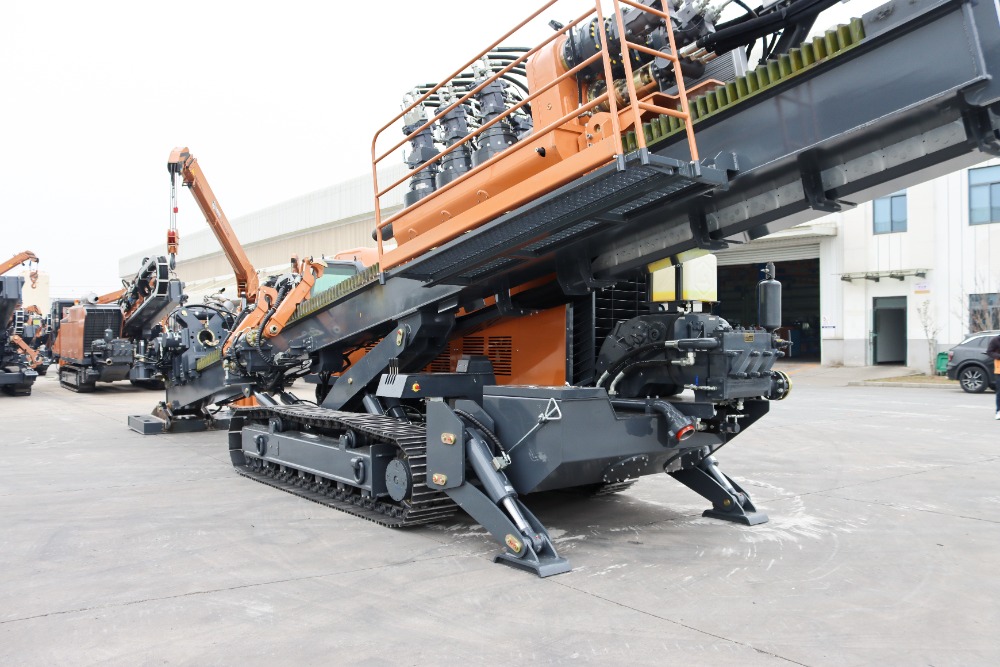

Large-scale entry drill angle design: Main girder adopts four-bar linkage luffing structure, and the entry drill angle is greatly improved, while ensuring that the crawler of the drilling rig does not leave the ground at a large angle, which improves the stability and safety of the drilling rig.

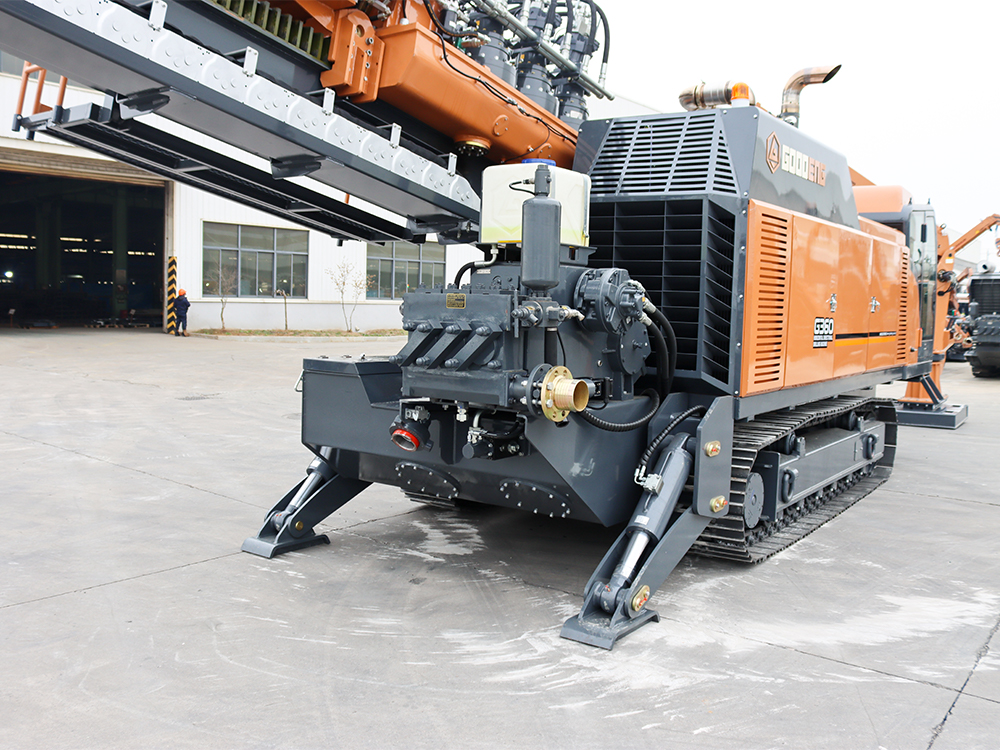

Large displacement mud pump: High reliability and long-life mud pump. Enhanced long-life mud rotary joint, Goodeng's core process technology guarantee; optional plunger or ceramic cylinder liner piston mud pump, greatly extending the service life of wearing parts.

This drilling rig integrates multiple advanced features for enhanced performance: a patented low-center clamp that saves space and allows for separation; a powerful and efficient Cummins engine; a four-bar linkage main girder that enables a larger entry angle while maintaining crawler-ground contact for stability and safety; and a high-reliability, large-displacement mud pump with durable rotary joints and optional long-life piston/liner options to extend service life.

Technical Parameter

	Metric Unit	Imperial Unit
Engine Brand/model	CUMMINS	CUMMINS
Dimension (Wide)	3100 mm	102 in
Max.Thrust&Pullback Force	1700 KN	382000 lbf
Max.Thrust&Pullback Speed	45 m/min	148 fpm
Max.Torque	78000 N·m	1629lbf·ft
Max.Rotation Speed	105 r/min	105 rpm
Engine Power	383 kW	514 hp
Max.Flow of Mud Pump	1000 L/min	264 gal/min
Entry Angle	8-22°	8-22°
Max.Climbing Gradient	17°	17°
Drill Rod Size	Φ114/127/140×6000 mm	Φ4.5/5/5.5×198 in
Crane	3t	6614 lb

Main Performance Characteristic

Cummins engine can provide sufficient power support to ensure stable machine performance. The low fuel consumption and low noise are more suitable for urban construction.

High efficiency, energy saving and stable engine: Use Cummins engine for construction machinery, strong power.
The Φ114/127/140×6000 mm drill rod allows the machine to be adapted to smaller construction space.

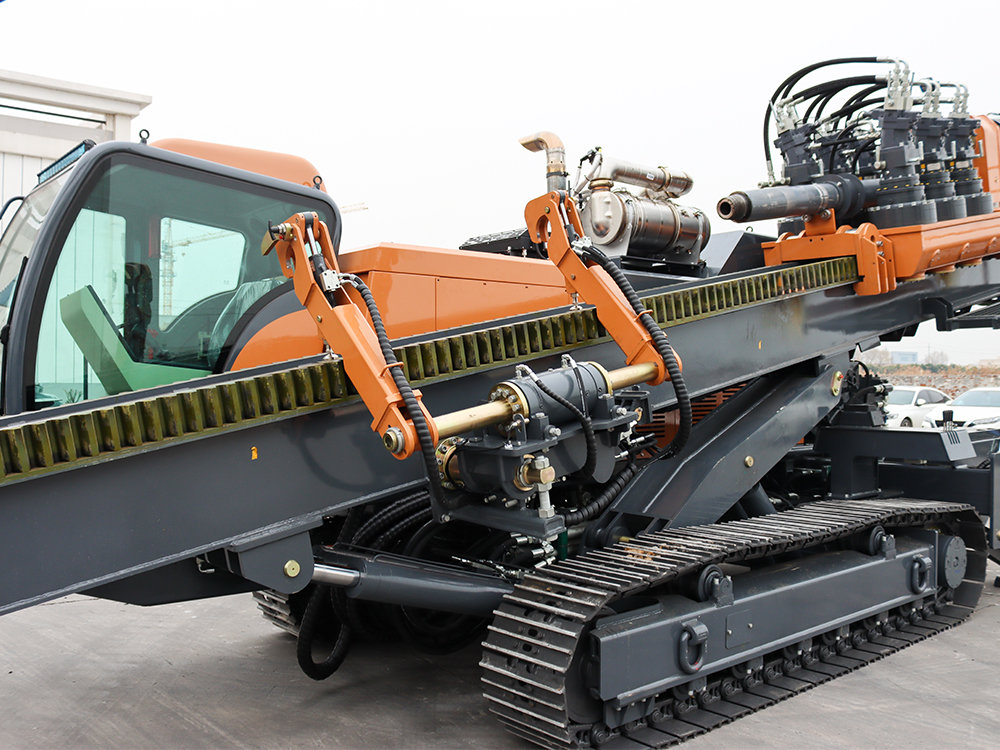

Large-scale entry drill angle design: Main girder adopts four-bar linkage luffing structure, and the entry drill angle is greatly improved, while ensuring that the crawler of the drilling rig does not leave the ground at a large angle, which improves the stability and safety of the drilling rig.
