    Goodeng G30 High Quality Compact Horizontal Boring Machine Trenchless Drill Equipment for Telecom Line Installation
    G-Series Horizontal Directional Drills

    Goodeng G30 High Quality Compact Horizontal Boring Machine Trenchless Drill Equipment for Telecom Line Installation

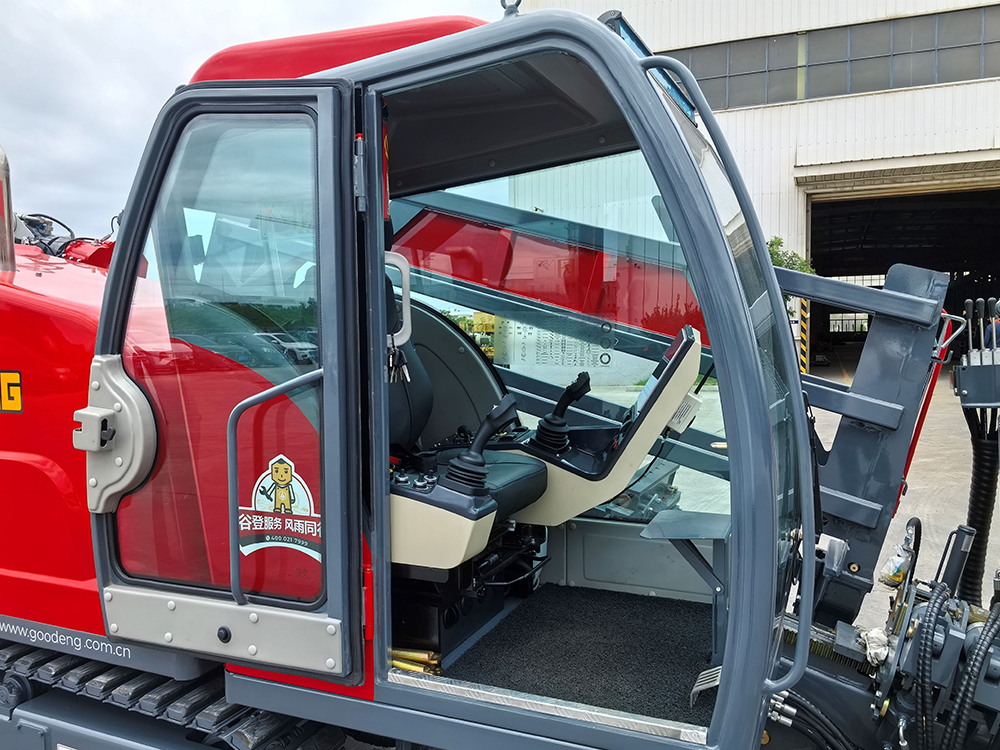

    Introducing the Goodeng Trenchless HDD G30, a powerful Horizontal Directional Drilling/Boring/Tunnelling Machine/Rig designed for efficient and precise operations. Equipped with a rubber crawler walking system and adjustable speed control, this machine offers superior maneuverability on various terrains. The built-in mud pump and jet nozzle ensure effective mud system performance, while the rotating operating seat provides enhanced operator convenience. Additionally, optional features such as the automatic grease injector, rod-loading box, and hydraulic anchor further enhance the machine's capabilities. Manufactured by Shanghai Goodeng International Co., Ltd., renowned for delivering high-quality and reliable trenchless drilling equipment, the G30 is a cutting-edge solution for a wide range of drilling and tunnelling applications

      Contact us

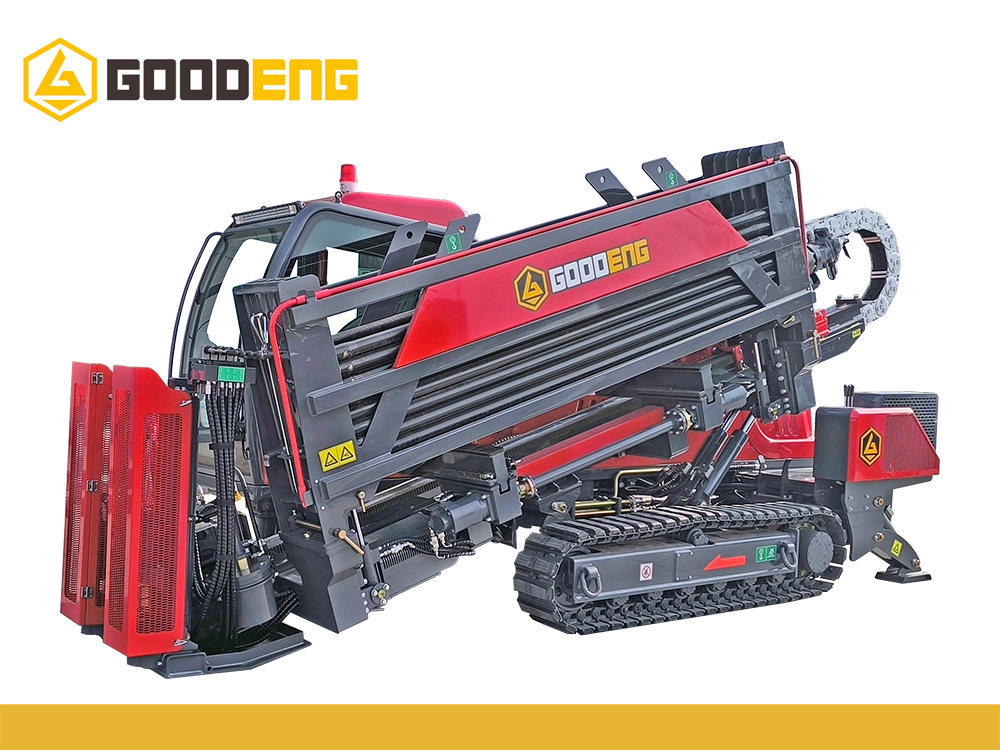

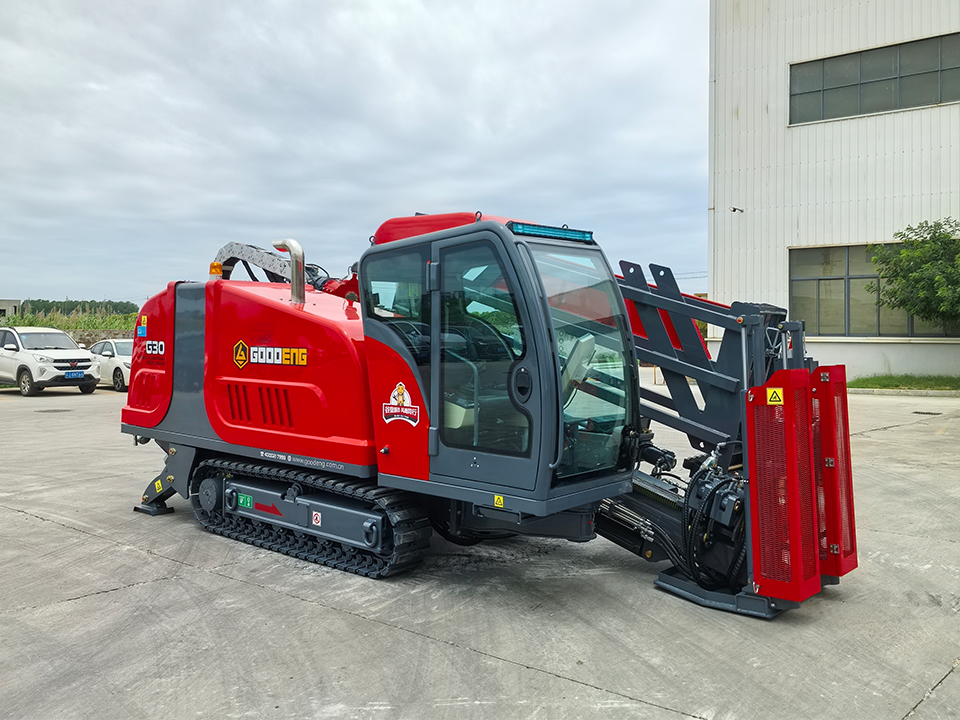

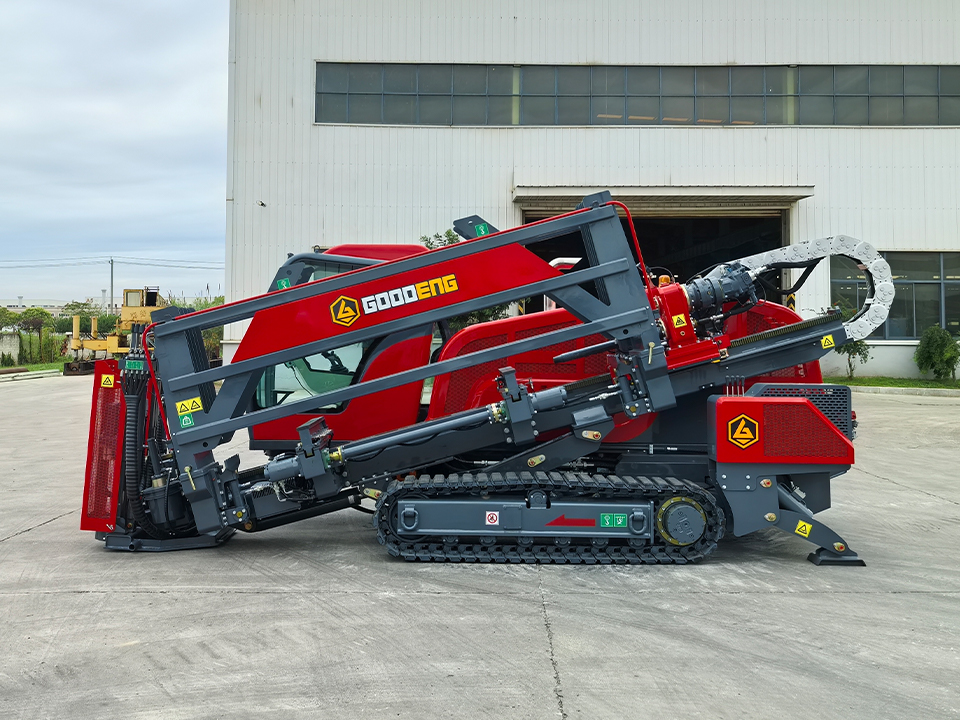

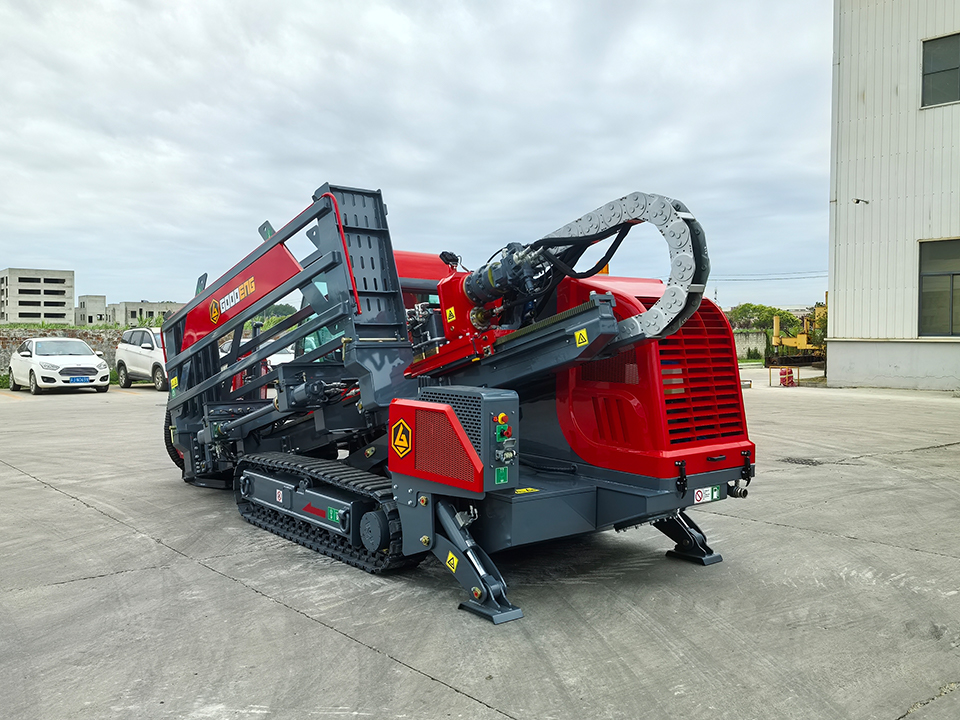

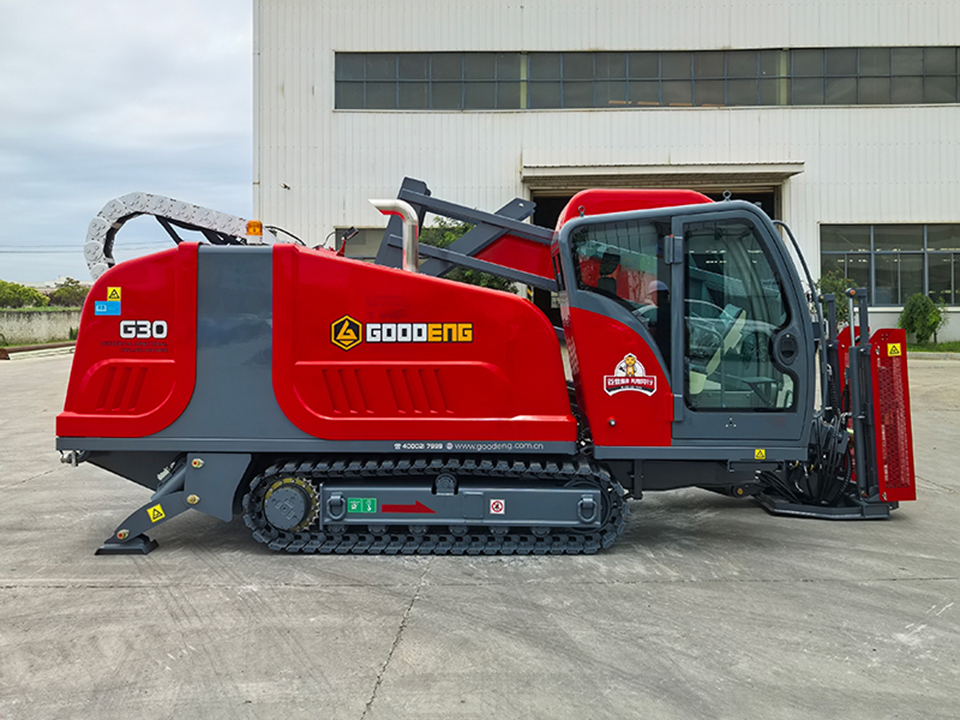

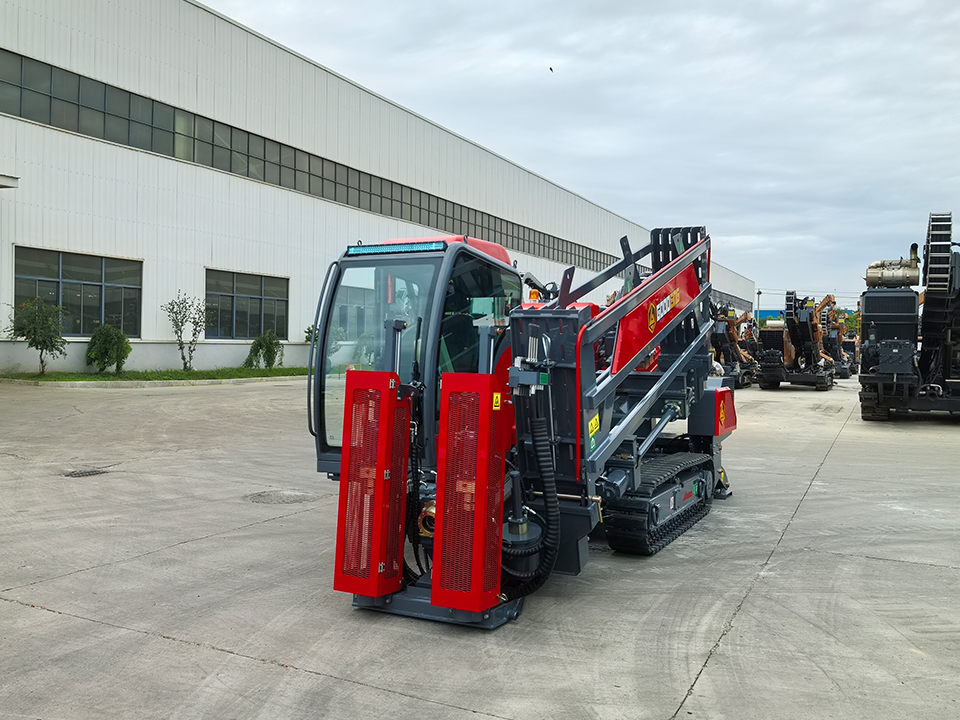

      Goodeng G30 High Quality Compact Horizontal Boring Machine Trenchless Drill Equipment for Telecom Line Installation (4).jpg
      Goodeng G30 High Quality Compact Horizontal Boring Machine Trenchless Drill Equipment for Telecom Line Installation (2).jpg
      Goodeng G30 High Quality Compact Horizontal Boring Machine Trenchless Drill Equipment for Telecom Line Installation (3).jpg
      Goodeng G30 High Quality Compact Horizontal Boring Machine Trenchless Drill Equipment for Telecom Line Installation (5).jpg
      Goodeng G30 High Quality Compact Horizontal Boring Machine Trenchless Drill Equipment for Telecom Line Installation (6).jpg
      Goodeng G30 High Quality Compact Horizontal Boring Machine Trenchless Drill Equipment for Telecom Line Installation (1).jpg

      Technical Parameter

        Metric Unit Imperial Unit
      Weight 9000 kg 19841 lbs
      Dimension (LxWxH) 5780×2140×2380 mm  228×84×93 in
      Max.Thrust&Pullback Force 130 KN 29200 lbf
      Max.Thrust&Pullback Speed 64 m/min 210 ft/min
      Max.Torque  5200 N·m  3836 ft·lb
      Max.Rotation Speed 234 r/min 234 rpm
      Engine Power 110 kW 147 hp
      Max.Flow of Mud Pump 200 L/min 44 gal/min
      Walking Speed 5 km/h 3.1mph
      Max.Mud Pump Pressure 8 MPa 1160 psi
      Entry Angle 20° 20°
      Max.Climbing Gradient 17° 17°
      Drill Rod Size φ60×3000 mm φ2.36×118 in

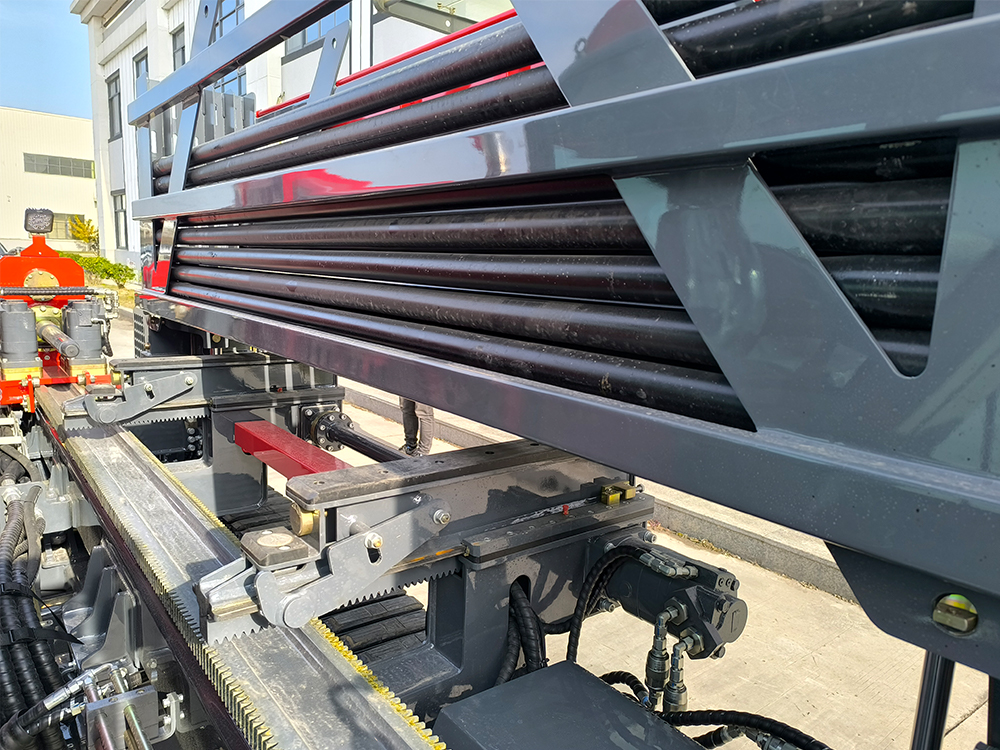

      Drill Pipe Box Capacity 65 pcs(5*13) 65 pcs(5*13)
      Suggest Reaming Diameter ≤700 mm ≤ 28 in
      Suggest Crossing Length ≤200 m ≤ 656 ft

      Main Performance Characteristic

      The machine is equipped with Cummins engine, with high efficiency, large power, low fuel consumption, low noise, and strong ability in construction.

      • Thrust&pullback and rotation adopt manual handle, which makes control simple and quick.
      • Europe-American style surface, streamline shape, and elegant appearance, it can be opened overall for flexible operation and daily maintenance.
      • Small size and lightness is better for construction in downtown, transferring and working in different kinds of jobsite.
      主图800X800
      • It is equipped with Vermeer type drill rod Φ60×3000mm, with high quality, high reliability and superior performance.
      • Main assembly parts are from international first-class hydraulic components manufacturer, which can greatly improve the performance of products reliability.
      • Optional accessories—including an automatic grease injector, rod-loading box, and hydraulic anchor—expand the rig's versatility and functionality.

      solution MAIN DETAILS

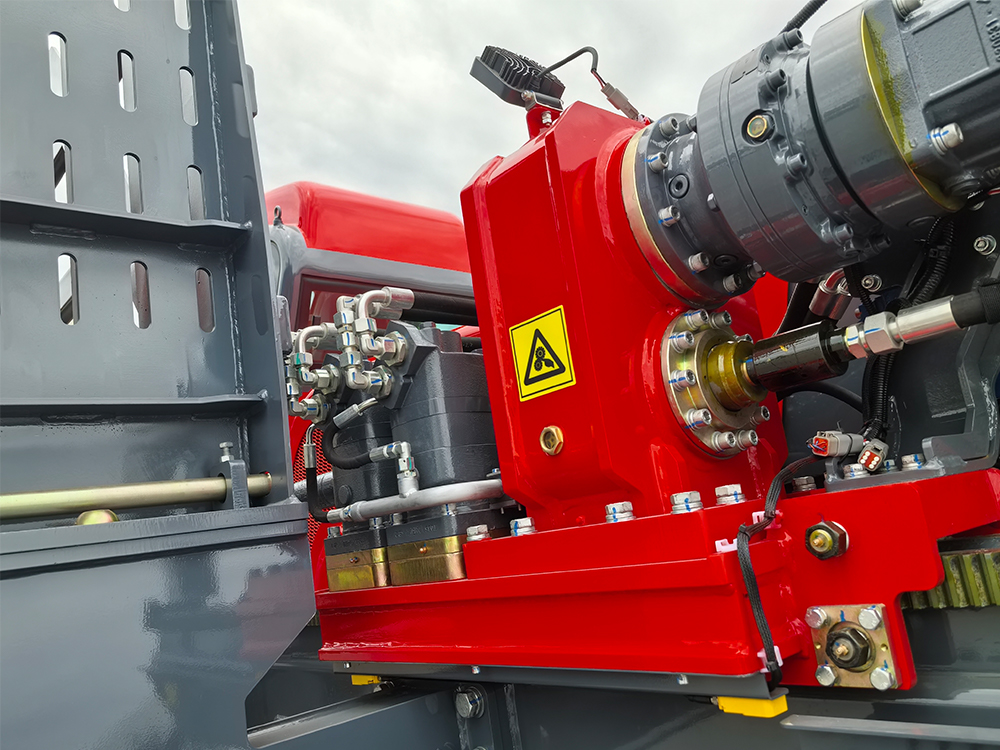

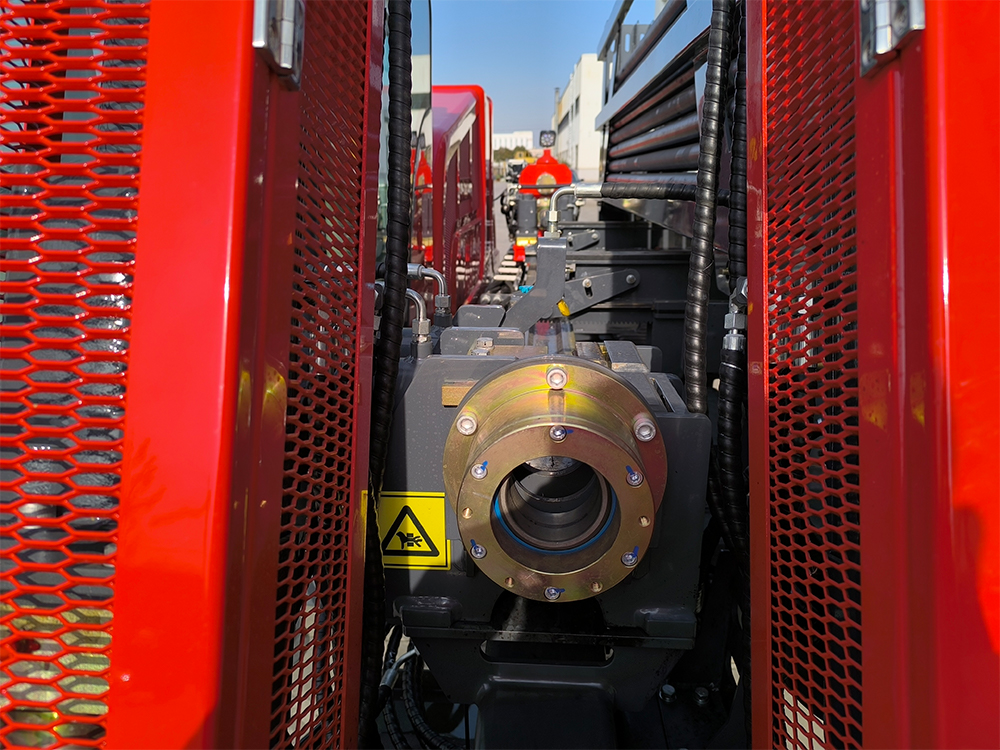

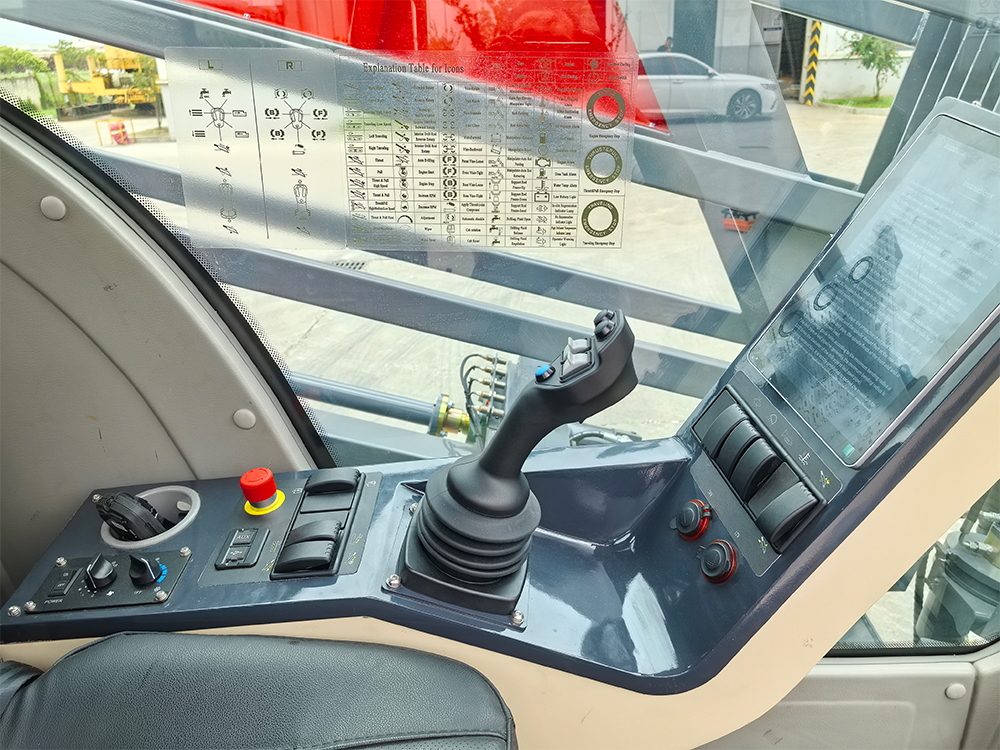

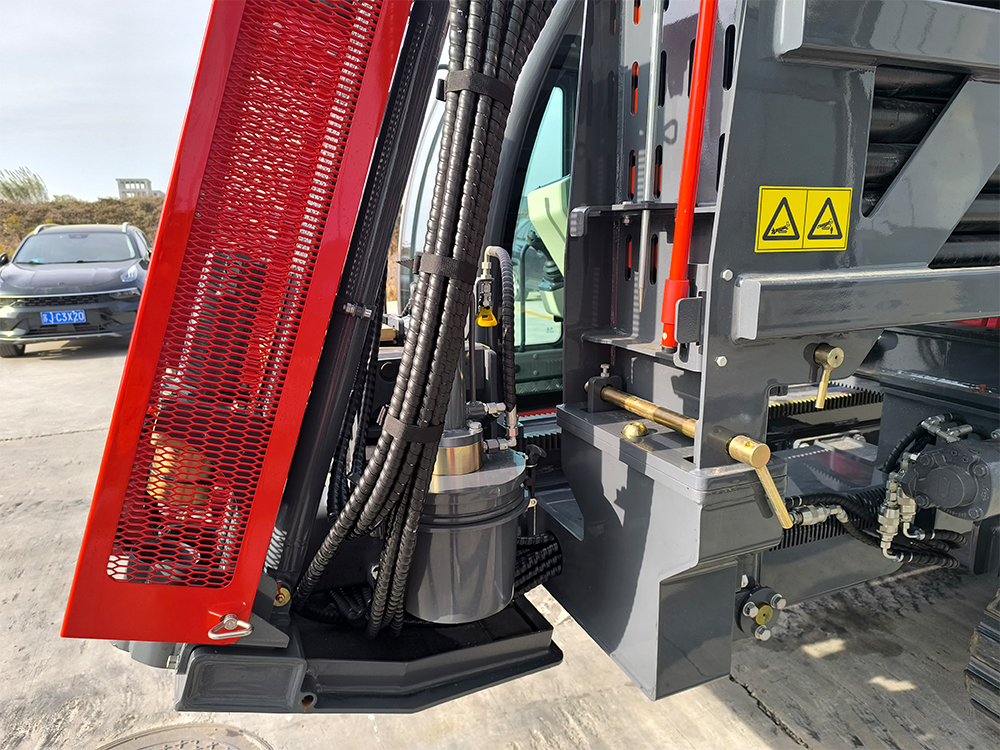

      1 Goodeng G30 High Quality Compact Horizontal Boring Machine Trenchless Drill Equipment for Telecom Line Installationb

      2 Goodeng G30 High Quality Compact Horizontal Boring Machine Trenchless Drill Equipment for Telecom Line Installation

      3 Goodeng G30 High Quality Compact Horizontal Boring Machine Trenchless Drill Equipment for Telecom Line Installation

      hole blasting drill

      5 Goodeng G30 High Quality Compact Horizontal Boring Machine Trenchless Drill Equipment for Telecom Line Installation

      6 Goodeng G30 High Quality Compact Horizontal Boring Machine Trenchless Drill Equipment for Telecom Line Installation


      Production Process

      1
      BLANKING 1

      BLANKING

      2
      RIVET-WELDING 2

      RIVET-WELDING

      3
      MACHINING 3

      MACHINING

      4
      ASSEMBLING 4

      ASSEMBLING

      5
      DEBUGGING 5

      DEBUGGING

      6
      TESTING 6

      TESTING

      65420be751dad22160
      Jiangsu Goodeng Heavy Machinery
      FAQ (2)

      FAQ

      • 1

        What's the lead time for orders?

        Standard models ship in 10–20 days; customized units require 30–45 days.

      • 2

        Do you provide after-sales service overseas?

        Yes, we have partnered service centers in key regions.

      • 3

        Can I request a customized bucket size?

        Absolutely! We offer tailored attachments.

      • 4

        What documents do you provide for export?

        Full export package (Commercial Invoice, Packing List, Bill of Lading, CO, etc.).

      • 5

        How do I place an order?

        Contact us via email/phone for a quote, then confirm with a PO.

      • 6

        What is the warranty period?

        Standard warranty is 12 months or 2,000 operating hours, with optional coverage up to 36 months.

      • 7

        Is OEM/ODM service available?

        Yes, we support full customization, minor customization, and customization from samples or designs.
