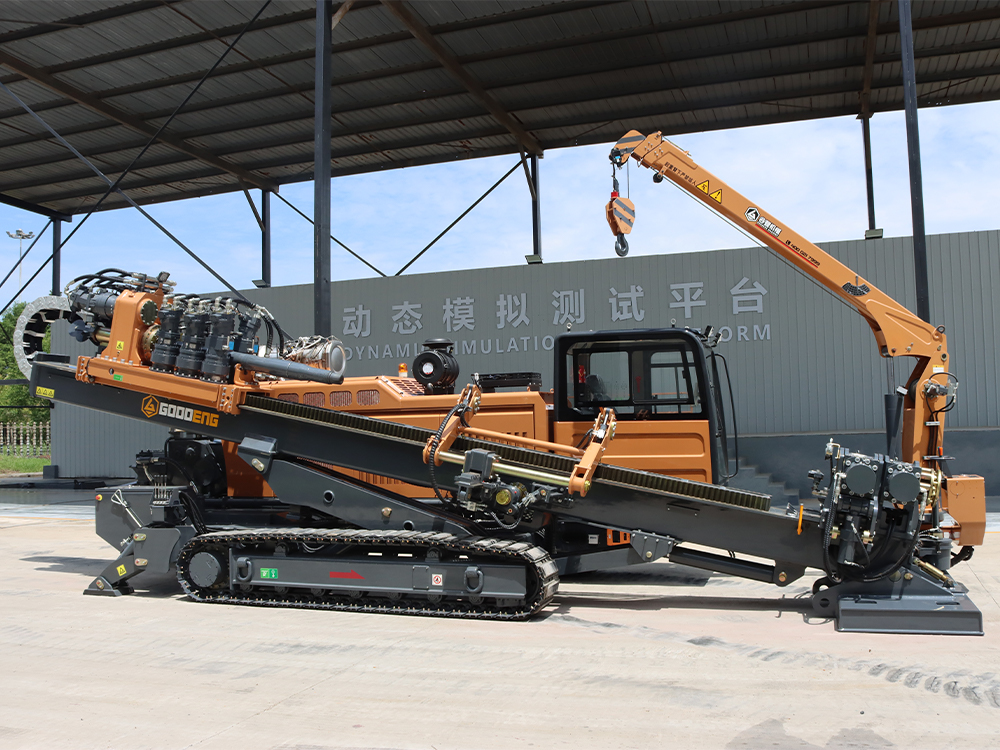

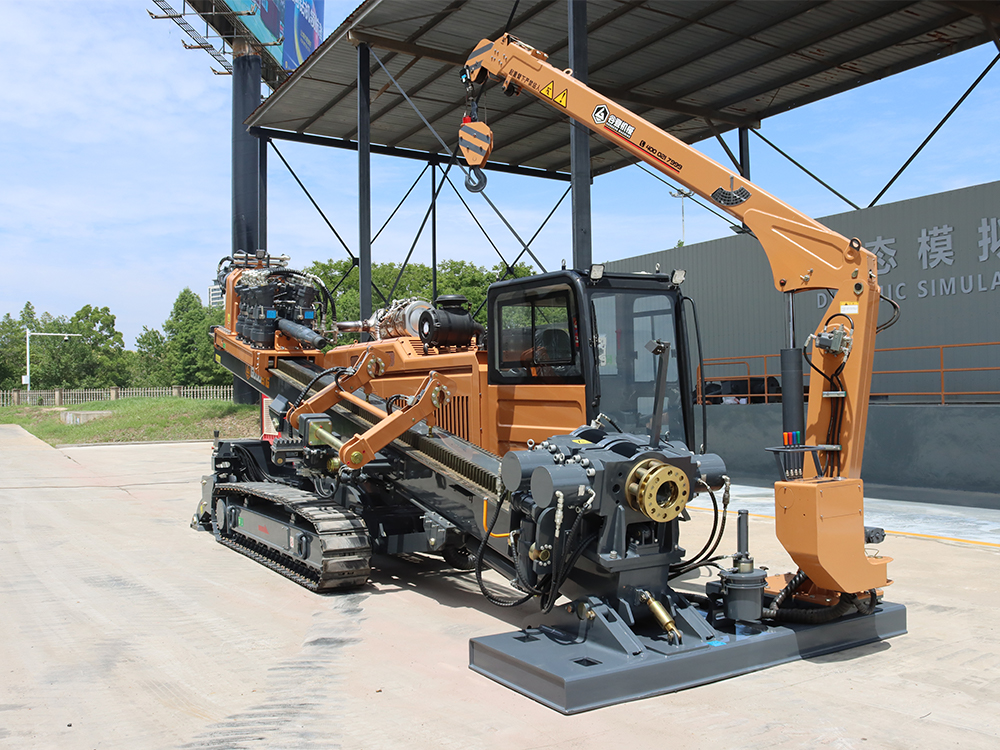

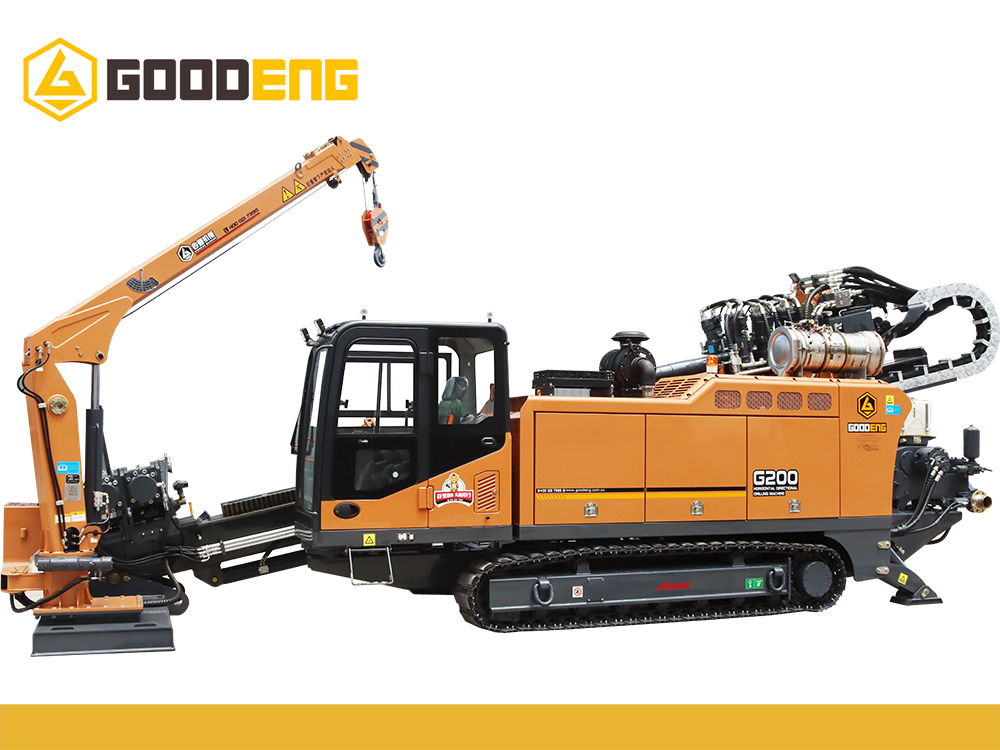

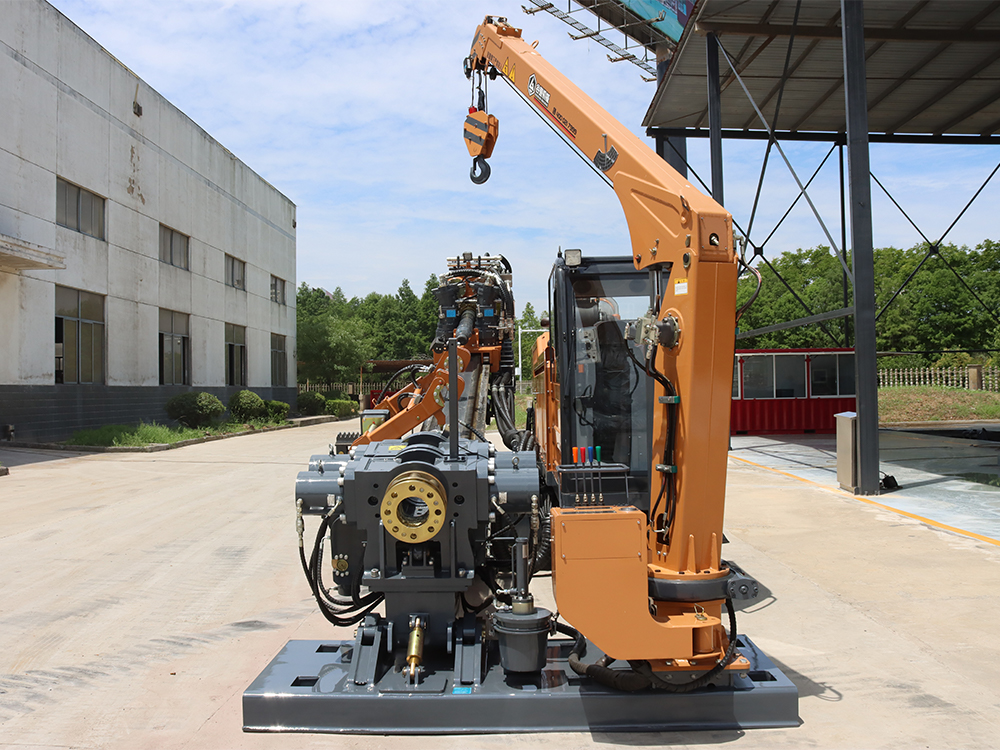

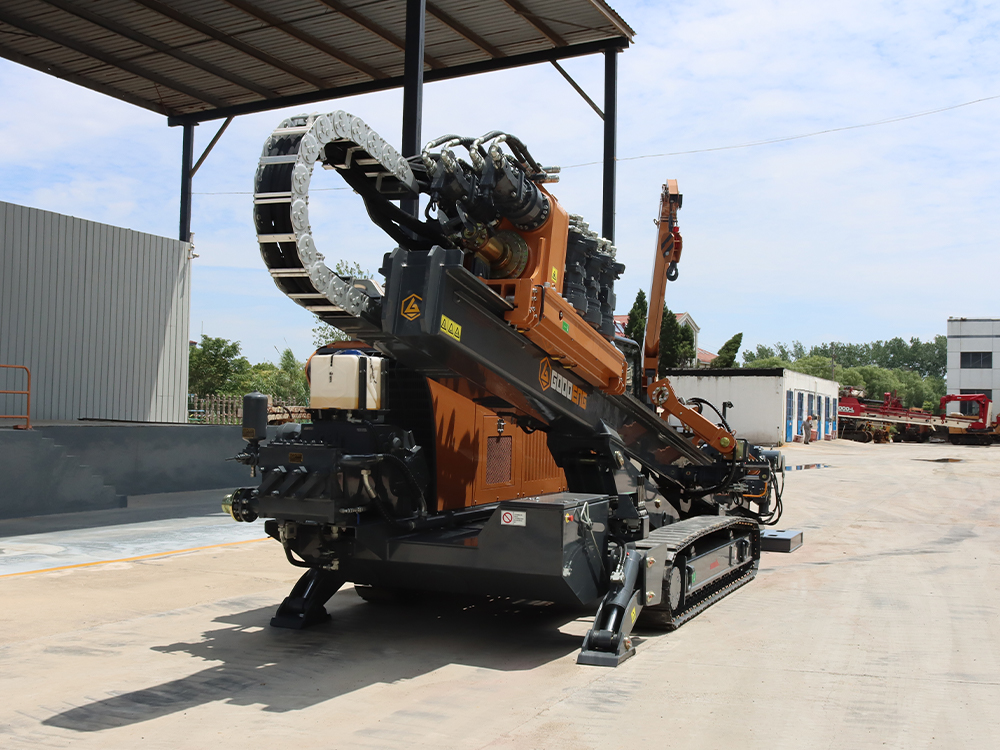

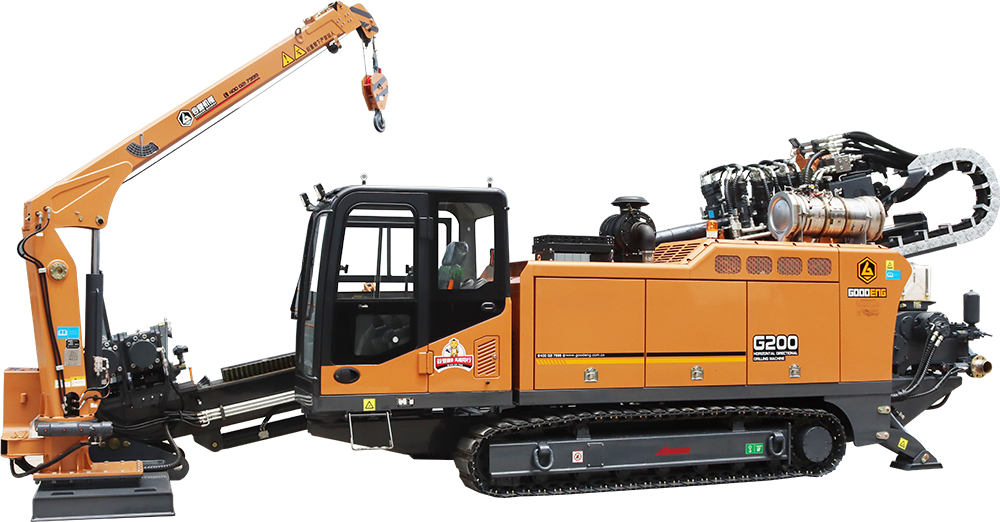

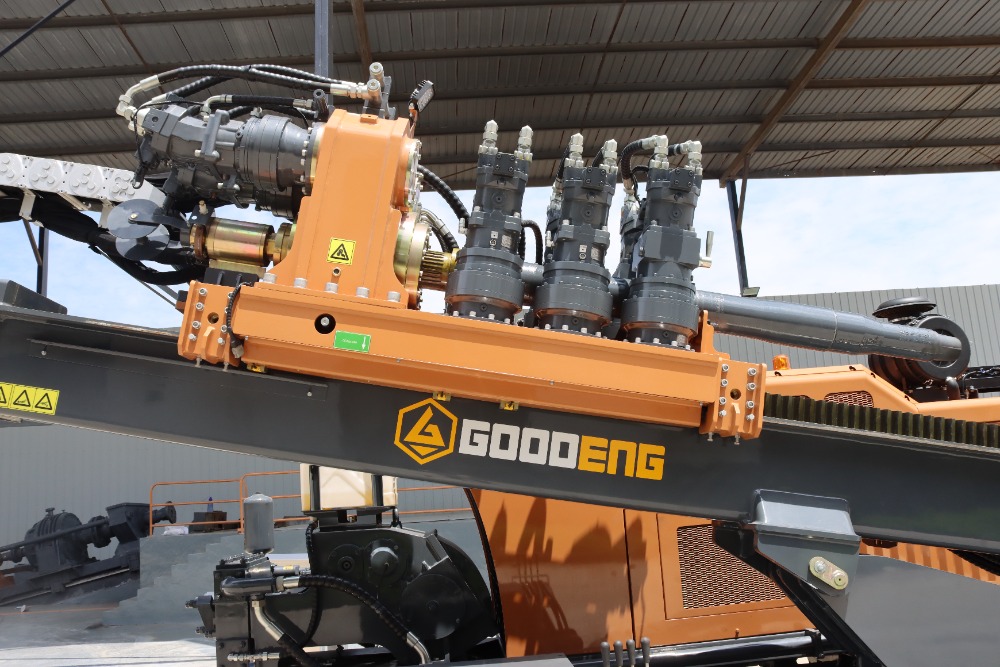

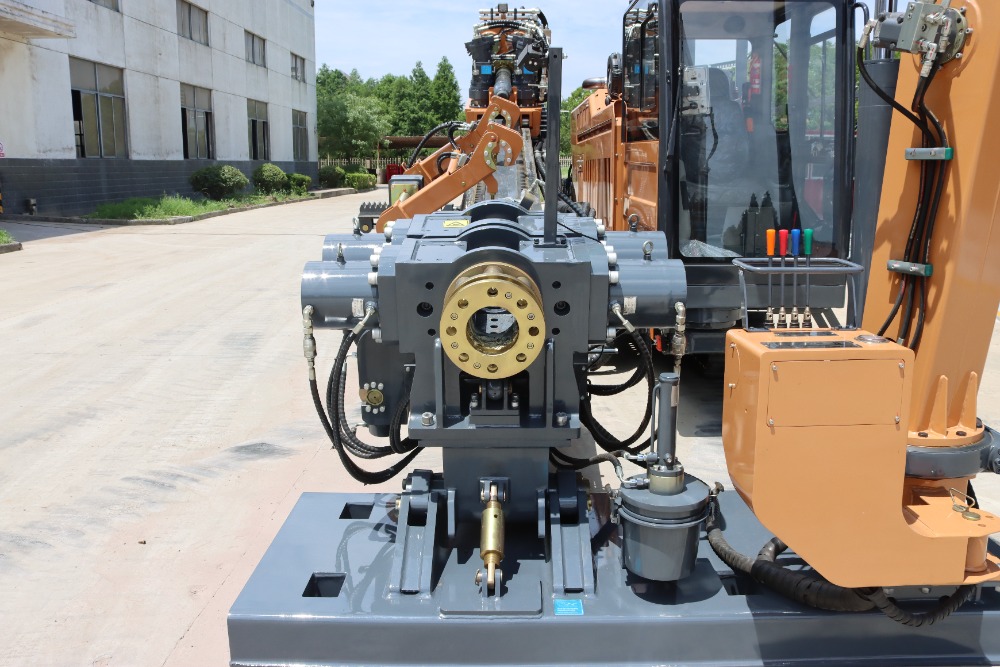

Goodeng G200 Advanced Utility Line Drill Rig Horizontal Drilling Equipment for Power Line Projects
Technical Parameter
| Metric Unit | Imperial Unit | |
| Weight | 17000 kg | 37478 lbs |
| Dimension (LxWxH) | 10670×2650×2440 mm | 420×104×96 in |
| Max.Thrust&Pullback Force | 830/1250 KN | 186591/281011 lbf |
| Max.Thrust&Pullback Speed | 54 m/min | 177 ft/min |
| Max.Torque | 35300 N·m | 26035 ft·lb |
| Max.Rotation Speed | 102 r/min | 102 rpm |
| Engine Power | 221 kW | 296 hp |

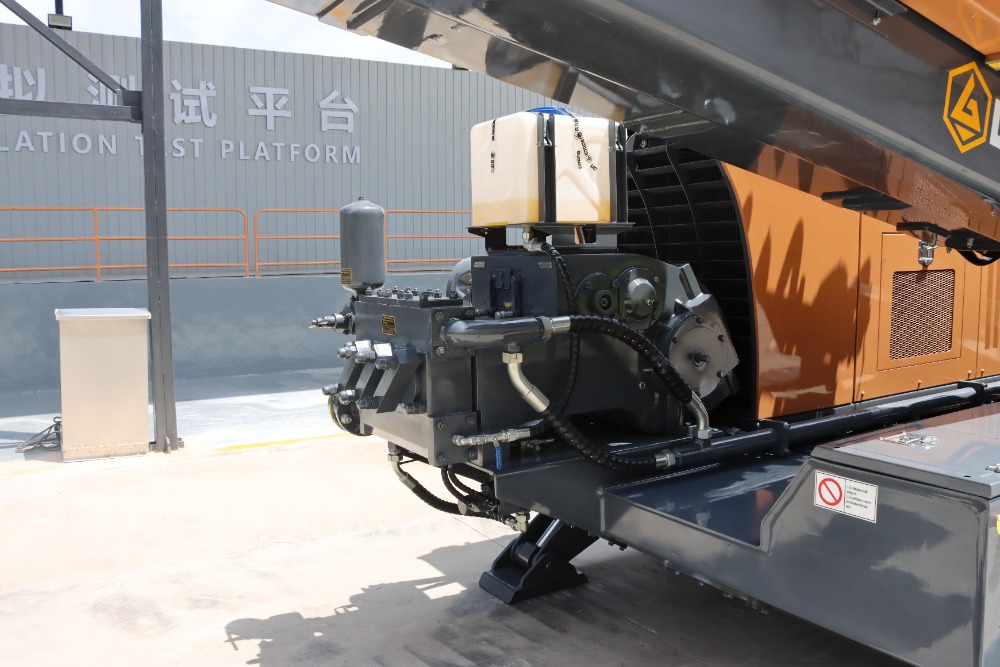

| Max.Flow of Mud Pump | 800 L/min | 175 gal/min |
| Walking Speed | 5 km/h | 3.1mph |
| Max.Mud Pump Pressure | 8 MPa | 1160 psi |
| Entry Angle | 19° | 19° |
| Max.Climbing Gradient | 20° | 20° |
| Drill Rod Size | φ102×4500 mm | φ4×177 in |

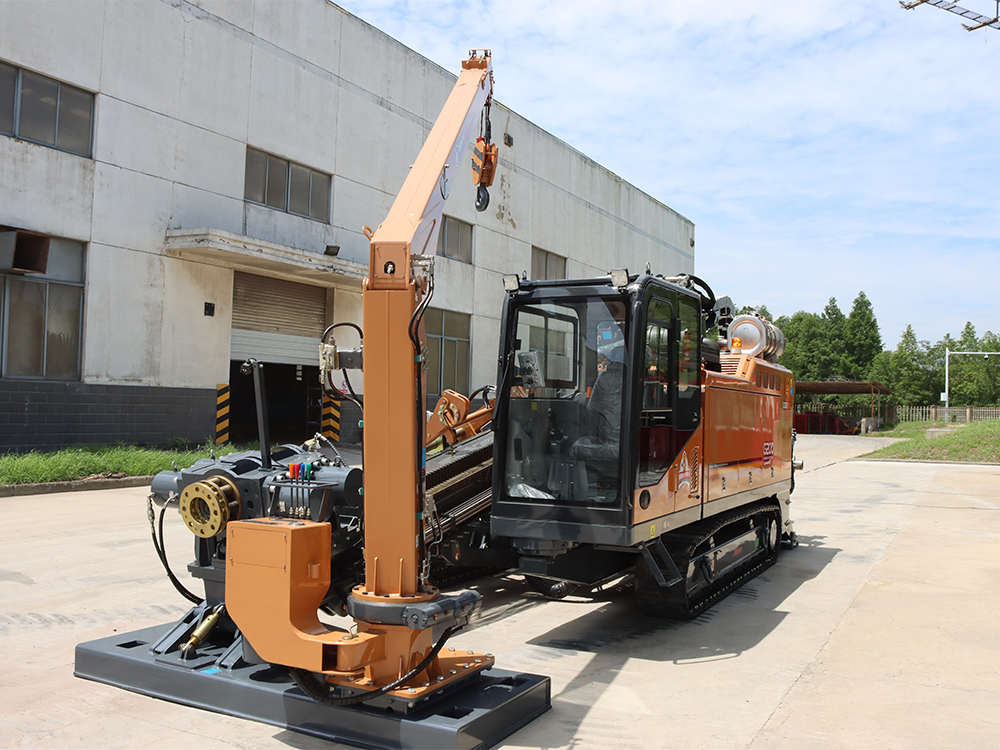

| Crane | 2 t | 2 t |
| Suggest Reaming Diameter | ≤1400 mm | ≤ 55 in |
| Suggest Crossing Length | ≤900 m | ≤ 2952 ft |

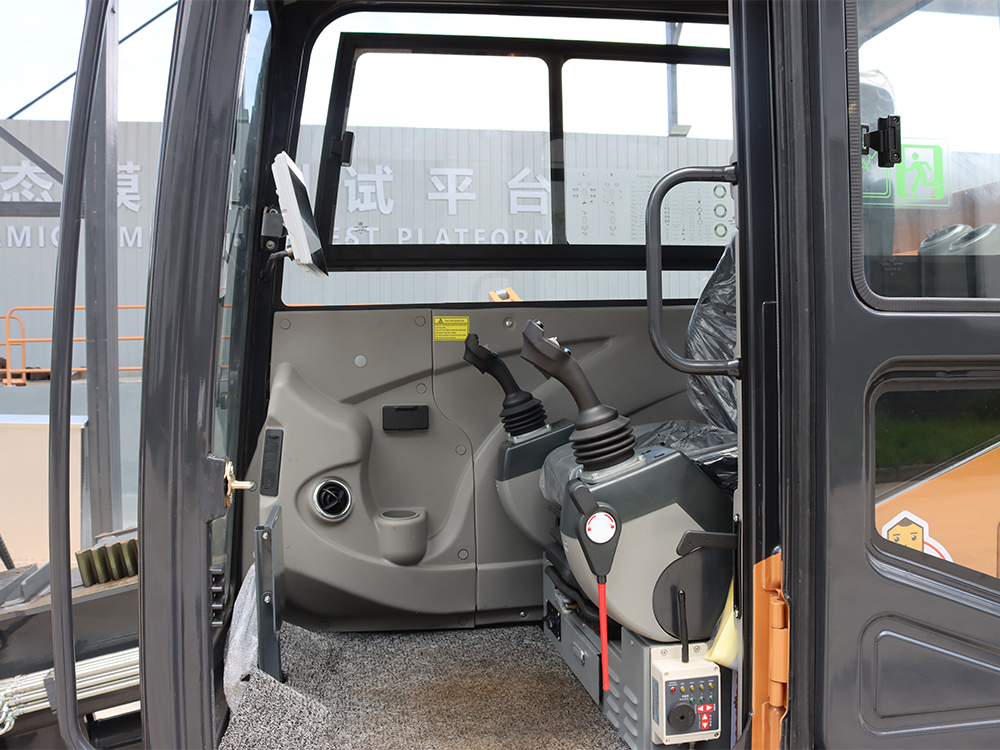

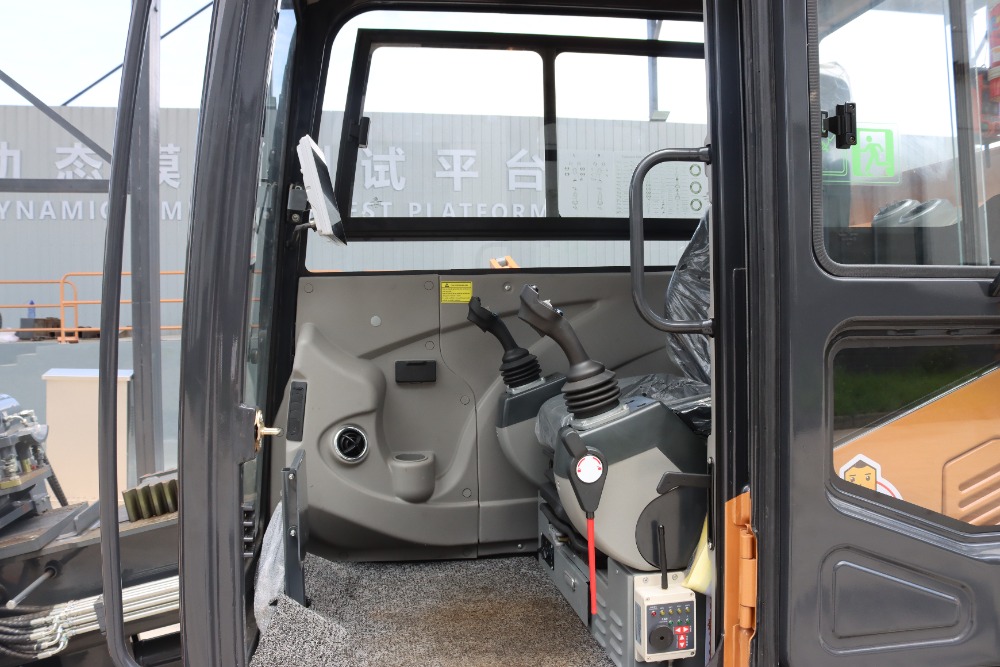

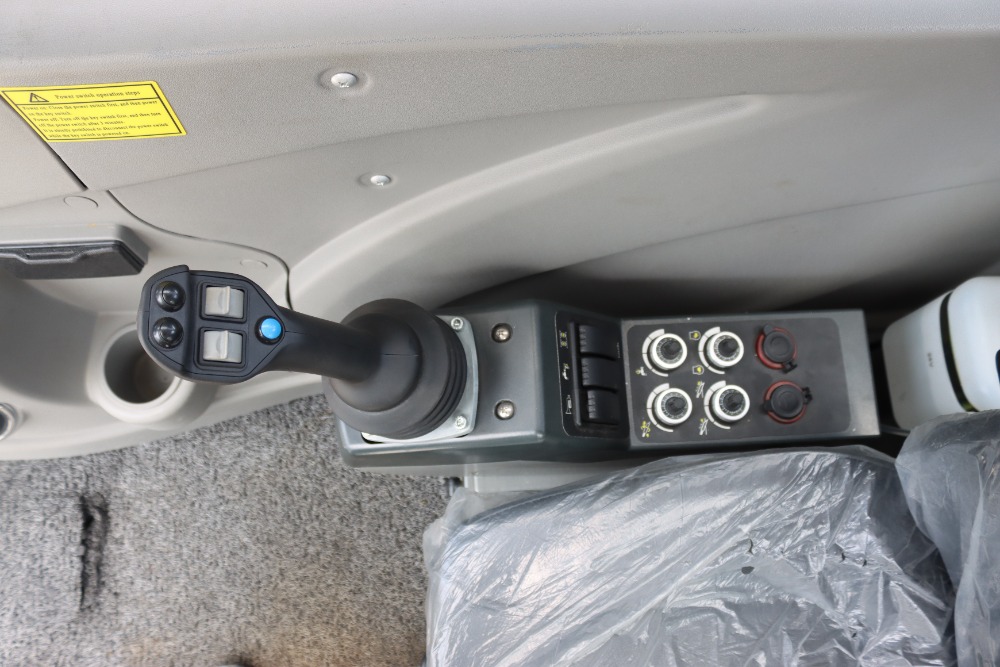

- Thrust&pullback and rotation adopt manual handle, which makes control simple and quick.
- Europe-American style surface, streamline shape, and elegant appearance, it can be opened overall for flexible operation and daily maintenance.
- Small size and lightness is better for construction in downtown, transferring and working in different kinds of jobsite.
- It is equipped with Vermeer type drill rod Φ102×4500mm, with high quality, high reliability and superior performance.
- Main assembly parts are from international first-class hydraulic components manufacturer, which can greatly improve the performance of products reliability.
- Optional accessories—including an automatic grease injector, rod-loading box, and hydraulic anchor—expand the rig's versatility and functionality.
