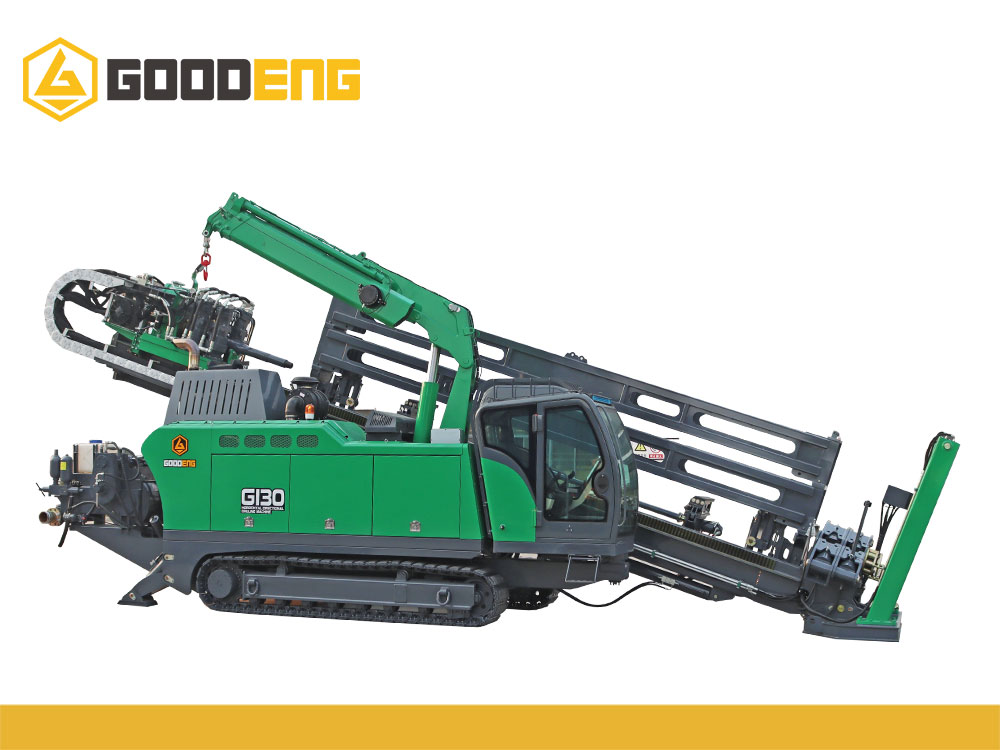

    Goodeng G130 Horizontal Directional Drilling Machine/HDD drill Rig with CE Certificate
    G-Series Horizontal Directional Drills

    Goodeng G130 Horizontal Directional Drilling Machine/HDD drill Rig with CE Certificate

    Horizontal Directional Drilling Rig (HDD Rig) is specialized equipment used in trenchless construction, primarily for laying pipelines, cables and other underground facilities without extensive ground excavation. This machine controls the drill head's path with a specialized Location System. HDD Rig is widely applied in pipeline installation projects across Municipal Engineering, Communication and Energy sectors. Known for high efficiency, minimal environmental disruption and adaptability to complex geological conditions, HDD rigs are essential tools in modern underground engineering.

      Contact us

      Technical Parameter

      Max. Thrust & Pullback Force 600 kN 134885 lbf
      Max. Thrust & Pullback Speed 65 m/min
      		 213 ft/min
      Max. Torque 21000 N·m 15488 lbf·ft
      Max. Rotation Speed 192 r/min 192 RPM
      Engine Power 209 kW 280 hp
      Max. Mud flow 1000 L/min 264 GPM
      Max. Mud Pressure 8 MPa 1160 PSI
      Drill Rod Size Φ89x6100 mm Φ3.5×240 in
      Drill Rod Box Capacity 24 pcs 24 pcs
      Walking Speed 0-5 km/h 0-3.10 mile/h
      Max. Climb Gradient 18° 18°
      Max. Entry Angle 20° 20°
      Suggest Reaming Dia. ≤Ф1200 mm ≤Ф47.24 in
      Suggest Crossing Length ≤800 m ≤2624 ft
      Weight 23000 kg 50706 lb
      Dimension (LxWxH) 10500x2550x3380mm 415×100×133 in

      Product Introduction

      The Goodeng G130B horizontal directional drill is a robust and efficient solution catering to all your drilling requirements. This top-selling 60-ton machine is engineered to offer outstanding performance and dependability, thereby making it an ideal selection for diverse drilling applications.

      • The G130B is equipped with cutting-edge technology and features that distinguish it from its rivals. With its considerable torque and pullback force, this machine can manage the most arduous drilling tasks effortlessly. Its sturdy construction and durable components guarantee long-term performance, rendering it a valuable investment for any drilling operation.
      • One of the primary highlights of the G130B is its flexibility. Whether you are engaged in pipe installation, utility construction, or any other drilling project, this machine provides consistent and precise outcomes. Its user-friendly interface and intuitive controls render it effortless to operate, enabling you to optimize productivity and efficiency on the job site.

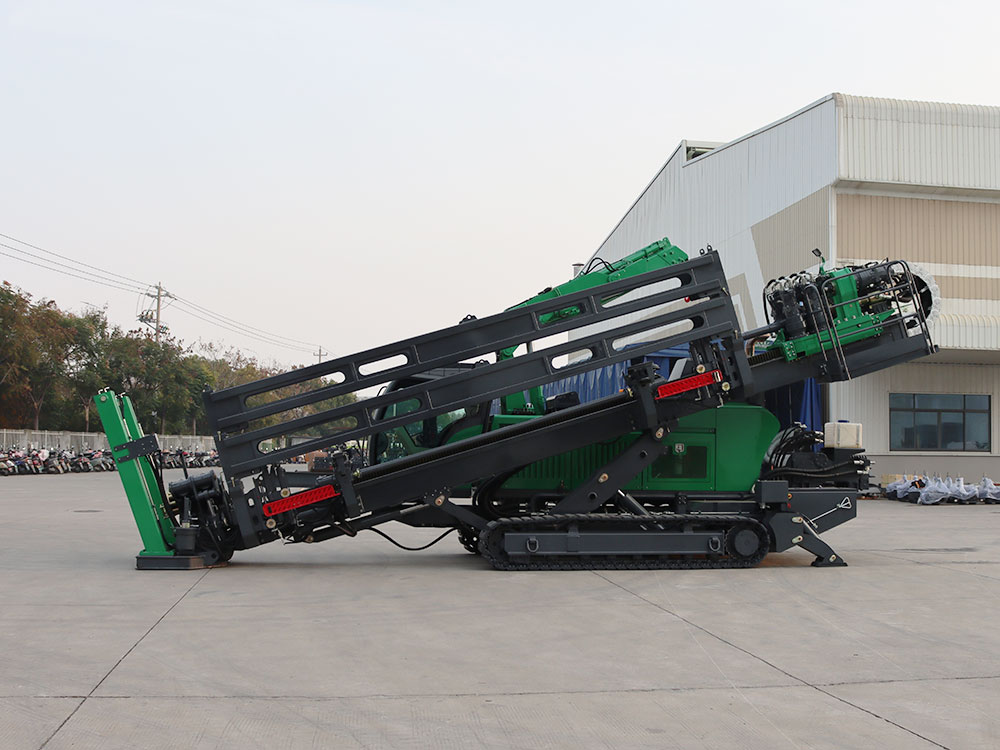

      IMG_2715

      solution MAIN DETAILS

      6 Goodeng Machine G130 Big Angle Up 45 ° Euro V Engine HDD Drilling Rig for Pipelines Projects

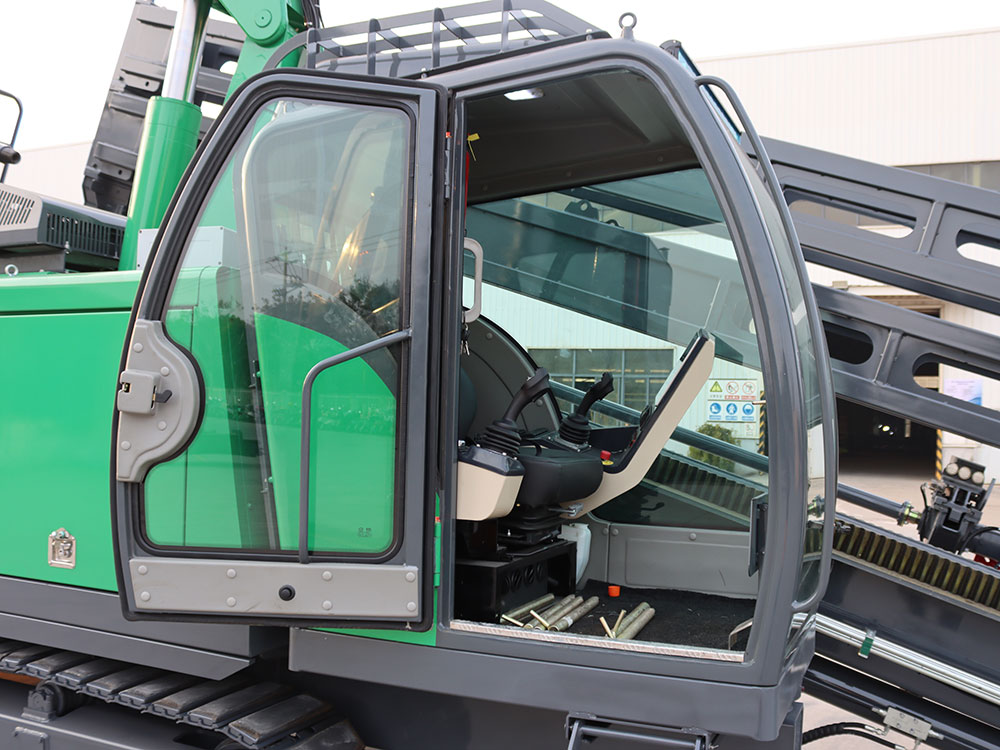

      Rotatable cab with A/C

      5 Goodeng Machine G130 Big Angle Up 45 ° Euro V Engine HDD Drilling Rig for Pipelines Projects

      Three-speed adjustment for Thrust&pullback  (high speed, medium speed, low speed)

      4 Goodeng Machine G130 Big Angle Up 45 ° Euro V Engine HDD Drilling Rig for Pipelines Projects

      Automatic rod loading device

      3 Goodeng Machine G130 Big Angle Up 45 ° Euro V Engine HDD Drilling Rig for Pipelines Projects

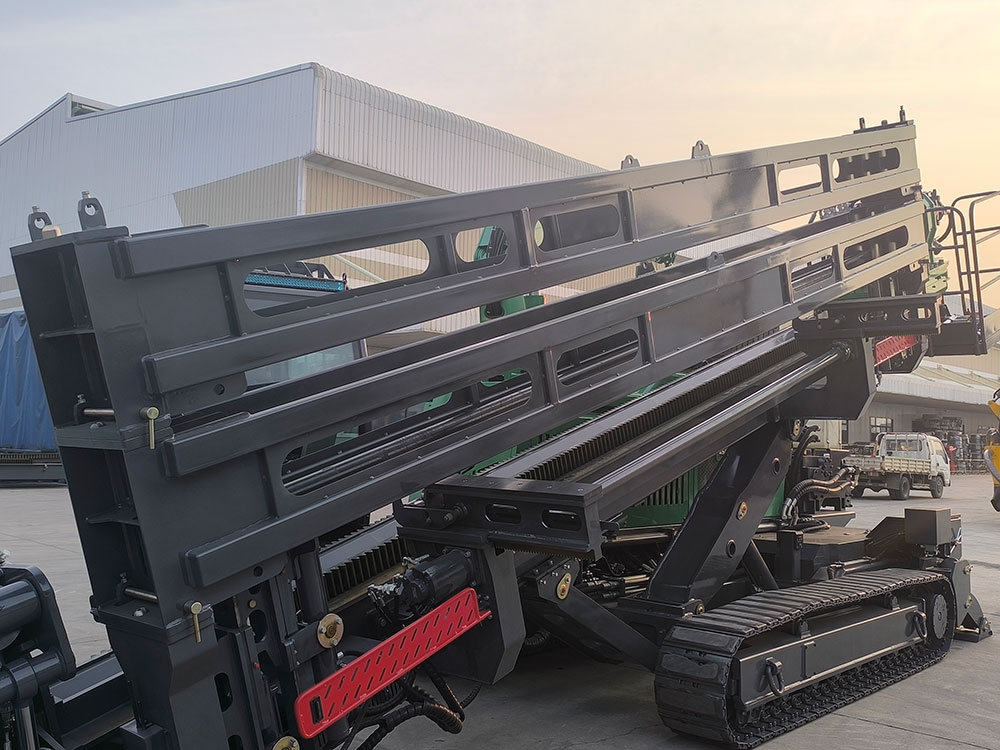

      The girder adopts four bar linkage luffing structure

      2 Goodeng Machine G130 Big Angle Up 45 ° Euro V Engine HDD Drilling Rig for Pipelines Projects

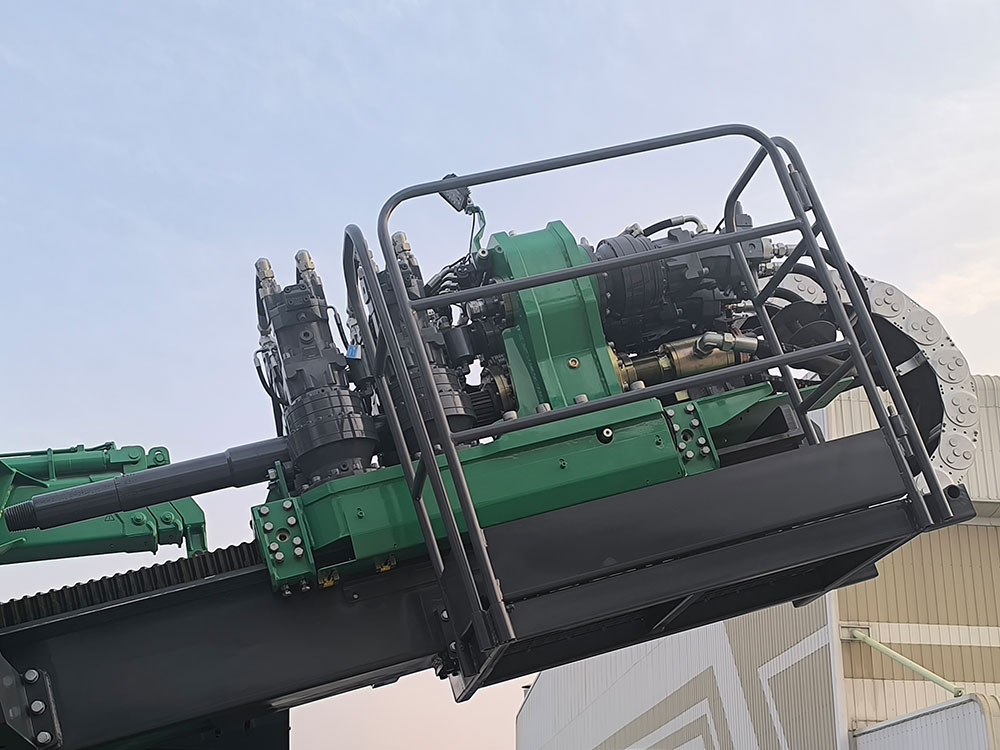

      Power head reserves reinforced power

      1 Goodeng Machine G130 Big Angle Up 45 ° Euro V Engine HDD Drilling Rig for Pipelines Projects

      Optional: Cab with A/C, Auto rod-loading box, Auto anchor, Auto grease injector


      application


      APPLICATION AREA

      G130 drilling rig
      01
      G130 hdd drilling rig
      02
      G130 Hdd Machine Manufacturers
      03
      G130 hdd machine
      04
      Hdd Machine For Pipelines
      05
      G130-no dig rig
      06
      G130-hdd rig
      07

      Production Process

      1
      BLANKING 1

      BLANKING

      2
      RIVET-WELDING 2

      RIVET-WELDING

      3
      MACHINING 3

      MACHINING

      4
      ASSEMBLING 4

      ASSEMBLING

      5
      DEBUGGING 5

      DEBUGGING

      6
      TESTING 6

      TESTING

      65420be751dad22160
      Jiangsu Goodeng Heavy Machinery
      FAQ (2)

      FAQ

      • 1

        What is the maximum thrust and pullback force of the machine?

        The maximum thrust and pullback force is 600 kN.

      • 2

        What are the specifications of the outer drill rod?

        The size of the exterior rod is Ф89*6100mm.

      • 3

        5.What is the maximum flow rate of the mud pump?

        The maximum mud pump flow is 1000L/min.

      • 4

        Which brand of engine is equipped on this drilling rig?

        It is equipped with Cummins construction machinery special engine.

      • 5

        What is the maximum reaming diameter of the machine?

        The maximum reaming diameter is Ф1200mm, which depends on actual formation conditions.

      • 6

        What special structure is adopted for the girder of the rig?

        The girder adopts the four-link amplitude adjustment beam structure.

      • 7

        9.What is the delivery time?

        It will be round 2 months.
