Drilling Tools

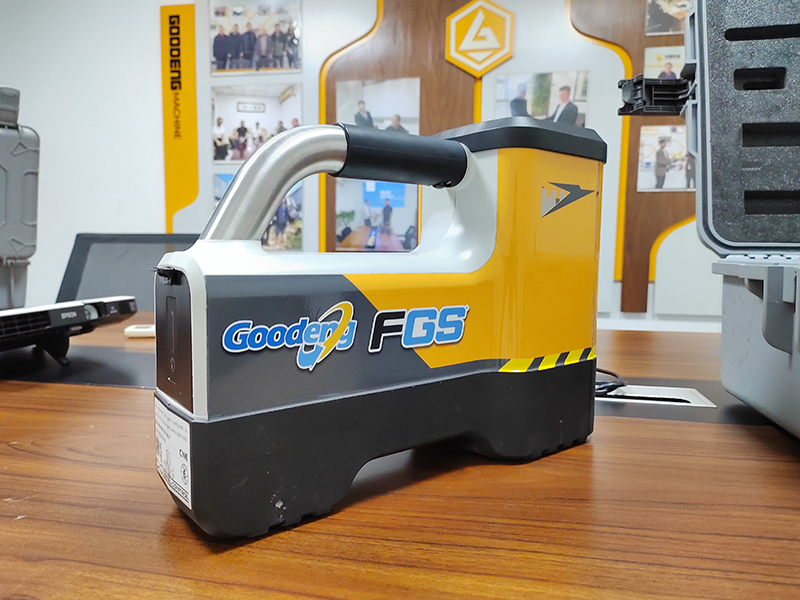

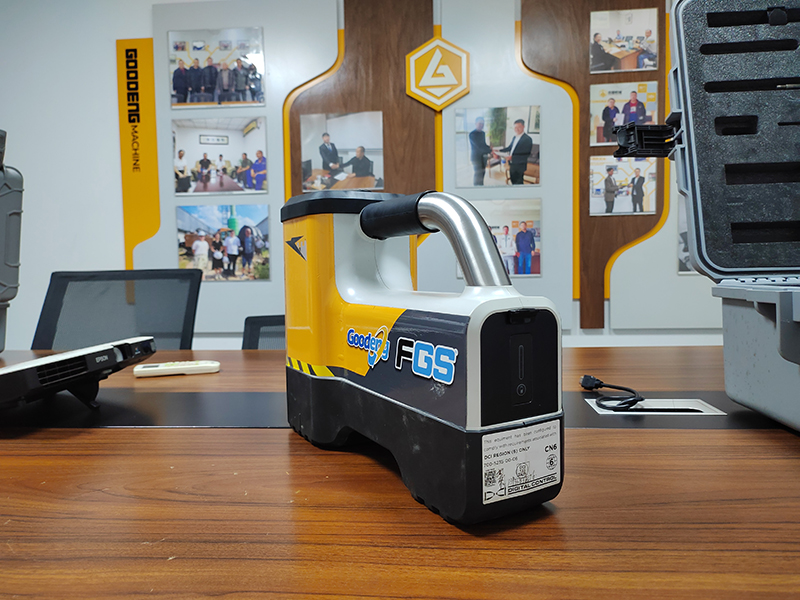

Goodeng DCI FGS HDD Tracking System - Efficient Solution

Shanghai Goodeng International Co., Ltd. offers a superior solution for maximum transmitter range and battery life with their innovative drill head design. The drill head is equipped with precisely positioned slots that meet minimum length and width requirements, ensuring optimal signal emission and prolonged battery life. Goodeng's transmitters come with a minimum of three slots, evenly distributed around the circumference of the drill head, to achieve maximum performance. The slots are measured on the inside of the drill head and must be at least 1.6mm (1/6 inch) wide. Goodeng transmitters are designed to fit standard housing, though some cases may require a battery cap adapter. With a commitment to quality and innovation, Shanghai Goodeng International Co., Ltd. provides a reliable and efficient solution for enhancing the performance of drill head transmitters

Technical Parameter

		Transmitter 15"(m)	Transmitter 15"(ft)	Transmitter 19"(m)	Transmitter 19"(ft)
High Power Mode	Depth	38	125	49	161
High Power Mode	Data	45	148	61	200
Standard Mode	Depth	30	98	38	125
Standard Mode	Data	38	125	46	151
Low Power Mode	Depth	15	49	30	98
Low Power Mode	Data	20	66	38	125
