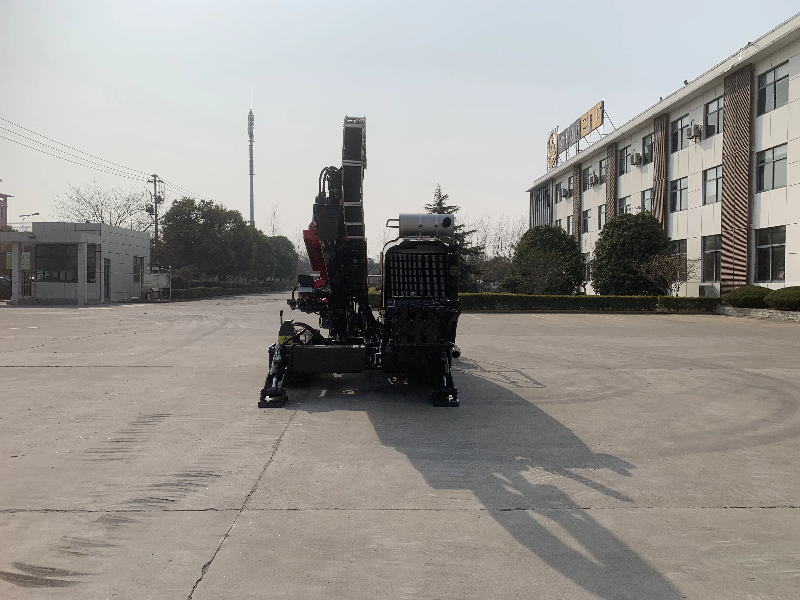

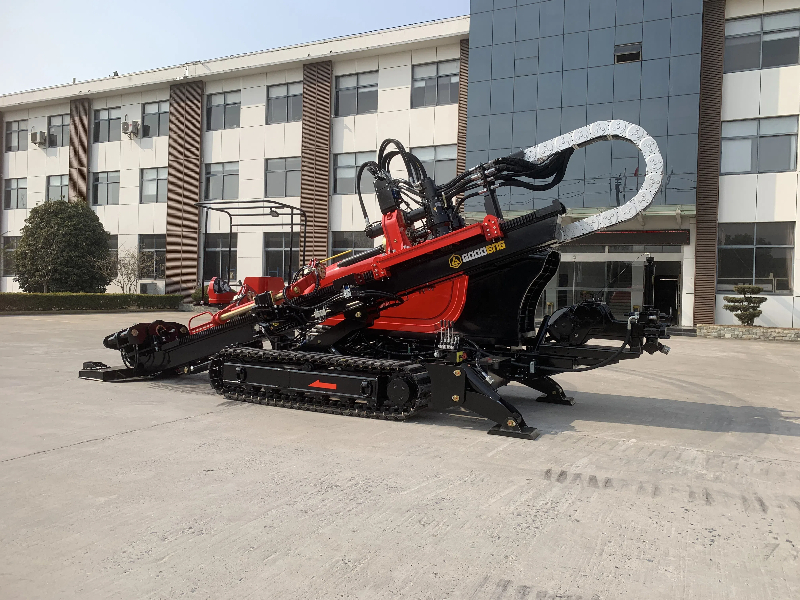

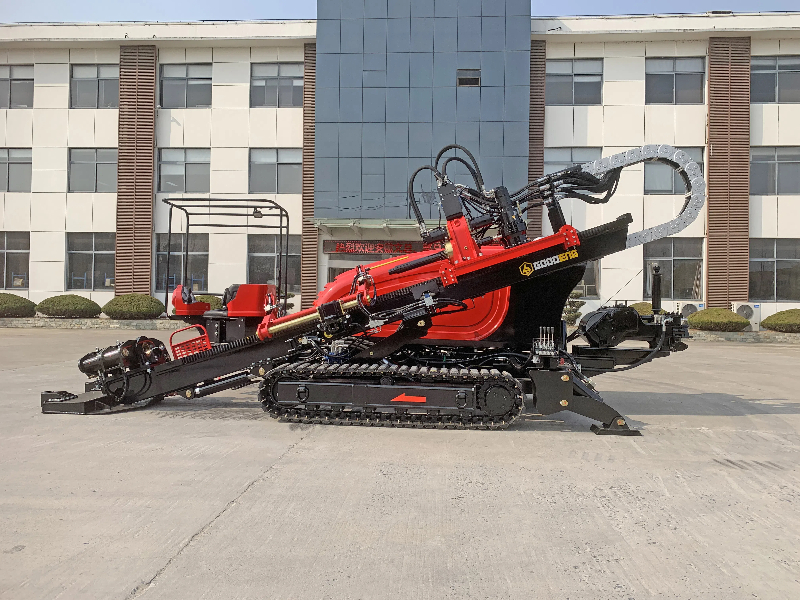

    Chinese Goodeng 32 Ton GS320-LS Horizonal Directional Pipe Boring Drilling Machine/Rig (High Cost-effective )

    Chinese Goodeng 32 Ton GS320-LS Horizonal Directional Pipe Boring Drilling Machine/Rig (High Cost-effective )

    1. Cumins engine .

    2. Rotation adopts Eaton large torque motor.

    3. Push & pull adopts American Eaton motor and Push & pull one-piece reducer with three gears speed regulation.

    4. Walking hydraulic driving device Steel track walks with double speed by wire-control.

    5. Panoramic open-air operating table.

    7. Equipped with φ73×3000 mm or φ76×3000mm drill rod.

    8. The driving head and rotation hydraulic system of driving head with Parallel control technology and hydraulic components,and independent cooling system

      Contact us

      Technical Parameter

      Weight 9700 kg 21385 lbs
      Dimension(LxWxH) 7300×2150×2250 mm 287×85×89 in
      Max.Thrust&Pullback Force 350/700 KN 78740/157480 lbf
      Max.Thrust&Pullback Speed 40 m/min 131 fpm
      Max.Torque 12600 N·m 9293 ft·lb
      Max.Rotation Speed 140 r/min 140 rpm
      Engine Power 153 kW 205 hp
      Max.Mud flow 320 L/min 84.5 gal/min
      Walking Speed 3.5-6 km/h 2.2-3.7 mph
      Max.Mud Pump Pressure 8 MPa 1160 psi
      Entry Angle 12°-22° 12°-22°
      Max.Climbing Gradient 18° 18°
      Drill Rod Size Φ73×3000 mm 2.8×118 in
      Drill Rad Box Capacity 36pcs(4x9) 36pcs(4x9)
      Suggest Reaming Dia. ≤Φ900 mm ≤35.4 in
      Suggest Crossing Length ≤400 m ≤15748 ft

      Product Introduction

      The Goodeng GS320-LS horizontal directional drill is a robust and efficient solution catering to all your drilling requirements.  GS320-LS is engineered to offer outstanding performance and dependability, thereby making it an ideal selection for diverse drilling applications.

      • The GS320-LS is equipped with cutting-edge technology and features that distinguish it from its rivals. With its considerable torque and pullback force, this machine can manage the most arduous drilling tasks effortlessly. Its sturdy construction and durable components guarantee long-term performance, rendering it a valuable investment for any drilling operation.
      • One of the primary highlights of the GS320-LS is its flexibility. Whether you are engaged in pipe installation, utility construction, or any other drilling project, this machine provides consistent and precise outcomes. Its user-friendly interface and intuitive controls render it effortless to operate, enabling you to optimize productivity and efficiency on the job site.
      低配主图3ui

      Main Configuration

      93em

      High-intensity anchor  plate,wire-controlled walking, two-speed adjustment.

      goodeng-hot-sale-32-ton-gs320-ls-horizontal-directional-drilling-machine (2)fra

      Three-speed adjustment for Thrust&pullback  (high speed, medium speed, low speed)

      4znz

      Standard Rotary Manipulator

      goodeng-hot-sale-32-ton-gs320-ls-horizontal-directional-drilling-machine (5)v5n

      First-line brand large flow  mud pump

      goodeng-hot-sale-32-ton-gs320-ls-horizontal-directional-drilling-machine (6)eu2

      Mud pump flow rate is adjustable

      85uh

      Multi-functional operating table
