Goodeng(Manufacturer) GS150-LS Trenchless No-dig HDD Horizontal Directional Drill/Bore Hydraulic Crawler Machine/Equipment Underground Under Road Pipeline Utility boring machine drillc

Goodeng(Manufacturer) GS150-LS Trenchless No-dig HDD Horizontal Directional Drill/Bore Hydraulic Crawler Machine/Equipment Underground Under Road Pipeline Utility boring machine drillc

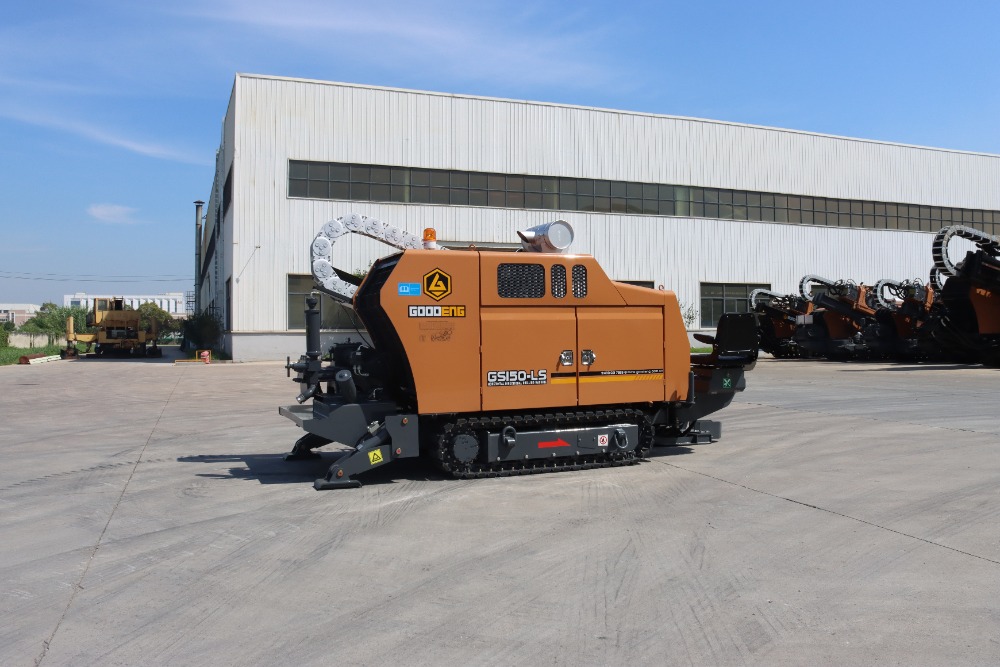

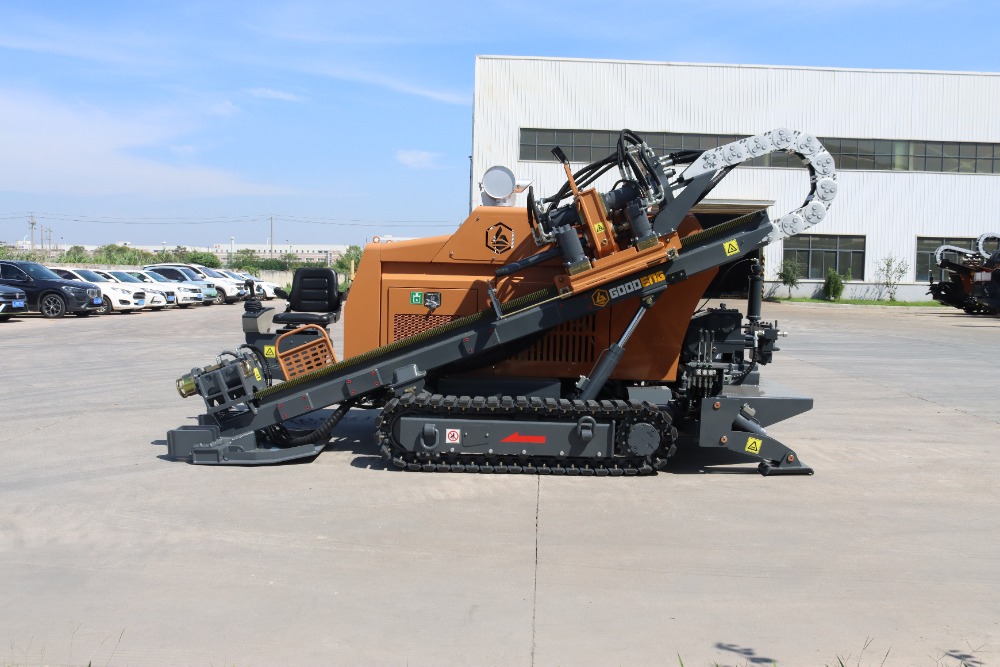

Introducing the compact and versatile walking rotary drilling rig from Shanghai Goodeng International Co., Ltd. Designed with a rubber crawler and wire-controlled walking system, this drilling rig offers 2-speed adjustable capabilities for maximum flexibility. The built-in mud system features a pump and jet nozzle for efficient operation, while the rotating operating seat provides ease of use for operators. Optional automatic features include a grease injector, rod-loading box, and hydraulic anchor, further enhancing the rig's capabilities. Ideal for downtown construction projects, this drilling rig boasts a compact design that is both efficient and effective. With innovative features and reliable performance, this drilling rig is a valuable addition to any construction project

    Technical Parameter

    Weight 9700 kg 21385 lb
    Max. Thrust & Pullback Force 350/700 KN 78683/157366 lb
    Max. Torque 12600 N·m 9293 ft·lb
    Engine power 153 kW 205 hp
    Walking speed 3.5-6 km/h 2.2-3.7 mph
    Entry Angle 12°-22° 12°-22°
    Drill Rod Size Φ73x3000 mm Φ2.8×118 in
    Suggest Reaming Dia. ≤900 mm ≤35.4 in

    Main Performance Characteristic

    The machine is equipped with Cummins engine, with high efficiency, large power and low fuel consumption.

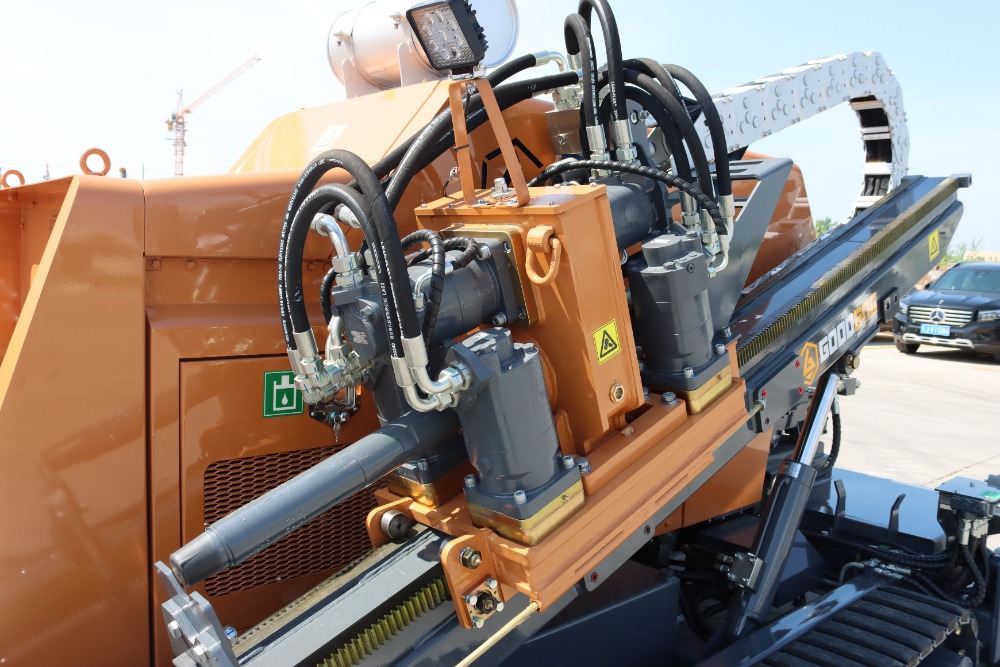

    • The thrust&pullback and rotation of the power head adopt American Eaton orbit motor, and the construction speed is far ahead in the drilling industry.
    • The thrust&pullback and rotation adopt hydraulic control handle, which is simple and fast to operate.

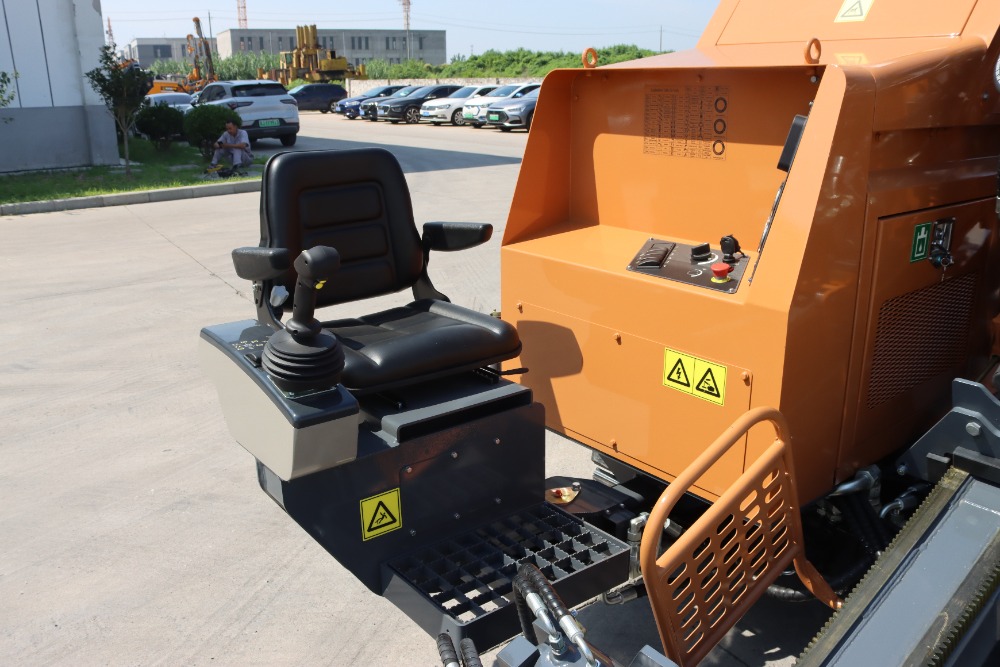

    • Humanized design of worktable: the seat can move back and forth, which improves the comfort of operators.
    • The outer cover and console are designed in iron streamline shape, with beautiful and generous appearance. The cover is equipped with hinged door, which can be opened, and the operation is flexible, which is convenient for daily maintenance;
    Goodeng Trenchless HDD Horizontal Directional DrillingBoringTunnelling MachineRig GS150-LS (1)u5f
    • The drilling rig is small in shape and light in weight. It is suitable for urban construction, transportation and transfer. It is flexible and convenient.
    • It can be equipped with Ф60×2000mm drill rod according to construction situation;
    • Main hydraulic components are from the international first-class hydraulic component manufacturers, which greatly improve the reliability of the product performance and safety.
    • Rack and pinion system is adopted for thrust&pullback, which is good for high efficiency, long life, stable working and convenient maintenance.

    Main Configuration

    Goodeng Trenchless HDD Horizontal Directional DrillingBoringTunnelling MachineRig GS150-LS (10)nid
    Goodeng Trenchless HDD Horizontal Directional DrillingBoringTunnelling MachineRig GS150-LS (11)fk9
    Goodeng Trenchless HDD Horizontal Directional DrillingBoringTunnelling MachineRig GS150-LS (12)knc
    Goodeng Trenchless HDD Horizontal Directional DrillingBoringTunnelling MachineRig GS150-LS (13)2rw
    Goodeng Trenchless HDD Horizontal Directional DrillingBoringTunnelling MachineRig GS150-LS (14)3se
    Goodeng Trenchless HDD Horizontal Directional DrillingBoringTunnelling MachineRig GS150-LS (15)0ue
